FIAT SEDICI 2007 2.G Manual Online

80
4WD LOCK INDICATOR LIGHT
(if equipped)NOTE
❒When the vehicle speed is increased,
the “4WD LOCK” mode will be
changed to the “4WD AUTO” mode
automatically. The “4WD AUTO” in-
dicator light will come on and stay on.
❒When the ignition switch is turned to
the “OFF” position, the “4WD LOCK”
mode is canceled.
For details of the “4WD LOCK” mode,
refer to “Using the 2WD/4WD Switch”
in the “OPERATING YOUR VEHICLE”
section.
IMPORTANT Do not operate your vehi-
cle in “4WD LOCK” mode on dry hard
surfaces. If the oil temperature of the parts for
4WD system is high, this light will blink.
The “4WD AUTO” or “4WD LOCK”
mode will be changed to the “2WD”
mode automatically to prevent a damage
of the parts for 4WD system.
For details, refer to “Using the 2WD/
4WD Switch” in the “OPERATING
YOUR VEHICLE” section.
NOTE If you restart the engine, the light
will stop blinking temporarily.
NOTE When the vehicle speed is in-
creased, the “4WD LOCK” mode will be
changed to the “4WD AUTO” mode au-
tomatically. The “4WD AUTO” indicator
light will come on and stay on.
79J100
When the ignition switch is turned to the
“ON” position, this light comes on briefly
so you can check that the light is working.
The light comes on when the 2WD/4WD
switch is changed to the “4WD LOCK”
mode from the “4WD AUTO” mode.
If the light and the “4WD AUTO” indi-
cator light stay on or come on simultane-
ously when driving, there may be some-
thing wrong with the 4WD system. Have
the system inspected by an authorized
Fiat Dealership.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 80

81
Odometer/Trip meter (Indication
of illumination intensity)
When the ignition switch is turned to
“ON”, the display shows the odometer or
trip meter. The odometer records the to-
tal distance the vehicle has been driven.
The trip meter can be used to measure
the distance traveled on short trips or be-
tween fuel stops.IMPORTANT Keep track of your odome-
ter reading and check the maintenance
schedule regularly for required services.
Increased wear or damage to certain parts
can result from failure to perform re-
quired services at the proper mileage in-
tervals. 1.Speedometer
2.Odometer/Trip meter (Indication of
illumination intensity)
3.Indication selector and meter illumi-
nation control knob
Speedometer
The speedometer indicates vehicle speed
in km/ h.
79J185
SPEEDOMETER/ODOMETER/TRIP METER/
METER ILLUMINATION CONTROL
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 81

82
When the ignition switch is turned to
“ON” and the lighting switch is turned to
the second or third position with the il-
lumination cancel switch in the OFF po-
sition, the display shows four types of in-
dication; odometer (A), tripmeter A(B),
tripmeter B(C) and indication of illumi-
nation intensity (D). Push the selector
knob (3) quickly to switch the indication
among the four. When the indication
shows (D), you can control the meter il-
lumination intensity. Refer to “Meter illu-
mination control” section below for de-
tails on how to dim or brighten the meter
illumination.
For details on how to use the illumination
cancel switch, refer to “Illumination Can-
cel Switch” in this section.To reset the trip meter to zero, hold in
the selector knob (3) for about 2 seconds. When the ignition switch is turned to
“ON” with the lighting switch is in the
“OFF” position, the display shows three
types of indication; odometer (A), trip
meter A(B) and trip meter B(C). Push
the selector knob (3) quickly to switch the
indication among the three.
(3) (A) (B)
(C)
65D603
(3) (A) (B)
(C) (D)
65D532
(3)
65D481
About 2 seconds
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 82

83
TACHOMETER
The tachometer indicates engine speed in
revolutions per minute.
Meter illumination control
When the display shows the indication of
illumination intensity (D), you can dim or
brighten the meter illumination.
To change the meter illumination bright-
ness, continue to hold in the selector knob
(3). The indication will change as shown in
the illustration. The illumination gets dim-
mer then returns to the brightest condi-
tion after it reaches the dimmest.(3)
81A263
(Brightest)
Continue to press
(Dimmest)
79J137
Never drive with the engine
speed indicator in the red
zone or severe engine damage can re-
sult.
WARNING
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 83

84
TEMPERATURE GAUGE/
OVERHEAT INDICATOR
LIGHT (for Diesel
Engine Model)
When the ignition switch is in the “ON”
position, this gauge indicates the engine
coolant temperature. Under normal dri-
ving conditions, the indicator should stay
within the normal, acceptable temperature
range between “H” and “C”. If the indi-
cator approaches “H” (or the overheat in-
dicator light (1) (if equipped) comes on),
overheating is indicated. Follow the in-
structions for engine overheating in the
“EMERGENCY SERVICE” section.
IMPORTANT Continuing to drive the ve-
hicle when engine overheating is indicat-
ed can result in severe engine damage.
FUEL GAUGE
When the ignition switch is in the “ON”
position, this gauge gives an approximate
indication of the amount of fuel in the fu-
el tank. “F” stands for full and “E” stands
for empty.
If the indicator gets off the graduation of
“E” (not character “E”), refill the tank as
soon as possible.
If the low fuel warning light (1) comes on,
fill the fuel tank immediately.
The mark (2) indicates that the fuel filler
door is located on the left side of the ve-
hicle.
NOTE The activation point of the low fu-
el warning light (1) varies depending on
road conditions (for example, slope or
curve) and driving conditions because of
fuel moving in the tank.
(1) (2)
79J102
(1)
79J135
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 84

85
HAZARD WARNING
SWITCH
Push in the hazard warning switch to ac-
tivate the hazard warning lights. All four
turn signal lights and both turn signal in-
dicators will flash simultaneously. To turn
off the lights, push the switch again.
Use the hazard warning lights to warn oth-
er traffic during emergency parking or
when your vehicle could otherwise be-
come a traffic hazard.
79J041
79J180
“ESP OFF” SWITCH
(if equipped)
ESP®is a registered trademark of Daim-
lerChrysler AG.
The “ESP OFF” switch is located on the
center console. You can turn the ESP
®sys-
tems (other than ABS) on or off using this
switch.
To turn off the ESP
®systems (other than
ABS), push and hold the “ESP OFF” switch
until the “ESP OFF” indicator light comes
on.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 85

86
79J042

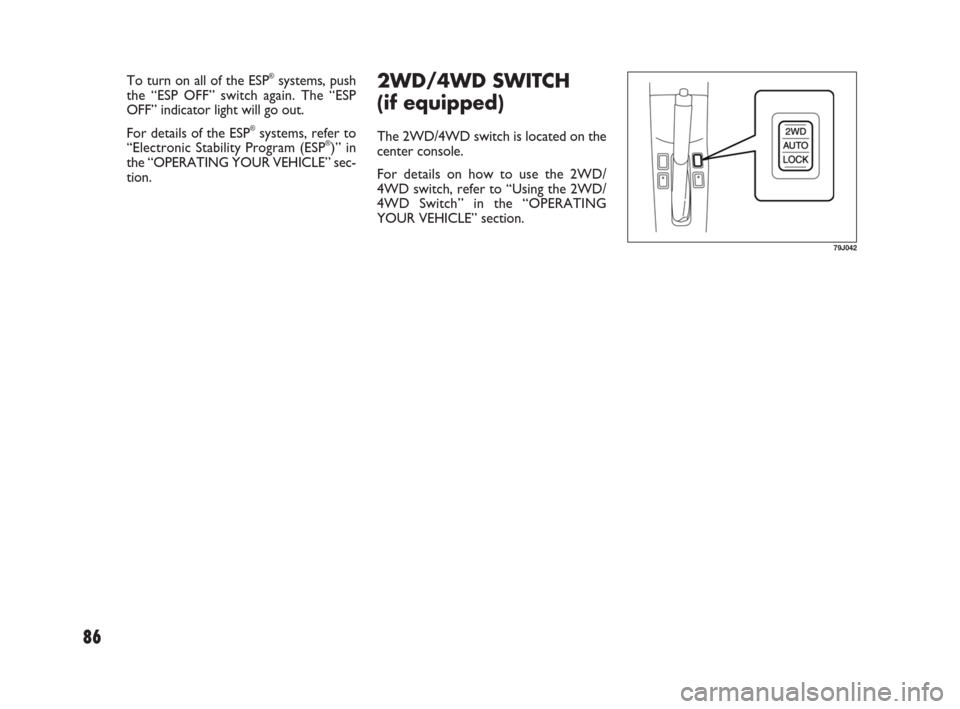

2WD/4WD SWITCH
(if equipped)
The 2WD/4WD switch is located on the
center console.
For details on how to use the 2WD/
4WD switch, refer to “Using the 2WD/
4WD Switch” in the “OPERATING
YOUR VEHICLE” section. To turn on all of the ESP
®systems, push
the “ESP OFF” switch again. The “ESP
OFF” indicator light will go out.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in
the “OPERATING YOUR VEHICLE” sec-
tion.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 86

87

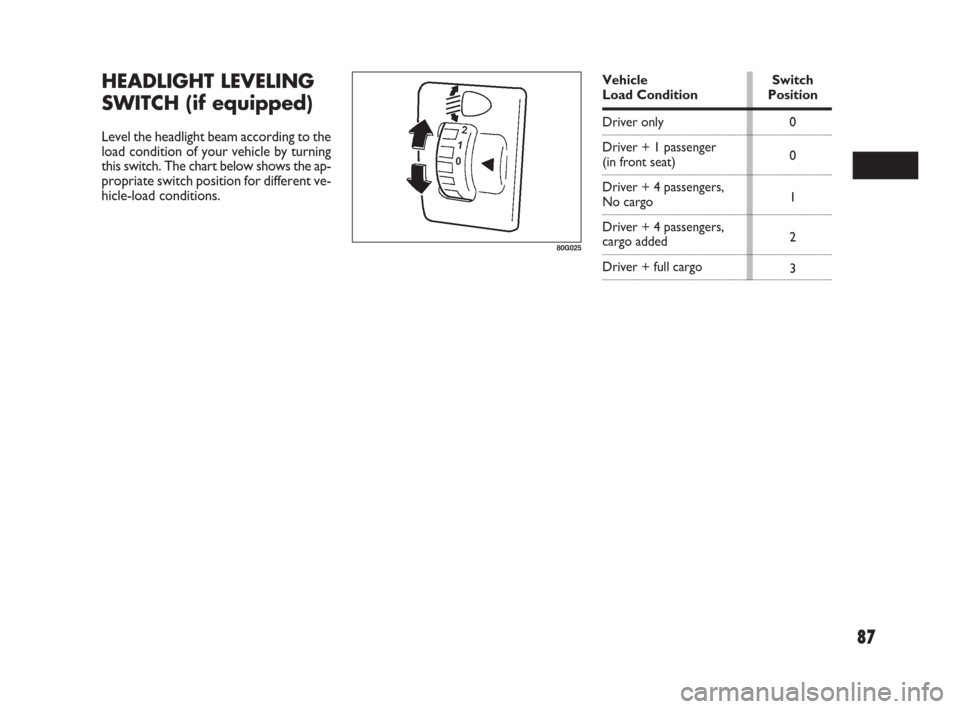

HEADLIGHT LEVELING
SWITCH (if equipped)
Level the headlight beam according to the
load condition of your vehicle by turning
this switch. The chart below shows the ap-
propriate switch position for different ve-
hicle-load conditions.
80G025
Vehicle Load Condition
Driver only
Driver + 1 passenger
(in front seat)
Driver + 4 passengers,
No cargo
Driver + 4 passengers,
cargo added
Driver + full cargoSwitch
Position
0
0
1
2
3
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 87

88
If the driver’s outside rearview mirror has
the mark (2), it is also equipped with the
heated outside rearview mirrors. When
you push the switch (1), both the heated
outside rearview mirrors and the heated
rear window will operate simultaneously.
An indicator light will be lit when the de-
fogger is on. The defogger will work only
when the engine is running. To turn off the
defogger, push the switch again.
NOTE This device is regulated by a timer,
after 15 minutes it deactivates automati-
cally to preserve the battery charge.
IMPORTANT The heated rear window
and the heated outside rearview mirrors
(if equipped) use a large amount of elec-
tricity. Be sure to turn off after the win-
dow and mirrors have become clear.
HEATED REAR
WINDOWAND HEATED
OUTSIDE REARVIEW
MIRRORS (if equipped)
SWITCH
When the rear window is frosted it is suf-
ficient, with the engine started, to press
the button (1) to defrost it.
79J043
(1)
79J119
Type 1
Type 2
(2)
79J044
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 88

89

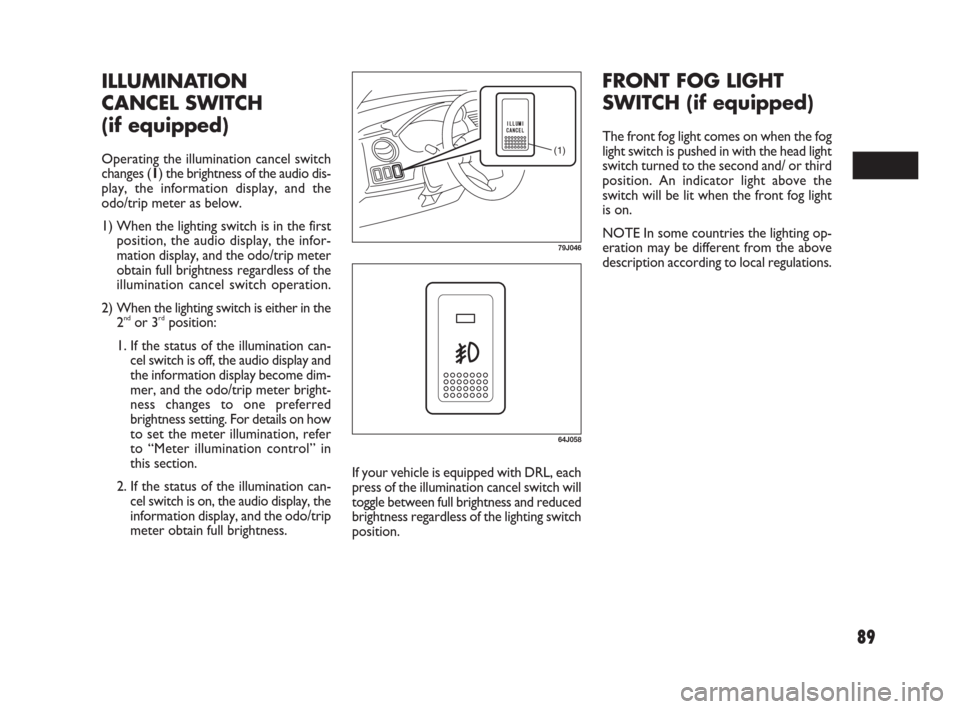

FRONT FOG LIGHT
SWITCH (if equipped)
The front fog light comes on when the fog
light switch is pushed in with the head light
switch turned to the second and/ or third
position. An indicator light above the
switch will be lit when the front fog light
is on.
NOTE In some countries the lighting op-
eration may be different from the above
description according to local regulations.
ILLUMINATION
CANCEL SWITCH
(if equipped)
Operating the illumination cancel switch
changes (1) the brightness of the audio dis-
play, the information display, and the
odo/trip meter as below.
1) When the lighting switch is in the first
position, the audio display, the infor-
mation display, and the odo/trip meter
obtain full brightness regardless of the
illumination cancel switch operation.
2) When the lighting switch is either in the
2
ndor 3rdposition:
1. If the status of the illumination can-
cel switch is off, the audio display and
the information display become dim-
mer, and the odo/trip meter bright-
ness changes to one preferred
brightness setting. For details on how
to set the meter illumination, refer
to “Meter illumination control” in
this section.
2. If the status of the illumination can-
cel switch is on, the audio display, the
information display, and the odo/trip
meter obtain full brightness.
(1)
79J046
64J058
If your vehicle is equipped with DRL, each
press of the illumination cancel switch will
toggle between full brightness and reduced
brightness regardless of the lighting switch
position.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 89
