FIAT SEDICI 2007 2.G Owners Manual

1
This Owner Handbook describes all Fiat SEDICI versions. As a consequence, you should consider only the
information which is related to the engine and bodywork version of the vehicle you purchased.
Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat SEDICI.
We have written this handbook to help you get to know all your new vehicle features and use it in the best possible way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your vehicle to help you derive the maximum from
your Fiat SEDICI technological features.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat Customers.
Best regards and good motoring!
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 1

2
By choosing Fiat original spare parts (re-
conditioned and non re-conditioned) you
can rely on a rapid and efficient service
provided by skilled operators, on good
equipment and a wide range of parts.
The Fiat Dealership uses Fiat original spare
parts and re-conditioned spare parts.FIAT RE-CONDITIONED
SPARE PARTS
They are Fiat original spare parts/me-
chanical assemblies, already used but giv-
en back to Fiat, which renews them com-
pletely to meet the same qualitative and
reliability requirements of the newly orig-
inal spare parts.
Fiat re-conditioned spare parts:
❒give the Customers the opportunity to
buy spare mechanical assemblies (en-
gines, transmissions, etc.) at particular-
ly favourable prices;
❒contribute to safeguard the environ-
ment by reducing scrapping operations
and the disposal of removed materials. FIAT ORIGINAL SPARE PARTS
These spare parts ensure the reliability
and technological quality needed to trav-
el safely. Designed on the basis of the same
project of the components fitted on the
vehicle, the original spare parts undergo
very harsh tests before being produced or
re-conditioned, with the aim of being used
to keep the vehicle performance un-
changed in time.
Therefore, for an accurate and careful
maintenance, choose Fiat original spare
parts (re-conditioned and non re-condi-
tioned), which can be identified by the fea-
tures of their package and which are avail-
able only at the Fiat Dealership.
FIAT ORIGINAL SPARE PARTS AND FIAT RE-CONDITIONED SPARE PARTS
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 2

3

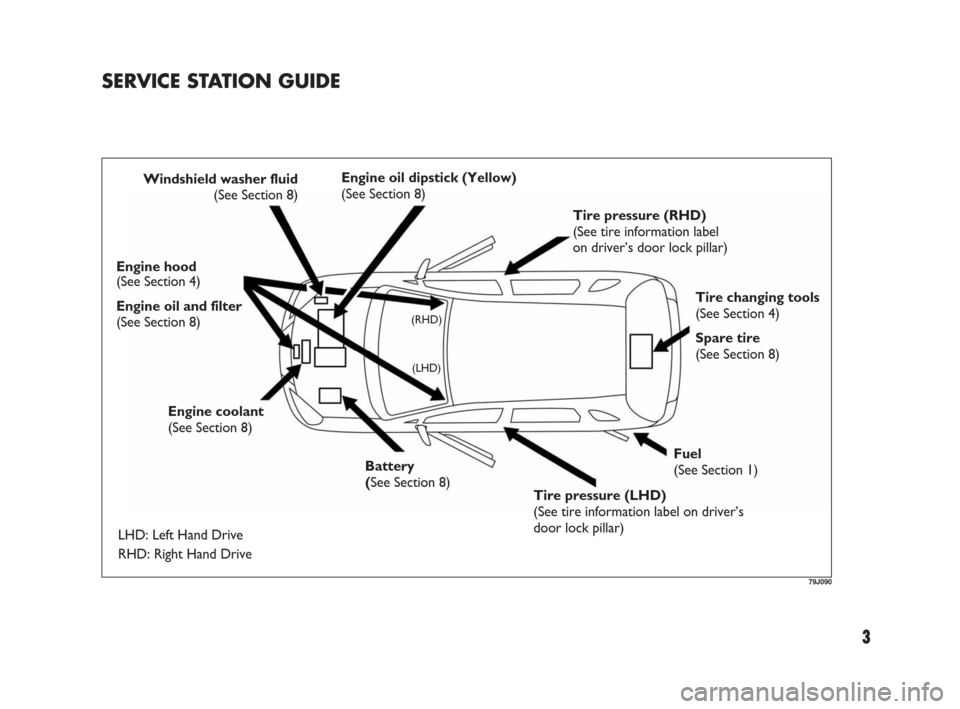

SERVICE STATION GUIDE
79J090
Windshield washer fluid
(See Section 8)Engine oil dipstick (Yellow)
(See Section 8)
Tire pressure (RHD)
(See tire information label
on driver’s door lock pillar)
Tire changing tools
(See Section 4)
Spare tire
(See Section 8)
Fuel
(See Section 1)
Tire pressure (LHD)
(See tire information label on driver’s
door lock pillar) Battery
(See Section 8) Engine coolant
(See Section 8) Engine hood
(See Section 4)
Engine oil and filter
(See Section 8)
LHD: Left Hand Drive
RHD: Right Hand Drive
(RHD)
(LHD)
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 3

4
BATTERY LABEL SYMBOL MEANINGS
79J001
No smoking, no naked flames,
no sparks
Shield eyesKeep away from children
Battery acidNote operating instructions
Explosive gas
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 4

5
All information in this manual is based on
the latest product information available at
the time of publication. Due to improve-
ments or other changes, there may be dis-
crepancies between information in this
manual and your vehicle. Fiat reserves the
right to make production changes at any
time, without notice and without incurring
any obligation to make the same or simi-
lar changes to vehicles previously built or
sold.
This vehicle may not comply with stan-
dards or regulations of other countries.
Before attempting to register this vehicle
in any other country, check all applicable
regulations and make any necessary mod-
ifications.IMPORTANT
Please read this manual and follow its in-
structions carefully. To emphasize special
information, the symbol
"and the words
WARNING, IMPORTANT and NOTE
have special meanings. These special
meanings apply except when laws or reg-
ulations require that the signal words be
used with a different meaning.
Pay special attention to the messages high-
lighted by these signal words:
FOREWORD
This manual should be considered a per-
manent part of the vehicle and should re-
main with the vehicle when resold or oth-
erwise transferred to a new owner or op-
erator. Please read this manual carefully
before operating your new Fiat and review
the manual from time to time. It contains
important information on safety, opera-
tion and maintenance.
Indicates a potential hazard
that could result in death or
injury.
WARNING
IMPORTANT Indicates a potential hazard
that could result in vehicle damage.
NOTE Indicates special information to
make maintenance easier or instructions
clearer.
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 5

6
IMPORTANT Improper installation of
mobile communication equipment such as
cellular telephones or CB (Citizen’s Band)
radios may cause electronic interference
with your vehicle’s ignition system, re-
sulting in vehicle performance problems.
Consult your Fiat Dealership or qualified
service technician for advice on installing
such mobile communication equipment.

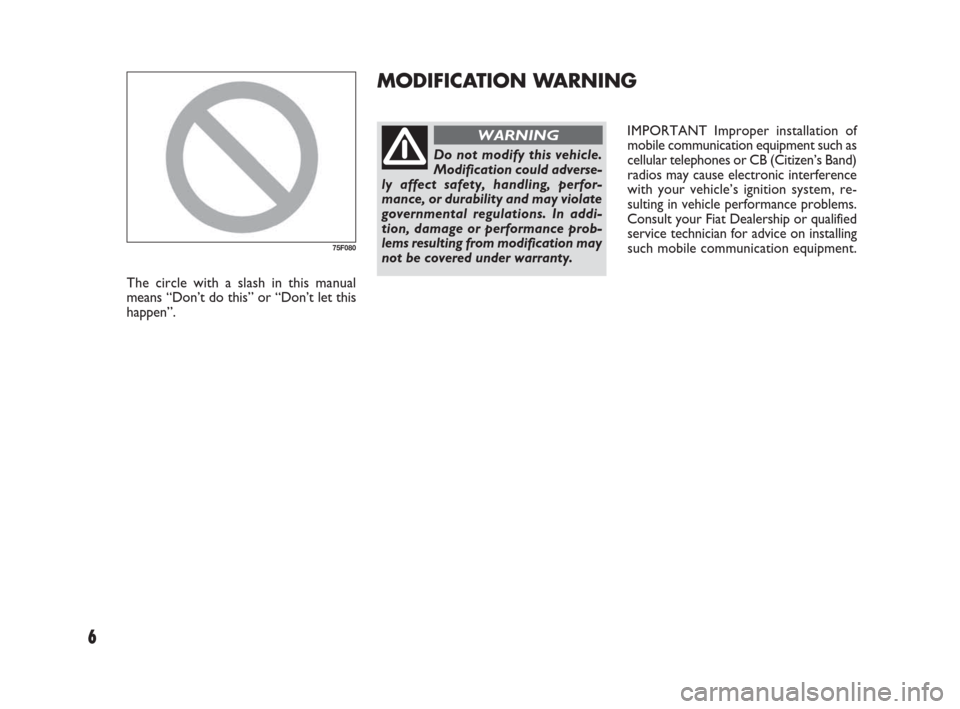

The circle with a slash in this manual
means “Don’t do this” or “Don’t let this
happen”.
MODIFICATION WARNING
Do not modify this vehicle.
Modification could adverse-
ly affect safety, handling, perfor-
mance, or durability and may violate
governmental regulations. In addi-
tion, damage or performance prob-
lems resulting from modification may
not be covered under warranty.
WARNING
75F080
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 6

BEFORE DRIVING
STEERING COLUMN CONTROLS
INSTRUMENT PANEL
OTHER CONTROLS AND EQUIPMENT
OPERATING YOUR VEHICLE
DRIVING TIPS
VEHICLE LOADING AND TOWING
INSPECTION AND MAINTENANCE
EMERGENCY SERVICE
BODY WORK CARE
GENERAL INFORMATION
TECHNICAL SPECIFICATIONS
SUPPLEMENT
INDEXT T
A A
B B
L L
E E
O O
F F
C C
O O
N N
T T
E E
N N
T T
S S1
2
3
4
5
6
7
8
9
10
11
12
13
14
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 7

Page left blank voluntarily.
001-008 Fiat16 New GB 27-11-2007 11:24 Pagina 8

9
B B
E E
F F
O O
R R
E E
D D
R R
I I
V V
I I
N N
G G
60G404

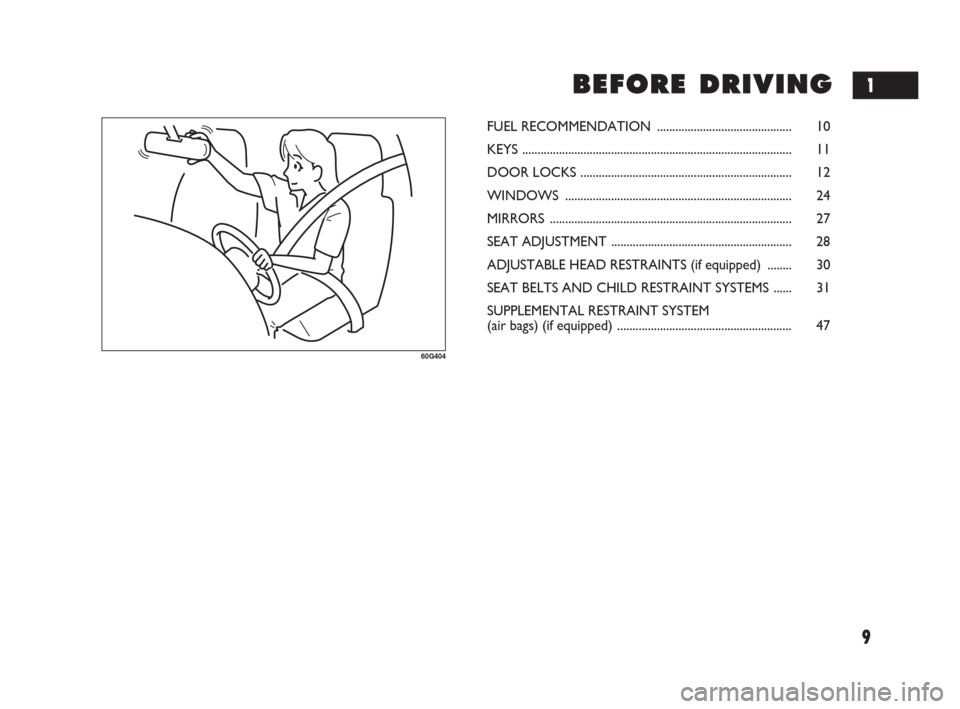

FUEL RECOMMENDATION ............................................ 10
KEYS ........................................................................................ 11
DOOR LOCKS ..................................................................... 12
WINDOWS .......................................................................... 24
MIRRORS ............................................................................... 27
SEAT ADJUSTMENT ........................................................... 28
ADJUSTABLE HEAD RESTRAINTS (if equipped) ........ 30
SEAT BELTS AND CHILD RESTRAINT SYSTEMS ...... 31
SUPPLEMENTAL RESTRAINT SYSTEM
(air bags) (if equipped) ......................................................... 47
1
