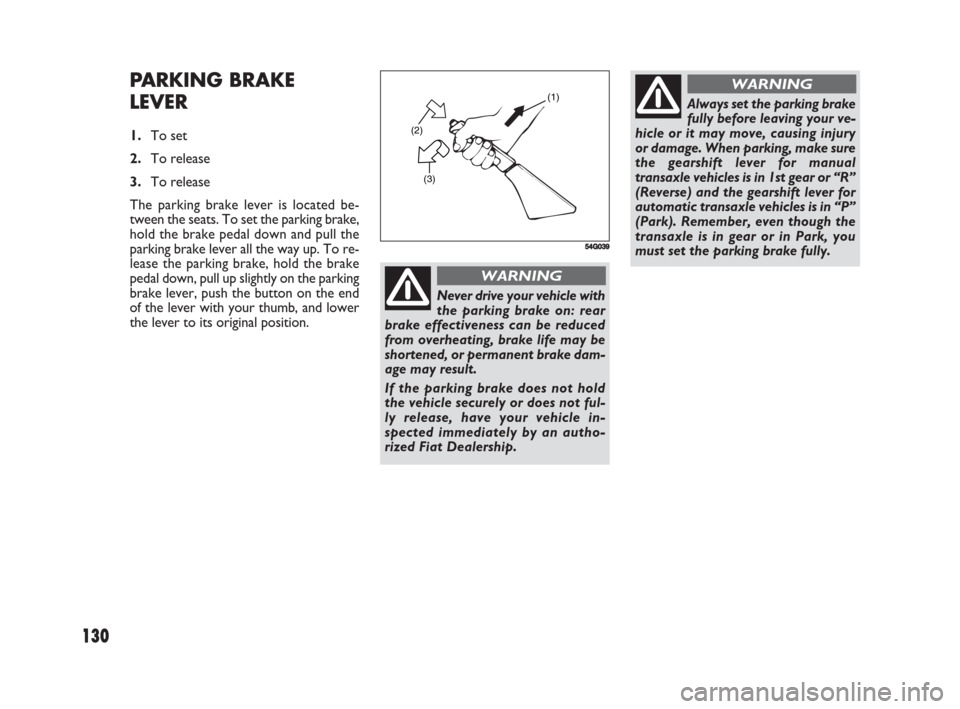

PARKING BRAKE
LEVER
1.To set
2.To release
3.To release
The parking brake lever is located be-
tween the seats. To set the parking brake,
hold the brake pedal down and pull the
parking brake lever all the way up. To re-
lease the parking brake, hold the brake
pedal down, pull up slightly on the parking
brake lever, push the button on the end
of the lever with your thumb, and lower
the lever to its original position.(2)
(3)(1)
54G039
Never drive your vehicle with
the parking brake on: rear
brake effectiveness can be reduced
from overheating, brake life may be
shortened, or permanent brake dam-
age may result.
If the parking brake does not hold
the vehicle securely or does not ful-
ly release, have your vehicle in-
spected immediately by an autho-
rized Fiat Dealership.
WARNING
Always set the parking brake
fully before leaving your ve-
hicle or it may move, causing injury
or damage. When parking, make sure
the gearshift lever for manual
transaxle vehicles is in 1st gear or “R”
(Reverse) and the gearshift lever for
automatic transaxle vehicles is in “P”
(Park). Remember, even though the
transaxle is in gear or in Park, you
must set the parking brake fully.
WARNING
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 130
Page 132 of 266

131

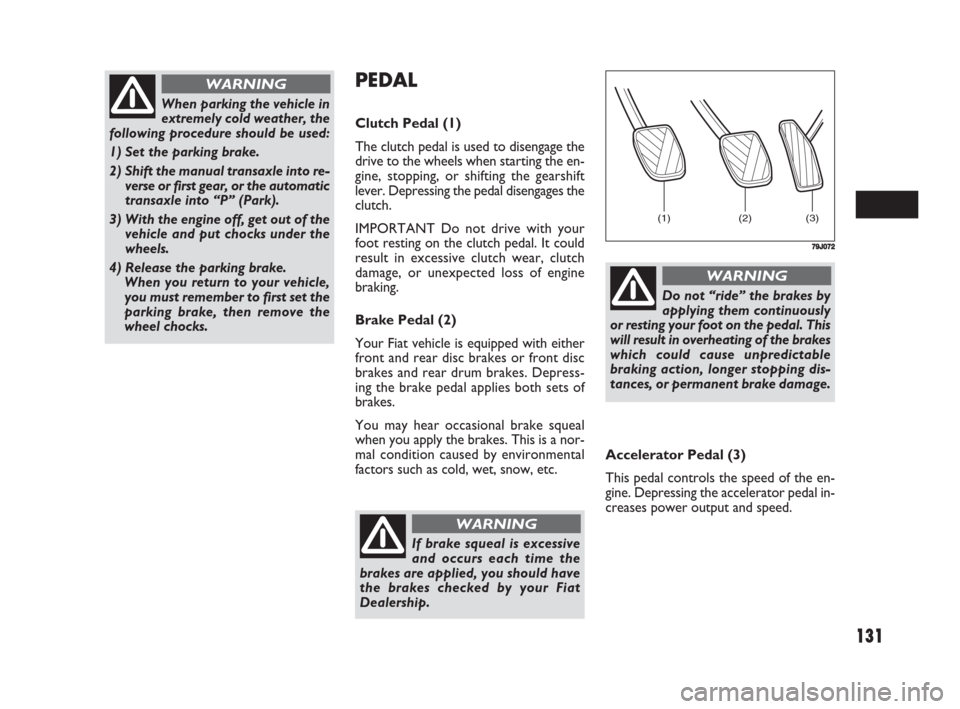

PEDAL
Clutch Pedal (1)
The clutch pedal is used to disengage the
drive to the wheels when starting the en-
gine, stopping, or shifting the gearshift
lever. Depressing the pedal disengages the
clutch.
IMPORTANT Do not drive with your
foot resting on the clutch pedal. It could
result in excessive clutch wear, clutch
damage, or unexpected loss of engine
braking.
Brake Pedal (2)
Your Fiat vehicle is equipped with either
front and rear disc brakes or front disc
brakes and rear drum brakes. Depress-
ing the brake pedal applies both sets of
brakes.
You may hear occasional brake squeal
when you apply the brakes. This is a nor-
mal condition caused by environmental
factors such as cold, wet, snow, etc.Accelerator Pedal (3)
This pedal controls the speed of the en-
gine. Depressing the accelerator pedal in-
creases power output and speed.
When parking the vehicle in
extremely cold weather, the
following procedure should be used:
1) Set the parking brake.
2) Shift the manual transaxle into re-
verse or first gear, or the automatic
transaxle into “P” (Park).
3) With the engine off, get out of the
vehicle and put chocks under the
wheels.
4) Release the parking brake.
When you return to your vehicle,
you must remember to first set the
parking brake, then remove the
wheel chocks.
WARNING
(1) (2) (3)
79J072
If brake squeal is excessive
and occurs each time the
brakes are applied, you should have
the brakes checked by your Fiat
Dealership.
WARNING
Do not “ride” the brakes by
applying them continuously
or resting your foot on the pedal. This
will result in overheating of the brakes
which could cause unpredictable
braking action, longer stopping dis-
tances, or permanent brake damage.
WARNING
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 131
Page 133 of 266

132
FUEL FILLER CAP
The fuel filler cap is located on the left rear
side of the vehicle. The fuel filler lid can be
unlocked by pulling up the opener lever lo-
cated on the outboard side of the driver’s
seat and locked by simply closing the lid.
GEARSHIFT LEVER
Your vehicle is equipped with a manual
transaxle. The gearshift lever is shown. For
details on how to use the transaxle, re-
fer to “Using the Transaxle” in the “OP-
ERATING YOUR VEHICLE” section.
63J051
Remove the fuel filler cap
slowly. The fuel may be un-
der pressure and may spray out, caus-
ing injury.
WARNING
Gasoline is extremely flam-
mable. Do not smoke when
refueling, and make sure there are no
open flames or sparks in the area.
WARNING
To change gears properly
you must push the clutch
pedal fully down. It is therefore es-
sential that there is nothing under the
pedals: make sure the mats are lying
flat and do not get in the way of the
pedals.
WARNING
IMPORTANT Do not drive with your
hand resting on the gear lever as the force
exerted, even if slight, could lead over time
to premature wear on the gearbox inter-
nal components.
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 132
Page 134 of 266

133

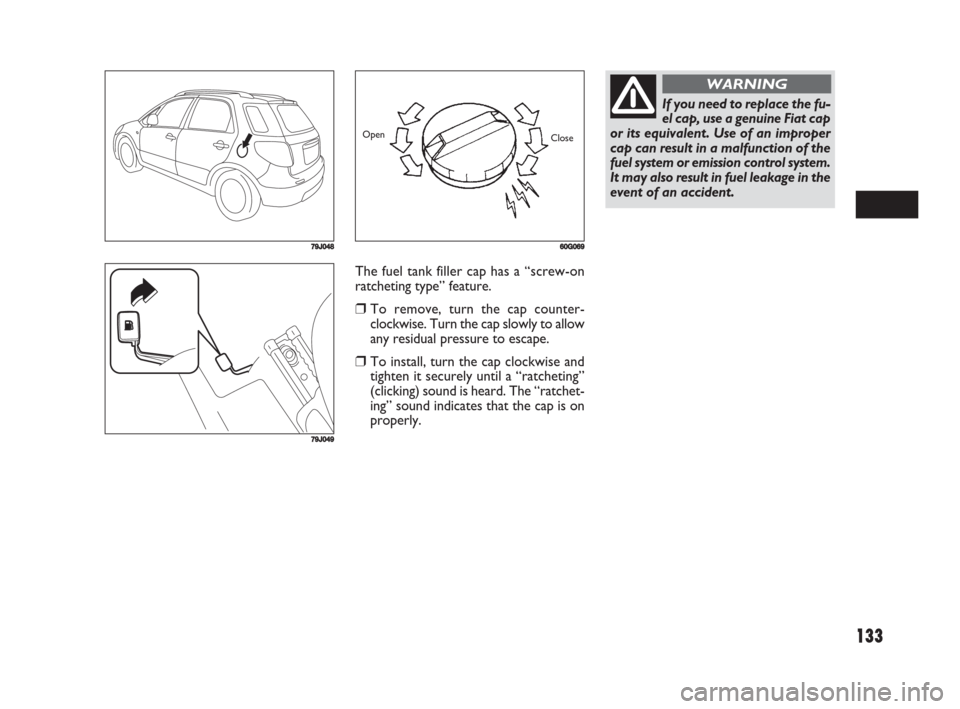

The fuel tank filler cap has a “screw-on
ratcheting type” feature.
❒To remove, turn the cap counter-
clockwise. Turn the cap slowly to allow
any residual pressure to escape.
❒To install, turn the cap clockwise and
tighten it securely until a “ratcheting”
(clicking) sound is heard. The “ratchet-
ing” sound indicates that the cap is on
properly.
79J048
79J049
60G069
Open
Close
If you need to replace the fu-
el cap, use a genuine Fiat cap
or its equivalent. Use of an improper
cap can result in a malfunction of the
fuel system or emission control system.
It may also result in fuel leakage in the
event of an accident.
WARNING
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 133
Page 135 of 266

134
❒Stow the seat belt buckles of the cen-
ter and right seating position as shown
in the illustration.
IMPORTANT When you fold the rear
seatback forward, stow the seat belt buck-
les of the center and right seating position
into the seat first. This helps prevent be-
ing caught by the seat and being damaged.❒Lower the adjustable head restraint
fully.
❒Pull the release lever on the top of each
split seat, and fold the seatbacks for-
ward.
❒Pull the lock release strap (1) rearward
to unlatch the seat cushion.

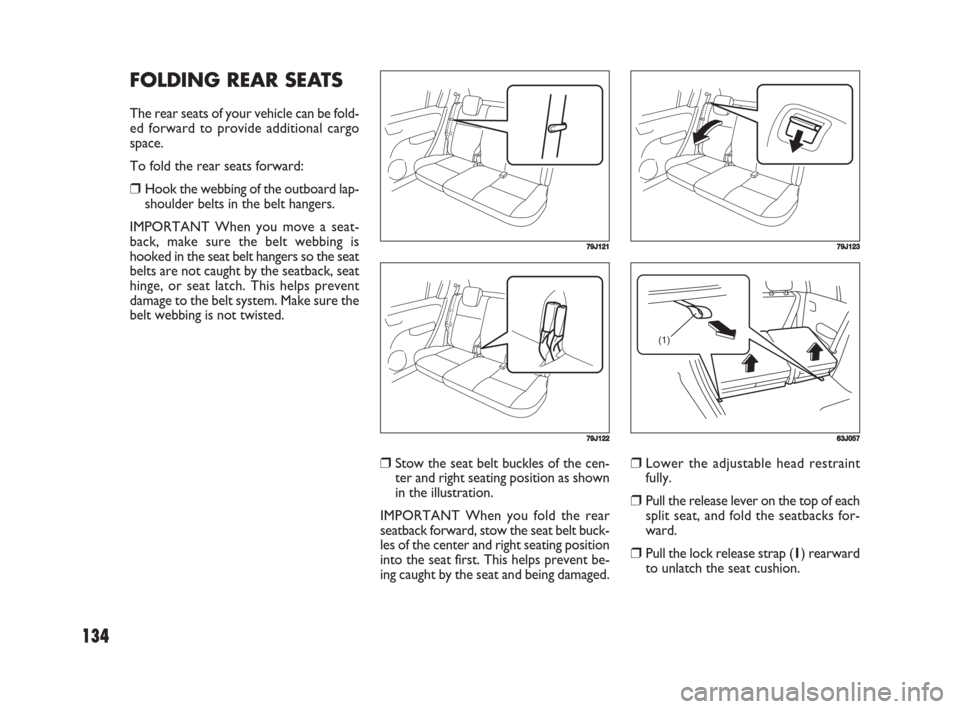

FOLDING REAR SEATS
The rear seats of your vehicle can be fold-
ed forward to provide additional cargo
space.
To fold the rear seats forward:
❒Hook the webbing of the outboard lap-
shoulder belts in the belt hangers.
IMPORTANT When you move a seat-
back, make sure the belt webbing is
hooked in the seat belt hangers so the seat
belts are not caught by the seatback, seat
hinge, or seat latch. This helps prevent
damage to the belt system. Make sure the
belt webbing is not twisted.
79J121
79J122
(1)
63J057
79J123
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 134
Page 136 of 266

135

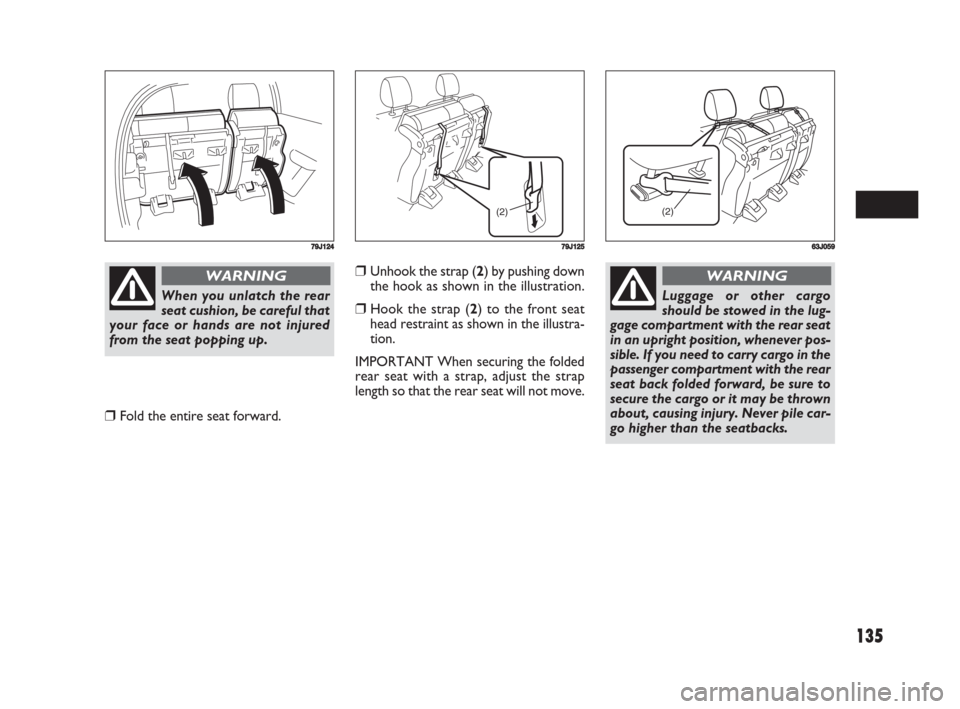

❒Unhook the strap (2) by pushing down
the hook as shown in the illustration.
❒Hook the strap (2) to the front seat
head restraint as shown in the illustra-
tion.
IMPORTANT When securing the folded
rear seat with a strap, adjust the strap
length so that the rear seat will not move.
❒Fold the entire seat forward.
79J124
(2)
79J125
(2)
63J059
When you unlatch the rear
seat cushion, be careful that
your face or hands are not injured
from the seat popping up.
WARNING
Luggage or other cargo
should be stowed in the lug-
gage compartment with the rear seat
in an upright position, whenever pos-
sible. If you need to carry cargo in the
passenger compartment with the rear
seat back folded forward, be sure to
secure the cargo or it may be thrown
about, causing injury. Never pile car-
go higher than the seatbacks.
WARNING
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 135
Page 137 of 266

136
❒Pull down the seat cushion until it locks
into place.IMPORTANT When returning the rear
seat cushion to the normal position, make
sure that there is nothing around the strik-
er. This prevents the seat cushion from
being locked securely. When returning the
rear seat cushion to the normal position,
make sure that there is nothing under the
seat cushion. This prevents damage to the
seat cushion.
❒Raise the seatback until it locks into
place.
After returning the seat, try moving the
seat and seatback to make sure they are
securely latched. To return the seat to the normal position,

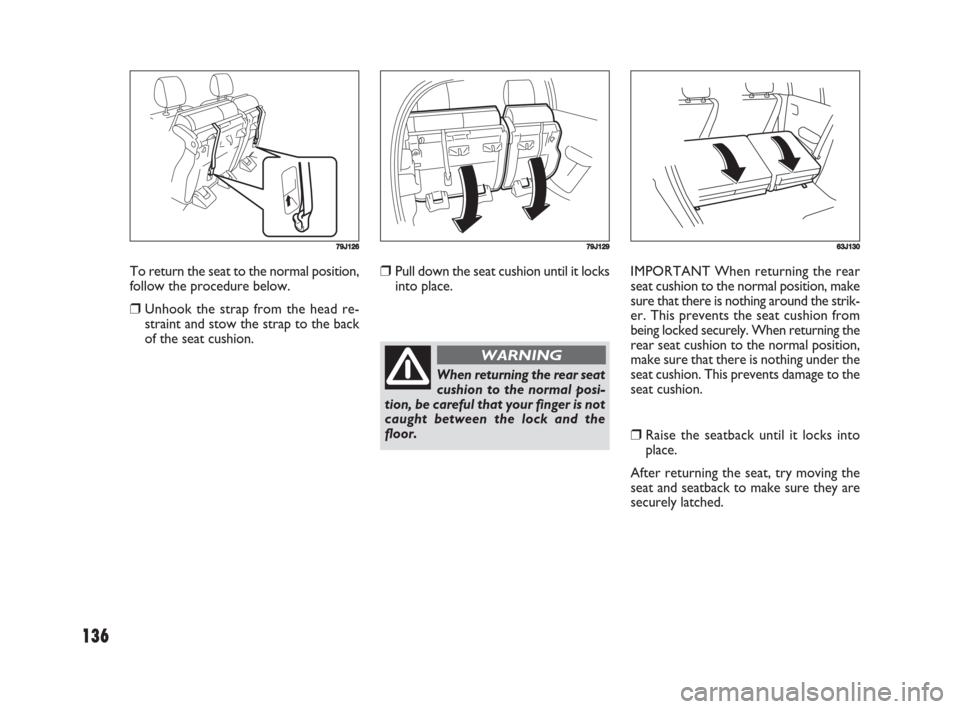

follow the procedure below.
❒Unhook the strap from the head re-
straint and stow the strap to the back
of the seat cushion.
79J12679J12963J130
When returning the rear seat
cushion to the normal posi-
tion, be careful that your finger is not
caught between the lock and the
floor.
WARNING
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 136
Page 138 of 266

137

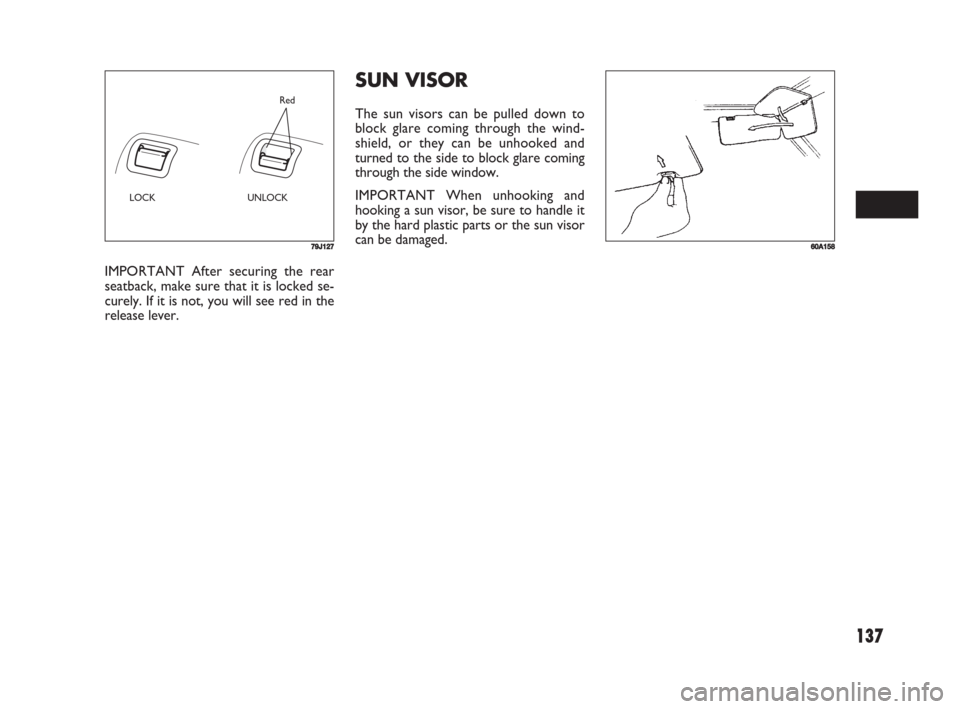

SUN VISOR
The sun visors can be pulled down to
block glare coming through the wind-
shield, or they can be unhooked and
turned to the side to block glare coming
through the side window.
IMPORTANT When unhooking and
hooking a sun visor, be sure to handle it
by the hard plastic parts or the sun visor
can be damaged.
IMPORTANT After securing the rear
seatback, make sure that it is locked se-
curely. If it is not, you will see red in the
release lever.
60A15879J127
LOCK UNLOCKRed
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 137
Page 139 of 266

138
NOTE The number of doors involved in
the lighting operation of the interior light
depends on the vehicle specification. If
there is a switch (rubber projection) at the
door opening as shown, the door is in-
volved in the lighting operation.
SPOT LIGHT
(if equipped)
Push the switch to turn on the light and
push it again to turn off the light.

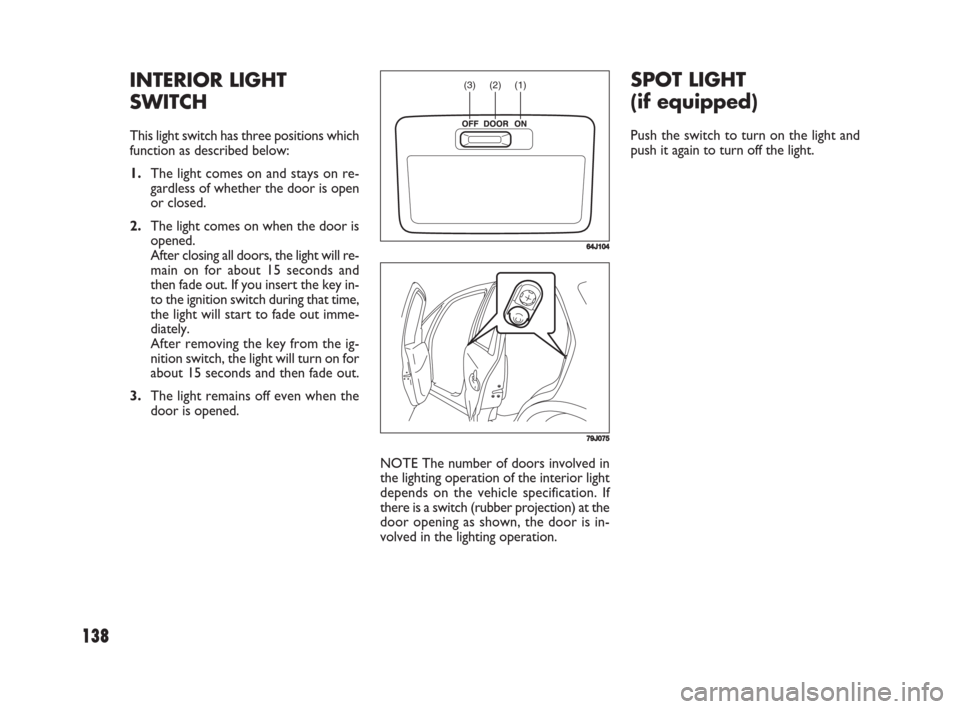

INTERIOR LIGHT
SWITCH
This light switch has three positions which
function as described below:
1.The light comes on and stays on re-
gardless of whether the door is open
or closed.
2.The light comes on when the door is
opened.
After closing all doors, the light will re-
main on for about 15 seconds and
then fade out. If you insert the key in-
to the ignition switch during that time,
the light will start to fade out imme-
diately.
After removing the key from the ig-
nition switch, the light will turn on for
about 15 seconds and then fade out.
3.The light remains off even when the
door is opened.
(1) (2) (3)
64J104
79J075
129-148 Fiat16 New GB 3-09-2008 8:16 Pagina 138
Page 140 of 266

139

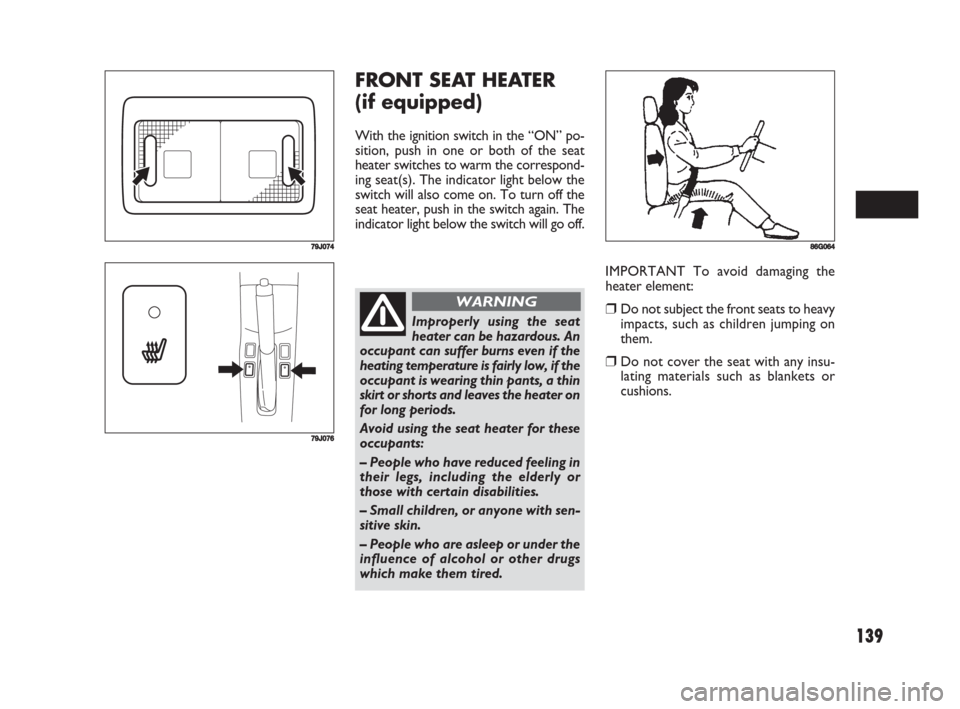

FRONT SEAT HEATER
