Replacement of the battery
If the transmitter/ remote controller be-
comes unreliable, replace the battery.
To replace the battery for the
transmitter of the keyless entry
❒Remove the screw (1), and open the
transmitter cover.
❒Remove the transmitter (2). Type 1
The Keyless Entry System, Transmitter
model TS002 and Receiver model R62J1
or R51K0 are in compliance with the es-
sential requirements and other provisions
of Directive 1999/5/EC.
Type 2
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
IMPORTANT The transmitter/remote
controller is a sensitive electronic instru-
ment. To avoid damaging the transmit-
ter/remote controller:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the transmitter/remote con-
troller away from magnetic objects
such as a television.
(1)
(2)
81A185
NOTE
❒The maximum operating distance is
about 5 meter (16 ft.), but this can vary
depending on the surroundings, espe-
cially near other transmitting devices
such as radio towers or CB (Citizen’s
Band) radios.
❒The door locks can not be operated
with the transmitter/ remote con-
troller:
– if the ignition switch is in a position
other than “LOCK” or the ignition
key is inserted in the ignition switch,
or
– if any door is open or incompletely
closed.
❒If you lose your transmitter/ remote
controller, ask your Fiat Dealership as
soon as possible for a replacement and
to have the lost one deactivated.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 20
Page 22 of 266
21
❒Put the edge of a coin or a flat blade
screw driver in the slot of the trans-
mitter (2) and pry it open.
❒Replace the battery (3) (Lithium disc-
type CR1620 or equivalent) so its +
terminal faces the “+” mark of the
transmitter.
❒Close the transmitter and install it in-
to the transmitter holder.
❒Close the transmitter cover, install and
tighten the screw (1).
❒Make sure the door locks can be op-
erated with the transmitter.
❒Dispose of the used battery properly
according to applicable rules or regula-
tions. Do not dispose of lithium bat-
teries with ordinary household trash.
(2)
(3)
81A186
To replace the battery for the
remote controller of the keyless
start system
❒Insert a flat blade screw driver covered
with a soft cloth in the slit of the re-
mote controller and pry it open.
❒Replace the battery (1) (Lithium disc
type CR2032 or equivalent) so its +
terminal faces the bottom of the case
as shown in the illustration.
❒Close the remote controller firmly.
❒Make sure the door locks can be op-
erated with the remote controller.
❒Dispose of the used battery properly
according to applicable rules or regula-
tions. Do not dispose of lithium bat-
teries with ordinary household trash.
189002189003
Swallowing a lithium battery
may cause serious internal
injury. Do not allow anyone to swal-
low a lithium battery. Keep lithium
batteries away from children and
pets. If swallowed, contact physician
immediately.
WARNING
IMPORTANT The transmitter/ remote
controller is a sensitive electronic instru-
ment. To avoid damaging it, do not expose
it to dust or moisture or tamper with in-
ternal parts.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 21
Page 23 of 266
22

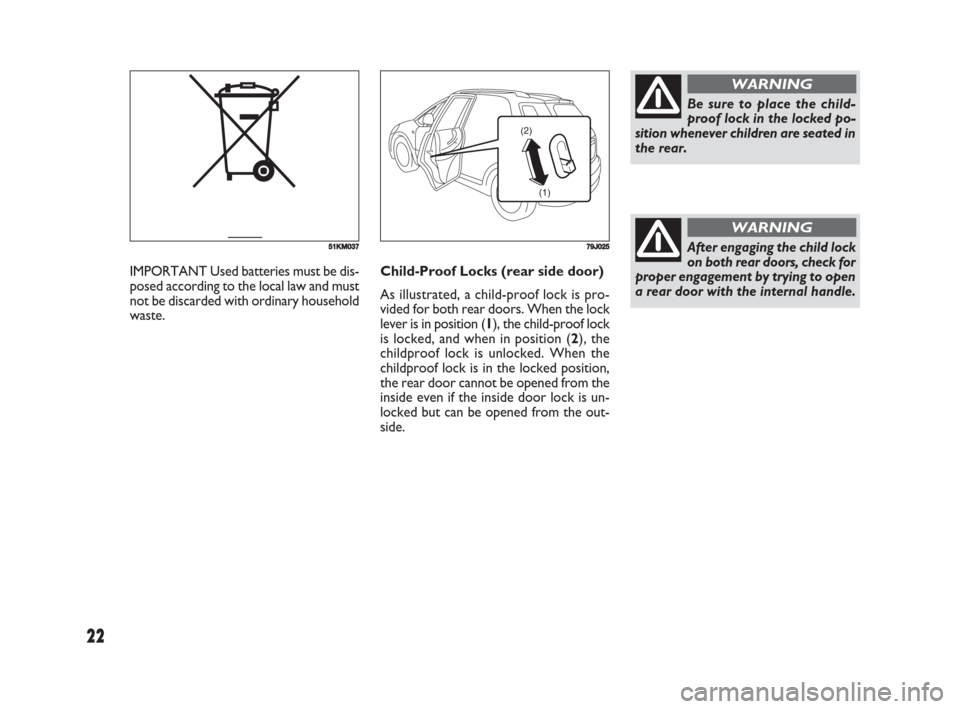

Child-Proof Locks (rear side door)
As illustrated, a child-proof lock is pro-
vided for both rear doors. When the lock
lever is in position (1), the child-proof lock
is locked, and when in position (2), the
childproof lock is unlocked. When the
childproof lock is in the locked position,
the rear door cannot be opened from the
inside even if the inside door lock is un-
locked but can be opened from the out-
side.
(1) (2)
79J025
Be sure to place the child-
proof lock in the locked po-
sition whenever children are seated in
the rear.
WARNING
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
51KM037
IMPORTANT Used batteries must be dis-
posed according to the local law and must
not be discarded with ordinary household
waste.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 22
Page 24 of 266
23
Rear door
1) Rear door unlatch switch
You can lock and unlock the rear door by
using the key in the driver’s door lock.
To open the rear door, push and hold the
rear door unlatch switch (1) and lift the
rear door.
NOTE When the rear door is closed in-
completely, follow the procedure below:
❒Push the rear door unlatch switch (1)
and open the rear door a little.
❒After a few seconds, close the rear
door.
❒Make sure that the rear door is closed
completely.If you can not unlatch the rear door by
pushing the unlatch switch (1) due to a dis-
charged battery or malfunction, follow the
procedures below to unlatch the rear
door from inside the vehicle.
❒Fold the rear seat forward for easier ac-
cess. Refer to “Folding Rear Seats” sec-
tion for details on how to fold the rear
seat forward.
(1)
79J026
Always make sure that the
rear door is closed and
latched securely. Completely closing
the rear door helps prevent occupants
from being thrown from the vehicle in
the event of an accident. Completely
closing it also helps keep exhaust gas-
es from entering the vehicle.
WARNING
❒Push open the rear door from inside by
pushing up on the emergency lever (2)
using a flat blade screw driver or the
jack handle. The rear door will be
latched again by closing the rear door
simply.
If the rear door can not be unlatched, have
the vehicle inspected by your Fiat Deal-
ership.
(2)
79J099
To avoid injury, do not use
your finger to push the
emergency lever.
Make sure there is not anyone near
the rear door when pushing open the
rear door from inside the vehicle.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 23
Page 25 of 266
24
(1)
(2)
779J027
ELECTRIC WINDOW
CONTROLS (if equipped)
The electric windows can only be oper-
ated when the ignition switch is in the
“ON” position.
Driver’s side (type A)
WINDOWS
MANUAL WINDOW CONTROL
(if equipped)
Raise or lower the door windows by turn-
ing the handle located on the door panel.
60G010
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 24
Page 26 of 266
25
Passenger’s door

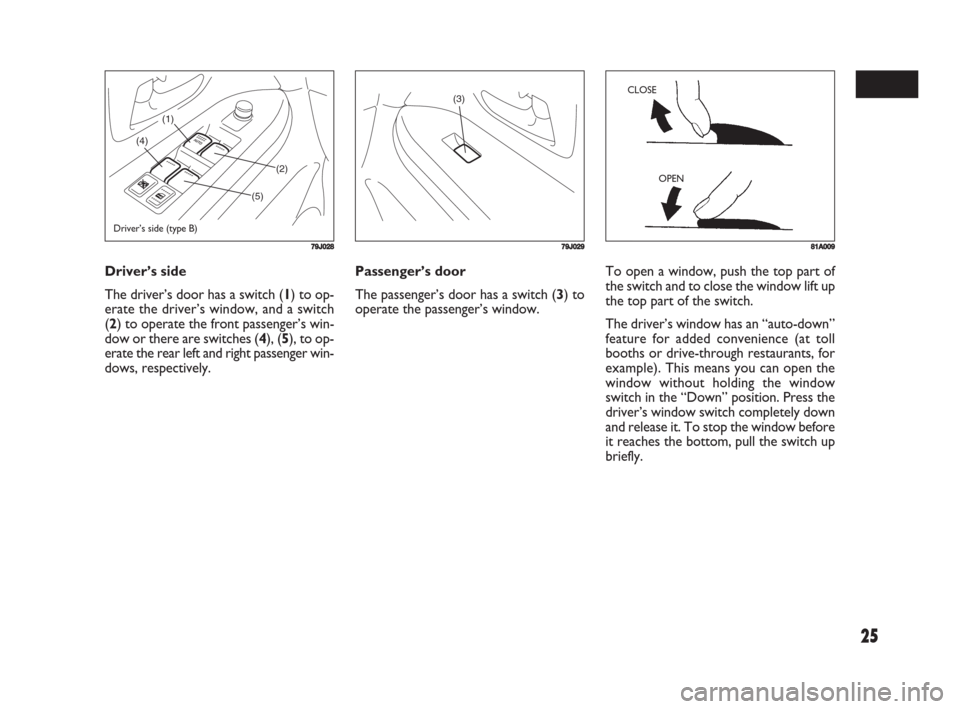

The passenger’s door has a switch (3) to
operate the passenger’s window. Driver’s side
The driver’s door has a switch (1) to op-
erate the driver’s window, and a switch
(2) to operate the front passenger’s win-
dow or there are switches (4), (5), to op-
erate the rear left and right passenger win-
dows, respectively.
(1)
(2) (4)
(5)
79J028
(3)
79J029
Driver’s side (type B)
To open a window, push the top part of
the switch and to close the window lift up
the top part of the switch.
The driver’s window has an “auto-down”
feature for added convenience (at toll
booths or drive-through restaurants, for
example). This means you can open the
window without holding the window
switch in the “Down” position. Press the
driver’s window switch completely down
and release it. To stop the window before
it reaches the bottom, pull the switch up
briefly.
81A009
CLOSE
OPEN
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 25
Page 27 of 266
26
NOTE The rear side door windows are
not designed to open fully. They can be
opened about 2/3 of the way down.
54G011

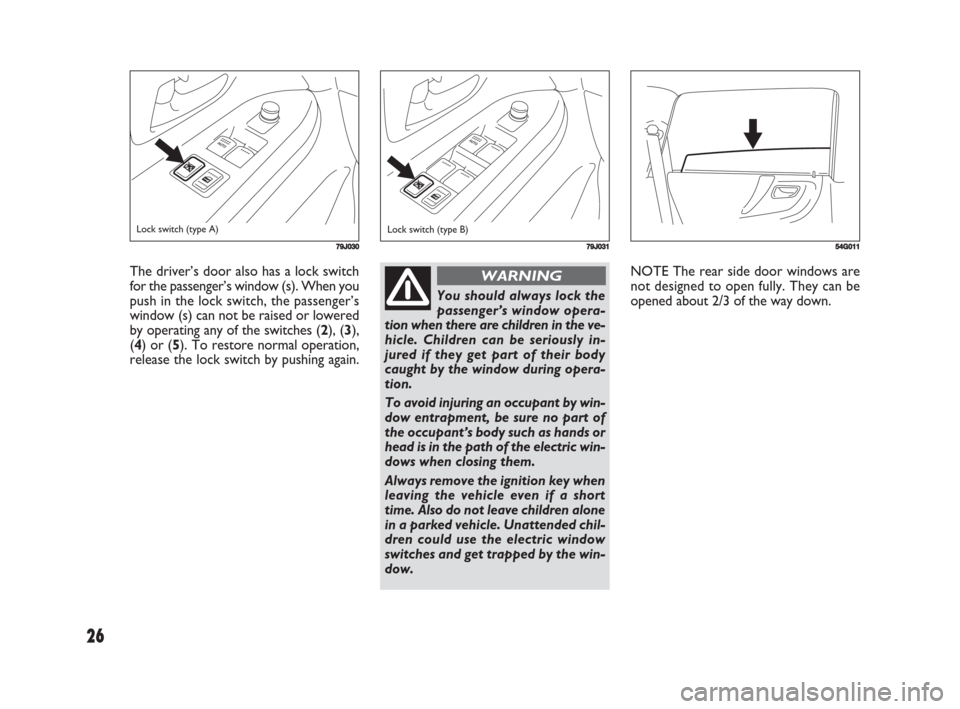

The driver’s door also has a lock switch
for the passenger’s window (s). When you
push in the lock switch, the passenger’s
window (s) can not be raised or lowered
by operating any of the switches (2), (3),
(4) or (5). To restore normal operation,
release the lock switch by pushing again.
79J03079J031
Lock switch (type A)Lock switch (type B)
You should always lock the
passenger’s window opera-
tion when there are children in the ve-
hicle. Children can be seriously in-
jured if they get part of their body
caught by the window during opera-
tion.
To avoid injuring an occupant by win-
dow entrapment, be sure no part of
the occupant’s body such as hands or
head is in the path of the electric win-
dows when closing them.
Always remove the ignition key when
leaving the vehicle even if a short
time. Also do not leave children alone
in a parked vehicle. Unattended chil-
dren could use the electric window
switches and get trapped by the win-
dow.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 26
Page 28 of 266
27

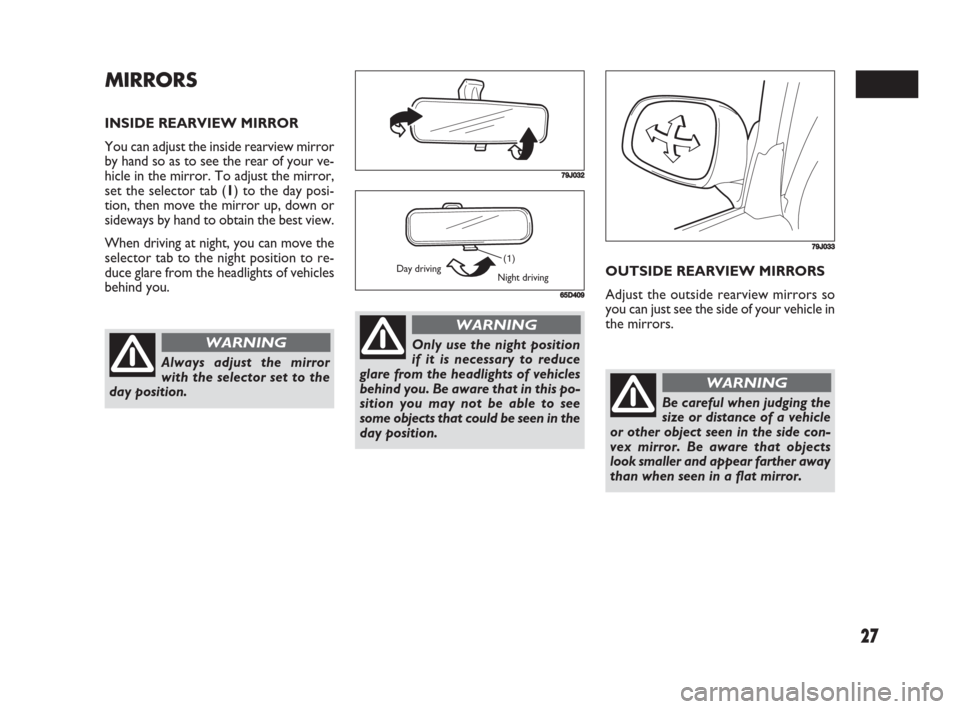

MIRRORS
INSIDE REARVIEW MIRROR
You can adjust the inside rearview mirror
by hand so as to see the rear of your ve-
hicle in the mirror. To adjust the mirror,
set the selector tab (1) to the day posi-
tion, then move the mirror up, down or
sideways by hand to obtain the best view.
When driving at night, you can move the
selector tab to the night position to re-
duce glare from the headlights of vehicles
behind you.
79J032
(1)
65D409
Day driving
Night driving
Always adjust the mirror
with the selector set to the
day position.
WARNINGOnly use the night position
if it is necessary to reduce
glare from the headlights of vehicles
behind you. Be aware that in this po-
sition you may not be able to see
some objects that could be seen in the
day position.
WARNING
OUTSIDE REARVIEW MIRRORS
Adjust the outside rearview mirrors so
you can just see the side of your vehicle in
the mirrors.
79J033
Be careful when judging the
size or distance of a vehicle
or other object seen in the side con-
vex mirror. Be aware that objects
look smaller and appear farther away
than when seen in a flat mirror.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 27
Page 29 of 266
28

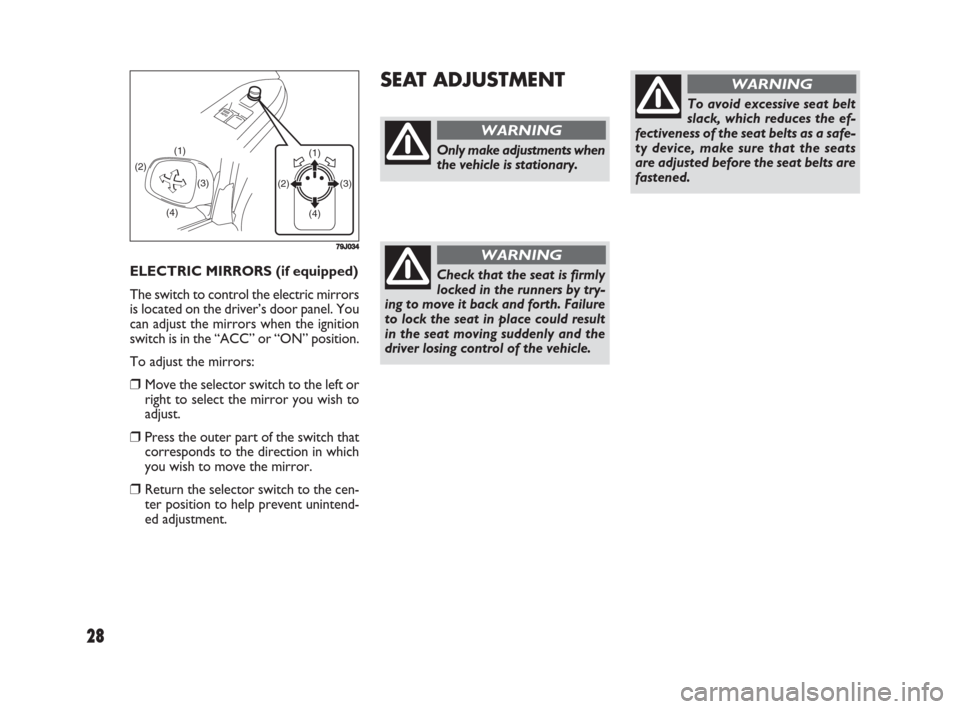

ELECTRIC MIRRORS (if equipped)
The switch to control the electric mirrors
is located on the driver’s door panel. You
can adjust the mirrors when the ignition
switch is in the “ACC” or “ON” position.
To adjust the mirrors:
❒Move the selector switch to the left or
right to select the mirror you wish to
adjust.
❒Press the outer part of the switch that
corresponds to the direction in which
you wish to move the mirror.
❒Return the selector switch to the cen-
ter position to help prevent unintend-
ed adjustment.
SEAT ADJUSTMENT
(2)
(4)(3) (1)(1)
(3) (2)
(4)
79J034
Only make adjustments when
the vehicle is stationary.
WARNING
To avoid excessive seat belt
slack, which reduces the ef-
fectiveness of the seat belts as a safe-
ty device, make sure that the seats
are adjusted before the seat belts are
fastened.
WARNING
Check that the seat is firmly
locked in the runners by try-
ing to move it back and forth. Failure
to lock the seat in place could result
in the seat moving suddenly and the
driver losing control of the vehicle.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 28
Page 30 of 266
29

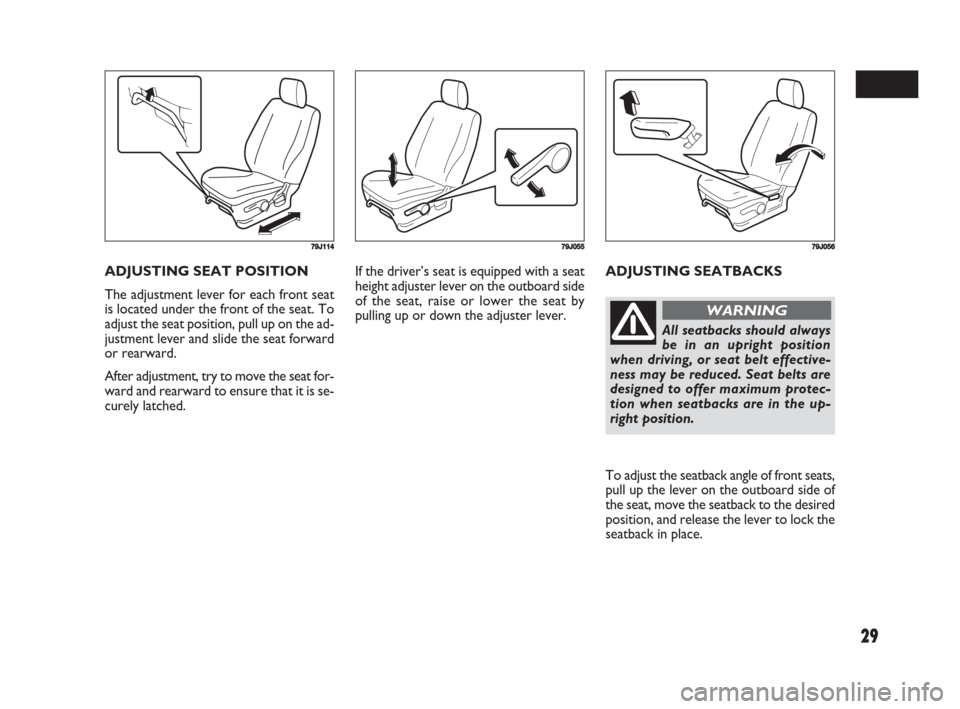

If the driver’s seat is equipped with a seat
height adjuster lever on the outboard side
of the seat, raise or lower the seat by
pulling up or down the adjuster lever.ADJUSTING SEATBACKS ADJUSTING SEAT POSITION
The adjustment lever for each front seat
is located under the front of the seat. To
adjust the seat position, pull up on the ad-
justment lever and slide the seat forward
or rearward.
After adjustment, try to move the seat for-
ward and rearward to ensure that it is se-
curely latched.
79J11479J05579J056
All seatbacks should always
be in an upright position
when driving, or seat belt effective-
ness may be reduced. Seat belts are
designed to offer maximum protec-
tion when seatbacks are in the up-
right position.
WARNING
To adjust the seatback angle of front seats,
pull up the lever on the outboard side of
the seat, move the seatback to the desired
position, and release the lever to lock the
seatback in place.
009-056 Fiat16 New GB 3-09-2008 8:39 Pagina 29
