FIAT SEDICI 2008 2.G Workshop Manual

50

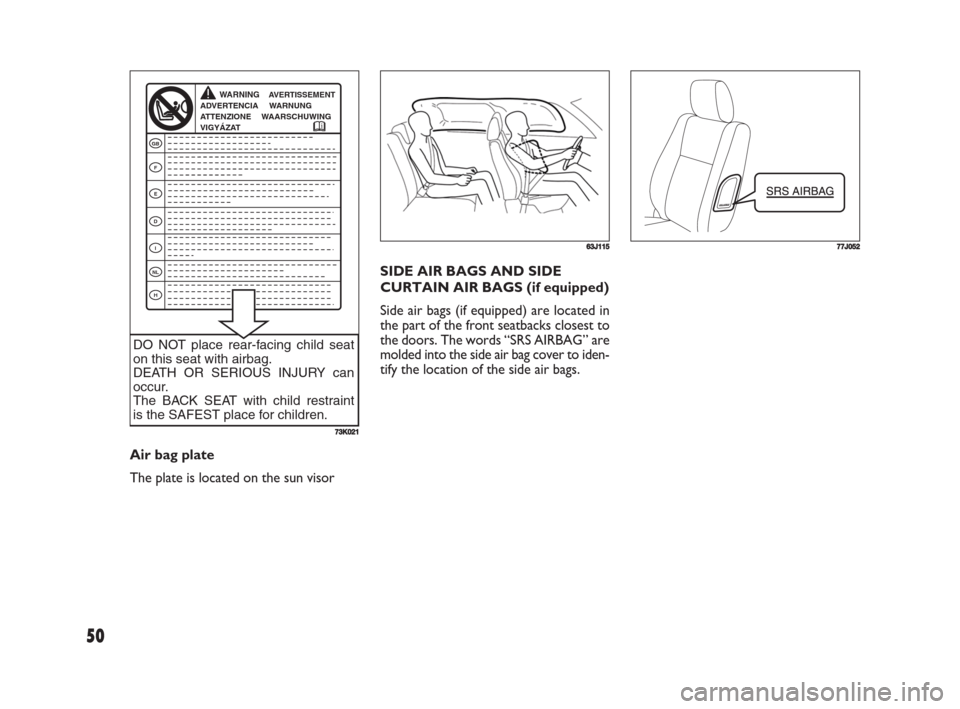

SIDE AIR BAGS AND SIDE
CURTAIN AIR BAGS (if equipped)
Side air bags (if equipped) are located in
the part of the front seatbacks closest to
the doors. The words “SRS AIRBAG” are
molded into the side air bag cover to iden-
tify the location of the side air bags.
Air bag plate
The plate is located on the sun visor
63J11577J052
AVERTISSEMENTWARNINGADVERTENCIA WARNUNG
ATTENZIONE WAARSCHUWING
VIGYÁZAT
GB
F
E
D
I
NL
H
DO NOT place rear-facing child seat
on this seat with airbag.
DEATH OR SERIOUS INJURY can
occur.
The BACK SEAT with child restraint
is the SAFEST place for children.
73K021
009-056 Fiat16 New GB 3-09-2008 8:40 Pagina 50

51

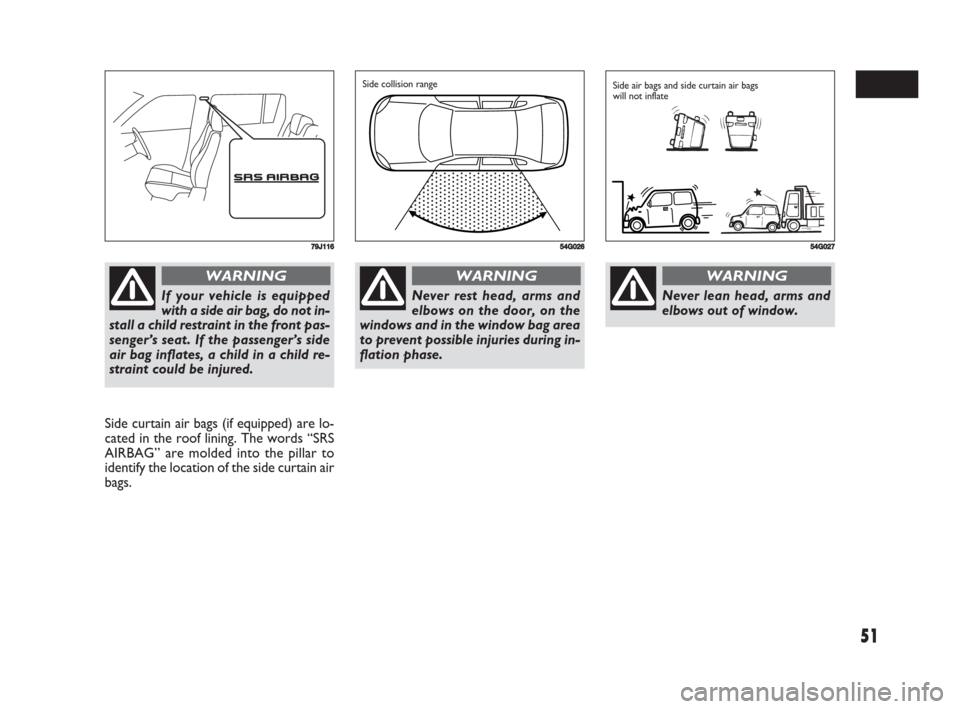

Side curtain air bags (if equipped) are lo-
cated in the roof lining. The words “SRS
AIRBAG” are molded into the pillar to
identify the location of the side curtain air
bags.
79J116
If your vehicle is equipped
with a side air bag, do not in-
stall a child restraint in the front pas-
senger’s seat. If the passenger’s side
air bag inflates, a child in a child re-
straint could be injured.
WARNING
54G026
Side collision range
54G027
Side air bags and side curtain air bags
will not inflate
Never rest head, arms and
elbows on the door, on the
windows and in the window bag area
to prevent possible injuries during in-
flation phase.
WARNING
Never lean head, arms and
elbows out of window.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:40 Pagina 51

52
Side air bags and side curtain air bags are
designed to inflate only in severe side im-
pact collisions. They are not designed to
inflate in frontal or rear collisions,
rollovers or minor side collisions, since
they would offer no protection in those
types of accidents. Remember, since an air
bag deploys only one time during an acci-
dent, seat belts are needed to restrain oc-
cupants from further movements during
the accident.
54G028
Side air bags and side curtain air bags will
probably not inflate
HOW THE SYSTEM WORKS
In a frontal collision, the crash sensors will
detect rapid deceleration, and if the con-
troller judges that the deceleration rep-
resents a severe frontal crash, the con-
troller will trigger the inflators. If your ve-
hicle is equipped with side air bags and side
curtain air bags, crash sensors will detect
a side collision, and if the controller judges
that the side collision is severe enough, it
will trigger a side inflator. The inflators in-
flate the appropriate air bags with nitro-
gen or argon gas. The inflated air bags pro-
vide a cushion for your head (front air bags
and side curtain air bags only) and upper
body. The air bag inflates and deflates so
quickly that you may not even realize that
it has activated. The air bag will neither
hinder your view nor make it harder to
exit the vehicle. Therefore, an air bag is NOT a substitute
for seat belts. To maximize your protec-
tion, ALWAYS WEAR YOUR SEAT
BELTS. Be aware that no system can pre-
vent all possible injuries that may occur in
an accident.
An air bag supplements, or
adds to, the crash protection
offered by seat belts. The driver and
all passengers must be properly re-
strained by wearing seat belts at all
times, whether or not an air bag is
mounted at their seating position, to
minimize the risk of severe injury or
death in the event of a crash.
WARNING
65D366
009-056 Fiat16 New GB 3-09-2008 8:40 Pagina 52

53
54G535

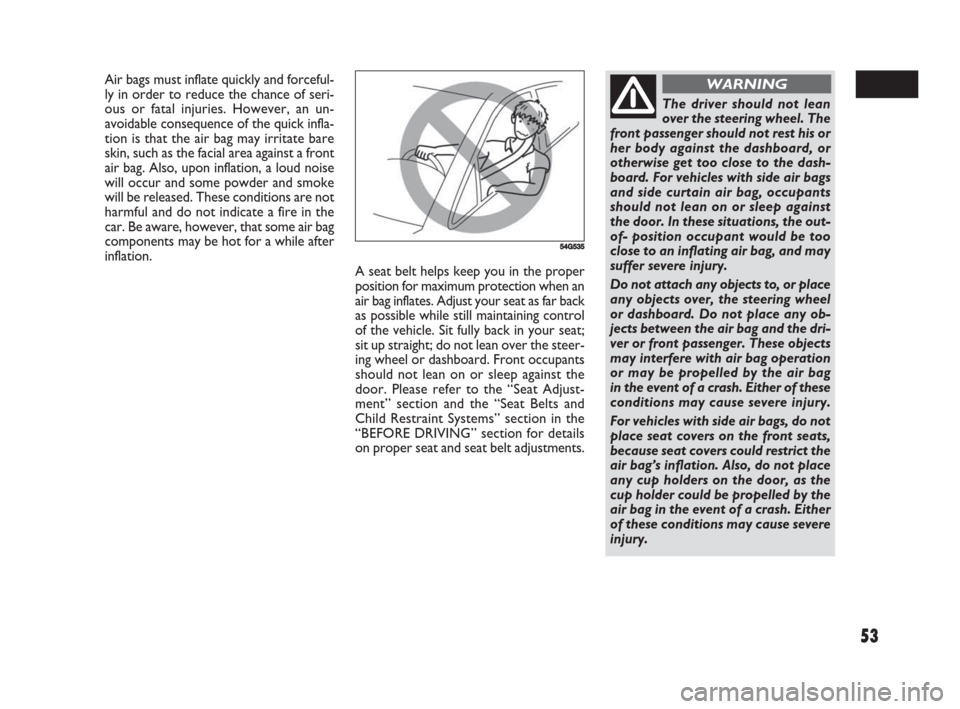

Air bags must inflate quickly and forceful-
ly in order to reduce the chance of seri-
ous or fatal injuries. However, an un-
avoidable consequence of the quick infla-
tion is that the air bag may irritate bare
skin, such as the facial area against a front
air bag. Also, upon inflation, a loud noise
will occur and some powder and smoke
will be released. These conditions are not
harmful and do not indicate a fire in the
car. Be aware, however, that some air bag
components may be hot for a while after
inflation.
The driver should not lean
over the steering wheel. The
front passenger should not rest his or
her body against the dashboard, or
otherwise get too close to the dash-
board. For vehicles with side air bags
and side curtain air bag, occupants
should not lean on or sleep against
the door. In these situations, the out-
of- position occupant would be too
close to an inflating air bag, and may
suffer severe injury.
Do not attach any objects to, or place
any objects over, the steering wheel
or dashboard. Do not place any ob-
jects between the air bag and the dri-
ver or front passenger. These objects
may interfere with air bag operation
or may be propelled by the air bag
in the event of a crash. Either of these
conditions may cause severe injury.
For vehicles with side air bags, do not
place seat covers on the front seats,
because seat covers could restrict the
air bag’s inflation. Also, do not place
any cup holders on the door, as the
cup holder could be propelled by the
air bag in the event of a crash. Either
of these conditions may cause severe
injury.
WARNING
A seat belt helps keep you in the proper
position for maximum protection when an
air bag inflates. Adjust your seat as far back
as possible while still maintaining control
of the vehicle. Sit fully back in your seat;
sit up straight; do not lean over the steer-
ing wheel or dashboard. Front occupants
should not lean on or sleep against the
door. Please refer to the “Seat Adjust-
ment” section and the “Seat Belts and
Child Restraint Systems” section in the
“BEFORE DRIVING” section for details
on proper seat and seat belt adjustments.
009-056 Fiat16 New GB 3-09-2008 8:41 Pagina 53

54
Note that even though your vehicle may
be moderately damaged in a collision, the
collision may not have been severe enough
to trigger the front or side air bags to in-
flate. If your vehicle sustains ANY front-
end or side damage, have the air bag sys-
tem inspected by an authorized Fiat Deal-
ership to ensure it is in proper working
order.
Your vehicle is equipped with a diagnostic
module which records information about
the air bag system if the air bags deploy
in a crash. The module records informa-
tion about overall system status, which
sensors activated the deployment.Servicing the air bag system
If the air bags inflate, have the air bags and
related components replaced by an au-
thorized Fiat Dealership as soon as pos-
sible.
If your vehicle ever gets in deep water and
the driver’s floor is submerged, the air bag
controller could be damaged. If it does,
have the air bag system inspected by the
Fiat Dealership as soon as possible.
Special procedures are required for ser-
vicing or replacing an air bag. For that rea-
son, only an authorized Fiat Dealership
should be allowed to service or replace
your air bags. Please remind anyone who
services your Fiat that it has air bags.Service on or around air bag components
or wiring must be performed only by an
authorized Fiat Dealership. Improper ser-
vice could result in unintended air bag de-
ployment or could render the air bag in-
operative. Either of these two conditions
may result in severe injury.
To prevent damage or unintended infla-
tion of the air bag system, be sure the bat-
tery is disconnected and the ignition
switch has been in the “LOCK” position
for at least 90 seconds before perform-
ing any electrical service work on your Fi-
at. Do not touch air bag system compo-
nents or wires. The wires are wrapped
with yellow tape or yellow tubing, and the
couplers are yellow for easy identification.
Scrapping a vehicle that has an uninflated
air bag can be hazardous. Ask your Fiat
Dealership, body repair shop or scrap
yard for help with disposal.
009-056 Fiat16 New GB 3-09-2008 8:41 Pagina 54

55

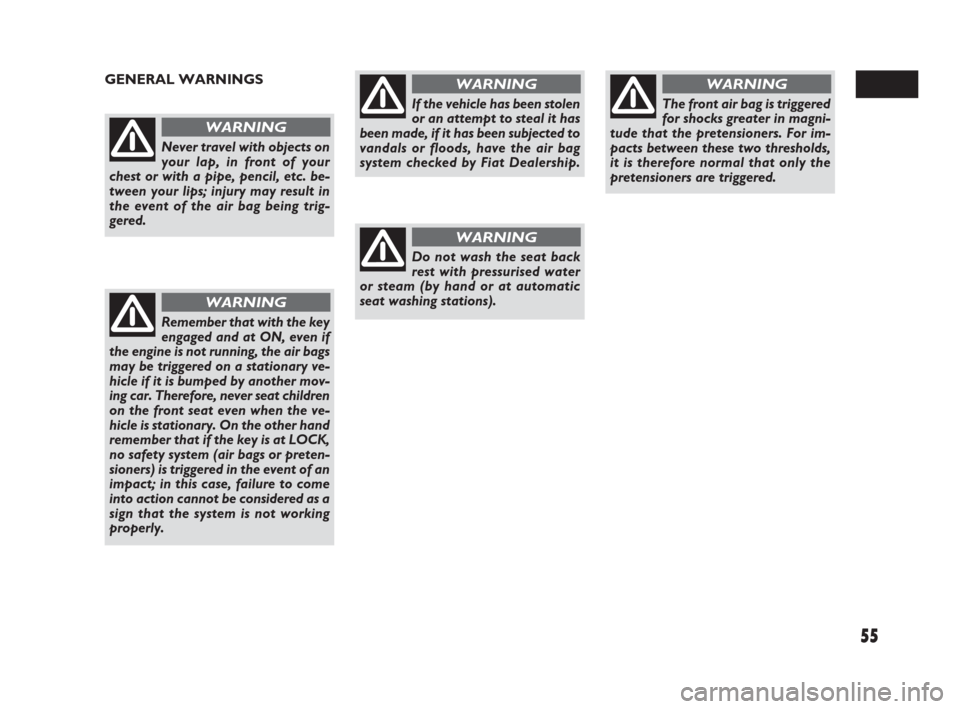

GENERAL WARNINGS
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; injury may result in
the event of the air bag being trig-
gered.
WARNING
Remember that with the key
engaged and at ON, even if
the engine is not running, the air bags
may be triggered on a stationary ve-
hicle if it is bumped by another mov-
ing car. Therefore, never seat children
on the front seat even when the ve-
hicle is stationary. On the other hand
remember that if the key is at LOCK,
no safety system (air bags or preten-
sioners) is triggered in the event of an
impact; in this case, failure to come
into action cannot be considered as a
sign that the system is not working
properly.
WARNING
If the vehicle has been stolen
or an attempt to steal it has
been made, if it has been subjected to
vandals or floods, have the air bag
system checked by Fiat Dealership.
WARNING
Do not wash the seat back
rest with pressurised water
or steam (by hand or at automatic
seat washing stations).
WARNING
The front air bag is triggered
for shocks greater in magni-
tude that the pretensioners. For im-
pacts between these two thresholds,
it is therefore normal that only the
pretensioners are triggered.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:41 Pagina 55

56

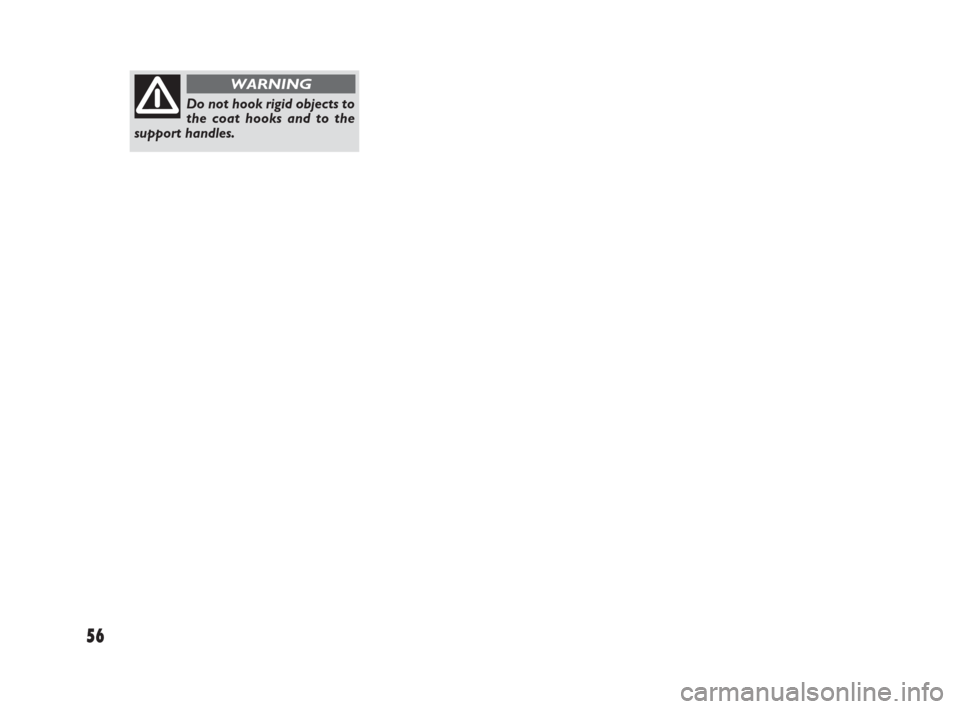

Do not hook rigid objects to
the coat hooks and to the
support handles.
WARNING
009-056 Fiat16 New GB 3-09-2008 8:41 Pagina 56

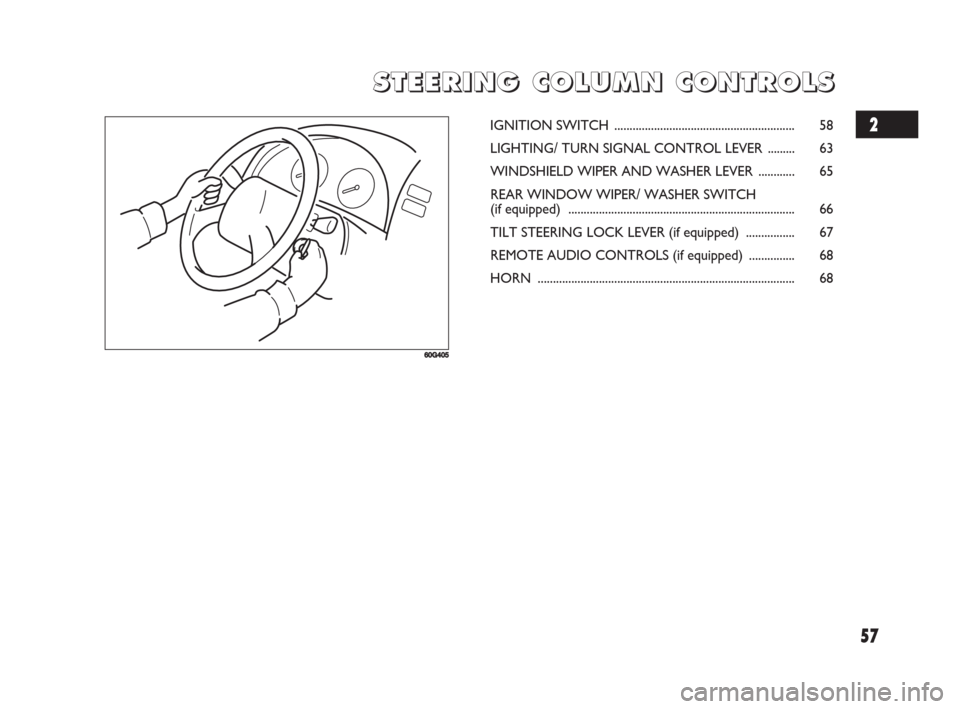

57
S S
T T
E E
E E
R R
I I
N N
G G
C C
O O
L L
U U
M M
N N
C C
O O
N N
T T
R R
O O
L L
S S
60G405
IGNITION SWITCH ........................................................... 58
LIGHTING/ TURN SIGNAL CONTROL LEVER ......... 63
WINDSHIELD WIPER AND WASHER LEVER ............ 65
REAR WINDOW WIPER/ WASHER SWITCH
(if equipped).......................................................................... 66
TILT STEERING LOCK LEVER (if equipped)................ 67
REMOTE AUDIO CONTROLS (if equipped) ............... 68
HORN .................................................................................... 682
057-068 Fiat16 New GB 3-09-2008 8:13 Pagina 57

58

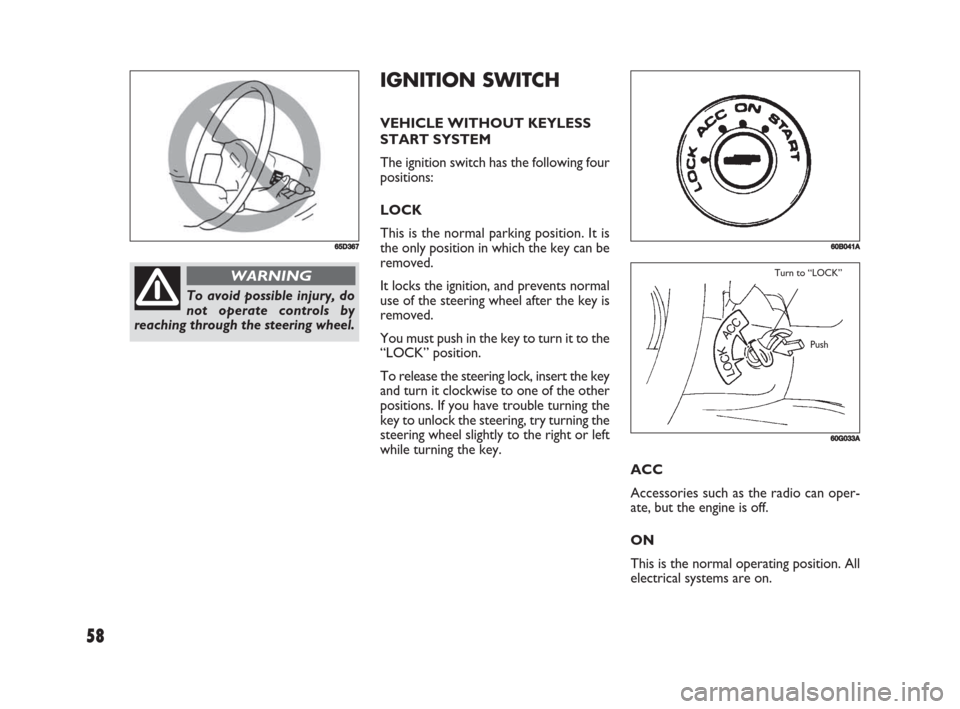

IGNITION SWITCH
VEHICLE WITHOUT KEYLESS
START SYSTEM
The ignition switch has the following four
positions:
LOCK
This is the normal parking position. It is
the only position in which the key can be
removed.
It locks the ignition, and prevents normal
use of the steering wheel after the key is
removed.
You must push in the key to turn it to the
“LOCK” position.
To release the steering lock, insert the key
and turn it clockwise to one of the other
positions. If you have trouble turning the
key to unlock the steering, try turning the
steering wheel slightly to the right or left
while turning the key.
65D367
To avoid possible injury, do
not operate controls by
reaching through the steering wheel.
WARNING
60G033A
Turn to “LOCK”
Push
60B041A
ACC
Accessories such as the radio can oper-
ate, but the engine is off.
ON
This is the normal operating position. All
electrical systems are on.
057-068 Fiat16 New GB 3-09-2008 8:13 Pagina 58

59

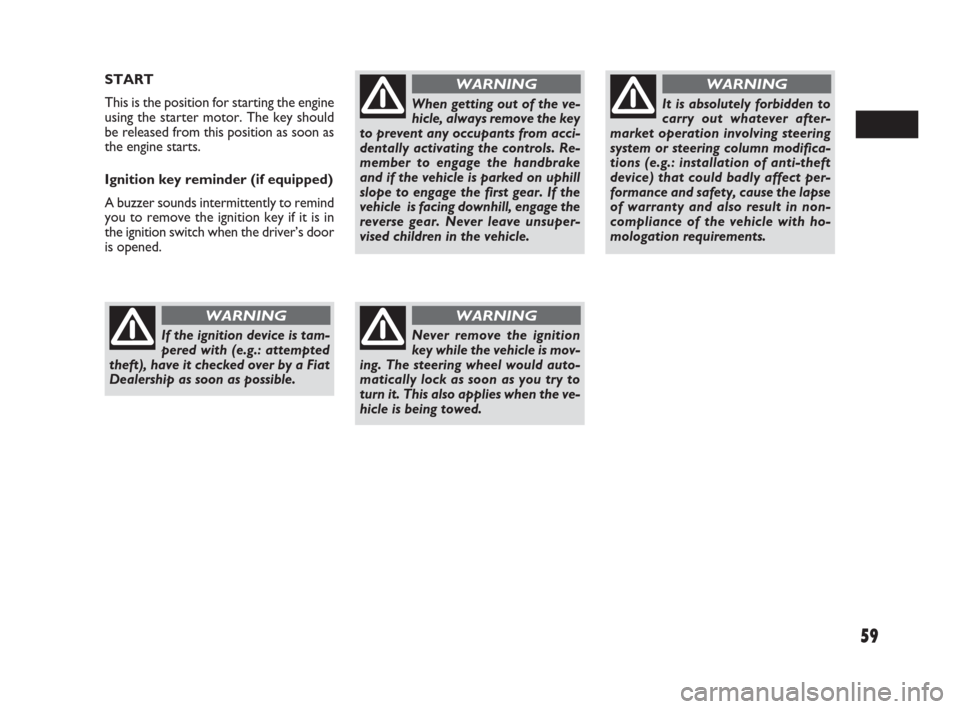

START
This is the position for starting the engine
using the starter motor. The key should
be released from this position as soon as
the engine starts.
Ignition key reminder (if equipped)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in
the ignition switch when the driver’s door
is opened.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
When getting out of the ve-
hicle, always remove the key
to prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the vehicle is parked on uphill
slope to engage the first gear. If the
vehicle is facing downhill, engage the
reverse gear. Never leave unsuper-
vised children in the vehicle.
WARNING
Never remove the ignition
key while the vehicle is mov-
ing. The steering wheel would auto-
matically lock as soon as you try to
turn it. This also applies when the ve-
hicle is being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the vehicle with ho-
mologation requirements.
WARNING
057-068 Fiat16 New GB 3-09-2008 8:13 Pagina 59
