INSTRUMENT PANEL
1.Instrument cluster
2.Ignition switch
3.Lighting switch/ Turn signal and dim-
mer switch
4.Windshield wiper and washer switch/
Rear window wiper and washer
switch (if equipped)
5.Hazard warning switch
6.Other switches (if equipped)
7.Heater control panel
8.Audio (if equipped)
9.Cigarette lighter/ ashtray or storage
area
10.Hood release
11.Center ventilator
12.Side ventilator
13.Side defroster
14.Glove box
15.Fuse box
16.Air bag (if equipped)
17.Information display
12 13 1313 31614 11 517 8 16 12 13
15 10 62971412 1313 133 16 1 4 11 517 8 16 12 13
15 10 6 2 7 14 9
79J037
Right-hand drive
Left-hand drive
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 70

71

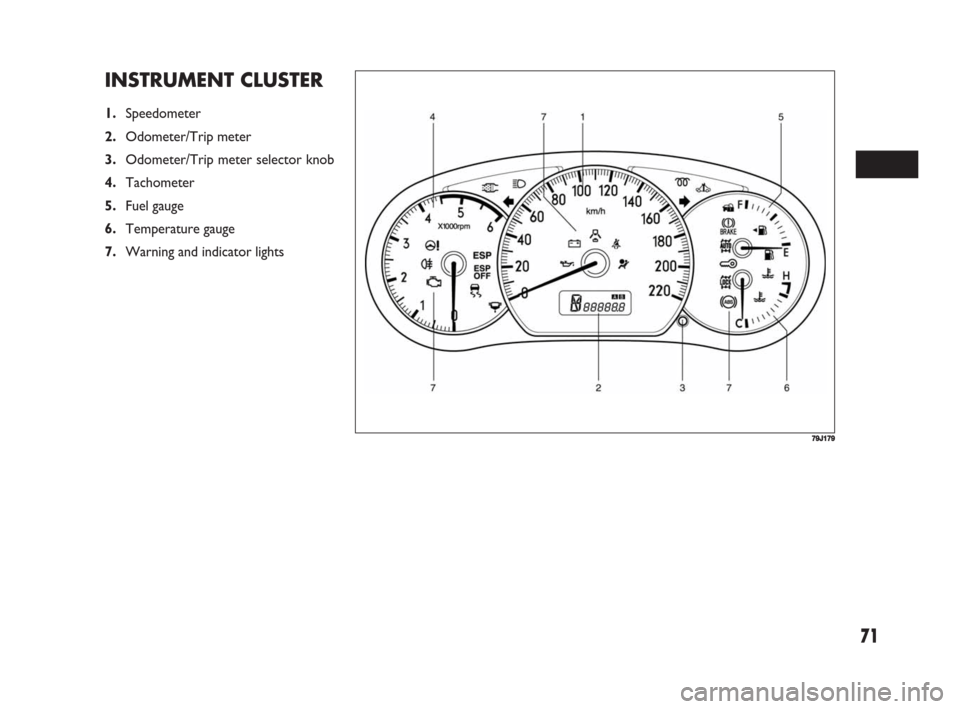

INSTRUMENT CLUSTER
1.Speedometer
2.Odometer/Trip meter
3.Odometer/Trip meter selector knob
4.Tachometer
5.Fuel gauge
6.Temperature gauge
7.Warning and indicator lights
79J179
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 71

72
The light should go out after starting the
engine and fully releasing the parking
brake, if the fluid level in the brake fluid
reservoir is adequate.
The light also comes on together with the
ABS warning light when the rear brake
force control function (Proportioning
valve function) of the ABS system fails.
If the brake system warning light comes
on while you are driving the vehicle, it may
mean that there is something wrong with
the vehicle’s brake system. If this happens,
you should:
❒Pull off the road and stop carefully.
❒Test the brakes by carefully starting and
stopping at the side of the road.
– If you determine that it is safe, drive
carefully at low speed to the near-
est dealer for repairs, or
WARNING AND
INDICATOR LIGHTS
BRAKE SYSTEM WARNING
LIGHT
65D477
For working check of this light, there are
following three different type operations
depending on the vehicle’s specification.
❒The light comes on briefly when the ig-
nition switch is turned to the “ON”
and/or “START” position.
❒The light comes on when the parking
brake is engaged with the ignition
switch in the “ON” position.
❒The light comes on when under either
or both of above two conditions.
The light also comes on when the fluid in
the brake fluid reservoir falls below the
specified level.
Remember that stopping dis-
tance may be longer, you
may have to push harder on the ped-
al, and the pedal may go down far-
ther than normal.
WARNING
If any of the following con-
ditions occur, you should im-
mediately ask your Fiat Dealership to
inspect the brake system.
If the brake system warning light does
not go out after the engine has been
started and the parking brake has
been fully released.
If the brake system warning light does
not come on when the ignition switch
is turned to the “ON” or “START”
position.
If the brake system warning light
comes on at any time during vehicle
operation.
WARNING
– Have the vehicle towed to the nearest
dealer for repairs.
NOTE Because the disc brake system is
selfadjusting, the fluid level will drop as the
brake pads become worn. Replenishing
the brake fluid reservoir is considered
normal periodic maintenance.
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 72

73
tion) and there may be something wrong
with both the rear brake force control
function and anti-lock function of the ABS
system.
If one of these happens, have the system
inspected by your Fiat Dealership.
If the ABS becomes inoperative, the brake
system will function as an ordinary brake
system that does not have this ABS sys-

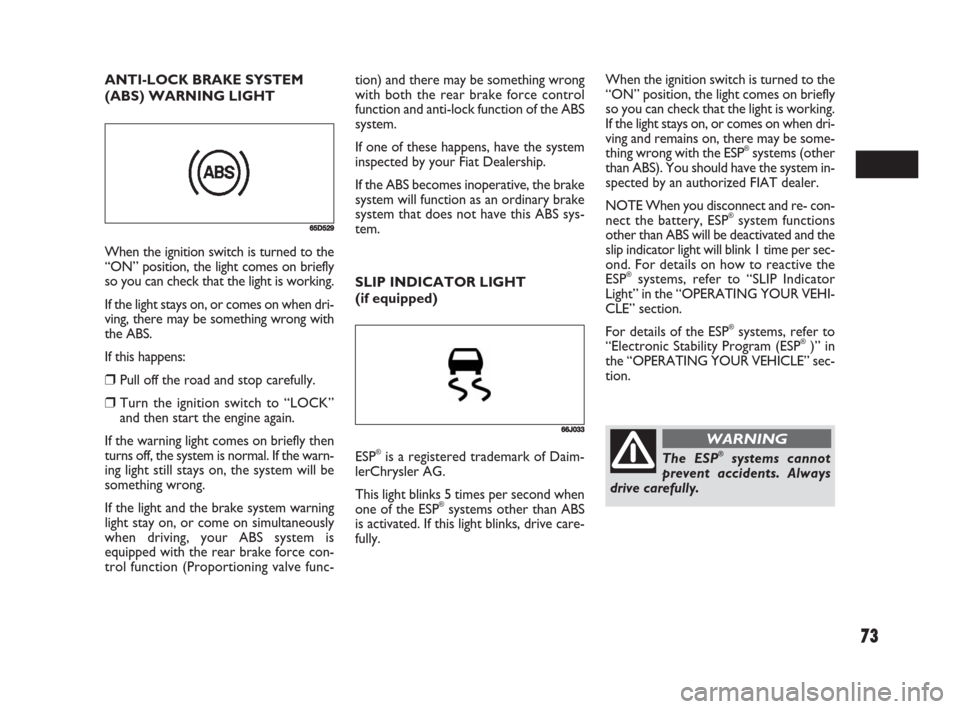

tem. ANTI-LOCK BRAKE SYSTEM
(ABS) WARNING LIGHT
65D529
66J033
When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving, there may be something wrong with
the ABS.
If this happens:
❒Pull off the road and stop carefully.
❒Turn the ignition switch to “LOCK”
and then start the engine again.
If the warning light comes on briefly then
turns off, the system is normal. If the warn-
ing light still stays on, the system will be
something wrong.
If the light and the brake system warning
light stay on, or come on simultaneously
when driving, your ABS system is
equipped with the rear brake force con-
trol function (Proportioning valve func-SLIP INDICATOR LIGHT
(if equipped)
ESP
®is a registered trademark of Daim-
lerChrysler AG.
This light blinks 5 times per second when
one of the ESP
®systems other than ABS
is activated. If this light blinks, drive care-
fully.When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving and remains on, there may be some-
thing wrong with the ESP
®systems (other
than ABS). You should have the system in-
spected by an authorized FIAT dealer.
NOTE When you disconnect and re- con-
nect the battery, ESP
®system functions
other than ABS will be deactivated and the
slip indicator light will blink 1 time per sec-
ond. For details on how to reactive the
ESP
®systems, refer to “SLIP Indicator
Light” in the “OPERATING YOUR VEHI-
CLE” section.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in
the “OPERATING YOUR VEHICLE” sec-
tion.
The ESP®systems cannot
prevent accidents. Always
drive carefully.
WARNING
069-128 Fiat16 New GB 3-09-2008 8:19 Pagina 73

74

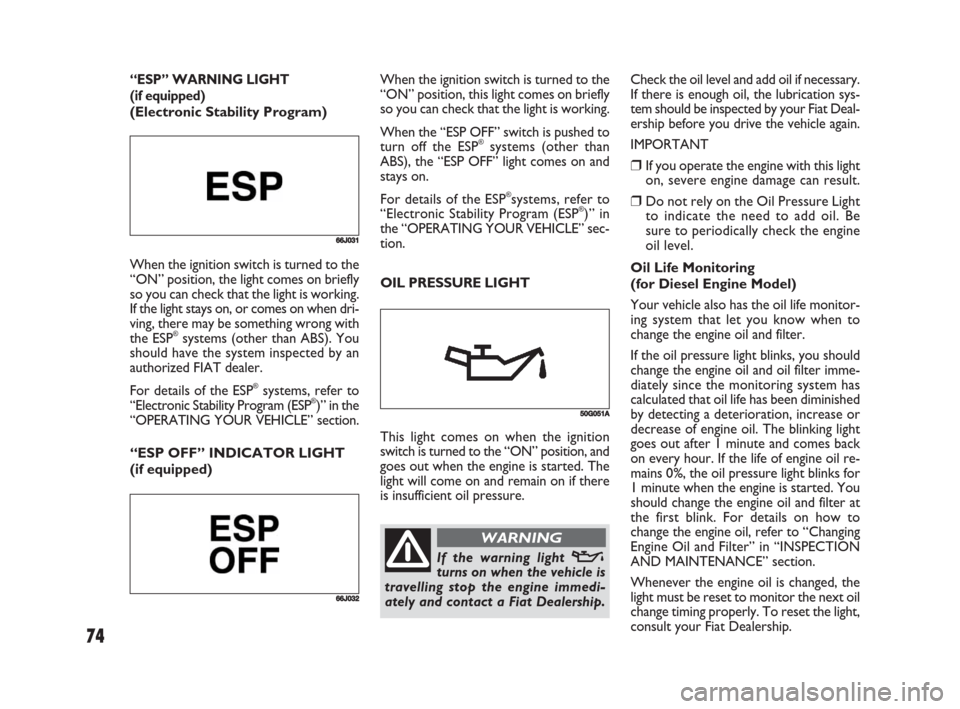

Check the oil level and add oil if necessary.
If there is enough oil, the lubrication sys-
tem should be inspected by your Fiat Deal-
ership before you drive the vehicle again.
IMPORTANT
❒If you operate the engine with this light
on, severe engine damage can result.
❒Do not rely on the Oil Pressure Light
to indicate the need to add oil. Be
sure to periodically check the engine
oil level.
Oil Life Monitoring
(for Diesel Engine Model)
Your vehicle also has the oil life monitor-
ing system that let you know when to
change the engine oil and filter.
If the oil pressure light blinks, you should
change the engine oil and oil filter imme-
diately since the monitoring system has
calculated that oil life has been diminished
by detecting a deterioration, increase or
decrease of engine oil. The blinking light
goes out after 1 minute and comes back
on every hour. If the life of engine oil re-
mains 0%, the oil pressure light blinks for
1 minute when the engine is started. You
should change the engine oil and filter at
the first blink. For details on how to
change the engine oil, refer to “Changing
Engine Oil and Filter” in “INSPECTION
AND MAINTENANCE” section.
Whenever the engine oil is changed, the
light must be reset to monitor the next oil
change timing properly. To reset the light,
consult your Fiat Dealership.
50G051A
66J031
66J032
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is insufficient oil pressure. When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
If the light stays on, or comes on when dri-
ving, there may be something wrong with
the ESP
®systems (other than ABS). You
should have the system inspected by an
authorized FIAT dealer.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in the
“OPERATING YOUR VEHICLE” section.
“ESP OFF” INDICATOR LIGHT
(if equipped)
If the warning light vturns on when the vehicle is
travelling stop the engine immedi-
ately and contact a Fiat Dealership.
WARNING
OIL PRESSURE LIGHT
“ESP” WARNING LIGHT
(if equipped)
(Electronic Stability Program) When the ignition switch is turned to the
“ON” position, this light comes on briefly
so you can check that the light is working.
When the “ESP OFF” switch is pushed to
turn off the ESP
®systems (other than
ABS), the “ESP OFF” light comes on and
stays on.
For details of the ESP
®systems, refer to
“Electronic Stability Program (ESP®)” in
the “OPERATING YOUR VEHICLE” sec-
tion.
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 74

75

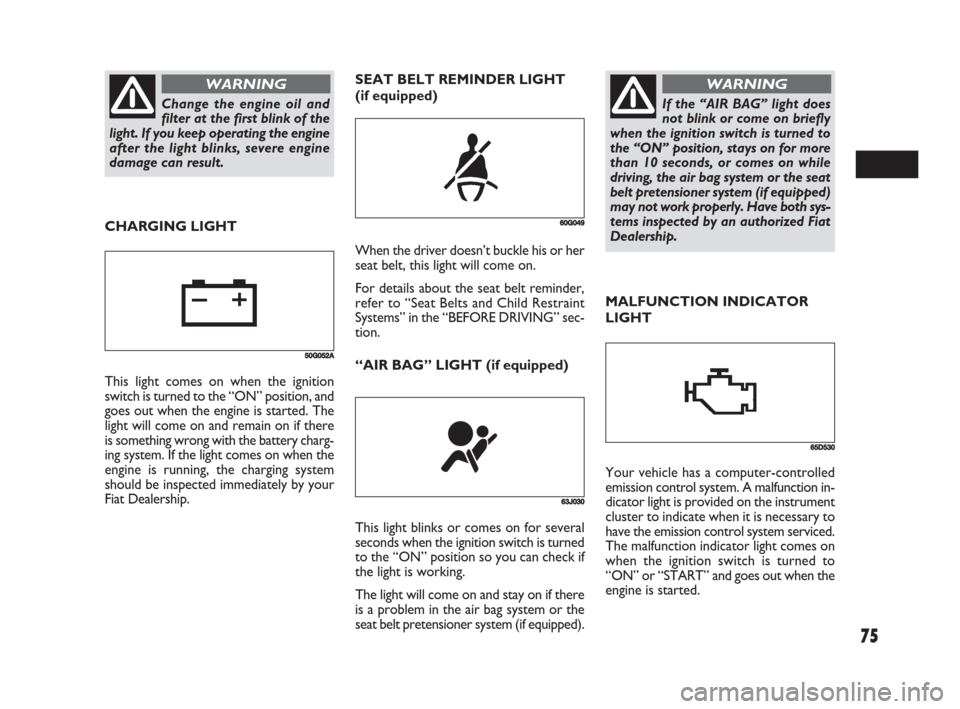

MALFUNCTION INDICATOR
LIGHT SEAT BELT REMINDER LIGHT
(if equipped)
60G049
63J030
This light blinks or comes on for several
seconds when the ignition switch is turned
to the “ON” position so you can check if
the light is working.
The light will come on and stay on if there
is a problem in the air bag system or the
seat belt pretensioner system (if equipped).
If the “AIR BAG” light does
not blink or come on briefly
when the ignition switch is turned to
the “ON” position, stays on for more
than 10 seconds, or comes on while
driving, the air bag system or the seat
belt pretensioner system (if equipped)
may not work properly. Have both sys-
tems inspected by an authorized Fiat
Dealership.
WARNING
65D530
Your vehicle has a computer-controlled
emission control system. A malfunction in-
dicator light is provided on the instrument
cluster to indicate when it is necessary to
have the emission control system serviced.
The malfunction indicator light comes on
when the ignition switch is turned to
“ON” or “START” and goes out when the
engine is started. CHARGING LIGHT
50G052A
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is something wrong with the battery charg-
ing system. If the light comes on when the
engine is running, the charging system
should be inspected immediately by your
Fiat Dealership.When the driver doesn’t buckle his or her
seat belt, this light will come on.
For details about the seat belt reminder,
refer to “Seat Belts and Child Restraint
Systems” in the “BEFORE DRIVING” sec-
tion.
“AIR BAG” LIGHT (if equipped)
Change the engine oil and
filter at the first blink of the
light. If you keep operating the engine
after the light blinks, severe engine
damage can result.
WARNING
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 75

76

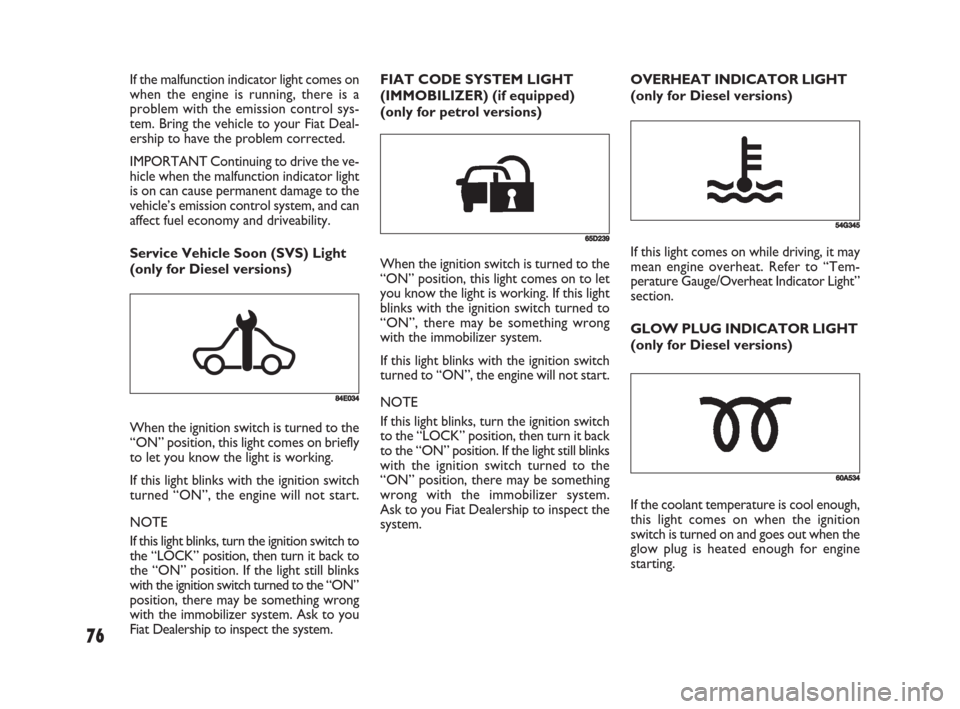

If the malfunction indicator light comes on
when the engine is running, there is a
problem with the emission control sys-
tem. Bring the vehicle to your Fiat Deal-
ership to have the problem corrected.
IMPORTANT Continuing to drive the ve-
hicle when the malfunction indicator light
is on can cause permanent damage to the
vehicle’s emission control system, and can
affect fuel economy and driveability.
Service Vehicle Soon (SVS) Light
(only for Diesel versions)
84E034
When the ignition switch is turned to the
“ON” position, this light comes on briefly
to let you know the light is working.
If this light blinks with the ignition switch
turned “ON”, the engine will not start.
NOTE
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to
the “ON” position. If the light still blinks
with the ignition switch turned to the “ON”
position, there may be something wrong
with the immobilizer system. Ask to you
Fiat Dealership to inspect the system.FIAT CODE SYSTEM LIGHT
(IMMOBILIZER) (if equipped)
(only for petrol versions)
65D239
When the ignition switch is turned to the
“ON” position, this light comes on to let
you know the light is working. If this light
blinks with the ignition switch turned to
“ON”, there may be something wrong
with the immobilizer system.
If this light blinks with the ignition switch
turned to “ON”, the engine will not start.
NOTE
If this light blinks, turn the ignition switch
to the “LOCK” position, then turn it back
to the “ON” position. If the light still blinks
with the ignition switch turned to the
“ON” position, there may be something
wrong with the immobilizer system.
Ask to you Fiat Dealership to inspect the
system.
54G345
OVERHEAT INDICATOR LIGHT
(only for Diesel versions)
If this light comes on while driving, it may
mean engine overheat. Refer to “Tem-
perature Gauge/Overheat Indicator Light”
section.
GLOW PLUG INDICATOR LIGHT
(only for Diesel versions)
60A534
If the coolant temperature is cool enough,
this light comes on when the ignition
switch is turned on and goes out when the
glow plug is heated enough for engine
starting.
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 76

77

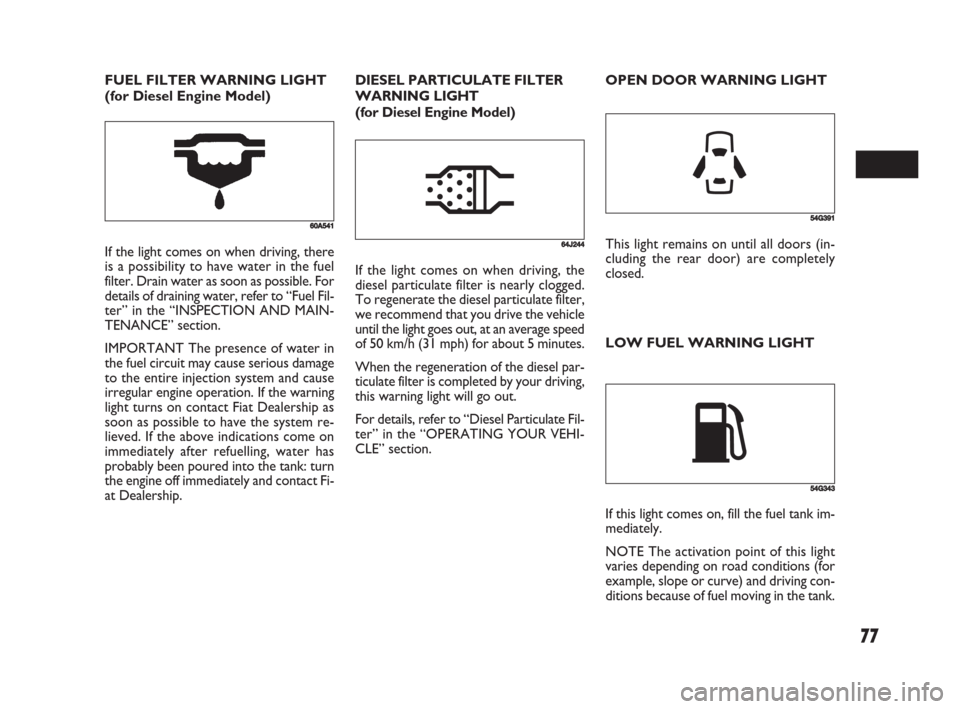

LOW FUEL WARNING LIGHT
54G391
This light remains on until all doors (in-
cluding the rear door) are completely
closed.
54G343
If this light comes on, fill the fuel tank im-
mediately.
NOTE The activation point of this light
varies depending on road conditions (for
example, slope or curve) and driving con-
ditions because of fuel moving in the tank. OPEN DOOR WARNING LIGHT FUEL FILTER WARNING LIGHT
(for Diesel Engine Model)DIESEL PARTICULATE FILTER
WARNING LIGHT
(for Diesel Engine Model)
60A541
64J244If the light comes on when driving, there
is a possibility to have water in the fuel
filter. Drain water as soon as possible. For
details of draining water, refer to “Fuel Fil-
ter” in the “INSPECTION AND MAIN-
TENANCE” section.
IMPORTANT The presence of water in
the fuel circuit may cause serious damage
to the entire injection system and cause
irregular engine operation. If the warning
light turns on contact Fiat Dealership as
soon as possible to have the system re-
lieved. If the above indications come on
immediately after refuelling, water has
probably been poured into the tank: turn
the engine off immediately and contact Fi-
at Dealership.If the light comes on when driving, the
diesel particulate filter is nearly clogged.
To regenerate the diesel particulate filter,
we recommend that you drive the vehicle
until the light goes out, at an average speed
of 50 km/h (31 mph) for about 5 minutes.
When the regeneration of the diesel par-
ticulate filter is completed by your driving,
this warning light will go out.
For details, refer to “Diesel Particulate Fil-
ter” in the “OPERATING YOUR VEHI-
CLE” section.
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 77

78

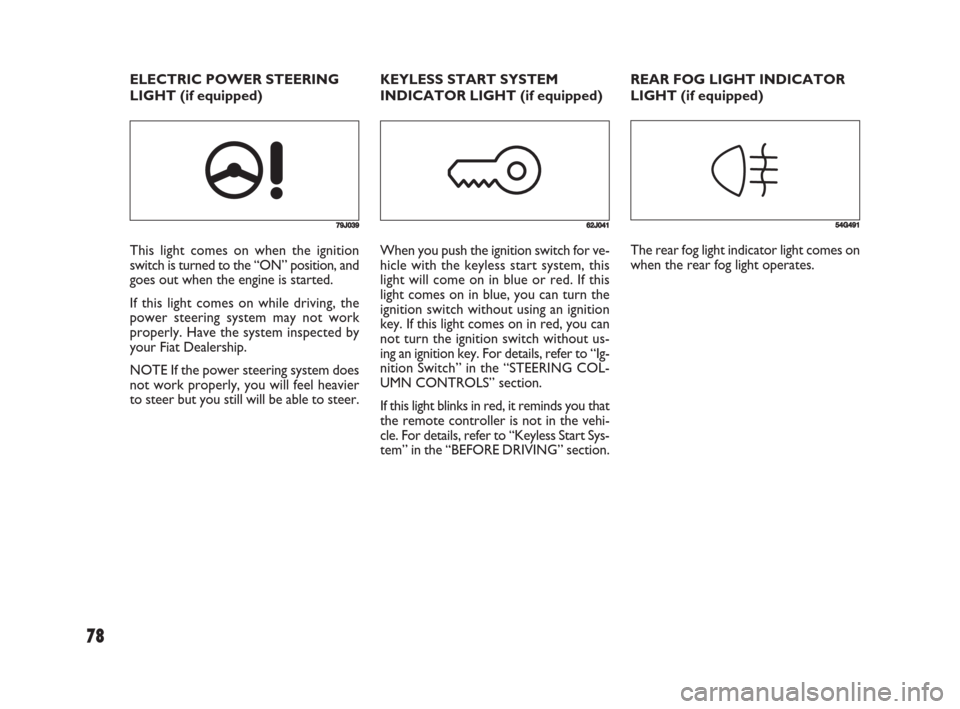

779J039
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started.
If this light comes on while driving, the
power steering system may not work
properly. Have the system inspected by
your Fiat Dealership.
NOTE If the power steering system does
not work properly, you will feel heavier
to steer but you still will be able to steer. ELECTRIC POWER STEERING
LIGHT (if equipped)KEYLESS START SYSTEM
INDICATOR LIGHT (if equipped)
62J041
When you push the ignition switch for ve-
hicle with the keyless start system, this
light will come on in blue or red. If this
light comes on in blue, you can turn the
ignition switch without using an ignition
key. If this light comes on in red, you can
not turn the ignition switch without us-
ing an ignition key. For details, refer to “Ig-
nition Switch” in the “STEERING COL-
UMN CONTROLS” section.
If this light blinks in red, it reminds you that
the remote controller is not in the vehi-
cle. For details, refer to “Keyless Start Sys-
tem” in the “BEFORE DRIVING” section.REAR FOG LIGHT INDICATOR
LIGHT (if equipped)
54G491
The rear fog light indicator light comes on
when the rear fog light operates.
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 78

79
MAIN BEAM (HIGH BEAM)
INDICATOR LIGHT
50G055
When you turn on the left or right turn
signals, the corresponding green arrow on
the instrument cluster will flash along with
the respective turn signal lights. When you
turn on the hazard warning switch, both
arrows will flash along with all of the turn
signal lights.
50G056
This indicator comes on when headlight
main beams (high beams) are turned on.
79J040
When the ignition switch is turned to the
“ON” position, the light comes on briefly
so you can check that the light is working.
When the 2WD/4WD switch is in the
“4WD AUTO” mode with the ignition
switch in the “ON” position, the light
comes on and stays on.
If the light and the “4WD LOCK” indica-
tor light stay on or come on simultane-
ously when driving, there may be some-
thing wrong with the 4WD system. Have
the system inspected by an authorized
Fiat Dealership. TURN SIGNAL INDICATORS 4WD AUTO INDICATOR LIGHT
(if equipped)
069-128 Fiat16 New GB 3-09-2008 8:20 Pagina 79
