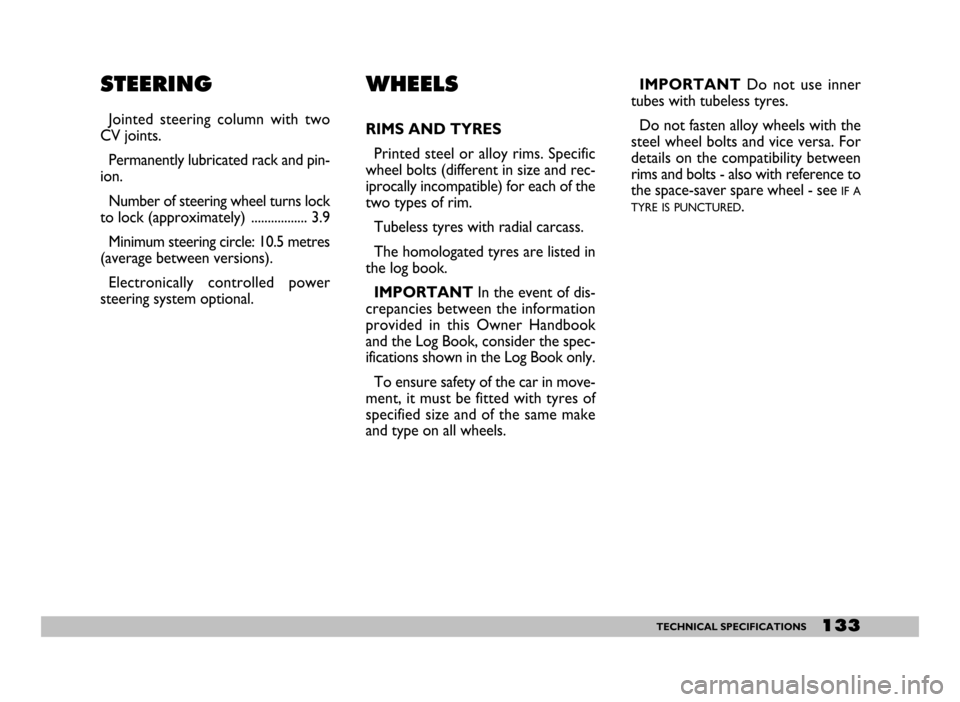

133TECHNICAL SPECIFICATIONS
STEERING
Jointed steering column with two
CV joints.
Permanently lubricated rack and pin-
ion.
Number of steering wheel turns lock
to lock (approximately) ................. 3.9
Minimum steering circle: 10.5 metres
(average between versions).
Electronically controlled power
steering system optional.
WHEELS
RIMS AND TYRES
Printed steel or alloy rims. Specific
wheel bolts (different in size and rec-
iprocally incompatible) for each of the
two types of rim.
Tubeless tyres with radial carcass.
The homologated tyres are listed in
the log book.
IMPORTANT In the event of dis-
crepancies between the information
provided in this Owner Handbook
and the Log Book, consider the spec-
ifications shown in the Log Book only.
To ensure safety of the car in move-
ment, it must be fitted with tyres of
specified size and of the same make
and type on all wheels.IMPORTANT Do not use inner
tubes with tubeless tyres.
Do not fasten alloy wheels with the
steel wheel bolts and vice versa. For
details on the compatibility between
rims and bolts - also with reference to
the space-saver spare wheel - see
IF A
TYRE IS PUNCTURED
.

134TECHNICAL SPECIFICATIONS
WINTER TYRES
Use winter tyres as indicated in the
WINTER TYRESchapter.
SMALL SPARE WHEEL
Printed steel rim.
Tubeless tyre.
SNOW CHAINS
Use only low profile chains, see the
SNOW CHAIN CHAPTER.
WHEEL GEOMETRY
Front wheel toe-in measured from
rim to rim: –1 ±1mm
The figures refer to the car in full
running order.Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
Q M+S= up to 160 km/h
T M+S= up to 190 km/h
H M+S= up to 210 km/h Example: 165/55 R 13 70 H
165= Nominal width (S, distance
between side walls in mm).
55= Height/width ratio (H/S, as a
percentage).
R= Radial tyre.
13= Rim nominal diameter in
inches (Ø).
70= Load rating (carrying capacity).
H= Maximum speed rating.
fig. 5
P3P01062

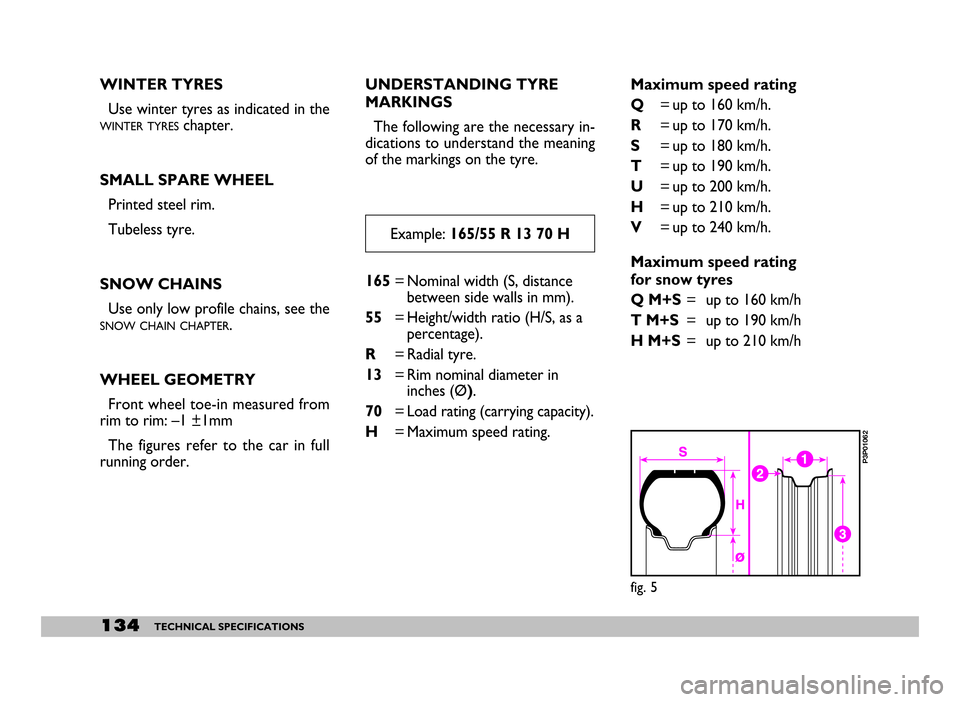

UNDERSTANDING TYRE
MARKINGS
The following are the necessary in-
dications to understand the meaning
of the markings on the tyre.

135TECHNICAL SPECIFICATIONS
Tyre
155/65 R13 – 73T
155/70 R13 – 75T
165/55 R13 – 70H (*)
155/65 R13 – 73TSnow tyre
145/70 R13 – 71Q M+S
145/70 R13 – 71Q M+S Rim
5Bx13 H
5
1/2Bx13 H2
5Bx13 H
Space-saver spare wheelrim tyre
4
1/2Jx13 H 135/70 R13 – 68T
Standard size spare wheel
Example: 5 1/2 B x 13 H2
5 1/2= rim width in inches (1)
B= rim drop centre outline
(side projection where the

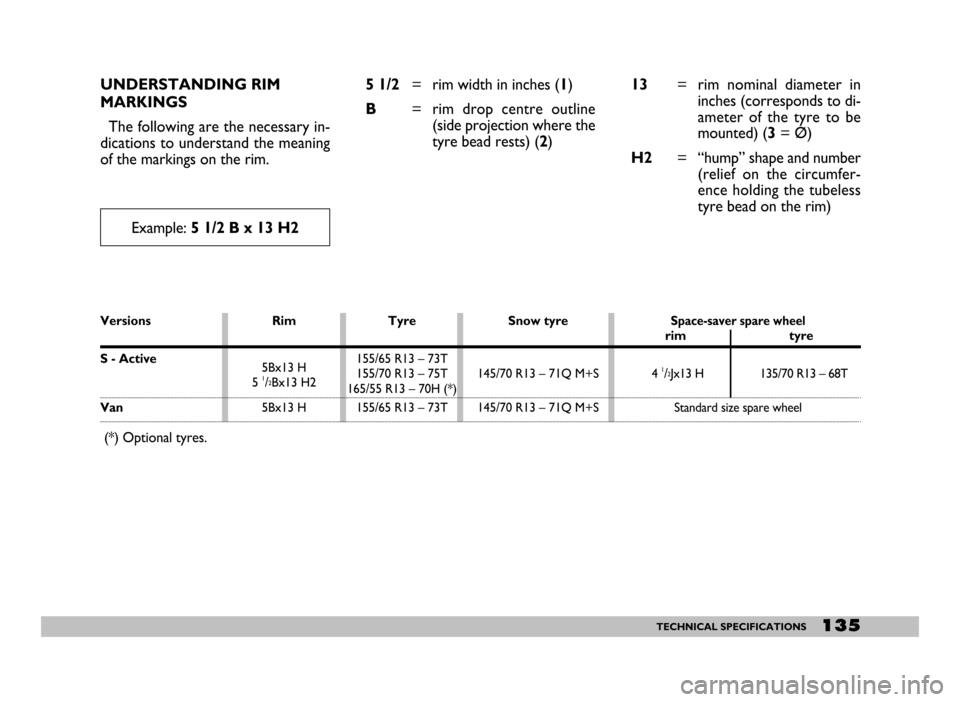

tyre bead rests) (2) UNDERSTANDING RIM
MARKINGS
The following are the necessary in-
dications to understand the meaning
of the markings on the rim.13= rim nominal diameter in
inches (corresponds to di-
ameter of the tyre to be
mounted) (3 = Ø)
H2= “hump” shape and number
(relief on the circumfer-
ence holding the tubeless
tyre bead on the rim)
Versions
S - Active
Van
(*) Optional tyres.

136TECHNICAL SPECIFICATIONS

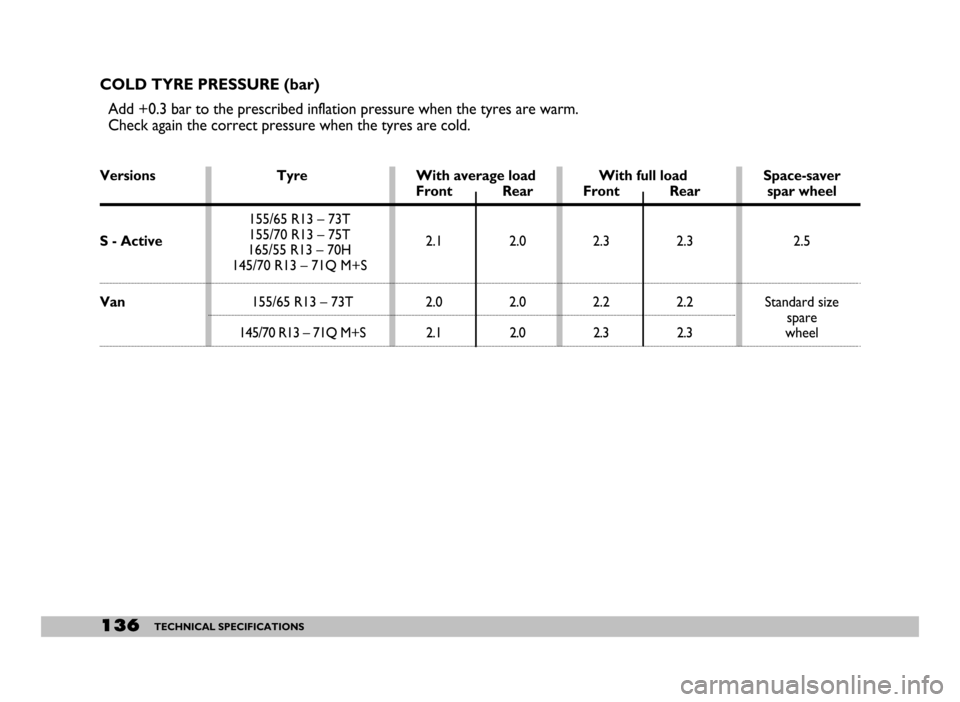

COLD TYRE PRESSURE (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm.
Check again the correct pressure when the tyres are cold.
Versions Tyre With average load With full load Space-saver
Front Rear Front Rear spar wheel
S - Active155/65 R13 – 73T
2.1 2.0 2.3 2.3 2.5 155/70 R13 – 75T
165/55 R13 – 70H
145/70 R13 – 71Q M+S
Van155/65 R13 – 73T 2.0 2.0 2.2 2.2 Standard size
spare
145/70 R13 – 71Q M+S 2.1 2.0 2.3 2.3wheel

137TECHNICAL SPECIFICATIONS
Length mm
Width mm
Empty standing height mm
Projection front mm
rear mm
Wheelbase mm
Front track front mm
rear mm
Unladen boot volume
(V.D.A. standards): dm3
PERFORMANCE
Top permissible speed after running:
150 km/h.
S - Active
3337
1508
1420
637
500
2200
1277
1270
170 (*)Van
3337
1508
1440
637
500
2200
1275
1268
810

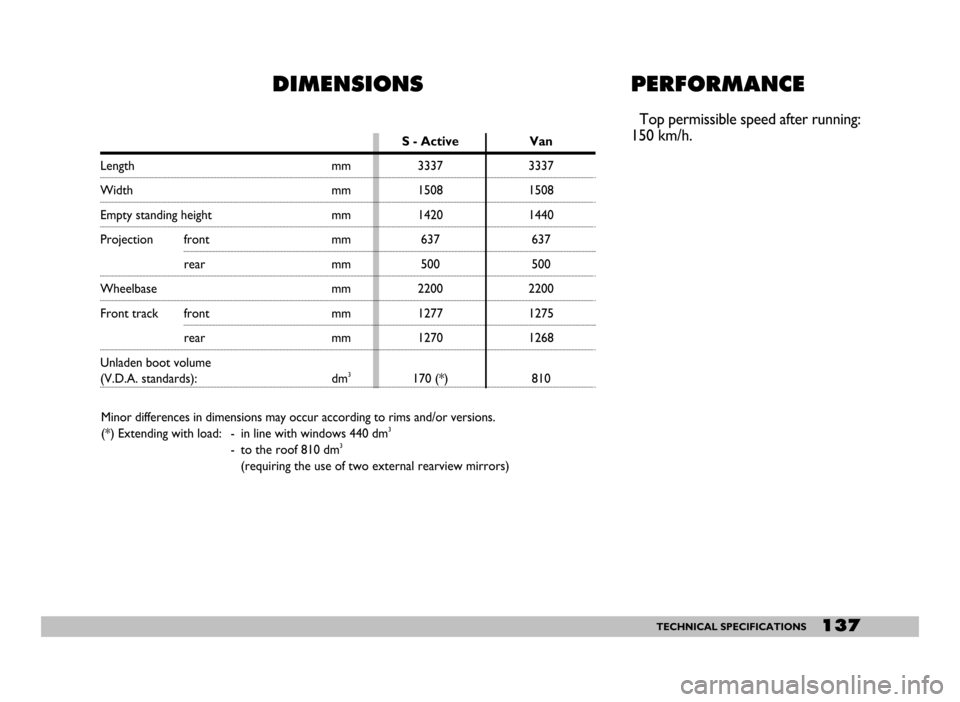

DIMENSIONS
Minor differences in dimensions may occur according to rims and/or versions.
(*) Extending with load: - in line with windows 440 dm3
- to the roof 810 dm3
(requiring the use of two external rearview mirrors)

138TECHNICAL SPECIFICATIONS
Van
760
450
610
720
1210
400
200
28
30 S - Active
735
465
610
630
1200
400
350
28
30

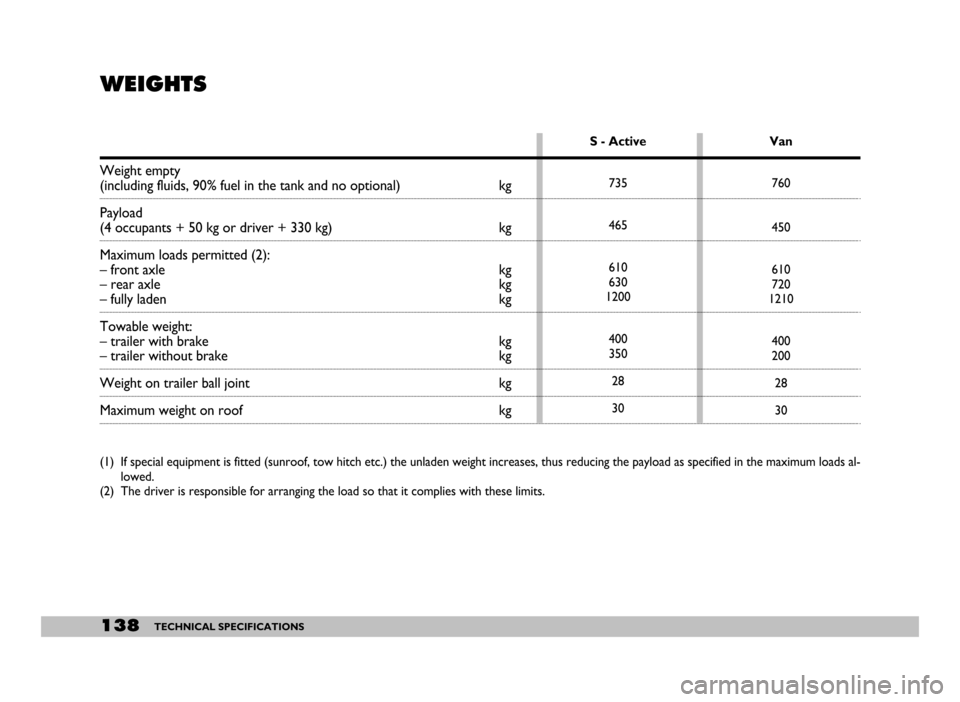

WEIGHTS
(1) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in the maximum loads al-
lowed.
(2) The driver is responsible for arranging the load so that it complies with these limits.
Weight empty (including fluids, 90% fuel in the tank and no optional) kg
Payload
(4 occupants + 50 kg or driver + 330 kg) kg
Maximum loads permitted (2):
– front axle kg
– rear axle kg
– fully laden kg
Towable weight:
– trailer with brake kg
– trailer without brake kg
Weight on trailer ball joint kg
Maximum weight on roof kg

139TECHNICAL SPECIFICATIONS
CAPACITIES
Fuel tank:
including a reserve about:
Engine cooling system:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Steering unit:
CV joint cavities and boots
(each):
Front and rear brakes hydraulic circuit:
Windscreen and rear window
washer liquid reservoir: Prescribed fuel
Recommended products
Unleaded Super petrol
not less than 95 R.O.N.
Mixture of distilled water and
PARAFLU UPat 50%
SELENIA 20 K
TUTELA CAR ZC 75 SYNTH
K 854
TUTELA MRM 2
TUTELA TOP 4
Mixture of water and TUTELA
PROFESSIONAL SC35fluid litres kg
38–
7–
4–
3.1 2.8
3.5 3.1
2.4 2.15
– 0.10
– 0.08
0.4 –
1.8–

140TECHNICAL SPECIFICATIONS

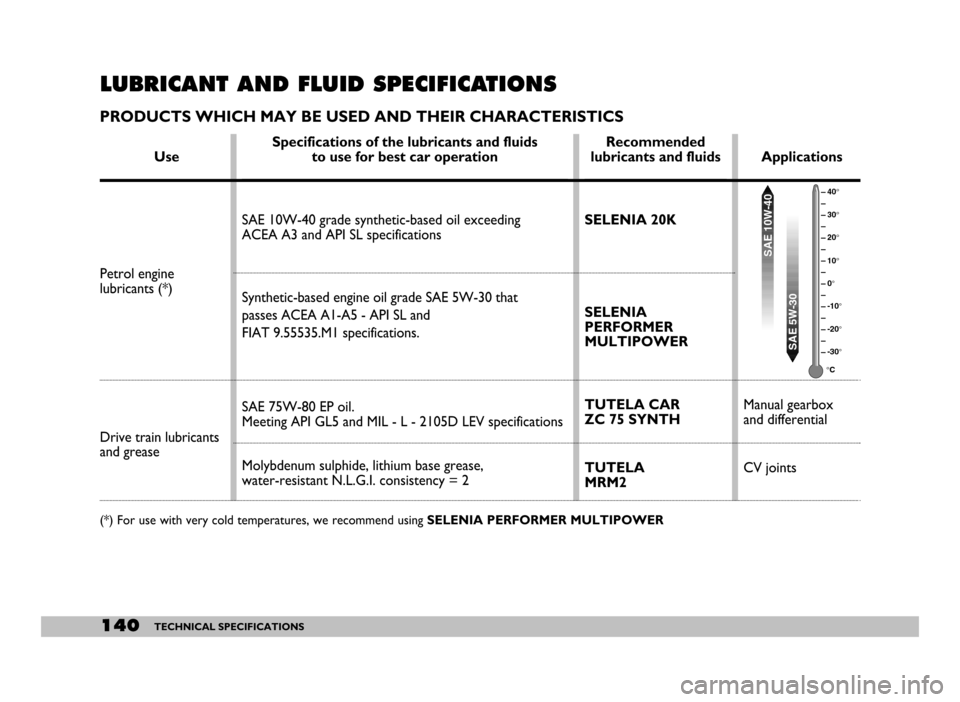

LUBRICANT AND FLUID SPECIFICATIONS
PRODUCTS WHICH MAY BE USED AND THEIR CHARACTERISTICS
Use
(*) For use with very cold temperatures, we recommend using SELENIA PERFORMER MULTIPOWER
Recommendedlubricants and fluids
SELENIA 20K
SELENIA
PERFORMER
MULTIPOWER
TUTELA CAR
ZC 75 SYNTH
TUTELA
MRM2 Drive train lubricants
and grease Petrol engine
lubricants (*)Specifications of the lubricants and fluids to use for best car operation
SAE 10W-40 grade synthetic-based oil exceeding
ACEA A3 and API SL specifications
Synthetic-based engine oil grade SAE 5W-30 that
passes ACEA A1-A5 - API SL and
FIAT 9.55535.M1 specifications.
SAE 75W-80 EP oil.
Meeting API GL5 and MIL - L - 2105D LEV specifications
Molybdenum sulphide, lithium base grease,
water-resistant N.L.G.I. consistency = 2Applications
Manual gearbox
and differential
CV joints
40°
30°
20°
10°
0°
-10°
-20°
-30°
°C
SAE 10W-40
SAE 5W-30

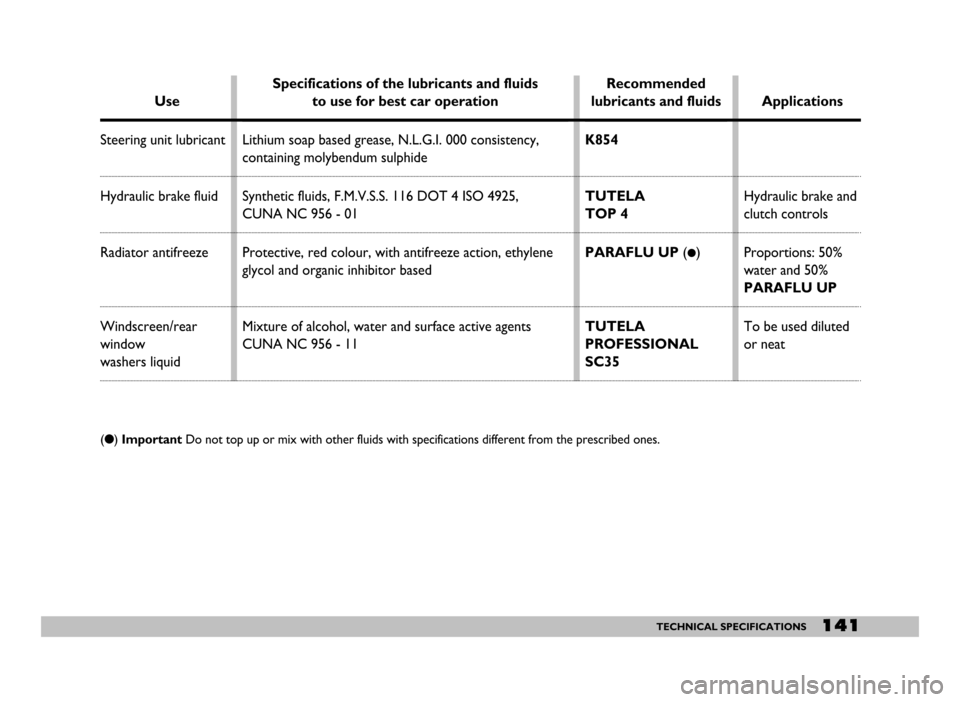

141TECHNICAL SPECIFICATIONS
Use
Steering unit lubricant
Hydraulic brake fluid
Radiator antifreeze
Windscreen/rear
window
washers liquidRecommended
lubricants and fluids
K854
TUTELA
TOP 4
PARAFLU UP (
)
TUTELA
PROFESSIONAL
SC35 Specifications of the lubricants and fluids
to use for best car operation
Lithium soap based grease, N.L.G.I. 000 consistency,
containing molybendum sulphide
Synthetic fluids, F.M.V.S.S. 116 DOT 4 ISO 4925,
CUNA NC 956 - 01
Protective, red colour, with antifreeze action, ethylene
glycol and organic inhibitor based
Mixture of alcohol, water and surface active agents
CUNA NC 956 - 11Applications
Hydraulic brake and
clutch controls
Proportions: 50%
water and 50%
PARAFLU UP
To be used diluted
or neat
() ImportantDo not top up or mix with other fluids with specifications different from the prescribed ones.

142TECHNICAL SPECIFICATIONS

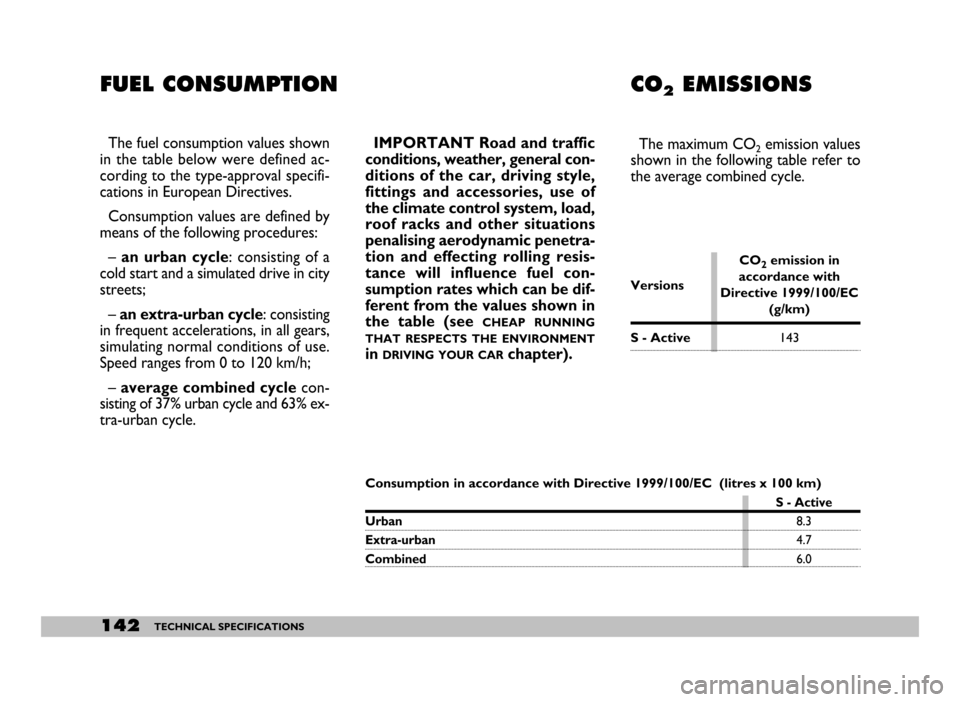

CO2EMISSIONS
The fuel consumption values shown
in the table below were defined ac-
cording to the type-approval specifi-
cations in European Directives.
Consumption values are defined by
means of the following procedures:
– an urban cycle: consisting of a
cold start and a simulated drive in city
streets;
– an extra-urban cycle: consisting
in frequent accelerations, in all gears,
simulating normal conditions of use.
Speed ranges from 0 to 120 km/h;
– average combined cyclecon-
sisting of 37% urban cycle and 63% ex-
tra-urban cycle.
FUEL CONSUMPTION
IMPORTANT Road and traffic
conditions, weather, general con-
ditions of the car, driving style,
fittings and accessories, use of
the climate control system, load,
roof racks and other situations
penalising aerodynamic penetra-
tion and effecting rolling resis-
tance will influence fuel con-
sumption rates which can be dif-
ferent from the values shown in
the table (see
CHEAP RUNNING
THAT RESPECTS THE ENVIRONMENT
in DRIVING YOUR CARchapter).
The maximum CO2emission values
shown in the following table refer to
the average combined cycle.
Consumption in accordance with Directive 1999/100/EC (litres x 100 km)
S - Active
Urban8.3
Extra-urban4.7
Combined6.0
CO2emission in
Versionsaccordance with
Directive 1999/100/EC
(g/km)
S - Active143
