Page 32 of 154
31GETTING TO KNOW YOUR CAR
DRIVING MIRROR
This mirror can be adjusted by
means of lever A-fig. 30:
1)anti-dazzle position;
2)normal position.
Mirror slant can be adjusted in either
positions.
The mirror is also fitted with a safety
device that releases the mirror in the
event of an impact.
fig. 30
P4Q00010
fig. 29
P4Q00007
ACCESSING THE REAR
SEATS
The rear seats can comfortably be
accessed from both sides.
Pull lever C-fig. 29upwards to tilt
the seat forward.
Once you have let go of the lever,
check that the seat is firmly locked in
the runners by trying to move it back
and forth. DOOR MIRRORS
Manual adjustment
From inside the car, turn knob
B-fig. 31.
fig. 31
P4Q00032
If the mirror A makes it
difficult to get through
narrow gaps, fold it from
position 1 to position 2.
An optional additional door mirror
which can also be adjusted from inside
the car on the other side is available.
Page 44 of 154
43GETTING TO KNOW YOUR CAR
SUN VISORS fig. 55
These are positioned to the sides of
the rear-view mirror. They can swing
up or down or be pivoted sideways.
On the back of the drivers sun visor
there is a document pocket, while the
passenger sun visor is fitted with a
vanity mirror.
fig. 55
P4Q00060
SUNROOF
ELECTRICAL
Opening and closing the canvas
top
Do not attempt to open
the roof if there is ice or
snow on it as this may
damage the top.
The car can be equipped with an op-
tional electrically operated canvas top:
– A-fig. 56 top closed
– B-fig. 57 top open.Press the button as follows to open
the top:
– on the front side A-fig. 58to
close the top;
– on the rear side Bto open the
top.
fig. 56
P4Q00063
fig. 57
P4Q00064
fig. 58
P4Q00023
Page 74 of 154
73DRIVING YOUR CAR
IMPORTANT Reverse gear can
only be engaged when the car is com-
pletely stationary. With the engine
running, before engaging the reverse
gear, wait for at least two seconds
with the clutch pedal pressed fully
down to avoid damaging or grating the
gears. SAFE DRIVING
In designing the Fiat 600, Fiat has
made every effort to come up with a
car able to provide driver and pas-
sengers with top-class levels of safety.
Nevertheless it is always the behav-
iour of the person at the wheel that
determines road safety.
Below you will find some simple tips
to help you travel in safety under dif-
ferent conditions. You will no doubt
be familiar with many of them already
but it will be useful to read them all
carefully.
BEFORE GETTING BEHIND
THE WHEEL
– Make sure all lights including the
headlights are working properly.
– Adjust the position of the seats,
steering wheel, inside and outside rear
view mirrors properly for the best
driving position.
– Carefully adjust the head restraints
so the back of the head and not the
nape of the neck is supported. – Make sure that nothing (mats etc.)
gets in the way of the pedals when
they are pushed down.
– Make sure that any child restraint
systems (child seats, carriers etc.) are
properly fixed preferably on the back
seat.
– Place any objects in the boot in
such a way that they cannot be
thrown forwards in the event of an
accident.
– Do not eat a heavy meal before
travelling. Light eating will help keep
your reflexes prompt. Above all, do
not have anything alcoholic to drink.
Periodically, remember to check:
– tyre pressure and condition
– level of battery electrolyte
– engine oil level
– coolant level and condition of the
system
– brake fluid level
– windscreen washer fluid level. To change the gear
properly (with mechani-
cal clutch) you must push
the clutch pedal fully down. It is
therefore essential that there is
nothing under the pedals. Make
sure mats are lying flat and do
not get in the way of the pedals.

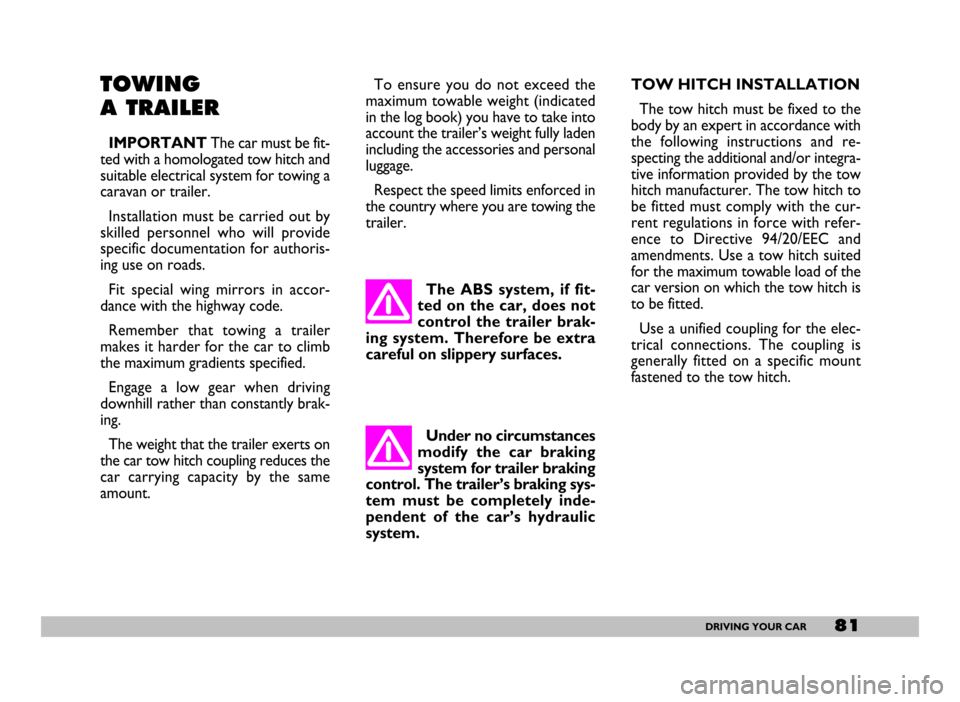

Page 82 of 154
81DRIVING YOUR CAR
TOWING
A TRAILER
IMPORTANTThe car must be fit-
ted with a homologated tow hitch and
suitable electrical system for towing a
caravan or trailer.
Installation must be carried out by
skilled personnel who will provide
specific documentation for authoris-
ing use on roads.
Fit special wing mirrors in accor-
dance with the highway code.
Remember that towing a trailer
makes it harder for the car to climb
the maximum gradients specified.
Engage a low gear when driving
downhill rather than constantly brak-
ing.
The weight that the trailer exerts on
the car tow hitch coupling reduces the
car carrying capacity by the same
amount. To ensure you do not exceed the
maximum towable weight (indicated
in the log book) you have to take into
account the trailer’s weight fully laden
including the accessories and personal
luggage.
Respect the speed limits enforced in
the country where you are towing the
trailer.TOW HITCH INSTALLATION
The tow hitch must be fixed to the
body by an expert in accordance with
the following instructions and re-
specting the additional and/or integra-
tive information provided by the tow
hitch manufacturer. The tow hitch to
be fitted must comply with the cur-
rent regulations in force with refer-
ence to Directive 94/20/EEC and
amendments. Use a tow hitch suited
for the maximum towable load of the
car version on which the tow hitch is
to be fitted.
Use a unified coupling for the elec-
trical connections. The coupling is
generally fitted on a specific mount
fastened to the tow hitch. The ABS system, if fit-
ted on the car, does not
control the trailer brak-
ing system. Therefore be extra
careful on slippery surfaces.
Under no circumstances
modify the car braking
system for trailer braking
control. The trailer’s braking sys-
tem must be completely inde-
pendent of the car’s hydraulic
system.
Page 138 of 154
137TECHNICAL SPECIFICATIONS
Length mm
Width mm
Empty standing height mm
Projection front mm
rear mm
Wheelbase mm
Front track front mm
rear mm
Unladen boot volume
(V.D.A. standards): dm3
PERFORMANCE
Top permissible speed after running:
150 km/h.
S - Active
3337
1508
1420
637
500
2200
1277
1270
170 (*)Van
3337
1508
1440
637
500
2200
1275
1268
810
DIMENSIONS
Minor differences in dimensions may occur according to rims and/or versions.
(*) Extending with load: - in line with windows 440 dm3
- to the roof 810 dm3
(requiring the use of two external rearview mirrors)

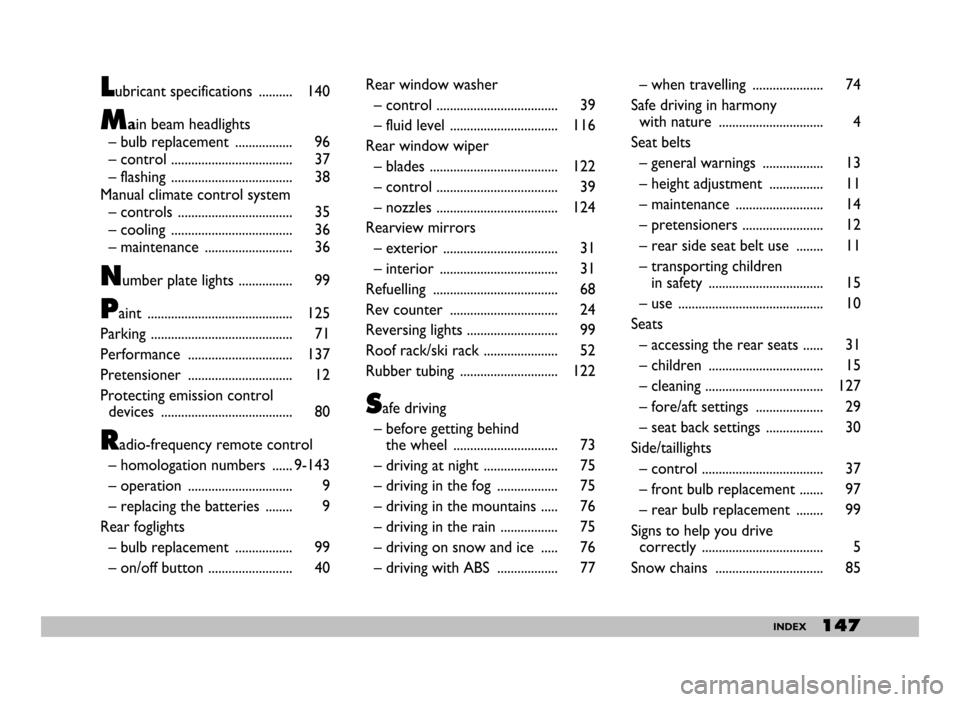

Page 148 of 154
147INDEX
Lubricant specifications .......... 140
Main beam headlights
– bulb replacement ................. 96
– control .................................... 37
– flashing .................................... 38
Manual climate control system
– controls .................................. 35
– cooling .................................... 36
– maintenance .......................... 36
Number plate lights ................ 99
Paint ........................................... 125
Parking .......................................... 71
Performance ............................... 137
Pretensioner ............................... 12
Protecting emission control
devices ....................................... 80
Radio-frequency remote control
– homologation numbers ...... 9-143
– operation ............................... 9
– replacing the batteries ........ 9
Rear foglights
– bulb replacement ................. 99
– on/off button ......................... 40Rear window washer
– control .................................... 39
– fluid level ................................ 116
Rear window wiper
– blades ...................................... 122
– control .................................... 39
– nozzles .................................... 124
Rearview mirrors
– exterior .................................. 31
– interior ................................... 31
Refuelling ..................................... 68
Rev counter ................................ 24
Reversing lights ........................... 99
Roof rack/ski rack ...................... 52
Rubber tubing ............................. 122
Safe driving
– before getting behind
the wheel ............................... 73
– driving at night ...................... 75
– driving in the fog .................. 75
– driving in the mountains ..... 76
– driving in the rain ................. 75
– driving on snow and ice ..... 76
– driving with ABS .................. 77– when travelling ..................... 74
Safe driving in harmony
with nature ............................... 4
Seat belts
– general warnings .................. 13
– height adjustment ................ 11
– maintenance .......................... 14
– pretensioners ........................ 12
– rear side seat belt use ........ 11
– transporting children
in safety .................................. 15
– use ........................................... 10
Seats
– accessing the rear seats ...... 31
– children .................................. 15
– cleaning ................................... 127
– fore/aft settings .................... 29
– seat back settings ................. 30
Side/taillights
– control .................................... 37
– front bulb replacement ....... 97
– rear bulb replacement ........ 99
Signs to help you drive
correctly .................................... 5
Snow chains ................................ 85
