FIAT SPIDER ABARTH 2017 User Guide

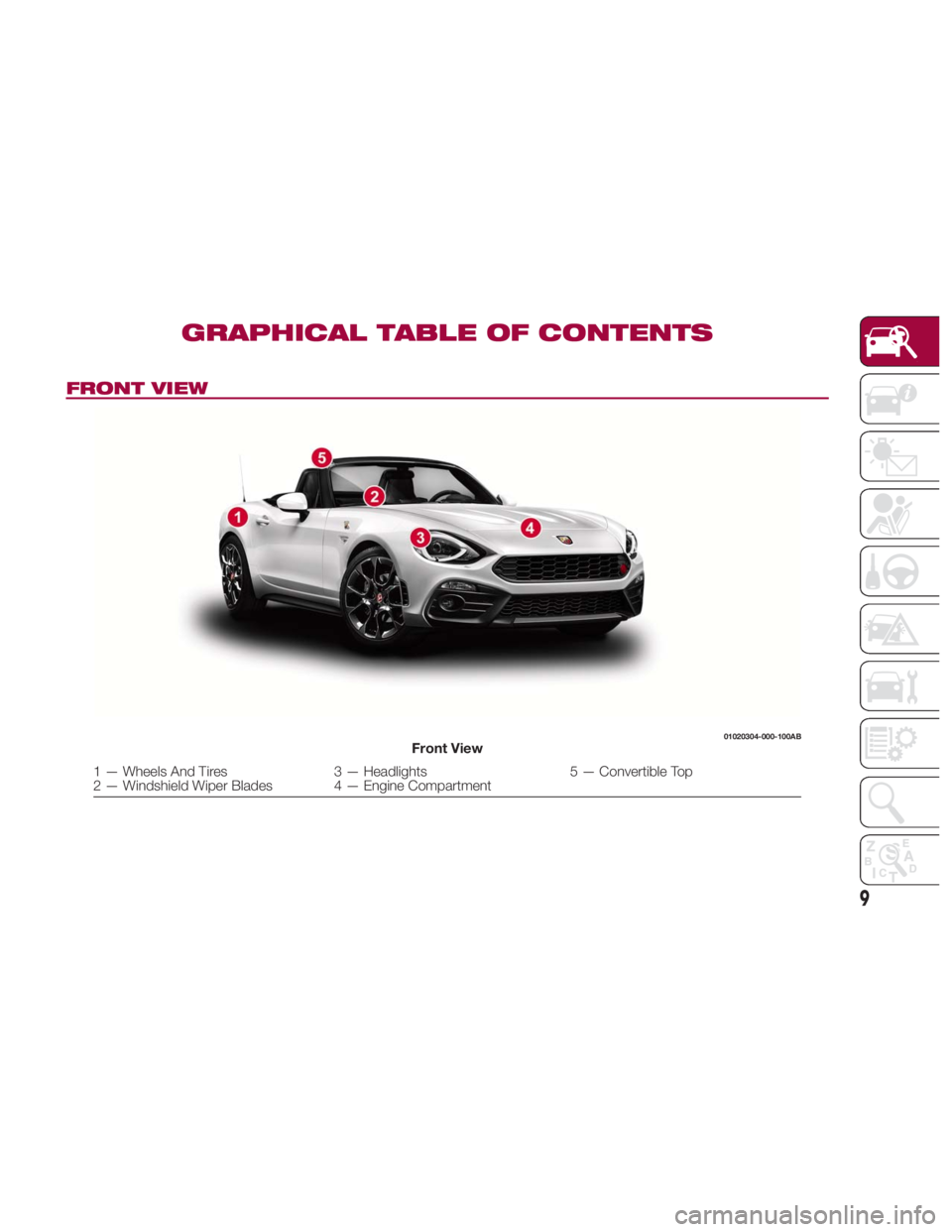

GRAPHICAL TABLE OF CONTENTSFRONT VIEW 01020304-000-100AB
Front View
1 — Wheels And Tires 3 — Headlights 5 — Convertible Top
2 — Windshield Wiper Blades 4 — Engine Compartment
9

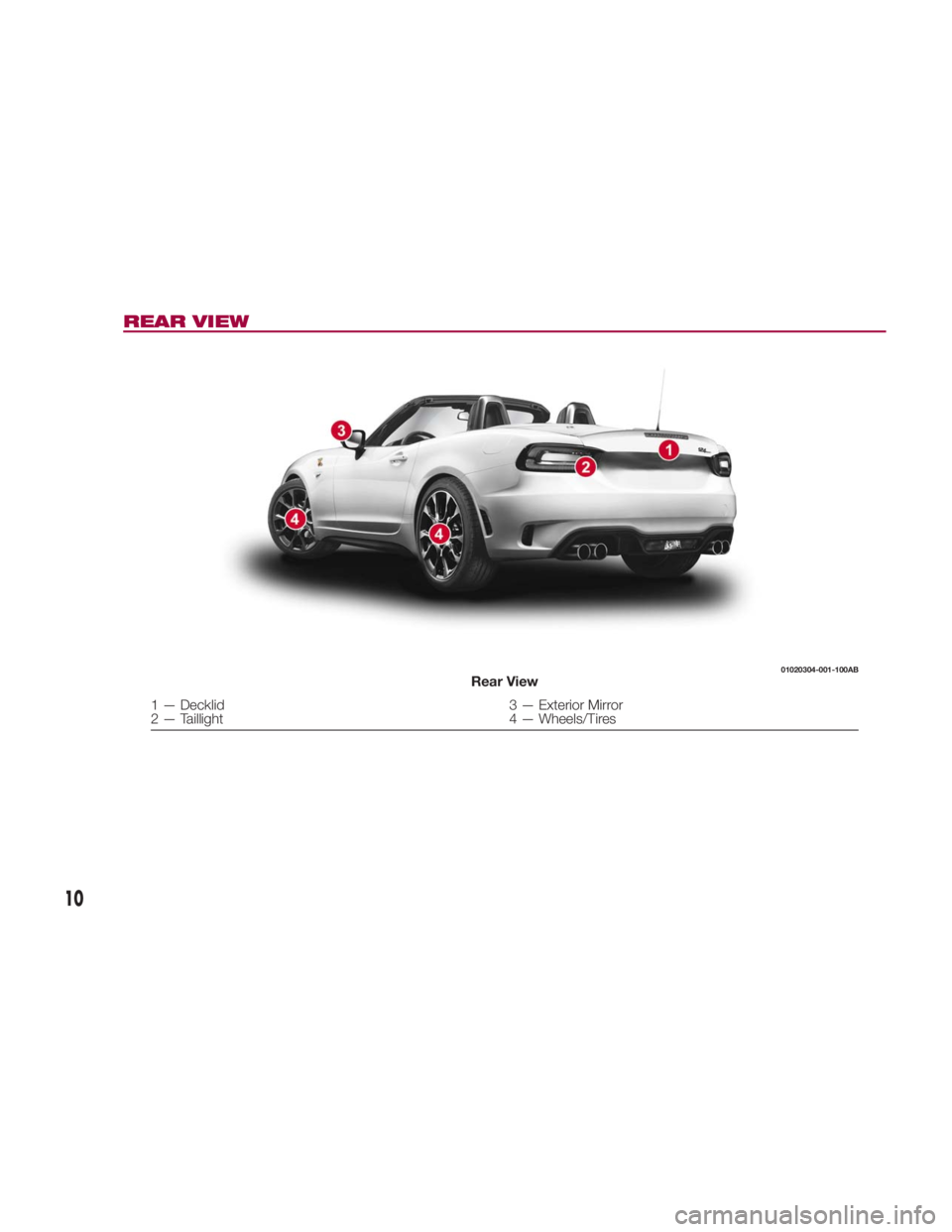

REAR VIEW 01020304-001-100AB
Rear View
1 — Decklid 3 — Exterior Mirror
2 — Taillight 4 — Wheels/Tires
10

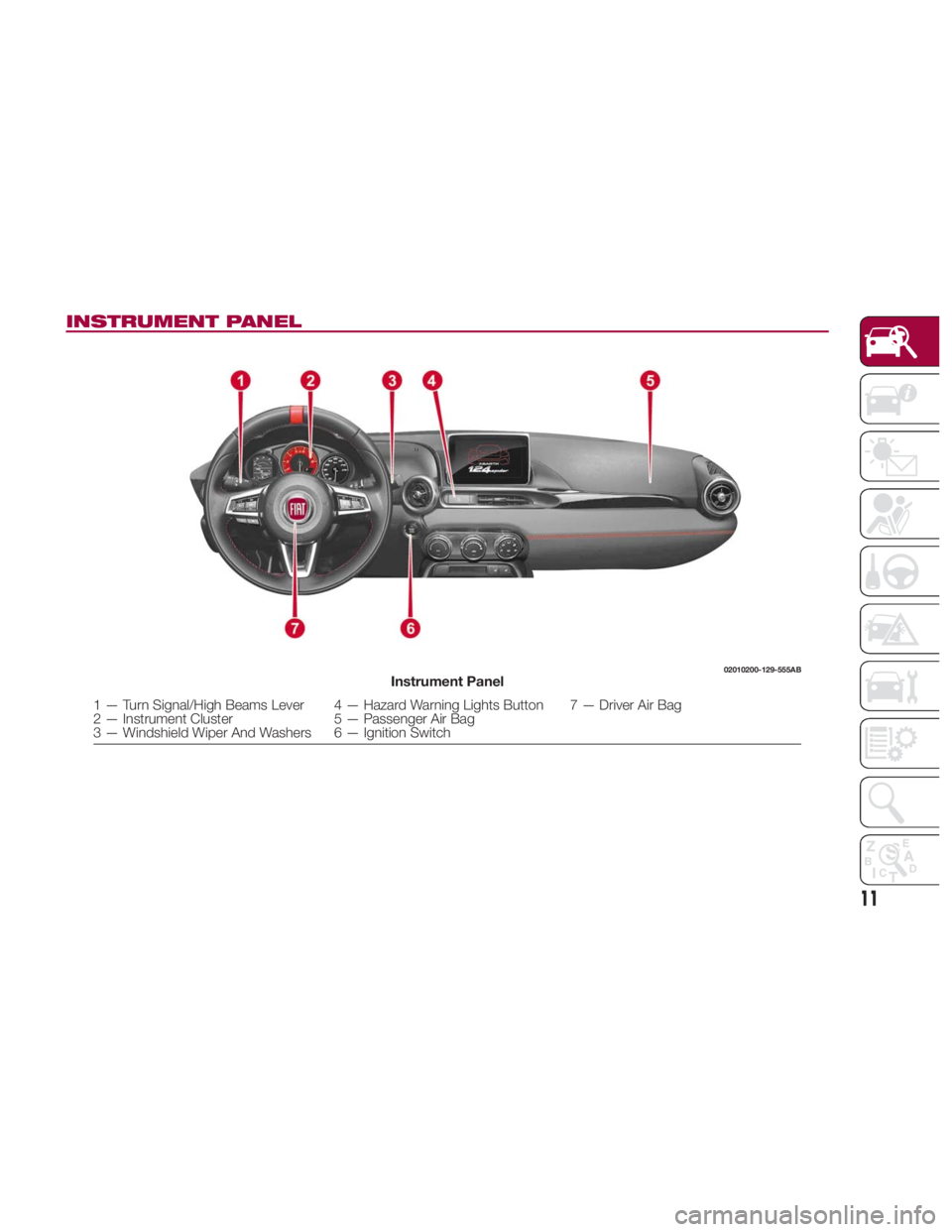

INSTRUMENT PANEL 02010200-129-555AB
Instrument Panel
1 — Turn Signal/High Beams Lever 4 — Hazard Warning Lights Button 7 — Driver Air Bag
2 — Instrument Cluster 5 — Passenger Air Bag
3 — Windshield Wiper And Washers 6 — Ignition Switch
11

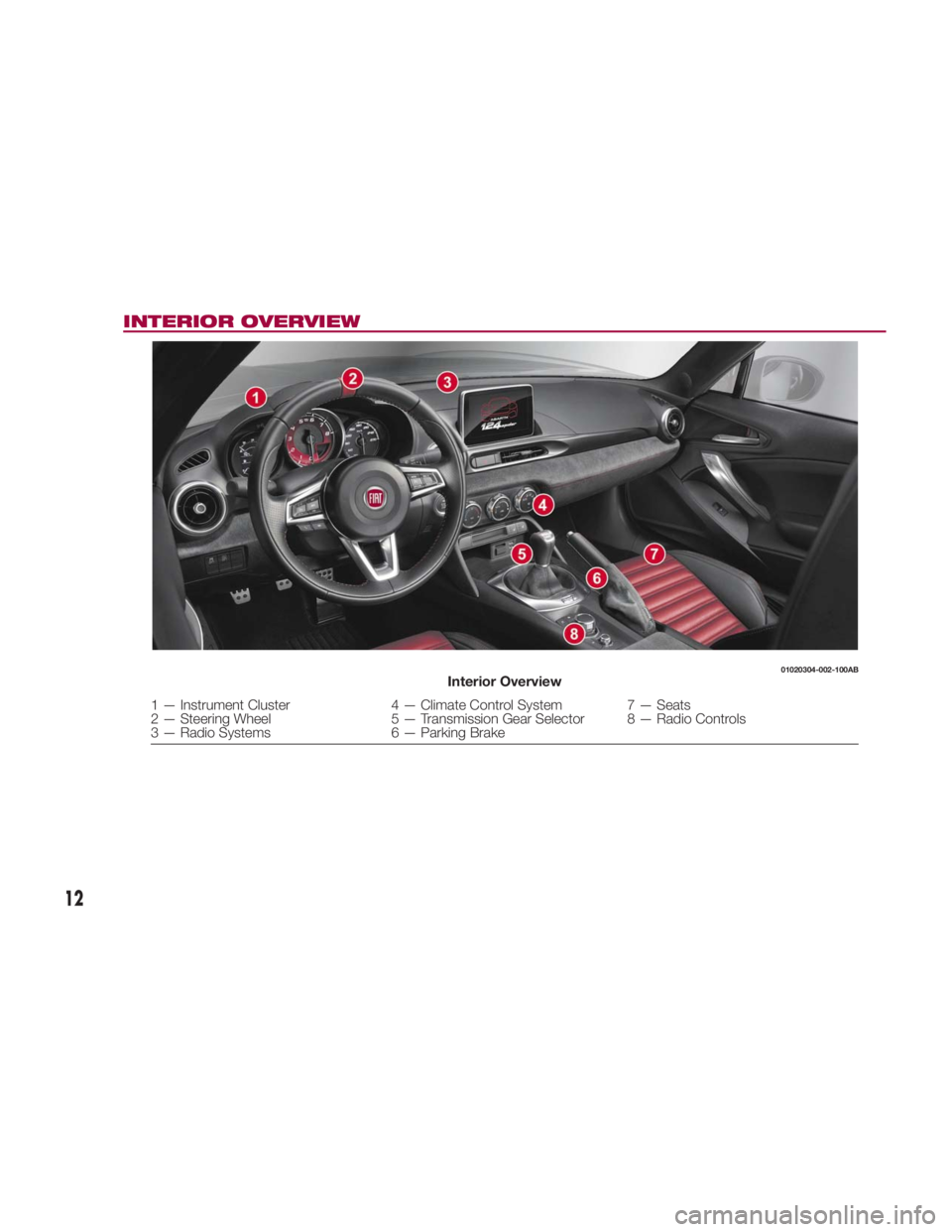

INTERIOR OVERVIEW 01020304-002-100AB
Interior Overview
1 — Instrument Cluster 4 — Climate Control System 7 — Seats
2 — Steering Wheel 5 — Transmission Gear Selector 8 — Radio Controls
3 — Radio Systems 6 — Parking Brake
12

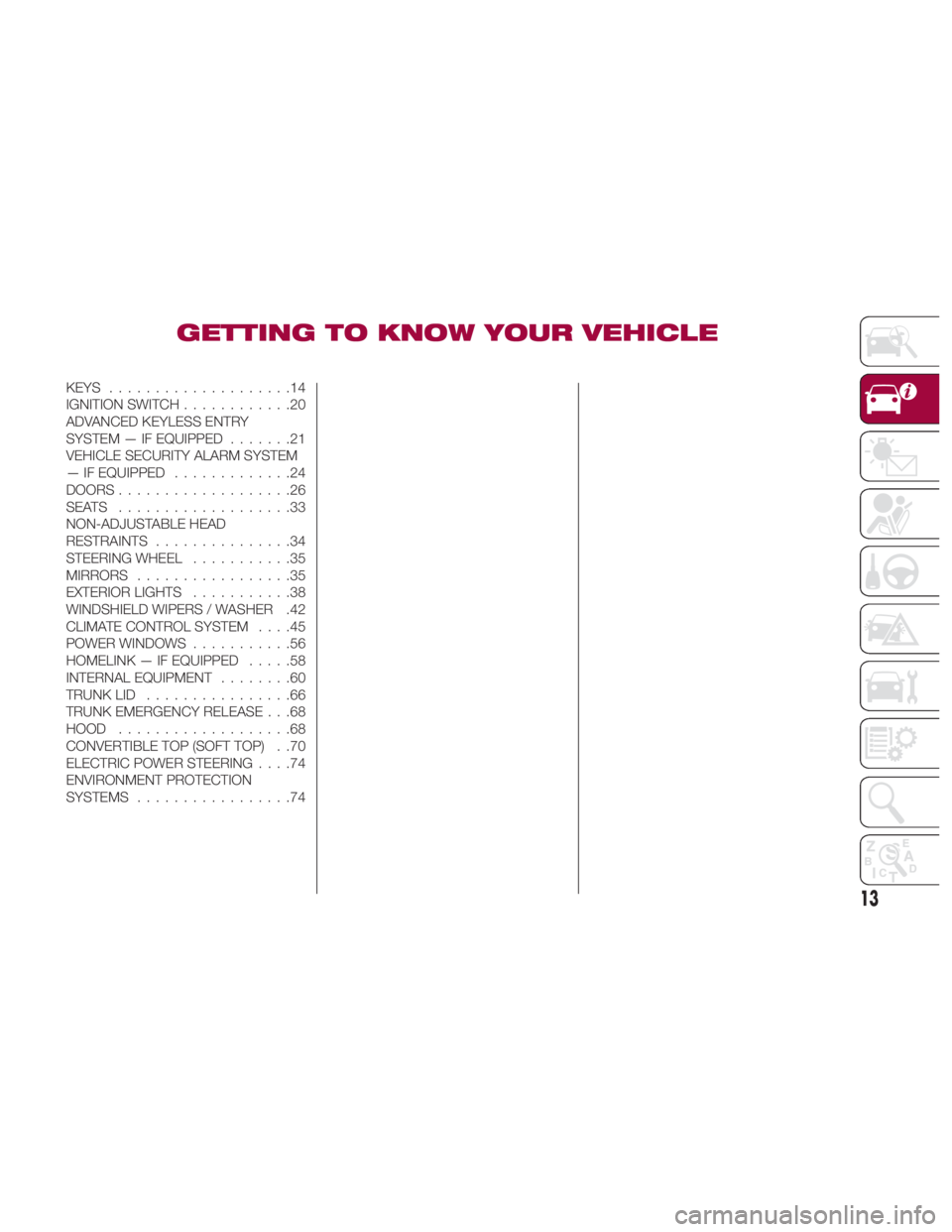

GETTING TO KNOW YOUR VEHICLEKEYS ....................14
IGNITION SWITCH ............20
ADVANCED KEYLESS ENTRY
SYSTEM — IF EQUIPPED .......21
VEHICLE SECURITY ALARM SYSTEM
— IF EQUIPPED .............24
DOORS...................26
SEATS ...................33
NON-ADJUSTABLE HEAD
RESTRAINTS ...............34
STEERING WHEEL ...........35
MIRRORS .................35
EXTERIOR LIGHTS ...........38
WINDSHIELD WIPERS / WASHER .42
CLIMATE CONTROL SYSTEM ....45
POWER WINDOWS ...........56
HOMELINK — IF EQUIPPED .....58
INTERNAL EQUIPMENT ........60
TRUNKLID ................66
TRUNK EMERGENCY RELEASE . . .68
HOOD ...................68
CONVERTIBLE TOP (SOFT TOP) . .70
ELECTRIC POWER STEERING ....74
ENVIRONMENT PROTECTION
SYSTEMS .................74
13

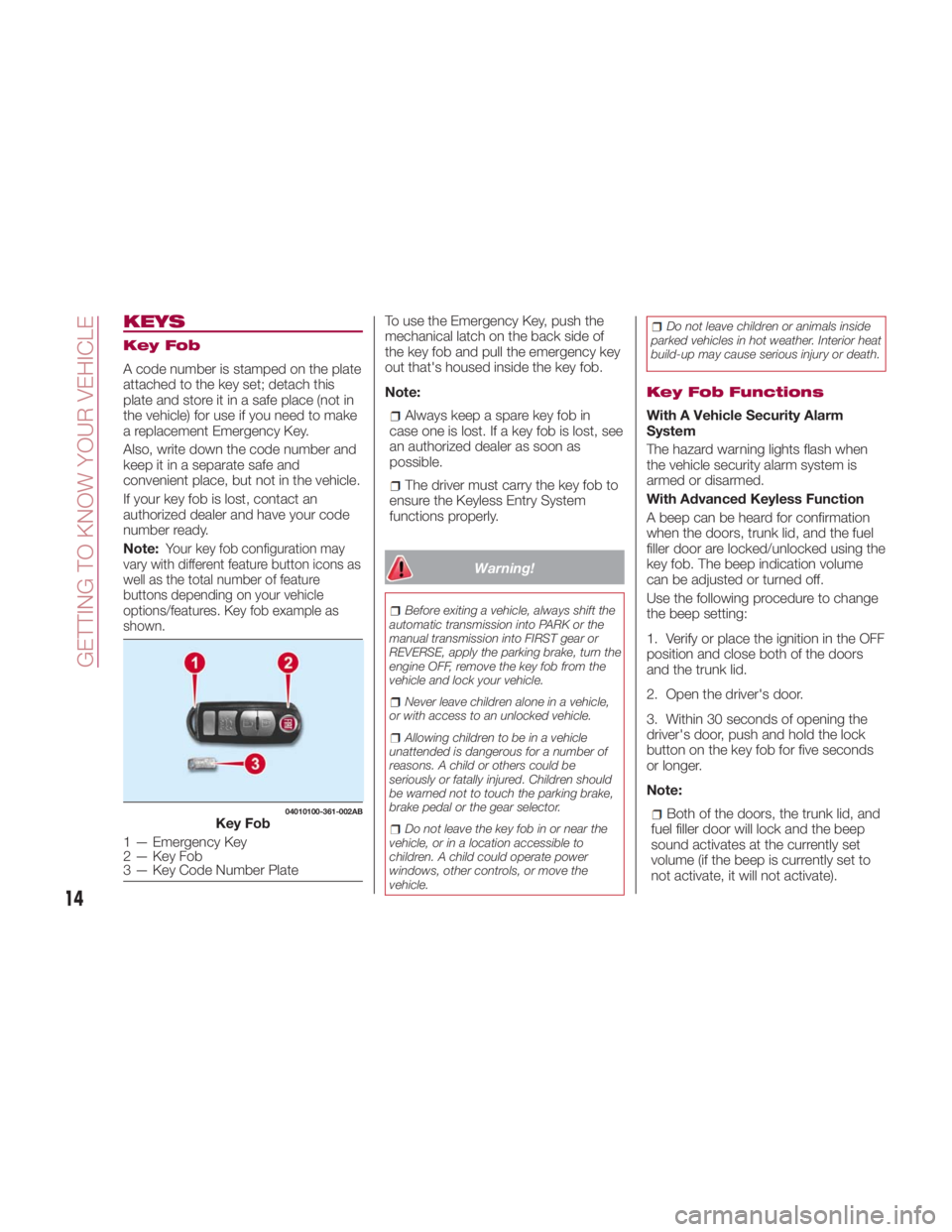

KEYS Key Fob
A code number is stamped on the plate
attached to the key set; detach this
plate and store it in a safe place (not in
the vehicle) for use if you need to make
a replacement Emergency Key.
Also, write down the code number and
keep it in a separate safe and
convenient place, but not in the vehicle.
If your key fob is lost, contact an
authorized dealer and have your code
number ready.
Note:
Your key fob configuration may
vary with different feature button icons as
well as the total number of feature
buttons depending on your vehicle
options/features. Key fob example as
shown. To use the Emergency Key, push the
mechanical latch on the back side of
the key fob and pull the emergency key
out that's housed inside the key fob.
Note:
Always keep a spare key fob in
case one is lost. If a key fob is lost, see
an authorized dealer as soon as
possible.
The driver must carry the key fob to
ensure the Keyless Entry System
functions properly.
Warning!Before exiting a vehicle, always shift the
automatic transmission into PARK or the
manual transmission into FIRST gear or
REVERSE, apply the parking brake, turn the
engine OFF, remove the key fob from the
vehicle and lock your vehicle.
Never leave children alone in a vehicle,
or with access to an unlocked vehicle.
Allowing children to be in a vehicle
unattended is dangerous for a number of
reasons. A child or others could be
seriously or fatally injured. Children should
be warned not to touch the parking brake,
brake pedal or the gear selector.
Do not leave the key fob in or near the
vehicle, or in a location accessible to
children. A child could operate power
windows, other controls, or move the
vehicle. Do not leave children or animals inside
parked vehicles in hot weather. Interior heat
build-up may cause serious injury or death.
Key Fob Functions
With A Vehicle Security Alarm
System
The hazard warning lights flash when
the vehicle security alarm system is
armed or disarmed.
With Advanced Keyless Function
A beep can be heard for confirmation
when the doors, trunk lid, and the fuel
filler door are locked/unlocked using the
key fob. The beep indication volume
can be adjusted or turned off.
Use the following procedure to change
the beep setting:
1. Verify or place the ignition in the OFF
position and close both of the doors
and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, push and hold the lock
button on the key fob for five seconds
or longer.
Note:
Both of the doors, the trunk lid, and
fuel filler door will lock and the beep
sound activates at the currently set
volume (if the beep is currently set to
not activate, it will not activate).04010100-361-002AB
Key Fob
1 — Emergency Key
2 — Key Fob
3 — Key Code Number Plate
14
GETTING TO KNOW YOUR VEHICLE

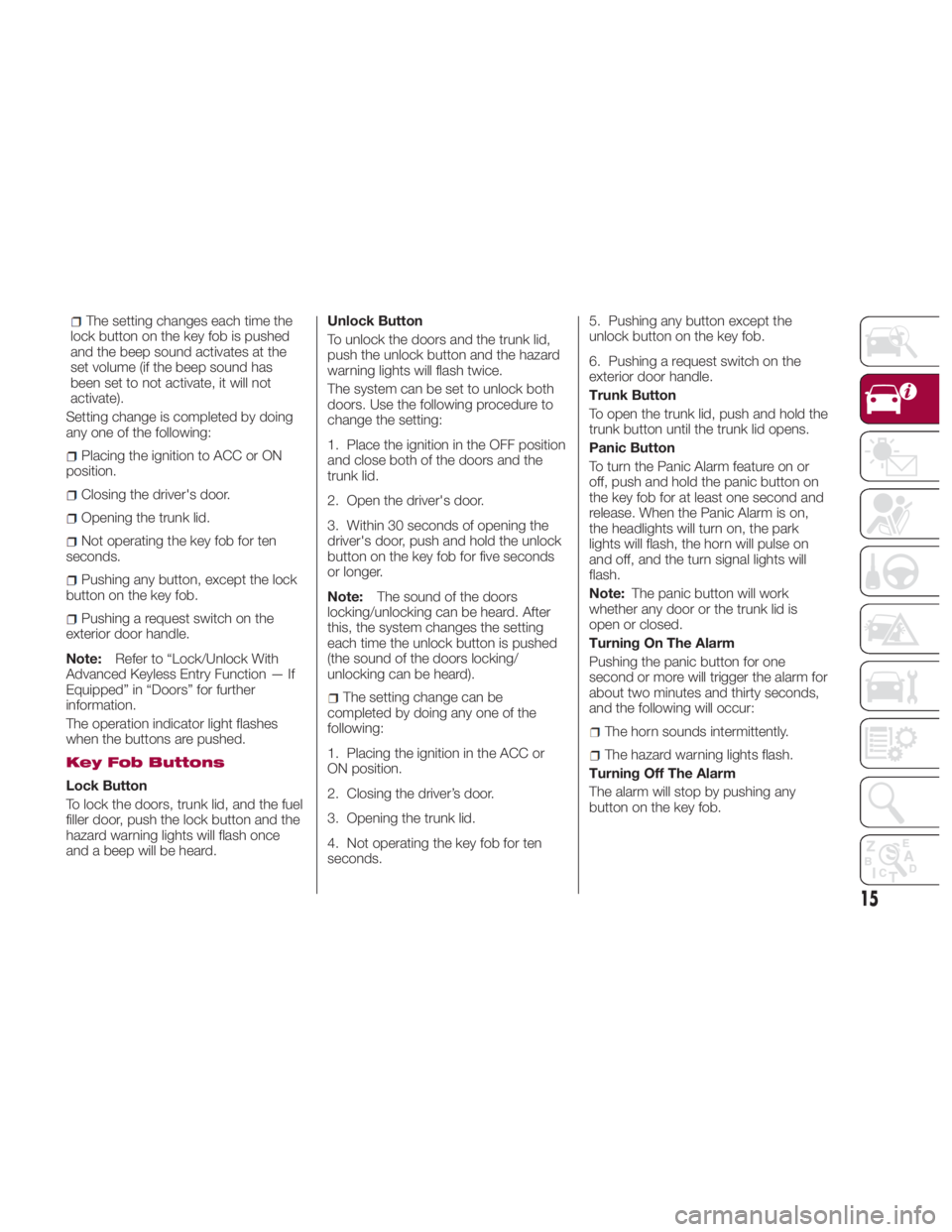

The setting changes each time the
lock button on the key fob is pushed
and the beep sound activates at the
set volume (if the beep sound has
been set to not activate, it will not
activate).
Setting change is completed by doing
any one of the following:
Placing the ignition to ACC or ON
position.
Closing the driver's door.
Opening the trunk lid.
Not operating the key fob for ten
seconds.
Pushing any button, except the lock
button on the key fob.
Pushing a request switch on the
exterior door handle.
Note: Refer to “Lock/Unlock With
Advanced Keyless Entry Function — If
Equipped” in “Doors” for further
information.
The operation indicator light flashes
when the buttons are pushed.
Key Fob Buttons
Lock Button
To lock the doors, trunk lid, and the fuel
filler door, push the lock button and the
hazard warning lights will flash once
and a beep will be heard. Unlock Button
To unlock the doors and the trunk lid,
push the unlock button and the hazard
warning lights will flash twice.
The system can be set to unlock both
doors. Use the following procedure to
change the setting:
1. Place the ignition in the OFF position
and close both of the doors and the
trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, push and hold the unlock
button on the key fob for five seconds
or longer.
Note: The sound of the doors
locking/unlocking can be heard. After
this, the system changes the setting
each time the unlock button is pushed
(the sound of the doors locking/
unlocking can be heard).
The setting change can be
completed by doing any one of the
following:
1. Placing the ignition in the ACC or
ON position.
2. Closing the driver’s door.
3. Opening the trunk lid.
4. Not operating the key fob for ten
seconds. 5. Pushing any button except the
unlock button on the key fob.
6. Pushing a request switch on the
exterior door handle.
Trunk Button
To open the trunk lid, push and hold the
trunk button until the trunk lid opens.
Panic Button
To turn the Panic Alarm feature on or
off, push and hold the panic button on
the key fob for at least one second and
release. When the Panic Alarm is on,
the headlights will turn on, the park
lights will flash, the horn will pulse on
and off, and the turn signal lights will
flash.
Note: The panic button will work
whether any door or the trunk lid is
open or closed.
Turning On The Alarm
Pushing the panic button for one
second or more will trigger the alarm for
about two minutes and thirty seconds,
and the following will occur:
The horn sounds intermittently.
The hazard warning lights flash.
Turning Off The Alarm
The alarm will stop by pushing any
button on the key fob.
15

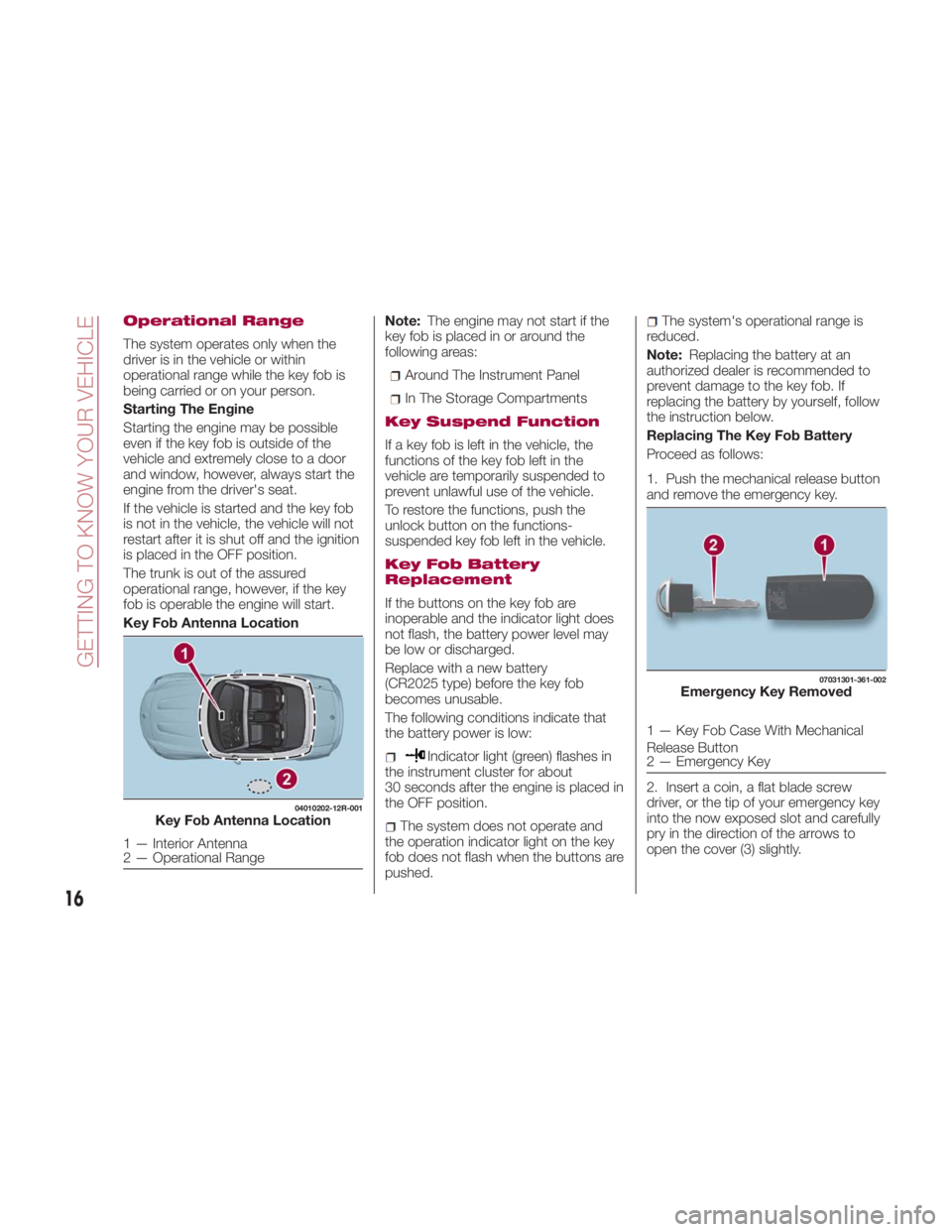

Operational Range
The system operates only when the
driver is in the vehicle or within
operational range while the key fob is
being carried or on your person.
Starting The Engine
Starting the engine may be possible
even if the key fob is outside of the
vehicle and extremely close to a door
and window, however, always start the
engine from the driver's seat.
If the vehicle is started and the key fob
is not in the vehicle, the vehicle will not
restart after it is shut off and the ignition
is placed in the OFF position.
The trunk is out of the assured
operational range, however, if the key
fob is operable the engine will start.
Key Fob Antenna Location Note: The engine may not start if the
key fob is placed in or around the
following areas:
Around The Instrument Panel
In The Storage Compartments
Key Suspend Function
If a key fob is left in the vehicle, the
functions of the key fob left in the
vehicle are temporarily suspended to
prevent unlawful use of the vehicle.
To restore the functions, push the
unlock button on the functions-
suspended key fob left in the vehicle.
Key Fob Battery
Replacement
If the buttons on the key fob are
inoperable and the indicator light does
not flash, the battery power level may
be low or discharged.
Replace with a new battery
(CR2025 type) before the key fob
becomes unusable.
The following conditions indicate that
the battery power is low:
Indicator light (green) flashes in
the instrument cluster for about
30 seconds after the engine is placed in
the OFF position.
The system does not operate and
the operation indicator light on the key
fob does not flash when the buttons are
pushed. The system's operational range is
reduced.
Note: Replacing the battery at an
authorized dealer is recommended to
prevent damage to the key fob. If
replacing the battery by yourself, follow
the instruction below.
Replacing The Key Fob Battery
Proceed as follows:
1. Push the mechanical release button
and remove the emergency key.
1 — Key Fob Case With Mechanical
Release Button
2 — Emergency Key
2. Insert a coin, a flat blade screw
driver, or the tip of your emergency key
into the now exposed slot and carefully
pry in the direction of the arrows to
open the cover (3) slightly.04010202-12R-001
Key Fob Antenna Location
1 — Interior Antenna
2 — Operational Range 07031301-361-002
Emergency Key Removed
16
GETTING TO KNOW YOUR VEHICLE

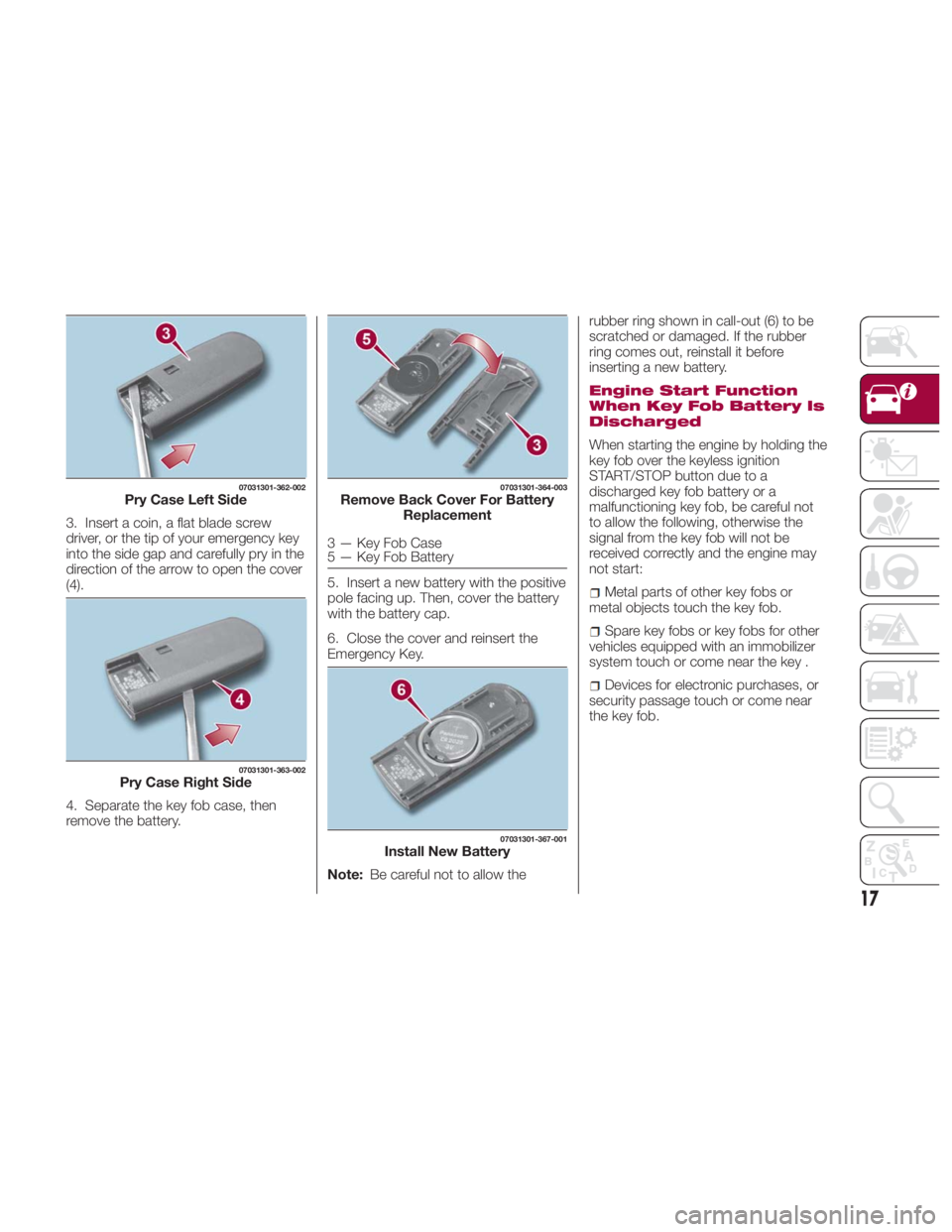

3. Insert a coin, a flat blade screw
driver, or the tip of your emergency key
into the side gap and carefully pry in the
direction of the arrow to open the cover
(4).
4. Separate the key fob case, then
remove the battery. 3 — Key Fob Case
5 — Key Fob Battery
5. Insert a new battery with the positive
pole facing up. Then, cover the battery
with the battery cap.
6. Close the cover and reinsert the
Emergency Key.
Note: Be careful not to allow the rubber ring shown in call-out (6) to be
scratched or damaged. If the rubber
ring comes out, reinstall it before
inserting a new battery.
Engine Start Function
When Key Fob Battery Is
Discharged
When starting the engine by holding the
key fob over the keyless ignition
START/STOP button due to a
discharged key fob battery or a
malfunctioning key fob, be careful not
to allow the following, otherwise the
signal from the key fob will not be
received correctly and the engine may
not start:
Metal parts of other key fobs or
metal objects touch the key fob.
Spare key fobs or key fobs for other
vehicles equipped with an immobilizer
system touch or come near the key .
Devices for electronic purchases, or
security passage touch or come near
the key fob.07031301-362-002
Pry Case Left Side 07031301-363-002
Pry Case Right Side 07031301-364-003
Remove Back Cover For Battery
Replacement
07031301-367-001
Install New Battery
17

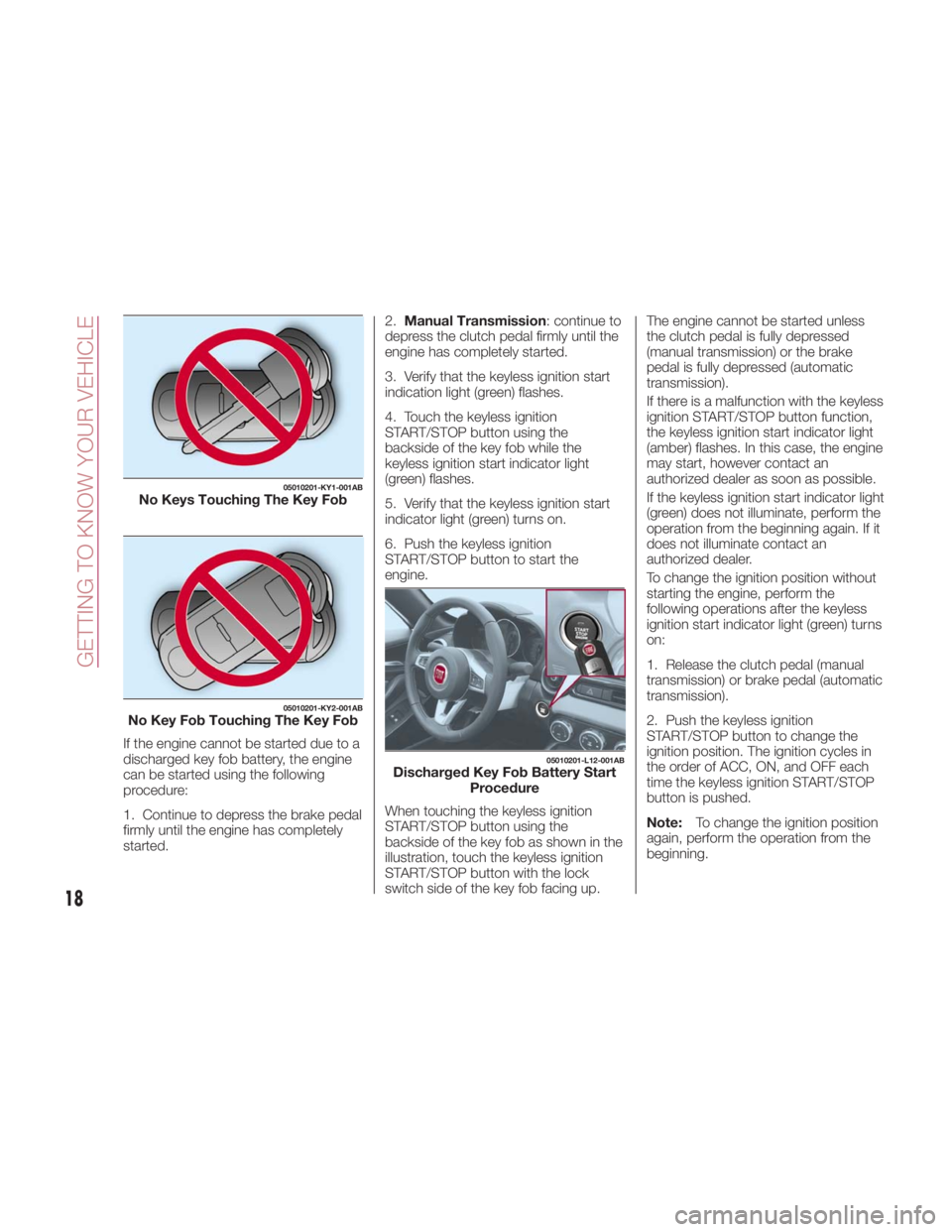

If the engine cannot be started due to a
discharged key fob battery, the engine
can be started using the following
procedure:
1. Continue to depress the brake pedal
firmly until the engine has completely
started. 2. Manual Transmission : continue to
depress the clutch pedal firmly until the
engine has completely started.
3. Verify that the keyless ignition start
indication light (green) flashes.
4. Touch the keyless ignition
START/STOP button using the
backside of the key fob while the
keyless ignition start indicator light
(green) flashes.
5. Verify that the keyless ignition start
indicator light (green) turns on.
6. Push the keyless ignition
START/STOP button to start the
engine.
When touching the keyless ignition
START/STOP button using the
backside of the key fob as shown in the
illustration, touch the keyless ignition
START/STOP button with the lock
switch side of the key fob facing up. The engine cannot be started unless
the clutch pedal is fully depressed
(manual transmission) or the brake
pedal is fully depressed (automatic
transmission).
If there is a malfunction with the keyless
ignition START/STOP button function,
the keyless ignition start indicator light
(amber) flashes. In this case, the engine
may start, however contact an
authorized dealer as soon as possible.
If the keyless ignition start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If it
does not illuminate contact an
authorized dealer.
To change the ignition position without
starting the engine, perform the
following operations after the keyless
ignition start indicator light (green) turns
on:
1. Release the clutch pedal (manual
transmission) or brake pedal (automatic
transmission).
2. Push the keyless ignition
START/STOP button to change the
ignition position. The ignition cycles in
the order of ACC, ON, and OFF each
time the keyless ignition START/STOP
button is pushed.
Note: To change the ignition position
again, perform the operation from the
beginning.05010201-KY1-001AB
No Keys Touching The Key Fob 05010201-KY2-001AB
No Key Fob Touching The Key Fob 05010201-L12-001AB
Discharged Key Fob Battery Start
Procedure
18
GETTING TO KNOW YOUR VEHICLE
