FIAT SPIDER ABARTH 2017 Owner's Manual

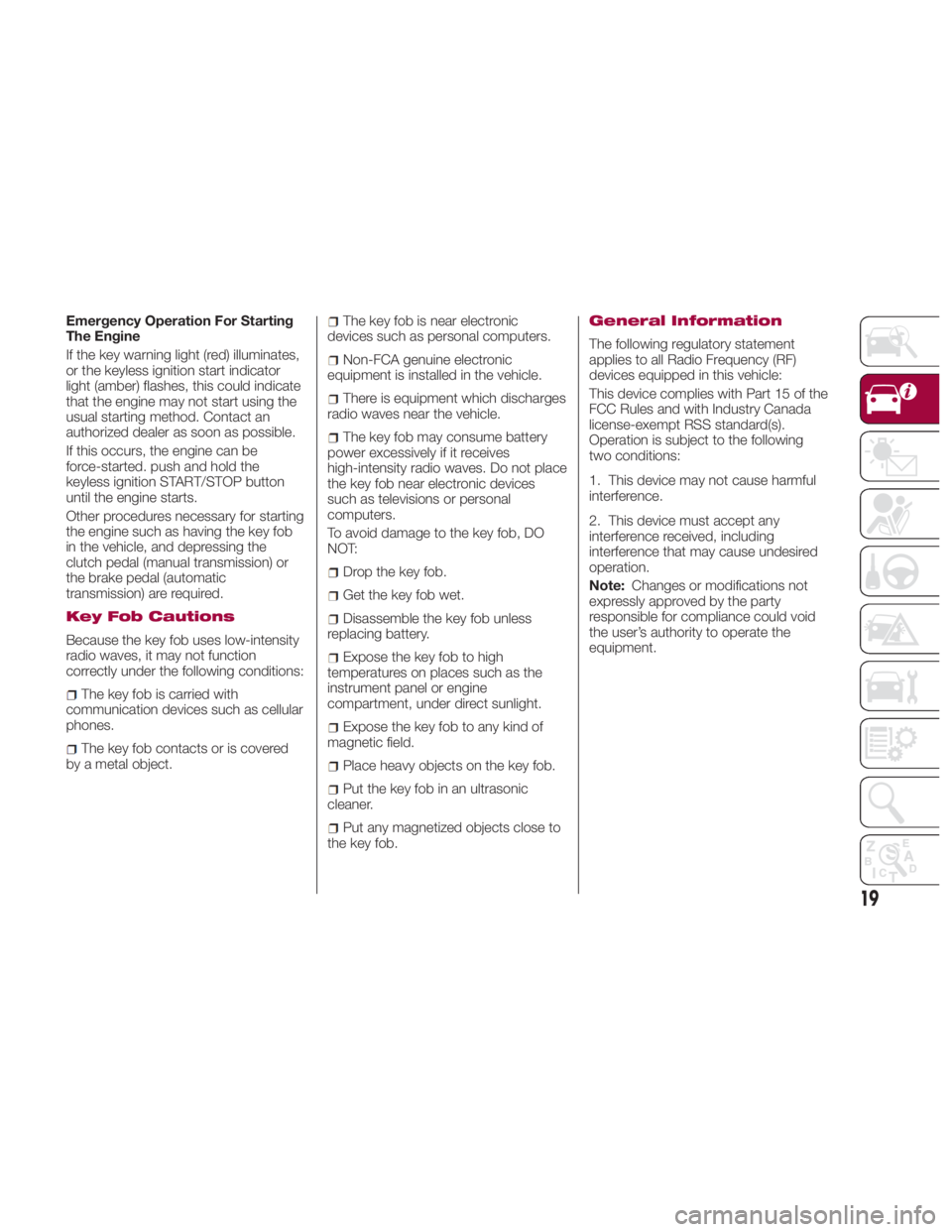

Emergency Operation For Starting
The Engine
If the key warning light (red) illuminates,
or the keyless ignition start indicator
light (amber) flashes, this could indicate
that the engine may not start using the
usual starting method. Contact an
authorized dealer as soon as possible.
If this occurs, the engine can be
force-started. push and hold the
keyless ignition START/STOP button
until the engine starts.
Other procedures necessary for starting
the engine such as having the key fob
in the vehicle, and depressing the
clutch pedal (manual transmission) or
the brake pedal (automatic
transmission) are required.
Key Fob Cautions
Because the key fob uses low-intensity
radio waves, it may not function
correctly under the following conditions:
The key fob is carried with
communication devices such as cellular
phones.
The key fob contacts or is covered
by a metal object. The key fob is near electronic
devices such as personal computers.
Non-FCA genuine electronic
equipment is installed in the vehicle.
There is equipment which discharges
radio waves near the vehicle.
The key fob may consume battery
power excessively if it receives
high-intensity radio waves. Do not place
the key fob near electronic devices
such as televisions or personal
computers.
To avoid damage to the key fob, DO
NOT:
Drop the key fob.
Get the key fob wet.
Disassemble the key fob unless
replacing battery.
Expose the key fob to high
temperatures on places such as the
instrument panel or engine
compartment, under direct sunlight.
Expose the key fob to any kind of
magnetic field.
Place heavy objects on the key fob.
Put the key fob in an ultrasonic
cleaner.
Put any magnetized objects close to
the key fob. General Information
The following regulatory statement
applies to all Radio Frequency (RF)
devices equipped in this vehicle:
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.
19

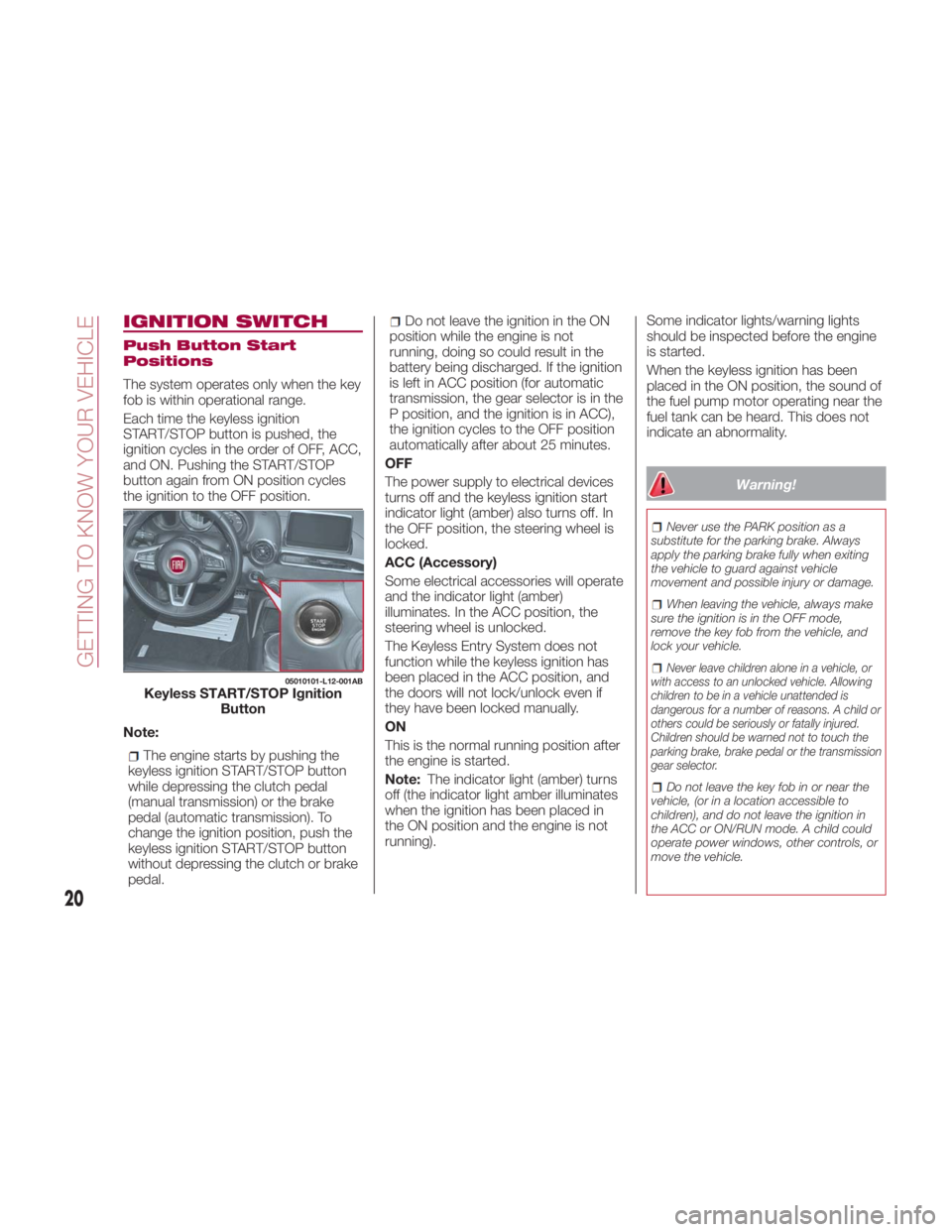

IGNITION SWITCH Push Button Start
Positions
The system operates only when the key
fob is within operational range.
Each time the keyless ignition
START/STOP button is pushed, the
ignition cycles in the order of OFF, ACC,
and ON. Pushing the START/STOP
button again from ON position cycles
the ignition to the OFF position.
Note:
The engine starts by pushing the
keyless ignition START/STOP button
while depressing the clutch pedal
(manual transmission) or the brake
pedal (automatic transmission). To
change the ignition position, push the
keyless ignition START/STOP button
without depressing the clutch or brake
pedal. Do not leave the ignition in the ON
position while the engine is not
running, doing so could result in the
battery being discharged. If the ignition
is left in ACC position (for automatic
transmission, the gear selector is in the
P position, and the ignition is in ACC),
the ignition cycles to the OFF position
automatically after about 25 minutes.
OFF
The power supply to electrical devices
turns off and the keyless ignition start
indicator light (amber) also turns off. In
the OFF position, the steering wheel is
locked.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber)
illuminates. In the ACC position, the
steering wheel is unlocked.
The Keyless Entry System does not
function while the keyless ignition has
been placed in the ACC position, and
the doors will not lock/unlock even if
they have been locked manually.
ON
This is the normal running position after
the engine is started.
Note: The indicator light (amber) turns
off (the indicator light amber illuminates
when the ignition has been placed in
the ON position and the engine is not
running). Some indicator lights/warning lights
should be inspected before the engine
is started.
When the keyless ignition has been
placed in the ON position, the sound of
the fuel pump motor operating near the
fuel tank can be heard. This does not
indicate an abnormality.
Warning! Never use the PARK position as a
substitute for the parking brake. Always
apply the parking brake fully when exiting
the vehicle to guard against vehicle
movement and possible injury or damage.
When leaving the vehicle, always make
sure the ignition is in the OFF mode,
remove the key fob from the vehicle, and
lock your vehicle.
Never leave children alone in a vehicle, or
with access to an unlocked vehicle. Allowing
children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured.
Children should be warned not to touch the
parking brake, brake pedal or the transmission
gear selector.
Do not leave the key fob in or near the
vehicle, (or in a location accessible to
children), and do not leave the ignition in
the ACC or ON/RUN mode. A child could
operate power windows, other controls, or
move the vehicle.05010101-L12-001AB
Keyless START/STOP Ignition
Button
20
GETTING TO KNOW YOUR VEHICLE

Be sure the parking brake is fully
disengaged before driving; failure to do so
can lead to brake failure and a collision.
Always fully apply the parking brake
when leaving your vehicle, or it may roll and
cause damage or injury. Also be certain to
leave the transmission in PARK. Failure to
do so may allow the vehicle to roll and
cause damage or injury.
Driving the vehicle with the parking brake
engaged, or repeated use of the parking
brake to slow the vehicle may cause
serious damage to the brake system.
ADVANCED
KEYLESS ENTRY
SYSTEM — IF
EQUIPPED Advanced Keyless Entry
System
The Advanced Keyless Entry System is
an enhancement that allows you to
lock/unlock the doors, trunk lid, fuel
filler door, and opens the trunk lid with
the slow and careful push of a button.
The Advanced Keyless Entry System
allows the driver to START/STOP the
ignition with the push of a button as
long as the key fob is in the passenger
compartment.
If equipped, the vehicle security alarm
system may be armed/disarmed with
the push of the lock/unlock button
located on the key fob.
System Malfunctions/Warnings
System malfunctions or warnings are
indicated by the following warning lights
or beeps (refer to “Getting To Know
Your Instrument Panel” for further
information) :
Warning Light (Red)
Ignition Not Turned OFF Warning
Beep
Key Fob Removed From Vehicle
Warning Beep
Request Switch Inoperable Warning
Beep Key Fob Left-In-Trunk Warning Beep
Key Fob Left-In-Vehicle Warning
Beep
If you have a problem with the key fob,
or the key fob is lost or stolen, contact
an authorized dealer as soon as
possible for a replacement and to make
the lost or stolen key fob inoperative.
Note: Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
The Advanced Keyless Entry
System operational range may vary
due to local weather conditions.
The Advanced Keyless Entry
System is fully operational (door/trunk
lid/fuel filler door lock/unlock) when the
ignition is placed in the OFF position.
The Advanced Keyless Entry System
does not operate if the ignition is
placed to any position other than the
OFF position.
If the key fob does not operate
when pushing a button, the operational
range becomes too small, or the
warning light does not illuminate or
flash, the battery may be weak or
discharged. To install a new battery,
refer to “Key Fob Battery
Replacement.”
21

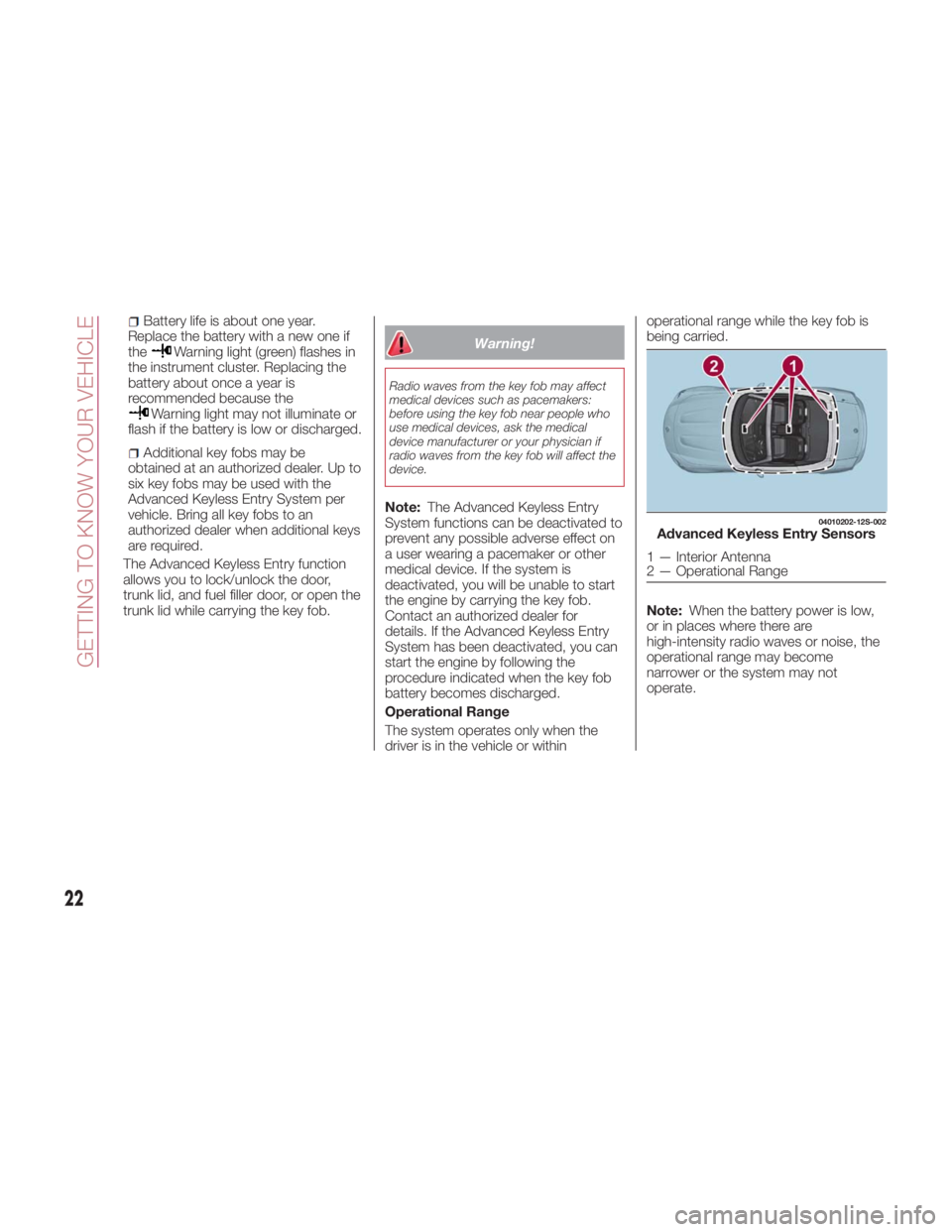

Battery life is about one year.
Replace the battery with a new one if
the Warning light (green) flashes in
the instrument cluster. Replacing the
battery about once a year is
recommended because the
Warning light may not illuminate or
flash if the battery is low or discharged.
Additional key fobs may be
obtained at an authorized dealer. Up to
six key fobs may be used with the
Advanced Keyless Entry System per
vehicle. Bring all key fobs to an
authorized dealer when additional keys
are required.
The Advanced Keyless Entry function
allows you to lock/unlock the door,
trunk lid, and fuel filler door, or open the
trunk lid while carrying the key fob. Warning!Radio waves from the key fob may affect
medical devices such as pacemakers:
before using the key fob near people who
use medical devices, ask the medical
device manufacturer or your physician if
radio waves from the key fob will affect the
device.
Note: The Advanced Keyless Entry
System functions can be deactivated to
prevent any possible adverse effect on
a user wearing a pacemaker or other
medical device. If the system is
deactivated, you will be unable to start
the engine by carrying the key fob.
Contact an authorized dealer for
details. If the Advanced Keyless Entry
System has been deactivated, you can
start the engine by following the
procedure indicated when the key fob
battery becomes discharged.
Operational Range
The system operates only when the
driver is in the vehicle or within operational range while the key fob is
being carried.
Note: When the battery power is low,
or in places where there are
high-intensity radio waves or noise, the
operational range may become
narrower or the system may not
operate. 04010202-12S-002
Advanced Keyless Entry Sensors
1 — Interior Antenna
2 — Operational Range
22
GETTING TO KNOW YOUR VEHICLE

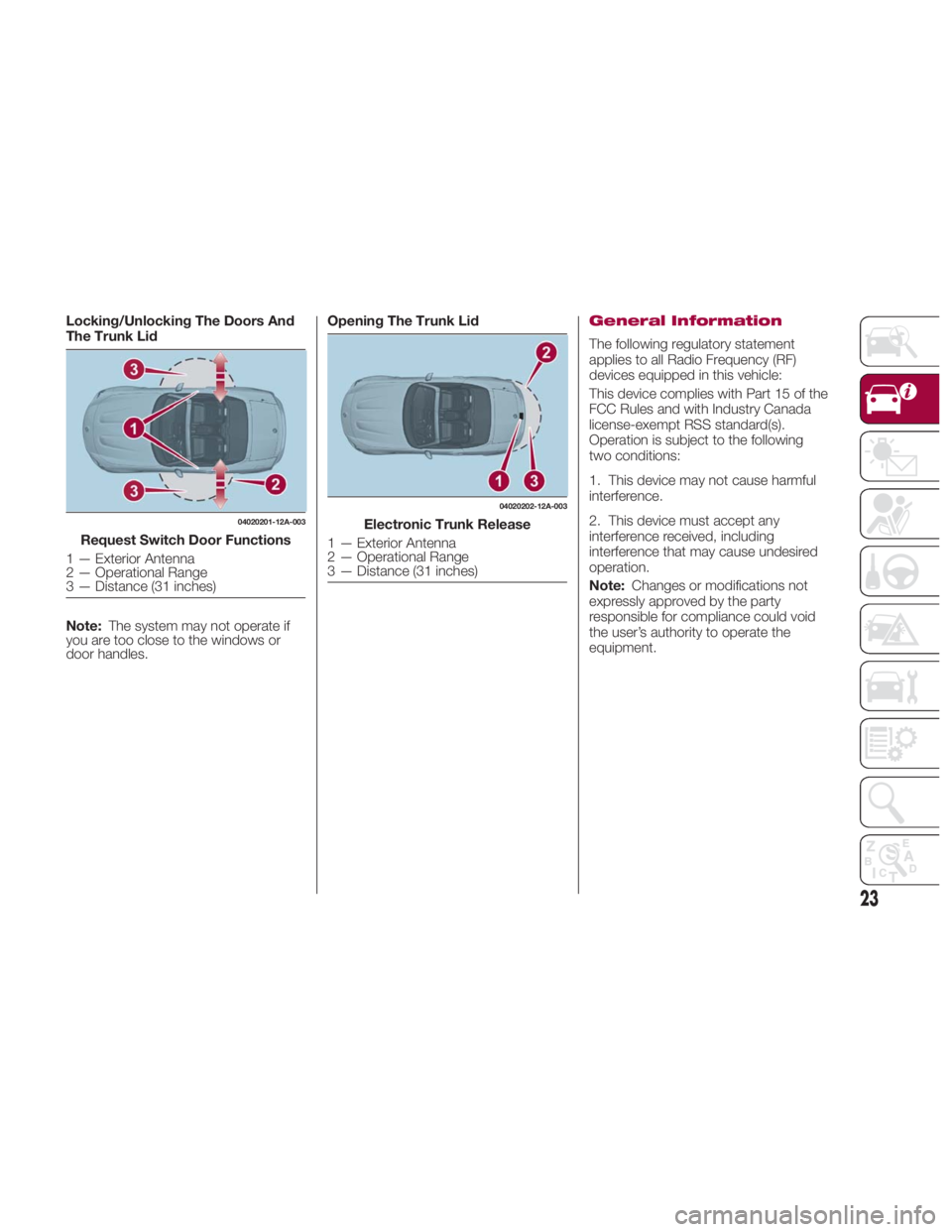

Locking/Unlocking The Doors And
The Trunk Lid
Note: The system may not operate if
you are too close to the windows or
door handles. Opening The Trunk Lid
General Information
The following regulatory statement
applies to all Radio Frequency (RF)
devices equipped in this vehicle:
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.04020201-12A-003
Request Switch Door Functions
1 — Exterior Antenna
2 — Operational Range
3 — Distance (31 inches) 04020202-12A-003
Electronic Trunk Release
1 — Exterior Antenna
2 — Operational Range
3 — Distance (31 inches)
23

VEHICLE SECURITY
ALARM SYSTEM — IF
EQUIPPED Modifications And
Add-On Equipment
FCA cannot guarantee the immobilizer
and the vehicle security alarm system
operation if the system has been
modified or if any add-on equipment
has been installed.
Note: To avoid damage to the vehicle,
do not modify the system or install any
add-on equipment to the immobilizer
and the vehicle security alarm system
or the vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key fob the
system recognizes.
If someone attempts to start the engine
with an unrecognized key fob, the
engine will not start, thereby helping to
prevent unlawful vehicle use.
If you have a problem with the
immobilizer system or the key fob,
contact an authorized dealer.
To avoid damage to the key fob, do not:
Drop the key fob.
Get the key fob wet.
Expose the key fob to any kind of
magnetic field. Expose the key fob to high
temperatures on places such as the
instrument panel, hood, or under direct
sunlight.
Note:
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
If the engine does not start with the
correct key fob, and the warning
light keeps illuminating or flashing, the
system may have a malfunction.
Contact an authorized dealer.
The key fobs carry a unique
electronic code. For this reason, and to
assure your safety, obtaining a
replacement key fob can only be done
through your authorized dealer, and will
require some waiting time.
Always keep a spare key fob in
case one is lost. If a key fob is lost,
contact an authorized dealer as soon
as possible.
If you lose a key fob, an authorized
dealer will reset the electronic codes of
your remaining key fobs and
immobilizer system. Bring all the
remaining key fobs to an authorized
dealer to reset. Starting the vehicle
with a key fob that has not been reset
is not possible. Operation
The engine may not start and
warning light may illuminate or flash
if the key fob is placed in an area where
it is difficult for the system to detect the
signal, such as on the instrument panel.
Move the key fob to a location within
the signal range, cycle the ignition off,
and then restart the engine.
Note: Signals from a TV, radio station,
transceiver, or mobile telephone could
interfere with your immobilizer system. If
you are using the proper key fob and
the engine fails to start, check the
warning light.
Arming
The system is armed when the ignition
is cycled from the ON to OFF position.
The
warning light in the instrument
cluster flashes every two seconds until
the system is disarmed.
Disarming
The system is disarmed when the
ignition is placed in the ON position with
the correct programmed key fob. The
warning light illuminates for about
three seconds and then turns off. If the
engine does not start with the correct
key fob, and the
warning light
remains illuminated or flashing, try the
following:
Make sure the key fob is within the
operational range for signal
transmission.
24
GETTING TO KNOW YOUR VEHICLE

Cycle the ignition off, and then restart
the engine. If the engine does not start
after three or more tries, contact an
authorized dealer.
Note:
If the warning light flashes
continuously while you are driving, do
not turn the engine OFF. Contact an
authorized dealer and have it checked.
If the engine is shut off while the
warning light is flashing, you will
not be able to restart it.
Because the electronic codes are
reset when the immobilizer system is
repaired, the keys are needed. Make
sure to bring all the key fobs to an
authorized dealer so that they can be
programmed.
Vehicle Security Alarm
System — If Equipped
If the vehicle security alarm system
detects an inappropriate entry into the
vehicle or the intrusion sensor detects
movement in the vehicle which could
result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and flashing
the hazard warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly. Siren/Horn Triggering Conditions
The siren/horn sounds intermittently
and the hazard warning lights flash for
about 30 seconds when the system is
triggered by any one of the following:
Unlocking a door with an inside
door-lock knob.
Forcing open a door, the engine
compartment or the trunk lid.
Opening the hood by operating the
hood release handle.
Placing the ignition in the ON position
without starting the engine.
With the intrusion sensor: the
intrusion sensor detects a movement in
the vehicle.
The system will be triggered again (up
to ten times) if one of the above
conditions remains.
The trunk lid will not open when the
vehicle security alarm system is
activated.
If the battery becomes drained while
the vehicle security alarm system is
armed, the siren will activate and the
hazard warning lights will flash during
the battery charging or replacement
process.
How To Arm The System
Close the windows and the
convertible top securely.
Place the ignition in the OFF position. Make sure the engine compartment,
convertible top, the doors, and the
trunk lid are closed.
Push the lock button on the key fob
or lock the driver's door from the
outside with the emergency key. The
hazard warning lights will flash once.
With The Advanced Keyless Entry
function : push a request switch. The
warning light in the instrument
panel flashes twice per second for
20 seconds. After 20 seconds the
system is fully armed.
The vehicle security alarm system can
also be armed by activating the auto
re-lock function with all the doors, the
trunk lid and the engine compartment
closed.
The system will disarm if one of the
following operations takes place within
20 seconds after pushing the lock
button: To rearm the system, perform
the arming procedure again.
1. Unlocking any door.
2. Opening any door.
3. Opening the engine compartment.
4. Placing the ignition in the ON
position.
The hazard warning lights will flash
once to indicate that the vehicle
security alarm system is armed when
the doors are locked by pushing the
lock button on the key fob, or using the
emergency key.
25

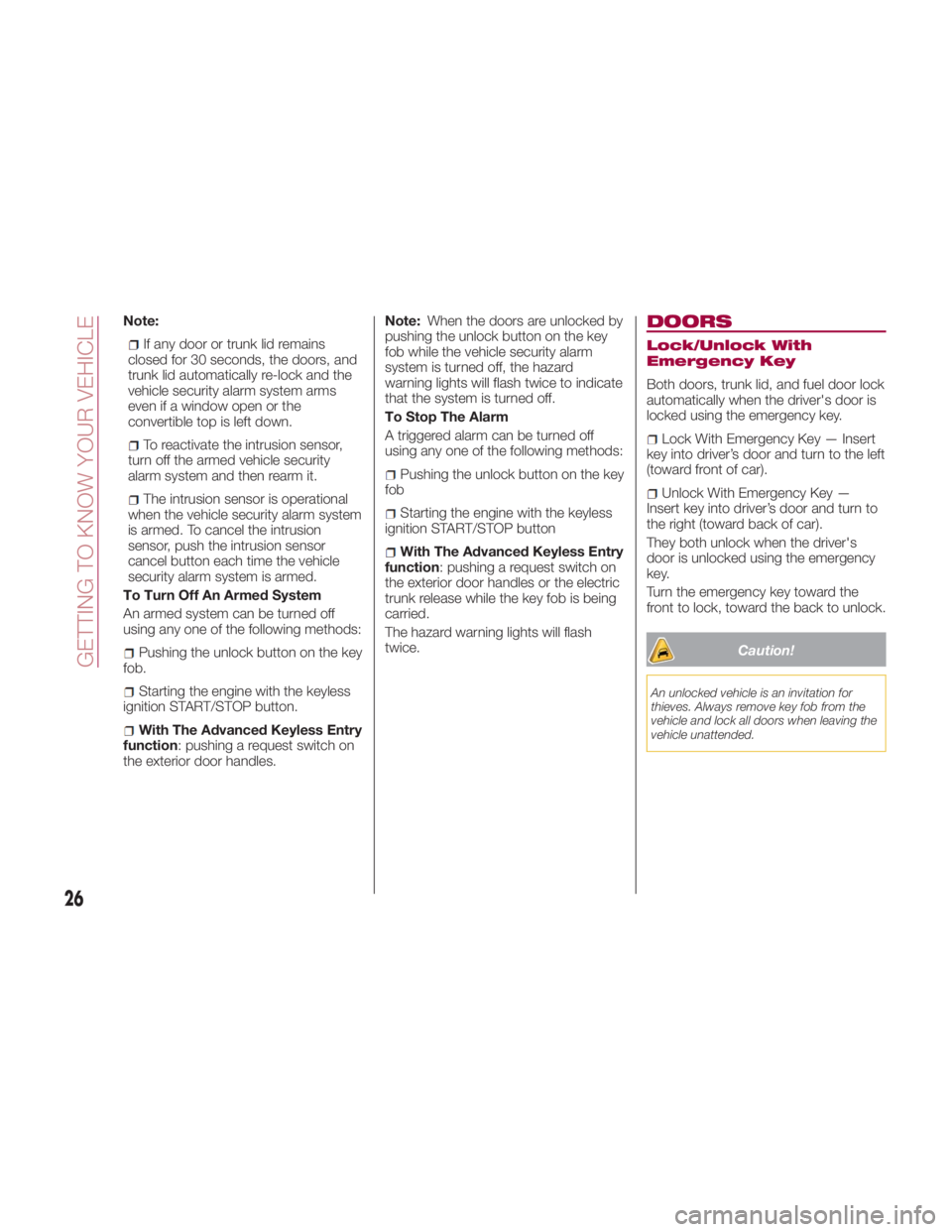

Note:
If any door or trunk lid remains
closed for 30 seconds, the doors, and
trunk lid automatically re-lock and the
vehicle security alarm system arms
even if a window open or the
convertible top is left down.
To reactivate the intrusion sensor,
turn off the armed vehicle security
alarm system and then rearm it.
The intrusion sensor is operational
when the vehicle security alarm system
is armed. To cancel the intrusion
sensor, push the intrusion sensor
cancel button each time the vehicle
security alarm system is armed.
To Turn Off An Armed System
An armed system can be turned off
using any one of the following methods:
Pushing the unlock button on the key
fob.
Starting the engine with the keyless
ignition START/STOP button.
With The Advanced Keyless Entry
function : pushing a request switch on
the exterior door handles. Note: When the doors are unlocked by
pushing the unlock button on the key
fob while the vehicle security alarm
system is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off.
To Stop The Alarm
A triggered alarm can be turned off
using any one of the following methods:
Pushing the unlock button on the key
fob
Starting the engine with the keyless
ignition START/STOP button
With The Advanced Keyless Entry
function : pushing a request switch on
the exterior door handles or the electric
trunk release while the key fob is being
carried.
The hazard warning lights will flash
twice. DOORS Lock/Unlock With
Emergency Key
Both doors, trunk lid, and fuel door lock
automatically when the driver's door is
locked using the emergency key.
Lock With Emergency Key — Insert
key into driver’s door and turn to the left
(toward front of car).
Unlock With Emergency Key —
Insert key into driver’s door and turn to
the right (toward back of car).
They both unlock when the driver's
door is unlocked using the emergency
key.
Turn the emergency key toward the
front to lock, toward the back to unlock.
Caution!An unlocked vehicle is an invitation for
thieves. Always remove key fob from the
vehicle and lock all doors when leaving the
vehicle unattended.
26
GETTING TO KNOW YOUR VEHICLE

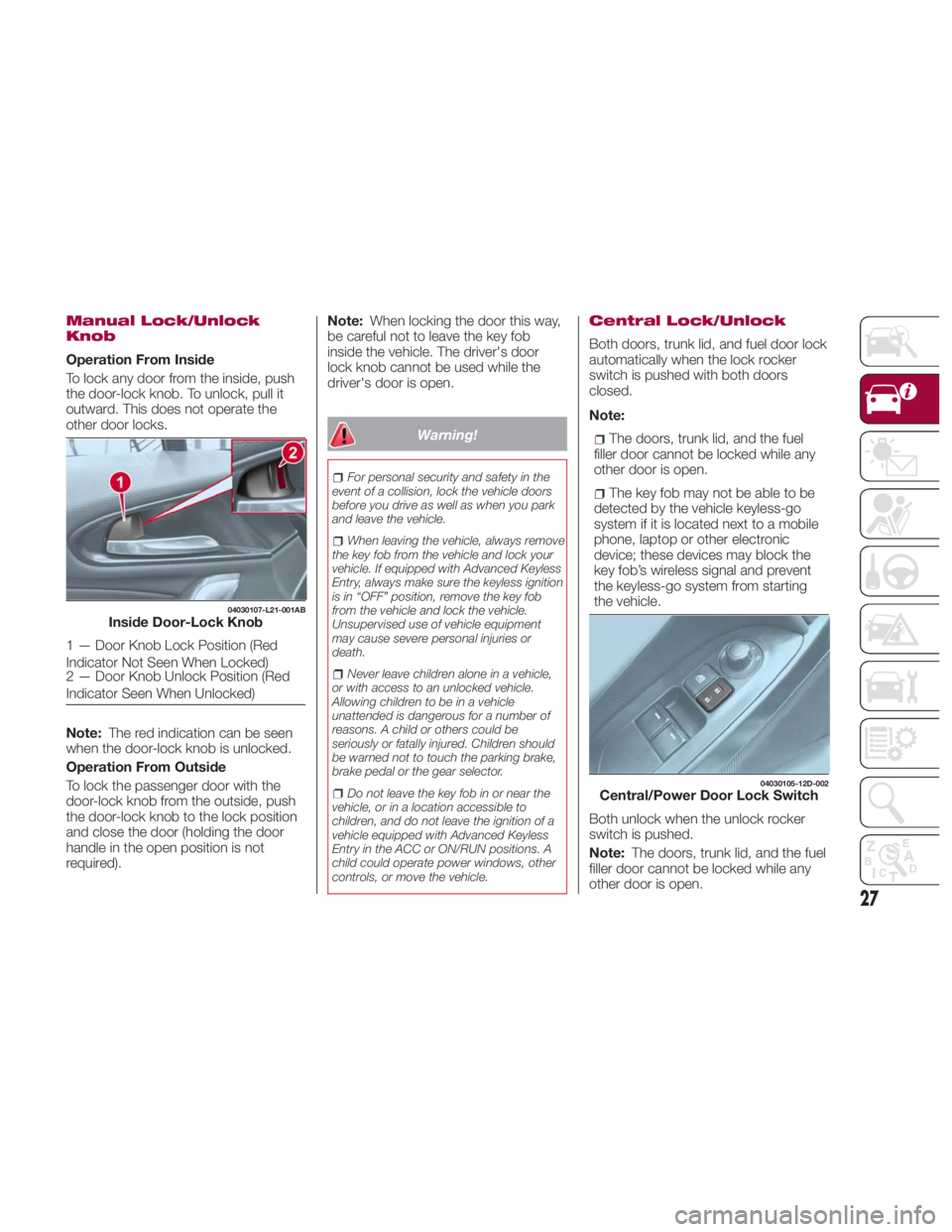

Manual Lock/Unlock
Knob
Operation From Inside
To lock any door from the inside, push
the door-lock knob. To unlock, pull it
outward. This does not operate the
other door locks.
Note: The red indication can be seen
when the door-lock knob is unlocked.
Operation From Outside
To lock the passenger door with the
door-lock knob from the outside, push
the door-lock knob to the lock position
and close the door (holding the door
handle in the open position is not
required). Note: When locking the door this way,
be careful not to leave the key fob
inside the vehicle. The driver's door
lock knob cannot be used while the
driver's door is open.
Warning!For personal security and safety in the
event of a collision, lock the vehicle doors
before you drive as well as when you park
and leave the vehicle.
When leaving the vehicle, always remove
the key fob from the vehicle and lock your
vehicle. If equipped with Advanced Keyless
Entry, always make sure the keyless ignition
is in “OFF” position, remove the key fob
from the vehicle and lock the vehicle.
Unsupervised use of vehicle equipment
may cause severe personal injuries or
death.
Never leave children alone in a vehicle,
or with access to an unlocked vehicle.
Allowing children to be in a vehicle
unattended is dangerous for a number of
reasons. A child or others could be
seriously or fatally injured. Children should
be warned not to touch the parking brake,
brake pedal or the gear selector.
Do not leave the key fob in or near the
vehicle, or in a location accessible to
children, and do not leave the ignition of a
vehicle equipped with Advanced Keyless
Entry in the ACC or ON/RUN positions. A
child could operate power windows, other
controls, or move the vehicle. Central Lock/Unlock
Both doors, trunk lid, and fuel door lock
automatically when the lock rocker
switch is pushed with both doors
closed.
Note:
The doors, trunk lid, and the fuel
filler door cannot be locked while any
other door is open.
The key fob may not be able to be
detected by the vehicle keyless-go
system if it is located next to a mobile
phone, laptop or other electronic
device; these devices may block the
key fob’s wireless signal and prevent
the keyless-go system from starting
the vehicle.
Both unlock when the unlock rocker
switch is pushed.
Note: The doors, trunk lid, and the fuel
filler door cannot be locked while any
other door is open.04030107-L21-001AB
Inside Door-Lock Knob
1 — Door Knob Lock Position (Red
Indicator Not Seen When Locked)
2 — Door Knob Unlock Position (Red
Indicator Seen When Unlocked) 04030105-12D-002
Central/Power Door Lock Switch
27

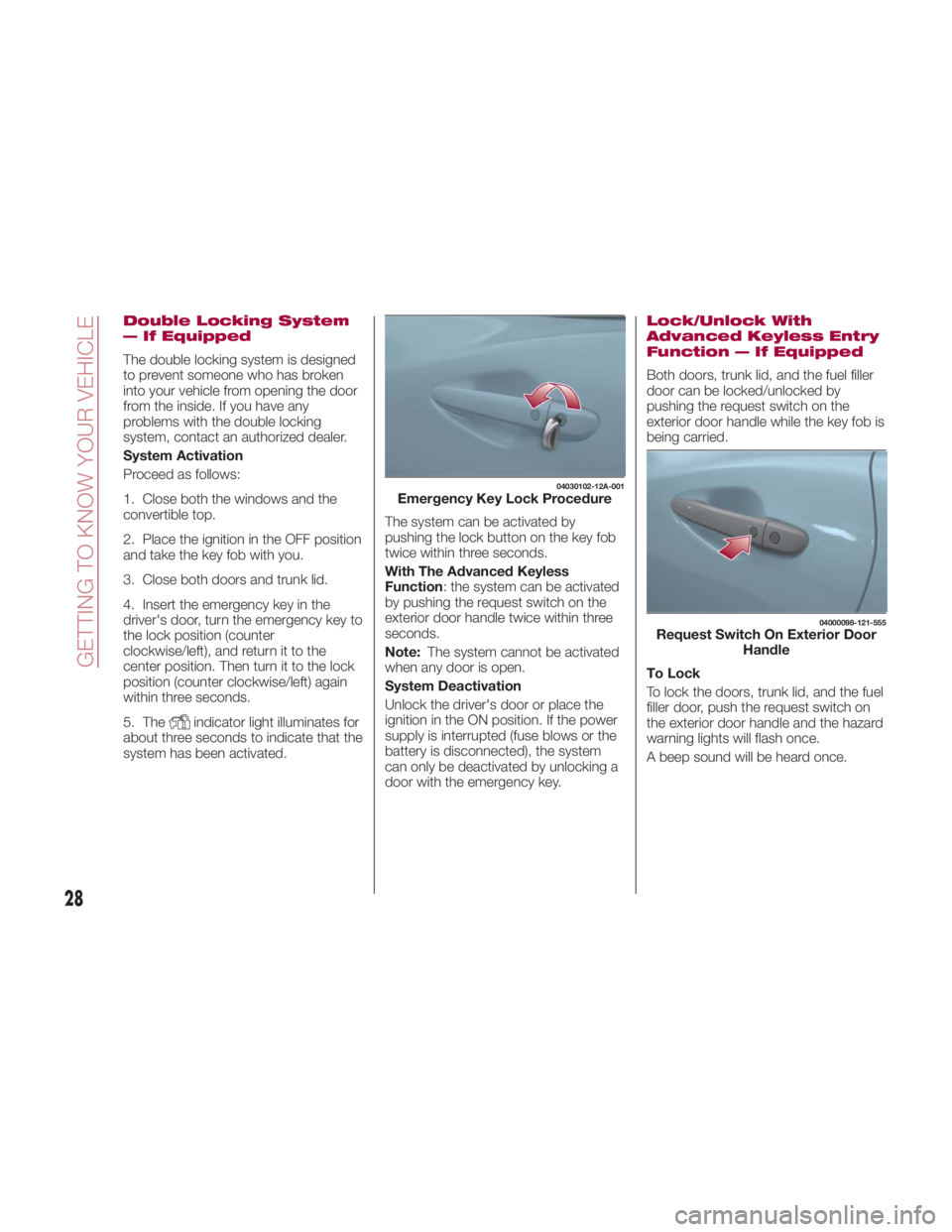

Double Locking System
— If Equipped
The double locking system is designed
to prevent someone who has broken
into your vehicle from opening the door
from the inside. If you have any
problems with the double locking
system, contact an authorized dealer.
System Activation
Proceed as follows:
1. Close both the windows and the
convertible top.
2. Place the ignition in the OFF position
and take the key fob with you.
3. Close both doors and trunk lid.
4. Insert the emergency key in the
driver's door, turn the emergency key to
the lock position (counter
clockwise/left), and return it to the
center position. Then turn it to the lock
position (counter clockwise/left) again
within three seconds.
5. The
indicator light illuminates for
about three seconds to indicate that the
system has been activated. The system can be activated by
pushing the lock button on the key fob
twice within three seconds.
With The Advanced Keyless
Function : the system can be activated
by pushing the request switch on the
exterior door handle twice within three
seconds.
Note: The system cannot be activated
when any door is open.
System Deactivation
Unlock the driver's door or place the
ignition in the ON position. If the power
supply is interrupted (fuse blows or the
battery is disconnected), the system
can only be deactivated by unlocking a
door with the emergency key. Lock/Unlock With
Advanced Keyless Entry
Function — If Equipped
Both doors, trunk lid, and the fuel filler
door can be locked/unlocked by
pushing the request switch on the
exterior door handle while the key fob is
being carried.
To Lock
To lock the doors, trunk lid, and the fuel
filler door, push the request switch on
the exterior door handle and the hazard
warning lights will flash once.
A beep sound will be heard once. 04030102-12A-001
Emergency Key Lock Procedure 04000098-121-555
Request Switch On Exterior Door
Handle
28
GETTING TO KNOW YOUR VEHICLE
