technical specifications FIAT SPIDER ABARTH 2017 User Guide

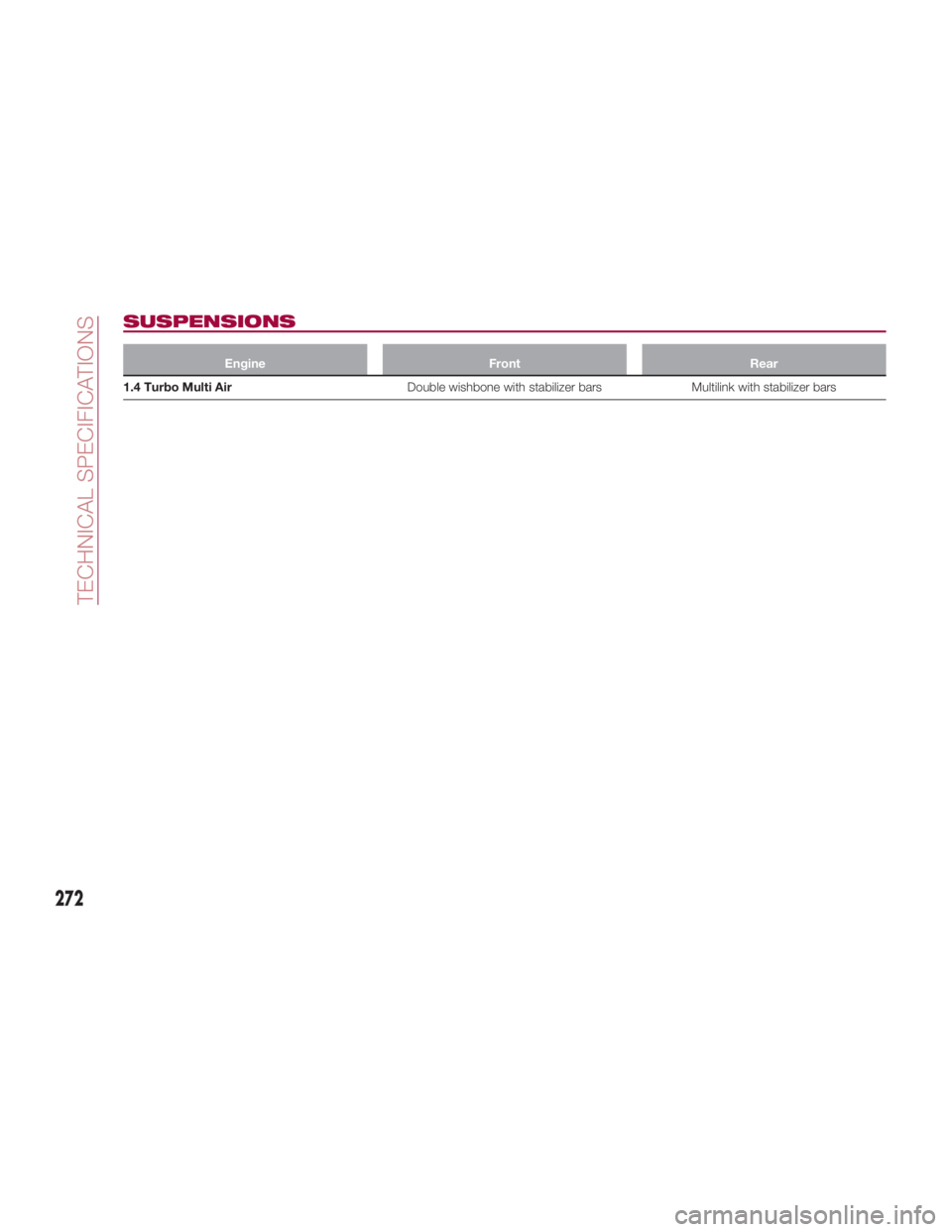

SUSPENSIONS Engine Front Rear
1.4 Turbo Multi Air Double wishbone
with stabilizer bars Multilink with stabilizer bars
272
TECHNICAL SPECIFICATIONS

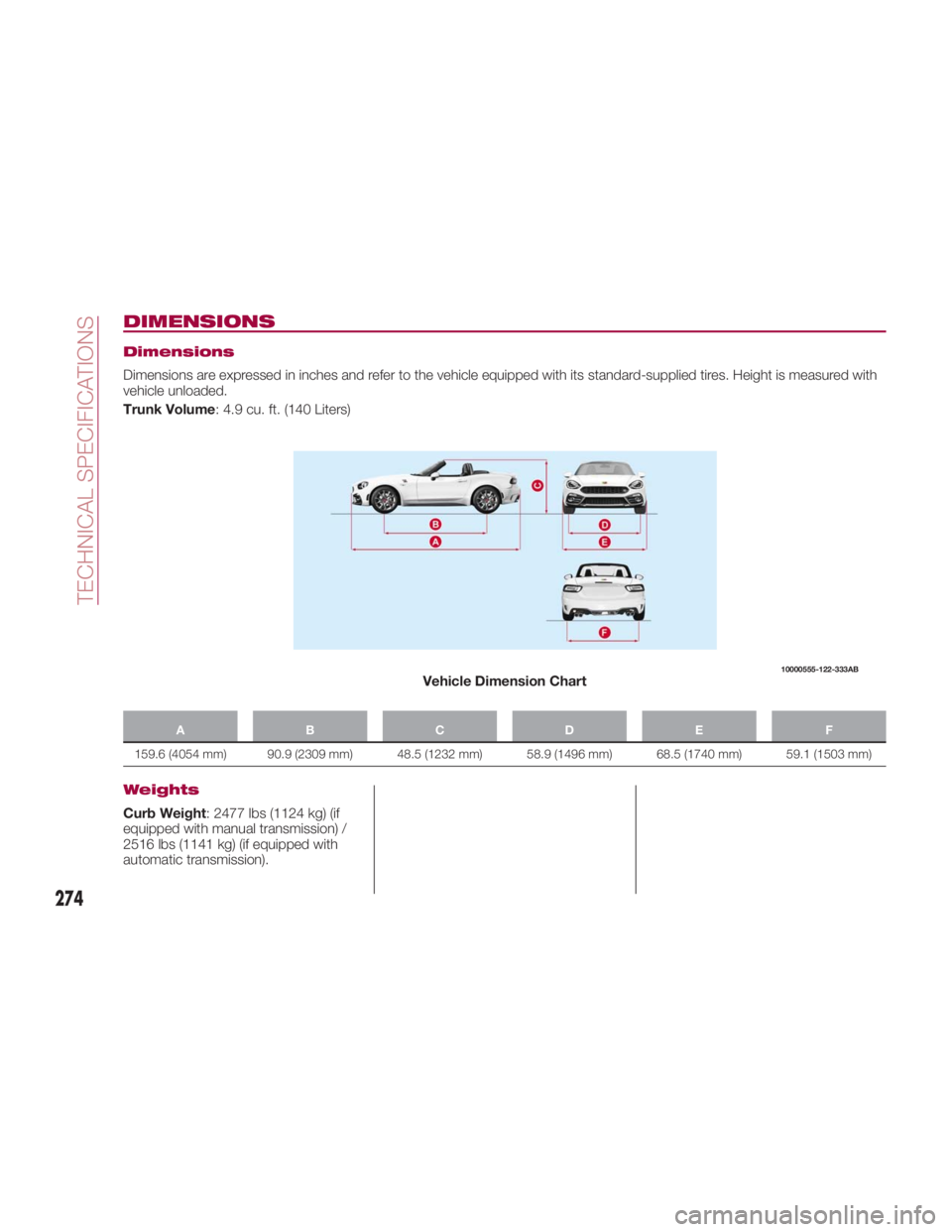

DIMENSIONS Dimensions
Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with
vehicle unloaded.
Trunk Volume : 4.9 cu. ft. (140 Liters)
ABCDE F
159.6 (4054 mm) 90.9 (2309 mm) 48.5 (1232 mm) 58.9 (1496 mm) 68.5 (1740 mm) 59.1 (1503 mm)
Weights
Curb Weight : 2477 lbs (1124 kg) (if
equipped with manual transmission) /
2516 lbs (1141 kg) (if equipped with
automatic transmission). 10000555-122-333AB
Vehicle Dimension Chart
274
TECHNICAL SPECIFICATIONS

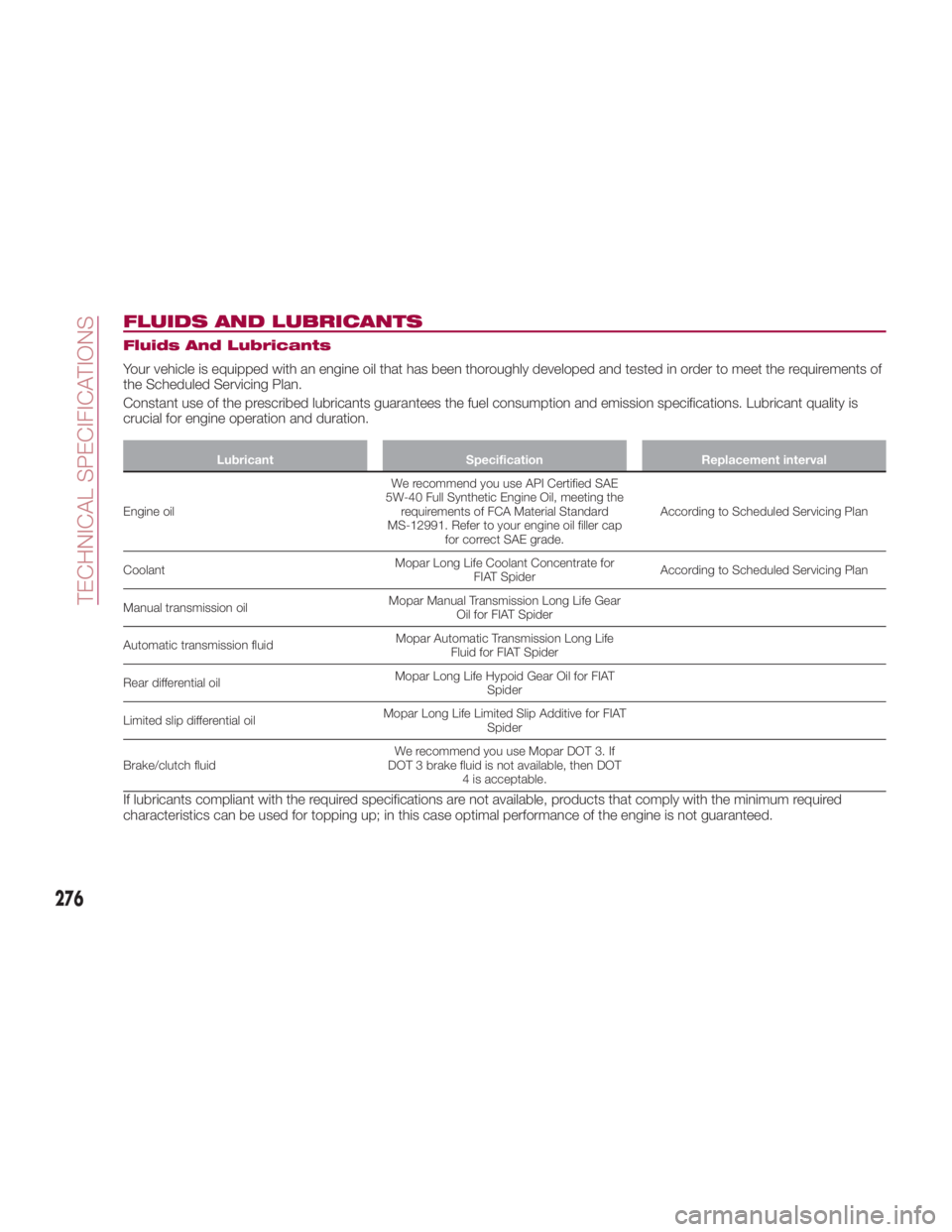

FLUIDS AND LUBRICANTS Fluids And Lubricants
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration. Lubricant Specification Replacement interval
Engine oil W e
recommend you use API Certified SAE
5W-40 Full Synthetic Engine Oil, meeting the
requirements of FCA Material Standard
MS-12991. Refer to your engine oil filler cap
for correct SAE grade. According to Scheduled Servicing Plan
Coolant Mopar Long Life Coolant Concentrate for
FIAT Spider According to Scheduled Servicing Plan
Manual transmission oil Mopar Manual Transmission Long Life Gear
Oil for FIAT Spider
Automatic transmission fluid Mopar Automatic Transmission Long Life
Fluid for FIAT Spider
Rear differential oil Mopar Long Life Hypoid Gear Oil for FIAT
Spider
Limited slip differential oil Mopar Long Life Limited Slip Additive for FIAT
Spider
Brake/clutch fluid We recommend you use Mopar DOT 3. If
DOT 3 brake fluid is not available, then DOT
4 is acceptable.
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
276
TECHNICAL SPECIFICATIONS

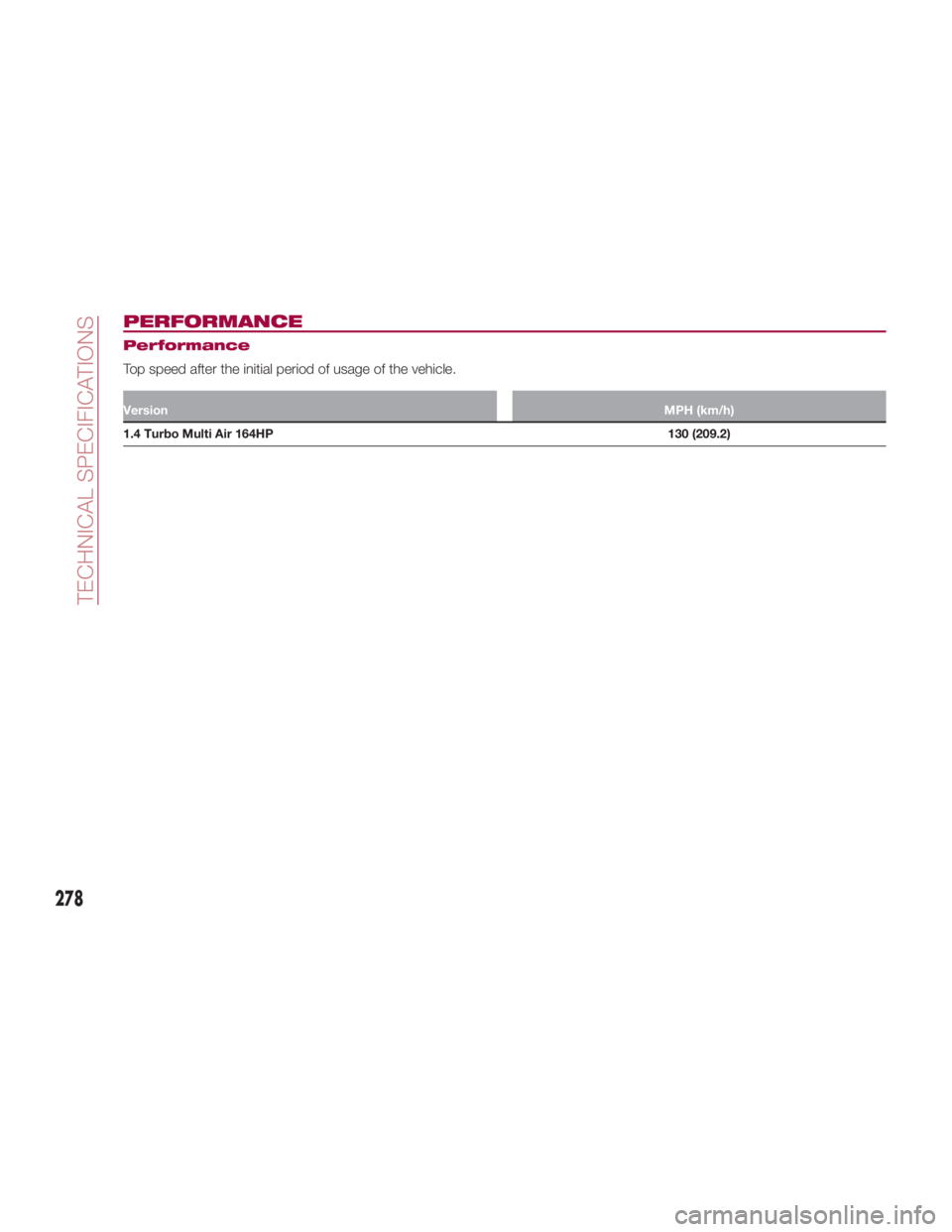

PERFORMANCE Performance
Top speed after the initial period of usage of the vehicle. Version MPH (km/h)
1.4 Turbo Multi Air 164HP 130 (209.2)
278
TECHNICAL SPECIFICATIONS
