6. Disconnect the bulb from the
socket.
7. Install the new bulb in the reverse

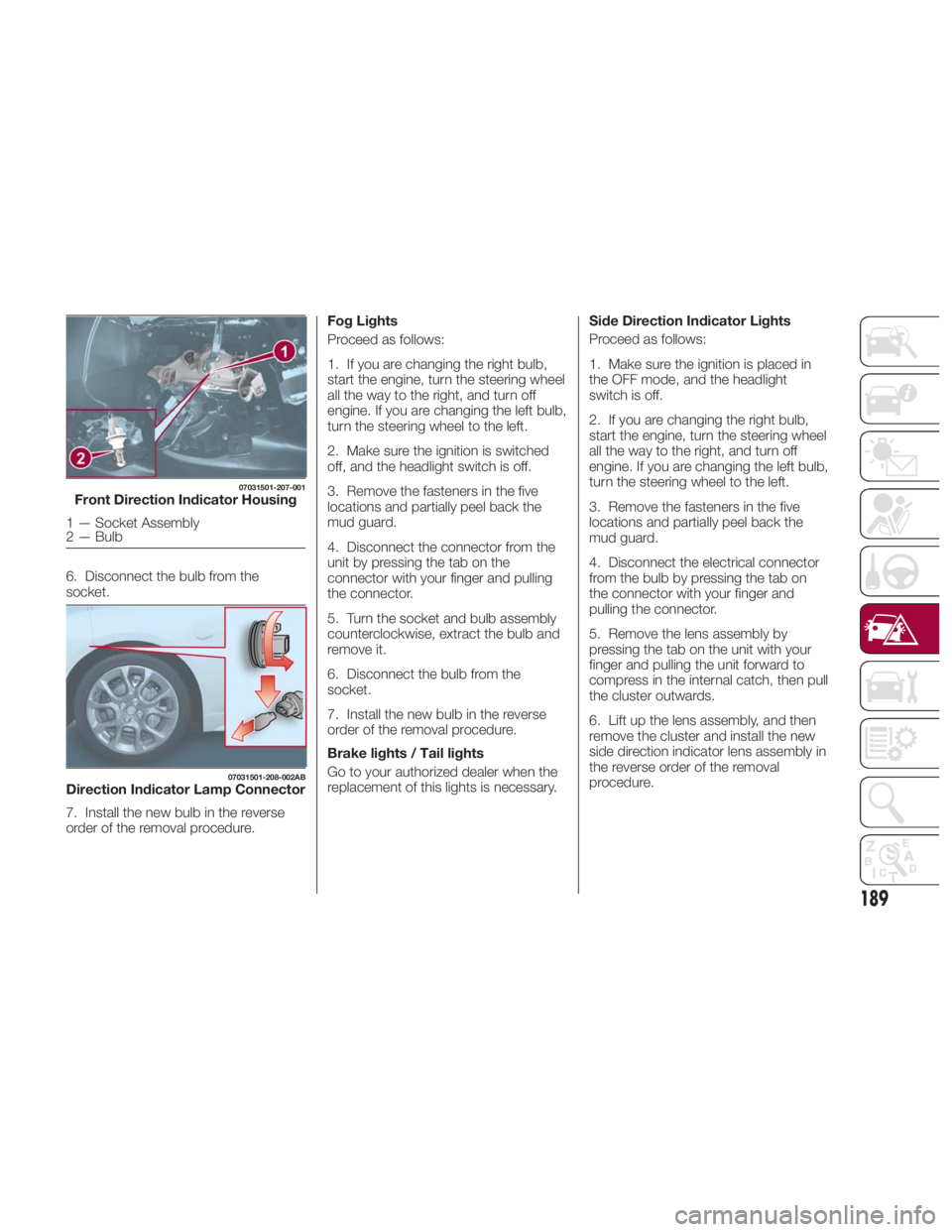

order of the removal procedure. Fog Lights
Proceed as follows:
1. If you are changing the right bulb,
start the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left bulb,
turn the steering wheel to the left.
2. Make sure the ignition is switched
off, and the headlight switch is off.
3. Remove the fasteners in the five
locations and partially peel back the
mud guard.
4. Disconnect the connector from the
unit by pressing the tab on the
connector with your finger and pulling
the connector.
5. Turn the socket and bulb assembly
counterclockwise, extract the bulb and
remove it.
6. Disconnect the bulb from the
socket.
7. Install the new bulb in the reverse
order of the removal procedure.
Brake lights / Tail lights
Go to your authorized dealer when the
replacement of this lights is necessary. Side Direction Indicator Lights
Proceed as follows:
1. Make sure the ignition is placed in
the OFF mode, and the headlight
switch is off.
2. If you are changing the right bulb,
start the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left bulb,
turn the steering wheel to the left.
3. Remove the fasteners in the five
locations and partially peel back the
mud guard.
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
5. Remove the lens assembly by
pressing the tab on the unit with your
finger and pulling the unit forward to
compress in the internal catch, then pull
the cluster outwards.
6. Lift up the lens assembly, and then
remove the cluster and install the new
side direction indicator lens assembly in
the reverse order of the removal
procedure.07031501-207-001
Front Direction Indicator Housing
1 — Socket Assembly
2 — Bulb 07031501-208-002AB
Direction Indicator Lamp Connector
189

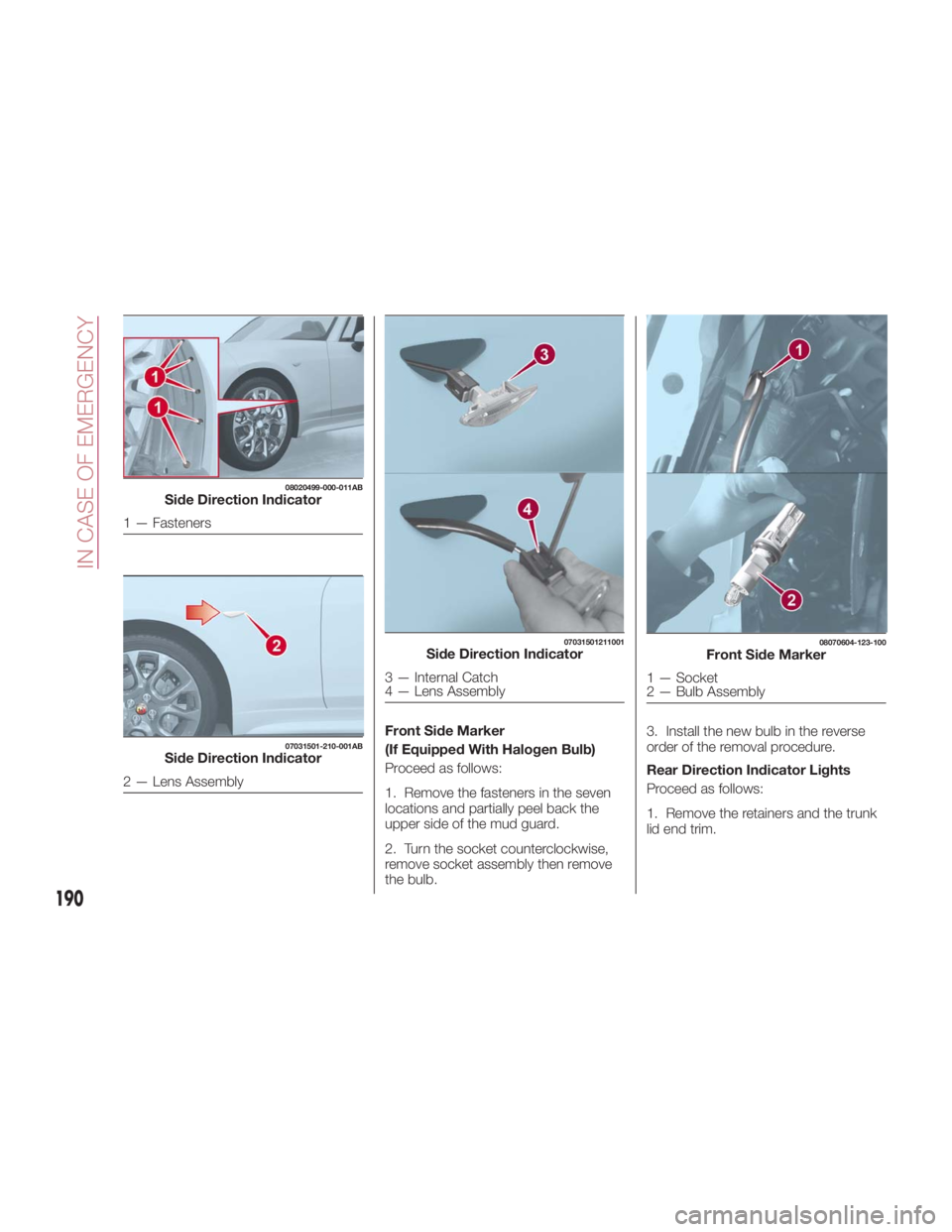

Front Side Marker
(If Equipped With Halogen Bulb)
Proceed as follows:
1. Remove the fasteners in the seven
locations and partially peel back the
upper side of the mud guard.
2. Turn the socket counterclockwise,
remove socket assembly then remove
the bulb. 3. Install the new bulb in the reverse
order of the removal procedure.
Rear Direction Indicator Lights
Proceed as follows:
1. Remove the retainers and the trunk
lid end trim.08020499-000-011AB
Side Direction Indicator
1 — Fasteners 07031501-210-001AB
Side Direction Indicator
2 — Lens Assembly 07031501211001
Side Direction Indicator
3 — Internal Catch
4 — Lens Assembly 08070604-123-100
Front Side Marker
1 — Socket
2 — Bulb Assembly
190
IN CASE OF EMERGENCY

2. Disconnect the connector from the
unit by pressing the tab on the
connector with your finger.
3. Remove the screw and nuts. 4. Pull the taillight housing rearward to
remove it.07031501-212-002
Trunk Trim
1 — Retainers 07031501214002
Trunk Trim
2 — Connector 07031501213002
Rear Direction Indicator Socket
3 — Connector 07031501-215-001
Taillight Housing Fasteners
4 — Screw
5 — Nuts 07031501-216-001AB
Rear of Vehicle
6 — Taillight Housing
191

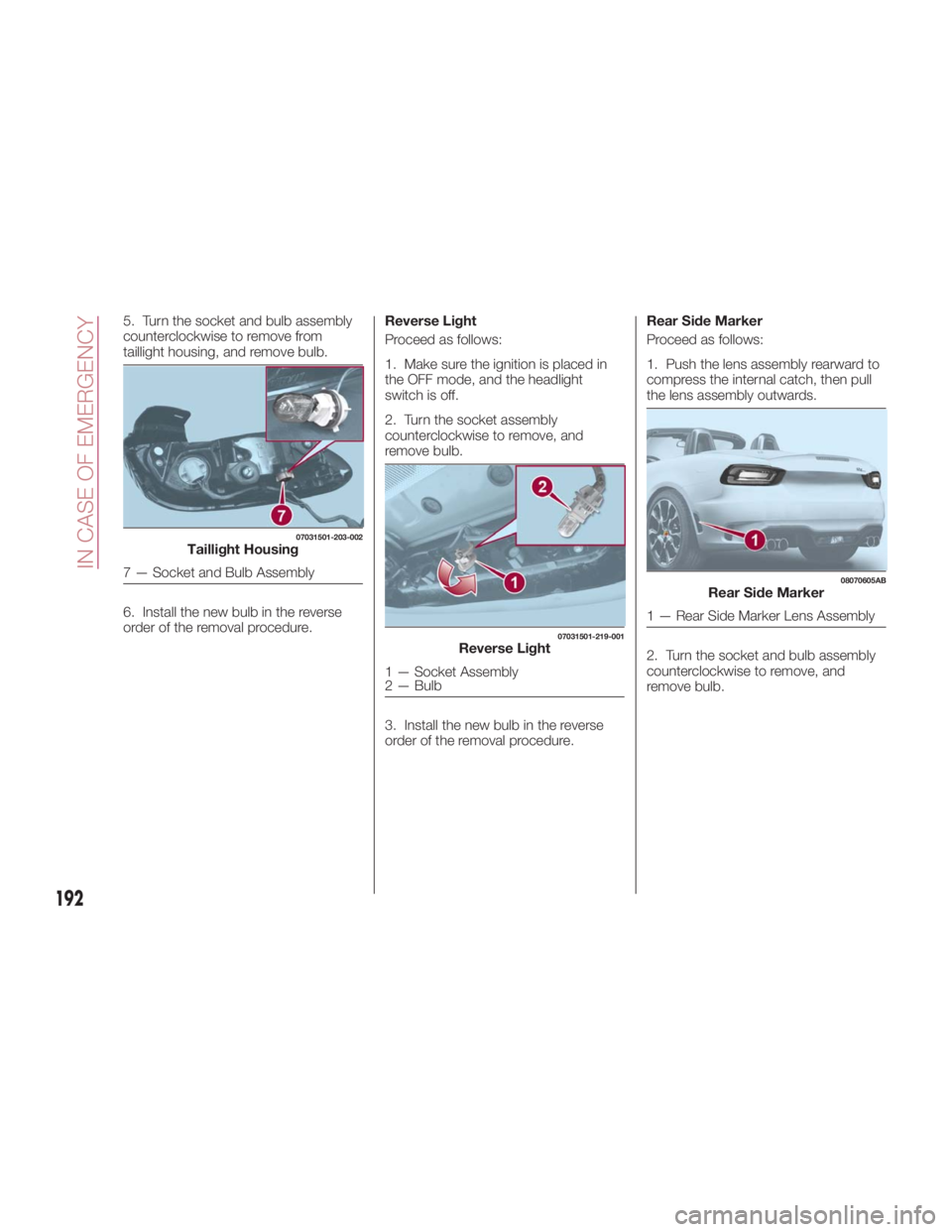

5. Turn the socket and bulb assembly
counterclockwise to remove from
taillight housing, and remove bulb.
6. Install the new bulb in the reverse
order of the removal procedure. Reverse Light
Proceed as follows:
1. Make sure the ignition is placed in
the OFF mode, and the headlight
switch is off.
2. Turn the socket assembly
counterclockwise to remove, and
remove bulb.
3. Install the new bulb in the reverse
order of the removal procedure. Rear Side Marker
Proceed as follows:
1. Push the lens assembly rearward to
compress the internal catch, then pull
the lens assembly outwards.
2. Turn the socket and bulb assembly
counterclockwise to remove, and
remove bulb.07031501-203-002
Taillight Housing
7 — Socket and Bulb Assembly 07031501-219-001
Reverse Light
1 — Socket Assembly
2 — Bulb 08070605AB
Rear Side Marker
1 — Rear Side Marker Lens Assembly
192
IN CASE OF EMERGENCY

3. Install the new bulb and then
reinstall the socket in the reverse order

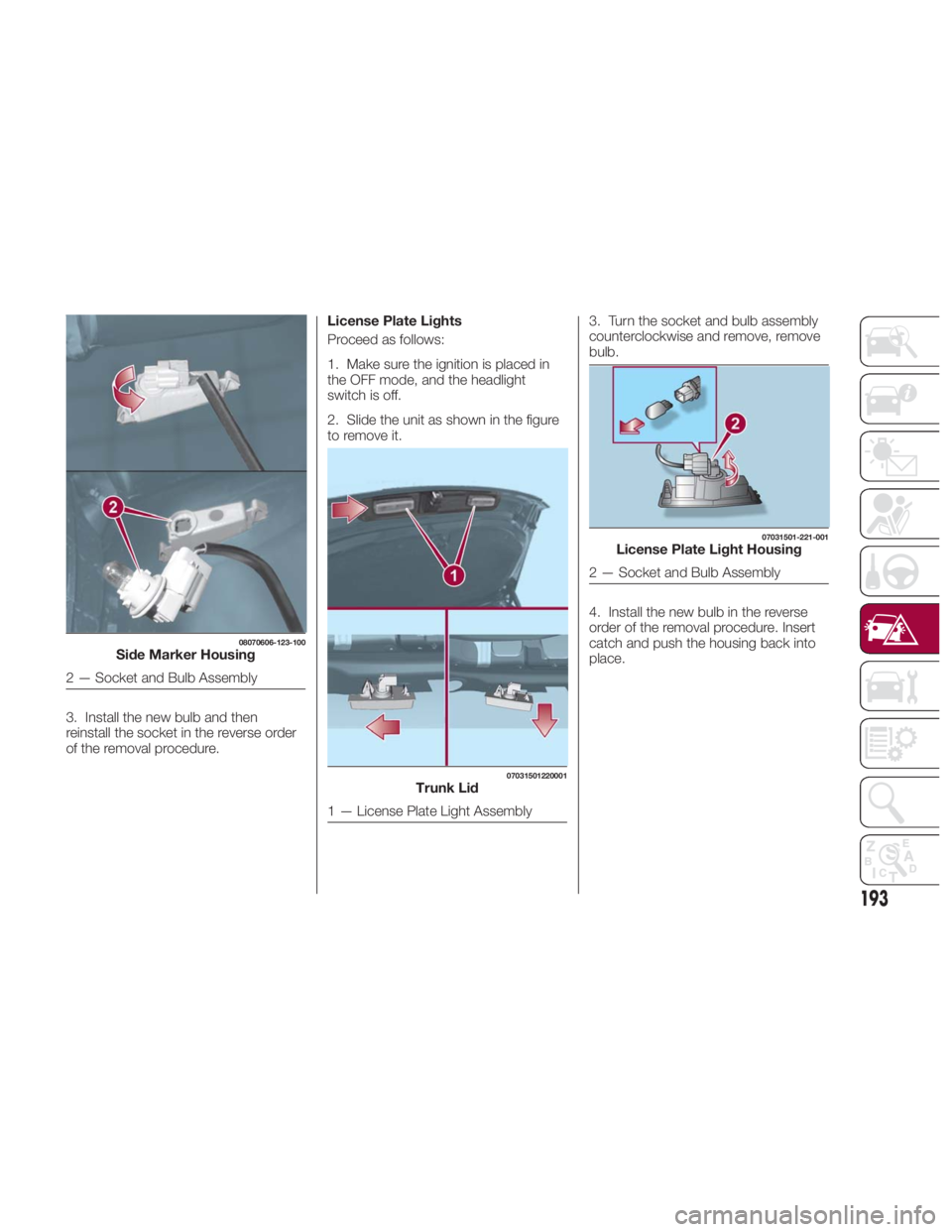

of the removal procedure. License Plate Lights
Proceed as follows:
1. Make sure the ignition is placed in
the OFF mode, and the headlight
switch is off.
2. Slide the unit as shown in the figure
to remove it. 3. Turn the socket and bulb assembly
counterclockwise and remove, remove
bulb.
4. Install the new bulb in the reverse
order of the removal procedure. Insert
catch and push the housing back into
place.08070606-123-100
Side Marker Housing
2 — Socket and Bulb Assembly 07031501220001
Trunk Lid
1 — License Plate Light Assembly 07031501-221-001
License Plate Light Housing
2 — Socket and Bulb Assembly
193

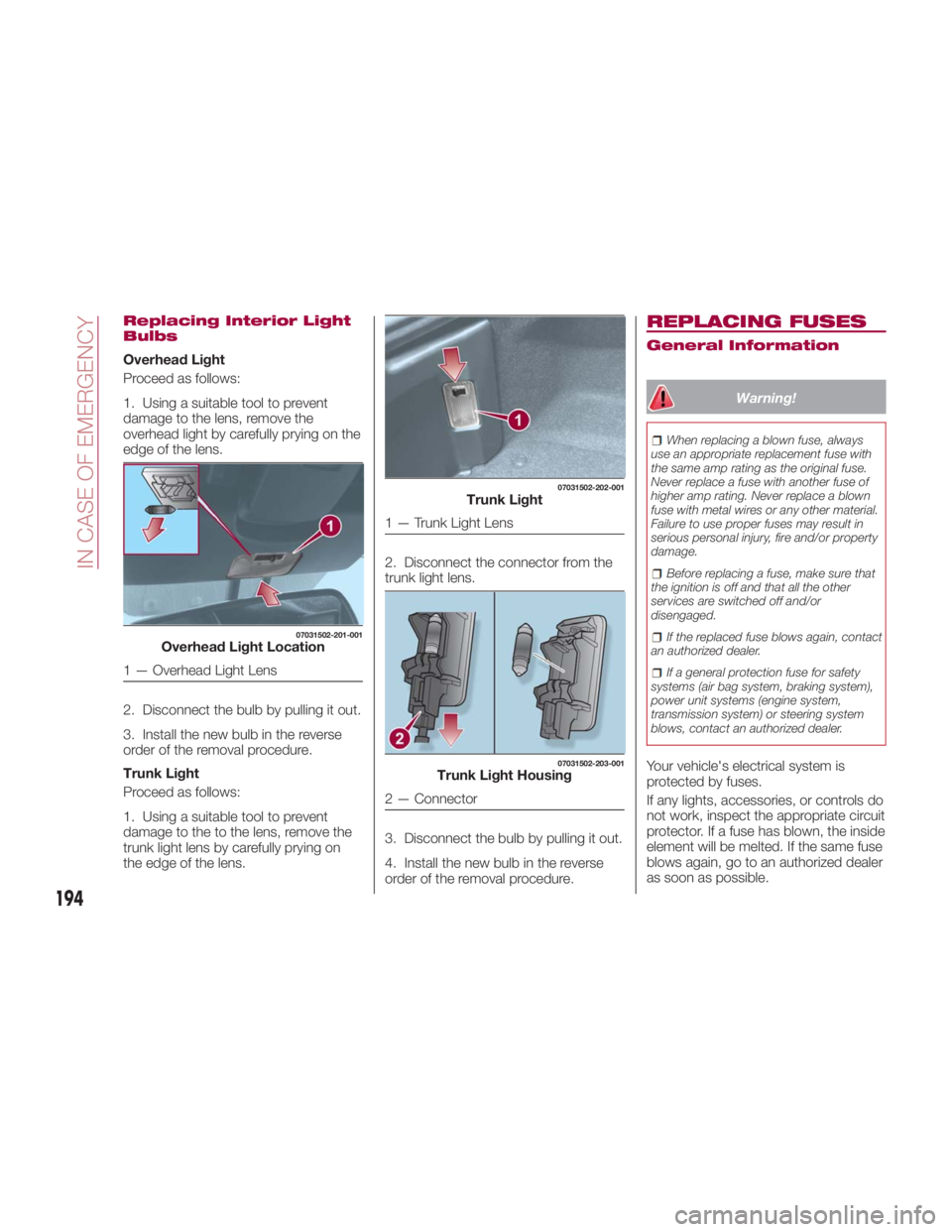

Replacing Interior Light
Bulbs
Overhead Light
Proceed as follows:
1. Using a suitable tool to prevent
damage to the lens, remove the
overhead light by carefully prying on the
edge of the lens.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse
order of the removal procedure.
Trunk Light
Proceed as follows:
1. Using a suitable tool to prevent
damage to the to the lens, remove the
trunk light lens by carefully prying on
the edge of the lens. 2. Disconnect the connector from the
trunk light lens.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse
order of the removal procedure. REPLACING FUSES General Information
Warning! When replacing a blown fuse, always
use an appropriate replacement fuse with
the same amp rating as the original fuse.
Never replace a fuse with another fuse of
higher amp rating. Never replace a blown
fuse with metal wires or any other material.
Failure to use proper fuses may result in
serious personal injury, fire and/or property
damage.
Before replacing a fuse, make sure that
the ignition is off and that all the other
services are switched off and/or
disengaged.
If the replaced fuse blows again, contact
an authorized dealer.
If a general protection fuse for safety
systems (air bag system, braking system),
power unit systems (engine system,
transmission system) or steering system
blows, contact an authorized dealer.
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted. If the same fuse
blows again, go to an authorized dealer
as soon as possible.07031502-201-001
Overhead Light Location
1 — Overhead Light Lens 07031502-202-001
Trunk Light
1 — Trunk Light Lens 07031502-203-001
Trunk Light Housing
2 — Connector
194
IN CASE OF EMERGENCY

Fuse location
Fuses are grouped together in two fuse
boxes located in the interior on the left
side of the vehicle and under the hood.
Interior Fuses
If the electrical system does not work,
first inspect the fuses on the vehicle's
left side.
Proceed as follows:
1. Make sure the ignition is placed in
the OFF mode, and other switches are
turned off.
2. Open the fuse panel cover (located
near the door).
3. Press retaining clip and remove
protection cover.
4. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment. 5. Inspect the fuse and replace it if it is
blown. 6. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, contact
your authorized dealer. If you have no
spare fuses, borrow one of the same
rating from a circuit not essential to
vehicle operation, such as the audio or
outlet circuit.
7. Reinstall the cover and make sure
that it is securely installed.
Note: Always replace a fuse with a
genuine FCA fuse or equivalent of the
same rating. Otherwise you may
damage the electric system.07031601-121-001
Fuse Panel Cover 07031601-122-001
Fuse Puller 07031601-ALL-001
Fuses
1 — Normal Fuse
2 — Blown Fuse
195

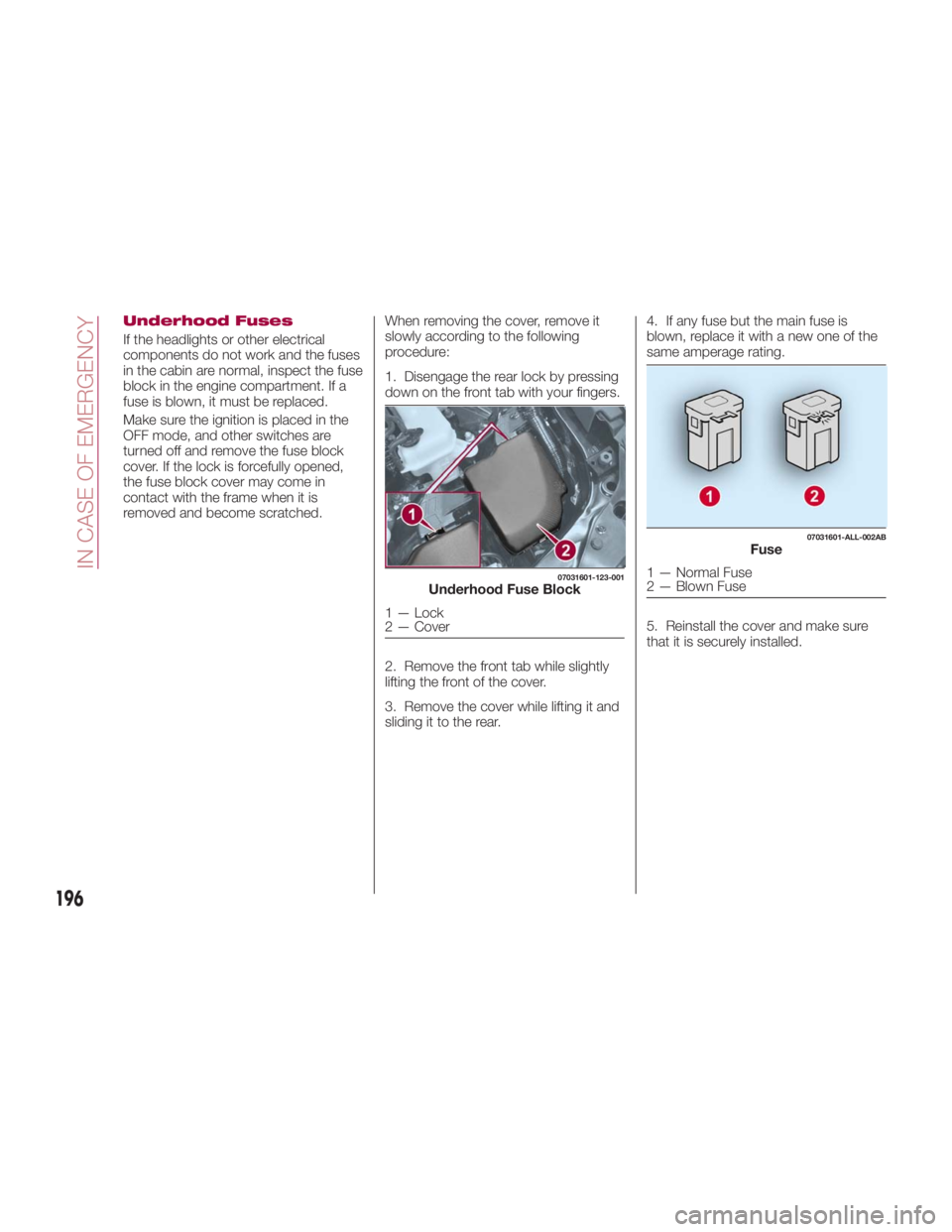

Underhood Fuses
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block in the engine compartment. If a
fuse is blown, it must be replaced.
Make sure the ignition is placed in the
OFF mode, and other switches are
turned off and remove the fuse block
cover. If the lock is forcefully opened,
the fuse block cover may come in
contact with the frame when it is
removed and become scratched. When removing the cover, remove it
slowly according to the following
procedure:
1. Disengage the rear lock by pressing
down on the front tab with your fingers.
2. Remove the front tab while slightly
lifting the front of the cover.
3. Remove the cover while lifting it and
sliding it to the rear. 4. If any fuse but the main fuse is
blown, replace it with a new one of the
same amperage rating.
5. Reinstall the cover and make sure
that it is securely installed. 07031601-123-001
Underhood Fuse Block
1 — Lock
2 — Cover 07031601-ALL-002AB
Fuse
1 — Normal Fuse
2 — Blown Fuse
196
IN CASE OF EMERGENCY

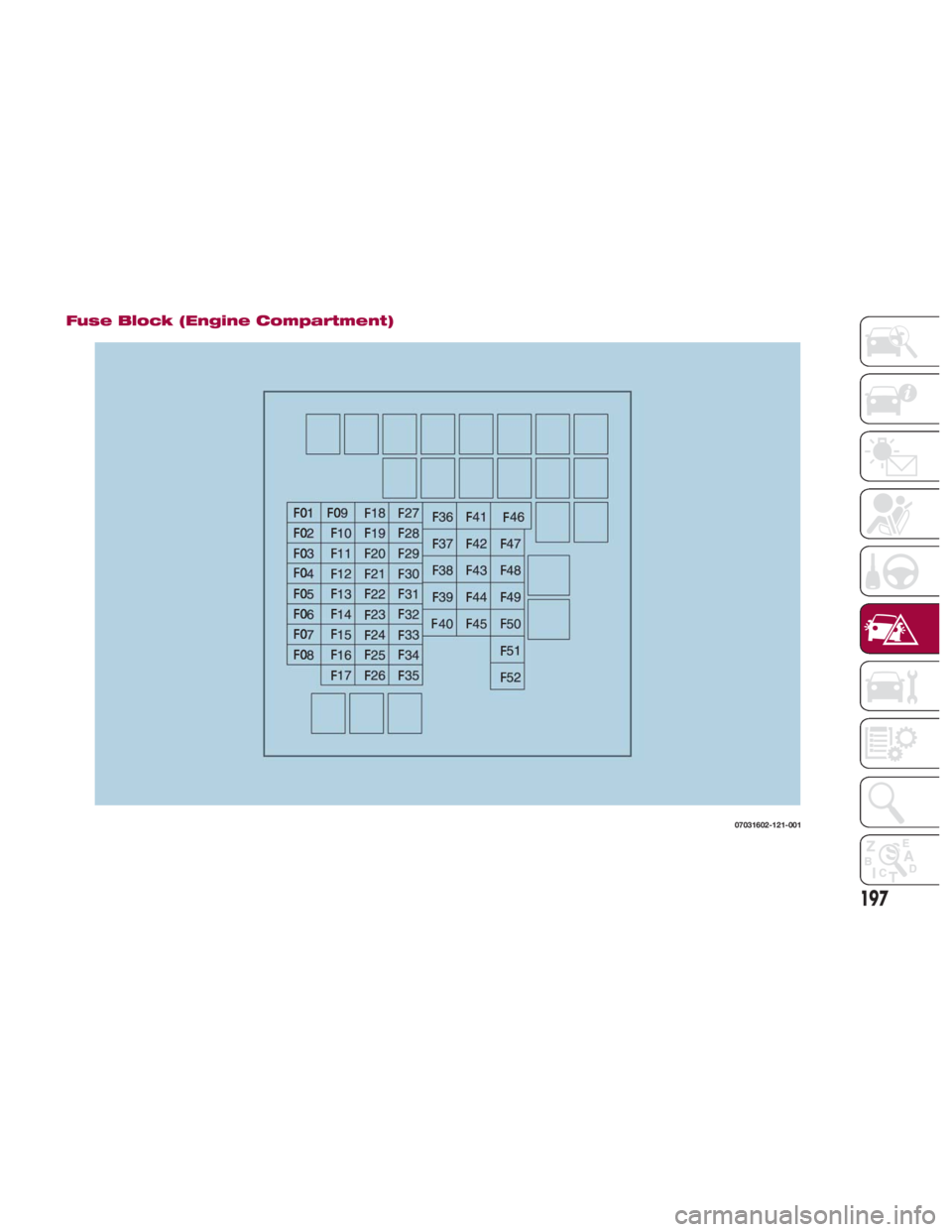

Fuse Block (Engine Compartment)
07031602-121-001
197

DESCRIPTION FUSE RATING PROTECTED COMPONENT
F01 ENG IG3 5 A Engine Control Systems
F02 ENG
IG2 5 A Engine Control Systems
F03 HORN2 7.5 A Horn
F04 C/U IG1 15 A For Protection Of Various Circuits
F05 ENG IG1 7.5 A Engine Control System
F06 — — —
F07 INTERIOR 15 A Overhead Light
F08 — — —
F09 AUDIO2 15 A Audio System
F10 METER1 10 A Instrument Cluster
F11 SRS1 7.5 A Air Bag
F12 — — —
F13 RADIO 7.5 A Audio System
F14 ENGINE3 20 A Engine Control System
F15 ENGINE1 10 A Engine Control System
F16 ENGINE2 15 A Engine Control System
F17 AUDIO1 25 A Audio System
F18 A/C MAG 7.5 A Air Conditioner
F19 AT PUMP H/L HI 20 A Transmission Control System (If Equipped)
F20 AT 15 A Transmission Control System (If Equipped)
F21 D LOCK 25 A Power Door Locks
F22 H/L RH 20 A Headlight (RH)
F23 ENG + B2 7.5 A Engine Control System
