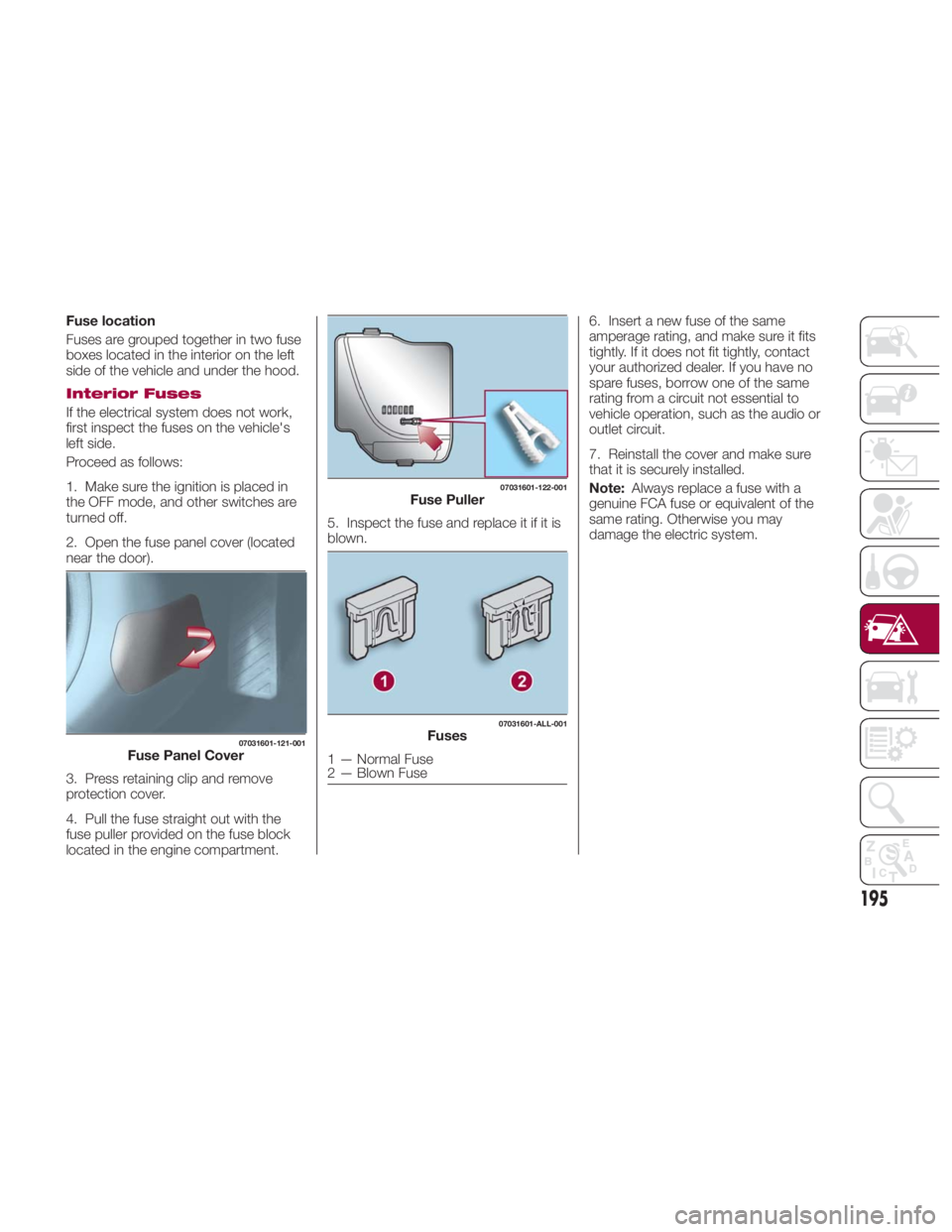

Fuse location
Fuses are grouped together in two fuse
boxes located in the interior on the left
side of the vehicle and under the hood.
Interior Fuses
If the electrical system does not work,
first inspect the fuses on the vehicle's
left side.
Proceed as follows:
1. Make sure the ignition is placed in
the OFF mode, and other switches are
turned off.
2. Open the fuse panel cover (located
near the door).
3. Press retaining clip and remove
protection cover.
4. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment. 5. Inspect the fuse and replace it if it is
blown. 6. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, contact
your authorized dealer. If you have no
spare fuses, borrow one of the same
rating from a circuit not essential to
vehicle operation, such as the audio or
outlet circuit.
7. Reinstall the cover and make sure
that it is securely installed.
Note: Always replace a fuse with a
genuine FCA fuse or equivalent of the
same rating. Otherwise you may
damage the electric system.07031601-121-001
Fuse Panel Cover 07031601-122-001
Fuse Puller 07031601-ALL-001
Fuses
1 — Normal Fuse
2 — Blown Fuse
195
