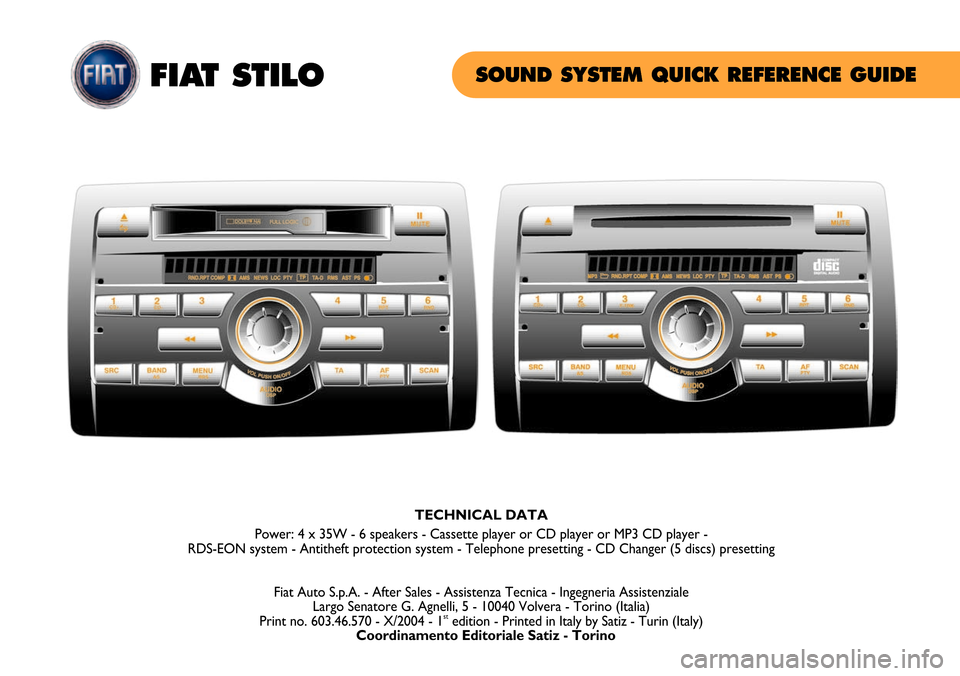

FIAT STILOSOUND SYSTEM QUICK REFERENCE GUIDE
TECHNICAL DATA
Power: 4 x 35W - 6 speakers - Cassette player or CD player or MP3 CD player -
RDS-EON system - Antitheft protection system - Telephone presetting - CD Changer (5 discs) presetting
Fiat Auto S.p.A. - After Sales - Assistenza Tecnica - Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.46.570 - X/2004 - 1
stedition - Printed in Italy by Satiz - Turin (Italy)
Coordinamento Editoriale Satiz - Torino

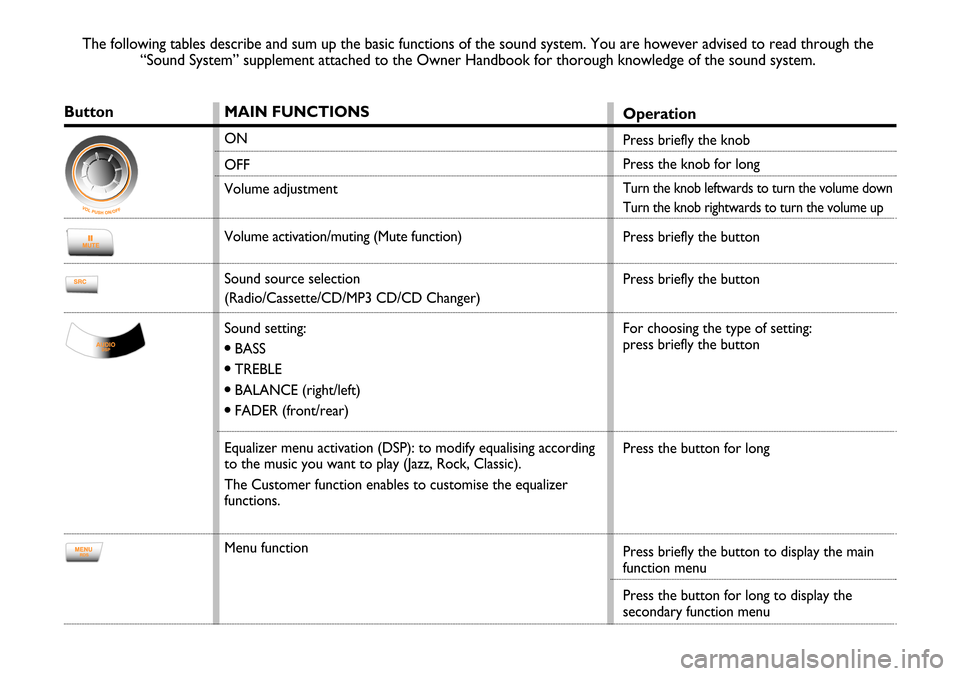

MAIN FUNCTIONS
ON
OFF
Volume adjustment
Volume activation/muting (Mute function)
Sound source selection
(Radio/Cassette/CD/MP3 CD/CD Changer)
Sound setting:
•BASS
•TREBLE
•BALANCE (right/left)
•FADER (front/rear)
Equalizer menu activation (DSP): to modify equalising according
to the music you want to play (Jazz, Rock, Classic).
The Customer function enables to customise the equalizer
functions.
Menu function
Operation
Press briefly the knob
Press the knob for long
Turn the knob leftwards to turn the volume down
Turn the knob rightwards to turn the volume up
Press briefly the button
Press briefly the button
For choosing the type of setting:
press briefly the button
Press the button for long
Press briefly the button to display the main
function menu
Press the button for long to display the
secondary function menu
Button
The following tables describe and sum up the basic functions of the sound system. You are however advised to read through the
“Sound System” supplement attached to the Owner Handbook for thorough knowledge of the sound system.

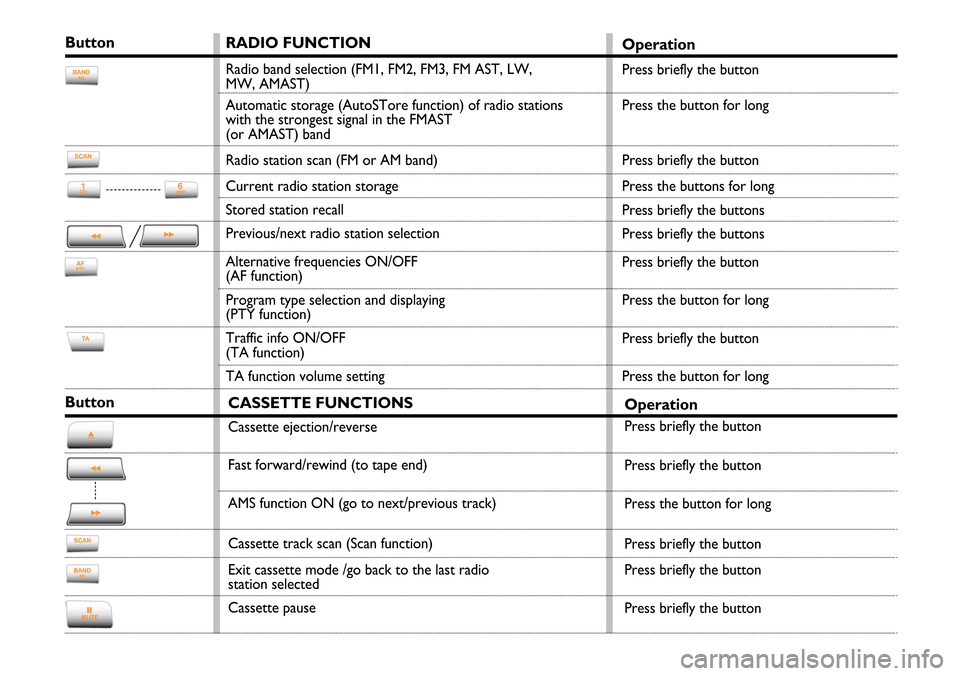

RADIO FUNCTION
Radio band selection (FM1, FM2, FM3, FM AST, LW,
MW, AMAST)
Automatic storage (AutoSTore function) of radio stations
with the strongest signal in the FMAST
(or AMAST) band
Radio station scan (FM or AM band)
Current radio station storage
Stored station recall
Previous/next radio station selection
Alternative frequencies ON/OFF
(AF function)
Program type selection and displaying
(PTY function)
Traffic info ON/OFF
(TA function)
TA function volume setting
Operation
Press briefly the button
Press the button for long
Press briefly the button
Press the buttons for long
Press briefly the buttons
Press briefly the buttons
Press briefly the button
Press the button for long
Press briefly the button
Press the button for long
Button
ButtonCASSETTE FUNCTIONS
Cassette ejection/reverse
Fast forward/rewind (to tape end)
AMS function ON (go to next/previous track)
Cassette track scan (Scan function)
Exit cassette mode /go back to the last radio
station selected
Cassette pause
Operation
Press briefly the button
Press briefly the button
Press the button for long
Press briefly the button
Press briefly the button
Press briefly the button

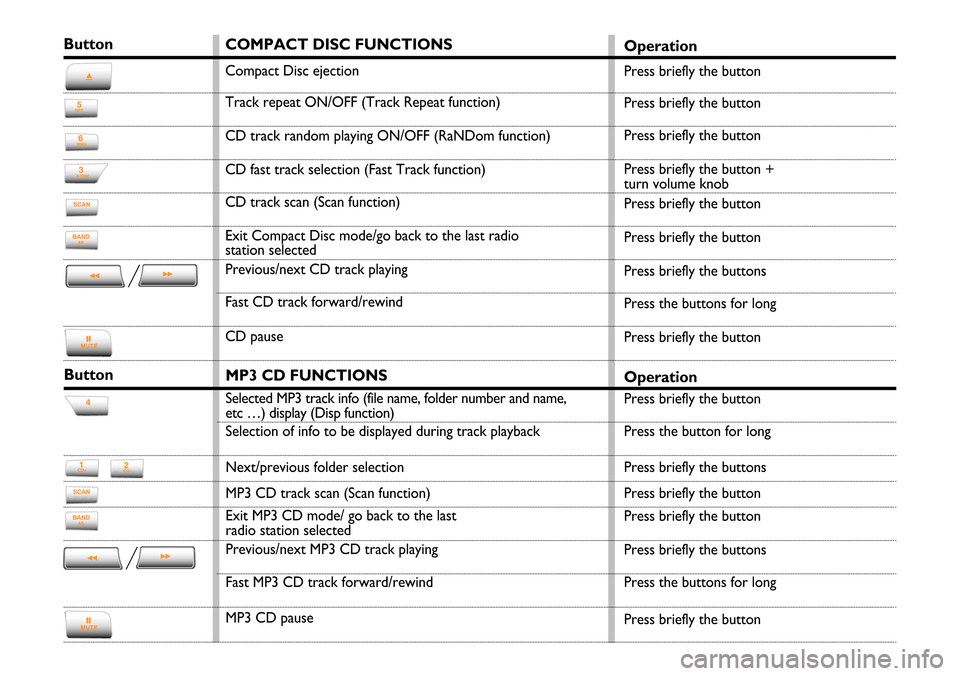

COMPACT DISC FUNCTIONS
Compact Disc ejection
Track repeat ON/OFF (Track Repeat function)
CD track random playing ON/OFF (RaNDom function)
CD fast track selection (Fast Track function)
CD track scan (Scan function)
Exit Compact Disc mode/go back to the last radio
station selected
Previous/next CD track playing
Fast CD track forward/rewind
CD pause
Operation
Press briefly the button
Press briefly the button
Press briefly the button
Press briefly the button +
turn volume knob
Press briefly the button
Press briefly the button
Press briefly the buttons
Press the buttons for long
Press briefly the button
Button
MP3 CD FUNCTIONS
Selected MP3 track info (file name, folder number and name,
etc …) display (Disp function)
Selection of info to be displayed during track playback
Next/previous folder selection
MP3 CD track scan (Scan function)
Exit MP3 CD mode/ go back to the last
radio station selected
Previous/next MP3 CD track playing
Fast MP3 CD track forward/rewind
MP3 CD pause
Operation
Press briefly the button
Press the button for long
Press briefly the buttons
Press briefly the button
Press briefly the button
Press briefly the buttons
Press the buttons for long
Press briefly the button
Button
