RADIO WITH COMPACT DISC PLAYER
57 Nero- Testo 603.46.306 Radio Stilo gb
57
PTY function reactivation
Press button8(AF
PTY) for over 2
seconds…. Then, the last pro-
gramme type selected is displayed
(e.g. “POP”).
Setting the programme type
Press button 8(AF
PTY), for over
2 seconds and the PTY code of the
current station will be displayed.
Select the required code turning the
button/knob 10(VOL PUSH
ON/OFF). Then press one of the
15(<<) or 6(>>) buttons to start
the automatic search of stations
broadcasting with the selected PTY
code. Automatic PTY search stops
automatically on next station offer-
ing the preset programme type and
shows the type of programme (e.g.
“POP”) and the word “PTY” flash-
es.
IMPORTANTIf no station is
available with this type of pro-
gramme, the station selected previ-
ously is heard and the PTY function
is abandoned.PTY function deactivation
When selecting the PTY mode, if
no operation is performed within 10
seconds, the radio returns to the
mode selected before pressing but-
ton 8 (AF
PTY) and stores the last
PTY code selected.
MENU
Functions of the
12(MENU
RDS)button
To activate the menu function,
briefly press (less than 1 second) the
12(MENU
RDS) button.
in this way you enter the first level
menu. To enter the second level
keep the 12(MENU
RDS) button
pressed for over 2 seconds.
To scroll the menu functions press
repeatedly the 12(MENU
RDS) but-
ton.The functions controlled by the
first levelmenu are:
1Manual tuning seek on/off (MAN-
UAL TUNING SEEK)
2Function confirmation beep
(BEEP)
3Tuning sensitivity adjustment
(SENS DX/LO)
4News programmes on/off
(NEWS)
5Volume control according to
speed (SVC)
6Tuning adjustment on traffic
information (EON TA)
7Loudness on/off (LOUDNESS)
8CD Compression
To turn selected function on/off
press buttons15(<<) or6(>>).
9Allocate a name to a CD/select
CD tracks (TPM = Track Program
Memory)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 57

58 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
58
The functions controlled by the
second levelmenu are:
1Current RDS station time display
(if any)
2audio distortion clipper on/off
(AUDIO CLIP DETECT)
3Max. volume setting at switching
on (MAX VOLUME)
4Phone volume adjustment func-
tion (PHONE)
5AUTO setting selection through
which radio on/off depends on
engine starting/stopping.
To turn the selected function on/off
press button/knob 10(VOL PUSH
ON/OFF).
NOTEWhen passing to next set-
ting item, the previous set one is
stored.
ADJUSTMENTS
First level menu functions
1 - manual tuning seek on/off
(TUNING SEEK)
This function enables to search
manually (MANUAL) or automatical-
ly (AUTO) the stored stations.To switch from manual to automat-
ic press buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “TUNING SEEK: AUTO”:
automatic seek on
– “TUNING SEEK: MANUAL”:
manual seek on.
2 - function confirmation beep
(BEEP)
System is fitted with the BEEP
function (the display shows
“ROGER BEEP-ON”).
This function confirms button
pressing by a sound indication
(BEEP).
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “ROGER BEEP: ON” = func-
tion on
– “ROGER BEEP: OFF” = func-
tion off.3 - tuner sensitivity adjustment
(SENS DX/LO)
With this function it is possible to
change the sensitivity of automatic
station searching. When low sensi-
tivity is set “SENSITIVITY:
LOCAL” only stations with excel-
lent reception are sought; when high
sensitivity is set “SENSITIVITY:
DISTANT” all stations are sought.
Therefore, if the car is in an area
with a considerable number of sta-
tions and you want to choose only
those with a strong signal, set to low
sensitivity “SENSITIVITY:
LOCAL”.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “SENSITIVITY: LOCAL” =
low sensitivity
– “SENSITIVITY: DISTANT” =
high sensitivity.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 58

62 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
62
5 - AUTO function setting
With this function it is possible to
set radio turning on/off depending on
car ignition/stopping or independent
radio turning on/off.
With this function on (radio is set
to switch off when the car is
switched off), it is however possible
to switch on the radio.
With this function off, when
switching off the car the radio stays
on.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “AUTO: ON” = function on
– “AUTO: OFF” = function offCOMPACT DISC PLAYER
fig. 9
You radio is fitted with a Compact
Disc player for sound CDs.
Compact Disc insertion and ejec-
tion are facilitated by a powered
mechanism.
Selecting the Compact
Disc player
To turn on the Compact Disc play-
er integrated in the set, when a CD
is already inserted, turn the set on
pressing button/knob 10(VOL
PUSH ON/OFF), then briefly (less
than 1 second) and repeatedly press
button 14(SRC) to select the “CD”
mode.
Inserting a CD, also with the device
off, the CD player is turned on. Inserting/ejecting a CD
To insert the CD set it gently in
place to activate the powered load-
ing system, which will position it cor-
rectly.
Press 1(˚) with the device on to
operate the powered CD eject sys-
tem.
Display information
When the CD player is working,
the display shows information which
has the following meaning:
“CD”: shows the CD mode
“TRACK 12”: shows the number
of the track on the CD
“11.04”: shows the time elapsed
since the start of the track
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 62

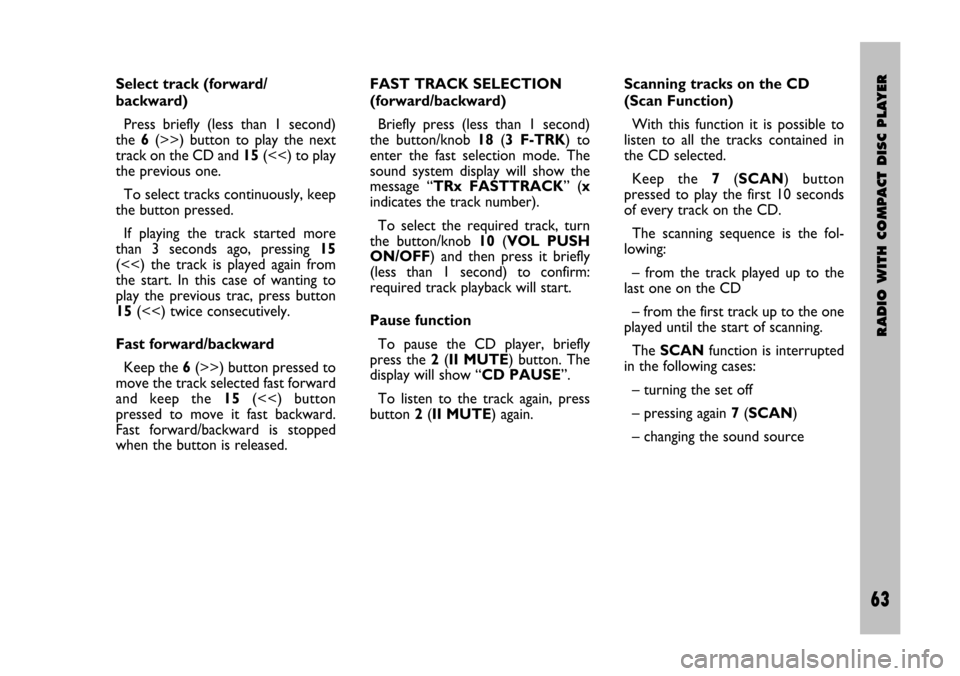

RADIO WITH COMPACT DISC PLAYER
63 Nero- Testo 603.46.306 Radio Stilo gb
63
Select track (forward/
backward)
Press briefly (less than 1 second)
the 6(>>) button to play the next
track on the CD and 15(<<) to play
the previous one.
To select tracks continuously, keep
the button pressed.
If playing the track started more
than 3 seconds ago, pressing 15
(<<) the track is played again from
the start. In this case of wanting to
play the previous trac, press button
15(<<) twice consecutively.
Fast forward/backward
Keep the 6(>>) button pressed to
move the track selected fast forward
and keep the 15(<<) button
pressed to move it fast backward.
Fast forward/backward is stopped
when the button is released.FAST TRACK SELECTION
(forward/backward)
Briefly press (less than 1 second)
the button/knob 18(3 F-TRK) to
enter the fast selection mode. The
sound system display will show the
message “TRx FASTTRACK” (x
indicates the track number).
To select the required track, turn
the button/knob 10(VOL PUSH
ON/OFF) and then press it briefly
(less than 1 second) to confirm:
required track playback will start.
Pause function
To pause the CD player, briefly
press the 2(II MUTE) button. The
display will show “CD PAUSE”.
To listen to the track again, press
button 2(II MUTE) again.Scanning tracks on the CD
(Scan Function)
With this function it is possible to
listen to all the tracks contained in
the CD selected.
Keep the 7(SCAN) button
pressed to play the first 10 seconds
of every track on the CD.
The scanning sequence is the fol-
lowing:
– from the track played up to the
last one on the CD
– from the first track up to the one
played until the start of scanning.
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing again 7(SCAN)
– changing the sound source
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 63

66 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
66
Choosing the CD
Press 16(1
CD+) to select the next
CD and17(2
CD–) to select the pre-
vious one.
If the loader does not contain a disc
in the position selected, the display
shows“NO CD”, and the next disc
is played automatically.Select track (forward/backward)
Briefly press6(>>) to play the
next track on the Compact Disc
being listened to.
Briefly press (less than 1 second)
button 15(<<) to play the previous
track on the Compact Disc being lis-
tened to.
Fast forward/backward
Keep the 6(>>) button pressed to
move the track selected fast forward
and keep the 15(<<) button
pressed to move it fast backward.
Fast forward/backward is stopped
when the button is released.Scanning tracks on the CD
(Scan function)
With this function it is possible to
listen to all the tracks contained in
the CD selected.
Keep the 7(SCAN) button
pressed to play the first 10 seconds
of every track on the CD. While
playing the display will alternately
show the CD function chosen (CD
name, time and number) and the
word “SCAN” (e.g. “CDC3
SCAN TK12 0.04”)
If the SCANfunction is on, the
REPEATand MIXfunctions are
turned off.
The scanning sequence is the fol-
lowing:
– from the track played up to the
last one on the CD
– from the first track up to the one
played until the start of scanning.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 66

RADIO WITH COMPACT DISC PLAYER
67 Nero- Testo 603.46.306 Radio Stilo gb
67
The SCANfunction is interrupted
in the following cases:
– turning the set off
– pressing 7(SCAN) again to con-
tinue listening to the track being
played
– pressing 6(>>) or 15(<<)
thereby moving to the next or previ-
ous track
– pressing a preset button
– changing the sound source
– pressing 12(MENU
RDS).
If the SCANfunction is not inter-
rupted, at the end it will continue
playing the track played before scan-
ning was started.
Pause function
To pause the CD player, press
briefly (less than 1 second) the 2(II)
button. The display shows “CDC
MUTE”.
To listen to the track again, press
button 2(II) again.
The pause function is automatically
cancelled changing the listening
source.Track Repeat function
Briefly press (less than 1 second)
the preset button 4(5
RPT) to listen
repeatedly to the last track played:
the display shows “CDC REPEAT
TRACK”.
Press the preset button 4(5
RPT)
again to turn off the repeat function:
the display shows “CD REPEAT
OFF”.
Changing the sound source, the
function is turned off.
IMPORTANTWhen the repeat
function is turned on, the SCAN
and MIXfunctions are turned off.Random track playing
(RaNDom function)
To start random playing of tracks
on the Compact Disc selected, press
the preset button 5(6
RND). A new
track will be played and the display
will show “CDC RANDOM
DISK”. To start random playing of
all the CDs contained in the CD
Changer, press a second time 5(6
RND); the display will show “CDC
RANDOM PACK”. Press 5(6
RND) a third time to urn the function
off: the display will show “CDC
RANDOM OFF”.
Stopping and ejecting the CD
Press 1(˚) or 14(SRC) to return
to the radio mode.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 67
