RADIO WITH CASSETTE PLAYER
3 Nero- Testo 603.46.306 Radio Stilo gb
3
C C C C
O O O O
N N N N
T T T T
E E E E
N N N N
T T T T
S S S S
INTRODUCTION.................................. 4
ADVICE...................................................\V.......... 4
– Road safety .................................................. 4
– Reception conditions ................................ 4
– Care and maintenance ............................. 4
– Cassettes ...................................................\V.. 4
– Compact Disc ............................................ 5
– Notes on Compact Discs ........................ 6
RADIO WITH CASSETTE
PLAYER
CONTROL DESCRIPTION ............................... 7
GENERAL ...................................................\V............. 12
Radio section ...................................................\V........ 12
Cassette section ...................................................\V... 12
Compact Disc section ........................................... 12
Sound section ...................................................\V....... 13
Antitheft protection ............................................... 13
GLOSSARY ...................................................\V.......... 14
OPERATION
Controls on steering wheel ................................ 16
Functions and adjustments .................................. 17
Telephone provision ............................................. 19
Radio (Tuner) ...................................................\V...... 20
Menu ...................................................\V...................... 25
Adjustments ...................................................\V......... 26
Cassette player (Tape) ......................................... 29
CD Changer ...................................................\V......... 31
Secret coding ...................................................\V....... 34
Technical information ........................................... 36
RADIO WITH COMPACT
DISC PLAYER
CONTROL DESCRIPTION ............................... 39
GENERAL ...................................................\V............. 44
Radio section ...................................................\V........ 44
Compact Disc section ........................................... 44
Sound section ...................................................\V....... 45
Antitheft protection ............................................... 45
CAUTIONS ...................................................\V......... 45
GLOSSARY ...................................................\V.......... 46
OPERATION
Controls on steering wheel ................................ 48
Functions and adjustments .................................. 49
Telephone provision ............................................. 51
Radio (Tuner) ...................................................\V...... 52
Menu ...................................................\V...................... 57
Adjustments ...................................................\V......... 58
Compact Disc player ............................................ 62
CD Changer ...................................................\V......... 64
Secret coding ...................................................\V....... 68
Technical information ........................................... 69
RADIO WITH CD AND MP3
PLAYER
CONTROL DESCRIPTION ............................... 73
INTRODUCTION.................................................. 78
MP3 Player ...................................................\V........... 78
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 3

16 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
16

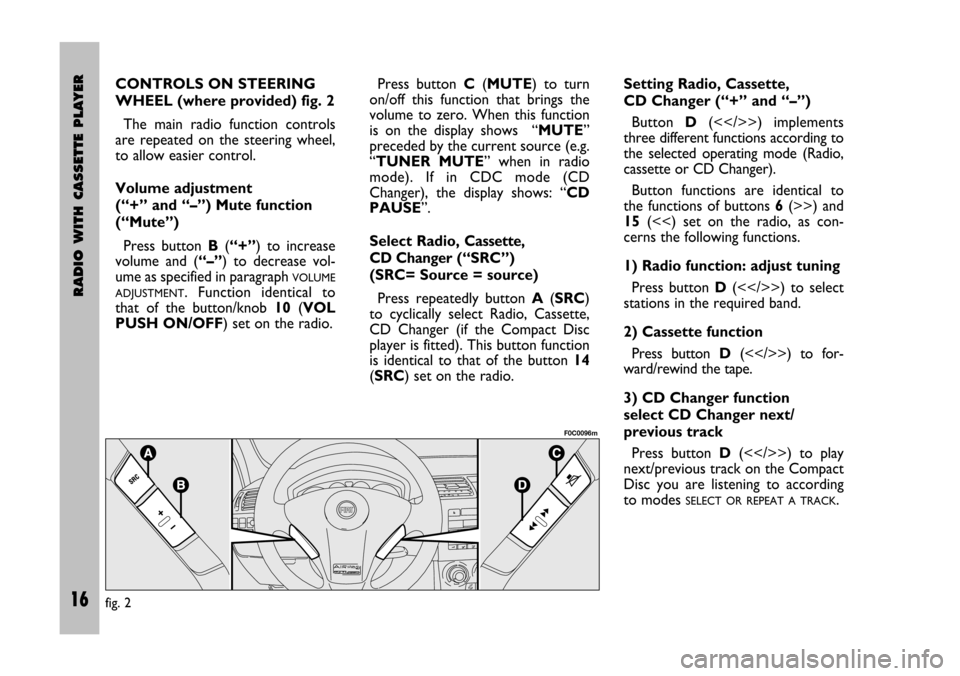

CONTROLS ON STEERING
WHEEL (where provided) fig. 2
The main radio function controls
are repeated on the steering wheel,
to allow easier control.
Volume adjustment
(“+” and “–”) Mute function
(“Mute”)
Press button B(“+”) to increase
volume and (“–”) to decrease vol-
ume as specified in paragraph
VOLUME
ADJUSTMENT
. Function identical to
that of the button/knob 10(VOL
PUSH ON/OFF) set on the radio.Press button C(MUTE) to turn
on/off this function that brings the
volume to zero. When this function
is on the display shows “MUTE”
preceded by the current source (e.g.
“TUNER MUTE” when in radio
mode). If in CDC mode (CD
Changer), the display shows: “CD
PAUSE”.
Select Radio,
Cassette,
CD Changer
(“SRC”)
(SRC= Source = source)
Press repeatedly button A(SRC)
to cyclically select Radio, Cassette,
CD Changer (if the Compact Disc
player is fitted). This button function
is identical to that of the button 14
(SRC) set on the radio.Setting Radio, Cassette,
CD Changer (“+” and “–”)
Button D(<>) implements
three different functions according to
the selected operating mode (Radio,
cassette or CD Changer).
Button functions are identical to
the functions of buttons 6(>>) and
15(<<) set on the radio, as con-
cerns the following functions.
1) Radio function: adjust tuning
Press button D(<>) to select
stations in the required band.
2) Cassette function
Press button D(<>) to for-
ward/rewind the tape.
3) CD Changer function
select CD Changer next/
previous track
Press button D(<>) to play
next/previous track on the Compact
Disc you are listening to according
to modes
SELECT OR REPEAT A TRACK.
fig. 2
F0C0096m
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 16

48 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
48
CONTROLS ON STEERING
WHEEL (where provided)
fig. 10
The main radio function controls
are repeated on the steering wheel,
to allow easier control.
Volume adjustment
(“+” and “–”) Mute function
(“Mute”)
Press button B(“+”) to increase
volume and (“–”) to decrease vol-
ume as specified in paragraph
VOLUME
ADJUSTMENT
. Function identical to
that of the button/knob 10(VOL
PUSH ON/OFF) set on the radio.
fig. 10
F0C0149m
Press C(MUTE) to turn on/off
this function that brings the volume
to zero. When this function is on the
display shows “MUTE” preceded by
the current source (e.g. “TUNER
MUTE” when in radio mode). If in
CDC mode (CD Changer), the dis-
play shows: “CDC PAUSE”.
Select Radio, Compact Disc,
CD Changer (“SRC”)
(SRC = Source = source)
Press repeatedly button A(SRC)
to cyclically select Radio, Compact
Disc, CD Changer (if the Compact
Disc player is fitted). This button
function is identical to that of the
button 14(SRC) set on the radio.Setting Radio, Compact Disc,
CD Changer (“+” and “–”)
Button D(<>) implements
three different functions according to
the selected operating mode (Radio,
Compact Disc or CD Changer).
Button functions are identical to
the functions of buttons 6(>>) and
15(<<) set on the radio, as con-
cerns the following functions.
1) Radio function: adjust tuning
Press button D(<>) to select
stations in the required band.
2) Compact Disc function
Press button D(<>) to select
next/previous track.
3) Compact Disc function:
select CD next/previous track
Press button D(<>) to play
next/previous track on the Compact
Disc you are listening to according
to modes
SELECT OR REPEAT A TRACK.
