SYSTEME MAINS LIBRES AVEC RECONNAISSANCE VOCALE ET TECHNOLOGIE Bluetooth

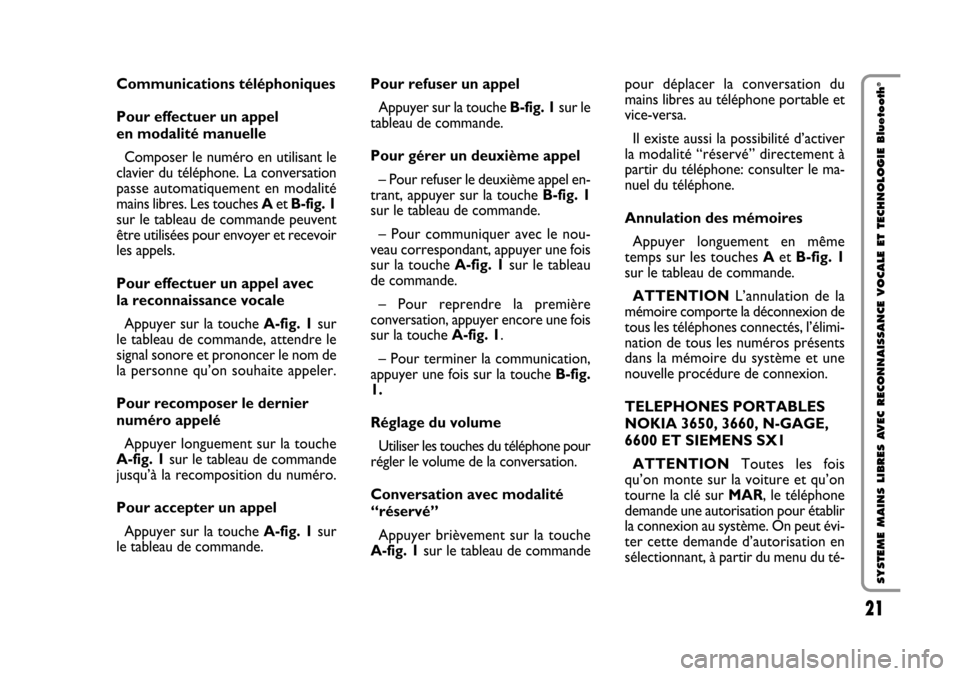

®Communications téléphoniques
Pour effectuer un appel
en modalité manuelle
Composer le numéro en utilisant le
clavier du téléphone. La conversation
passe automatiquement en modalité
mains libres. Les touches Aet B-fig. 1
sur le tableau de commande peuvent
être utilisées pour envoyer et recevoir
les appels.
Pour effectuer un appel avec
la reconnaissance vocale
Appuyer sur la touche A-fig. 1sur
le tableau de commande, attendre le
signal sonore et prononcer le nom de
la personne qu’on souhaite appeler.
Pour recomposer le dernier
numéro appelé
Appuyer longuement sur la touche
A-fig. 1sur le tableau de commande
jusqu’à la recomposition du numéro.
Pour accepter un appel
Appuyer sur la touche A-fig. 1sur
le tableau de commande.Pour refuser un appel
Appuyer sur la touche B-fig. 1sur le
tableau de commande.
Pour gérer un deuxième appel
– Pour refuser le deuxième appel en-
trant, appuyer sur la touche B-fig. 1
sur le tableau de commande.
– Pour communiquer avec le nou-
veau correspondant, appuyer une fois
sur la touche A-fig. 1sur le tableau
de commande.
– Pour reprendre la première
conversation, appuyer encore une fois
sur la toucheA-fig. 1.
– Pour terminer la communication,
appuyer une fois sur la touche B-fig.
1.
Réglage du volume
Utiliser les touches du téléphone pour
régler le volume de la conversation.
Conversation avec modalité
“réservé”
Appuyer brièvement sur la touche
A-fig. 1sur le tableau de commandepour déplacer la conversation du
mains libres au téléphone portable et
vice-versa.
Il existe aussi la possibilité d’activer
la modalité “réservé” directement à
partir du téléphone: consulter le ma-
nuel du téléphone.
Annulation des mémoires
Appuyer longuement en même
temps sur les touches AetB-fig. 1
sur le tableau de commande.
ATTENTIONL’annulation de la
mémoire comporte la déconnexion de
tous les téléphones connectés, l’élimi-
nation de tous les numéros présents
dans la mémoire du système et une
nouvelle procédure de connexion.
TELEPHONES PORTABLES
NOKIA 3650, 3660, N-GAGE,
6600 ET SIEMENS SX1
ATTENTIONToutes les fois
qu’on monte sur la voiture et qu’on
tourne la clé sur MAR, le téléphone
demande une autorisation pour établir
la connexion au système. On peut évi-
ter cette demande d’autorisation en
sélectionnant, à partir du menu du té-
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 21

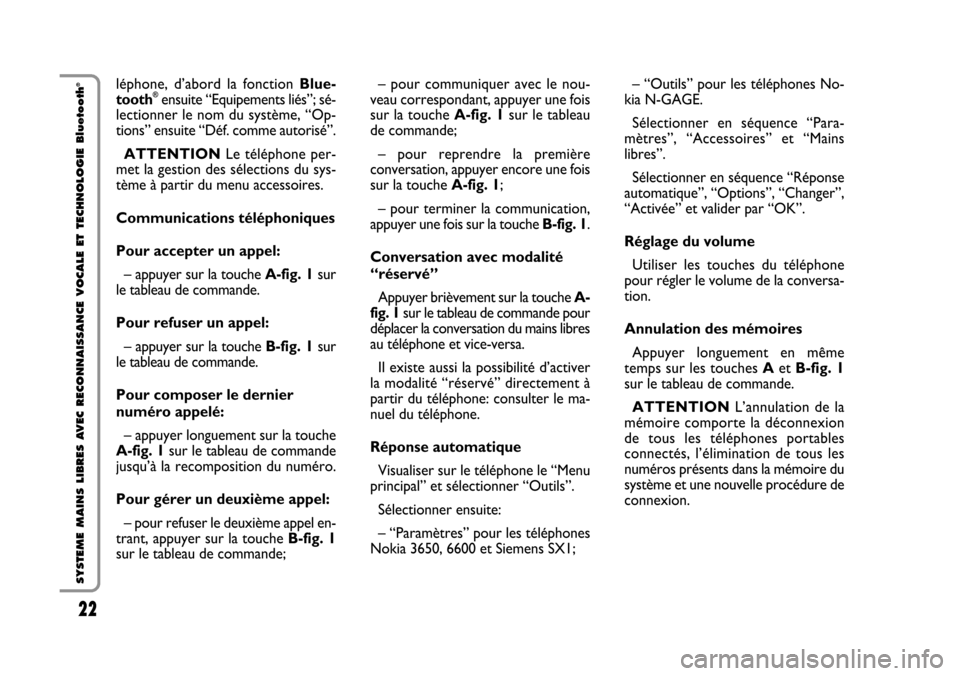

22 Nero Testo - 603.46.564 STILO BLUETOOTH
22
SYSTEME MAINS LIBRES AVEC RECONNAISSANCE VOCALE ET TECHNOLOGIE Bluetooth
®– pour communiquer avec le nou-
veau correspondant, appuyer une fois
sur la touche A-fig. 1sur le tableau
de commande;
– pour reprendre la première
conversation, appuyer encore une fois
sur la touche A-fig. 1;
– pour terminer la communication,
appuyer une fois sur la touche B-fig. 1.
Conversation avec modalité
“réservé”
Appuyer brièvement sur la touche A-
fig. 1sur le tableau de commande pour
déplacer la conversation du mains libres
au téléphone et vice-versa.
Il existe aussi la possibilité d’activer
la modalité “réservé” directement à
partir du téléphone: consulter le ma-
nuel du téléphone.
Réponse automatique
Visualiser sur le téléphone le “Menu
principal” et sélectionner “Outils”.
Sélectionner ensuite:
– “Paramètres” pour les téléphones
Nokia 3650, 6600 et Siemens SX1;– “Outils” pour les téléphones No-
kia N-GAGE.
Sélectionner en séquence “Para-
mètres”, “Accessoires” et “Mains
libres”.
Sélectionner en séquence “Réponse
automatique”, “Options”, “Changer”,
“Activée” et valider par “OK”.
Réglage du volume
Utiliser les touches du téléphone
pour régler le volume de la conversa-
tion.
Annulation des mémoires
Appuyer longuement en même
temps sur les touches Aet B-fig. 1
sur le tableau de commande.
ATTENTIONL’annulation de la
mémoire comporte la déconnexion
de tous les téléphones portables
connectés, l’élimination de tous les
numéros présents dans la mémoire du
système et une nouvelle procédure de
connexion. léphone, d’abord la fonctionBlue-
tooth®ensuite “Equipements liés”; sé-
lectionner le nom du système, “Op-
tions” ensuite “Déf. comme autorisé”.
ATTENTIONLe téléphone per-
met la gestion des sélections du sys-
tème à partir du menu accessoires.
Communications téléphoniques
Pour accepter un appel:
– appuyer sur la touche A-fig. 1sur
le tableau de commande.
Pour refuser un appel:
– appuyer sur la touche B-fig. 1sur
le tableau de commande.
Pour composer le dernier
numéro appelé:
– appuyer longuement sur la touche
A-fig. 1sur le tableau de commande
jusqu’à la recomposition du numéro.
Pour gérer un deuxième appel:
– pour refuser le deuxième appel en-
trant, appuyer sur la touche B-fig. 1
sur le tableau de commande;
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 22

23 Nero Testo - 603.46.564 STILO BLUETOOTH
23
SYSTEME MAINS LIBRES AVEC RECONNAISSANCE VOCALE ET TECHNOLOGIE Bluetooth

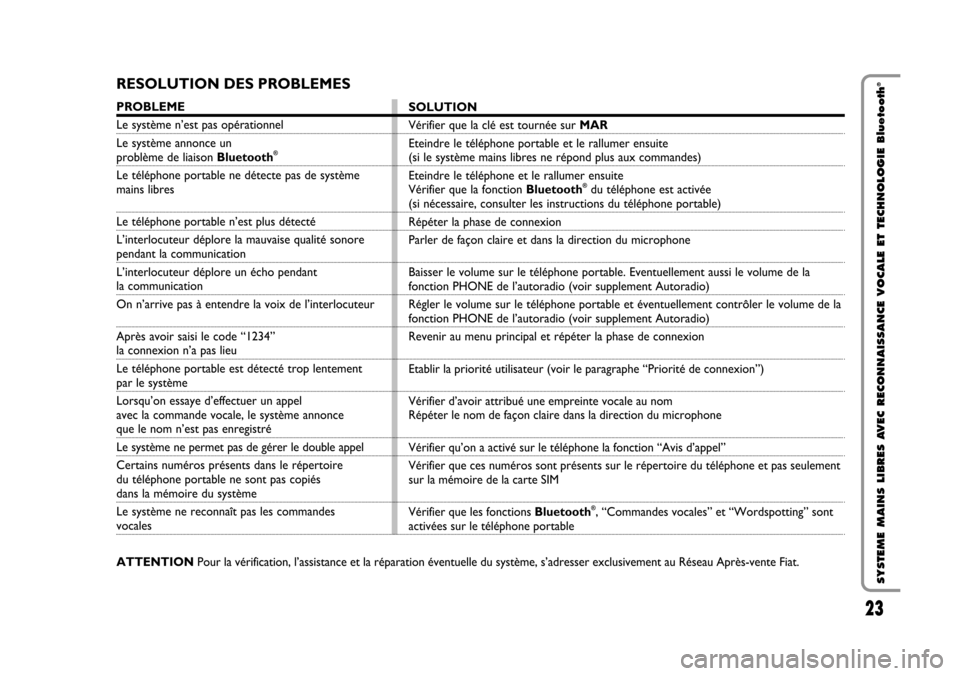

®RESOLUTION DES PROBLEMES
PROBLEME
Le système n’est pas opérationnel
Le système annonce un
problème de liaison Bluetooth®
Le téléphone portable ne détecte pas de système
mains libres
Le téléphone portable n’est plus détecté
L’interlocuteur déplore la mauvaise qualité sonore
pendant la communication
L’interlocuteur déplore un écho pendant
la communication
On n’arrive pas à entendre la voix de l’interlocuteur
Après avoir saisi le code “1234”la connexion n’a pas lieu
Le téléphone portable est détecté trop lentement
par le système
Lorsqu’on essaye d’effectuer un appel
avec la commande vocale, le système annonce
que le nom n’est pas enregistré
Le système ne permet pas de gérer le double appel
Certains numéros présents dans le répertoire
du téléphone portable ne sont pas copiés
dans la mémoire du système
Le système ne reconnaît pas les commandes
vocalesSOLUTION
Vérifier que la clé est tournée surMAR
Eteindre le téléphone portable et le rallumer ensuite
(si le système mains libres ne répond plus aux commandes)
Eteindre le téléphone et le rallumer ensuite
Vérifier que la fonction Bluetooth
®du téléphone est activée
(si nécessaire, consulter les instructions du téléphone portable)
Répéter la phase de connexion
Parler de façon claire et dans la direction du microphone
Baisser le volume sur le téléphone portable. Eventuellement aussi le volume de la
fonction PHONE de l’autoradio (voir supplement Autoradio)
Régler le volume sur le téléphone portable et éventuellement contrôler le volume de la
fonction PHONE de l’autoradio (voir supplement Autoradio)
Revenir au menu principal et répéter la phase de connexion
Etablir la priorité utilisateur (voir le paragraphe “Priorité de connexion”)
Vérifier d’avoir attribué une empreinte vocale au nom
Répéter le nom de façon claire dans la direction du microphone
Vérifier qu’on a activé sur le téléphone la fonction “Avis d’appel”
Vérifier que ces numéros sont présents sur le répertoire du téléphone et pas seulement
sur la mémoire de la carte SIM
Vérifier que les fonctions Bluetooth
®, “Commandes vocales” et “Wordspotting” sont
activées sur le téléphone portable
ATTENTION Pour la vérification, l’assistance et la réparation éventuelle du système, s’adresser exclusivement au Réseau Après-vente Fiat.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 23

24 Nero Testo - 603.46.564 STILO BLUETOOTH
24

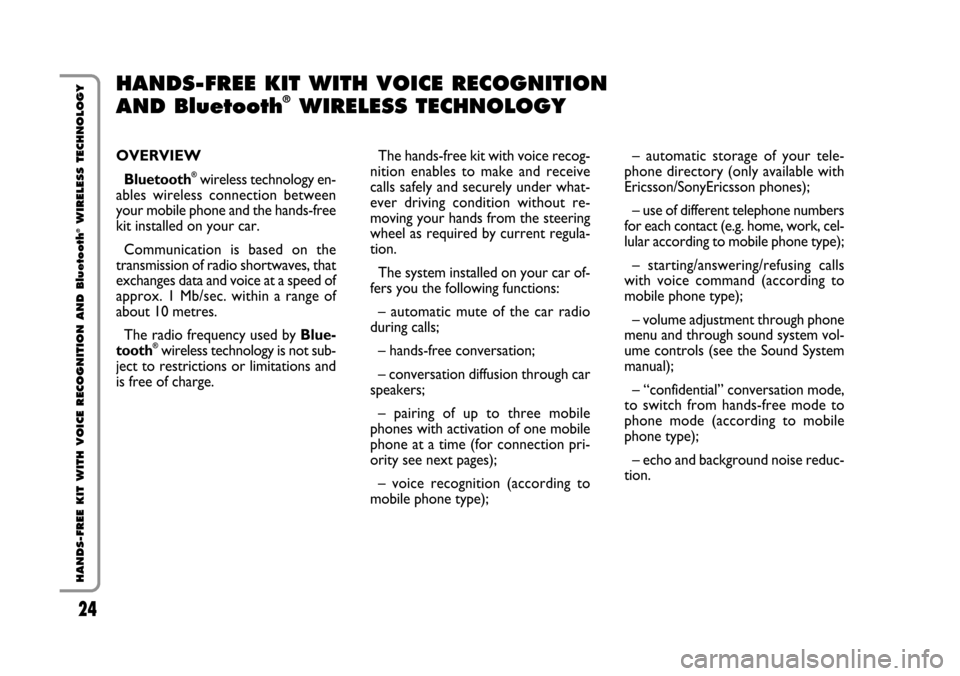

HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
OVERVIEW
Bluetooth
®wireless technology en-
ables wireless connection between
your mobile phone and the hands-free
kit installed on your car.
Communication is based on the
transmission of radio shortwaves, that
exchanges data and voice at a speed of
approx. 1 Mb/sec. within a range of
about 10 metres.
The radio frequency used by Blue-
tooth
®wireless technology is not sub-
ject to restrictions or limitations and
is free of charge.– automatic storage of your tele-
phone directory (only available with
Ericsson/SonyEricsson phones);
– use of different telephone numbers
for each contact (e.g. home, work, cel-
lular according to mobile phone type);
– starting/answering/refusing calls
with voice command (according to
mobile phone type);
– volume adjustment through phone
menu and through sound system vol-
ume controls (see the Sound System
manual);
– “confidential” conversation mode,
to switch from hands-free mode to
phone mode (according to mobile
phone type);
– echo and background noise reduc-
tion. The hands-free kit with voice recog-
nition enables to make and receive
calls safely and securely under what-
ever driving condition without re-
moving your hands from the steering
wheel as required by current regula-
tion.
The system installed on your car of-
fers you the following functions:
– automatic mute of the car radio
during calls;
– hands-free conversation;
– conversation diffusion through car
speakers;
– pairing of up to three mobile
phones with activation of one mobile
phone at a time (for connection pri-
ority see next pages);
– voice recognition (according to
mobile phone type);
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth®WIRELESS TECHNOLOGY
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 24

25 Nero Testo - 603.46.564 STILO BLUETOOTH
25
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

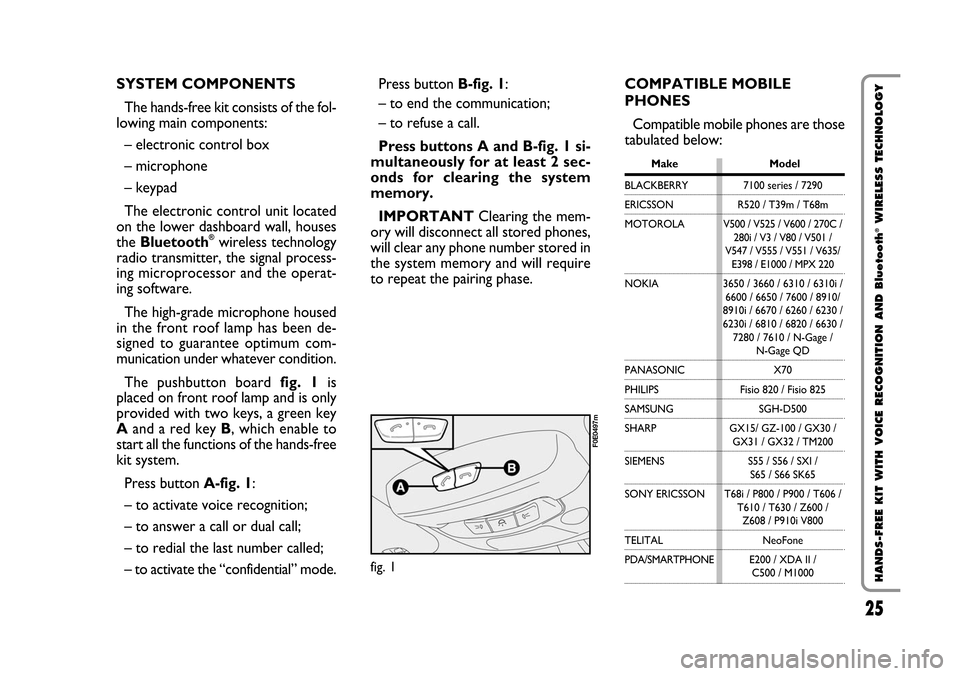

SYSTEM COMPONENTS
The hands-free kit consists of the fol-
lowing main components:
– electronic control box
– microphone
– keypad
The electronic control unit located
on the lower dashboard wall, houses
the Bluetooth
®wireless technology
radio transmitter, the signal process-
ing microprocessor and the operat-
ing software.
The high-grade microphone housed
in the front roof lamp has been de-
signed to guarantee optimum com-
munication under whatever condition.
The pushbutton board fig. 1is
placed on front roof lamp and is only
provided with two keys, a green key
Aand a red key B, which enable to
start all the functions of the hands-free
kit system.
Press button A-fig. 1:
– to activate voice recognition;
– to answer a call or dual call;
– to redial the last number called;
– to activate the “confidential” mode.Press button B-fig. 1:
– to end the communication;
– to refuse a call.
Press buttons A and B-fig. 1 si-
multaneously for at least 2 sec-
onds for clearing the system
memory.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase.COMPATIBLE MOBILE
PHONES
Compatible mobile phones are those
tabulated below:
Make Model
BLACKBERRY 7100 series / 7290
ERICSSON R520 / T39m / T68m
MOTOROLAV500 / V525 / V600 / 270C /
280i / V3 / V80 / V501 /
V547 / V555 / V551 / V635/
E398 / E1000 / MPX 220
NOKIA 3650 / 3660 / 6310 / 6310i /
6600 / 6650 / 7600 / 8910/
8910i / 6670 / 6260 / 6230 /
6230i / 6810 / 6820 / 6630 /
7280 / 7610 / N-Gage /
N-Gage QD
PANASONIC X70
PHILIPS Fisio 820 / Fisio 825
SAMSUNG SGH-D500
SHARP GX15/ GZ-100 / GX30 /
GX31 / GX32 / TM200
SIEMENS S55 / S56 / SXI /
S65 / S66 SK65
SONY ERICSSON T68i / P800 / P900 / T606 /
T610 / T630 / Z600 /
Z608 / P910i V800
TELITAL NeoFone
PDA/SMARTPHONEE200 / XDA II /
C500 / M1000fig. 1
F0E0497m
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 25

26 Nero Testo - 603.46.564 STILO BLUETOOTH
26
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

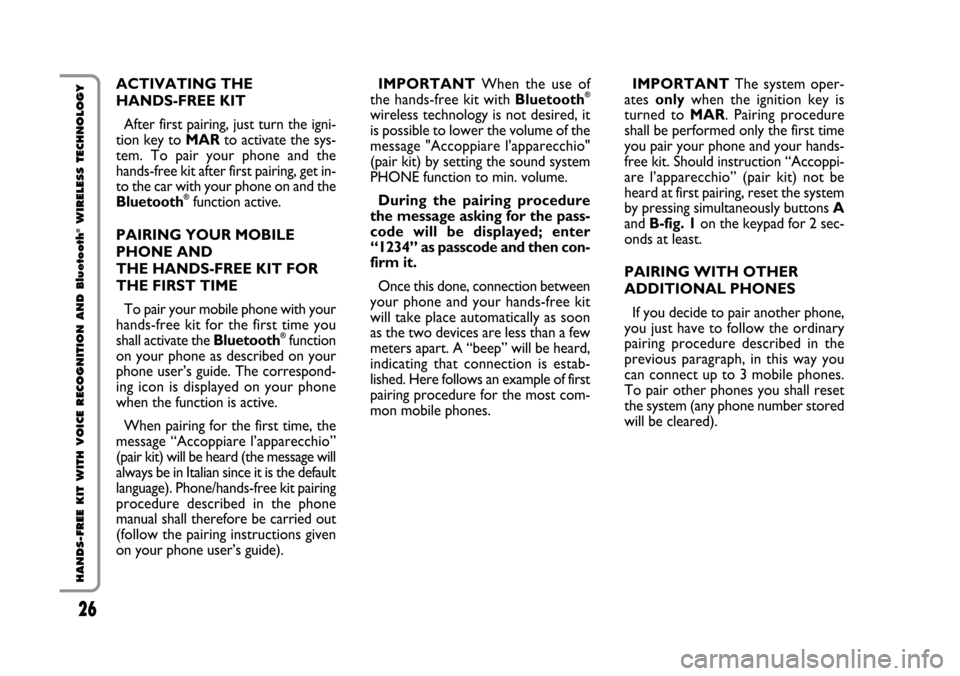

ACTIVATING THE
HANDS-FREE KIT
After first pairing, just turn the igni-
tion key to MARto activate the sys-
tem. To pair your phone and the
hands-free kit after first pairing, get in-
to the car with your phone on and the
Bluetooth
®function active.
PAIRING YOUR MOBILE
PHONE AND
THE HANDS-FREE KIT FOR
THE FIRST TIME
To pair your mobile phone with your
hands-free kit for the first time you
shall activate the Bluetooth
®function
on your phone as described on your
phone user’s guide. The correspond-
ing icon is displayed on your phone
when the function is active.
When pairing for the first time, the
message “Accoppiare l’apparecchio”
(pair kit) will be heard (the message will
always be in Italian since it is the default
language). Phone/hands-free kit pairing
procedure described in the phone
manual shall therefore be carried out
(follow the pairing instructions given
on your phone user’s guide).IMPORTANTWhen the use of
the hands-free kit with Bluetooth
®
wireless technology is not desired, it
is possible to lower the volume of the
message "Accoppiare l'apparecchio"
(pair kit) by setting the sound system
PHONE function to min. volume.
During the pairing procedure
the message asking for the pass-
code will be displayed; enter
“1234” as passcode and then con-
firm it.
Once this done, connection between
your phone and your hands-free kit
will take place automatically as soon
as the two devices are less than a few
meters apart. A “beep” will be heard,
indicating that connection is estab-
lished. Here follows an example of first
pairing procedure for the most com-
mon mobile phones.IMPORTANTThe system oper-
ates onlywhen the ignition key is
turned to MAR. Pairing procedure
shall be performed only the first time
you pair your phone and your hands-
free kit. Should instruction “Accoppi-
are l’apparecchio” (pair kit) not be
heard at first pairing, reset the system
by pressing simultaneously buttons A
and B-fig. 1on the keypad for 2 sec-
onds at least.
PAIRING WITH OTHER
ADDITIONAL PHONES
If you decide to pair another phone,
you just have to follow the ordinary
pairing procedure described in the
previous paragraph, in this way you
can connect up to 3 mobile phones.
To pair other phones you shall reset
the system (any phone number stored
will be cleared).
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 26

27 Nero Testo - 603.46.564 STILO BLUETOOTH
27
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

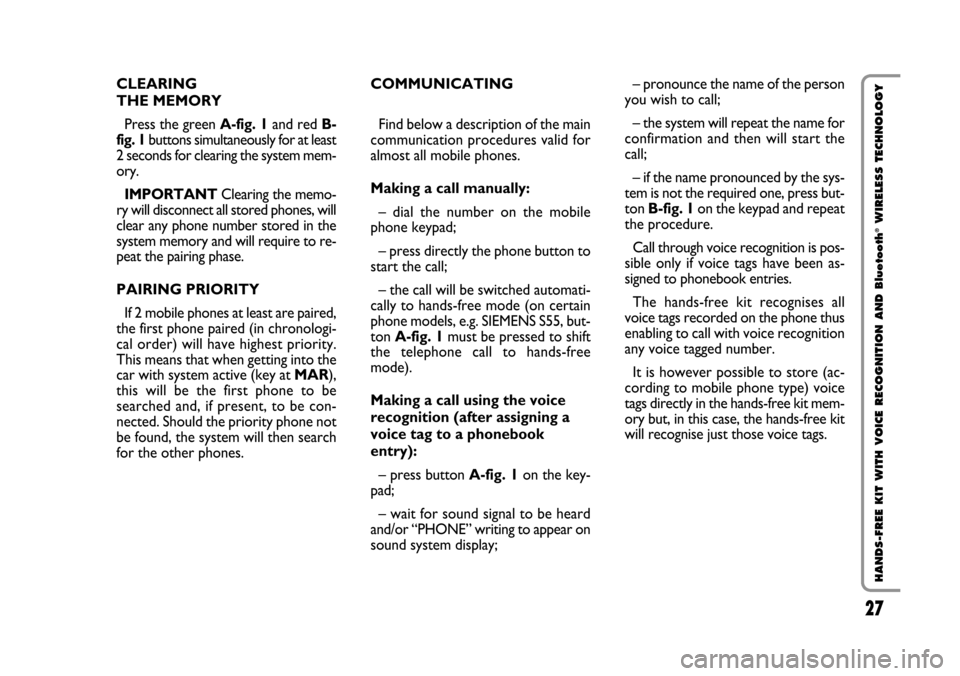

CLEARING
THE MEMORY
Press the green A-fig. 1and red B-
fig. 1buttons simultaneously for at least
2 seconds for clearing the system mem-
ory.
IMPORTANTClearing the memo-
ry will disconnect all stored phones, will
clear any phone number stored in the
system memory and will require to re-
peat the pairing phase.
PAIRING PRIORITY
If 2 mobile phones at least are paired,
the first phone paired (in chronologi-
cal order) will have highest priority.
This means that when getting into the
car with system active (key at MAR),
this will be the first phone to be
searched and, if present, to be con-
nected. Should the priority phone not
be found, the system will then search
for the other phones.COMMUNICATING
Find below a description of the main
communication procedures valid for
almost all mobile phones.
Making a call manually:
– dial the number on the mobile
phone keypad;
– press directly the phone button to
start the call;
– the call will be switched automati-
cally to hands-free mode (on certain
phone models, e.g. SIEMENS S55, but-
ton A-fig. 1must be pressed to shift
the telephone call to hands-free
mode).
Making a call using the voice
recognition (after assigning a
voice tag to a phonebook
entry):
– press button A-fig. 1on the key-
pad;
– wait for sound signal to be heard
and/or “PHONE” writing to appear on
sound system display;– pronounce the name of the person
you wish to call;
– the system will repeat the name for
confirmation and then will start the
call;
– if the name pronounced by the sys-
tem is not the required one, press but-
ton B-fig. 1on the keypad and repeat
the procedure.
Call through voice recognition is pos-
sible only if voice tags have been as-
signed to phonebook entries.
The hands-free kit recognises all
voice tags recorded on the phone thus
enabling to call with voice recognition
any voice tagged number.
It is however possible to store (ac-
cording to mobile phone type) voice
tags directly in the hands-free kit mem-
ory but, in this case, the hands-free kit
will recognise just those voice tags.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 27

28 Nero Testo - 603.46.564 STILO BLUETOOTH
28
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

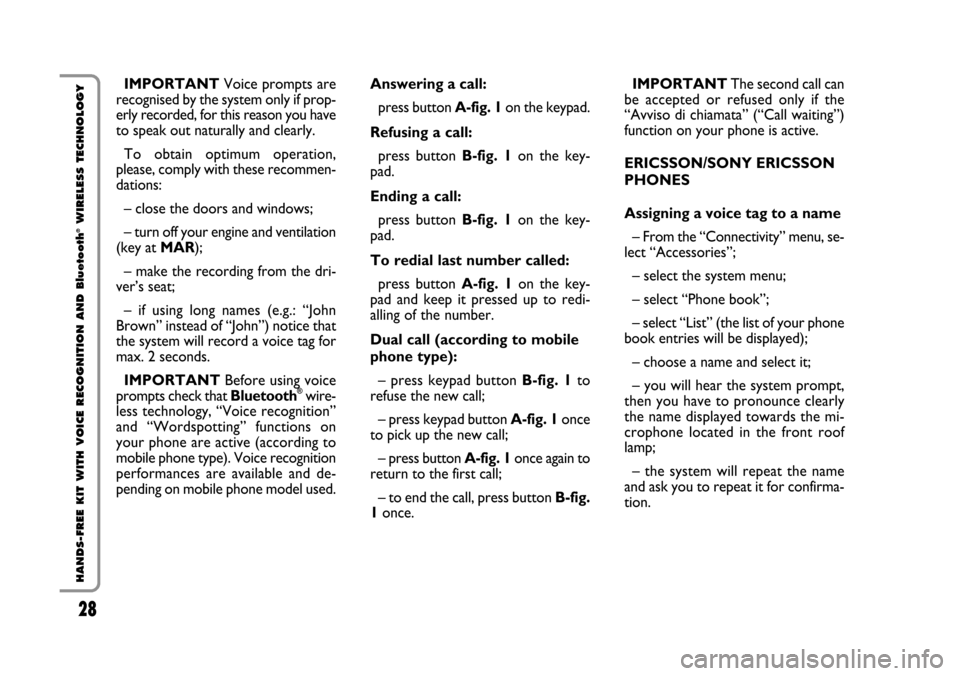

IMPORTANTVoice prompts are
recognised by the system only if prop-
erly recorded, for this reason you have
to speak out naturally and clearly.
To obtain optimum operation,
please, comply with these recommen-
dations:
– close the doors and windows;
– turn off your engine and ventilation
(key at MAR);
– make the recording from the dri-
ver’s seat;
– if using long names (e.g.: “John
Brown” instead of “John”) notice that
the system will record a voice tag for
max. 2 seconds.
IMPORTANTBefore using voice
prompts check that Bluetooth
®wire-
less technology, “Voice recognition”
and “Wordspotting” functions on
your phone are active (according to
mobile phone type). Voice recognition
performances are available and de-
pending on mobile phone model used.IMPORTANTThe second call can
be accepted or refused only if the
“Avviso di chiamata” (“Call waiting”)
function on your phone is active.
ERICSSON/SONY ERICSSON
PHONES
Assigning a voice tag to a name
– From the “Connectivity” menu, se-
lect “Accessories”;
– select the system menu;
– select “Phone book”;
– select “List” (the list of your phone
book entries will be displayed);
– choose a name and select it;
– you will hear the system prompt,
then you have to pronounce clearly
the name displayed towards the mi-
crophone located in the front roof
lamp;
– the system will repeat the name
and ask you to repeat it for confirma-
tion. Answering a call:
press button A-fig. 1on the keypad.
Refusing a call:
press button B-fig. 1on the key-
pad.
Ending a call:
press button B-fig. 1on the key-
pad.
To redial last number called:
press button A-fig. 1on the key-
pad and keep it pressed up to redi-
alling of the number.
Dual call (according to mobile
phone type):
– press keypad button B-fig. 1to
refuse the new call;
– press keypad button A-fig. 1once
to pick up the new call;
– press button A-fig. 1once again to
return to the first call;
– to end the call, press button B-fig.
1once.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 28

29 Nero Testo - 603.46.564 STILO BLUETOOTH
29
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

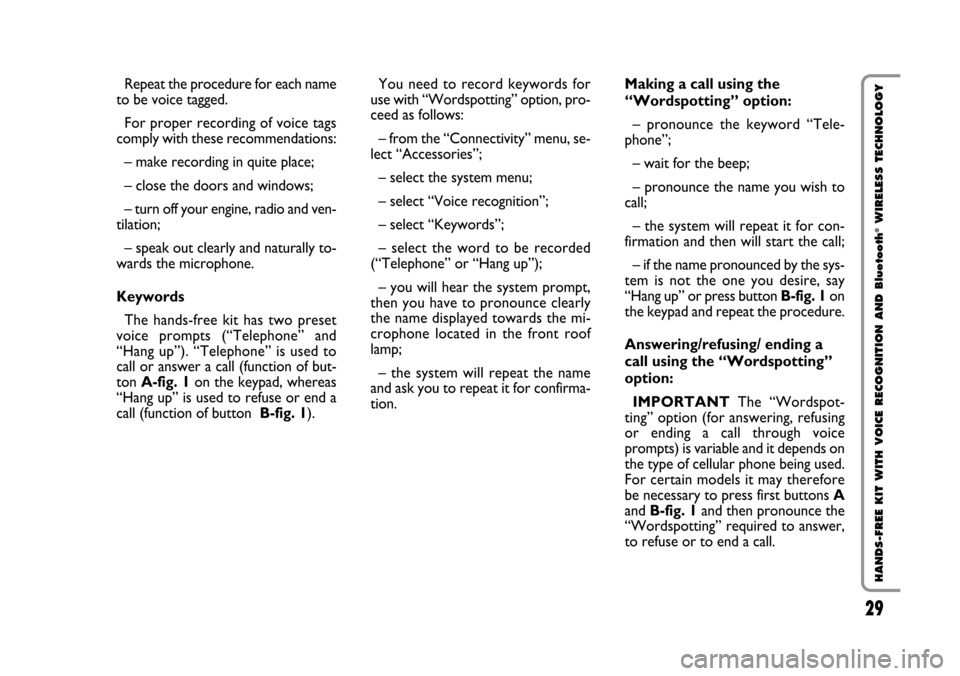

Repeat the procedure for each name
to be voice tagged.
For proper recording of voice tags
comply with these recommendations:
– make recording in quite place;
– close the doors and windows;
– turn off your engine, radio and ven-
tilation;
– speak out clearly and naturally to-
wards the microphone.
Keywords
The hands-free kit has two preset
voice prompts (“Telephone” and
“Hang up”). “Telephone” is used to
call or answer a call (function of but-
ton A-fig. 1on the keypad, whereas
“Hang up” is used to refuse or end a
call (function of button B-fig. 1).You need to record keywords for
use with “Wordspotting” option, pro-
ceed as follows:
– from the “Connectivity” menu, se-
lect “Accessories”;
– select the system menu;
– select “Voice recognition”;
– select “Keywords”;
– select the word to be recorded
(“Telephone” or “Hang up”);
– you will hear the system prompt,
then you have to pronounce clearly
the name displayed towards the mi-
crophone located in the front roof
lamp;
– the system will repeat the name
and ask you to repeat it for confirma-
tion.Making a call using the
“Wordspotting” option:
– pronounce the keyword “Tele-
phone”;
– wait for the beep;
– pronounce the name you wish to
call;
– the system will repeat it for con-
firmation and then will start the call;
– if the name pronounced by the sys-
tem is not the one you desire, say
“Hang up” or press button B-fig. 1on
the keypad and repeat the procedure.
Answering/refusing/ ending a
call using the “Wordspotting”
option:
IMPORTANTThe “Wordspot-
ting” option (for answering, refusing
or ending a call through voice
prompts) is variable and it depends on
the type of cellular phone being used.
For certain models it may therefore
be necessary to press first buttons A
and B-fig. 1and then pronounce the
“Wordspotting” required to answer,
to refuse or to end a call.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 29

30 Nero Testo - 603.46.564 STILO BLUETOOTH
30
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

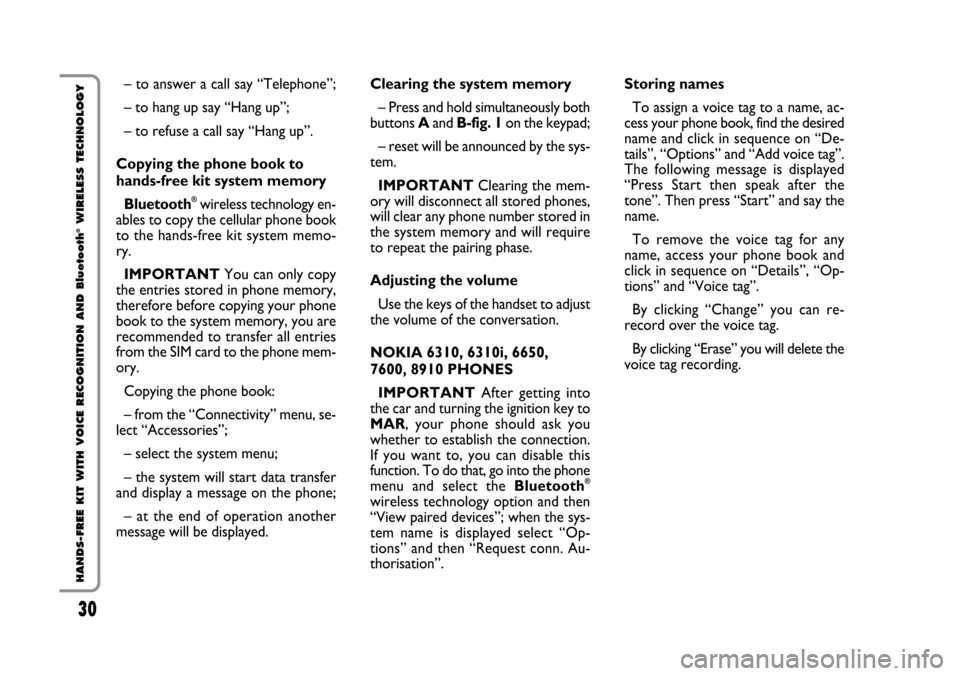

Storing names
To assign a voice tag to a name, ac-
cess your phone book, find the desired
name and click in sequence on “De-
tails”, “Options” and “Add voice tag”.
The following message is displayed
“Press Start then speak after the
tone”. Then press “Start” and say the
name.
To remove the voice tag for any
name, access your phone book and
click in sequence on “Details”, “Op-
tions” and “Voice tag”.
By clicking “Change” you can re-
record over the voice tag.
By clicking “Erase” you will delete the
voice tag recording. Clearing the system memory
– Press and hold simultaneously both
buttons Aand B-fig. 1on the keypad;
– reset will be announced by the sys-
tem.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase.
Adjusting the volume
Use the keys of the handset to adjust
the volume of the conversation.
NOKIA 6310, 6310i, 6650,
7600, 8910 PHONES
IMPORTANT After getting into
the car and turning the ignition key to
MAR, your phone should ask you
whether to establish the connection.
If you want to, you can disable this
function. To do that, go into the phone
menu and select the Bluetooth
®
wireless technology option and then
“View paired devices”; when the sys-
tem name is displayed select “Op-
tions” and then “Request conn. Au-
thorisation”. – to answer a call say “Telephone”;
– to hang up say “Hang up”;
– to refuse a call say “Hang up”.
Copying the phone book to
hands-free kit system memory
Bluetooth
®wireless technology en-
ables to copy the cellular phone book
to the hands-free kit system memo-
ry.
IMPORTANTYou can only copy
the entries stored in phone memory,
therefore before copying your phone
book to the system memory, you are
recommended to transfer all entries
from the SIM card to the phone mem-
ory.
Copying the phone book:
– from the “Connectivity” menu, se-
lect “Accessories”;
– select the system menu;
– the system will start data transfer
and display a message on the phone;
– at the end of operation another
message will be displayed.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 30
