HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
SYSTEM COMPONENTS
The hands-free kit consists of the fol-
lowing main components:
– electronic control box
– microphone
– keypad
The electronic control unit located
on the lower dashboard wall, houses
the Bluetooth
®wireless technology
radio transmitter, the signal process-
ing microprocessor and the operat-
ing software.
The high-grade microphone housed
in the front roof lamp has been de-
signed to guarantee optimum com-
munication under whatever condition.
The pushbutton board fig. 1is
placed on front roof lamp and is only
provided with two keys, a green key
Aand a red key B, which enable to
start all the functions of the hands-free
kit system.
Press button A-fig. 1:
– to activate voice recognition;
– to answer a call or dual call;
– to redial the last number called;
– to activate the “confidential” mode.Press button B-fig. 1:
– to end the communication;
– to refuse a call.
Press buttons A and B-fig. 1 si-
multaneously for at least 2 sec-
onds for clearing the system
memory.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase.COMPATIBLE MOBILE
PHONES
Compatible mobile phones are those
tabulated below:
Make Model
BLACKBERRY 7100 series / 7290
ERICSSON R520 / T39m / T68m
MOTOROLAV500 / V525 / V600 / 270C /
280i / V3 / V80 / V501 /
V547 / V555 / V551 / V635/
E398 / E1000 / MPX 220
NOKIA 3650 / 3660 / 6310 / 6310i /
6600 / 6650 / 7600 / 8910/
8910i / 6670 / 6260 / 6230 /
6230i / 6810 / 6820 / 6630 /
7280 / 7610 / N-Gage /
N-Gage QD
PANASONIC X70
PHILIPS Fisio 820 / Fisio 825
SAMSUNG SGH-D500
SHARP GX15/ GZ-100 / GX30 /
GX31 / GX32 / TM200
SIEMENS S55 / S56 / SXI /
S65 / S66 SK65
SONY ERICSSON T68i / P800 / P900 / T606 /
T610 / T630 / Z600 /
Z608 / P910i V800
TELITAL NeoFone
PDA/SMARTPHONEE200 / XDA II /
C500 / M1000fig. 1
F0E0497m
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 25

26 Nero Testo - 603.46.564 STILO BLUETOOTH
26
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
ACTIVATING THE
HANDS-FREE KIT
After first pairing, just turn the igni-
tion key to MARto activate the sys-
tem. To pair your phone and the
hands-free kit after first pairing, get in-
to the car with your phone on and the
Bluetooth
®function active.
PAIRING YOUR MOBILE
PHONE AND
THE HANDS-FREE KIT FOR
THE FIRST TIME
To pair your mobile phone with your
hands-free kit for the first time you
shall activate the Bluetooth
®function
on your phone as described on your
phone user’s guide. The correspond-
ing icon is displayed on your phone
when the function is active.
When pairing for the first time, the
message “Accoppiare l’apparecchio”
(pair kit) will be heard (the message will
always be in Italian since it is the default
language). Phone/hands-free kit pairing
procedure described in the phone
manual shall therefore be carried out
(follow the pairing instructions given
on your phone user’s guide).IMPORTANTWhen the use of
the hands-free kit with Bluetooth
®
wireless technology is not desired, it
is possible to lower the volume of the
message "Accoppiare l'apparecchio"
(pair kit) by setting the sound system
PHONE function to min. volume.
During the pairing procedure
the message asking for the pass-
code will be displayed; enter
“1234” as passcode and then con-
firm it.
Once this done, connection between
your phone and your hands-free kit
will take place automatically as soon
as the two devices are less than a few
meters apart. A “beep” will be heard,
indicating that connection is estab-
lished. Here follows an example of first
pairing procedure for the most com-
mon mobile phones.IMPORTANTThe system oper-
ates onlywhen the ignition key is
turned to MAR. Pairing procedure
shall be performed only the first time
you pair your phone and your hands-
free kit. Should instruction “Accoppi-
are l’apparecchio” (pair kit) not be
heard at first pairing, reset the system
by pressing simultaneously buttons A
and B-fig. 1on the keypad for 2 sec-
onds at least.
PAIRING WITH OTHER
ADDITIONAL PHONES
If you decide to pair another phone,
you just have to follow the ordinary
pairing procedure described in the
previous paragraph, in this way you
can connect up to 3 mobile phones.
To pair other phones you shall reset
the system (any phone number stored
will be cleared).
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 26

27 Nero Testo - 603.46.564 STILO BLUETOOTH
27
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
CLEARING
THE MEMORY
Press the green A-fig. 1and red B-
fig. 1buttons simultaneously for at least
2 seconds for clearing the system mem-
ory.
IMPORTANTClearing the memo-
ry will disconnect all stored phones, will
clear any phone number stored in the
system memory and will require to re-
peat the pairing phase.
PAIRING PRIORITY
If 2 mobile phones at least are paired,
the first phone paired (in chronologi-
cal order) will have highest priority.
This means that when getting into the
car with system active (key at MAR),
this will be the first phone to be
searched and, if present, to be con-
nected. Should the priority phone not
be found, the system will then search
for the other phones.COMMUNICATING
Find below a description of the main
communication procedures valid for
almost all mobile phones.
Making a call manually:
– dial the number on the mobile
phone keypad;
– press directly the phone button to
start the call;
– the call will be switched automati-
cally to hands-free mode (on certain
phone models, e.g. SIEMENS S55, but-
ton A-fig. 1must be pressed to shift
the telephone call to hands-free
mode).
Making a call using the voice
recognition (after assigning a
voice tag to a phonebook
entry):
– press button A-fig. 1on the key-
pad;
– wait for sound signal to be heard
and/or “PHONE” writing to appear on
sound system display;– pronounce the name of the person
you wish to call;
– the system will repeat the name for
confirmation and then will start the
call;
– if the name pronounced by the sys-
tem is not the required one, press but-
ton B-fig. 1on the keypad and repeat
the procedure.
Call through voice recognition is pos-
sible only if voice tags have been as-
signed to phonebook entries.
The hands-free kit recognises all
voice tags recorded on the phone thus
enabling to call with voice recognition
any voice tagged number.
It is however possible to store (ac-
cording to mobile phone type) voice
tags directly in the hands-free kit mem-
ory but, in this case, the hands-free kit
will recognise just those voice tags.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 27

28 Nero Testo - 603.46.564 STILO BLUETOOTH
28
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
IMPORTANTVoice prompts are
recognised by the system only if prop-
erly recorded, for this reason you have
to speak out naturally and clearly.
To obtain optimum operation,
please, comply with these recommen-
dations:
– close the doors and windows;
– turn off your engine and ventilation
(key at MAR);
– make the recording from the dri-
ver’s seat;
– if using long names (e.g.: “John
Brown” instead of “John”) notice that
the system will record a voice tag for
max. 2 seconds.
IMPORTANTBefore using voice
prompts check that Bluetooth
®wire-
less technology, “Voice recognition”
and “Wordspotting” functions on
your phone are active (according to
mobile phone type). Voice recognition
performances are available and de-
pending on mobile phone model used.IMPORTANTThe second call can
be accepted or refused only if the
“Avviso di chiamata” (“Call waiting”)
function on your phone is active.
ERICSSON/SONY ERICSSON
PHONES
Assigning a voice tag to a name
– From the “Connectivity” menu, se-
lect “Accessories”;
– select the system menu;
– select “Phone book”;
– select “List” (the list of your phone
book entries will be displayed);
– choose a name and select it;
– you will hear the system prompt,
then you have to pronounce clearly
the name displayed towards the mi-
crophone located in the front roof
lamp;
– the system will repeat the name
and ask you to repeat it for confirma-
tion. Answering a call:
press button A-fig. 1on the keypad.
Refusing a call:
press button B-fig. 1on the key-
pad.
Ending a call:
press button B-fig. 1on the key-
pad.
To redial last number called:
press button A-fig. 1on the key-
pad and keep it pressed up to redi-
alling of the number.
Dual call (according to mobile
phone type):
– press keypad button B-fig. 1to
refuse the new call;
– press keypad button A-fig. 1once
to pick up the new call;
– press button A-fig. 1once again to
return to the first call;
– to end the call, press button B-fig.
1once.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 28

29 Nero Testo - 603.46.564 STILO BLUETOOTH
29
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
Repeat the procedure for each name
to be voice tagged.
For proper recording of voice tags
comply with these recommendations:
– make recording in quite place;
– close the doors and windows;
– turn off your engine, radio and ven-
tilation;
– speak out clearly and naturally to-
wards the microphone.
Keywords
The hands-free kit has two preset
voice prompts (“Telephone” and
“Hang up”). “Telephone” is used to
call or answer a call (function of but-
ton A-fig. 1on the keypad, whereas
“Hang up” is used to refuse or end a
call (function of button B-fig. 1).You need to record keywords for
use with “Wordspotting” option, pro-
ceed as follows:
– from the “Connectivity” menu, se-
lect “Accessories”;
– select the system menu;
– select “Voice recognition”;
– select “Keywords”;
– select the word to be recorded
(“Telephone” or “Hang up”);
– you will hear the system prompt,
then you have to pronounce clearly
the name displayed towards the mi-
crophone located in the front roof
lamp;
– the system will repeat the name
and ask you to repeat it for confirma-
tion.Making a call using the
“Wordspotting” option:
– pronounce the keyword “Tele-
phone”;
– wait for the beep;
– pronounce the name you wish to
call;
– the system will repeat it for con-
firmation and then will start the call;
– if the name pronounced by the sys-
tem is not the one you desire, say
“Hang up” or press button B-fig. 1on
the keypad and repeat the procedure.
Answering/refusing/ ending a
call using the “Wordspotting”
option:
IMPORTANTThe “Wordspot-
ting” option (for answering, refusing
or ending a call through voice
prompts) is variable and it depends on
the type of cellular phone being used.
For certain models it may therefore
be necessary to press first buttons A
and B-fig. 1and then pronounce the
“Wordspotting” required to answer,
to refuse or to end a call.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 29

30 Nero Testo - 603.46.564 STILO BLUETOOTH
30
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
Storing names
To assign a voice tag to a name, ac-
cess your phone book, find the desired
name and click in sequence on “De-
tails”, “Options” and “Add voice tag”.
The following message is displayed
“Press Start then speak after the
tone”. Then press “Start” and say the
name.
To remove the voice tag for any
name, access your phone book and
click in sequence on “Details”, “Op-
tions” and “Voice tag”.
By clicking “Change” you can re-
record over the voice tag.
By clicking “Erase” you will delete the
voice tag recording. Clearing the system memory
– Press and hold simultaneously both
buttons Aand B-fig. 1on the keypad;
– reset will be announced by the sys-
tem.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase.
Adjusting the volume
Use the keys of the handset to adjust
the volume of the conversation.
NOKIA 6310, 6310i, 6650,
7600, 8910 PHONES
IMPORTANT After getting into
the car and turning the ignition key to
MAR, your phone should ask you
whether to establish the connection.
If you want to, you can disable this
function. To do that, go into the phone
menu and select the Bluetooth
®
wireless technology option and then
“View paired devices”; when the sys-
tem name is displayed select “Op-
tions” and then “Request conn. Au-
thorisation”. – to answer a call say “Telephone”;
– to hang up say “Hang up”;
– to refuse a call say “Hang up”.
Copying the phone book to
hands-free kit system memory
Bluetooth
®wireless technology en-
ables to copy the cellular phone book
to the hands-free kit system memo-
ry.
IMPORTANTYou can only copy
the entries stored in phone memory,
therefore before copying your phone
book to the system memory, you are
recommended to transfer all entries
from the SIM card to the phone mem-
ory.
Copying the phone book:
– from the “Connectivity” menu, se-
lect “Accessories”;
– select the system menu;
– the system will start data transfer
and display a message on the phone;
– at the end of operation another
message will be displayed.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 30

31 Nero Testo - 603.46.564 STILO BLUETOOTH
31
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

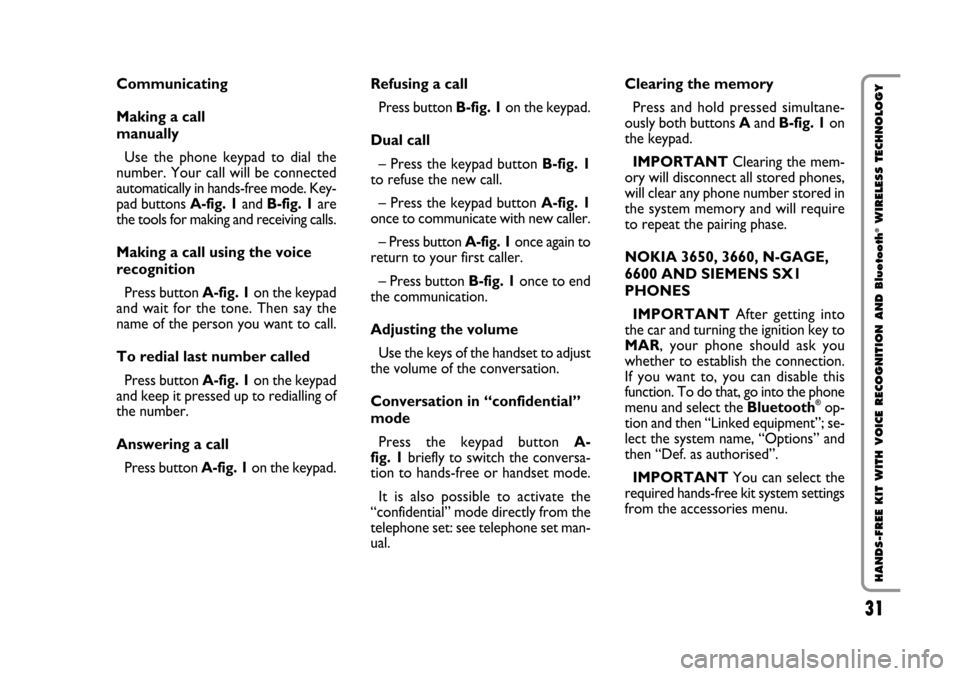

Communicating
Making a call
manually
Use the phone keypad to dial the
number. Your call will be connected
automatically in hands-free mode. Key-
pad buttons A-fig. 1and B-fig. 1are
the tools for making and receiving calls.
Making a call using the voice
recognition
Press button A-fig. 1on the keypad
and wait for the tone. Then say the
name of the person you want to call.
To redial last number called
Press button A-fig. 1on the keypad
and keep it pressed up to redialling of
the number.
Answering a call
Press button A-fig. 1on the keypad.Refusing a call
Press button B-fig. 1on the keypad.
Dual call
– Press the keypad button B-fig. 1
to refuse the new call.
– Press the keypad button A-fig. 1
once to communicate with new caller.
– Press buttonA-fig. 1once again to
return to your first caller.
– Press button B-fig. 1once to end
the communication.
Adjusting the volume
Use the keys of the handset to adjust
the volume of the conversation.
Conversation in “confidential”
mode
Press the keypad button A-
fig. 1briefly to switch the conversa-
tion to hands-free or handset mode.
It is also possible to activate the
“confidential” mode directly from the
telephone set: see telephone set man-
ual.Clearing the memory
Press and hold pressed simultane-
ously both buttons AandB-fig. 1on
the keypad.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require
to repeat the pairing phase.
NOKIA 3650, 3660, N-GAGE,
6600 AND SIEMENS SX1
PHONES
IMPORTANTAfter getting into
the car and turning the ignition key to
MAR, your phone should ask you
whether to establish the connection.
If you want to, you can disable this
function. To do that, go into the phone
menu and select theBluetooth
®op-
tion and then “Linked equipment”; se-
lect the system name, “Options” and
then “Def. as authorised”.
IMPORTANTYou can select the
required hands-free kit system settings
from the accessories menu.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 31

32 Nero Testo - 603.46.564 STILO BLUETOOTH
32
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY
Dual call:
– press keypad button B-fig. 1to
refuse the new call;
– press keypad button A-fig. 1once
to communicate with new caller;
– press button A-fig. 1once again to
return to your first caller;
– press button B-fig. 1once to end
the communication.
Conversation in “confidential”
mode
Press button A-fig. 1briefly to
switch the conversation to hands-free
or handset mode.
It is also possible to activate the
“confidential” mode directly from the
telephone set: see telephone set man-
ual.Auto answer
From your phone, display the “Main
menu” and select “Tools”.
Then select:
– “Settings” for Nokia 3650, 6600
and Siemens SX1 telephones;
– “Tools” for Nokia N-GAGE tele-
phones.
Select in sequence “Settings”, “Ac-
cessories” and “Handsfree”.
Select in sequence “Automatic an-
swer”, “Options”, “Change”, “On”
and confirm with “OK”.
Adjusting the volume
Use the keys of the handset to adjust
the volume of the conversation.
Clearing the memory
Press and hold pressed simultane-
ously both buttons Aand B-fig. 1on
the keypad.
IMPORTANTClearing the mem-
ory will disconnect all stored phones,
will clear any phone number stored in
the system memory and will require

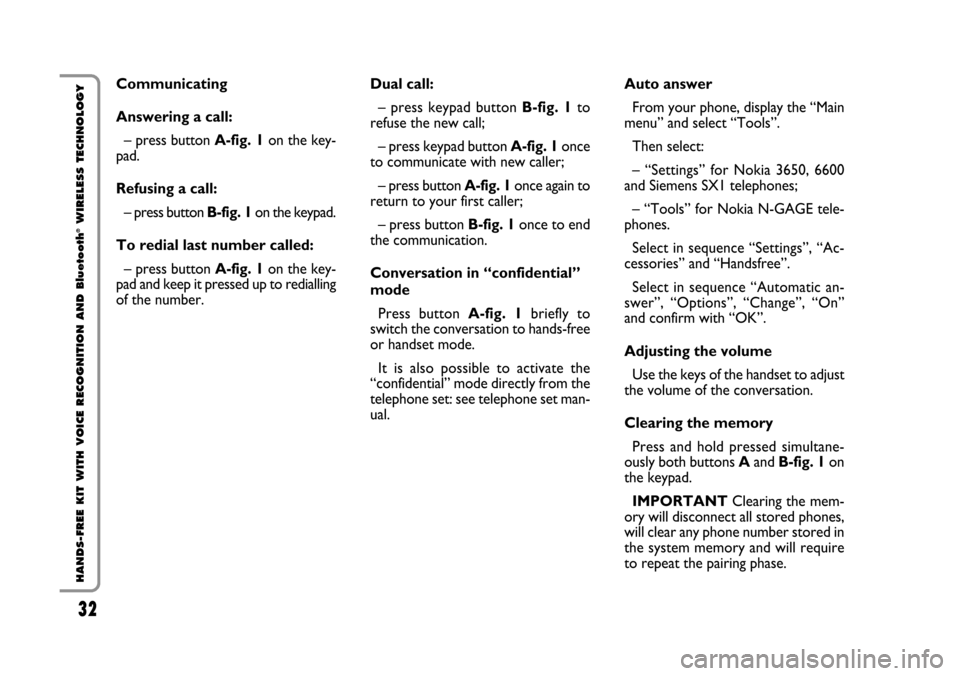

to repeat the pairing phase. Communicating
Answering a call:
– press button A-fig. 1on the key-
pad.
Refusing a call:
– press button B-fig. 1on the keypad.
To redial last number called:
– press button A-fig. 1on the key-
pad and keep it pressed up to redialling
of the number.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 32

33 Nero Testo - 603.46.564 STILO BLUETOOTH
33
HANDS-FREE KIT WITH VOICE RECOGNITION AND Bluetooth
®WIRELESS TECHNOLOGY

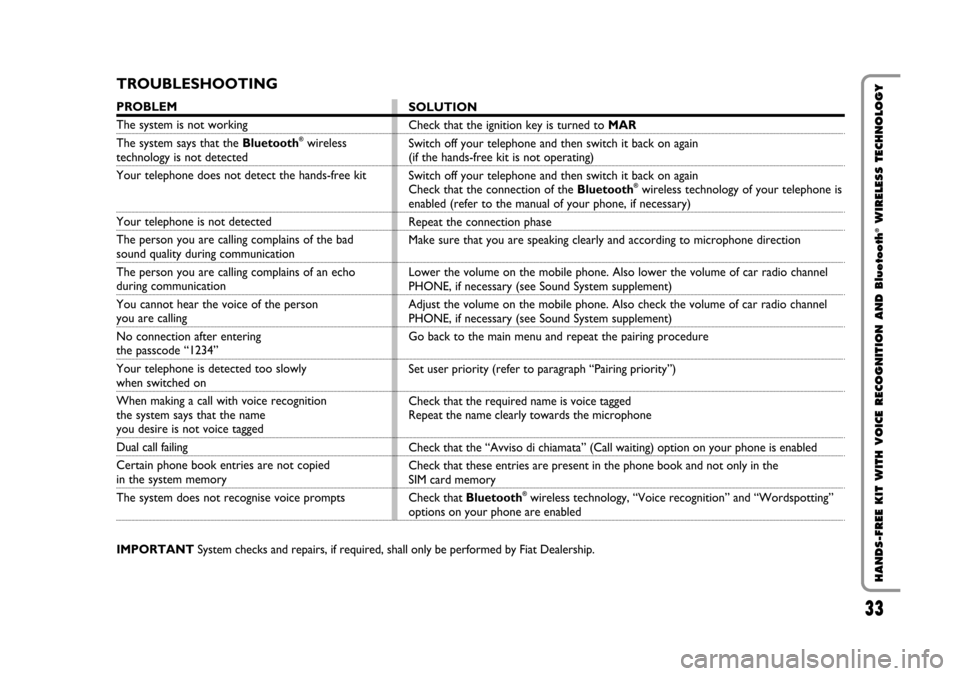

TROUBLESHOOTING
PROBLEM
The system is not working
The system says that the Bluetooth®wireless technology is not detected
Your telephone does not detect the hands-free kit
Your telephone is not detected
The person you are calling complains of the bad
sound quality during communication
The person you are calling complains of an echo
during communication
You cannot hear the voice of the person
you are calling
No connection after entering
the passcode “1234”
Your telephone is detected too slowly
when switched on
When making a call with voice recognition
the system says that the name
you desire is not voice tagged
Dual call failing
Certain phone book entries are not copied
in the system memory
The system does not recognise voice prompts
SOLUTION
Check that the ignition key is turned to MAR
Switch off your telephone and then switch it back on again
(if the hands-free kit is not operating)
Switch off your telephone and then switch it back on again
Check that the connection of the Bluetooth
®wireless technology of your telephone is
enabled (refer to the manual of your phone, if necessary)
Repeat the connection phase
Make sure that you are speaking clearly and according to microphone direction
Lower the volume on the mobile phone. Also lower the volume of car radio channel
PHONE, if necessary (see Sound System supplement)
Adjust the volume on the mobile phone. Also check the volume of car radio channel
PHONE, if necessary (see Sound System supplement)
Go back to the main menu and repeat the pairing procedure
Set user priority (refer to paragraph “Pairing priority”)
Check that the required name is voice tagged
Repeat the name clearly towards the microphone
Check that the “Avviso di chiamata” (Call waiting) option on your phone is enabled
Check that these entries are present in the phone book and not only in the
SIM card memory
Check that Bluetooth
®wireless technology, “Voice recognition” and “Wordspotting”
options on your phone are enabled
IMPORTANT System checks and repairs, if required, shall only be performed by Fiat Dealership.
603.46.564 Stilo Bluetooth 10-10-2006 13:31 Pagina 33
