ANNUAL INSPECTION
SCHEDULE
For cars with an annual mileage of below
30.000 km (for example about 15.000 km)
the following yearly inspection programme
is advised:
❒check tyre conditions/wear and adjust
pressure if required (including the
space-saver spare wheel);
❒check light system operation (head-
lights, direction indicators, hazard lights,
boot lights, passenger compartment
lights, glovebox light, warning lights,
etc.);
❒check windscreen wiper/washer oper-
ation, adjust nozzles;
❒check windscreen/rear window blade
position/wear;
❒ check front disk brake pad conditions
and wear;
❒sight inspect the conditions of: engine,
gearbox, transmission, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.) fuel and
brake system hoses;
❒check cleanness of bonnet and boot
locks, and lever cleanness and lubrica-
tion
❒check battery charge (by optical depth
gauge);
❒visual check on various drive belt con-
ditions;
❒check and top up fluid levels (engine
coolant, brakes, windscreen washer,
battery, etc.);
❒change engine oil and oil filter, if re-
quired (Multijet versions);
❒replace pollen filter.
ADDITIONAL CHECKS
Every 1,000 km or before long journeys,
check and top up if required:
❒engine coolant fluid level;
❒ brake fluid level;
❒ windscreen washer fluid level;
❒tyre pressure and conditions.
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use FL Sele-
niaproducts, designed and produced
specifically for Fiat cars (see table “Ca-
pacities” in section “Technical specifica-
tions”).

216
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
CHECKING FLUID
LEVELS
IMPORTANT When topping up take care
not to confuse the various types of fluids:
they are all incompatible with one anoth-
er and could seriously damage the car.
IMPORTANT Never smoke while work-
ing in the engine compartment; gas and in-
flammable vapours may be present, with
the risk of fire.

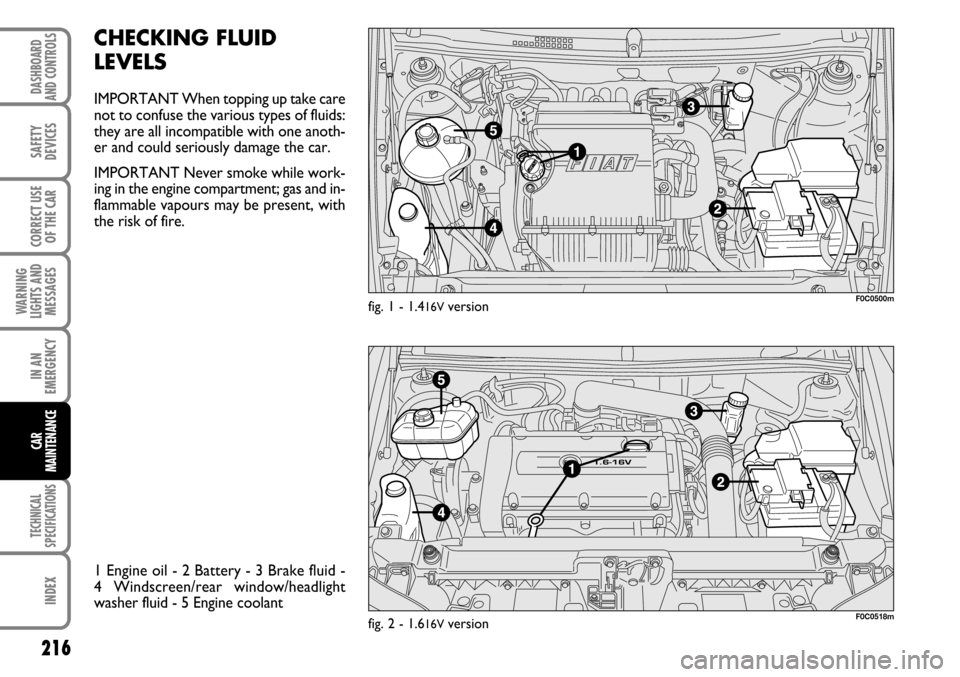

1 Engine oil - 2 Battery - 3 Brake fluid -
4 Windscreen/rear window/headlight
washer fluid - 5 Engine coolant
F0C0500mfig. 1 - 1.416V version
F0C0518mfig. 2 - 1.616V version

219
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
ENGINE OIL fig. 7-8-9-10-11-12
Checking engine oil
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
Remove the dipstick Aand clean it, put
it back in completely, remove it and check
that the level is within the MINand MAX
marks on the dipstick. The interval be-
tween the MINand MAXmarks corre-
sponds to about one litre of oil.
fig. 7 - 1.416V version F0C0103m
Topping up engine oil
If the oil level is near or even below the
MINmark, add oil through the filler neck
B, until reaching the MAXmark.
Oil level shall never exceed the MAX
mark.IMPORTANT If a routine check reveals
that the oil level is above the MAXmark,
contact Fiat Dealership to have the cor-
rect level restored.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
fig. 8 - 1.816V version F0C0519mfig. 9 - 1.9 Multijet 8V version F0C0122m

221
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
❒if the oil is below the MAXmark, top
up to reach the correct level;
❒after refitting the cap, insert the
breather tube firmly on the cap spout
and turn the ignition key to STOP.
IMPORTANT Do not add oil into the cir-
cuit tank having different specifications
from that already existing.
fig. 13F0C0121m
Used gearbox oil contains
dangerous substances for the
environment. For changing
the oil we advise contacting
Fiat Dealership, which is equipped for
disposing of used oil respecting the na-
ture and the law.
HYDRAULIC SYSTEM OIL FOR
ACTUATING SELESPEED
GEARBOX (where provided)
fig. 13
The oil should be checked with the car on
a level surface and with the engine stopped
and cold.
To check the level, proceed as follows:
❒turn the ignition key to MAR;
❒disconnect the breather tube and re-
move the cap Achecking that the lev-
el corresponds with the MAXmark on
the reservoir;

222
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
ENGINE COOLANT FLUID
fig. 14-15-16
The coolant level shall be checked with
cold engine and shall not be lower than
the MINmark on the reservoir.
If the level is low, pour slowly a mixture
of 50% distilled water and 50% PARAFLU
UPof the FL Seleniathroughthe filler
neck A.
A 50-50 mixture of PARAFLU UPand
distilled water gives freeze protection to
–35°C.
fig. 14 - 1.416V version F0C0520mfig. 15 - 1.416V - 1.816V - 2.420V version
F0C0108mfig. 16 - 1.9 Multijet version F0C0469m
The cooling system uses
PARAFLU UPantifreeze. Do
not add fluid having different
specifications from that al-
ready existing. PARAFLU UPcannot
be mixed with other types of fluids.
Should other fluids be added, do not
start the engine and contact Fiat Deal-
ership as soon as possible.Do not remove the reservoir
cap when the engine is hot:
you risk scalding yourself. The cool-
ing system is pressurised. If necessary,
replace the cap only with another
genuine one, otherwise system effi-
ciency could be compromised.
WARNING

223
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
WINDSCREEN/REAR
WINDOW/HEADLIGHT
WASHER FLUID fig. 17-18
To top up, open the cap Aand then pour
a mixture of water and TUTELA PRO-
FESSIONAL SC 35, in the following
concentrations:
❒30% TUTELA PROFESSIONAL
SC 35and 70% water in summer;
❒50% TUTELA PROFESSIONAL
SC 35and 50% water in winter.
fig. 17F0C0106mfig. 18 - 1.9 Multijet version F0C0468m
Do not travel with the wind-
screen washer reservoir emp-
ty. The windscreen washer is funda-
mental for improving visibility.
WARNING
Certain commercial addi-
tives for windscreen washers
are inflammable. The engine com-
partment contains hot components
which may set it on fire.
WARNINGIn case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC 35 fluid.
Check level through the reservoir.
For versions fitted with headlight wash-
er, remove the filter and the relevant dip-
stick. Use the dipstick to check the fluid
level inside the reservoir.

227
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
CHANGING THE BATTERY
If required, replace the battery with a gen-
uine spare part having the same specifi-
cations.
If a battery with different specifications is
fitted, the service intervals given in the
“Service schedule” in this section will no
longer be valid.
Refer to the instructions provided by the
battery manufacturer.
Incorrect fitting of electrical
and electronic accessories can
seriously damage the car. If af-
ter buying the car, you want
to install electric accessories which re-
quire permanent electric supply
(alarm, free-hand phone kit, etc.) con-
tact Fiat Dealership whose qualified
personnel, in addition to suggesting the
most suitable devices, will evaluate the
overall electric absorption, checking
whether the car electric system is ca-
pable of withstanding the load re-
quired, or whether it should be inte-
grated with a more powerful battery.USEFUL ADVICE
FOR LENGTHENING THE LIFE
OF YOUR BATTERY
To avoid draining your battery and length-
en its life, observe the following indica-
tions:
❒when you park the car, ensure the
doors, tailgate and bonnet are closed
properly;
❒ the ceiling lights must be off. The car
is however provided with an automat-
ic system for switching off internal
lights;
❒do not keep accessories (e.g.: sound
system, hazard lights, etc.) switched on
for a long time when the engine is not
running;
❒ before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒ battery terminals shall always be per-
fectly tightened. Batteries contain substances
that are very harmful for the
environment. You are advised
to have the battery changed
at a Fiat Dealership, which is properly
equipped for disposing of used batter-
ies respecting nature and the law.
If the car is left inactive for
long periods at cold, remove
the battery and store it in a warm
place to prevent freezing.
WARNING
When working on the bat-
tery or near it, always wear
the proper goggles.
WARNING

265
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Gearbox
– using manual gearbox .................. 140
– using Selespeed gearbox ............. 141
Glass holder .......................................... 73
Glove box light
(bulb replacement) ............................ 194
Glove box/oddment
compartments ................................... 71
Handbrake ........................................... 139
Hazard lights ......................................... 68
Head restraints ..................................... 41
Headlight washer .................................. 65
Headlights ............................................... 94
Heating and ventilation system ..44-46
Identification data ............................... 238
If an exterior light burns out ............. 184
If an interior light burns out .............. 192
Ignition switch ...................................... 20
In an emergency............................. 169
Independent additional heater ......... 56
Installation of electric/
electronic devices .............................. 101
Instrument panel ................................. 6
Instruments ........................................... 21
Interior fittings ..................................... 70
Interiors ................................................. 235Isofix (child restraint system) ........... 121
Jacking the car ..................................... 206
Keys ....................................................... 10
Load limiters ....................................... 113
Main beam headlights......................... 59
MSR (system) ....................................... 99
Multifunction display ........................... 23
Number plate lights
(bulb replacement) ............................ 191
OCS
(Occupant Classification System) .. 129
Oddment compartments .................. 73
Paint ...................................................... 233
Parking ................................................... 139
Parking lights ......................................... 69
Parking sensors .................................... 103
Performance ......................................... 253
Pollen filter ............................................ 225
Power windows ................................... 80
Presetting for mounting the
“Isofix ” child restraint system ...... 121 Electric power steering “Dualdrive” .. 102
Electronic alarm ................................... 17
Engine
– identification code ........................ 240
– technical data ......................... 241-242
Engine compartment
– washing ............................................ 234
Engine oil
– consumption .................................. 220
Environment protection .................... 108
EOBD (system) .................................... 99
ESP (system) ......................................... 97
External lights ....................................... 59
Fiat CODE (system) .......................... 8
Fire extinguisher .................................. 208
Fix&Go automatic ............................... 177
Flashing the headlights ........................ 59
Fluid level checks ................................. 216
Fluids and lubricants ........................... 259
Follow me home (device) ................. 60
Front fog lights ............................... 68-69
– (bulb replacement)......................... 186
Fuel consumption ................................. 261
Fuel feed/ignition ................................. 241
Fuel filler cap ........................................ 106
Fuses (replacement) ........................... 196
