ESP FIAT STRADA 2011 Owner handbook (in English)

154
DIESEL FILTER fig. 158
DRAINING CONDENSATION
fig. 158
F0X0142m
fig. 159
F0X0143m
BATTERY
The battery is “limited maintenance”
type: under normal conditions of
use, the electrolyte does not need
topping up with distilled water.
It does, however, need to be
checked periodically at a Fiat
Dealership or by specialist personnel
to make sure it is working correctly.
The presence of water in
the supply circuit may
cause severe damage to
the injection system and
irregular engine operation. If the
cwarning light switches on,
contact a Fiat Dealership as
soon as possible to have the
system bled. If this problem is
indicated immediately after
refueling, water may have
entered the fuel tank. In this
case, stop the engine
immediately and contact a Fiat
Dealership.
Dispose of the
diesel/water mixture
discharged by the filter
correctly. You are advised to
contact a Fiat Dealership to
drain the condensation. They
are equipped to dispose of it in
full respect of the environment
and in compliance with legal
regulations.
The bleeding operation,
if not carried out
correctly taking the necessary
precautions, may compromise
the driving safety of the vehicle
as well as leading to dangerous
fuel leaks.
WARNING

155

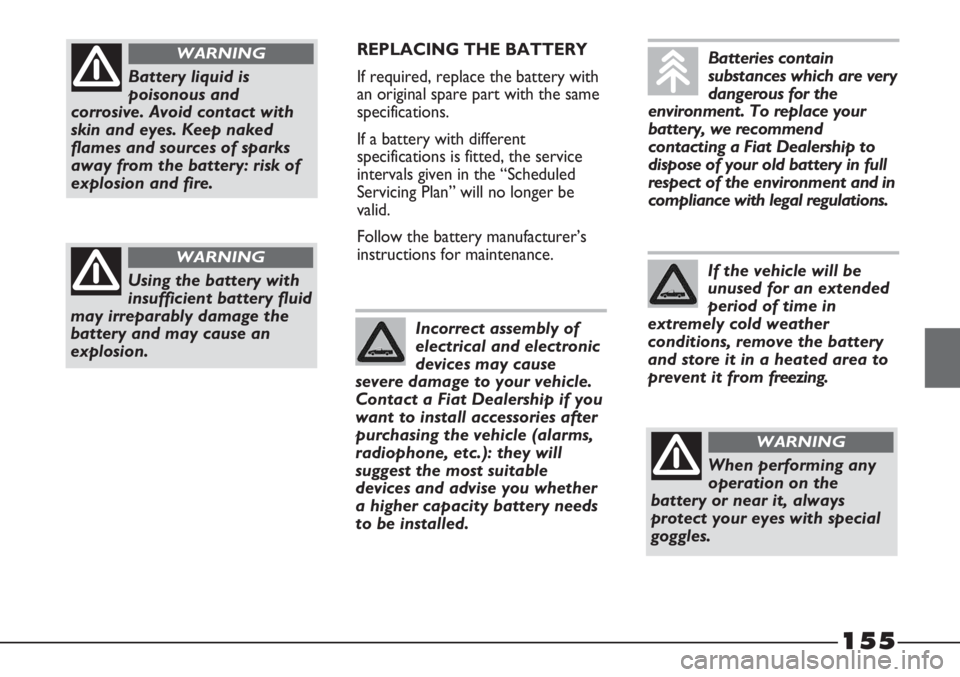

REPLACING THE BATTERY
If required, replace the battery with
an original spare part with the same
specifications.
If a battery with different
specifications is fitted, the service
intervals given in the “Scheduled
Servicing Plan” will no longer be
valid.
Follow the battery manufacturer’s
instructions for maintenance.
Battery liquid is
poisonous and
corrosive. Avoid contact with
skin and eyes. Keep naked
flames and sources of sparks
away from the battery: risk of
explosion and fire.
WARNING
Using the battery with
insufficient battery fluid
may irreparably damage the
battery and may cause an
explosion.
WARNING
When performing any
operation on the
battery or near it, always
protect your eyes with special
goggles.
WARNING
Incorrect assembly of
electrical and electronic
devices may cause
severe damage to your vehicle.
Contact a Fiat Dealership if you
want to install accessories after
purchasing the vehicle (alarms,
radiophone, etc.): they will
suggest the most suitable
devices and advise you whether
a higher capacity battery needs
to be installed.
If the vehicle will be
unused for an extended
period of time in
extremely cold weather
conditions, remove the battery
and store it in a heated area to
prevent it from freezing.
Batteries contain
substances which are very
dangerous for the
environment. To replace your
battery, we recommend
contacting a Fiat Dealership to
dispose of your old battery in full
respect of the environment and in
compliance with legal regulations.

162
Exterior plastic parts should be
cleaned in the same way as the rest
of the vehicle. Where possible, do
not park the vehicle under trees; the
resinous substances released by
many species give the paint a dull
appearance and increase the
possibility of corrosion.
IMPORTANT Bird droppings must
be washed off immediately and
thoroughly, as the acid they contain
is particularly aggressive.Windows
To clean windows, use specific
cleaning products.
Use clean cloths to avoid scratching
the glass or damaging the
transparency.
Engine compartment
At the end of each winter,
thoroughly wash the engine
compartment, taking care to avoid
spraying the water jet directly onto
the electronic control units or the
fuse box on the left side of the
engine compartment (driving
direction).
Have this operation performed at a
specialised workshop.
IMPORTANT Washing should take
place with the engine cold and the
ignition key removed.
After the washing operation, make
sure that the various protections
(e.g. rubber caps and guards) have
not been removed or damaged.
Detergents cause water
pollution. The vehicle
should be washed in
areas equipped for collecting
and purifying the liquid used in
the washing process.
Some car washes with
old-style blades and/or
in a poor state of repair
can damage the paintwork,
facilitating the formation of
lines that give the paint a
dull/misty appearance,
especially on dark colours.
If this happens, lightly polish the
paintwork with appropriate
products.
Dry the less visible parts, such as the
door frames, bonnet and the
headlight frames with special care, as
in these areas water may stagnate
more easily.
It is a good idea to leave the vehicle
outdoors for a while after washing it
to give the water time to evaporate.
Do not wash the vehicle after it has
been left in the sun or with the
bonnet hot: this may alter the shine
of the paintwork.

173
CORRECT READING
OF THE RIM fig. 167
Example: 5 1/2 J x 14 H ET40
5 1/2 = rim width in inches 1.
J = rim drop centre outline
(side projection where the
tyre bead rests)
2.14 = fitting diameter in inches
(corresponds to diameter of
the tyre to be fitted)
3= Ø.
H = shape and number of humps
(used for keeping tubeless
tyre beads on the rim).
Versions Working Trekking Adventure
Short Crew Short Extended Extended Crew
cab cab cab cab cab cab
Rims51/2J x 14H ET 40 51/2J x 14H ET 40 6J x 15 ET 35 alloy
Tyres provided175/70 R14 88T 175/70 R14 88H 205/65 R15 94H
EXTRA LOAD EXTRA LOAD
ET40 = wheel camber (distance
between the disc/rim
support plane and the
wheel rim centre line).

WEIGHTS
kg Working Trekking Adventure
Short Crew Short Extended Extended Crew
cab cab cab cab cab cab
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment):1210 1265 1210 1230 1250 1285
Payload including
the driver (*): 705 650 705 685 665 630
Payload excluding
the driver (*): 630 575 630 610 590 555
Maximum permitted loads (**)
- front axle: 910 910 910 910 910 910
- rear axle: 1110 1110 1110 1110 1110 1110
- total:1915 1915 1915 1915 1915 1915
Towable loads
- braked trailer:1000 1000 1000 1000 1000 1000
- non-braked trailer: 450 450 450 450 450 450
Maximum load on the ball joint
(braked trailer): 60 60 60 60 60 60
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases and consequently the payload will decrease complying with
the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the load compartment complying with the maximum permitted loads.
177

181
PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly compatible with nature.
To grant customers the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering all customers the opportunity of handing
over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any
expenses as a result of its market value.
In particular, in almost all European Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be
collected free of charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as
the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact a Fiat Dealership or authorised collection and
scrapping centres.
These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling of
vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or by visiting the Fiat website.
* Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
