display FIAT STRADA 2011 Owner handbook (in English)

14
INSTRUMENT PANEL
Trekking / Working
version fig. 8
A – Speedometer
B – Fuel level gauge with reserve
warning light
C – Engine coolant temperature
gauge
D – Rev counter
E – Display
fig. 8F0X0008m

15
fig. 9F0X0009m
Adventure version fig. 9
A – Speedometer
B – Fuel level gauge with reserve
warning light
C – Engine coolant temperature
gauge with overheating warning
light
D – Rev counter
E – Display

27
FUEL LEVEL GAUGE
fig. 35-36
The needle shows the amount of
fuel which should be left in the tank. The reserve warning light A switches
on constantly to indicate that
approximately 5.5–7.5 litres of fuel
are left in the tank. On some
versions, the same indication is
provided by warning light B, which
flashes on the display.
Do not travel with the fuel tank
almost empty: any gaps in fuel
delivery could damage the catalytic
converter.
E - tank empty.
F - tank full.
fig. 34
F0X0300m
fig. 36
F0X0039m
ON BOARD
INSTRUMENTS
SPEEDOMETER fig. 33-34
Depending on the version, the
speedometer may have different full
scale values.
fig. 35
F0X0037m
fig. 33
F0X0018m

28
IMPORTANT If the needle moves to
the beginning of the scale
(low temperature) with the
overheating warning light A on, this
indicates a fault in the system. If this
is the case, contact a Fiat Dealership
to have the system checked.
The needle may also approach the
red section when travelling too
slowly in a very hot climate. In this
case, it is best to stop for a while
and stop the engine.
Then restart and accelerate lightly.
fig. 38
F0X0302m
ENGINE COOLANT
TEMPERATURE GAUGE
fig. 37-38
If warning light A switches on in the
instrument panel, this indicates
overheating of the engine coolant.
In normal operating conditions, the
needle may move to various
positions within the scale according
to the vehicle usage conditions and
the management of the engine
cooling system performed
automatically by the system itself.
However, it should not move to the
red danger zone.
fig. 37
F0X0301m
IMPORTANT If the indicator shows
that the tank is empty and the
reserve warning light A-fig. 35-36
flashes, this indicates a fault in the
system. On some versions, the same
fault indication is provided by scale
C, which flashes on the display. If
this is the case, contact a Fiat
Dealership to have the system
checked.

31

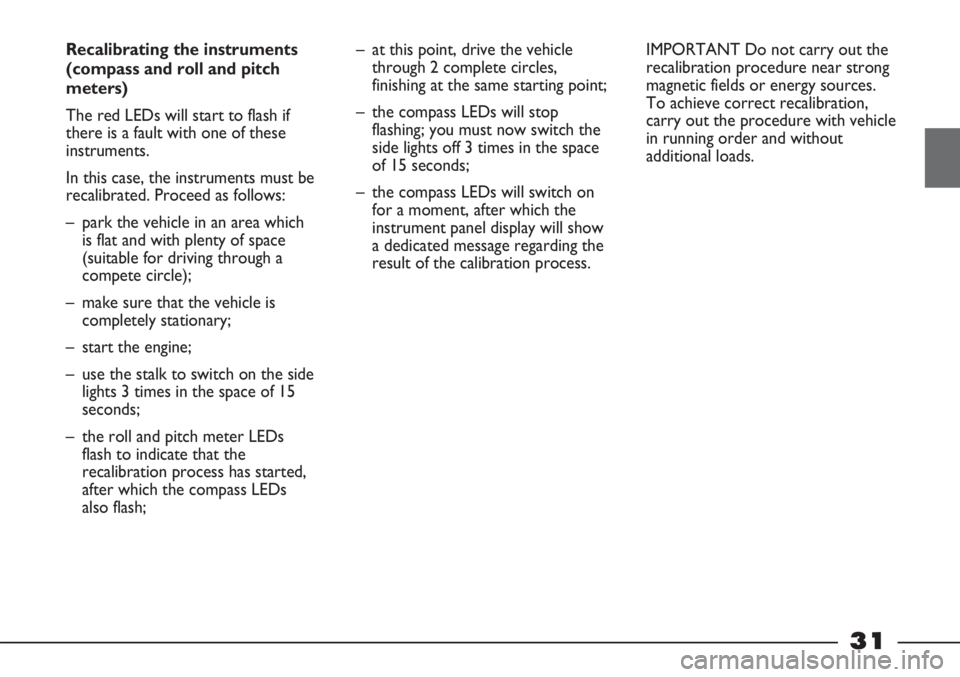

Recalibrating the instruments
(compass and roll and pitch
meters)
The red LEDs will start to flash if
there is a fault with one of these
instruments.
In this case, the instruments must be
recalibrated. Proceed as follows:
– park the vehicle in an area which
is flat and with plenty of space
(suitable for driving through a
compete circle);
– make sure that the vehicle is
completely stationary;
– start the engine;
– use the stalk to switch on the side
lights 3 times in the space of 15
seconds;
– the roll and pitch meter LEDs
flash to indicate that the
recalibration process has started,
after which the compass LEDs
also flash;– at this point, drive the vehicle
through 2 complete circles,
finishing at the same starting point;
– the compass LEDs will stop
flashing; you must now switch the
side lights off 3 times in the space
of 15 seconds;
– the compass LEDs will switch on
for a moment, after which the
instrument panel display will show
a dedicated message regarding the
result of the calibration process.IMPORTANT Do not carry out the
recalibration procedure near strong
magnetic fields or energy sources.
To achieve correct recalibration,
carry out the procedure with vehicle
in running order and without
additional loads.

32

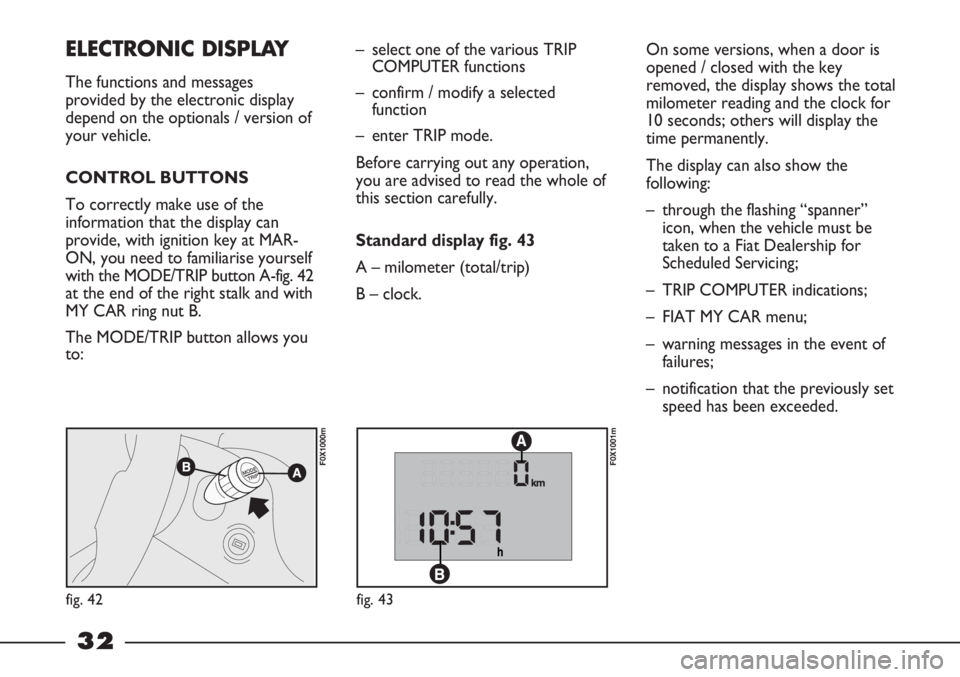

On some versions, when a door is
opened / closed with the key
removed, the display shows the total
milometer reading and the clock for
10 seconds; others will display the
time permanently.
The display can also show the
following:
– through the flashing “spanner”
icon, when the vehicle must be
taken to a Fiat Dealership for
Scheduled Servicing;
– TRIP COMPUTER indications;
– FIAT MY CAR menu;
– warning messages in the event of
failures;
– notification that the previously set
speed has been exceeded. – select one of the various TRIP
COMPUTER functions
– confirm / modify a selected
function
– enter TRIP mode.
Before carrying out any operation,
you are advised to read the whole of
this section carefully.
Standard display fig. 43
A – milometer (total/trip)
B – clock.ELECTRONIC DISPLAY
The functions and messages
provided by the electronic display
depend on the optionals / version of
your vehicle.
CONTROL BUTTONS
To correctly make use of the
information that the display can
provide, with ignition key at MAR-
ON, you need to familiarise yourself
with the MODE/TRIP button A-fig. 42
at the end of the right stalk and with
MY CAR ring nut B.
The MODE/TRIP button allows you
to:
fig. 42
F0X1000m
fig. 43
F0X1001m

33

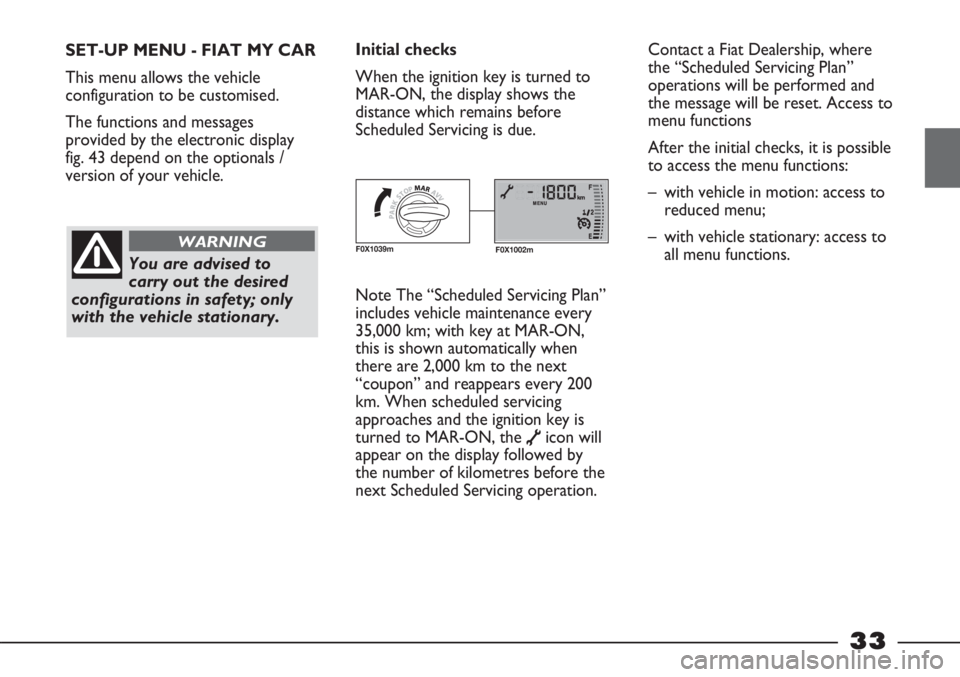

SET-UP MENU - FIAT MY CAR
This menu allows the vehicle
configuration to be customised.
The functions and messages
provided by the electronic display
fig. 43 depend on the optionals /
version of your vehicle.
You are advised to
carry out the desired
configurations in safety; only
with the vehicle stationary.
WARNING
Initial checks
When the ignition key is turned to
MAR-ON, the display shows the
distance which remains before
Scheduled Servicing is due.Contact a Fiat Dealership, where
the “Scheduled Servicing Plan”
operations will be performed and
the message will be reset. Access to
menu functions
After the initial checks, it is possible
to access the menu functions:
– with vehicle in motion: access to
reduced menu;
– with vehicle stationary: access to
all menu functions.
F0X1002mF0X1039m
Note The “Scheduled Servicing Plan”
includes vehicle maintenance every
35,000 km; with key at MAR-ON,
this is shown automatically when
there are 2,000 km to the next
“coupon” and reappears every 200
km. When scheduled servicing
approaches and the ignition key is
turned to MAR-ON, the
õicon will
appear on the display followed by
the number of kilometres before the
next Scheduled Servicing operation.

34

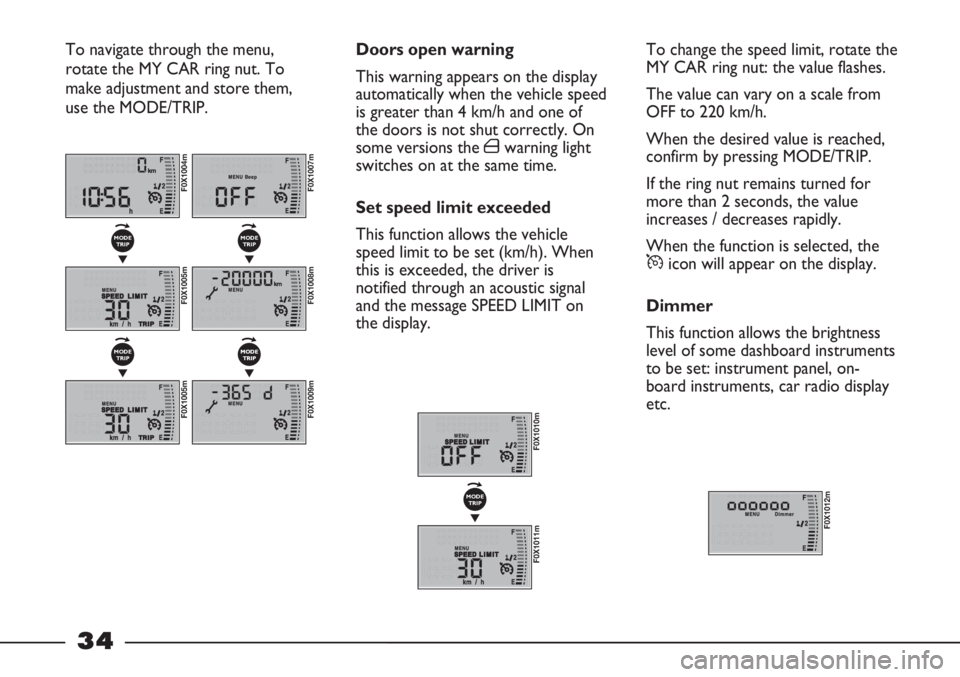

To change the speed limit, rotate the
MY CAR ring nut: the value flashes.
The value can vary on a scale from
OFF to 220 km/h.
When the desired value is reached,
confirm by pressing MODE/TRIP.
If the ring nut remains turned for
more than 2 seconds, the value
increases / decreases rapidly.
When the function is selected, the
Üicon will appear on the display.
Dimmer
This function allows the brightness
level of some dashboard instruments
to be set: instrument panel, on-
board instruments, car radio display
etc. Doors open warning
This warning appears on the display
automatically when the vehicle speed
is greater than 4 km/h and one of
the doors is not shut correctly. On
some versions the
´warning light
switches on at the same time.
Set speed limit exceeded
This function allows the vehicle
speed limit to be set (km/h). When
this is exceeded, the driver is
notified through an acoustic signal
and the message SPEED LIMIT on
the display.
To navigate through the menu,
rotate the MY CAR ring nut. To
make adjustment and store them,
use the MODE/TRIP.
F0X1004m
F0X1005m
▼
F0X1012m
MODE
TRIP
F0X1005m
▼
MODE
TRIP
F0X1007m
F0X1008m
▼
MODE
TRIP
F0X1009m
▼
MODE
TRIP
F0X1010m
F0X1011m
▼
MODE
TRIP MODE
TRIP

35

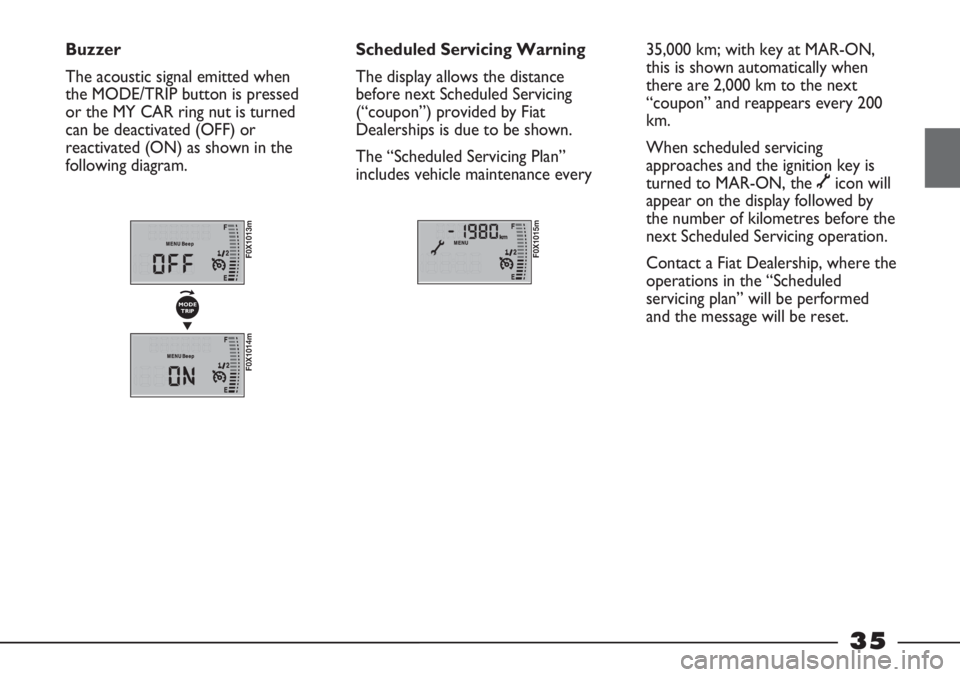

Buzzer
The acoustic signal emitted when
the MODE/TRIP button is pressed
or the MY CAR ring nut is turned
can be deactivated (OFF) or
reactivated (ON) as shown in the
following diagram.Scheduled Servicing Warning
The display allows the distance
before next Scheduled Servicing
(“coupon”) provided by Fiat
Dealerships is due to be shown.
The “Scheduled Servicing Plan”
includes vehicle maintenance every
F0X1015mF0X1013m
F0X1014m
▼
MODE
TRIP
35,000 km; with key at MAR-ON,
this is shown automatically when
there are 2,000 km to the next
“coupon” and reappears every 200
km.
When scheduled servicing
approaches and the ignition key is
turned to MAR-ON, the
õicon will
appear on the display followed by
the number of kilometres before the
next Scheduled Servicing operation.
Contact a Fiat Dealership, where the
operations in the “Scheduled
servicing plan” will be performed
and the message will be reset.

36

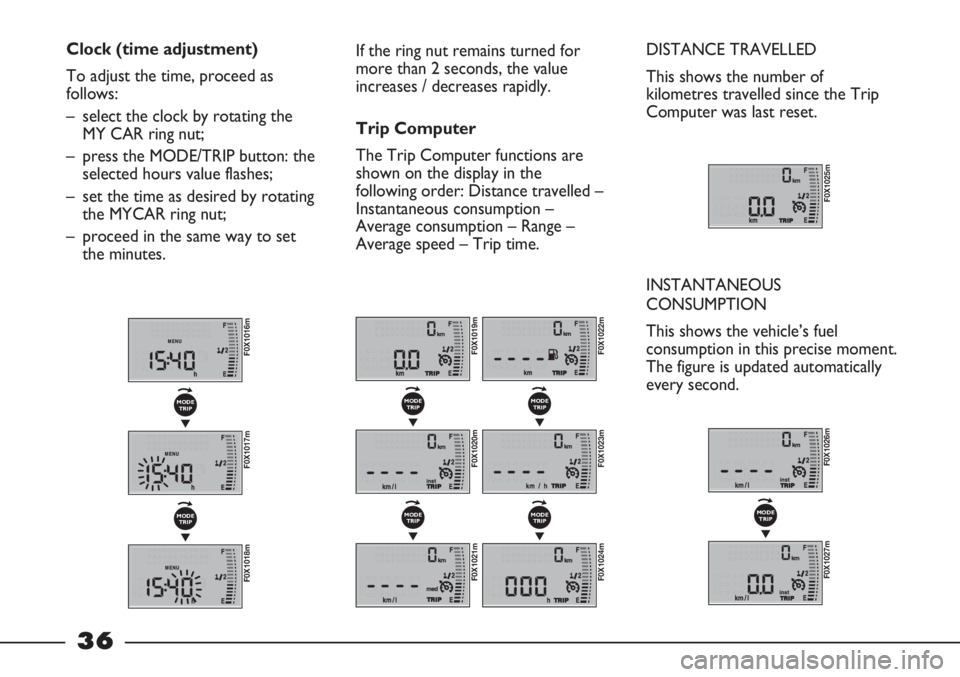

Clock (time adjustment)
To adjust the time, proceed as
follows:
– select the clock by rotating the
MY CAR ring nut;
– press the MODE/TRIP button: the
selected hours value flashes;
– set the time as desired by rotating
the MYCAR ring nut;
– proceed in the same way to set
the minutes.If the ring nut remains turned for
more than 2 seconds, the value
increases / decreases rapidly.
Trip Computer
The Trip Computer functions are
shown on the display in the
following order: Distance travelled –
Instantaneous consumption –
Average consumption – Range –
Average speed – Trip time.DISTANCE TRAVELLED
This shows the number of
kilometres travelled since the Trip
Computer was last reset.
INSTANTANEOUS
CONSUMPTION
This shows the vehicle’s fuel
consumption in this precise moment.
The figure is updated automatically
every second.
F0X1025m
F0X1019m
F0X1020m
▼
MODE
TRIP
F0X1021m
▼
MODE
TRIP
F0X1022m
F0X1023m
▼
MODE
TRIP
F0X1024m
▼
MODE
TRIP
F0X1016m
F0X1017m
▼
MODE
TRIP
F0X1018m
▼
MODE
TRIP
F0X1026m
F0X1027m
▼
MODE
TRIP
