109

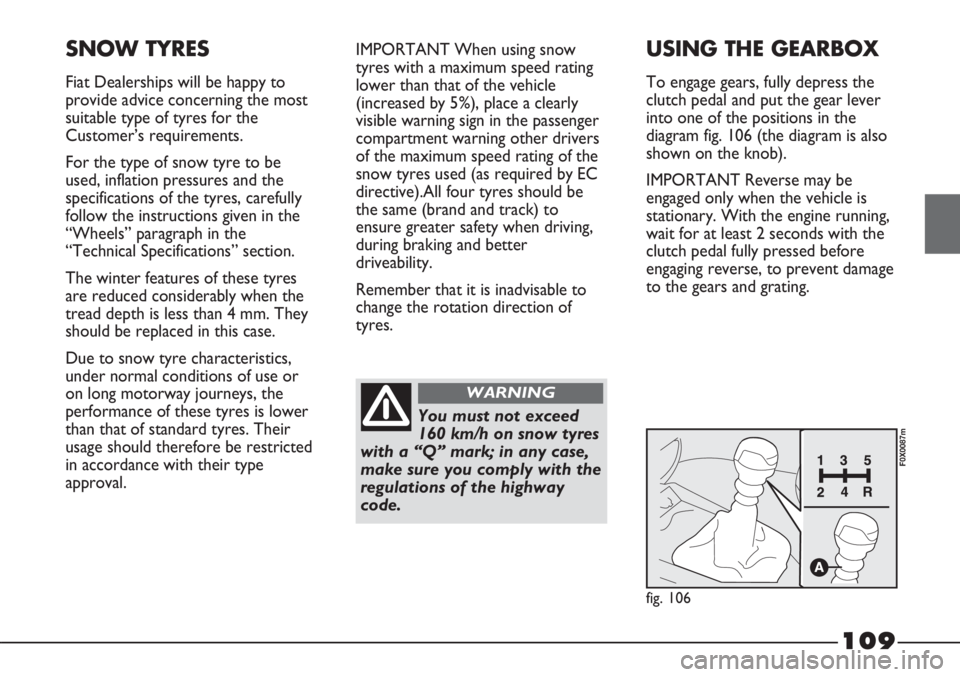

SNOW TYRES
Fiat Dealerships will be happy to
provide advice concerning the most
suitable type of tyres for the
Customer’s requirements.
For the type of snow tyre to be
used, inflation pressures and the
specifications of the tyres, carefully
follow the instructions given in the
“Wheels” paragraph in the
“Technical Specifications” section.
The winter features of these tyres
are reduced considerably when the
tread depth is less than 4 mm. They
should be replaced in this case.
Due to snow tyre characteristics,
under normal conditions of use or
on long motorway journeys, the
performance of these tyres is lower
than that of standard tyres. Their
usage should therefore be restricted
in accordance with their type
approval.IMPORTANT When using snow
tyres with a maximum speed rating
lower than that of the vehicle
(increased by 5%), place a clearly
visible warning sign in the passenger
compartment warning other drivers
of the maximum speed rating of the
snow tyres used (as required by EC
directive).All four tyres should be
the same (brand and track) to
ensure greater safety when driving,
during braking and better
driveability.
Remember that it is inadvisable to
change the rotation direction of
tyres.
USING THE GEARBOX
To engage gears, fully depress the
clutch pedal and put the gear lever
into one of the positions in the
diagram fig. 106 (the diagram is also
shown on the knob).
IMPORTANT Reverse may be
engaged only when the vehicle is
stationary. With the engine running,
wait for at least 2 seconds with the
clutch pedal fully pressed before
engaging reverse, to prevent damage
to the gears and grating.
You must not exceed
160 km/h on snow tyres
with a “Q” mark; in any case,
make sure you comply with the
regulations of the highway
code.
WARNING
fig. 106
F0X0087m

110

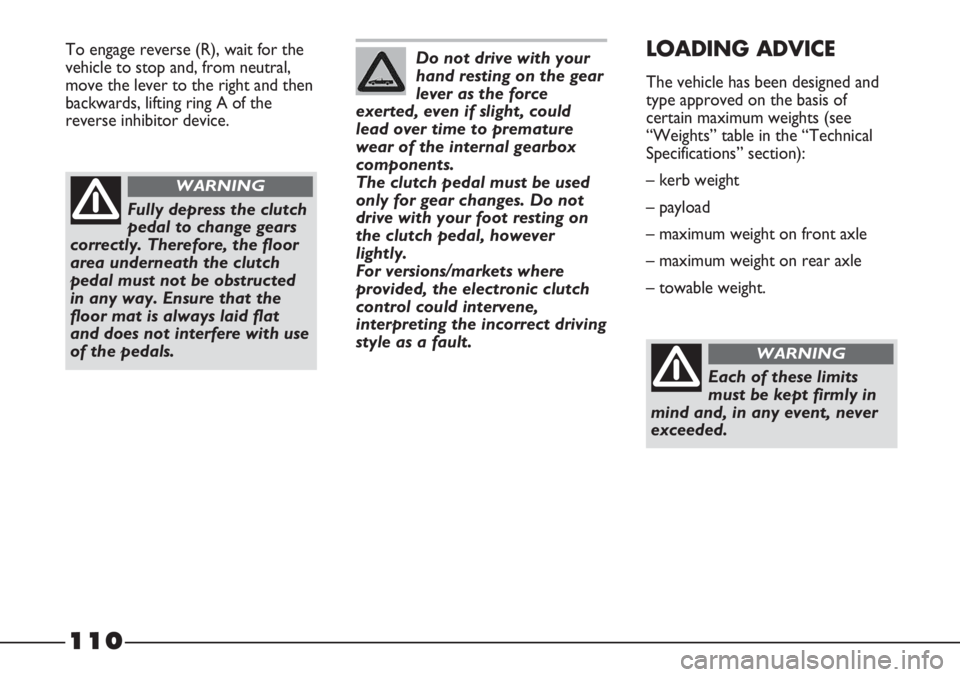

To engage reverse (R), wait for the
vehicle to stop and, from neutral,
move the lever to the right and then
backwards, lifting ring A of the
reverse inhibitor device.
Fully depress the clutch
pedal to change gears
correctly. Therefore, the floor
area underneath the clutch
pedal must not be obstructed
in any way. Ensure that the
floor mat is always laid flat
and does not interfere with use
of the pedals.
WARNING
Do not drive with your
hand resting on the gear
lever as the force
exerted, even if slight, could
lead over time to premature
wear of the internal gearbox
components.
The clutch pedal must be used
only for gear changes. Do not
drive with your foot resting on
the clutch pedal, however
lightly.
For versions/markets where
provided, the electronic clutch
control could intervene,
interpreting the incorrect driving
style as a fault.LOADING ADVICE
The vehicle has been designed and
type approved on the basis of
certain maximum weights (see
“Weights” table in the “Technical
Specifications” section):
– kerb weight
– payload
– maximum weight on front axle
– maximum weight on rear axle
– towable weight.
Each of these limits
must be kept firmly in
mind and, in any event, never
exceeded.
WARNING

117
IN AN EMERGENCY
In an emergency we recommend that you call the freephone number in the Warranty Booklet.
You can also go to the www.fiat.com website to find your nearest Fiat Dealership.
STARTING THE ENGINE
JUMP STARTING
If the battery is flat, it is possible to
start the engine using an auxiliary
battery with the same capacity or a
little higher than the flat one.
fig. 109
F0X0090m
To start the engine, proceed as
follows fig. 109:
– connect the positive terminals (+),
sign near the terminal, of the two
batteries with a jump lead;
– with a second lead, connect the
negative terminal (–) of the
auxiliary battery to an earthing
point
Eon the engine or the
gearbox of the vehicle to be
started;
– start the engine;
– when the engine has been started,
remove the leads, reversing the
order above.If after a few attempts the engine
does not start, do not persist but
contact a Fiat Dealership.
IMPORTANT Do not directly
connect the negative terminals of
the two batteries: any sparks may
ignite the explosive gas which could
come out of the battery. If the
auxiliary battery is installed on
another vehicle, avoid any metal
parts on the latter and the vehicle
with the flat battery from
accidentally coming into contact.

139
The vehicle must not be
raised from the rear
(lower part of bodywork or
suspension components) nor
must it be raised from the front
(gearbox casing).
WARNINGWITH WORKSHOP LIFT
Laterally
The vehicle must be raised with the
arm of the hydraulic lift positioned
as illustrated in fig. 146 and 147.
fig. 146
F0X0129m
fig. 147
F0X0130m
fig. 148
F0X0131m
WITH LIFT ARMS
The vehicle must be raised with the
ends of the arms in the lower points
in the bodywork as indicated in
fig. 148.
Make sure that the arms
of the lift do not put a
strain on the bodywork
or the side trim. Adjust the arms
of the lift correctly, and apply a
wooden or rubber block if
necessary.

145

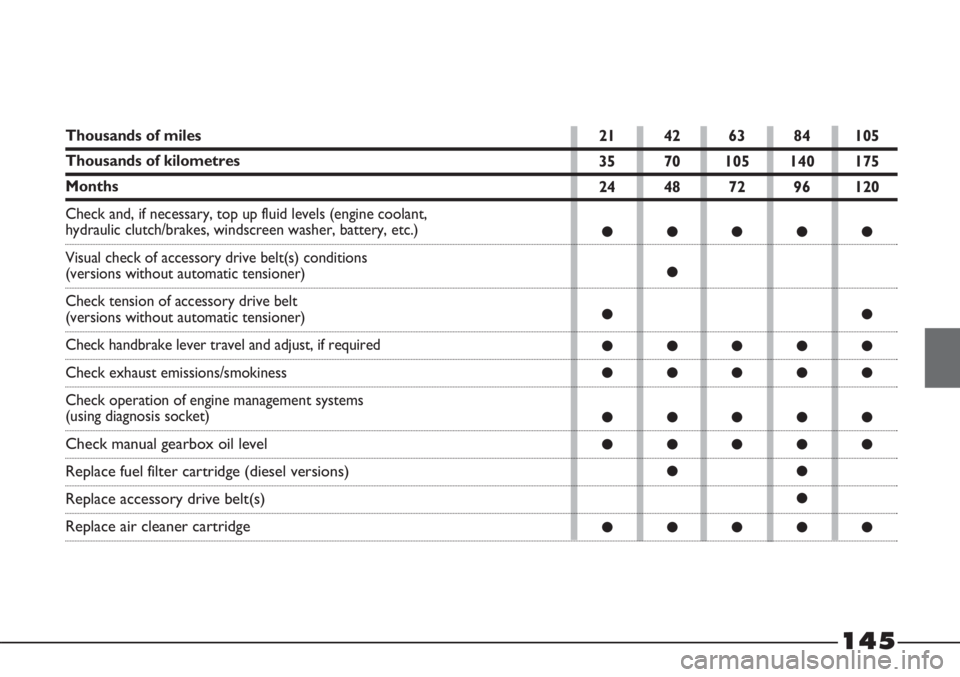

Thousands of miles
Thousands of kilometres
Months
Check and, if necessary, top up fluid levels (engine coolant,
hydraulic clutch/brakes, windscreen washer, battery, etc.)
Visual check of accessory drive belt(s) conditions
(versions without automatic tensioner)
Check tension of accessory drive belt
(versions without automatic tensioner)
Check handbrake lever travel and adjust, if required
Check exhaust emissions/smokiness
Check operation of engine management systems
(using diagnosis socket)
Check manual gearbox oil level
Replace fuel filter cartridge (diesel versions)
Replace accessory drive belt(s)
Replace air cleaner cartridge
21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●●●●●
●
●●
●●●●●
●●●●●
●●●●●
●●●●●
●●
●
●●●●●

147

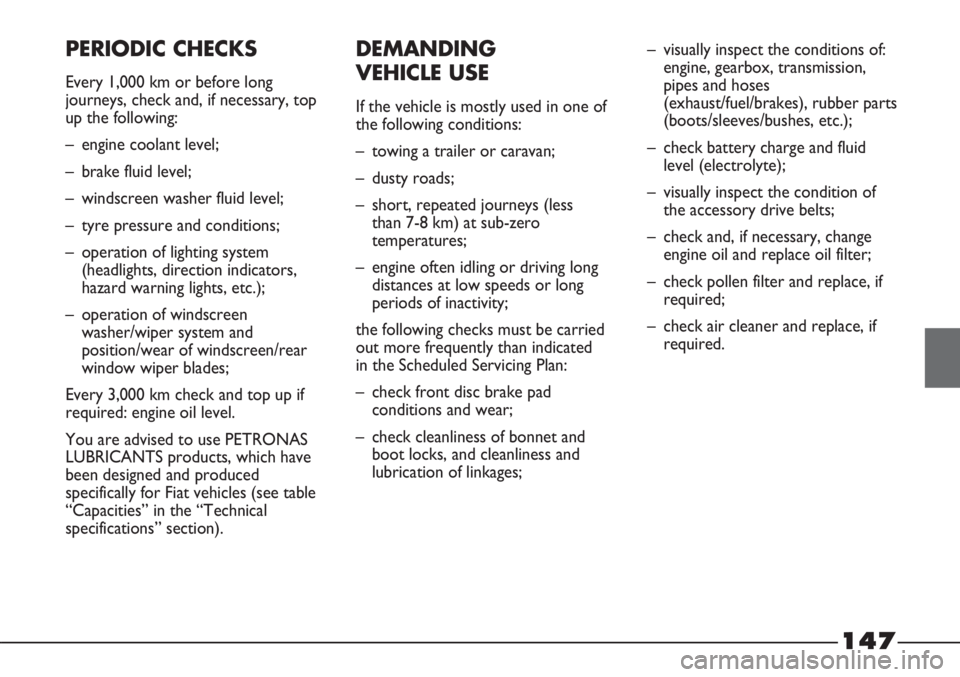

PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
– engine coolant level;
– brake fluid level;
– windscreen washer fluid level;
– tyre pressure and conditions;
– operation of lighting system
(headlights, direction indicators,
hazard warning lights, etc.);
– operation of windscreen
washer/wiper system and
position/wear of windscreen/rear
window wiper blades;
Every 3,000 km check and top up if
required: engine oil level.
You are advised to use PETRONAS
LUBRICANTS products, which have
been designed and produced
specifically for Fiat vehicles (see table
“Capacities” in the “Technical
specifications” section).
DEMANDING
VEHICLE USE
If the vehicle is mostly used in one of
the following conditions:
– towing a trailer or caravan;
– dusty roads;
– short, repeated journeys (less
than 7-8 km) at sub-zero
temperatures;
– engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more frequently than indicated
in the Scheduled Servicing Plan:
– check front disc brake pad
conditions and wear;
– check cleanliness of bonnet and
boot locks, and cleanliness and
lubrication of linkages;– visually inspect the conditions of:
engine, gearbox, transmission,
pipes and hoses
(exhaust/fuel/brakes), rubber parts
(boots/sleeves/bushes, etc.);
– check battery charge and fluid
level (electrolyte);
– visually inspect the condition of
the accessory drive belts;
– check and, if necessary, change
engine oil and replace oil filter;
– check pollen filter and replace, if
required;
– check air cleaner and replace, if
required.

169
FUEL SUPPLY
1.3 MultiJet 16V
Fuel supply
TRANSMISSION
1.3 MultiJet 16V
Gearbox Five gears + reverse
Clutch Self-adjusting with pedal without idle stroke
Drive Front wheel
Electronically controlled Common Rail MultiJet direct injection with turbo and intercooler
Modifications or repairs to the fuel supply system that are not carried out correctly or do not take
the system’s technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING

1.3 Multijet 16V
CAPACITIES
Fuel tank:including a reserve of:
Engine cooling system:
Engine sump:
Engine sump and filter:
Differential/gearbox casing:
Hydraulic power steering:
CV joint and gaiter:
Hydraulic brake circuit
with ABS:
Windscreen washer fluid reservoir:
litres
48
5,5 - 7,5
7,6
2,85
3,0
1,98
0,68
–
0,45
2,3Prescribed fuels
Original products
Diesel for motor vehicles (EN590 specification)
Mixture of 50% distilled water and 50% PARAFLU
UP
SELENIA WR P.E.
TUTELA CAR TECHNYX
TUTELA GI/E
TUTELA MRM 2
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC35 kg
–
–
7,86
2,75
2,6
1,8
0,9
0,075
–
–
178

180
Protective agent
for radiators
Windscreen
and rear window
washer fluid Brake fluidLubricants
and greases
for drive
transmission
FIAT 9.55530- MX3classification.
SAE 75W-85 grade synthetic lubricant.
FIAT 9.55550-MZ3classification.
SAE 75W-85 grade synthetic lubricant.
Molybdenum disulphide grease, for use at high
temperatures. Consistency NLGI 1-2.
FIAT 9.55580classification.
Grease for constant velocity joints with low friction
coefficient. Consistency NLGI 0-1.
FIAT 9.55580classification.
Automatic transmission lubricant.
Exceeds “ATF DEXRON III” specifications.
FIAT 9.55550-AG2classification.
Synthetic fluid for hydraulic and electrohydraulic systems.
FIAT 9.55550- AG3classification.
Synthetic fluid, NHTSA no. 116 DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01.
FIAT 9.55597classification.
Red protective agent with antifreeze action, based on
inhibited monoethyl glycol with organic formula. Exceeds
the CUNA NC 956-16, ASTM D 3306 specifications.
FIAT 9.555323classification.
Mixture of spirits and surfactants.
Exceeds CUNA NC 956-11 specifications.
FIAT 9.55522classification.Manual gearboxes
and differentials
Manual gearboxes
and differentials
Wheel side constant
velocity joints
Differential side
constant velocity joints
Hydraulic power
steering
Hydraulic power
steering
(for cold countries)
Hydraulic brakes and
hydraulic clutch controls
Percentage of use:
50% water
50% PARAFLU
UP(❑)
To be used undiluted
or diluted in
windscreen/washer/
wiper systems
TUTELA CAR TECHNYX
Contractual Technical
Reference F010.B05
TUTELA CAR GEARTECH
Contractual Technical
Reference F704.C08
TUTELA ALL STAR
Contractual Technical
Reference F702.G07
TUTELA STAR 700
Contractual Technical
Reference F701.C07
TUTELA GI/E
Contractual Technical
Reference F001.C94
TUTELA GI/R
Contractual Technical
Reference F428.H04
TUTELA TOP 4
Contractual Technical
Reference F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference F101.M01
TUTELA
PROFESSIONAL SC35
Contractual Technical
Reference F201.D02 Use Fluid and lubricant specifications Original lubricants Applications
for correct vehicle operation and fluids
(●) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.

Fog lights
- bulb replacement................................................................... 127
- control ..................................................................................... 74
Follow me home system ............................................................. 71
Footboards..................................................................................... 89
Front ceiling light ......................................................................... 76
- bulb replacement ................................................................. 130
Front roof lights
- bulb replacement ................................................................. 130
- control ................................................................................... 76
Fuel cut-off switch ...................................................................... 75
Fuel level indicator gauge ........................................................... 27
Fuel tank cap.................................................................................. 103
Fuel
- fuel cap ................................................................................... 103
- fuel cut-off ............................................................................. 75
- level gauge ............................................................................. 27
- refuelling.................................................................................. 102
- specification......................................................................168-178
Fuses .............................................................................................. 131
- dashboard fuse box ............................................................. 133
- engine compartment fuse box .......................................... 134
- fuse list .............................................................................135-136
- general information ............................................................. 131
Gearbox
- using the gearbox ................................................................. 109
Glasses holder............................................................................... 76
Glove box light
- bulb replacement ................................................................. 131
Glove compartment .................................................................. 75Handbrake .................................................................................... 108
Hazard warning lights switch .................................................... 73
Headlights ..................................................................................... 89
- alignment corrector ............................................................ 89
- light beam direction ............................................................. 89
- washing ................................................................................... 163
Headrests
- front ........................................................................................ 17
- rear ......................................................................................... 18
Heating / climate control system ............................................. 65
Heating and ventilation................................................................ 65
- controls ................................................................................... 66
Heavy use of the vehicle............................................................. 147
How to save fuel........................................................................... 112
Identification data ........................................................................ 165
- VIN plate ............................................................................... 165
Ignition switch .............................................................................. 11
In an emergency ..................................................................... 117
Instrument panel ..........................................................................14-15
Interiors .......................................................................................... 163
Internal features ........................................................................... 75
Jack ..................................................................................119-120-138
Key with remote control ......................................................... 8
Keys ................................................................................................ 7
- duplicating............................................................................... 10
Know your vehicle................................................................... 7
Leather trim
- cleaning.................................................................................... 164
Left stalk......................................................................................... 72
- follow me home .................................................................... 71
189
