battery capacity FIAT STRADA 2012 Owner handbook (in English)

107

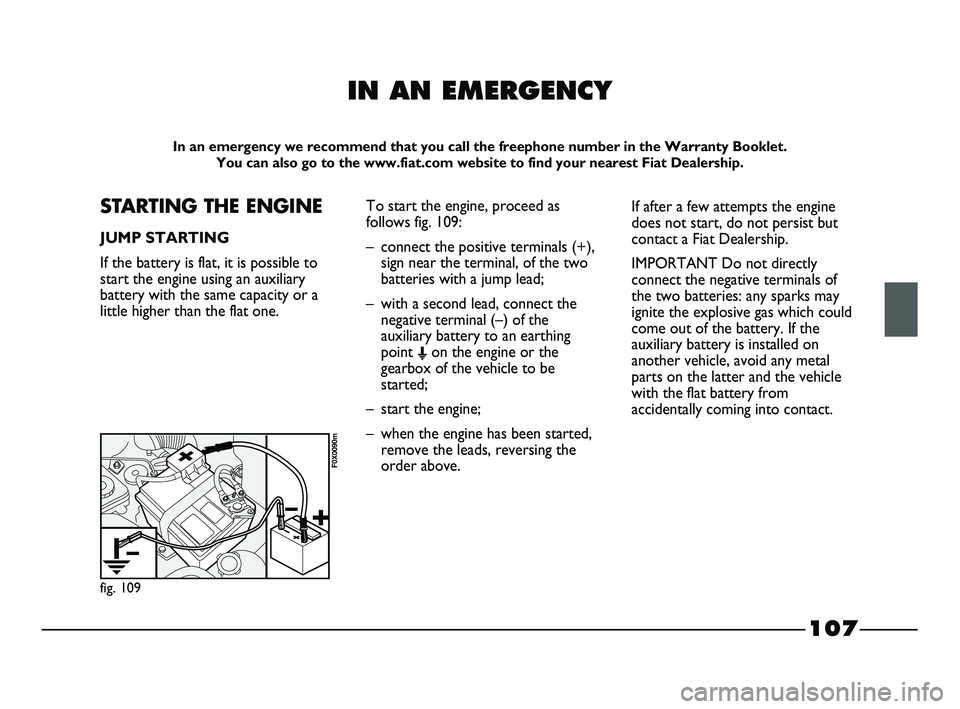

IN AN EMERGENCY
In an emergency we recommend that you call the freephone number in the Warranty Booklet.
You can also go to the www.fiat.com website to find your nearest Fiat Dealership.
STARTING THE ENGINE
JUMP STARTING
If the battery is flat, it is possible to
start the engine using an auxiliary
battery with the same capacity or a
little higher than the flat one.
fig. 109
F0X0090m
To start the engine, proceed as
follows fig. 109:
– connect the positive terminals (+),
sign near the terminal, of the two
batteries with a jump lead;
– with a second lead, connect the
negative terminal (–) of the
auxiliary battery to an earthing
point
Eon the engine or the
gearbox of the vehicle to be
started;
– start the engine;
– when the engine has been started,
remove the leads, reversing the
order above.If after a few attempts the engine
does not start, do not persist but
contact a Fiat Dealership.
IMPORTANT Do not directly
connect the negative terminals of
the two batteries: any sparks may
ignite the explosive gas which could
come out of the battery. If the
auxiliary battery is installed on
another vehicle, avoid any metal
parts on the latter and the vehicle
with the flat battery from
accidentally coming into contact.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 107

145
REPLACING THE BATTERY
If required, replace the battery with
an original spare part with the same
specifications.
If a battery with different
specifications is fitted, the service
intervals given in the “Scheduled
Servicing Plan” will no longer be
valid.
Follow the battery manufacturer’s
instructions for maintenance.
Battery liquid is
poisonous and
corrosive. Avoid contact with
skin and eyes. Keep naked
flames and sources of sparks
away from the battery: risk of
explosion and fire.
WARNING
Using the battery with
insufficient battery fluid
may irreparably damage the
battery and may cause an
explosion.
WARNING
When performing any
operation on the
battery or near it, always
protect your eyes with special
goggles.
WARNING
Incorrect assembly of
electrical and electronic
devices may cause
severe damage to your vehicle.
Contact a Fiat Dealership if you
want to install accessories after
purchasing the vehicle (alarms,
radiophone, etc.): they will
suggest the most suitable
devices and advise you whether
a higher capacity battery needs
to be installed.
If the vehicle will be
unused for an extended
period of time in
extremely cold weather
conditions, remove the battery
and store it in a heated area to
prevent it from freezing.
Batteries contain
substances which are very
dangerous for the
environment. To replace your
battery, we recommend
contacting a Fiat Dealership to
dispose of your old battery in full
respect of the environment and in
compliance with legal regulations.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 145

146

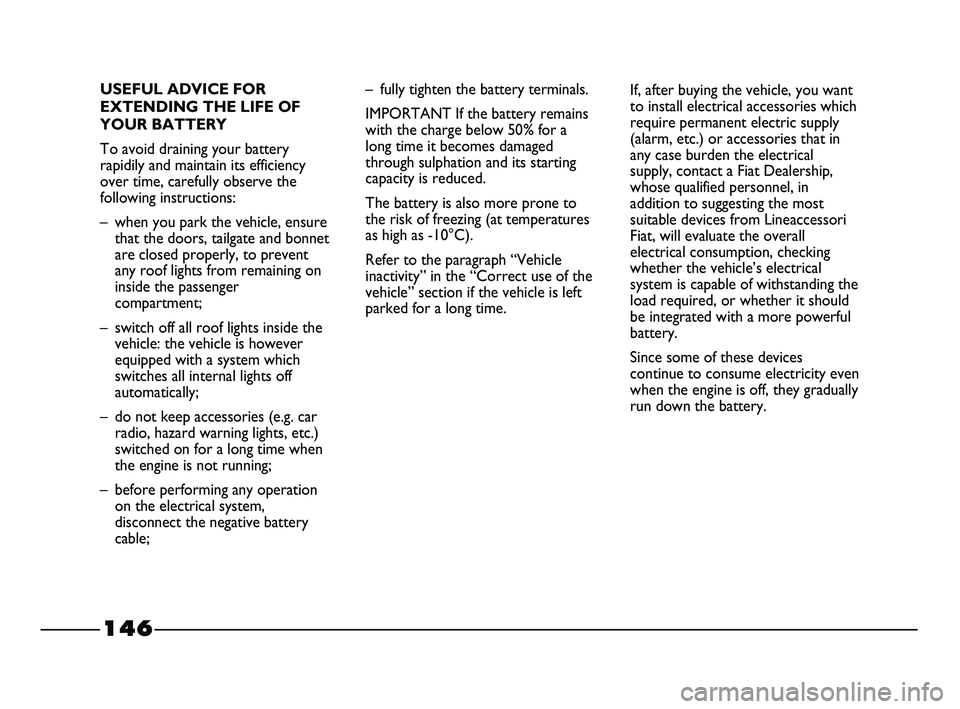

USEFUL ADVICE FOR
EXTENDING THE LIFE OF
YOUR BATTERY
To avoid draining your battery
rapidily and maintain its efficiency
over time, carefully observe the
following instructions:
– when you park the vehicle, ensure
that the doors, tailgate and bonnet
are closed properly, to prevent
any roof lights from remaining on
inside the passenger
compartment;
– switch off all roof lights inside the
vehicle: the vehicle is however
equipped with a system which
switches all internal lights off
automatically;
– do not keep accessories (e.g. car
radio, hazard warning lights, etc.)
switched on for a long time when
the engine is not running;
– before performing any operation
on the electrical system,
disconnect the negative battery
cable;– fully tighten the battery terminals.
IMPORTANT If the battery remains
with the charge below 50% for a
long time it becomes damaged
through sulphation and its starting
capacity is reduced.
The battery is also more prone to
the risk of freezing (at temperatures
as high as -10°C).
Refer to the paragraph “Vehicle
inactivity” in the “Correct use of the
vehicle” section if the vehicle is left
parked for a long time.If, after buying the vehicle, you want
to install electrical accessories which
require permanent electric supply
(alarm, etc.) or accessories that in
any case burden the electrical
supply, contact a Fiat Dealership,
whose qualified personnel, in
addition to suggesting the most
suitable devices from Lineaccessori
Fiat, will evaluate the overall
electrical consumption, checking
whether the vehicle’s electrical
system is capable of withstanding the
load required, or whether it should
be integrated with a more powerful
battery.
Since some of these devices
continue to consume electricity even
when the engine is off, they gradually
run down the battery.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 146
