REFUELLING
Refuel the vehicle exclusively with diesel for motor
vehicles in compliance with European specification
EN590.
The use of other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged, set the
gear lever to neutral, fully depress the clutch
without pressing the accelerator, then turn the
ignition key to MAR and wait for the
mand Uwarning lights to switch off; turn the ignition key
to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter reaches high
temperatures during operation. Do not park on
grass, dry leaves, pine needles or other
flammable material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows
continuous diagnosis of the emission-related
components in order to help protect the
environment.ELECTRICAL ACCESSORIES
If, after buying the vehicle, you wish to add
electrical accessories (with the risk of gradually
draining the battery), contact a Fiat Dealership.
They will calculate the overall electrical
requirement and check that the vehicle’s
electrical system can support the required load.
CODE card
Keep it in a safe place, not in the vehicle.
You are advised to keep the electronic code on
the CODE card with you at all times
.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to
perfectly maintain performance and safety
characteristics, its environmentalfriendliness and
its low running costs over time.
THE OWNER HANDBOOK CONTAINS…
... important information, advice and warnings for
correct use, driving safety and maintenance of
your vehicle over time. Pay particular attention
to the symbols
"(personal safety)
#(environmental protection)
!(vehicle integrity).
ESSENTIAL INFORMATION!
K


4
001-006 STRADA LUM GB 1ed 9-01-2012 14:48 Pagina 4

11
STEERING LOCK
Engagement: with ignition at
STOP, or PARK, remove the key
and turn the steering wheel until it
locks.IGNITION
The key can be turned to 4 different
positions fig. 5:
– STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. car
radio, central door locking system,
electronic alarm, etc.) can
operate.
– MAR-ON: driving position. All
electric devices can operate.
– AVV: engine starting.
– PARK: engine off, parking lights
on, key can be removed, steering
column locked.
To turn the key to PARK, press
button A.
PARKSTOPMARAVV
A
fig. 5
F0X0005m
If the ignition is
tampered with
(e.g. attempted theft),
have it checked by a Fiat
Dealership before driving
again.
WARNING
Never remove the key
while the vehicle is in
motion. The steering wheel
would automatically lock as
soon as it is turned. This also
applies to cases in which the
vehicle is towed.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 11

28
IMPORTANT If the needle moves to
the beginning of the scale
(low temperature) with the
overheating warning light A on, this
indicates a fault in the system. If this
is the case, contact a Fiat Dealership
to have the system checked.
The needle may also approach the
red section when travelling too
slowly in a very hot climate. In this
case, it is best to stop for a while
and stop the engine.
Then restart and accelerate lightly.
fig. 38
F0X0302m
ENGINE COOLANT
TEMPERATURE GAUGE
fig. 37-38
If warning light A switches on in the
instrument panel, this indicates
overheating of the engine coolant.
In normal operating conditions, the
needle may move to various
positions within the scale according
to the vehicle usage conditions and
the management of the engine
cooling system performed
automatically by the system itself.
However, it should not move to the
red danger zone.
fig. 37
F0X0301m
IMPORTANT If the indicator shows
that the tank is empty and the
reserve warning light A-fig. 35-36
flashes, this indicates a fault in the
system. On some versions, the same
fault indication is provided by scale
C, which flashes on the display. If
this is the case, contact a Fiat
Dealership to have the system
checked.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 28

35
Initial checks
When the key is turned to MAR-
ON, the display begins a process of
diagnosis for the vehicle’s on-board
systems. This may last for a few
seconds. If, with the engine running,
the system does not detect any
faults, the system displays OK.
If the display indicates a fault, see
WARNING LIGHTS AND
MESSAGES in this section.
Speed limit exceeded
(Spd. Lim.)
This function allows the vehicle
speed limit to be set (km/h). When
this is exceeded, the driver is
notified through a dedicated
indication on the display, an acoustic
signal and a warning light (triangle
logo).
This indications are interrupted
immediately when the MODE
button is pressed. To set the speed limit, proceed as
follows:
– press the MODE button briefly to
enter the menu;
– press the ▼button; Spd. Lim. will
appear on the display;
– press the MODE button briefly,
then ▼or ▲to select ON or
OFF;
– to activate the function, press the
MODE button briefly when ON
flashes;
– press the ▼button: a speed value
will appear on the display;
– press the MODE button briefly:
the value will flash;
– set the new values as desired,
corresponding to the new speed
limit, by pressing the ▼and/or ▲
buttons.
– press the MODE button briefly to
confirm;
– hold down the MODE button to
return to the standard display.The speed limit can only be set to a
value of 30 km/h (or 20 mph) or
above. Every time the ▼or ▲
buttons are pressed, the value is
decreased/increased by 5 units
respectively When the buttons are
held down, the value decreases or
increases rapidly, as appropriate. It is
advisable to release the button as
you approach the desired value, then
complete the adjustment with single
presses.
The indication on the display is
interrupted automatically if the
vehicle speed falls below the set
value by at least 5 km/h (or 5 mph).
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 35

EXCESSIVE ENGINE
COOLANT
TEMPERATURE (red)
When the key is turned to
MAR, the warning light switches on
but should switch off after a few
seconds.
The warning light turns on when the
engine is overheated.
If the warning light switches on,
proceed as follows:
– In the case of normal driving: stop
the vehicle, stop the engine and
check that the level of coolant in
the reservoir is not below the
MIN reference. In these
circumstances, wait a few minutes
to let the engine cool, then open
the reservoir cap slowly and
cautiously.
Top up with coolant, making sure
that the level of fluid is between
the MIN and MAX references on
the reservoir. Also check visually
for leaks. If, when restarting, the
warning light should come on
again, contact a Fiat Dealership.
ç
– If the vehicle is used under
demanding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on,
stop the vehicle.
Wait for 2 or 3 minutes with the
engine running and slightly
accelerated to further favour the
coolant circulation. Then stop the
engine. Check correct fluid level in
the reservoir as described above.IMPORTANT Over demanding
routes, it is advisable to keep the
engine on and slightly accelerated for
a few minutes before switching it off.
On some versions, the display shows
a dedicated message.
47
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 47

Contact a Fiat
Dealership as soon as
possible if the
U
warning light does not switch on
when the ignition key is turned
to MAR or if it switches on
when driving (together with a
message on the display on some
versions). The operation of the
Uwarning light may be
checked by the traffic control
authorities using specific
devices. Always comply with the
traffic regulations in force in the
country where you are driving.

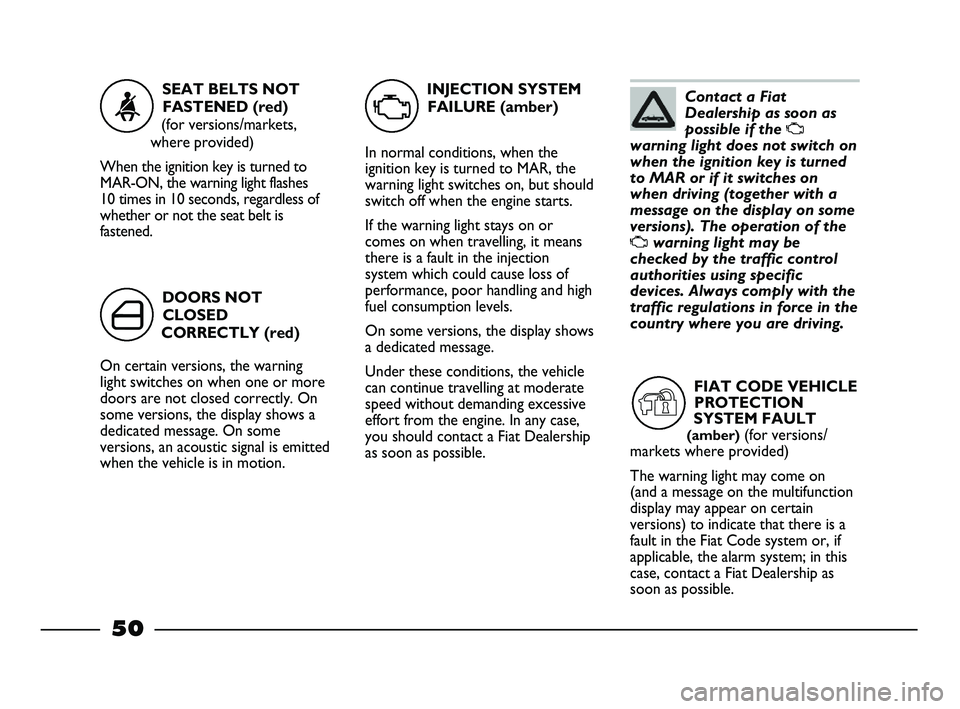

INJECTION SYSTEM
FAILURE (amber)
In normal conditions, when the
ignition key is turned to MAR, the
warning light switches on, but should
switch off when the engine starts.
If the warning light stays on or
comes on when travelling, it means
there is a fault in the injection
system which could cause loss of
performance, poor handling and high
fuel consumption levels.
On some versions, the display shows
a dedicated message.
Under these conditions, the vehicle
can continue travelling at moderate
speed without demanding excessive
effort from the engine. In any case,
you should contact a Fiat Dealership
as soon as possible. DOORS NOT
CLOSED
CORRECTLY (red)
On certain versions, the warning
light switches on when one or more
doors are not closed correctly. On
some versions, the display shows a
dedicated message. On some
versions, an acoustic signal is emitted
when the vehicle is in motion.SEAT BELTS NOT
FASTENED (red)
(for versions/markets,
where provided)
When the ignition key is turned to
MAR-ON, the warning light flashes
10 times in 10 seconds, regardless of
whether or not the seat belt is
fastened.
<
´
U
50
FIAT CODE VEHICLE
PROTECTION
SYSTEM FAULT
(amber) (for versions/
markets where provided)
The warning light may come on
(and a message on the multifunction
display may appear on certain
versions) to indicate that there is a
fault in the Fiat Code system or, if
applicable, the alarm system; in this
case, contact a Fiat Dealership as
soon as possible.
Y
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 50

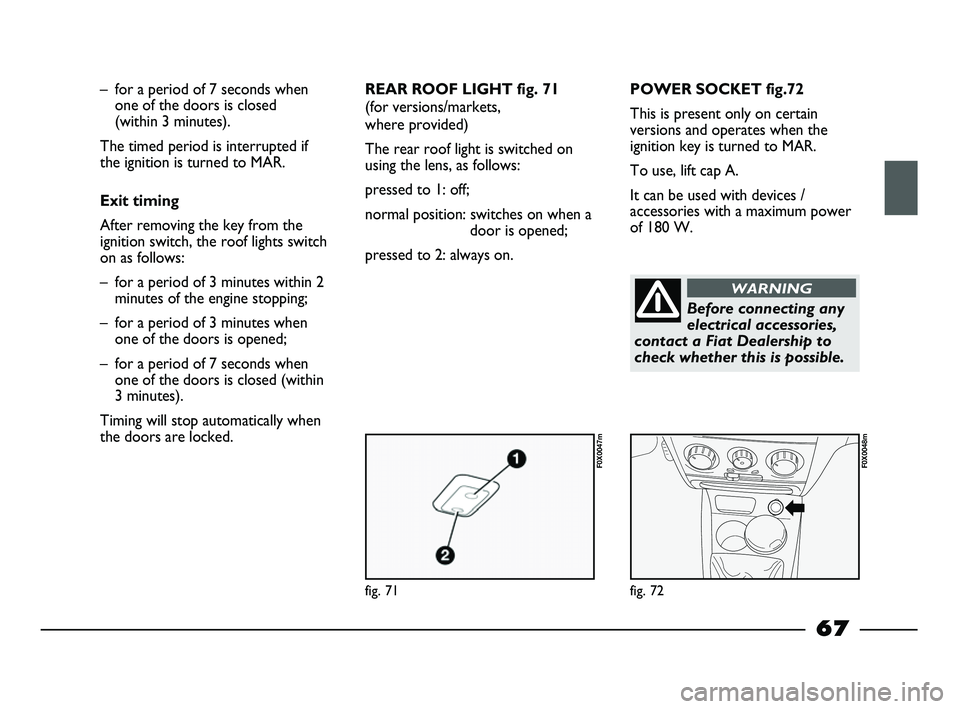

fig. 71
F0X0047m
fig. 72
F0X0048m
– for a period of 7 seconds when
one of the doors is closed
(within 3 minutes).
The timed period is interrupted if
the ignition is turned to MAR.
Exit timing
After removing the key from the
ignition switch, the roof lights switch
on as follows:
– for a period of 3 minutes within 2
minutes of the engine stopping;
– for a period of 3 minutes when
one of the doors is opened;
– for a period of 7 seconds when
one of the doors is closed (within
3 minutes).
Timing will stop automatically when
the doors are locked.REAR ROOF LIGHT fig. 71
(for versions/markets,
where provided)
The rear roof light is switched on
using the lens, as follows:
pressed to 1: off;
normal position: switches on when a
door is opened;
pressed to 2: always on.POWER SOCKET fig.72
This is present only on certain
versions and operates when the
ignition key is turned to MAR.
To use, lift cap A.
It can be used with devices /
accessories with a maximum power
of 180 W.
Before connecting any
electrical accessories,
contact a Fiat Dealership to
check whether this is possible.
WARNING
67
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 67

105

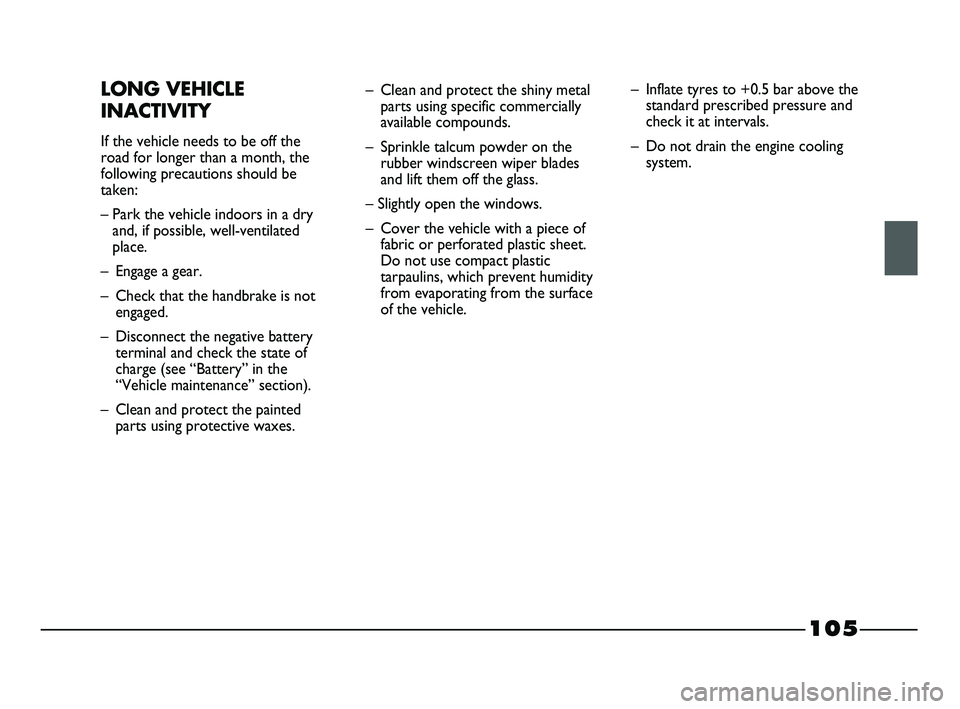

LONG VEHICLE
INACTIVITY
If the vehicle needs to be off the
road for longer than a month, the
following precautions should be
taken:
– Park the vehicle indoors in a dry
and, if possible, well-ventilated
place.
– Engage a gear.
– Check that the handbrake is not
engaged.
– Disconnect the negative battery
terminal and check the state of
charge (see “Battery” in the
“Vehicle maintenance” section).
– Clean and protect the painted
parts using protective waxes.– Clean and protect the shiny metal
parts using specific commercially
available compounds.
– Sprinkle talcum powder on the
rubber windscreen wiper blades
and lift them off the glass.
– Slightly open the windows.
– Cover the vehicle with a piece of
fabric or perforated plastic sheet.
Do not use compact plastic
tarpaulins, which prevent humidity
from evaporating from the surface
of the vehicle.– Inflate tyres to +0.5 bar above the
standard prescribed pressure and
check it at intervals.
– Do not drain the engine cooling
system.
095-106 STRADA LUM GB 1ed 9-01-2012 14:51 Pagina 105

137
PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
– engine coolant level;
– brake fluid level;
– windscreen washer fluid level;
– tyre pressure and conditions;
– operation of lighting system
(headlights, direction indicators,
hazard warning lights, etc.);
– operation of windscreen
washer/wiper system and
position/wear of windscreen/rear
window wiper blades;
Every 3,000 km check and top up if
required: engine oil level.
You are advised to use PETRONAS
LUBRICANTS products, which have
been designed and produced
specifically for Fiat vehicles (see table
“Capacities” in the “Technical
specifications” section).
DEMANDING
VEHICLE USE
If the vehicle is mostly used in one of
the following conditions:
– towing a trailer or caravan;
– dusty roads;
– short, repeated journeys (less
than 7-8 km) at sub-zero
temperatures;
– engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more frequently than indicated
in the Scheduled Servicing Plan:
– check front disc brake pad
conditions and wear;
– check cleanliness of bonnet and
boot locks, and cleanliness and
lubrication of linkages;– visually inspect the conditions of:
engine, gearbox, transmission,
pipes and hoses
(exhaust/fuel/brakes), rubber parts
(boots/sleeves/bushes, etc.);
– check battery charge and fluid
level (electrolyte);
– visually inspect the condition of
the accessory drive belts;
– check and, if necessary, change
engine oil and replace oil filter;
– check pollen filter and replace, if
required;
– check air cleaner and replace, if
required.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 137

144

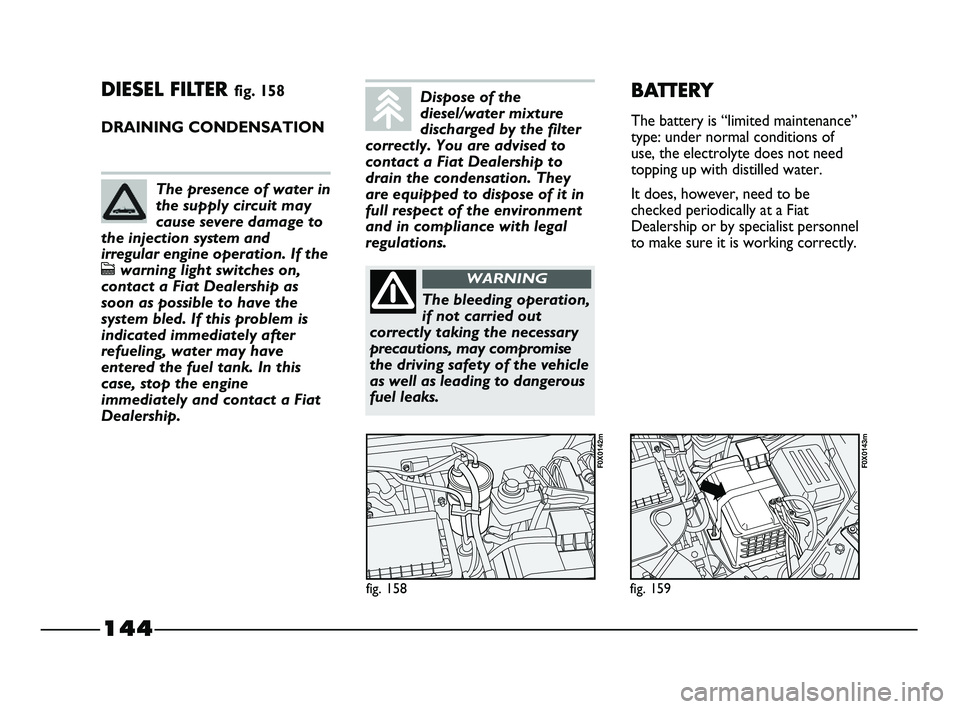

DIESEL FILTER fig. 158
DRAINING CONDENSATION
fig. 158
F0X0142m
fig. 159
F0X0143m
BATTERY
The battery is “limited maintenance”
type: under normal conditions of
use, the electrolyte does not need
topping up with distilled water.
It does, however, need to be
checked periodically at a Fiat
Dealership or by specialist personnel
to make sure it is working correctly.
The presence of water in
the supply circuit may
cause severe damage to
the injection system and
irregular engine operation. If the
cwarning light switches on,
contact a Fiat Dealership as
soon as possible to have the
system bled. If this problem is
indicated immediately after
refueling, water may have
entered the fuel tank. In this
case, stop the engine
immediately and contact a Fiat
Dealership.
Dispose of the
diesel/water mixture
discharged by the filter
correctly. You are advised to
contact a Fiat Dealership to
drain the condensation. They
are equipped to dispose of it in
full respect of the environment
and in compliance with legal
regulations.
The bleeding operation,
if not carried out
correctly taking the necessary
precautions, may compromise
the driving safety of the vehicle
as well as leading to dangerous
fuel leaks.
WARNING
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 144
