8
For versions/markets where
provided, the CODE card fig. 2 is
supplied together with the keys and
bears:
A – the electronic code
B – the mechanical key code to be
given to the Fiat Dealership
when ordering duplicate keys.
fig. 2
F0X0002m
fig. 3
F0X0003m
Button D should only
be pressed when the
key is away from the body, in
particular from the eyes and
from objects that can be spoilt
(e.g. clothes). Do not leave the
key unattended to avoid the
button being accidentally
pressed while it is being
handled, e.g. by a child.
WARNING
To put metal insert A back in the
grip, press device D, put back the
metal insert then release device D. Key with remote control fig. 3
A – retractable metal insert
B – door release button
C – door lock button (the roof light
switches off at the same time)
D – metal insert opening device.
The metal insert A operates:
– the ignition switch
– door opening/closing.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 8

9
The main functions that can be activated with the keys provided are the following:
Type of key Door unlocking Door locking
Key without remote control Anticlockwise rotation Clockwise rotation
Key with remote controlAnticlockwise rotation Clockwise rotationPress button B Press button C
Flashing the direction
indicators 2 flashes 1 flash
REQUEST FOR ADDITIONAL REMOTE CONTROLS
The receiver can recognise up to 8 remote controls.
Therefore, should it become necessary to acquire a new remote control for any reason during the life of the vehicle,
contact a Fiat Dealership directly, taking all the keys in your possession and the CODE card with you to the Dealership.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 9

10
DUPLICATING KEYS
Customers who require additional
keys must contact a Fiat Dealership,
taking all available keys and CODE
card with them to the Dealership.
The Fiat Dealership will store (up to
a maximum of 8 keys) all keys, both
new and already owned, in the
system.
The Fiat Dealership may require the
Customer to demonstrate that they
are the owner of the vehicle.Codes
for the keys which are not
presented for the new storing
procedure are deleted from the
memory, to ensure that any keys
which may be mislaid cannot be used
to start the engine.– Take out battery compartment D
and replace battery E;
– Reinsert battery compartment D
into the key and lock it by turning
device C.
fig. 4
F0X0004m
All the keys and the
CODE card must be
handed over to the new
owner when the vehicle is sold.
Ministerial approval
In accordance with the legislation of
each country regarding radio
frequencies, note that:
– for markets where the transmitter
must be marked, the type approval
number is indicated in the key with
remote control.
REMOTE CONTROL
BATTERY REPLACEMENT –
fig. 4
To replace the battery, proceed as
follows:
– Press device A and open metal
insert B;
– Using a fine bit screwdriver, turn
locking device C;
Used batteries are
harmful to the
environment.
They must be disposed of in
special containers as specified
by law. Alternatively, they can
be taken to a Fiat Dealership,
who will dispose of them
correctly.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 10

11
STEERING LOCK
Engagement: with ignition at
STOP, or PARK, remove the key
and turn the steering wheel until it
locks.IGNITION
The key can be turned to 4 different
positions fig. 5:
– STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. car
radio, central door locking system,
electronic alarm, etc.) can
operate.
– MAR-ON: driving position. All
electric devices can operate.
– AVV: engine starting.
– PARK: engine off, parking lights
on, key can be removed, steering
column locked.
To turn the key to PARK, press
button A.
PARKSTOPMARAVV
A
fig. 5
F0X0005m
If the ignition is
tampered with
(e.g. attempted theft),
have it checked by a Fiat
Dealership before driving
again.
WARNING
Never remove the key
while the vehicle is in
motion. The steering wheel
would automatically lock as
soon as it is turned. This also
applies to cases in which the
vehicle is towed.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 11

13
The presence and position of the instruments and indicators may vary according to the version.
F0X0007mfig. 7
Adventure version fig. 7
1. Adjustable side air diffusers – 2. Left external light control stalk – 3. Horn – 4. Instrument panel – 5. Right stalk
(windscreen wiper-washer and trip computer) – 6. Adjustable central air diffusers – 7. Control buttons – 8. Compass
9. Roll meter – 10. Pitch meter 11. Car radio (or car radio set-up) – 12. Hazard warning lights switch – 13. Passenger
airbag or upper compartment (for versions/markets, where provided) – 14. Glove compartment – 15. Storage
compartment – 16. Climate control / ventilation controls – 17. Ignition switch - 18. Driver front airbag – 19. Bonnet
release lever – 20. Fuse cover on dashboard 21. Headlight alignment corrector, E-Locker (where provided) and controls.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 13

16
PERSONAL
ADJUSTMENTS
SEATS Lengthwise adjustment
Raise the lever A-fig. 10 and push
the seat forwards or backwards: in
driving position your arms should be
slightly bent and your hands should
rest on the rim of the steering
wheel.
After releasing the adjustment lever
always check that the seat is locked
into place by trying to move it back
and forth. Failure to lock the seat
could cause it to move and detach
from the guides.
All adjustments must be
made only with the
vehicle stationary.
WARNING
Do not remove the
seats or attempt to
service and/or repair them:
operations which are carried
out incorrectly may
compromise the operation of
the safety devices; always
contact a Fiat Dealership.
WARNING
fig. 10
F0X0010m
fig. 11
F0X0011m
Reclining backrest adjustment
Turn knob B-fig. 11 until the desired
backrest inclination is achieved.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 16

17
HEADRESTS fig. 14
Front
To increase passenger safety, the
headrests are height-adjustable and
lock in the desired position
automatically. Manual height adjustment
(for versions/markets, where
provided)
To adjust, operate lever A fig. 12.
Access to rear seats
(Crew Cab version)
To access the rear seats, pull handle
A-fig. 13 upwards: the
backrest will fold forwards and the
seat will slide forwards when you
push the backrest.
fig. 12
F0X0012m
fig. 13
F0X0013m
fig. 14
F0X0014m
For versions/markets where
provided, when the backrest is
brought back again, the seat will
return to its original position
(mechanical memory).
Headrests must be
adjusted so that the
head, rather than the neck,
rests on them. Only in this
position do they exert their
protective action in the event
of a collision.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 17

18
INTERIOR REAR VIEW
MIRROR fig. 17
This is adjustable. Move lever A for:
1) normal position
2) anti-glare position.
It also features a safety device which
causes it to detach in the event of
impact.
It can be adjusted vertically:
1) Move lever A to position 1.
2) Adjust the steering wheel.
3) Return the lever to position 2 to
lock the steering wheel again. STEERING WHEEL fig. 16
fig. 17
F0X0017m
fig. 16
F0X0016m
fig. 15
F0X0015m
Rear
(Crew Cab version)
Height-adjustable headrests are
provided for the rear seats. Some
versions feature a third central
headrest which can be adjusted to 2
height positions only: completely
raised / completely lowered.
To remove the headrests, operate
the retaining devices A-fig. 15 then
slide them upwards.
Adjustment must only
be carried out with
vehicle stationary.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 18

20
FRONT SEAT BELT HEIGHT
ADJUSTMENT
Always adjust the height of the seat
belt to the body of the passenger.
This precaution may considerably
reduce the risk of injury in the event
of a collision.
Correct adjustment is obtained
when the belt passes approximately
half way between the shoulder and
the neck.
According to the version, there may
be as many as 5 height adjustment
positions fig. 22:
To raise: lift the ring B to the
desired position.
The height of the seat
belts must be adjusted
with the vehicle stationary.
WARNING
SEAT BELTS
HOW TO USE THE
SEAT BELTS fig. 21
To fasten the seat belts, hold the
tongue A and insert it into the
buckle B, until it clicks into place.
Pull the belt lightly. If the seat belt
jams, let it rewind for a short
stretch, then pull it out again
without jerking.
fig. 21
F0X0022m
To unfasten the seat belt, press
button C. Guide the seat belt while
it is rewinding, to prevent it from
twisting. Through the reel, the belt
automatically adapts to the body of
the passenger wearing it, allowing
freedom of movement.
The reel may lock when the vehicle
is parked on a steep slope: this is
normal.
Furthermore, the reel mechanism
locks the belt if it is pulled sharply or
in the event of sudden braking,
collisions and high-speed bends.
For maximum
protection, keep the
backrest upright, lean back
into it and make sure that the
seat belt fits closely across the
chest and pelvis.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 20

21

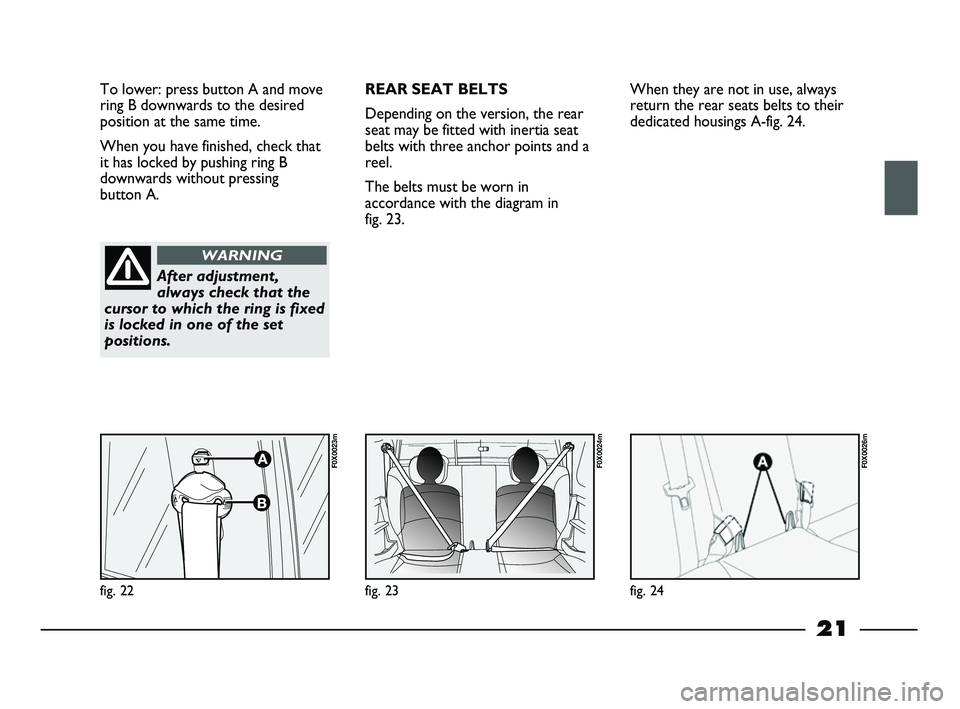

To lower: press button A and move
ring B downwards to the desired
position at the same time.
When you have finished, check that
it has locked by pushing ring B
downwards without pressing
button A.
fig. 22
F0X0023m
fig. 23
F0X0024m
After adjustment,
always check that the
cursor to which the ring is fixed
is locked in one of the set
positions.
WARNING
REAR SEAT BELTS
Depending on the version, the rear
seat may be fitted with inertia seat
belts with three anchor points and a
reel.
The belts must be worn in
accordance with the diagram in
fig. 23.
fig. 24
F0X0026m
When they are not in use, always
return the rear seats belts to their
dedicated housings A-fig. 24.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 21
