139

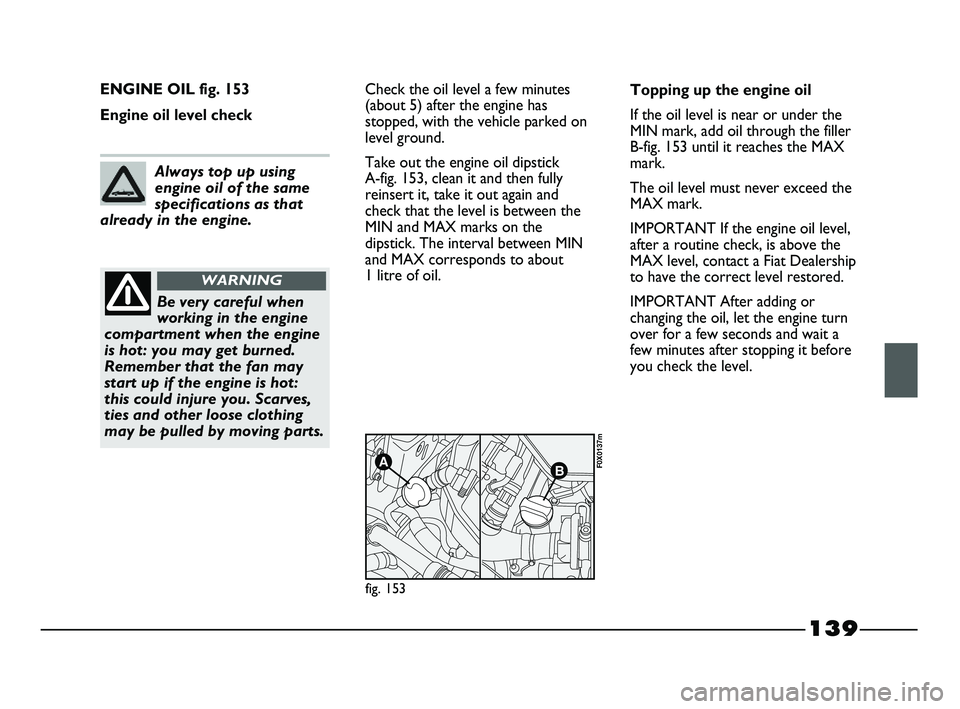

ENGINE OIL fig. 153
Engine oil level checkCheck the oil level a few minutes
(about 5) after the engine has
stopped, with the vehicle parked on
level ground.
Take out the engine oil dipstick
A-fig. 153, clean it and then fully
reinsert it, take it out again and
check that the level is between the
MIN and MAX marks on the
dipstick. The interval between MIN
and MAX corresponds to about
1 litre of oil.
AB
fig. 153
F0X0137m
Always top up using
engine oil of the same
specifications as that
already in the engine.
Be very careful when
working in the engine
compartment when the engine
is hot: you may get burned.
Remember that the fan may
start up if the engine is hot:
this could injure you. Scarves,
ties and other loose clothing
may be pulled by moving parts.
WARNING
Topping up the engine oil
If the oil level is near or under the
MIN mark, add oil through the filler
B-fig. 153 until it reaches the MAX
mark.
The oil level must never exceed the
MAX mark.
IMPORTANT If the engine oil level,
after a routine check, is above the
MAX level, contact a Fiat Dealership
to have the correct level restored.
IMPORTANT After adding or
changing the oil, let the engine turn
over for a few seconds and wait a
few minutes after stopping it before
you check the level.
