fog light FIAT STRADA 2014 Owner handbook (in English)

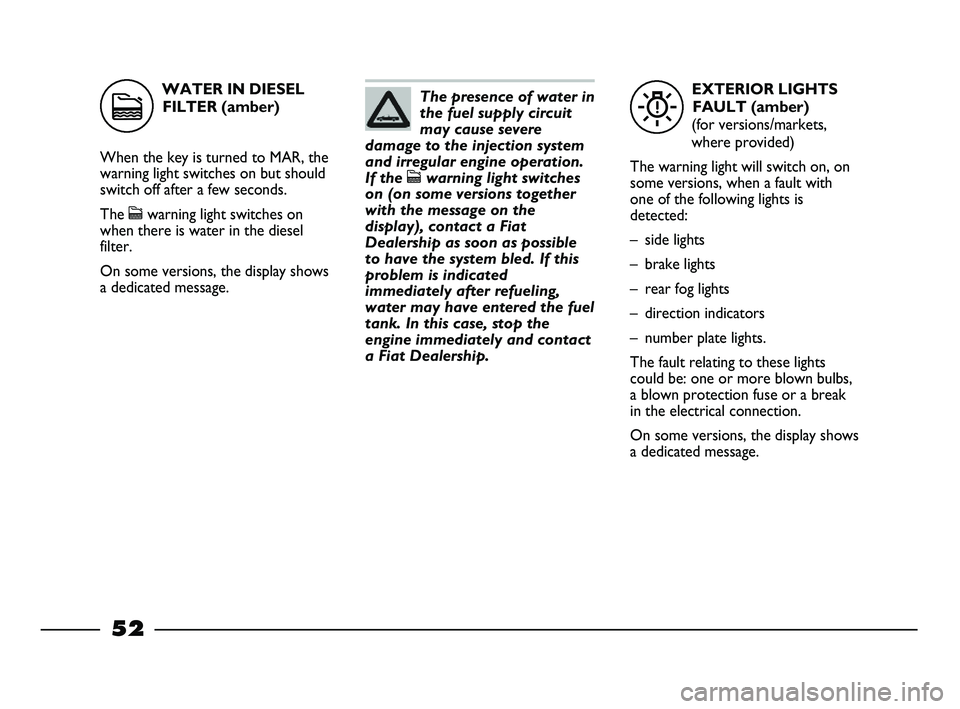

EXTERIOR LIGHTS
FAULT (amber)
(for versions/markets,
where provided)
The warning light will switch on, on
some versions, when a fault with
one of the following lights is
detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights.
The fault relating to these lights
could be: one or more blown bulbs,
a blown protection fuse or a break
in the electrical connection.
On some versions, the display shows
a dedicated message.The presence of water in
the fuel supply circuit
may cause severe
damage to the injection system
and irregular engine operation.
If the
cwarning light switches
on (on some versions together
with the message on the
display), contact a Fiat
Dealership as soon as possible
to have the system bled. If this
problem is indicated
immediately after refueling,
water may have entered the fuel
tank. In this case, stop the
engine immediately and contact
a Fiat Dealership.
W
WATER IN DIESEL
FILTER (amber)
When the key is turned to MAR, the
warning light switches on but should
switch off after a few seconds.
The cwarning light switches on
when there is water in the diesel
filter.
On some versions, the display shows
a dedicated message.
c
52
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 52

E-LOCKER SYSTEM
(Front differential
locking)
(for versions/markets,
where provided)
The warning light switches on (on
some versions together with a
dedicated message on the display) as
follows:
– flashing when the system is
activated;
– flashing more rapidly to indicate
that the speed of the vehicle is
approaching 20 km/h;
– constantly if there is a fault with
the system.RIGHT DIRECTION
INDICATOR
(green - intermittent)
The warning light switches on when
the direction indicator control stalk
is moved upwards or, together with
the left indicator, when the hazard
warning light button is pressed.
LEFT DIRECTION
INDICATOR
(green - intermittent)
The warning light switches on when
the direction indicator control stalk
is moved downwards or, together
with the right indicator, when the
hazard warning light button is
pressed.

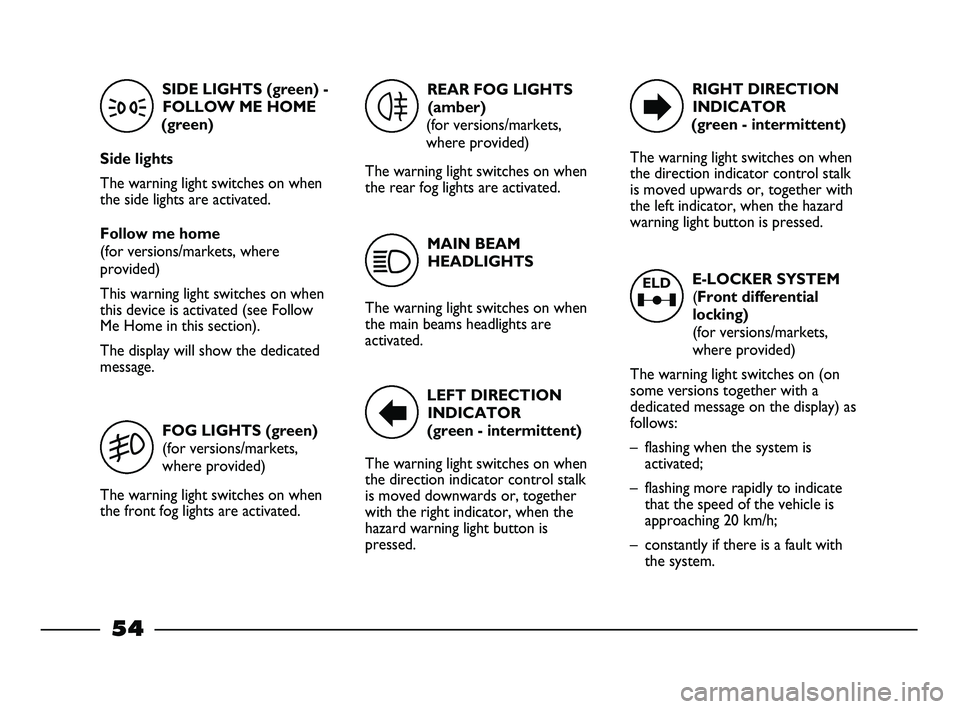

ELD
SIDE LIGHTS (green) -
FOLLOW ME HOME
(green)
Side lights
The warning light switches on when
the side lights are activated.
Follow me home
(for versions/markets, where
provided)
This warning light switches on when
this device is activated (see Follow
Me Home in this section).
The display will show the dedicated
message.
FOG LIGHTS (green)
(for versions/markets,
where provided)
The warning light switches on when
the front fog lights are activated.REAR FOG LIGHTS
(amber)
(for versions/markets,
where provided)
The warning light switches on when
the rear fog lights are activated.
3
5
4
MAIN BEAM
HEADLIGHTS
The warning light switches on when
the main beams headlights are
activated.
1
54
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 54

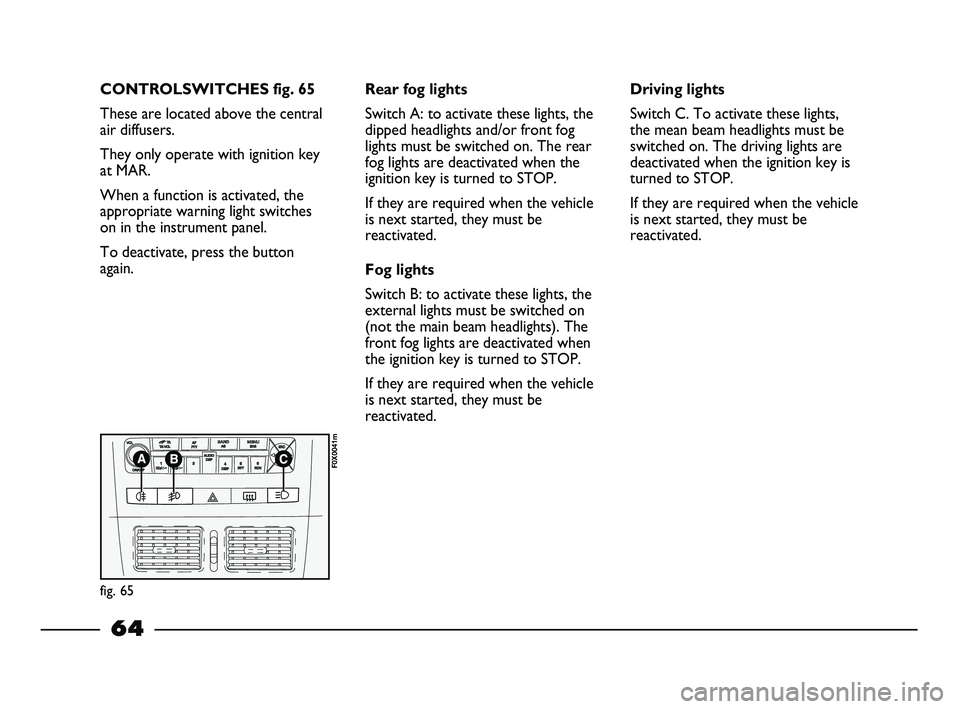

CONTROLSWITCHES fig. 65
These are located above the central
air diffusers.
They only operate with ignition key
at MAR.
When a function is activated, the
appropriate warning light switches
on in the instrument panel.
To deactivate, press the button
again.
(
r
fig. 65
F0X0041m
Rear fog lights
Switch A: to activate these lights, the
dipped headlights and/or front fog
lights must be switched on. The rear
fog lights are deactivated when the
ignition key is turned to STOP.
If they are required when the vehicle
is next started, they must be
reactivated.
Fog lights
Switch B: to activate these lights, the
external lights must be switched on
(not the main beam headlights). The
front fog lights are deactivated when
the ignition key is turned to STOP.
If they are required when the vehicle
is next started, they must be
reactivated.Driving lights
Switch C. To activate these lights,
the mean beam headlights must be
switched on. The driving lights are
deactivated when the ignition key is
turned to STOP.
If they are required when the vehicle
is next started, they must be
reactivated.
64
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 64

114
fig. 119
F0X0100mD
E
D
E
A
B
B
E
B
B
B
A
C
C
C
C
EH4
H1
H4
H1
W5W
PY21W
PY21W
H1
P21/5W
P21/5W
P21W
C5W
C10W
C10W-W5W
C10W
C5W
H160W
55W
55W
55W
5W
21W
21W
55W
21W
5W/21W
21W
5W
10W
C10W-5W
10W
5W
55W
Bulbs fig. 119 Type Power
Main beam:
Headlights with single lens
Main beam:
Polyelliptical headlights
Dipped:
Headlights with single lens
Main beam:
Polyelliptical headlights
Front side lights
Front indicators
Rear indicators
Fog lights
Rear fog lights
Rear side / brake lights
Reverse
Number plate
Front roof light:
with tilting lens
Front roof light:
with spot light
Rear roof light (
for versions/markets, where provided)
Glove compartment
Driving lights
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 114

117
FRONT SIDE LIGHTS
To change the bulbs of the side
lights, proceed as follows:
Single-lens headlights
– remove the bulb holder assembly
A-fig. 127, turning it anticlockwise;
– remove the bulb from the bulb
holder;
– insert the new bulb then refit the
bulb holder assembly.Polyelliptical headlights
– remove cover B-fig. 123, turning it
anticlockwise;
– remove bulb holder assembly
A-fig. 128;
– remove the bulb from the bulb
holder;
– insert the new bulb, reinsert the
bulb holder assembly then close
the cover, rotating it clockwise.FRONT FOG LIGHTS
To replace the front fog light bulbs,
contact a Fiat Dealership.
SIDE INDICATORS
These are located in the door
mirrors fig. 129 and are LED type.
In the event of a failure, contact a
Fiat Dealership.
fig. 129
F0X0110m
fig. 127
F0X0108m
fig. 128
F0X0109m
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 117

119
fig. 135
F0X0115m
fig. 136
F0X0116m
fig. 137
F0X0117m

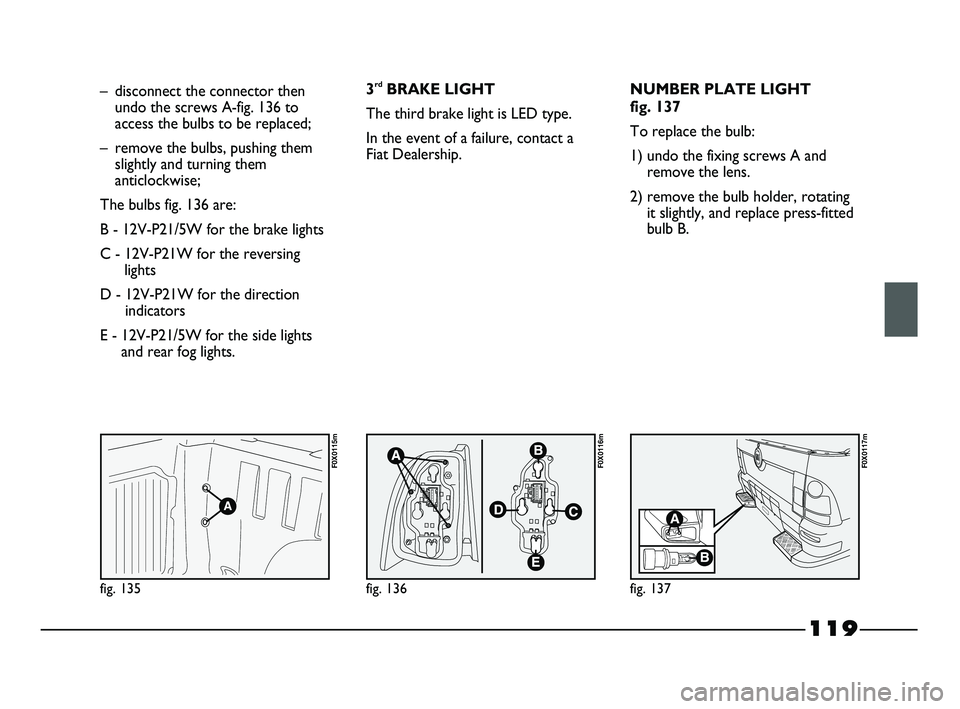

– disconnect the connector then
undo the screws A-fig. 136 to
access the bulbs to be replaced;
– remove the bulbs, pushing them
slightly and turning them
anticlockwise;
The bulbs fig. 136 are:
B - 12V-P21/5W for the brake lights
C - 12V-P21W for the reversing
lights
D - 12V-P21W for the direction
indicators
E - 12V-P21/5W for the side lights
and rear fog lights.3rdBRAKE LIGHT
The third brake light is LED type.
In the event of a failure, contact a
Fiat Dealership.NUMBER PLATE LIGHT
fig. 137
To replace the bulb:
1) undo the fixing screws A and
remove the lens.
2) remove the bulb holder, rotating
it slightly, and replace press-fitted
bulb B.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 119

126

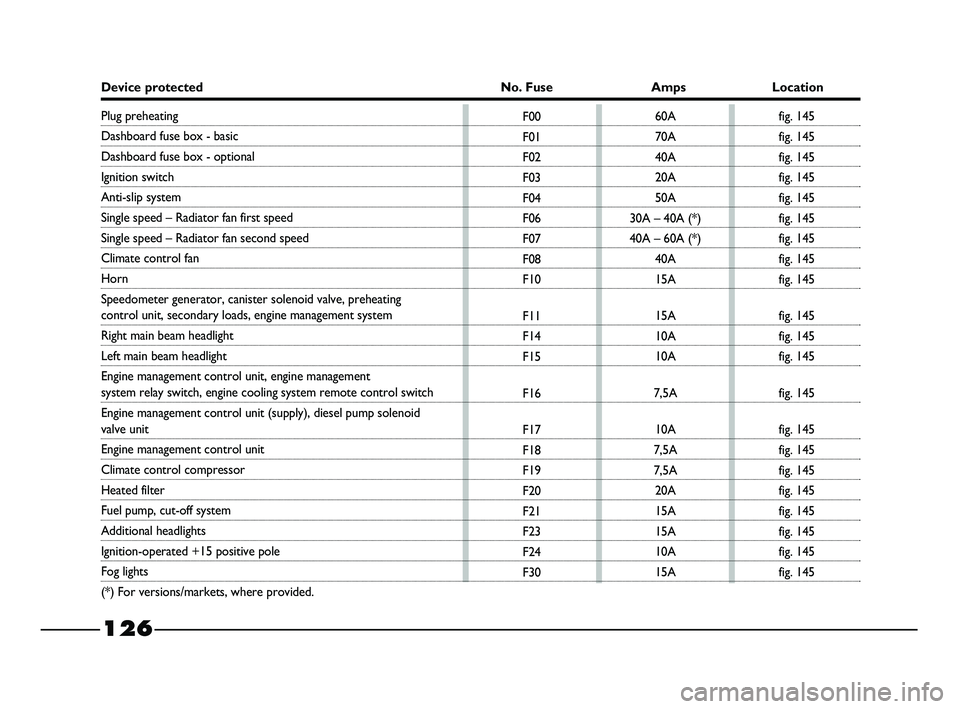

Device protected No. Fuse Amps Location
F00
F01
F02
F03
F04
F06
F07
F08
F10
F11
F14
F15
F16
F17
F18
F19
F20
F21
F23
F24
F3060A
70A
40A
20A
50A
30A – 40A (*)
40A – 60A (*)
40A
15A
15A
10A
10A
7,5A
10A
7,5A
7,5A
20A
15A
15A
10A
15A
Plug preheating
Dashboard fuse box - basic
Dashboard fuse box - optional
Ignition switch
Anti-slip system
Single speed – Radiator fan first speed
Single speed – Radiator fan second speed
Climate control fan
Horn
Speedometer generator, canister solenoid valve, preheating
control unit, secondary loads, engine management system
Right main beam headlight
Left main beam headlight
Engine management control unit, engine management
system relay switch, engine cooling system remote control switch
Engine management control unit (supply), diesel pump solenoid
valve unit
Engine management control unit
Climate control compressor
Heated filter
Fuel pump, cut-off system
Additional headlights
Ignition-operated +15 positive pole
Fog lights
(*) For versions/markets, where provided.fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 126

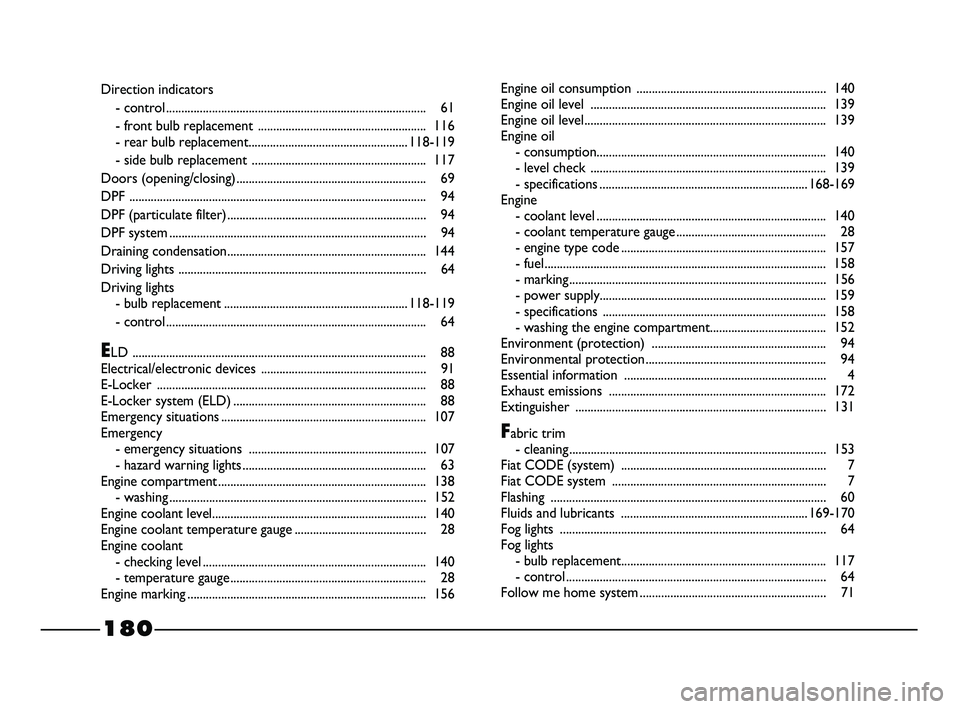

Direction indicators
- control ..................................................................................... 61
- front bulb replacement ....................................................... 116
- rear bulb replacement....................................................118-119
- side bulb replacement ......................................................... 117
Doors (opening/closing).............................................................. 69
DPF ................................................................................................. 94
DPF (particulate filter)................................................................. 94
DPF system ....................................................................................94
Draining condensation................................................................. 144
Driving lights .................................................................................64
Driving lights
- bulb replacement............................................................118-119
- control ..................................................................................... 64
ELD ................................................................................................ 88
Electrical/electronic devices ......................................................91
E-Locker ........................................................................................ 88
E-Locker system (ELD)............................................................... 88
Emergency situations................................................................... 107
Emergency
- emergency situations ..........................................................107
- hazard warning lights ............................................................ 63
Engine compartment.................................................................... 138
- washing ....................................................................................152
Engine coolant level......................................................................140
Engine coolant temperature gauge ........................................... 28
Engine coolant
- checking level......................................................................... 140
- temperature gauge ................................................................ 28
Engine marking.............................................................................. 156Engine oil consumption ..............................................................140
Engine oil level ............................................................................. 139
Engine oil level............................................................................... 139
Engine oil
- consumption........................................................................... 140
- level check ............................................................................. 139
- specifications....................................................................168-169
Engine
- coolant level........................................................................... 140
- coolant temperature gauge ................................................. 28
- engine type code ................................................................... 157
- fuel............................................................................................ 158
- marking....................................................................................156
- power supply.......................................................................... 159
- specifications ......................................................................... 158
- washing the engine compartment...................................... 152
Environment (protection) ......................................................... 94
Environmental protection........................................................... 94
Essential information .................................................................. 4
Exhaust emissions ....................................................................... 172
Extinguisher ..................................................................................131
Fabric trim
- cleaning ....................................................................................153
Fiat CODE (system) ................................................................... 7
Fiat CODE system ...................................................................... 7
Flashing .......................................................................................... 60
Fluids and lubricants .............................................................169-170
Fog lights ....................................................................................... 64
Fog lights
- bulb replacement................................................................... 117
- control ..................................................................................... 64
Follow me home system .............................................................71
180
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 180

Left stalk ........................................................................\
................. 62
- follow me home.................................................................... 61
Load (ad vice) ........................................................................\
.. 100-101
Load compartment cover .......................................................... 74
Load compartment cover canvas.............................................. 74
Load compart ment....................................................................... 72
Load limiter s ......................................................................\
........... 26
Loading ad vice ........................................................................\
100-101
Lubricant specific ations ........................................................ 169-170
Lubricants (specific ations) ................................................... 169-170
Main beam headlights ............................................................... 60
- bulb replace ment ................................................................. 115
- contro l ......................................................................\
............. 60
- flashing .......................................................................\
............. 60
Main beam headlights - bulb replace ment ................................................................. 115
- contro l ........................................................................\
............. 60
- flas hing ........................................................................\
............. 60
Maintenance - heavy-dut y use....................................................................... 137
- periodic checks...................................................................... 137
- scheduled se rvicing plan ...................................................... 134
- schedul ed servicing ............................................................... 133
Manual climate control - contro ls .......................................................................\
........... 58
- maintena nce ........................................................................\
.. 150
Milometer .......................................................................\
.............. 43
Mobile pho nes ........................................................................\
....... 92
Multifunction di splay.................................................................... 32
- control buttons .................................................................... 32
- set-up me nu .....................................................................\
..... 34
Nozzles........................................................................\
................. 150
Number plate lights...................................................................... 119
On-board inst ruments............................................................... 27
Opening door s ......................................................................\
....... 69
Opening the bonnet .................................................................... 75-76
Opening windows - elect ric........................................................................\
............. 70
- manua l ........................................................................\
............. 70
Original pa rts........................................................................\
......... 1-2
Paint identific ation plate ............................................................ 156
Paintwork - advice for pr eservation ........................................................ 151
- identificati on plate................................................................. 156
Parking .......................................................................\
.................... 98
Parking ........................................................................\
.................... 98
Performance s........................................................................\
......... 164
Periodic che cks ........................................................................\
.... 137
Personal adju stments ................................................................... 16
Plastic trim - clea ning ........................................................................\
............ 154
Pollen fil ter .......................................................................\
............. 143
Power assisted steering fluid level ............................................ 142
Power s upply ........................................................................\
........ 159
Prescriptions for vehicle at end of life .................................... 173
Pretension ers ........................................................................\
........ 25
- load limi ters........................................................................\
.... 26
Protective grille ........................................................................\
.... 77
Punctured t yre ........................................................................\
..... 108
- changing a wheel ............................................ 109-110-111-112
Radio (system set-up) ............................................................... 90
- speaker s ......................................................................\
........... 90
Radio trans mitters........................................................................\
92
Rear fog lamps........................................................................\
....... 64
182

155-184 STRADA LUM GB 1ed 27-01-2012 10:06 Pagina 182

Rear fog lights
- bulb replacement............................................................118-119
- control ..................................................................................... 64
Rear roof light
- bulb replacement ................................................................. 121
- control ..................................................................................... 67
Rear roof light
- bulb replacement ................................................................. 121
- control ..................................................................................... 67
Rear view mirrors
- door mirrors ..........................................................................19
- interior .................................................................................... 18
Refuelling........................................................................................ 92
- filling the tank......................................................................... 93
- fuel cap .................................................................................... 93
- saving....................................................................................... 102
Remote control battery (replacement) ................................... 10
Remote control ............................................................................ 8
- additional................................................................................. 9
- ministerial approval............................................................... 10
- replacing the battery ............................................................ 10
Rev counter .................................................................................. 29
Reversing lights
- bulb replacement............................................................118-119
Right stalk ....................................................................................... 60
Rim Protector (tyres) ................................................................. 162
Rims
- correct reading ..................................................................... 163
- specifications ......................................................................... 163
Roll and pitch meters
- pitch meter............................................................................. 30
- recalibrating the instruments ............................................ 31
- roll meter................................................................................30
Rubber tubes................................................................................. 148Scrappage ................................................................................. 171
Scrapping the vehicle................................................................... 173
Seat belts .......................................................................................20
- front ........................................................................................ 20
- general instructions .............................................................. 22
- height adjustment ................................................................. 20
- maintenance .......................................................................... 24
- rear ......................................................................................... 21
Seats
- adjusting ..................................................................................16-17
- cleaning ....................................................................................153
Set-up menu................................................................................... 34
Side lights
- control ..................................................................................... 61
- front bulb replacement ....................................................... 117
- rear bulb replacement..........................................................118
Snow chains .................................................................................. 104
Socket ............................................................................................. 67
Speed ratings (tyres) ................................................................... 162
Speedometer................................................................................. 27
Starting the engine ......................................................................95-96
- bump starting ........................................................................ 108
- ignition switch ....................................................................... 11
- jump starting ......................................................................... 107
Steering lock ................................................................................. 11
Steering wheel ...............................................................................18
Steering........................................................................................... 160
Sun visors ...................................................................................... 68
Sun visors ....................................................................................... 68
Sunroof........................................................................................... 71
Suspension...................................................................................... 160
Symbols........................................................................................... 7
183
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 183
