16
PERSONAL
ADJUSTMENTS
SEATS Lengthwise adjustment
Raise the lever A-fig. 10 and push
the seat forwards or backwards: in
driving position your arms should be
slightly bent and your hands should
rest on the rim of the steering
wheel.
After releasing the adjustment lever
always check that the seat is locked
into place by trying to move it back
and forth. Failure to lock the seat
could cause it to move and detach
from the guides.
All adjustments must be
made only with the
vehicle stationary.
WARNING
Do not remove the
seats or attempt to
service and/or repair them:
operations which are carried
out incorrectly may
compromise the operation of
the safety devices; always
contact a Fiat Dealership.
WARNING
fig. 10
F0X0010m
fig. 11
F0X0011m
Reclining backrest adjustment
Turn knob B-fig. 11 until the desired
backrest inclination is achieved.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 16

18
INTERIOR REAR VIEW
MIRROR fig. 17
This is adjustable. Move lever A for:
1) normal position
2) anti-glare position.
It also features a safety device which
causes it to detach in the event of
impact.
It can be adjusted vertically:
1) Move lever A to position 1.
2) Adjust the steering wheel.
3) Return the lever to position 2 to
lock the steering wheel again. STEERING WHEEL fig. 16
fig. 17
F0X0017m
fig. 16
F0X0016m
fig. 15
F0X0015m
Rear
(Crew Cab version)
Height-adjustable headrests are
provided for the rear seats. Some
versions feature a third central
headrest which can be adjusted to 2
height positions only: completely
raised / completely lowered.
To remove the headrests, operate
the retaining devices A-fig. 15 then
slide them upwards.
Adjustment must only
be carried out with
vehicle stationary.
WARNING
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 18

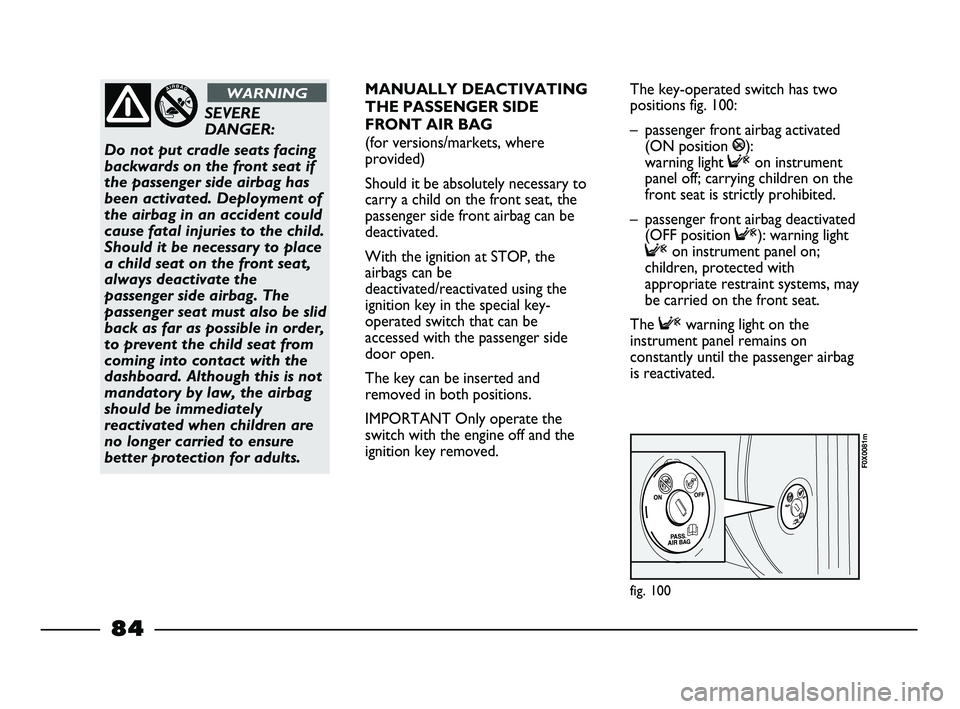

fig. 100
F0X0081m
SEVERE
DANGER:
Do not put cradle seats facing
backwards on the front seat if
the passenger side airbag has
been activated. Deployment of
the airbag in an accident could
cause fatal injuries to the child.
Should it be necessary to place
a child seat on the front seat,
always deactivate the
passenger side airbag. The
passenger seat must also be slid
back as far as possible in order,
to prevent the child seat from
coming into contact with the
dashboard. Although this is not
mandatory by law, the airbag
should be immediately
reactivated when children are
no longer carried to ensure
better protection for adults.
WARNINGMANUALLY DEACTIVATING
THE PASSENGER SIDE
FRONT AIR BAG
(for versions/markets, where
provided)
Should it be absolutely necessary to
carry a child on the front seat, the
passenger side front airbag can be
deactivated.
With the ignition at STOP, the
airbags can be
deactivated/reactivated using the
ignition key in the special key-
operated switch that can be
accessed with the passenger side
door open.
The key can be inserted and
removed in both positions.
IMPORTANT Only operate the
switch with the engine off and the
ignition key removed.The key-operated switch has two
positions fig. 100:
– passenger front airbag activated
(ON position
P):
warning light
Fon instrument
panel off; carrying children on the
front seat is strictly prohibited.
– passenger front airbag deactivated
(OFF position
F): warning light
Fon instrument panel on;
children, protected with
appropriate restraint systems, may
be carried on the front seat.
The
Fwarning light on the
instrument panel remains on
constantly until the passenger airbag
is reactivated.
84
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 84

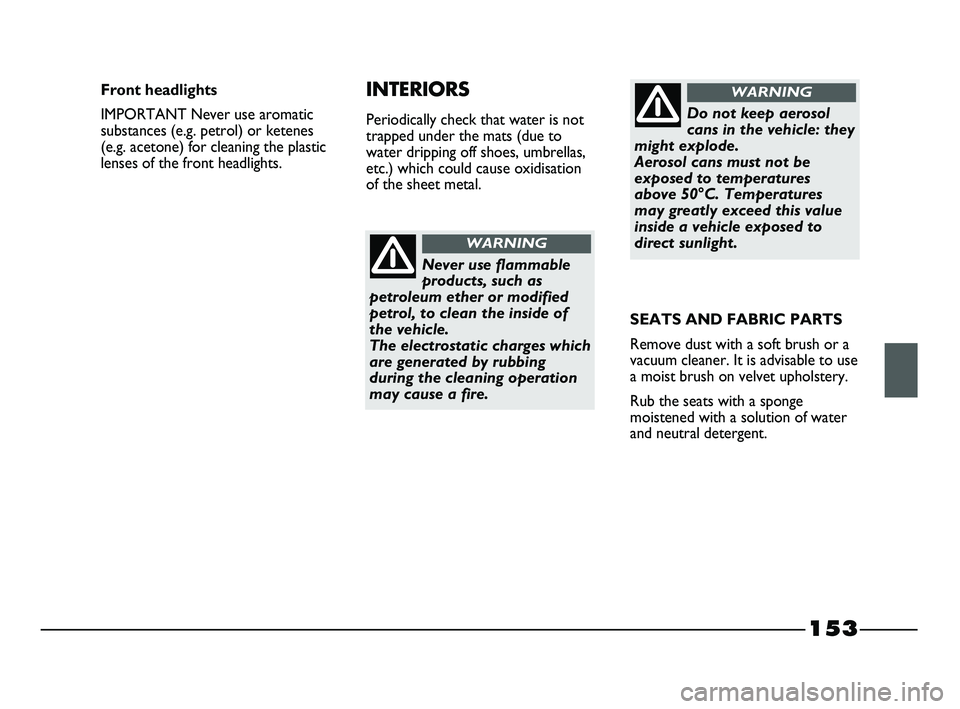

153
Never use flammable
products, such as
petroleum ether or modified
petrol, to clean the inside of
the vehicle.
The electrostatic charges which
are generated by rubbing
during the cleaning operation
may cause a fire.
WARNING
Do not keep aerosol
cans in the vehicle: they
might explode.
Aerosol cans must not be
exposed to temperatures
above 50°C. Temperatures
may greatly exceed this value
inside a vehicle exposed to
direct sunlight.
WARNINGFront headlights
IMPORTANT Never use aromatic
substances (e.g. petrol) or ketenes
(e.g. acetone) for cleaning the plastic
lenses of the front headlights.INTERIORS
Periodically check that water is not
trapped under the mats (due to
water dripping off shoes, umbrellas,
etc.) which could cause oxidisation
of the sheet metal.
SEATS AND FABRIC PARTS
Remove dust with a soft brush or a
vacuum cleaner. It is advisable to use
a moist brush on velvet upholstery.
Rub the seats with a sponge
moistened with a solution of water
and neutral detergent.
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 153
