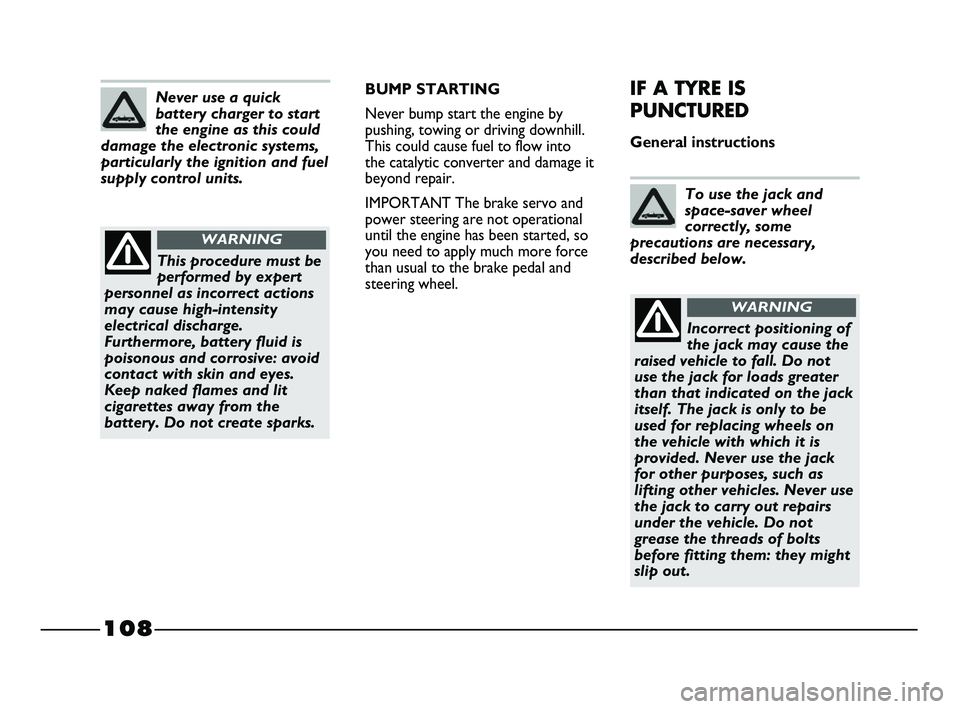

BUMP STARTING
Never bump start the engine by
pushing, towing or driving downhill.
This could cause fuel to flow into
the catalytic converter and damage it
beyond repair.
IMPORTANT The brake servo and
power steering are not operational
until the engine has been started, so
you need to apply much more force
than usual to the brake pedal and
steering wheel.IF A TYRE IS
PUNCTURED
General instructions
To use the jack and
space-saver wheel
correctly, some
precautions are necessary,
described below.
Never use a quick
battery charger to start
the engine as this could
damage the electronic systems,
particularly the ignition and fuel
supply control units.
Incorrect positioning of
the jack may cause the
raised vehicle to fall. Do not
use the jack for loads greater
than that indicated on the jack
itself. The jack is only to be
used for replacing wheels on
the vehicle with which it is
provided. Never use the jack
for other purposes, such as
lifting other vehicles. Never use
the jack to carry out repairs
under the vehicle. Do not
grease the threads of bolts
before fitting them: they might
slip out.
WARNING
This procedure must be
performed by expert
personnel as incorrect actions
may cause high-intensity
electrical discharge.
Furthermore, battery fluid is
poisonous and corrosive: avoid
contact with skin and eyes.
Keep naked flames and lit
cigarettes away from the
battery. Do not create sparks.
WARNING
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 108

138
CHECKING LEVELS
Never smoke while
working in the engine
compartment: inflammable
gases and vapours may be
present, constituting a fire risk.
WARNING
When topping up, take
care not to mix up the
various types of fluids:
they are not compatible with
each other and could seriously
damage the vehicle.

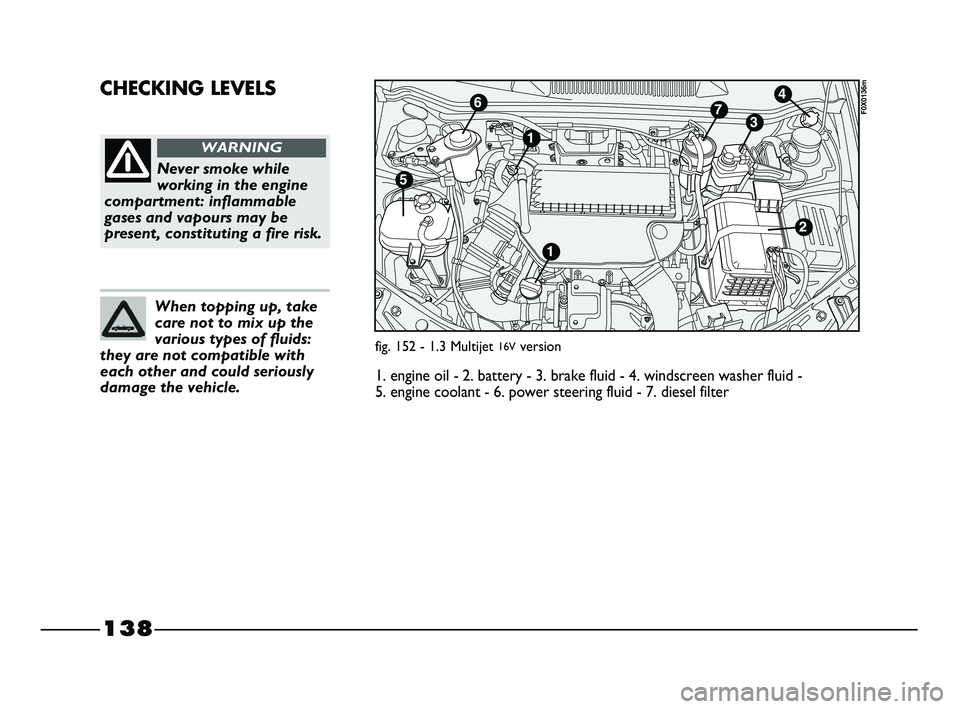

fig. 152 - 1.3 Multijet 16Vversion
F0X0136m
1. engine oil - 2. battery - 3. brake fluid - 4. windscreen washer fluid -
5. engine coolant - 6. power steering fluid - 7. diesel filter
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 138

142
POWER STEERING FLUID
fig. 156
Check that the oil level with the
vehicle on flat ground and the engine
cold is between the MIN and MAX
marks on the reservoir.
The level may exceed the MAX
mark when the oil is hot.
If topping up is required, make sure
the oil you use has the same
specifications as that already in the
system.BRAKE FLUID fig. 157
Unscrew the cap A-fig. 157 and
check that the liquid contained in the
reservoir is at the maximum level.
The fluid level in the reservoir must
not exceed the MAX mark.
You are advised to use the brake
fluid shown in the “Fluids and
lubricants” table (see section
“Technical Specifications”) to top up.
When opening the cap A, make sure
that no dirt gets into the reservoir.
For topping up, always use a funnel
with integrated filter with mesh
equal to or lower than 0.12 mm.
fig. 157
F0X0141m
fig. 156
F0X0140m
Power steering fluid
consumption is
extremely low; if
another top-up is required
afteronly a short period of time,
have the system checked for
leaks at a Fiat Dealership.
Prevent power steering
fluid from coming into
contact with hot engine parts:
it is flammable.
WARNING
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 142

148
Tyres age even if they are not used
much. Cracks in the tread and on
the sidewalls are a sign of ageing. In
any event, have the tyres checked by
specialised personnel if they have
been fitted for longer than 6 years,
so that they can determine whether
they can still be used. Remember to
check the spare wheel with
particular care.
Always fit new replacement tyres.
Do not use any of dubious origin.
The Fiat Strada uses tubeless tyres.
Do not use inner tubes with these
tyres.
If a tyre is changed, also change the
inflation valve.
To allow even wear between the
front and rear tyres, it is advisable to
change them over every 10-15
thousand kilometres, keeping them
on the same side of the vehicle so as
not to reverse the direction of
rotation.RUBBER HOSES
For the rubber hoses of the brake,
power steering and supply system,
follow the Scheduled Servicing Plan
precisely. Ozone, high temperatures
and prolonged lack of fluid in the
system may cause hardening and
cracking of the hoses, with possible
leaks. Careful checking is therefore
necessary.Do not switch tyres
from the right hand side
of the vehicle to the left hand
side, and vice versa.
WARNING
Do not re coat alloy
wheel rims at
temperatures above 150°C. The
mechanical characteristics of
the wheels could be
compromised.
WARNING
133-154 STRADA LUM GB 1ed 9-01-2012 14:53 Pagina 148

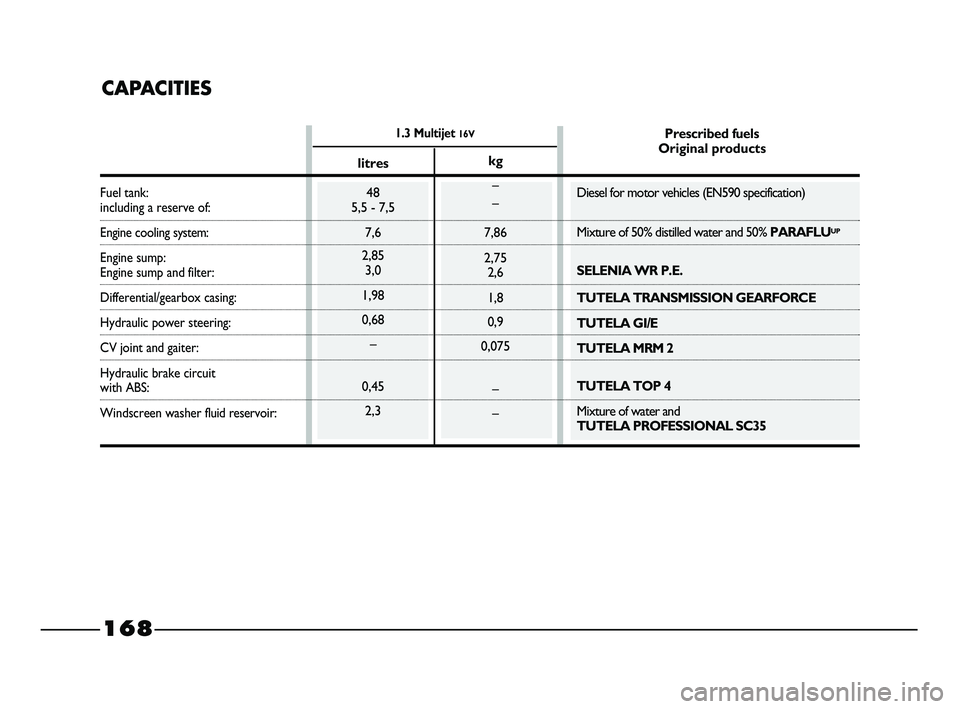

1.3 Multijet 16V
CAPACITIES
Fuel tank:including a reserve of:
Engine cooling system:
Engine sump:
Engine sump and filter:
Differential/gearbox casing:
Hydraulic power steering:
CV joint and gaiter:
Hydraulic brake circuit
with ABS:
Windscreen washer fluid reservoir:
litres
48
5,5 - 7,5
7,6
2,85
3,0
1,98
0,68
–
0,45
2,3Prescribed fuels
Original products
Diesel for motor vehicles (EN590 specification)
Mixture of 50% distilled water and 50% PARAFLU
UP
SELENIA WR P.E.
TUTELA TRANSMISSION GEARFORCE
TUTELA GI/E
TUTELA MRM 2
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC35 kg
–
–
7,86
2,75
2,6
1,8
0,9
0,075
–
–
168
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 168

170
Protective agent
for radiators
Windscreen
and rear window
washer fluid Brake fluidLubricants
and greases
for drive
transmission
FIAT 9.55530- MZ6classification.
SAE 75W grade synthetic lubricant.
FIAT 9.55550-MZ3classification.
SAE 75W-85 grade synthetic lubricant.
Molybdenum disulphide grease, for use at high
temperatures. Consistency NLGI 1-2.
FIAT 9.55580classification.
Grease for constant velocity joints with low friction
coefficient. Consistency NLGI 0-1.
FIAT 9.55580classification.
Automatic transmission lubricant.
Exceeds “ATF DEXRON III” specifications.
FIAT 9.55550-AG2classification.
Synthetic fluid for hydraulic and electrohydraulic systems.
FIAT 9.55550- AG3classification.
Synthetic fluid, NHTSA no. 116 DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01.
FIAT 9.55597classification.
Red protective agent with antifreeze action, based on
inhibited monoethyl glycol with organic formula. Exceeds
the CUNA NC 956-16, ASTM D 3306 specifications.
FIAT 9.555323classification.
Mixture of spirits and surfactants.
Exceeds CUNA NC 956-11 specifications.
FIAT 9.55522classification.Manual gearboxes
and differentials
Manual gearboxes
and differentials
Wheel side constant
velocity joints
Differential side
constant velocity joints
Hydraulic power
steering
Hydraulic power
steering
(for cold countries)
Hydraulic brakes and
hydraulic clutch controls
Percentage of use:
50% water
50% PARAFLU
UP(❑)
To be used undiluted
or diluted in
windscreen/washer/
wiper systems
TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference F002.F10
TUTELA CAR GEARTECH
Contractual Technical
Reference F704.C08
TUTELA ALL STAR
Contractual Technical
Reference F702.G07
TUTELA STAR 700
Contractual Technical
Reference F701.C07
TUTELA GI/E
Contractual Technical
Reference F001.C94
TUTELA GI/R
Contractual Technical
Reference F428.H04
TUTELA TOP 4
Contractual Technical
Reference F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference F101.M01
TUTELA
PROFESSIONAL SC35
Contractual Technical
Reference F201.D02 Use Fluid and lubricant specifications Original lubricants Applications
for correct vehicle operation and fluids
(●) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(❑) When the vehicle is used in particularly harsh climate conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 170

Left stalk ........................................................................\
................. 62
- follow me home.................................................................... 61
Load (ad vice) ........................................................................\
.. 100-101
Load compartment cover .......................................................... 74
Load compartment cover canvas.............................................. 74
Load compart ment....................................................................... 72
Load limiter s ......................................................................\
........... 26
Loading ad vice ........................................................................\
100-101
Lubricant specific ations ........................................................ 169-170
Lubricants (specific ations) ................................................... 169-170
Main beam headlights ............................................................... 60
- bulb replace ment ................................................................. 115
- contro l ......................................................................\
............. 60
- flashing .......................................................................\
............. 60
Main beam headlights - bulb replace ment ................................................................. 115
- contro l ........................................................................\
............. 60
- flas hing ........................................................................\
............. 60
Maintenance - heavy-dut y use....................................................................... 137
- periodic checks...................................................................... 137
- scheduled se rvicing plan ...................................................... 134
- schedul ed servicing ............................................................... 133
Manual climate control - contro ls .......................................................................\
........... 58
- maintena nce ........................................................................\
.. 150
Milometer .......................................................................\
.............. 43
Mobile pho nes ........................................................................\
....... 92
Multifunction di splay.................................................................... 32
- control buttons .................................................................... 32
- set-up me nu .....................................................................\
..... 34
Nozzles........................................................................\
................. 150
Number plate lights...................................................................... 119
On-board inst ruments............................................................... 27
Opening door s ......................................................................\
....... 69
Opening the bonnet .................................................................... 75-76
Opening windows - elect ric........................................................................\
............. 70
- manua l ........................................................................\
............. 70
Original pa rts........................................................................\
......... 1-2
Paint identific ation plate ............................................................ 156
Paintwork - advice for pr eservation ........................................................ 151
- identificati on plate................................................................. 156
Parking .......................................................................\
.................... 98
Parking ........................................................................\
.................... 98
Performance s........................................................................\
......... 164
Periodic che cks ........................................................................\
.... 137
Personal adju stments ................................................................... 16
Plastic trim - clea ning ........................................................................\
............ 154
Pollen fil ter .......................................................................\
............. 143
Power assisted steering fluid level ............................................ 142
Power s upply ........................................................................\
........ 159
Prescriptions for vehicle at end of life .................................... 173
Pretension ers ........................................................................\
........ 25
- load limi ters........................................................................\
.... 26
Protective grille ........................................................................\
.... 77
Punctured t yre ........................................................................\
..... 108
- changing a wheel ............................................ 109-110-111-112
Radio (system set-up) ............................................................... 90
- speaker s ......................................................................\
........... 90
Radio trans mitters........................................................................\
92
Rear fog lamps........................................................................\
....... 64
182

155-184 STRADA LUM GB 1ed 27-01-2012 10:06 Pagina 182
