technical data FIAT TALENTO 2016 2.G Owner's Manual

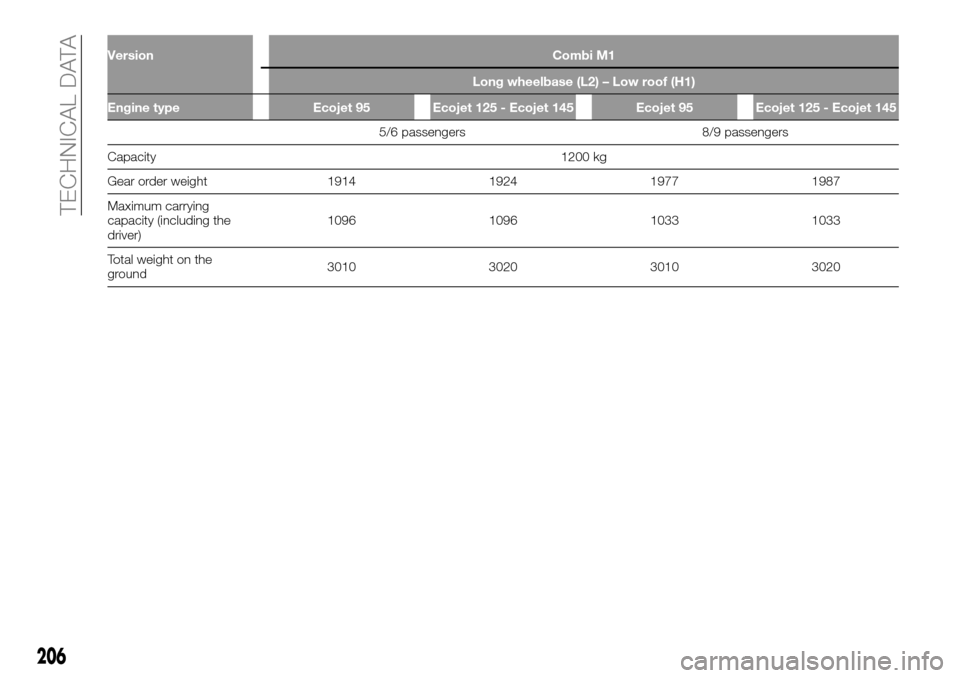

Version Combi M1
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers 8/9 passengers
Capacity 1200 kg
Gear order weight 1914 1924 1977 1987
Maximum carrying
capacity (including the
driver)1096 1096 1033 1033
Total weight on the
ground3010 3020 3010 3020
206
TECHNICAL DATA

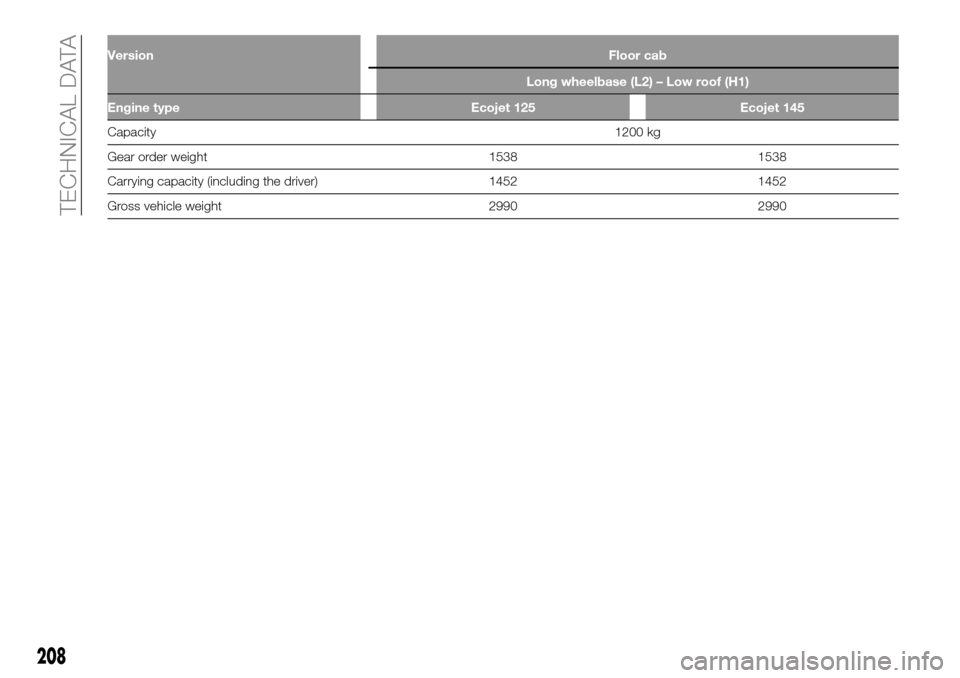

VersionFloor cab
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 125 Ecojet 145
Capacity1200 kg
Gear order weight 1538 1538
Carrying capacity (including the driver) 1452 1452
Gross vehicle weight 2990 2990
208
TECHNICAL DATA

Use Multijet 95 – Multijet
120 (Euro 6)Ecojet 95 – Ecojet 125 –
Ecojet 145 (Euro 6)Prescribed fuels and
original lubricants
Diesel engine lubricants (litres) 6.0 7.4SELENIA WR
FORWARD 5W-30
Contractual Technical
Reference No.
(F023.N15)
Protective agent for
radiators (litres)Without climate control
system8.3 9.5
PARAFLU UP
Contractual Technical
Reference No. F101.M01 With climate control
system9.9 11.0
Brake fluid (kg) 1.057TUTELA TOP 4S
Contractual Technical
Reference No. F001.A93
Lubricants and greases for drive transmission (litres) 2.7(TUTELA
TRANSMISSION
GEARSYNTH MT)
Contractual Technical
Reference No. F005.D16
210
TECHNICAL DATA
Hydraulic power steering (litres)1.13 (right hand drive versions)
1.21 (left hand drive versions)–

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluid
Clutch fluidSynthetic fluid for brake
and clutch systems
Exceeds specifications:
DOT 49.55597 or MS-90039TUTELA TOP 4S
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
Lubricants and greases
for drive transmission
Manual transmission PF6SAE 75W-80 API GL-4+
grade synthetic lubricant.9.55550-MZ12TUTELA
TRANSMISSION
GEARSYNTH MTManual mechanical
gearbox
Hydraulic power steering - - -
Protective agent for
radiatorsMixture of spirits and
surfactants. Exceeds
CUNA NC
956-16 specifications9.55523 or MS-90032PARAFLU
UP(1) (*) (**)
Contractual Technical
Reference No. F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP
Cooling gas for the air
conditioning system1. R134a 2. R1234yf - -
Oil compressor for the air
conditioning system1. Idemitsu ZXL100PG 2.
Idemitsu VC100YF--
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount, we recommend completely changing the coolant in the percentages given.
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU UP and 40% demineralised water.
212
TECHNICAL DATA

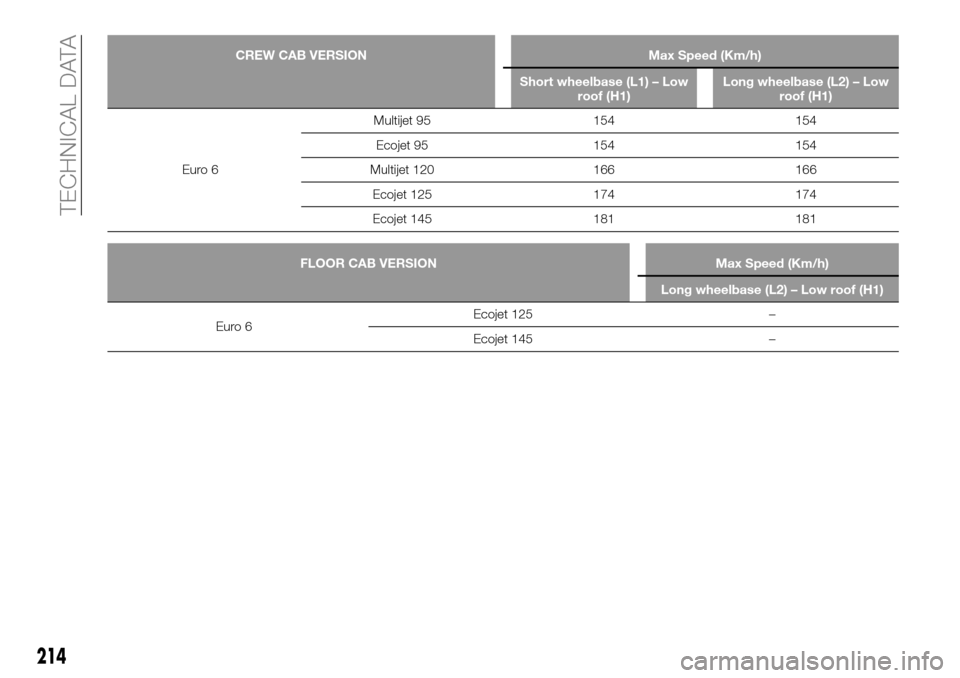

CREW CAB VERSION Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 154 154
Ecojet 95 154 154
Multijet 120 166 166
Ecojet 125 174 174
Ecojet 145 181 181
FLOOR CAB VERSION Max Speed (Km/h)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet 125 –
Ecojet 145 –
214
TECHNICAL DATA

CREW CAB VERSION Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 6.7 6.7
Ecojet 95 6.3 6.3
Multijet 120 6.7 6.7
Ecojet 125 6.1 6.1
Ecojet 145 6.3 6.3
FLOOR CAB VERSION Combined (l/100 km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet 125 7.0
Ecojet 145 6.9
216
TECHNICAL DATA

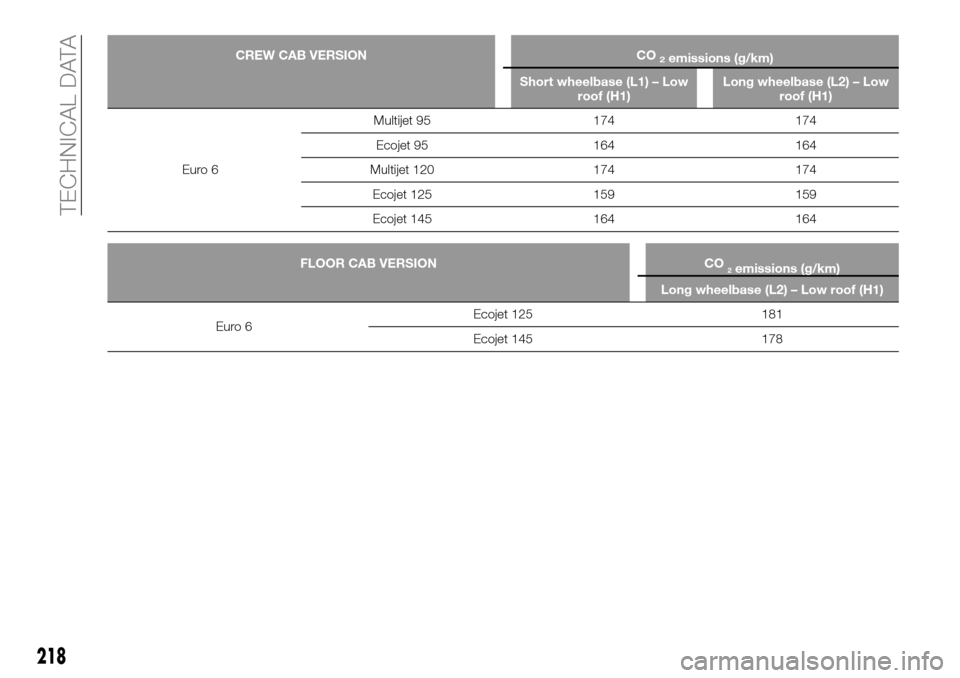

CREW CAB VERSION CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 174 174
Ecojet 95 164 164
Multijet 120 174 174
Ecojet 125 159 159
Ecojet 145 164 164
FLOOR CAB VERSION CO2emissions (g/km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet 125 181
Ecojet 145 178
218
TECHNICAL DATA

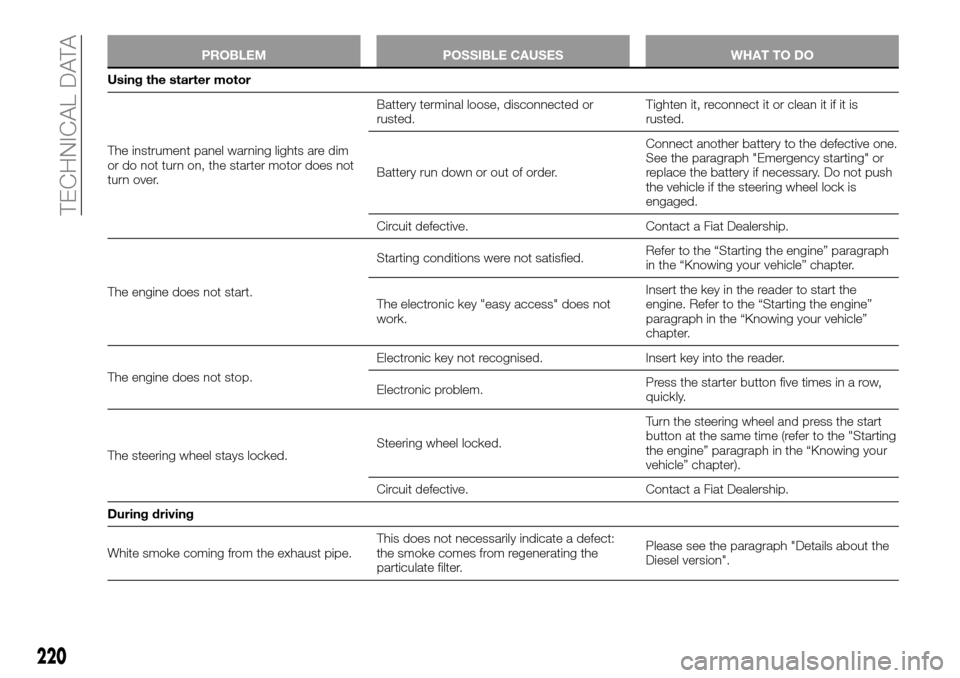

PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the starter motor
The instrument panel warning lights are dim
or do not turn on, the starter motor does not
turn over.Battery terminal loose, disconnected or
rusted.Tighten it, reconnect it or clean it if it is
rusted.
Battery run down or out of order.Connect another battery to the defective one.
See the paragraph "Emergency starting" or
replace the battery if necessary. Do not push
the vehicle if the steering wheel lock is
engaged.
Circuit defective. Contact a Fiat Dealership.
The engine does not start.Starting conditions were not satisfied.Refer to the “Starting the engine” paragraph
in the “Knowing your vehicle” chapter.
The electronic key "easy access" does not
work.Insert the key in the reader to start the
engine. Refer to the “Starting the engine”
paragraph in the “Knowing your vehicle”
chapter.
The engine does not stop.Electronic key not recognised. Insert key into the reader.
Electronic problem.Press the starter button five times in a row,
quickly.
The steering wheel stays locked.Steering wheel locked.Turn the steering wheel and press the start
button at the same time (refer to the "Starting
the engine” paragraph in the “Knowing your
vehicle” chapter).
Circuit defective. Contact a Fiat Dealership.
During driving
White smoke coming from the exhaust pipe.This does not necessarily indicate a defect:
the smoke comes from regenerating the
particulate filter.Please see the paragraph "Details about the
Diesel version".
220
TECHNICAL DATA

PROBLEM POSSIBLE CAUSES WHAT TO DO
Electric equipment
Windscreen wiper not working.Windscreen wiper blade blocked. Detach the blade before moving the wiper.
Electrical circuit defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The windscreen wiper does not stop. Defective electrical controls. Contact a Fiat Dealership.
Faster directional signal frequency. Bulb blown.Please see the paragraph "Replacing a light
bulb" in the "Emergency" chapter.
The direction indicators do not work.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The headlights do not go on or do not go off.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
Electric equipment
Traces of condensation in the lights.Traces of condensation can be due to natural
causes linked to temperature variations. In
this case, they will gradually disappear when
you turn the lights on.
The front seat belt warning light turns on
even if the seat belts are fastened.An object has come between the floorboard
and the seat, obstructing the sensor's
function.Remove any object that is beneath the front
seats.
222
