FIAT TALENTO 2018 Owner handbook (in English)

Warning light What it means
AIRBAG FAILURE
It goes on when the starter device is inserted and goes off after a few seconds. If the light does not go on when
the starter device is inserted or if it goes on when the engine is on, it indicates a system malfunction. Contact a Fiat
Dealership as soon as possible.
FUEL RESERVE
It goes on when the starter device is inserted and goes off after a few seconds. If it goes on while driving, fill the
tank as soon as possible. You have 50 km left of autonomy.
18)
IMMEDIATE STOP
This goes on when you insert the starter device, then it goes off as soon as the engine is started.
If it turns on together with other warning lights and/or messages accompanied by an acoustic signal, stop the
vehicle as soon as the traffic conditions allow. Immediately stop the engine and do not start it again.
Contact a Fiat Dealership as soon as possible.
84)
BRAKING SSTEM MALFUNCTION/HAND BRAKE ENGAGED
It goes on when the starter device is inserted, and goes back off as soon as the handbrake is released.
If it goes on when you brake together with the warningSTOPand an acoustic signal, it means the brake liquid is
low or the braking system is malfunctioning.
You need to stop and contact a Fiat Dealership.
LOW BATTERY CHARGE
It goes on when the starter device is inserted and goes off after a few seconds.
If it goes on together with theSTOPlight and an acoustic signal, the electrical circuit is overloaded or flat.
Stop and contact a Fiat Dealership.
DECAYED ENGINE OIL
It goes on when the starter device is inserted and goes off after a few seconds.
If this goes on while driving, together with theSTOPlight and an acoustic signal, you need to stop and contact a
Fiat Dealership.
Check oil level. If it is normal, there is something else wrong. Contact a Fiat Dealership.
79

Warning light What it means
ALARM WARNING LIGHT
When the starter device is brought to MAR, the warning light switches on, but it should switch off as soon as the
engine is started. If it turns on together with other warning lights/messages on the instrument panel, you need to
drive carefully to the Fiat Dealership as soon as possible.
Lack of respect for this rule puts the vehicle at risk of being damaged.
AdBlue (Urea) ADDITIVE LEVEL AND EXHAUST GAS REDUCTION SYSTEM OPERATION FAULTS
See the information in the "AdBlue (Urea) additive tank" paragraph.
INJECTION / EOBD SYSTEM FAILURE
For vehicles thus equipped, it turns on when you start the engine, this it goes off:
if it stays on, contact a Fiat Dealership;
if it flashes, you need to reduce the engine running until the flashing stops. Contact a Fiat
Dealership.
Refer to the “Protecting the environment” paragraph in the “Knowing your vehicle” chapter.
DYNAMIC STABILITY CONTROL (ESC)/ TRACTION CONTROL FAILURE
It goes on when the starter device is inserted and goes off after a few seconds.
This light turns on in various circumstances: refer to the "Active safety systems” paragraph in the “Safety” chapter.
ABS FAILURE
It goes on when the starter device is inserted and goes off after a few seconds. If it goes on while driving, it means
there is a malfunction in the ABS system. In this case the braking system maintains its efficiency unaltered but
without the advantage of the ABS system. Consult a Fiat Dealership.
ENGINE COOLANT TEMPERATURE WARNING LIGHT
When the starter device is inserted, it goes on with a blue light.
If it turns red, you need to stop the car and let the motor idle for one or two minutes.
The temperature should go down and the light turns blue. Otherwise, stop the engine. Let it cool before checking
the coolant liquid temperature.
Contact a Fiat Dealership.
80
KNOWING THE INSTRUMENT PANEL

Warning light What it means
Start&Stop SYSTEM ACTIVATION
Please see the paragraph "Start&Stop System".
StartStop FAILURE / DEACTIVATION
Please see the paragraph "Start&Stop System".
CRUISE CONTROL/SPEED LIMITER
Refer to the "Cruise control" (Speed regulator) and "Speed limiter” paragraphs.
TPMS SYSTEM FAILURE /LOW TYRE PRESSURE
Refer to the “TPMS – TYRE PRESSURE MONITORING SYSTEM” paragraph in the “Safety” chapter.
ROAD GRIP CHECK
Refer to the “Active safety systems” paragraph in the “Safety” chapter.
GLOW PLUG PREHEATING
This warning light turns on when the starter switch is on, and will turn off when the glow plugs have reached the
preset temperature. The engine can be started as soon as the warning light switches off.
81

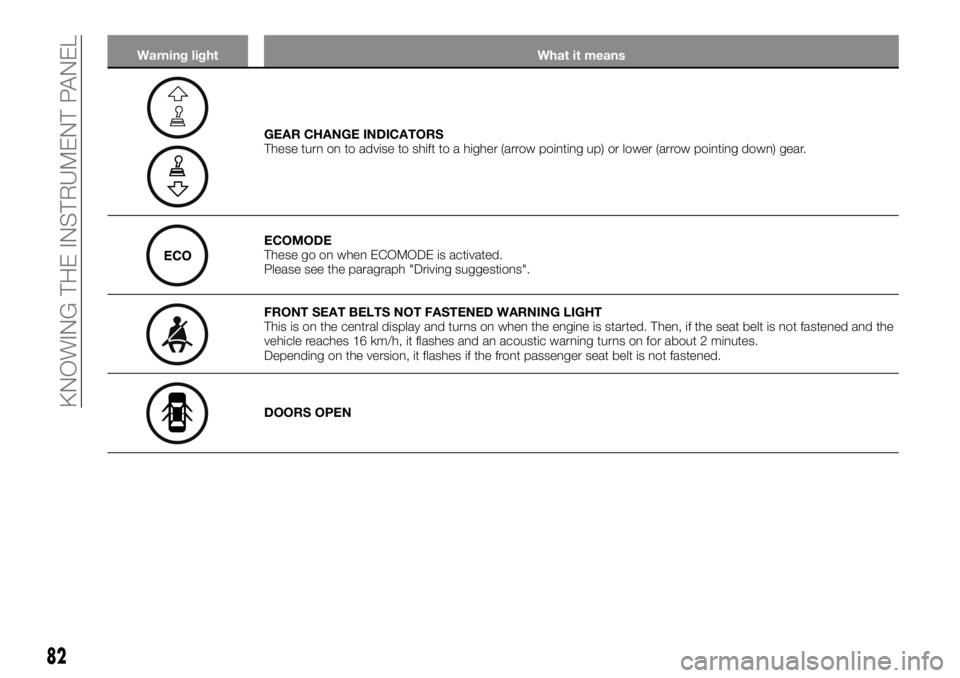

Warning light What it means
GEAR CHANGE INDICATORS
These turn on to advise to shift to a higher (arrow pointing up) or lower (arrow pointing down) gear.
ECOMODE
These go on when ECOMODE is activated.
Please see the paragraph "Driving suggestions".
FRONT SEAT BELTS NOT FASTENED WARNING LIGHT
This is on the central display and turns on when the engine is started. Then, if the seat belt is not fastened and the
vehicle reaches 16 km/h, it flashes and an acoustic warning turns on for about 2 minutes.
Depending on the version, it flashes if the front passenger seat belt is not fastened.
DOORS OPEN
82
KNOWING THE INSTRUMENT PANEL

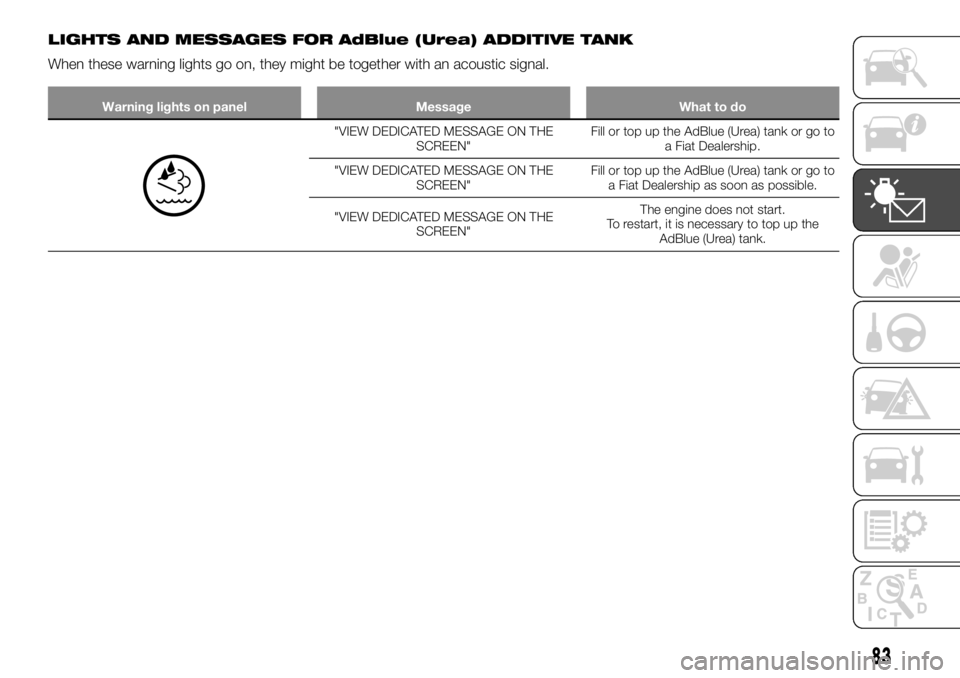

LIGHTS AND MESSAGES FOR AdBlue (Urea) ADDITIVE TANK
When these warning lights go on, they might be together with an acoustic signal.
Warning lights on panel Message What to do
"VIEW DEDICATED MESSAGE ON THE
SCREEN"Fill or top up the AdBlue (Urea) tank or go to
a Fiat Dealership.
"VIEW DEDICATED MESSAGE ON THE
SCREEN"Fill or top up the AdBlue (Urea) tank or go to
a Fiat Dealership as soon as possible.
"VIEW DEDICATED MESSAGE ON THE
SCREEN"The engine does not start.
To restart, it is necessary to top up the
AdBlue (Urea) tank.
83

System malfunction
The warning lights described below are together with an acoustic signal.
Warning lights on panel Message Meaning
"VIEW DEDICATED MESSAGE ON THE
SCREEN"Indicates a system malfunction. Contact a
Fiat Dealership as soon as possible.
"VIEW DEDICATED MESSAGE ON THE
SCREEN"Indicates that in less than 1100 km you will
not be able to restart the vehicle. These
alarms will be repeated every 100 km.
Contact a Fiat Dealership as soon as
possible.
"VIEW DEDICATED MESSAGE ON THE
SCREEN"Indicates that once the engine has been
stopped, it will not restart. Contact a Fiat
Dealership.
WARNING
84)For driver safety, the warning lightSTOPobliges you to stop as soon as traffic conditions allow. Stop the engine and do not turn it back
on. Contact a Fiat Dealership.
IMPORTANT
18)If the lights or acoustic signals do not reappear, it is because of an instrument panel malfunction. When these lights go on, you need to
stop as soon as traffic conditions allow. Check that the vehicle is correctly immobilised and contact a Fiat Dealership.
84
KNOWING THE INSTRUMENT PANEL

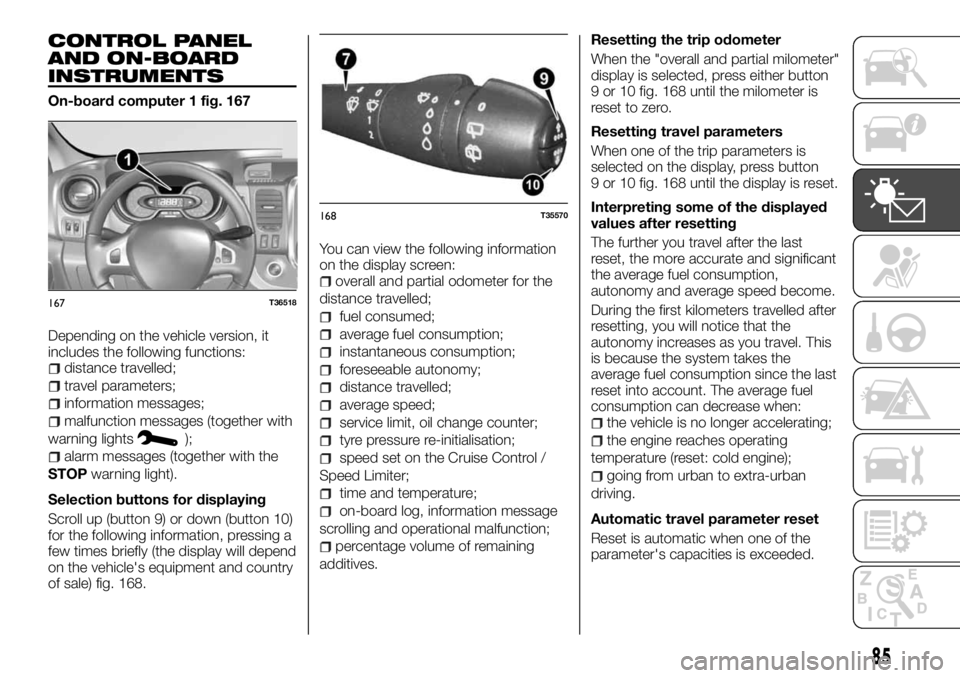

CONTROL PANEL
AND ON-BOARD
INSTRUMENTS
On-board computer 1 fig. 167
Depending on the vehicle version, it
includes the following functions:
distance travelled;
travel parameters;
information messages;
malfunction messages (together with
warning lights
);
alarm messages (together with the
STOPwarning light).
Selection buttons for displaying
Scroll up (button 9) or down (button 10)
for the following information, pressing a
few times briefly (the display will depend
on the vehicle's equipment and country
of sale) fig. 168.You can view the following information
on the display screen:
overall and partial odometer for the
distance travelled;
fuel consumed;
average fuel consumption;
instantaneous consumption;
foreseeable autonomy;
distance travelled;
average speed;
service limit, oil change counter;
tyre pressure re-initialisation;
speed set on the Cruise Control /
Speed Limiter;
time and temperature;
on-board log, information message
scrolling and operational malfunction;
percentage volume of remaining
additives.Resetting the trip odometer
When the "overall and partial milometer"
display is selected, press either button
9 or 10 fig. 168 until the milometer is
reset to zero.
Resetting travel parameters
When one of the trip parameters is
selected on the display, press button
9 or 10 fig. 168 until the display is reset.
Interpreting some of the displayed
values after resetting
The further you travel after the last
reset, the more accurate and significant
the average fuel consumption,
autonomy and average speed become.
During the first kilometers travelled after
resetting, you will notice that the
autonomy increases as you travel. This
is because the system takes the
average fuel consumption since the last
reset into account. The average fuel
consumption can decrease when:
the vehicle is no longer accelerating;
the engine reaches operating
temperature (reset: cold engine);
going from urban to extra-urban
driving.
Automatic travel parameter reset
Reset is automatic when one of the
parameter's capacities is exceeded.
167T36518
168T35570
85

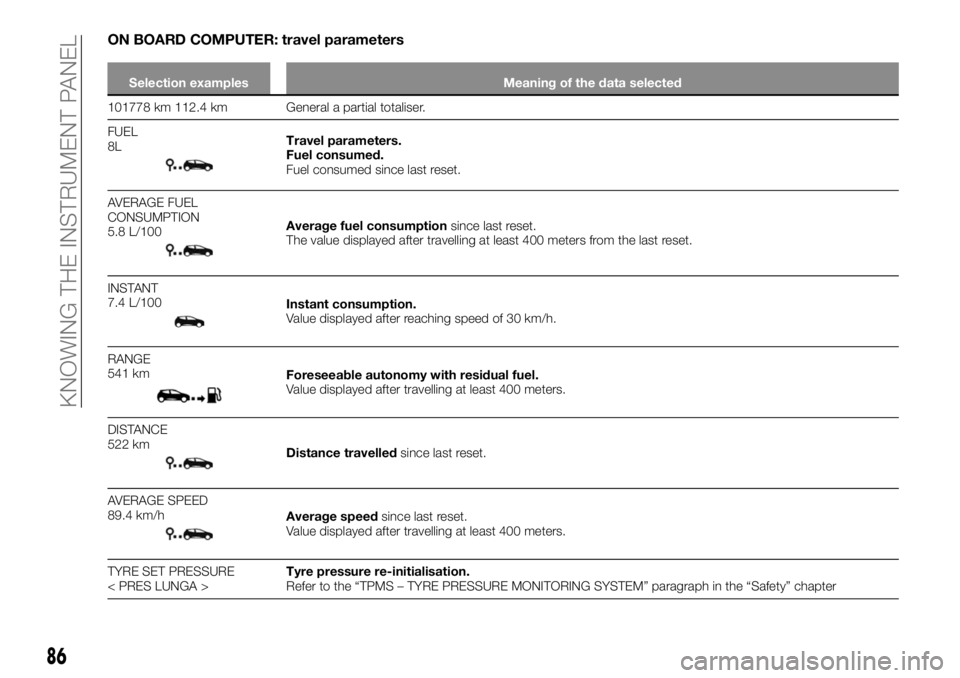

ON BOARD COMPUTER: travel parameters
Selection examples Meaning of the data selected
101778 km 112.4 km General a partial totaliser.
FUEL
8L
Travel parameters.
Fuel consumed.
Fuel consumed since last reset.
AVERAGE FUEL
CONSUMPTION
5.8 L/100
Average fuel consumptionsince last reset.
The value displayed after travelling at least 400 meters from the last reset.
INSTANT
7.4 L/100
Instant consumption.
Value displayed after reaching speed of 30 km/h.
RANGE
541 km
Foreseeable autonomy with residual fuel.
Value displayed after travelling at least 400 meters.
DISTANCE
522 km
Distance travelledsince last reset.
AVERAGE SPEED
89.4 km/h
Average speedsince last reset.
Value displayed after travelling at least 400 meters.
TYRE SET PRESSURE
< PRES LUNGA >Tyre pressure re-initialisation.
Refer to the “TPMS – TYRE PRESSURE MONITORING SYSTEM” paragraph in the “Safety” chapter
86
KNOWING THE INSTRUMENT PANEL

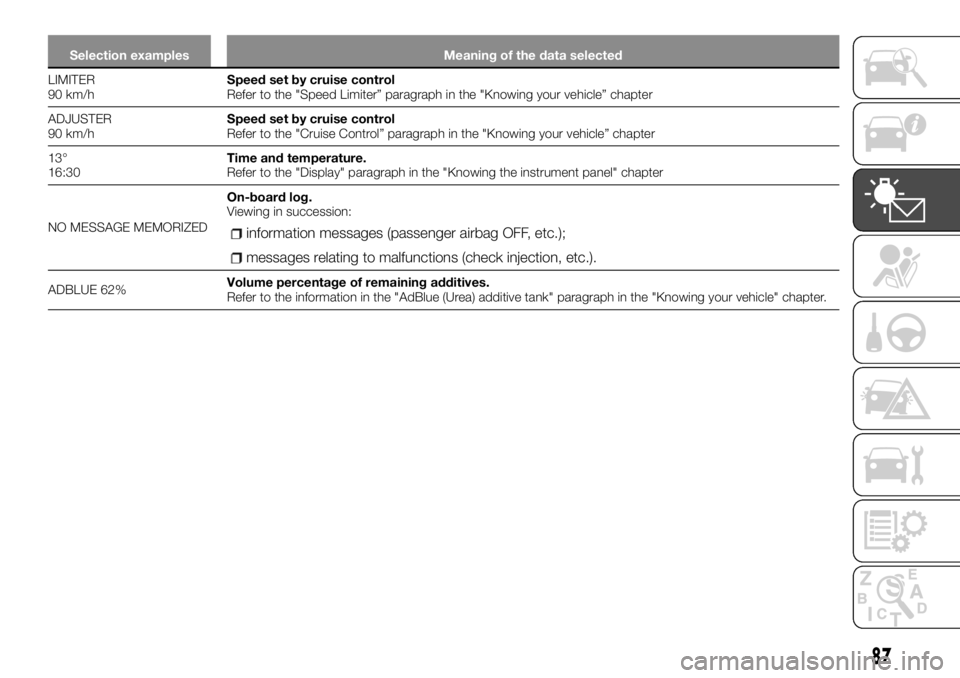

Selection examples Meaning of the data selected
LIMITER
90 km/hSpeed set by cruise control
Refer to the "Speed Limiter” paragraph in the "Knowing your vehicle” chapter
ADJUSTER
90 km/hSpeed set by cruise control
Refer to the "Cruise Control” paragraph in the "Knowing your vehicle” chapter
13°
16:30Time and temperature.
Refer to the "Display" paragraph in the "Knowing the instrument panel" chapter
NO MESSAGE MEMORIZEDOn-board log.
Viewing in succession:
information messages (passenger airbag OFF, etc.);
messages relating to malfunctions (check injection, etc.).
ADBLUE 62%Volume percentage of remaining additives.
Refer to the information in the "AdBlue (Urea) additive tank" paragraph in the "Knowing your vehicle" chapter.
87

88
KNOWING THE INSTRUMENT PANEL

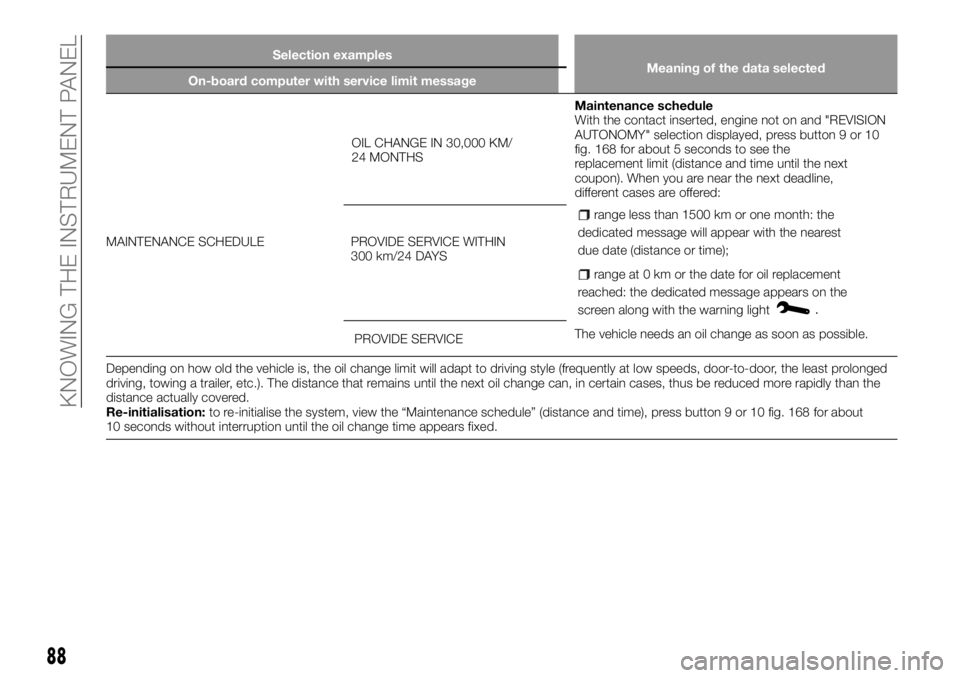

Selection examples
Meaning of the data selected
On-board computer with service limit message
MAINTENANCE SCHEDULEOIL CHANGE IN 30,000 KM/
24 MONTHSMaintenance schedule
With the contact inserted, engine not on and "REVISION
AUTONOMY" selection displayed, press button 9 or 10
fig. 168 for about 5 seconds to see the
replacement limit (distance and time until the next
coupon). When you are near the next deadline,
different cases are offered:
range less than 1500 km or one month: the
dedicated message will appear with the nearest
due date (distance or time);
range at 0 km or the date for oil replacement
reached: the dedicated message appears on the
screen along with the warning light
.
The vehicle needs an oil change as soon as possible. PROVIDE SERVICE WITHIN
300 km/24 DAYS
PROVIDE SERVICE
Depending on how old the vehicle is, the oil change limit will adapt to driving style (frequently at low speeds, door-to-door, the least prolonged
driving, towing a trailer, etc.). The distance that remains until the next oil change can, in certain cases, thus be reduced more rapidly than the
distance actually covered.
Re-initialisation:to re-initialise the system, view the “Maintenance schedule” (distance and time), press button 9 or 10 fig. 168 for about
10 seconds without interruption until the oil change time appears fixed.
