FIAT TIPO 4DOORS 2020 Owner handbook (in English)

ENGINE
175)
Versions 1.4 16V 95 HP E6 1.4 16V 95 HP E4 1.6 E.Torq E6(*)1.6 E.Torq E4(*)
Engine code 843A1000 843A1000 55268036 55268036
Cycle Otto Otto Otto Otto
Number and position of
cylinders4 in line 4 in line 4 in line 4 in line
Piston bore and stroke
(mm)72 × 84 72 × 84 77 × 85.8 77 × 85.8
Total displacement (cm³) 1368 1368 1598 1598
Compression ratio 11 : 1 11 : 1 11 : 1 11 : 1
Maximum power (EC)
(kW)
(**)70 70 81 81
corresponding engine
speed (rpm)6000 6000 5500 5500
Maximum torque (EEC)
(Nm)127 127 152 152
corresponding engine
speed (rpm)4500 4500 4500 4500
Spark plugsNGK - DCPR7E-N-10 or
BOSCH - YR7DEUNGK - DCPR7E-N-10 or
BOSCH - YR7DEUNGK - ZKR7B1 - 10 NGK - ZKR7B1-10
FuelUnleaded petrol
95 R.O.N.
(EN228 specifications)Unleaded petrol
95 R.O.N.
(EN228 specifications)Unleaded petrol
95 R.O.N.
(EN228 specifications)Unleaded petrol
95 R.O.N.
(EN228 specifications)
(*) Where fitted
(**) Figures obtained using 95 RON unleaded petrol or higher.
189

Versions 1.4 T-jet 120 HP LPG E6(*)
Engine code940B7000
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 72 × 84
Total displacement (cm³)1368
Compression ratio9.8 : 1
Maximum power (EC) (kW)88
corresponding engine speed (rpm) 5000
Maximum torque (EEC) (Nm)215
corresponding engine speed (rpm) 2500
Spark plugsNGK IKR9J8
Fuel95 RON unleaded petrol (EN 228 specification) / LPG for vehicle
engines (EN589 specification)
(*) For versions/markets where provided
190
TECHNICAL DATA

Versions1.3 Multijet 95 HP
E6/E6ECO1.3 Multijet 95HP
E5(*)1.6 Multijet 120 HP
E61.6 Multijet 115 HP
E6(**)
Engine code 55266963 199B1000 55260384 55260384
Cycle Diesel Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6 × 82 69.6 × 82 79.5 × 80.5 79.5 × 80.5
Total displacement (cm³) 1248 1248 1598 1598
Compression ratio 16.8 : 1 16.8 : 1 16.5 : 1 16.5 : 1
Maximum power (EC) (kW) 70 70 88 84.4
corresponding engine speed (rpm) 3750 4000 3750 3750
Maximum torque (EEC) (Nm) 200 200 320 320
corresponding engine speed (rpm) 1500 1500 1750 1750
FuelDiesel for motor
vehicles
(EN590 Specification)Diesel for motor
vehicles
(EN590 Specification)Diesel for motor
vehicles
(EN590 Specification)Diesel for motor
vehicles
(EN590 Specification)
(*) For versions/markets where provided
(**) Version for specific markets
WARNING
175)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
191

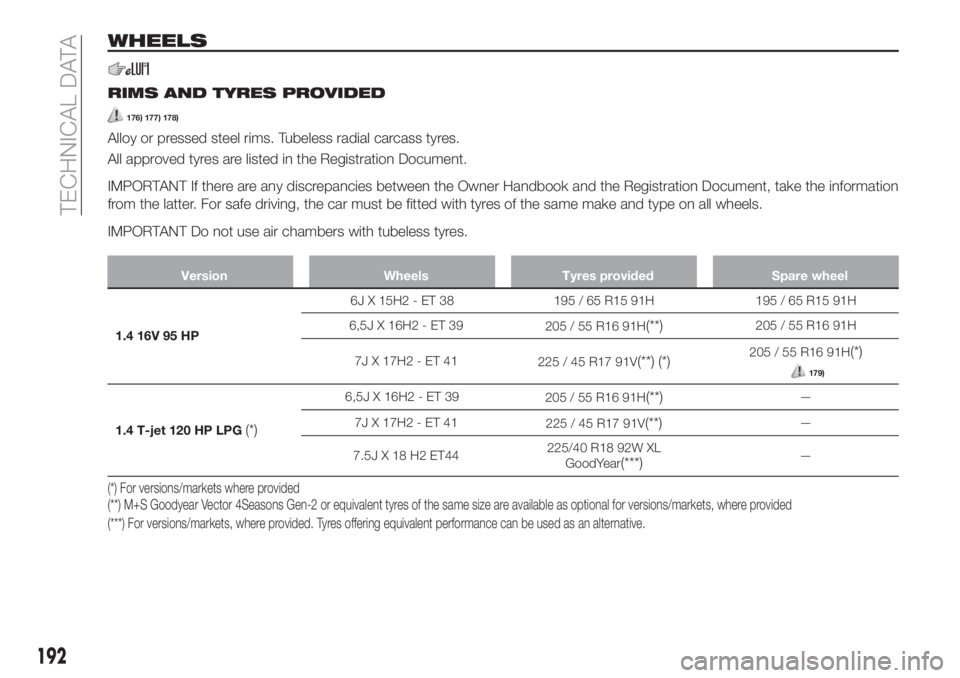

WHEELS
RIMS AND TYRES PROVIDED
176) 177) 178)
Alloy or pressed steel rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Registration Document.
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use air chambers with tubeless tyres.
Version Wheels Tyres provided Spare wheel
1.4 16V 95 HP6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6,5JX16H2-ET39
205 / 55 R16 91H(**)205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**) (*)205 / 55 R16 91H(*)
179)
1.4 T-jet 120 HP LPG(*)
6,5J X 16H2 - ET 39
205 / 55 R16 91H(**)—
7JX17H2-ET41
225 / 45 R17 91V
(**)—
7.5J X 18 H2 ET44225/40 R18 92W XL
GoodYear
(***)—
(**) M+S Goodyear Vector 4Seasons Gen-2 or equivalent tyres of the same size are available as optional for versions/markets, where provided (*) For versions/markets where provided
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
192
TECHNICAL DATA

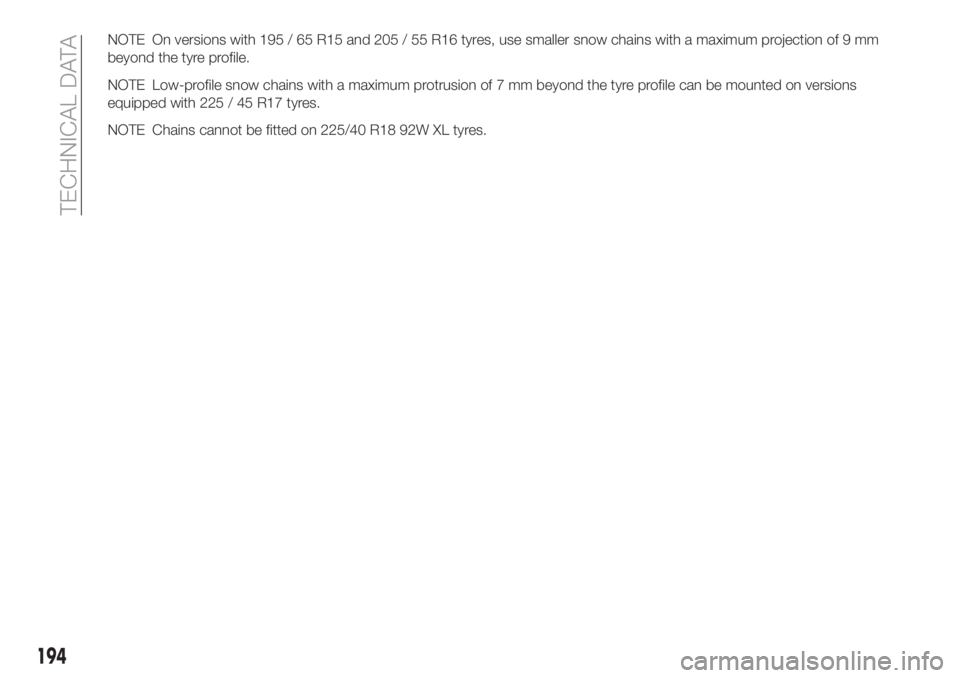

Version Wheels Tyres provided Spare wheel
1.6 E.TorQ(*)
6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6,5J X 16H2 - ET 39
205 / 55 R16 91H
(**)205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**) (*)205 / 55 R16 91H(*)
179)
7.5J X 18 H2 ET44225/40 R18 92W XL
GoodYear(***)
205/55 R16 91H
179)
1.3 Multijet 95 HP E6 /
E6 ECO6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6,5J X 16H2 - ET 39
205 / 55 R16 91H(**)205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**) (*)205 / 55 R16 91H(*)
179)
1.3 Multijet 95HP E5(*)
6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6,5J X 16H2 - ET 39
205 / 55 R16 91H
(**)205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)205 / 55 R16 91H
179)
1.6 Multijet 120 HP /
1.6 Multijet 115 HP(****)
6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6,5J X 16H2 - ET 39
205 / 55 R16 91H
(**)205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**) (*)205 / 55 R16 91H(*)
179)
7.5J X 18 H2 ET44225/40 R18 92W XL
GoodYear(***)
205/55 R16 91H
179)
(*) For versions/markets where provided
(**) M+S Goodyear Vector 4Seasons Gen-2 or equivalent tyres of the same size are available as optional for versions/markets, where provided
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Version for specific markets
193

NOTE On versions with 195 / 65 R15 and 205 / 55 R16 tyres, use smaller snow chains with a maximum projection of 9 mm
beyond the tyre profile.
NOTE Low-profile snow chains with a maximum protrusion of 7 mm beyond the tyre profile can be mounted on versions
equipped with 225 / 45 R17 tyres.
NOTE Chains cannot be fitted on 225/40 R18 92W XL tyres.
194
TECHNICAL DATA

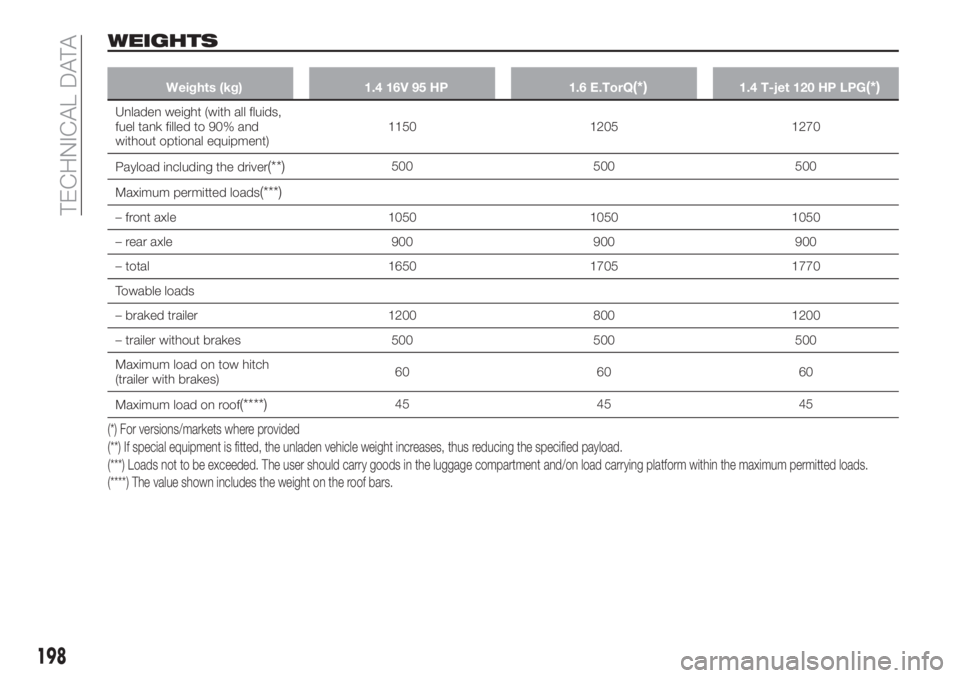

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
Versions TyresUnladen/medium load Full load
Spare wheel(*)Front Rear Front Rear
1.4 16V 95 HP195 / 65 R15
2.2 2.1 2.6 2.5 2.4 205 / 55 R16
225 / 45 R17
1.4 T-jet 120 HP
LPG
(**)
205 / 55 R16
2.3 2.1 2.6
2.5 - 225 / 45 R17
225/
40 R18 92WXL
GoodYear
(****)2.5 2.2 2.5
1.3 Multijet 95 HP
E6 / E6 ECO /
1.3 Multijet 95 HP
E5
(**)
195 / 65 R15
2.3 2.1 2.6 2.5 2.4 205 / 55 R16
225 / 45 R17
(*) After an emergency use of the spare wheel, where necessary, as soon as possible align the tire pressure to the same valus recommended, using the following
table as a guide.
(**) For versions/markets, where provided.
(****) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
195

Versions TyresUnladen/medium load Full load
Spare wheel(*)Front Rear Front Rear
1.6 E.TorQ(**)/ 1.6 Multijet 120 HP
/ 1.6 Multijet 115 HP
(***)
195 / 65 R15
2.3 2.1 2.6 2.5 2.4 205 / 55 R16
225 / 45 R17
225/
40 R18 92WXL
GoodYear
(****)2.5 2.2 2.5 2.5 3.5
(*) After an emergency use of the spare wheel, where necessary, as soon as possible align the tire pressure to the same valus recommended, using the following
table as a guide.
(**) For versions/markets, where provided.
(***) Version for specific markets
(****) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.

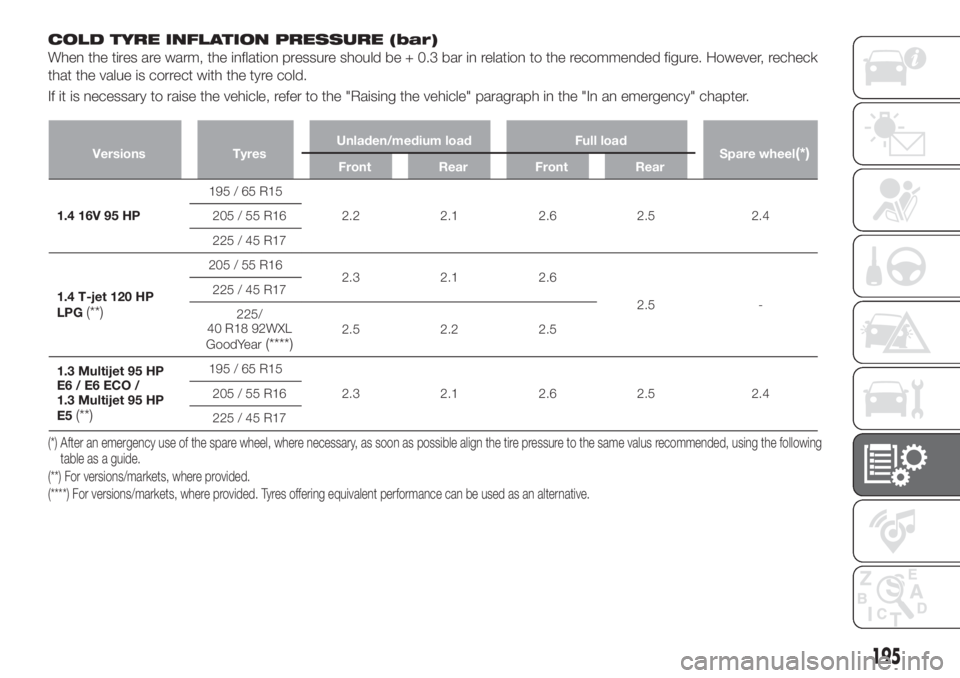

WARNING
176)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
177)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
178)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
179)A 16” spare wheel is provided with 17” and 18” tyres. This spare wheel must be used only in an emergency. Never use it for more than
strictly necessary and never exceed 80 km/h. On the wheel there is an orange sticker, summarising the main warnings regarding wheel usage
restrictions. Never remove or cover the label. The label contains the following indications in four languages: "Warning! For temporary use only!
80 km/h max! Replace with standard wheel as soon as possible. Never cover this indication." Never apply a wheel cap on the wheel. The
driving characteristics of the car will be modified with the wheel fitted. Avoid violent acceleration and braking, abrupt steering and fast
cornering. Have the wheel repaired and refitted as soon as possible. Using two or more spare wheels at the same time is forbidden. Do not
apply grease to the bolt threads before fitting: they could come unscrewed.
196
TECHNICAL DATA

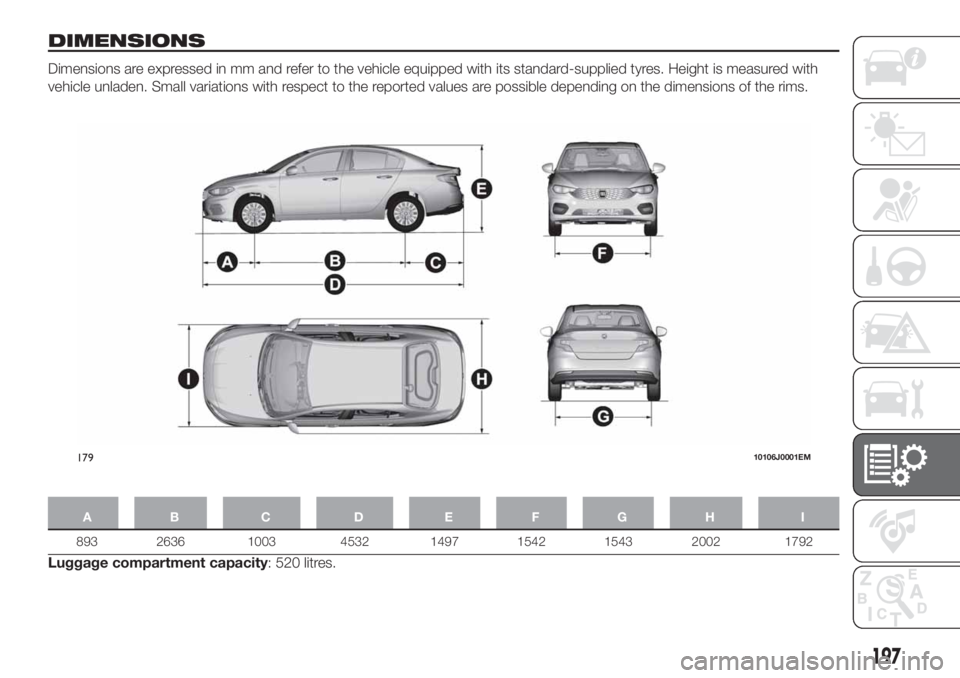

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2636 1003 4532 1497 1542 1543 2002 1792
Luggage compartment capacity: 520 litres.
17910106J0001EM
197

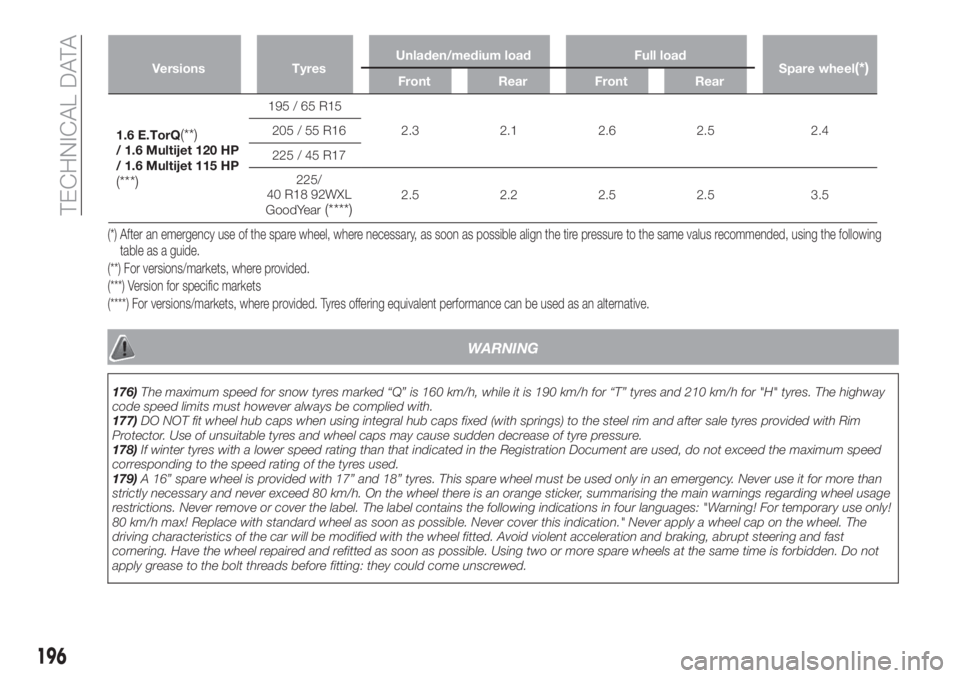

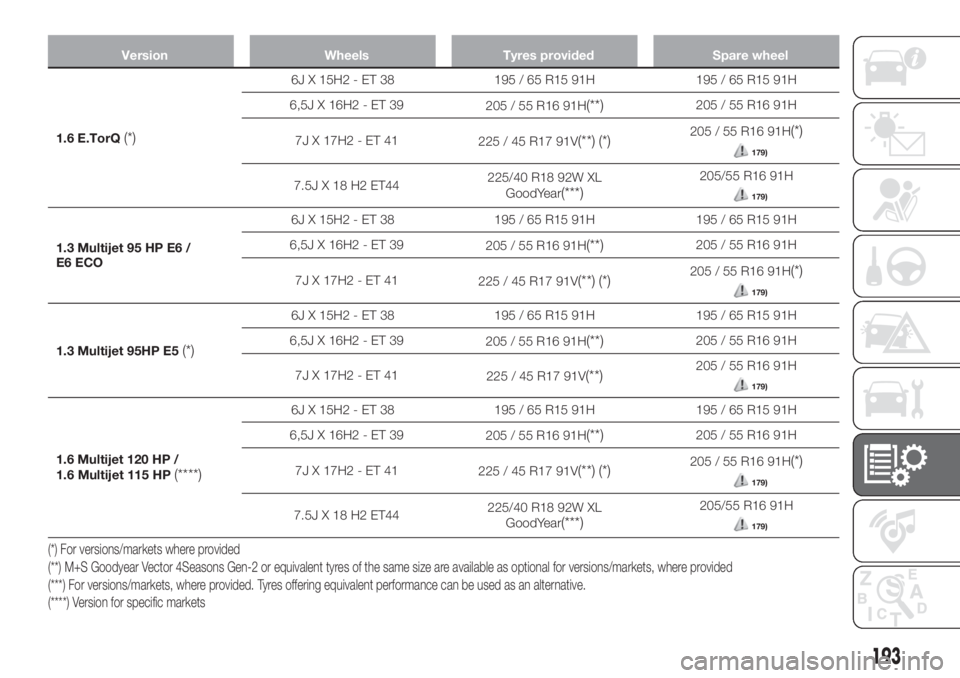

WEIGHTS
Weights (kg) 1.4 16V 95 HP 1.6 E.TorQ(*)1.4 T-jet 120 HP LPG(*)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1150 1205 1270
Payload including the driver
(**)500 500 500
Maximum permitted loads
(***)
– front axle 1050 1050 1050
– rear axle 900 900 900
– total 1650 1705 1770
Towable loads
– braked trailer 1200 800 1200
– trailer without brakes 500 500 500
Maximum load on tow hitch
(trailer with brakes)60 60 60
Maximum load on roof
(****)45 45 45
(*) For versions/markets where provided
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user should carry goods in the luggage compartment and/on load carrying platform within the maximum permitted loads.
(****) The value shown includes the weight on the roof bars.
198
