FIAT TIPO 5DOORS STATION WAGON 2018 Owner handbook (in English)

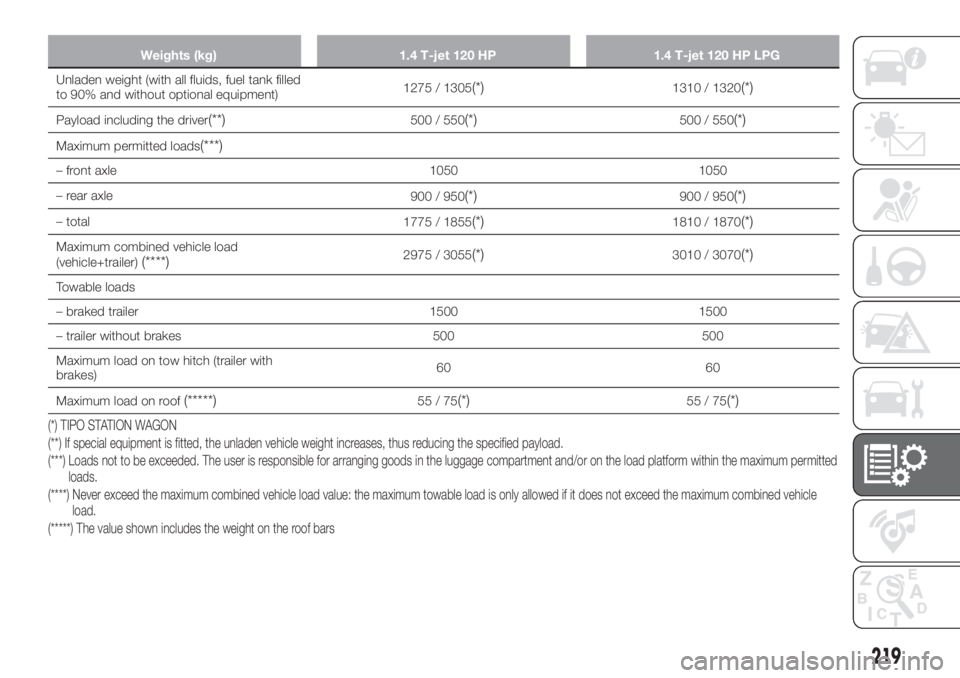

Weights (kg) 1.4 T-jet 120 HP 1.4 T-jet 120 HP LPG
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1275 / 1305(*)1310 / 1320(*)
Payload including the driver(**)500 / 550(*)500 / 550(*)
Maximum permitted loads(***)
– front axle 1050 1050
– rear axle
900 / 950
(*)900 / 950(*)
– total
1775 / 1855(*)1810 / 1870(*)
Maximum combined vehicle load
(vehicle+trailer)(****)2975 / 3055(*)3010 / 3070(*)
Towable loads
– braked trailer 1500 1500
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof
(*****)55/75(*)55/75(*)
(*) TIPO STATION WAGON
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(****) Never exceed the maximum combined vehicle load value: the maximum towable load is only allowed if it does not exceed the maximum combined vehicle
load.
(*****) The value shown includes the weight on the roof bars
219

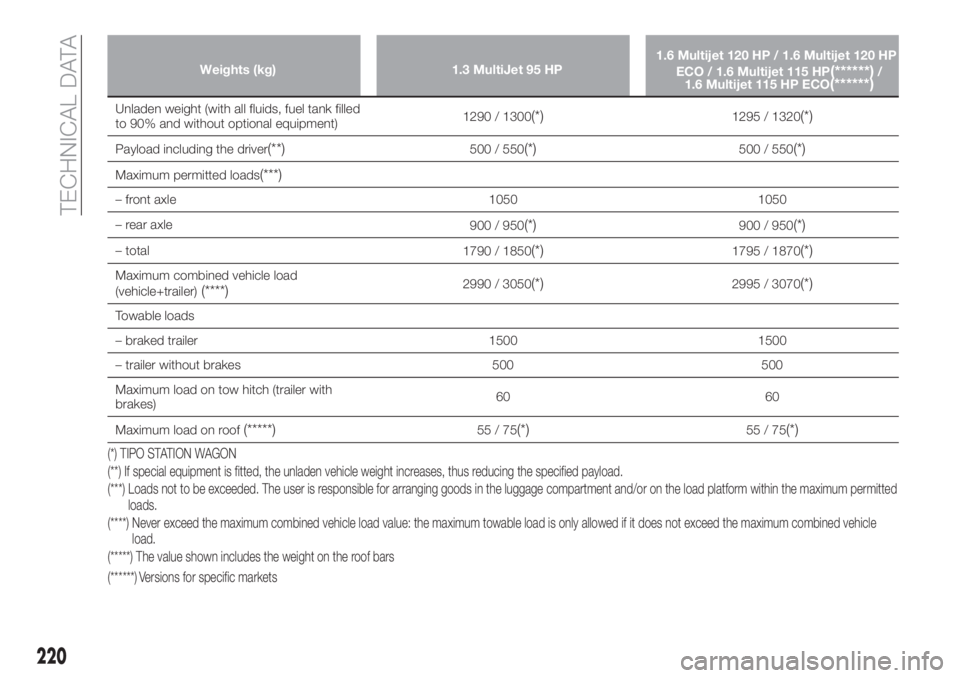

Weights (kg) 1.3 MultiJet 95 HP1.6 Multijet 120 HP / 1.6 Multijet 120 HP
ECO / 1.6 Multijet 115 HP(******)/
1.6 Multijet 115 HP ECO(******)
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1290 / 1300(*)1295 / 1320(*)
Payload including the driver(**)500 / 550(*)500 / 550(*)
Maximum permitted loads(***)
– front axle 1050 1050
– rear axle
900 / 950
(*)900 / 950(*)
– total
1790 / 1850(*)1795 / 1870(*)
Maximum combined vehicle load
(vehicle+trailer)(****)2990 / 3050(*)2995 / 3070(*)
Towable loads
– braked trailer 1500 1500
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof
(*****)55/75(*)55/75(*)
220
TECHNICAL DATA
(******) Versions for specific markets (*) TIPO STATION WAGON
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(****) Never exceed the maximum combined vehicle load value: the maximum towable load is only allowed if it does not exceed the maximum combined vehicle
load.
(*****) The value shown includes the weight on the roof bars

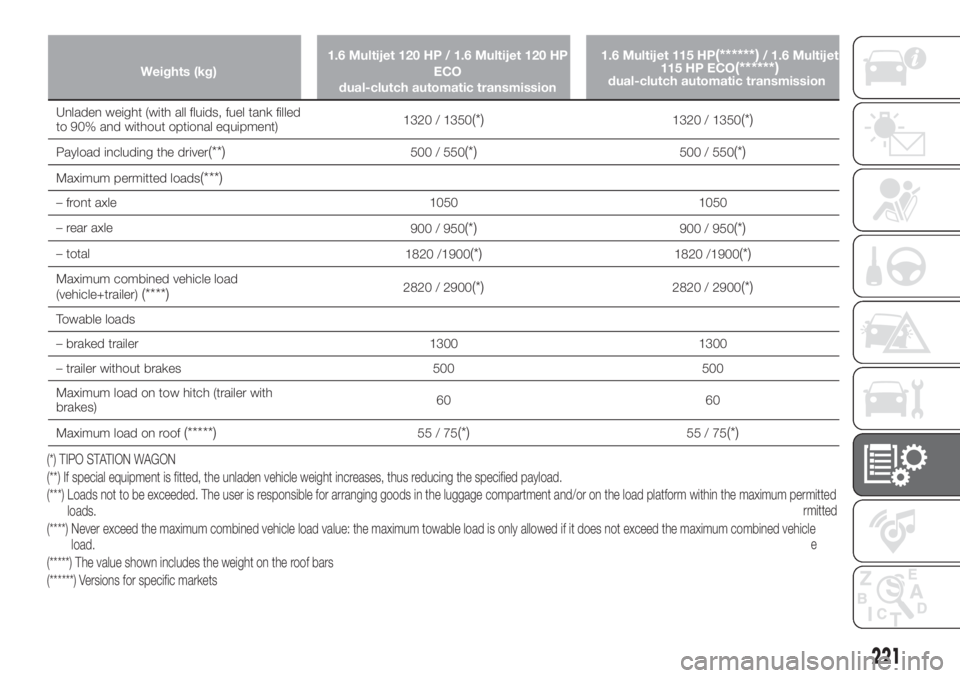

Weights (kg)1.6 Multijet 120 HP / 1.6 Multijet 120 HP
ECO
dual-clutch automatic transmission1.6 Multijet 115 HP(******)/ 1.6 Multijet
115 HP ECO(******)dual-clutch automatic transmission
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1320 / 1350(*)1320 / 1350(*)
Payload including the driver(**)500 / 550(*)500 / 550(*)
Maximum permitted loads(***)
– front axle 1050 1050
– rear axle
900 / 950
(*)900 / 950(*)
– total
1820 /1900(*)1820 /1900(*)
Maximum combined vehicle load
(vehicle+trailer)(****)2820 / 2900(*)2820 / 2900(*)
Towable loads
– braked trailer 1300 1300
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof
(*****)55/75(*)55/75(*)
rmitted
e
221
(******) Versions for specific markets (*) TIPO STATION WAGON
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted
loads.
(****) Never exceed the maximum combined vehicle load value: the maximum towable load is only allowed if it does not exceed the maximum combined vehicle
load.
(*****) The value shown includes the weight on the roof bars

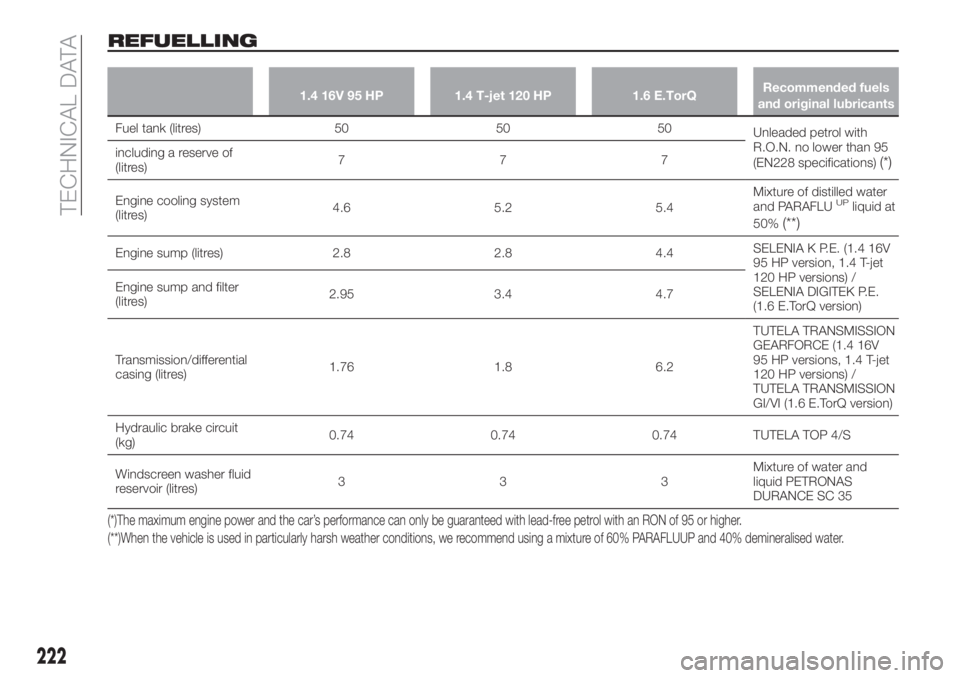

REFUELLING
1.4 16V 95 HP 1.4 T-jet 120 HP 1.6 E.TorQRecommended fuels
and original lubricants
Fuel tank (litres) 50 50 50
Unleaded petrol with
R.O.N. no lower than 95
(EN228 specifications)
(*)including a reserve of
(litres)777
Engine cooling system
(litres)4.6 5.2 5.4Mixture of distilled water
and PARAFLU
UPliquid at
50%
(**)
Engine sump (litres) 2.8 2.8 4.4SELENIA K P.E. (1.4 16V
95 HP version, 1.4 T-jet
120 HP versions) /
SELENIA DIGITEK P.E.
(1.6 E.TorQ version) Engine sump and filter
(litres)2.95 3.4 4.7
Transmission/differential
casing (litres)1.76 1.8 6.2TUTELA TRANSMISSION
GEARFORCE (1.4 16V
95 HP versions, 1.4 T-jet
120 HP versions) /
TUTELA TRANSMISSION
GI/VI (1.6 E.TorQ version)
Hydraulic brake circuit
(kg)0.74 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid
reservoir (litres)333Mixture of water and
liquid PETRONAS
DURANCE SC 35
(*)The maximum engine power and the car’s performance can only be guaranteed with lead-free petrol with an RON of 95 or higher.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUP and 40% demineralised water.
222
TECHNICAL DATA

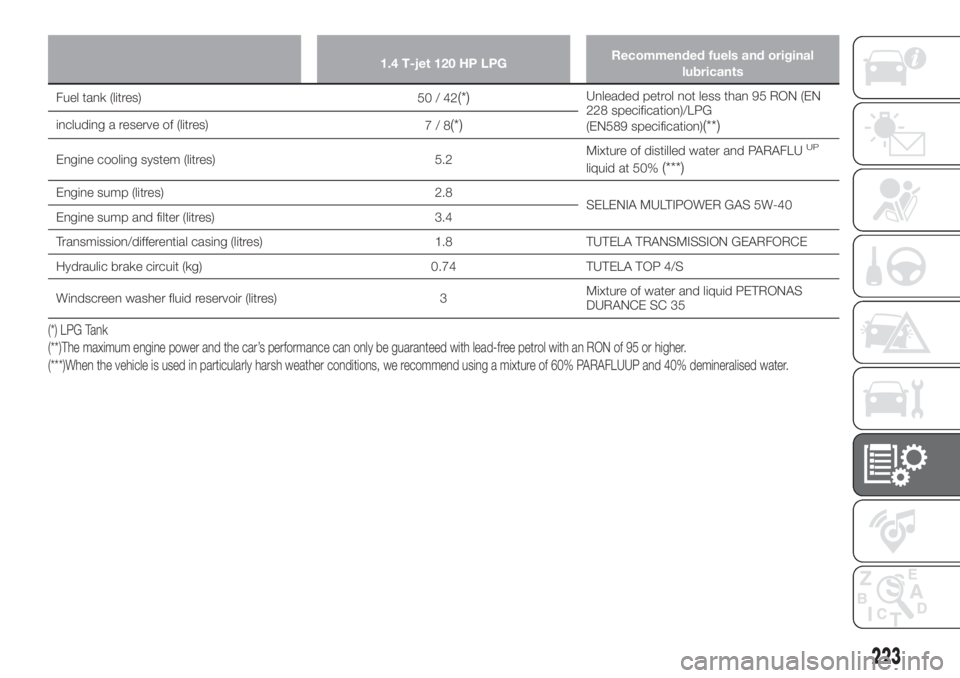

1.4 T-jet 120 HP LPGRecommended fuels and original
lubricants
Fuel tank (litres)
50/42(*)Unleaded petrol not less than 95 RON (EN
228 specification)/LPG
(EN589 specification)
(**)including a reserve of (litres)
7/8(*)
Engine cooling system (litres) 5.2Mixture of distilled water and PARAFLUUP
liquid at 50%(***)
Engine sump (litres) 2.8
SELENIA MULTIPOWER GAS 5W-40
Engine sump and filter (litres) 3.4
Transmission/differential casing (litres) 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir (litres) 3Mixture of water and liquid PETRONAS
DURANCE SC 35
(*) LPG Tank
(**)The maximum engine power and the car’s performance can only be guaranteed with lead-free petrol with an RON of 95 or higher.
(***)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUP and 40% demineralised water.
223

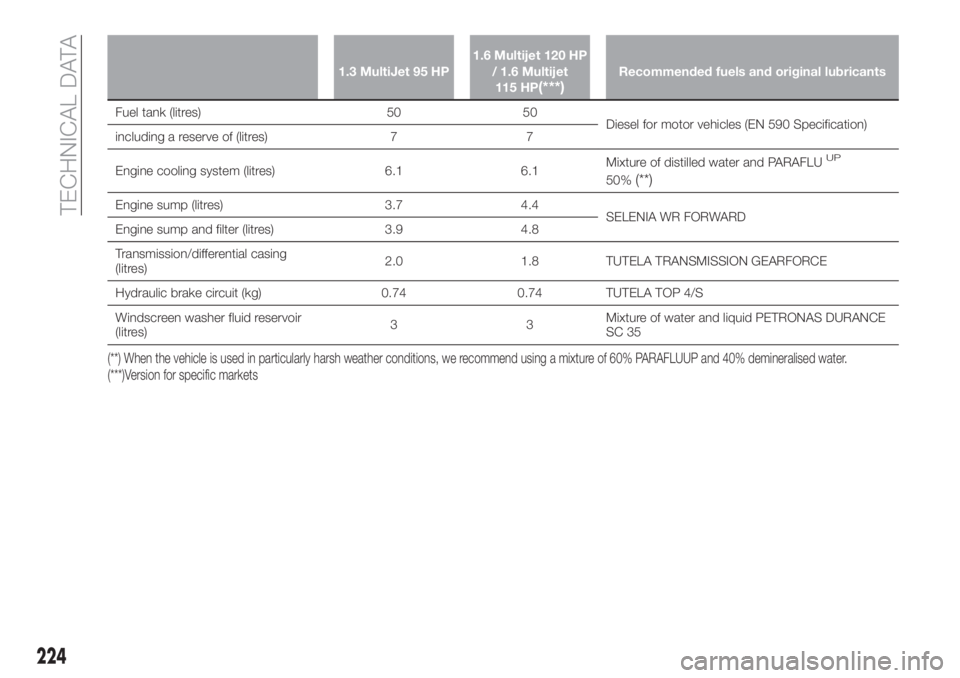

1.3 MultiJet 95 HP1.6 Multijet 120 HP
/ 1.6 Multijet
115 HP(***)Recommended fuels and original lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN 590 Specification)
including a reserve of (litres) 7 7
Engine cooling system (litres) 6.1 6.1Mixture of distilled water and PARAFLU
UP
50%(**)
Engine sump (litres) 3.7 4.4
SELENIA WR FORWARD
Engine sump and filter (litres) 3.9 4.8
Transmission/differential casing
(litres)2.0 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir
(litres)33Mixture of water and liquid PETRONAS DURANCE
SC 35
(***)Version for specific markets (**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUP and 40% demineralised water.
224
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
90)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
225
Lubricant for petrol
engines (1.4 16V 95 HP,
1.4 T-jet 120 HP
versions)SAE 5W-40
ACEA C3 / API SN9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.6 E.TorQ
versions)SAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG enginesSAE 5W-40
ACEA C3 / API SN9.55535-T2SELENIA
MULTIPOWER GAS
5W-40
ContractualTechnical
Reference N° F922.E09According to Scheduled
Servicing Plan

Use Features SpecificationOriginal fluids and
lubricantsApplications
226
TECHNICAL DATA
Lubricants and
greases for drive
transmissionSAE 75W grade synthetic
lubricant.9.55550-MZ6TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
ATF AW-1 automatic
transmission lubricant9.55550-AV2TUTELA
TRANSMISSION GI/VI
Contractual Technical
Reference N° F336.G05Lubricant for versions with
automatic transmission
Fully synthetic lubricant
with dedicated additive9.55550-SA1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Lubricant for
electro-hydraulic actuator
(dual clutch automatic
transmission versions)
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency 0-19.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential-side constant
velocity joints
Molybdenum disulphide
grease, for use at high
operating temperatures.
N.L.G.I. consistency 1-29.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints

Use Features SpecificationOriginal fluids and
lubricantsApplications
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
IMPORTANT
90)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
227
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
antifreeze action with
organic formulation.
CUNA NC 956-16, ASTM
D 3306 specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP(**)
Diesel fuel additiveAntifreeze additive for
diesel fuel for diesel
engine protection—PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.C06To mix with diesel (25 cc
per 10 litres)
Windscreen washer
fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems

PERFORMANCE
Top speeds after the initial period of usage of the car.
Versions km/h
1.4 16V 95 HP185
1.4 T-jet 120 HP / 1.4 T-jet 120 HP LPG200
1.6 E.TorQ192
1.3 MultiJet 95 HP180
1.6 Multijet 120 HP / 1.6 Multijet 120 HP ECO200
1.6 MultiJet 120 HP
(*)/ 1.6 Multijet 120 HP ECO(*)200
1.6 Multijet 115 HP / 1.6 Multijet 115 HP ECO
(**)197
1.6 Multijet 115 HP
(*) (**)/ 1.6 Multijet 115 HP ECO(*) (**)197
(*) Automatic transmission versions with dual clutch
(**) Versions for specific markets
228
