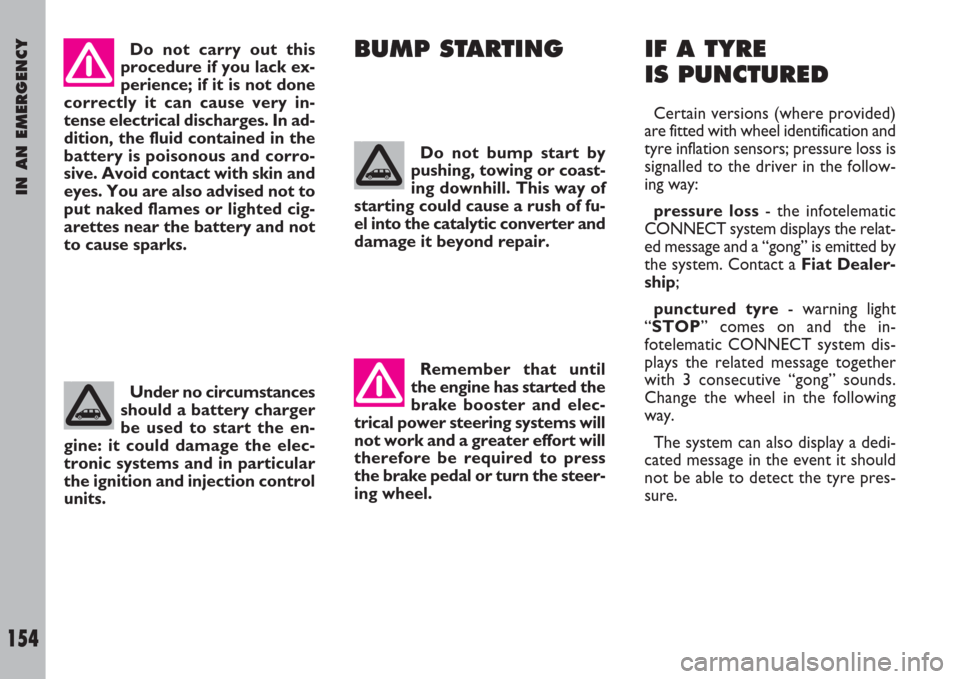

IN AN EMERGENCY
154
Do not carry out this
procedure if you lack ex-
perience; if it is not done
correctly it can cause very in-
tense electrical discharges. In ad-
dition, the fluid contained in the
battery is poisonous and corro-
sive. Avoid contact with skin and
eyes. You are also advised not to
put naked flames or lighted cig-
arettes near the battery and not
to cause sparks.
Remember that until
the engine has started the
brake booster and elec-
trical power steering systems will
not work and a greater effort will
therefore be required to press
the brake pedal or turn the steer-
ing wheel.IF A TYRE
IS PUNCTURED
Certain versions (where provided)
are fitted with wheel identification and
tyre inflation sensors; pressure loss is
signalled to the driver in the follow-
ing way:
pressure loss- the infotelematic
CONNECT system displays the relat-
ed message and a “gong” is emitted by
the system. Contact a Fiat Dealer-
ship;
punctured tyre- warning light
“STOP” comes on and the in-
fotelematic CONNECT system dis-
plays the related message together
with 3 consecutive “gong” sounds.
Change the wheel in the following
way.
The system can also display a dedi-
cated message in the event it should
not be able to detect the tyre pres-
sure. Under no circumstances
should a battery charger
be used to start the en-
gine: it could damage the elec-
tronic systems and in particular
the ignition and injection control
units.
BUMP STARTING
Do not bump start by
pushing, towing or coast-
ing downhill. This way of
starting could cause a rush of fu-
el into the catalytic converter and
damage it beyond repair.

IN AN EMERGENCY
174

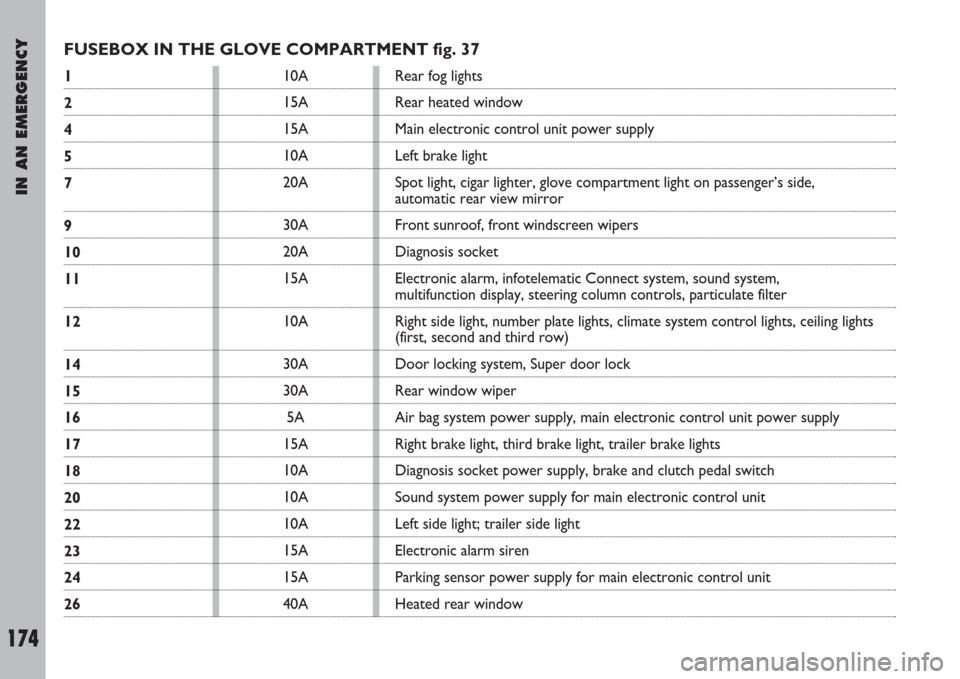

FUSEBOX IN THE GLOVE COMPARTMENT fig. 37
1
2
4
5
7
9
10
11
12
14
15
16
17
18
20
22
23
24
2610A
15A
15A
10A
20A
30A
20A
15A
10A
30A
30A
5A
15A
10A
10A
10A
15A
15A
40ARear fog lights
Rear heated window
Main electronic control unit power supply
Left brake light
Spot light, cigar lighter, glove compartment light on passenger’s side,
automatic rear view mirror
Front sunroof, front windscreen wipers
Diagnosis socket
Electronic alarm, infotelematic Connect system, sound system,
multifunction display, steering column controls, particulate filter
Right side light, number plate lights, climate system control lights, ceiling lights
(first, second and third row)
Door locking system, Super door lock
Rear window wiper
Air bag system power supply, main electronic control unit power supply
Right brake light, third brake light, trailer brake lights
Diagnosis socket power supply, brake and clutch pedal switch
Sound system power supply for main electronic control unit
Left side light; trailer side light
Electronic alarm siren
Parking sensor power supply for main electronic control unit
Heated rear window

IN AN EMERGENCY
176
FUSEBOX IN THE ENGINE COMPARTMENT fig. 39
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
1810A
15A
10A
10A
10A
15A
20A
20A
15A
15A
10A
10A
15A
10A
30A
30A
40AReverse light switch, Xenon lights, electric fan controls, engine coolant level,
heated diesel filter, preheating spark plugs,
speed control system, air debit gauge
Fuel pump, exhaust gas recirculation and turbo-compressor control system
ABS, ESP
Keyed service power supply, for main electronic control unit
Particulate filtering system
Front fog lights
Headlight washers
Relay power supply for main electronic control unit, electric fan relay controls ,
diesel pressure adjusting solenoid valve and exhaust gas
recirculation
Left dipped beam headlight, headlight beam corrector
Right dipped beam headlight
Left main beam headlight
Right main beam headlight
Horn
Windscreen wiper pump - rear window wiper
Lambda sensor, injectors, spark plugs, canister solenoid valve,
injection pump solenoid valve
Windscreen wiper
Additional fans

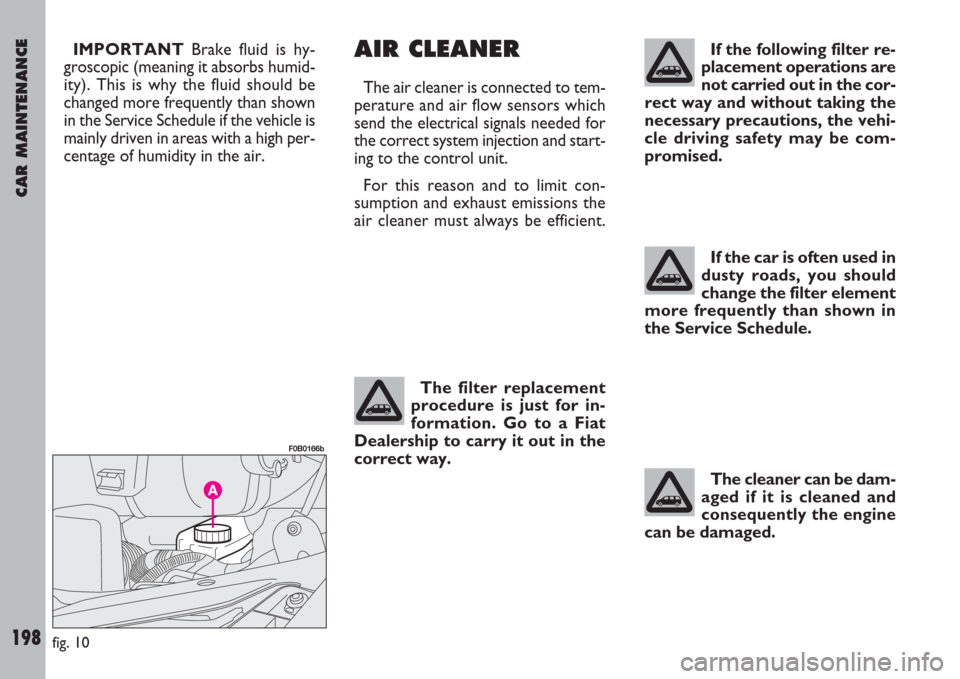

AIR CLEANER
The air cleaner is connected to tem-
perature and air flow sensors which
send the electrical signals needed for
the correct system injection and start-
ing to the control unit.
For this reason and to limit con-
sumption and exhaust emissions the
air cleaner must always be efficient. IMPORTANTBrake fluid is hy-
groscopic (meaning it absorbs humid-
ity). This is why the fluid should be
changed more frequently than shown
in the Service Schedule if the vehicle is
mainly driven in areas with a high per-
centage of humidity in the air.If the following filter re-
placement operations are
not carried out in the cor-
rect way and without taking the
necessary precautions, the vehi-
cle driving safety may be com-
promised.
The filter replacement
procedure is just for in-
formation. Go to a Fiat
Dealership to carry it out in the
correct way.
If the car is often used in
dusty roads, you should
change the filter element
more frequently than shown in
the Service Schedule.
The cleaner can be dam-
aged if it is cleaned and
consequently the engine
can be damaged.
fig. 10
F0B0166b
CAR MAINTENANCE
198

INDEX
240
ABS system ................................. 116
- electronic braking force
distributor EBD ...................... 118
Accessories purchased
by the owner .............................. 132
Aerosol cans (warning) .............. 213
Air cleaner ........................... 190-198
Anchoring the load ..................... 110
Armrests ........................................ 33
Ashtray ........................................... 101
ASR system .................................... 121
Audio – video socket .................. 97
Autoclose (function) .................. 17
Automatic climate control
system ......................................... 68
- additional rear controls ........ 77
- failure indication ...................... 78
- front controls........................... 71
- general
instructions .............. 68-69-70-71
- sensors ...................................... 71
- settings....................................... 74
- switching on ............................. 74Automatic electronic transmission
display .......................................... 91
Automatic headlight sensor
(daylight sensor)
- control ...................................... 80
Battery
- advice ........................................ 203
- fluid level (electrolyte) .......... 201
- if the battery is flat.................. 178
- jump starting ............................ 153
- maintenance ............................ 201
- recharging ................................ 178
- replacing the battery ............. 201
Bodywork
- maintenance ............................ 210
- version code ........................... 218
Boot
- anchoring the load .................. 110
- luggage compartment light .... 104
- luggage cover ........................... 111
- luggage retaining net............... 100
- luggage transportation .......... 110
- opening/locking the tailgate
from the outside .................... 109- passenger/luggage separating
net............................................... 112
- tailgate emergency opening . 110
Bonnet ........................................... 112
Bottle/glass/can holder ................ 98
Brake and hydraulic clutch
fluid level ..................................... 198
Brake lights .................................... 166
- third brake light ....................... 168
Brakes
- fluid level .................................. 198
- technical specification ........... 221
Bulbs (replacement) ................... 159
- bulb list ..................................... 160
- front light cluster ................... 162
- general instructions ............... 159
- if an exterior bulb
burns out ................................. 162
- rear light cluster ..................... 166
- types of bulbs .......................... 160
Capacities .................................... 229
Car maintenance ......................... 184
- heavy-duty ............................... 188
- routine maintenance .............. 187
I I
N N
D D
E E
X X

INDEX
244
Main beam headlights
- bulb replacement .................... 163
- control ...................................... 79
- flashing ...................................... 81
Maintenance indicator ................. 54
- operation .................................. 55
- reconfiguration ........................ 55
- resetting .................................... 56
Manual climate control system 64
- Air distribution ........................ 64
- Air quality ................................ 65
- Climate control ...................... 67
- Controls ................................... 66
Manual gearbox ........................... 89
- technical specifications ......... 221
MBA system................................... 118
Model plate .................................... 215
MSR system ................................... 122
Number plate lights
- bulb replacement .................... 167
Oddment compartments......... 98
Odometer display ........................ 54
- engine oil level gauge.............. 54
- scheduled maintenance
indicator .................................... 54- trip kilometre counter ........... 54
Paint
- maintenance ............................. 210
Paint identification plate ............. 216
Parking ............................................ 139
Parking sensor ............................. 130
- general notes............................ 131
- towing a trailer ....................... 131
Passenger's compartment
air vents ............................... 63-64
Performance .................................. 227
Pollen filter ............................ 190-199
- maintenance ............................ 190
Power steering fluid level .......... 197
Pretensioners (seat belts) ......... 37
Protecting the environment ...... 135
Puddle lights
- bulb replacement .................... 170
Rain sensor ................................... 83
Rear fog lights
- bulb replacement .................... 166
- controls .................................... 81
Rear heated window ...... 72-73
Rear seats ..................................... 27
- adjustment ....................... 27-28- armrests ................................... 33
- dismantling ................................ 29
- head restraints ........................ 32
- interior settings .............. 31-32
- third row bench seat.............. 29
Rearview mirrors
- adjustment ................................ 36
- door mirrors ........................... 35
- driving mirror ......................... 34
Rear window blades
- replacement.............................. 209
Rear window opening/
closing ........................................... 106
Rear window washer
- control ....................................... 85
Rear window wiper
- blade replacement ................. 209
- control ...................................... 85
Rear windows
- calliper opening ....................... 107
Refuelling ....................................... 229
Rev counter ................................... 53
Reverse lights
- bulb replacement .................... 166
Roof rack bars............................... 113
Rubber tubing
(maintenance) ............................ 207
