IN AN EMERGENCY
160

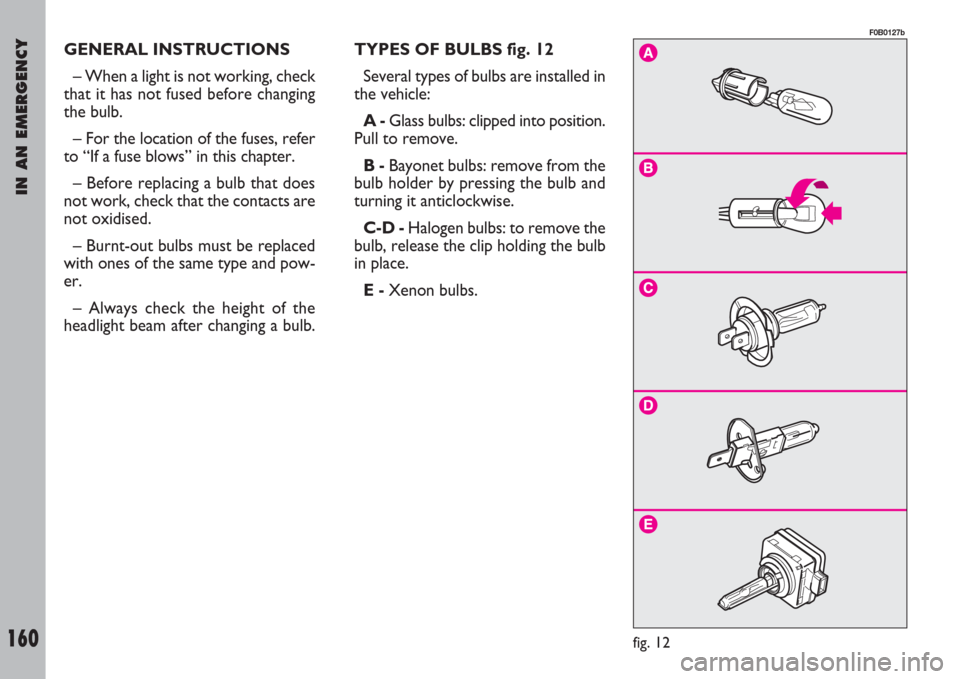

GENERAL INSTRUCTIONS
– When a light is not working, check
that it has not fused before changing
the bulb.
– For the location of the fuses, refer
to “If a fuse blows” in this chapter.
– Before replacing a bulb that does
not work, check that the contacts are
not oxidised.
– Burnt-out bulbs must be replaced
with ones of the same type and pow-
er.
– Always check the height of the
headlight beam after changing a bulb.TYPES OF BULBS fig. 12
Several types of bulbs are installed in
the vehicle:
A -Glass bulbs: clipped into position.
Pull to remove.
B -Bayonet bulbs: remove from the
bulb holder by pressing the bulb and
turning it anticlockwise.
C-D -Halogen bulbs: to remove the
bulb, release the clip holding the bulb
in place.
E -Xenon bulbs.
fig. 12
F0B0127b

IN AN EMERGENCY
161
BULBS
Front side lights
Dipped beam headlights:
– halogen bulbs
– Xenon lights
Main beam headlights
Front fog lights
Direction indicators:
– front
– side
– rear
Taillights and brake lights
Third brake lights
Reversing light
Rear fog lights
Number plate light
Passenger compartment lights
Ceiling lights
Glove compartment lights
Courtesy lights
Puddle lightFIGURE 12
A
C
E
C
D
B
A
B
B
A
B
B
A
A
A
A
A
ATYPE
W5W
H7
D15
H7
H3
PY21W
WY5W
PY21W
P21/5W
W5WF14
P21W
P21W
W5W
W5W
W5W
W5W
W5W
W5WPOWER
5W
55W
35W
55W
55W
21W
5W
21W
21W/5W
5W
21W
21W
5W
5W
5W
5W
5W
5W

IN AN EMERGENCY
162

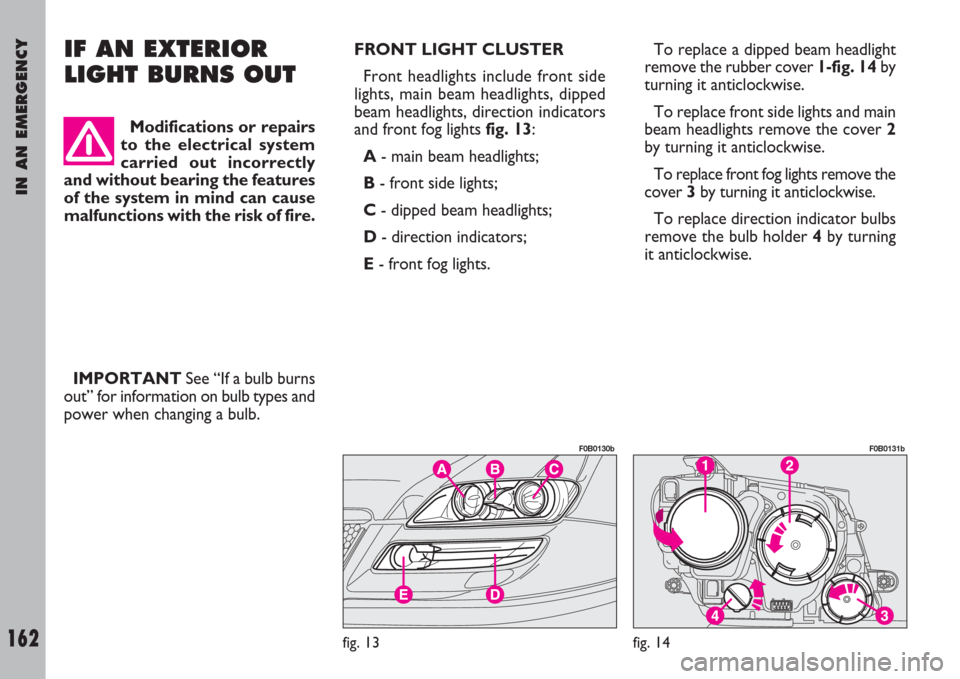

IF AN EXTERIOR
LIGHT BURNS OUT
Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.
IMPORTANTSee “If a bulb burns
out” for information on bulb types and
power when changing a bulb.FRONT LIGHT CLUSTER
Front headlights include front side
lights, main beam headlights, dipped
beam headlights, direction indicators
and front fog lights fig. 13:
A- main beam headlights;
B- front side lights;
C- dipped beam headlights;
D- direction indicators;
E- front fog lights.To replace a dipped beam headlight
remove the rubber cover 1-fig. 14by
turning it anticlockwise.
To replace front side lights and main
beam headlights remove the cover 2
by turning it anticlockwise.
To replace front fog lights remove the
cover 3by turning it anticlockwise.
To replace direction indicator bulbs
remove the bulb holder 4by turning
it anticlockwise.
fig. 13
F0B0130b
fig. 14
F0B0131b

IN AN EMERGENCY
163

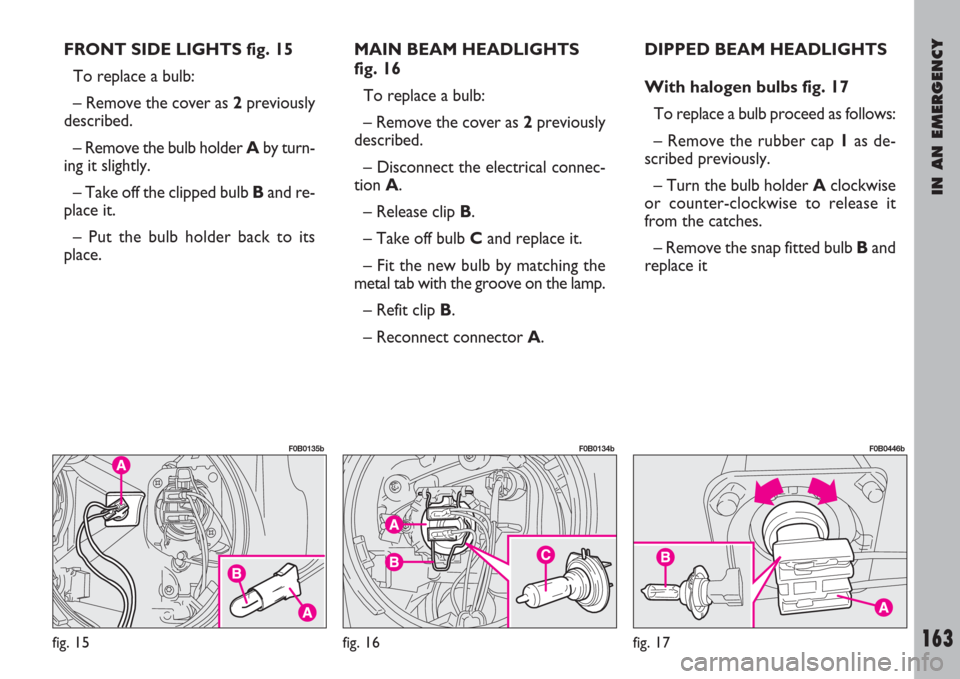

FRONT SIDE LIGHTS fig. 15
To replace a bulb:
– Remove the cover as 2previously
described.
– Remove the bulb holder Aby turn-
ing it slightly.
– Take off the clipped bulb Band re-
place it.
– Put the bulb holder back to its
place.MAIN BEAM HEADLIGHTS
fig. 16
To replace a bulb:
– Remove the cover as 2previously
described.
– Disconnect the electrical connec-
tion A.
– Release clip B.
– Take off bulb Cand replace it.
– Fit the new bulb by matching the
metal tab with the groove on the lamp.
– Refit clip B.
– Reconnect connector A.DIPPED BEAM HEADLIGHTS
With halogen bulbs fig. 17
To replace a bulb proceed as follows:
– Remove the rubber cap 1as de-
scribed previously.
– Turn the bulb holder Aclockwise
or counter-clockwise to release it
from the catches.
– Remove the snap fitted bulb Band
replace it
fig. 15
F0B0135b
fig. 16
F0B0134b
fig. 17
F0B0446b

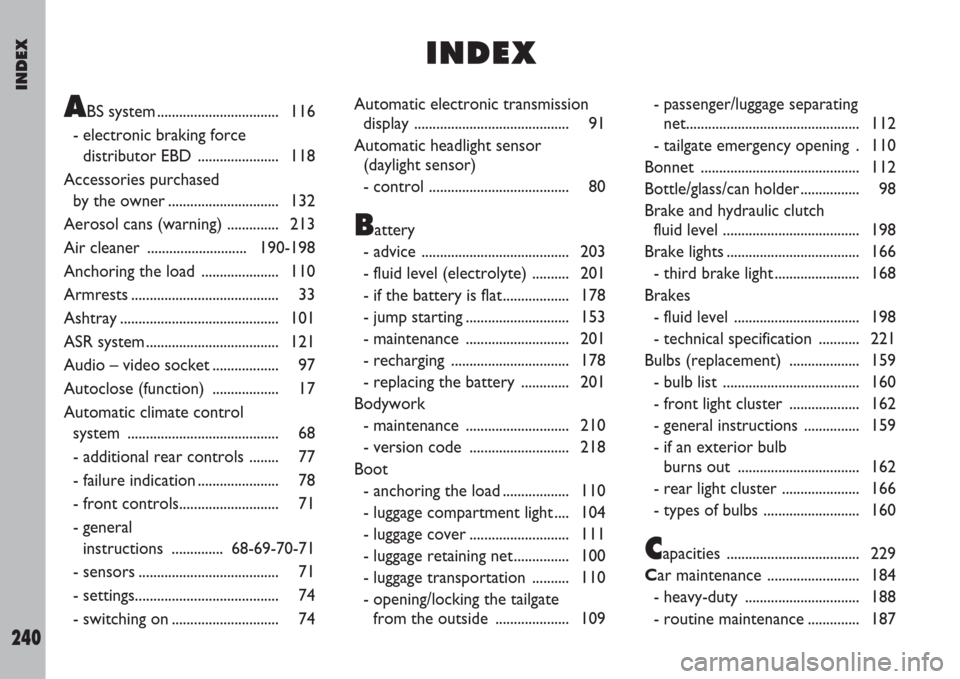

INDEX
240
ABS system ................................. 116
- electronic braking force
distributor EBD ...................... 118
Accessories purchased
by the owner .............................. 132
Aerosol cans (warning) .............. 213
Air cleaner ........................... 190-198
Anchoring the load ..................... 110
Armrests ........................................ 33
Ashtray ........................................... 101
ASR system .................................... 121
Audio – video socket .................. 97
Autoclose (function) .................. 17
Automatic climate control
system ......................................... 68
- additional rear controls ........ 77
- failure indication ...................... 78
- front controls........................... 71
- general
instructions .............. 68-69-70-71
- sensors ...................................... 71
- settings....................................... 74
- switching on ............................. 74Automatic electronic transmission
display .......................................... 91
Automatic headlight sensor
(daylight sensor)
- control ...................................... 80
Battery
- advice ........................................ 203
- fluid level (electrolyte) .......... 201
- if the battery is flat.................. 178
- jump starting ............................ 153
- maintenance ............................ 201
- recharging ................................ 178
- replacing the battery ............. 201
Bodywork
- maintenance ............................ 210
- version code ........................... 218
Boot
- anchoring the load .................. 110
- luggage compartment light .... 104
- luggage cover ........................... 111
- luggage retaining net............... 100
- luggage transportation .......... 110
- opening/locking the tailgate
from the outside .................... 109- passenger/luggage separating
net............................................... 112
- tailgate emergency opening . 110
Bonnet ........................................... 112
Bottle/glass/can holder ................ 98
Brake and hydraulic clutch
fluid level ..................................... 198
Brake lights .................................... 166
- third brake light ....................... 168
Brakes
- fluid level .................................. 198
- technical specification ........... 221
Bulbs (replacement) ................... 159
- bulb list ..................................... 160
- front light cluster ................... 162
- general instructions ............... 159
- if an exterior bulb
burns out ................................. 162
- rear light cluster ..................... 166
- types of bulbs .......................... 160
Capacities .................................... 229
Car maintenance ......................... 184
- heavy-duty ............................... 188
- routine maintenance .............. 187
I I
N N
D D
E E
X X

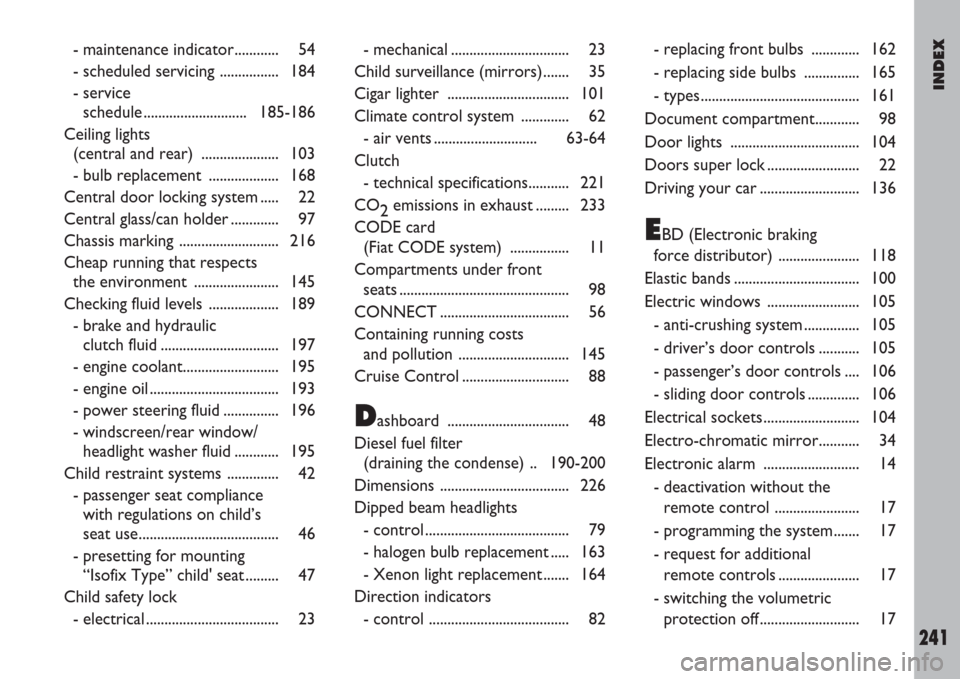

INDEX
241
- maintenance indicator............ 54
- scheduled servicing ................ 184
- service
schedule ............................ 185-186
Ceiling lights
(central and rear) ..................... 103
- bulb replacement ................... 168
Central door locking system ..... 22
Central glass/can holder ............. 97
Chassis marking ........................... 216
Cheap running that respects
the environment ....................... 145
Checking fluid levels ................... 189
- brake and hydraulic
clutch fluid ................................ 197
- engine coolant.......................... 195
- engine oil ................................... 193
- power steering fluid ............... 196
- windscreen/rear window/
headlight washer fluid ............ 195
Child restraint systems .............. 42
- passenger seat compliance
with regulations on child’s
seat use...................................... 46
- presetting for mounting
“Isofix Type” child' seat ......... 47
Child safety lock
- electrical .................................... 23- mechanical ................................ 23
Child surveillance (mirrors)....... 35
Cigar lighter ................................. 101
Climate control system ............. 62
- air vents ............................ 63-64
Clutch
- technical specifications........... 221
CO
2emissions in exhaust ......... 233
CODE card
(Fiat CODE system) ................ 11
Compartments under front
seats .............................................. 98
CONNECT ................................... 56
Containing running costs
and pollution .............................. 145
Cruise Control ............................. 88
Dashboard ................................. 48
Diesel fuel filter
(draining the condense) .. 190-200
Dimensions ................................... 226
Dipped beam headlights
- control ....................................... 79
- halogen bulb replacement ..... 163
- Xenon light replacement ....... 164
Direction indicators
- control ...................................... 82- replacing front bulbs ............. 162
- replacing side bulbs ............... 165
- types ........................................... 161
Document compartment............ 98
Door lights ................................... 104
Doors super lock ......................... 22
Driving your car ........................... 136
EBD (Electronic braking
force distributor) ...................... 118
Elastic bands .................................. 100
Electric windows ......................... 105
- anti-crushing system ............... 105
- driver’s door controls ........... 105
- passenger’s door controls .... 106
- sliding door controls .............. 106
Electrical sockets .......................... 104
Electro-chromatic mirror........... 34
Electronic alarm .......................... 14
- deactivation without the
remote control ....................... 17
- programming the system....... 17
- request for additional
remote controls ...................... 17
- switching the volumetric
protection off ........................... 17

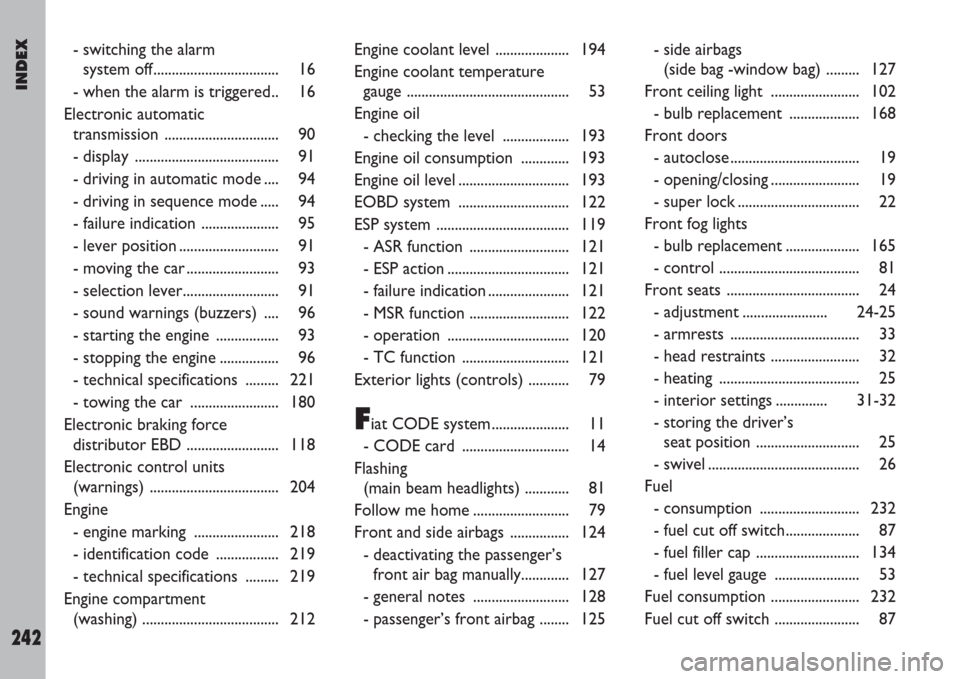

INDEX
242
- switching the alarm
system off.................................. 16
- when the alarm is triggered.. 16
Electronic automatic
transmission ............................... 90
- display ....................................... 91
- driving in automatic mode .... 94
- driving in sequence mode ..... 94
- failure indication ..................... 95
- lever position ........................... 91
- moving the car ......................... 93
- selection lever.......................... 91
- sound warnings (buzzers) .... 96
- starting the engine ................. 93
- stopping the engine ................ 96
- technical specifications ......... 221
- towing the car ........................ 180
Electronic braking force
distributor EBD ......................... 118
Electronic control units
(warnings) ................................... 204
Engine
- engine marking ....................... 218
- identification code ................. 219
- technical specifications ......... 219
Engine compartment
(washing) ..................................... 212Engine coolant level .................... 194
Engine coolant temperature
gauge ............................................ 53
Engine oil
- checking the level .................. 193
Engine oil consumption ............. 193
Engine oil level .............................. 193
EOBD system .............................. 122
ESP system .................................... 119
- ASR function ........................... 121
- ESP action ................................. 121
- failure indication ...................... 121
- MSR function ........................... 122
- operation ................................. 120
- TC function ............................. 121
Exterior lights (controls) ........... 79
Fiat CODE system ..................... 11
- CODE card ............................. 14
Flashing
(main beam headlights) ............ 81
Follow me home .......................... 79
Front and side airbags ................ 124
- deactivating the passenger’s
front air bag manually............. 127
- general notes .......................... 128
- passenger’s front airbag ........ 125- side airbags
(side bag -window bag) ......... 127
Front ceiling light ........................ 102
- bulb replacement ................... 168
Front doors
- autoclose ................................... 19
- opening/closing ........................ 19
- super lock ................................. 22
Front fog lights
- bulb replacement .................... 165
- control ...................................... 81
Front seats .................................... 24
- adjustment ....................... 24-25
- armrests ................................... 33
- head restraints ........................ 32
- heating ...................................... 25
- interior settings .............. 31-32
- storing the driver’s
seat position ............................ 25
- swivel ......................................... 26
Fuel
- consumption ........................... 232
- fuel cut off switch.................... 87
- fuel filler cap ............................ 134
- fuel level gauge ....................... 53
Fuel consumption ........................ 232
Fuel cut off switch ....................... 87

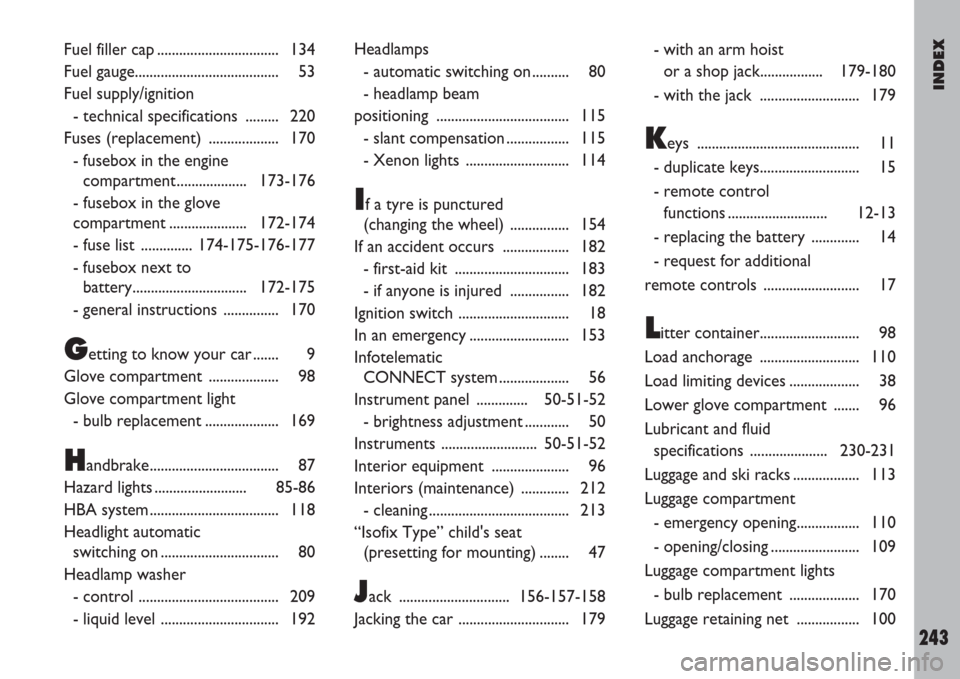

INDEX
243
Fuel filler cap ................................. 134
Fuel gauge....................................... 53
Fuel supply/ignition
- technical specifications ......... 220
Fuses (replacement) ................... 170
- fusebox in the engine
compartment ................... 173-176
- fusebox in the glove
compartment ..................... 172-174
- fuse list .............. 174-175-176-177
- fusebox next to
battery............................... 172-175
- general instructions ............... 170
Getting to know your car ....... 9
Glove compartment ................... 98
Glove compartment light
- bulb replacement .................... 169
Handbrake................................... 87
Hazard lights ......................... 85-86
HBA system ................................... 118
Headlight automatic
switching on ................................ 80
Headlamp washer
- control ...................................... 209
- liquid level ................................ 192Headlamps
- automatic switching on .......... 80
- headlamp beam
positioning .................................... 115
- slant compensation ................. 115
- Xenon lights ............................ 114
If a tyre is punctured
(changing the wheel) ................ 154
If an accident occurs .................. 182
- first-aid kit ............................... 183
- if anyone is injured ................ 182
Ignition switch .............................. 18
In an emergency ........................... 153
Infotelematic
CONNECT system ................... 56
Instrument panel .............. 50-51-52
- brightness adjustment ............ 50
Instruments .......................... 50-51-52
Interior equipment ..................... 96
Interiors (maintenance) ............. 212
- cleaning ...................................... 213
“Isofix Type” child's seat
(presetting for mounting) ........ 47
Jack .............................. 156-157-158
Jacking the car .............................. 179- with an arm hoist
or a shop jack................. 179-180
- with the jack ........................... 179
Keys ............................................ 11
- duplicate keys........................... 15
- remote control
functions ........................... 12-13
- replacing the battery ............. 14
- request for additional
remote controls .......................... 17
Litter container........................... 98
Load anchorage ........................... 110
Load limiting devices ................... 38
Lower glove compartment ....... 96
Lubricant and fluid
specifications ..................... 230-231
Luggage and ski racks .................. 113
Luggage compartment
- emergency opening................. 110
- opening/closing ........................ 109
Luggage compartment lights
- bulb replacement ................... 170
Luggage retaining net ................. 100

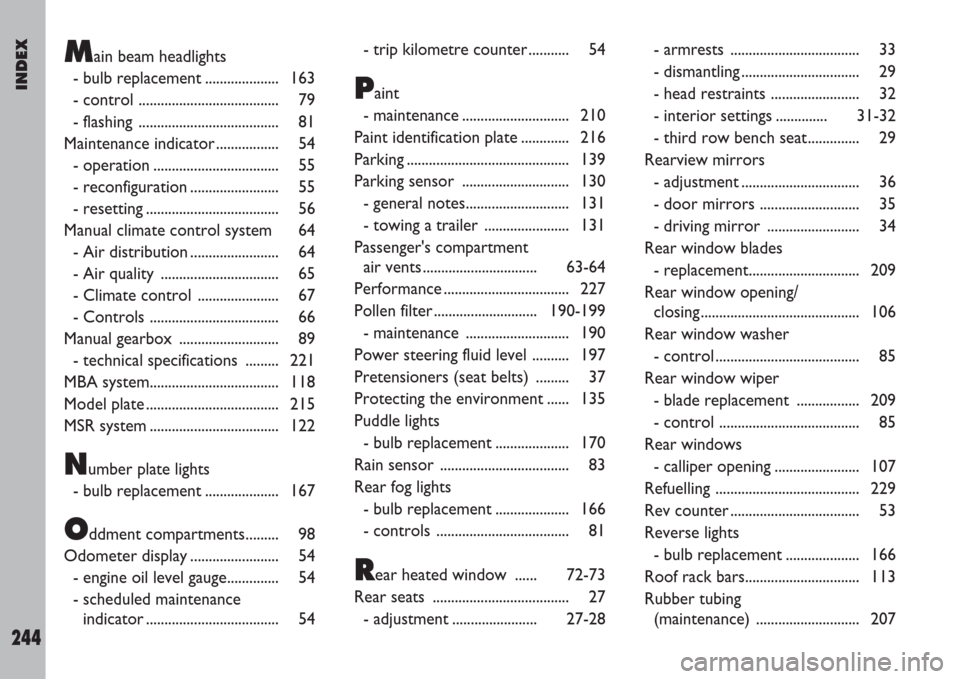

INDEX
244
Main beam headlights
- bulb replacement .................... 163
- control ...................................... 79
- flashing ...................................... 81
Maintenance indicator ................. 54
- operation .................................. 55
- reconfiguration ........................ 55
- resetting .................................... 56
Manual climate control system 64
- Air distribution ........................ 64
- Air quality ................................ 65
- Climate control ...................... 67
- Controls ................................... 66
Manual gearbox ........................... 89
- technical specifications ......... 221
MBA system................................... 118
Model plate .................................... 215
MSR system ................................... 122
Number plate lights
- bulb replacement .................... 167
Oddment compartments......... 98
Odometer display ........................ 54
- engine oil level gauge.............. 54
- scheduled maintenance
indicator .................................... 54- trip kilometre counter ........... 54
Paint
- maintenance ............................. 210
Paint identification plate ............. 216
Parking ............................................ 139
Parking sensor ............................. 130
- general notes............................ 131
- towing a trailer ....................... 131
Passenger's compartment
air vents ............................... 63-64
Performance .................................. 227
Pollen filter ............................ 190-199
- maintenance ............................ 190
Power steering fluid level .......... 197
Pretensioners (seat belts) ......... 37
Protecting the environment ...... 135
Puddle lights
- bulb replacement .................... 170
Rain sensor ................................... 83
Rear fog lights
- bulb replacement .................... 166
- controls .................................... 81
Rear heated window ...... 72-73
Rear seats ..................................... 27
- adjustment ....................... 27-28- armrests ................................... 33
- dismantling ................................ 29
- head restraints ........................ 32
- interior settings .............. 31-32
- third row bench seat.............. 29
Rearview mirrors
- adjustment ................................ 36
- door mirrors ........................... 35
- driving mirror ......................... 34
Rear window blades
- replacement.............................. 209
Rear window opening/
closing ........................................... 106
Rear window washer
- control ....................................... 85
Rear window wiper
- blade replacement ................. 209
- control ...................................... 85
Rear windows
- calliper opening ....................... 107
Refuelling ....................................... 229
Rev counter ................................... 53
Reverse lights
- bulb replacement .................... 166
Roof rack bars............................... 113
Rubber tubing
(maintenance) ............................ 207

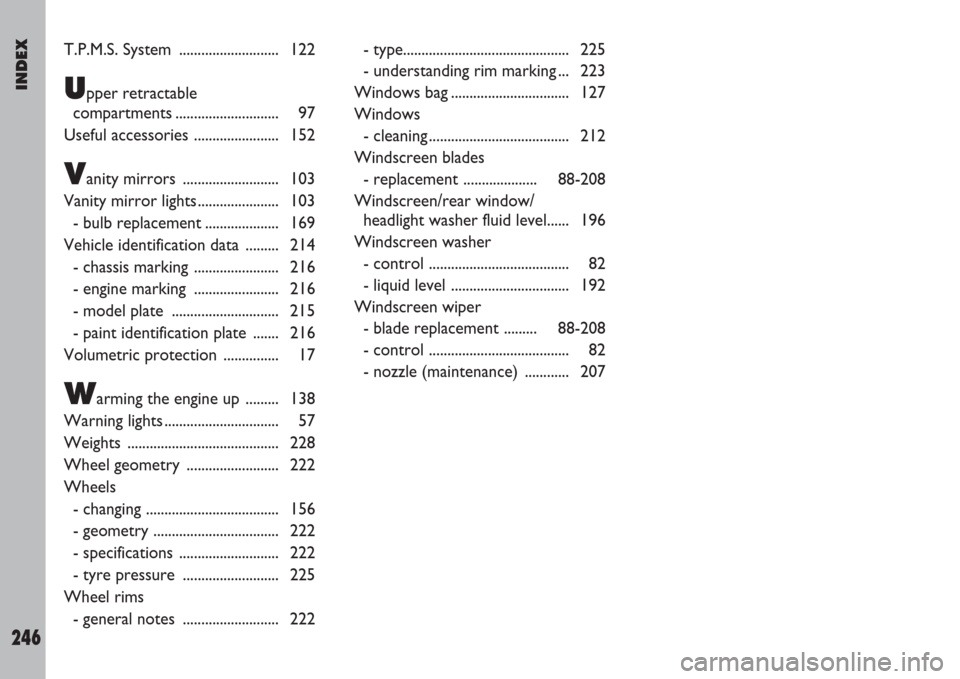

INDEX
246
T.P.M.S. System ........................... 122
Upper retractable
compartments ............................ 97
Useful accessories ....................... 152
Vanity mirrors .......................... 103
Vanity mirror lights...................... 103
- bulb replacement .................... 169
Vehicle identification data ......... 214
- chassis marking ....................... 216
- engine marking ....................... 216
- model plate ............................. 215
- paint identification plate ....... 216
Volumetric protection ............... 17
Warming the engine up ......... 138
Warning lights ............................... 57
Weights ......................................... 228
Wheel geometry ......................... 222
Wheels
- changing .................................... 156
- geometry .................................. 222
- specifications ........................... 222
- tyre pressure .......................... 225
Wheel rims
- general notes .......................... 222- type............................................. 225
- understanding rim marking ... 223
Windows bag ................................ 127
Windows
- cleaning ...................................... 212
Windscreen blades
- replacement .................... 88-208
Windscreen/rear window/
headlight washer fluid level...... 196
Windscreen washer
- control ...................................... 82
- liquid level ................................ 192
Windscreen wiper
- blade replacement ......... 88-208
- control ...................................... 82
- nozzle (maintenance) ............ 207
