key FIAT ULYSSE 2008 2.G Connect NavPlus Manual

29
HOW TO INSERT A
SIM CARD
Insert a SIM card to make the tele-
phone operative and to access the
telephone functions.
Press and release the button over
the adapter (13) and extract the
adapter; insert the SIM card following
the instructions from on the card it-
self; then insert the adapter in the spe-
cific seat.
The PIN prompt will appear if the
SIM card is inserted correctly.
Press and release the button over
the adapter to remove the SIM card
(13); then remove the SIM card.
IMPORTANT Extracting the SIM
code while the telephone is working
may cause temporary problems. In this
case, normal operation of the tele-
phone may be restored by switching
the engine off and back on.HOW TO ENTER THE PIN
CODE
IMPORTANT The PIN code (Per-
sonal Identification Number) prevents
unauthorised use of the functions ac-
tivated by inserting a SIM code.
The PIN code consists of a variable
number of digits (from four to eight).
Enter the code using the keypad on
the front of the device and press the
knob (16 - 40) to confirm.
Asterisks (*) will appear on the dis-
play instead of the entered digits.
Select “Correct” with the knob (16
- 40) to correct the PIN code; press
to delete the last entered digit.IMPORTANTThe SIM card will
be locked if an incorrect PIN code is
entered three times in sequence. En-
ter the PUK (Pin Unlocking Key) and
the new PIN to unlock the device.
The device will start searching for the
network straight after entering the
PIN code. The main telephone func-
tions will appear on the display. The
name of the network access supplier
will appear on the display after con-
nection is established.
How to deactivate the
PIN code prompt
Press MENU(18 - 41) and use the
knob (16 - 40) to select and confirm
“TELEMATICS” fig. 8.
Again with the knob (16 - 40), select
“Telephone functions”, “Manage PIN
code” and then “Modify PIN code”;
the system will at this point prompt
you to enter the new code; select OK
when you have finished.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 29

30
HOW TO MAKE A CALL
Press £(5): the following menu will
appear on the display:
– Dial
– Directory
– Call list
– Mail box.
How to dial a telephone
number
Proceed as follows to dial a tele-
phone number:
– turn and press the knob (16 - 40)
to select and confirm the “Dial” func-
tion; dial the number using the al-
phanumeric keypad;
– press £(5) to make the call.How to select a number from
the directory
Proceed as follows:
– turn and press the knob (16 - 40)
to select and confirm the “Agenda”
function to access the list of numbers
stored in the directory;
– turn the knob (16 - 40) to select
the number and then press £(5) to
make the call.
How to select a number from
the call list
Turn and press the knob (16 - 40) to
select and confirm the “Call list” func-
tion to access the list of numbers
stored in the directory;
Turn the knob (16 - 40) to select the
number and then press £(5) to make
the call.Mail box
Turn and press the knob (16 - 40) to
select and confirm the “Mail box”
function to access the voice mail man-
agement menu.
HOW TO CALL AN
EMERGENCY NUMBER
Follow the instructions shown in the
previous paragraph to make an emer-
gency call (e.g.: # xxxxxx ) in ac-
cordo con la Norma ETSI GSM 02.03.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 30

33
TEXT MESSAGES
(SMS - Short Message Service)
A tone will be heard (if the text ring
option is active) when a text message
is received and the message “Do you
wish to read the new text message?”
will appear on the display. Select and
confirm “YES” to read the message
immediately by turning and pressing
the knob (16 - 40); otherwise select
“NO” or press ESC (9 - 36).
Use the knob (16- 40) to select the
“Text messages (SMS)” function. The
following menu will appear on the dis-
play:
• Received text messages reading
• Sending a text message
• SMS writing
• Delete list of text messages.•Received text messages
reading
Use the knob (16 - 40) to select and
confirm the item and access the stored
message list. Use the knob to select
and read the required message.
Use the “Delete” function if required
to delete each message.
•Sending a text message
Use the knob (16 - 40) to select and
confirm this item and send a previously
stored or written text message.
Select the required message, select
“Send” and either dial or select the
number where to send the message
from the directory.•SMS writing
Use the knob (16 - 40) to select and
confirm this item. The alphanumeric
keypad will appear on the display. Se-
lect and confirm one character at a
time to write the text. When you have
completed the message, select and
confirm OK.
•Delete list of text messages
Use the knob (16 - 40) to select and
confirm this item and delete all the
stored text messages.
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 33

34
BLUETOOTH SYSTEM
(where provided)
Bluetooth technology allows wireless
communication without any electrical
connections between your mobile
phone and the hands-free set on the
vehicle.
The Bluetooth services offered
depend on your phone provider,
your SIM card and compatibility
between the devices used; check
the available services in your mo-
bile phone user handbook and
with your service provider.To activate the Bluetooth function,
proceed as follows:
– press MENU(18 - 41);
– Select the “TELEMATICS” icon by
turning and pressing knob (16 – 40).
– select “BLUETOOTH FUNC-
TIONS” by turning and pressing knob
(16 – 40).
the following menu will appear:
– “Activation mode”: allows selec-
tion of the following functions: “deac-
tivated” (the system is deactivated and
allows the use only of the internal
phone), “active and visible” (Blue-
tooth system active and visible to all
phones), “active and not visible” (Blue-
tooth system active but not visible to
the other phones); activate the re-
quired function by turning/pressing
knob (16 – 40).
– “List connected phones”: shows a
list of previously connected phones
(up to 10); turn/press knob (16 - 40)
to select the required phone, then se-
lect and confirm “CONNECT”– “Change name of radiophone”: al-
lows you to alter the name of the ve-
hicle system displayed.
– “Authentication code”: allows you
to change/record the selected au-
thentication code (code preset by the
manufacturer: 0000).
– “Radiophone synchronisation mode”:
allows you to synchronise the contact
list and the list of calls between the
phone and vehicle system; the syn-
chronisation procedure could take a
few minutes.
For safety reasons, the
Bluetooth connection pro-
cedure between the mobile phone
and the hands-free system must be
carried out only with the vehicle
parked and the ignition key turned
to M.
WARNING
026-056 CONNECT ULISSE GB 20-10-2008 10:09 Pagina 34

45

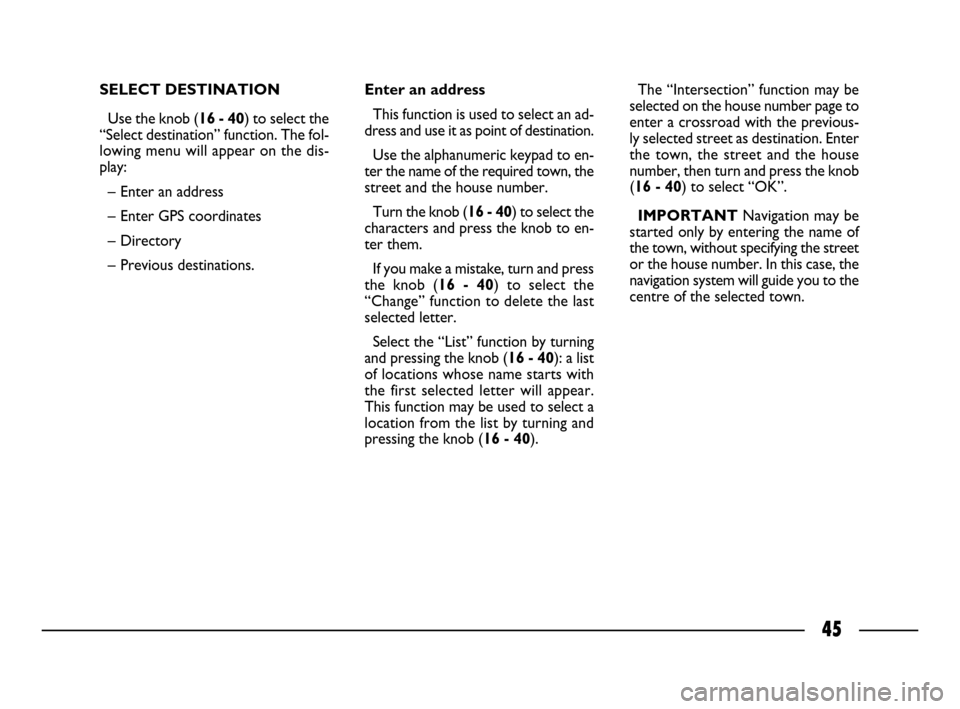

SELECT DESTINATION
Use the knob (16 - 40) to select the
“Select destination” function. The fol-
lowing menu will appear on the dis-
play:
– Enter an address
– Enter GPS coordinates
– Directory
– Previous destinations.Enter an address
This function is used to select an ad-
dress and use it as point of destination.
Use the alphanumeric keypad to en-
ter the name of the required town, the
street and the house number.
Turn the knob (16 - 40) to select the
characters and press the knob to en-
ter them.
If you make a mistake, turn and press
the knob (16 - 40) to select the
“Change” function to delete the last
selected letter.
Select the “List” function by turning
and pressing the knob (16 - 40): a list
of locations whose name starts with
the first selected letter will appear.
This function may be used to select a
location from the list by turning and
pressing the knob (16 - 40).The “Intersection” function may be
selected on the house number page to
enter a crossroad with the previous-
ly selected street as destination. Enter
the town, the street and the house
number, then turn and press the knob
(16 - 40) to select “OK”.
IMPORTANTNavigation may be
started only by entering the name of
the town, without specifying the street
or the house number. In this case, the
navigation system will guide you to the
centre of the selected town.
