FIAT ULYSSE 2008 2.G Connect NavPlus Manual

The car is equipped with a CONNECT Nav+ system designed according to the specific features of the passen-
ger compartment with a customised design which matches the style of the dashboard.
The system is installed in an ergonomically convenient position for the driver and the passenger; the graphic on
the front panel helps to quickly identify the controls and makes them easier to use.
In order to deter thefts, the device is provided with a special protection system and may only be used on the
car where it was originally fitted.
The interface language of the system is that in use in the country where the car is registered. Contact a Fiat
Dealership to change the language or the voice (male/female) at a later time.
Read the following instructions carefully and keep the instructions at hand at all times (e.g. in the oddment
compartment).
Enjoy.
IMPORTANTFor the CONNECT Nav+ navigator function,
use the original CD supplied with your car
or other CDs of the same make.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 1

001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 2

3
TIPS, CONTROLS
AND GENERAL
INFORMATION
...........................4
TIPS ........................................................ 4
CONTROLS ........................................ 8
GENERAL INFORMATION ........... 13
Important instructions
and road safety ................................... 13
Switching the system
on and off.............................................. 14
Antitheft protection .......................... 14
Configuration ....................................... 14
AUDIO............................................... 15
Volume adjustments........................... 15
Audio adjustments ............................ 15
Radio mode ......................................... 16
CD mode ............................................ 19
CD changer mode .............................. 21
CD charger .......................................... 22
MP3 mode ........................................... 23AUDIO FUNCTIONS ................ 24
Jukebox function ................................. 24
MOBILE TELEPHONE............. 26
Introduction ......................................... 26
Alphanumeric codes ......................... 28
How to insert the SIM card ............. 29
How to enter the PIN code............. 29
How to make a call ........................... 30
How to call a service number.......... 30
How to answer a call ........................ 31
How to reject a call .......................... 31
Directory ............................................. 31
Text messages (SMS) ......................... 33
Bluetooth system ................................ 34
bCONNECT SERVICES.......... 35
“SOS” function .................................... 35
“Emergency” function ........................ 35
“Breakdown” function ...................... 36
– Emergency and breakdown
calls ..................................................... 36
Infomobility services .......................... 37– “Connect” function ....................... 37
– “Breakdown” function ................... 38
– “Operator services” function....... 38
– “Messages received” function ..... 38
– Traffic information ......................... 38
– Information on centres of
interest .............................................. 39
– Generic information ...................... 39
VOICE CONTROLS.................. 40
NAVIGATOR................................. 43
CD-ROM drive ................................... 44
Main menu ............................................ 44
Select destination .............................. 45
Guidance options................................ 46
TMC traffic info................................... 47
Map ....................................................... 49
VIDEO FUNCTION..................... 51
CONNECT Nav+
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 3

4

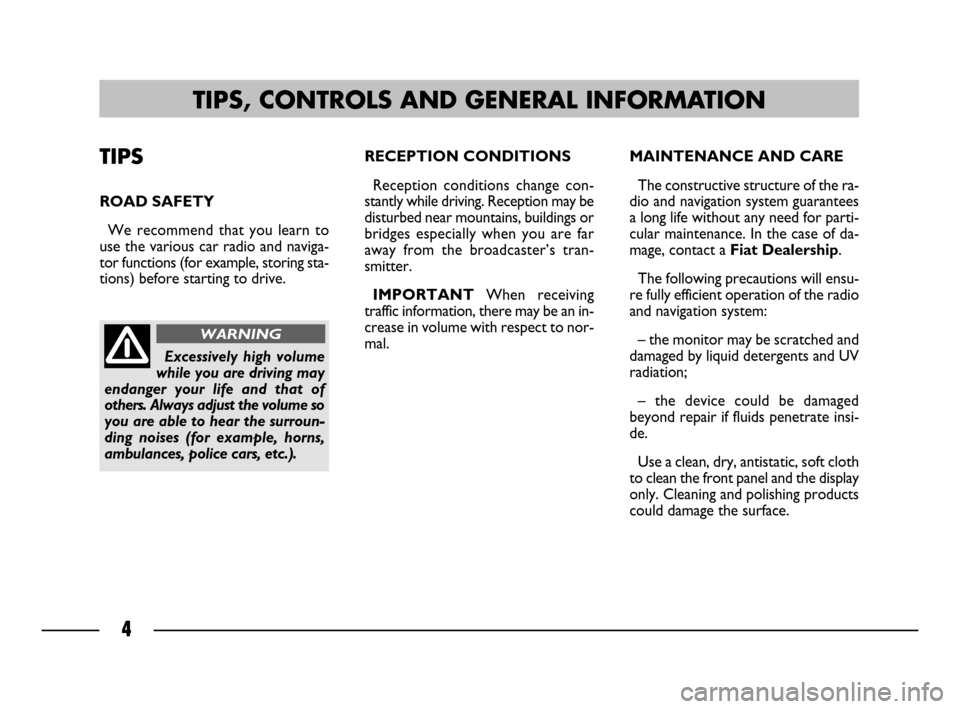

TIPS
ROAD SAFETY
We recommend that you learn to
use the various car radio and naviga-
tor functions (for example, storing sta-
tions) before starting to drive.RECEPTION CONDITIONS
Reception conditions change con-
stantly while driving. Reception may be
disturbed near mountains, buildings or
bridges especially when you are far
away from the broadcaster’s tran-
smitter.
IMPORTANTWhen receiving
traffic information, there may be an in-
crease in volume with respect to nor-
mal.MAINTENANCE AND CARE
The constructive structure of the ra-
dio and navigation system guarantees
a long life without any need for parti-
cular maintenance. In the case of da-
mage, contact a Fiat Dealership.
The following precautions will ensu-
re fully efficient operation of the radio
and navigation system:
– the monitor may be scratched and
damaged by liquid detergents and UV
radiation;
– the device could be damaged
beyond repair if fluids penetrate insi-
de.
Use a clean, dry, antistatic, soft cloth
to clean the front panel and the display
only. Cleaning and polishing products
could damage the surface.
TIPS, CONTROLS AND GENERAL INFORMATION
Excessively high volume
while you are driving may
endanger your life and that of
others. Always adjust the volume so
you are able to hear the surroun-
ding noises (for example, horns,
ambulances, police cars, etc.).
WARNING
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 4

5

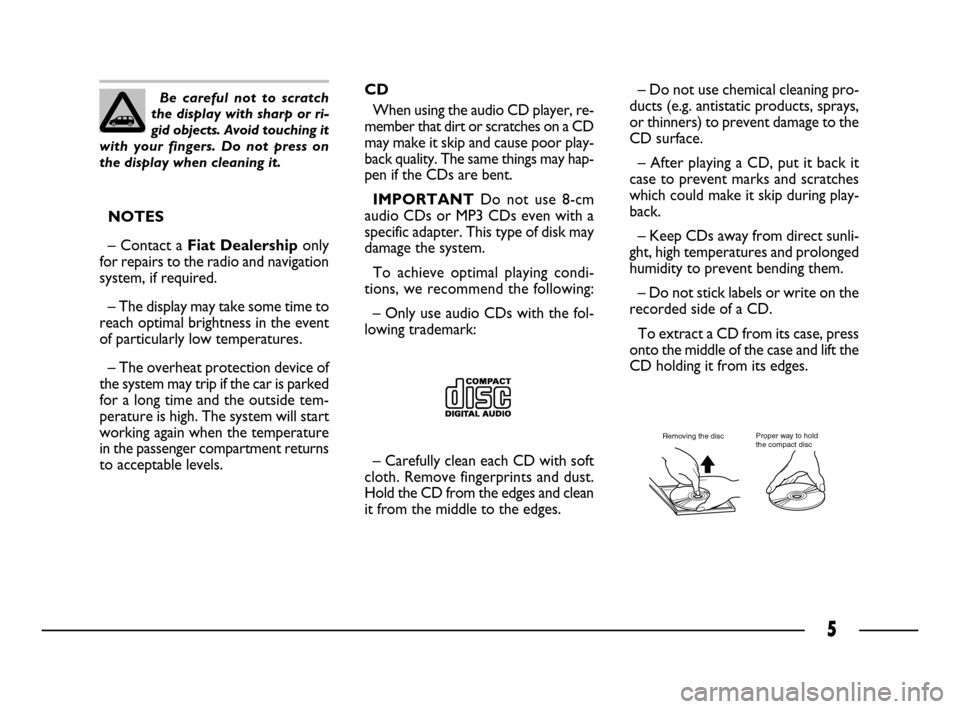

NOTES
– Contact a Fiat Dealership only
for repairs to the radio and navigation
system, if required.
– The display may take some time to
reach optimal brightness in the event
of particularly low temperatures.
– The overheat protection device of
the system may trip if the car is parked
for a long time and the outside tem-
perature is high. The system will start
working again when the temperature
in the passenger compartment returns
to acceptable levels.CD
When using the audio CD player, re-
member that dirt or scratches on a CD
may make it skip and cause poor play-
back quality. The same things may hap-
pen if the CDs are bent.
IMPORTANT Do not use 8-cm
audio CDs or MP3 CDs even with a
specific adapter. This type of disk may
damage the system.
To achieve optimal playing condi-
tions, we recommend the following:
– Only use audio CDs with the fol-
lowing trademark:– Do not use chemical cleaning pro-
ducts (e.g. antistatic products, sprays,
or thinners) to prevent damage to the
CD surface.
– After playing a CD, put it back it
case to prevent marks and scratches
which could make it skip during play-
back.
– Keep CDs away from direct sunli-
ght, high temperatures and prolonged
humidity to prevent bending them.
– Do not stick labels or write on the
recorded side of a CD.
To extract a CD from its case, press
onto the middle of the case and lift the
CD holding it from its edges.
Proper way to hold
the compact discRemoving the disc
– Carefully clean each CD with soft
cloth. Remove fingerprints and dust.
Hold the CD from the edges and clean
it from the middle to the edges.
Be careful not to scratch
the display with sharp or ri-
gid objects. Avoid touching it
with your fingers. Do not press on
the display when cleaning it.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 5

6

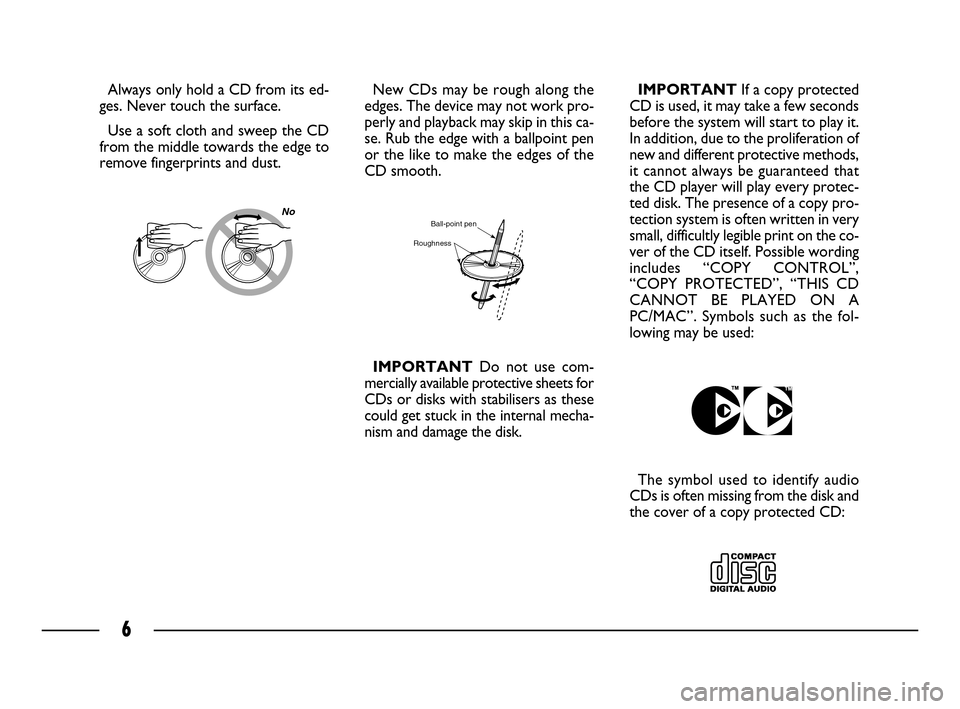

Always only hold a CD from its ed-
ges. Never touch the surface.
Use a soft cloth and sweep the CD
from the middle towards the edge to
remove fingerprints and dust.New CDs may be rough along the
edges. The device may not work pro-
perly and playback may skip in this ca-
se. Rub the edge with a ballpoint pen
or the like to make the edges of the
CD smooth.
IMPORTANT Do not use com-
mercially available protective sheets for
CDs or disks with stabilisers as these
could get stuck in the internal mecha-
nism and damage the disk.IMPORTANTIf a copy protected
CD is used, it may take a few seconds
before the system will start to play it.
In addition, due to the proliferation of
new and different protective methods,
it cannot always be guaranteed that
the CD player will play every protec-
ted disk. The presence of a copy pro-
tection system is often written in very
small, difficultly legible print on the co-
ver of the CD itself. Possible wording
includes “COPY CONTROL”,
“COPY PROTECTED”, “THIS CD
CANNOT BE PLAYED ON A
PC/MAC”. Symbols such as the fol-
lowing may be used:
The symbol used to identify audio
CDs is often missing from the disk and
the cover of a copy protected CD:
NoBall-point pen
Roughness
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 6

7

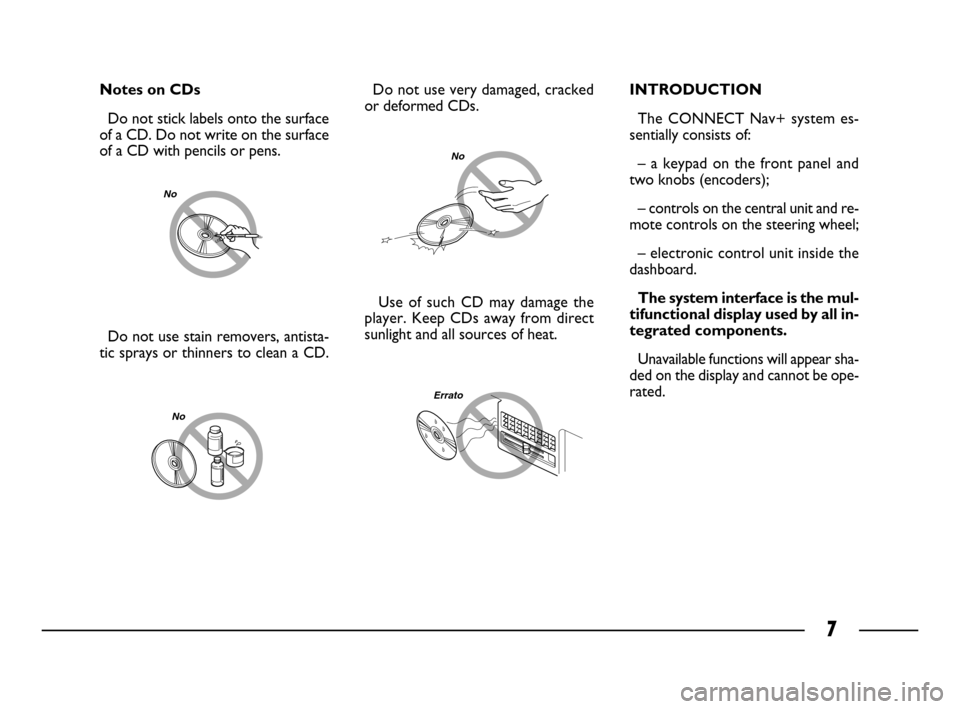

No
Do not use stain removers, antista-
tic sprays or thinners to clean a CD.
No
Do not use very damaged, cracked
or deformed CDs.
No
Use of such CD may damage the
player. Keep CDs away from direct
sunlight and all sources of heat.
Errato
INTRODUCTION
The CONNECT Nav+ system es-
sentially consists of:
– a keypad on the front panel and
two knobs (encoders);
– controls on the central unit and re-
mote controls on the steering wheel;
– electronic control unit inside the
dashboard.
The system interface is the mul-
tifunctional display used by all in-
tegrated components.
Unavailable functions will appear sha-
ded on the display and cannot be ope-
rated. Notes on CDs
Do not stick labels onto the surface
of a CD. Do not write on the surface
of a CD with pencils or pens.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 7

8

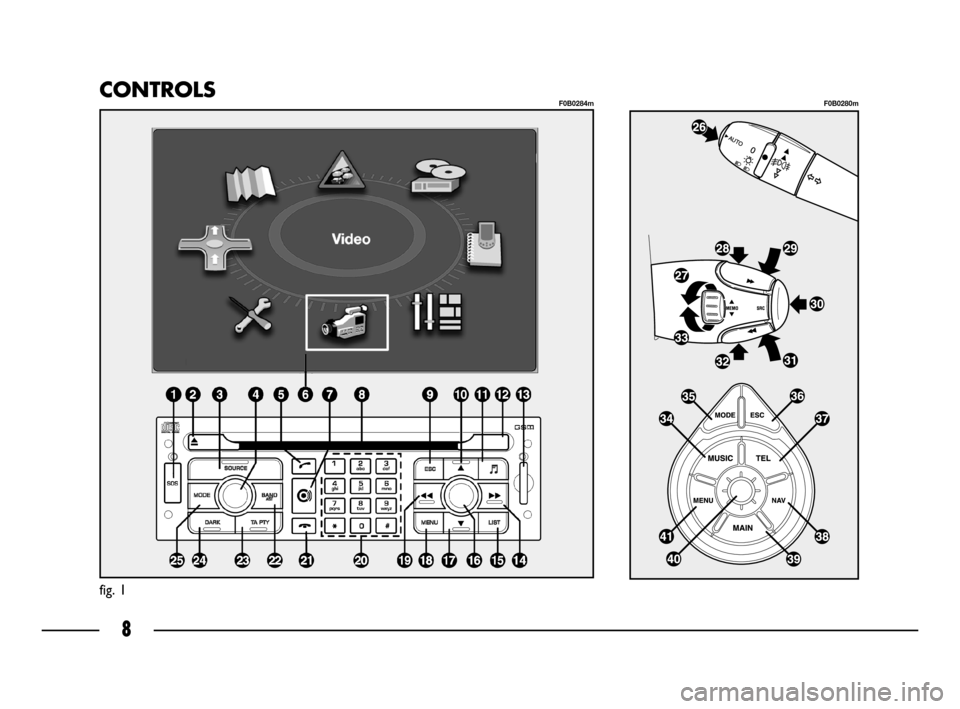

CONTROLS
fig. 1
F0B0284mF0B0280m
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 8

9
Some controls have multiple functions which depend on the active system mode. The activated function in some cases
depends on how long the button is pressed as shown in the following table:

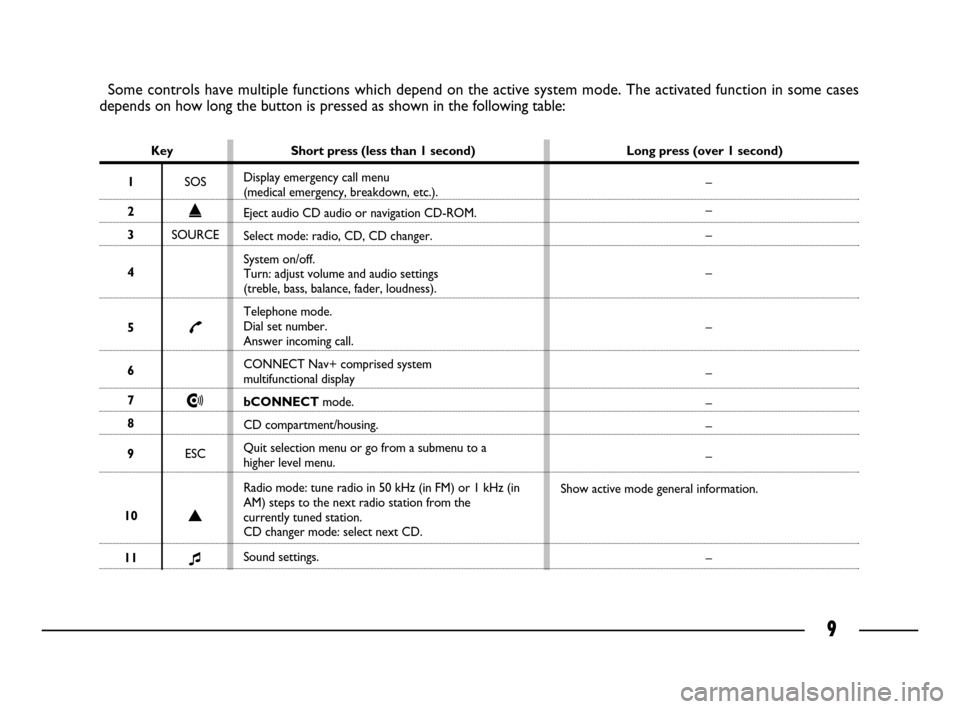

Key Short press (less than 1 second) Long press (over 1 second)
1SOS
2˚
3SOURCE
4
5£
6
7•
8
9ESC
10N
11
–
–
–
–
–
–
–
–
–
Show active mode general information.
– Display emergency call menu
(medical emergency, breakdown, etc.).
Eject audio CD audio or navigation CD-ROM.
Select mode: radio, CD, CD changer.
System on/off.
Turn: adjust volume and audio settings
(treble, bass, balance, fader, loudness).
Telephone mode.
Dial set number.
Answer incoming call.
CONNECT Nav+ comprised system
multifunctional display
bCONNECT mode.
CD compartment/housing.
Quit selection menu or go from a submenu to a
higher level menu.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz (in
AM) steps to the next radio station from the
currently tuned station.
CD changer mode: select next CD.
Sound settings.
001-025 CONNECT ULISSE GB 20-10-2008 10:08 Pagina 9
