GETTING TO KNOW YOUR CAR
53
cerning: automatic light turning on,
ESP, rain sensor.
To reset the trip computer data,
keep pressed the button set at the end
of the right stalk fig. 79b;
– Personal/set-up menu: to acti-
vate/deactivate electric rear wheel
lock, to activate/deactivate rear win-
dow wiper, to activate/deactivate au-
tomatic light turning on and to set
date, clock, display brightness, units
and language.
MULTIFUNCTION DISPLAY
(with infotelematic Connect /
Connect Nav+ system)
CONTROLS fig. 79c
A– button for opening the main
menu
B– buttons for surfing the main
menu
C– button for confirming the se-
lected function or for confirming set
values
D– button for canceling the function
/ going back to previous screen
E– button for selecting the type of
information displayed on the right side
of the screen (date, radio – CD, trip
computer)Main menu
Press button Ato open the main
menu and to display the following
functions:
– Navigation
– Audio
– Trip computer: to display info
concerning: range, instant consump-
tion, distance covered, average con-
sumption, average speed, distance to
destination; to display also info con-
cerning: automatic light turning on,
ESP, rain sensor.
To reset the trip computer data,
keep pressed the button set at the end
of the right stalk fig. 79b;– Address book
– Personal/set-up menu: to acti-
vate/deactivate electric rear wheel
lock, to activate/deactivate rear win-
dow wiper, to activate/deactivate au-
tomatic light turning on and to set
date, clock, display brightness, units
and language.
– Map
– Video
For Navigation, Audio, Address
book, Telematic, Map and Video func-
tions, refer to the attached “Connect
Nav+” Supplement.
fig. 79b
F0B0435b
fig. 79c
F0B0452b

GETTING TO KNOW YOUR CAR
56
The navigation system
helps the driver while dri-
ving by suggesting, vocal-
ly and graphically, the best route
to be followed to reach the pre-
set destination. The suggestions
given by the navigation system do
not exempt the driver from fully
responsibility due to driving be-
haviour and compliance with
road and other traffic regulations.
The responsibility for road safety
always and anyway lies with the
vehicle’s driver.RESETTING
To reset the maintenance indicator:
– turn the ignition key to S;
– press and keep button Cpressed;
– turn the key to M;
– press and keep button Cpressed
for around 10 seconds so that the
maintenance indicator starts progres-
sive resetting until = 0 will be dis-
played;
– release button C and warning lamp
Awill go off to confirm successful re-
setting.
Your Fiat Dealership will reset
the maintenance indicator after
each control carried out.
INFOTELEMATIC
CONNECT SYSTEM
(where fitted)
The vehicle can be fitted with the in-
fotelematic CONNECT system which
includes a radio with CD-ROM/Audio
player, GSM cell phone, navigator and
on-board computer, designed in ac-
cordance with the specific features of
the passenger compartment and with
a personalised design that blends with
the styling of the dashboard.
The system is installed in an user-
friendly position for the driver and the
graphics on the front panel make it
easy to quickly locate the controls
which facilitate the use of them.
To use the system keep to the
instructions and warnings con-
cerning both its functions and the
relative road safety rules con-
tained in the specific Annex pro-
vided with the present Owner
Handbook.

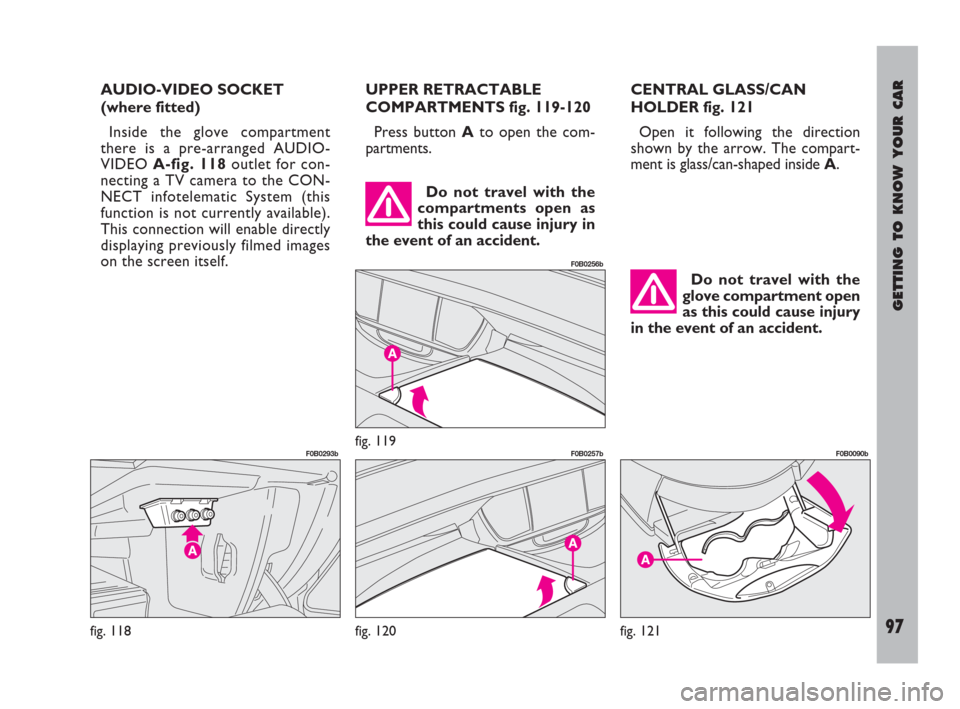

GETTING TO KNOW YOUR CAR
97
UPPER RETRACTABLE
COMPARTMENTS fig. 119-120
Press button Ato open the com-
partments.CENTRAL GLASS/CAN
HOLDER fig. 121
Open it following the direction
shown by the arrow. The compart-
ment is glass/can-shaped inside A.
Do not travel with the
compartments open as
this could cause injury in
the event of an accident.
Do not travel with the
glove compartment open
as this could cause injury
in the event of an accident.
fig. 118
F0B0293b
fig. 120
F0B0257b
fig. 121
F0B0090bfig. 119
F0B0256b
AUDIO-VIDEO SOCKET
(where fitted)
Inside the glove compartment
there is a pre-arranged AUDIO-
VIDEO A-fig. 118outlet for con-
necting a TV camera to the CON-
NECT infotelematic System (this
function is not currently available).
This connection will enable directly
displaying previously filmed images
on the screen itself.

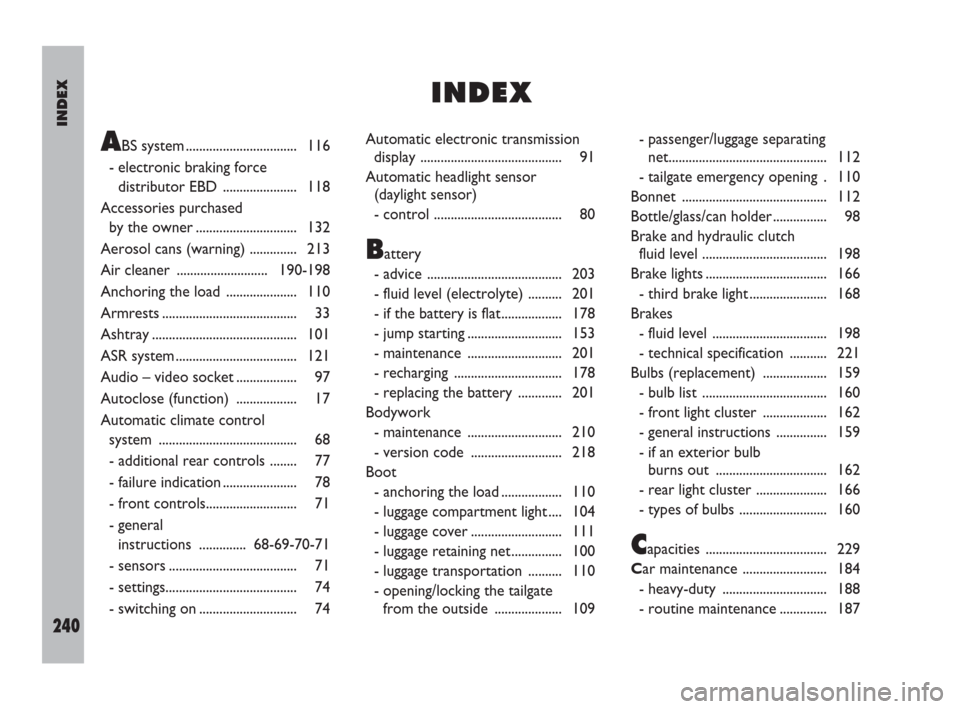

INDEX
240
ABS system ................................. 116
- electronic braking force
distributor EBD ...................... 118
Accessories purchased
by the owner .............................. 132
Aerosol cans (warning) .............. 213
Air cleaner ........................... 190-198
Anchoring the load ..................... 110
Armrests ........................................ 33
Ashtray ........................................... 101
ASR system .................................... 121
Audio – video socket .................. 97
Autoclose (function) .................. 17
Automatic climate control
system ......................................... 68
- additional rear controls ........ 77
- failure indication ...................... 78
- front controls........................... 71
- general
instructions .............. 68-69-70-71
- sensors ...................................... 71
- settings....................................... 74
- switching on ............................. 74Automatic electronic transmission
display .......................................... 91
Automatic headlight sensor
(daylight sensor)
- control ...................................... 80
Battery
- advice ........................................ 203
- fluid level (electrolyte) .......... 201
- if the battery is flat.................. 178
- jump starting ............................ 153
- maintenance ............................ 201
- recharging ................................ 178
- replacing the battery ............. 201
Bodywork
- maintenance ............................ 210
- version code ........................... 218
Boot
- anchoring the load .................. 110
- luggage compartment light .... 104
- luggage cover ........................... 111
- luggage retaining net............... 100
- luggage transportation .......... 110
- opening/locking the tailgate
from the outside .................... 109- passenger/luggage separating
net............................................... 112
- tailgate emergency opening . 110
Bonnet ........................................... 112
Bottle/glass/can holder ................ 98
Brake and hydraulic clutch
fluid level ..................................... 198
Brake lights .................................... 166
- third brake light ....................... 168
Brakes
- fluid level .................................. 198
- technical specification ........... 221
Bulbs (replacement) ................... 159
- bulb list ..................................... 160
- front light cluster ................... 162
- general instructions ............... 159
- if an exterior bulb
burns out ................................. 162
- rear light cluster ..................... 166
- types of bulbs .......................... 160
Capacities .................................... 229
Car maintenance ......................... 184
- heavy-duty ............................... 188
- routine maintenance .............. 187
I I
N N
D D
E E
X X
