INSTRUMENTSA -Odometer display: speedometer,
kilometre counter, maintenance indi-
cator, engine oil level gauge (where fit-
ted) and, for versions with automatic
gear, engaged gear indicator and sym-
bol for presence of ice on the road, if
any.
B -Warning lights
C -Trip kilometre counter reset
button
D -Button for instrument panel
brightness adjustment
fig. 74F0B0412b
fig. 75F0B0413b
Page 55 of 254
GETTING TO KNOW YOUR CAR
54
ODOMETER DISPLAY
This instrument displays the follow-
ing values:
on the upper line:partial kilome-
tres and engine oil level gauge (where
fitted)
on the lower line:total kilometres
and programmed maintenance indica-
tor; versions with automatic gear are
also fitted with engaged gear indicator
(for further details see the chapter
“Automatic gear”).
Trip kilometre counter fig. 80
Press button Ato display the trip
kilometres. Keep it pressed to reset.Engine oil level gauge
(where fitted)
After turning the ignition key to M,
this indicator first displays the kilo-
metres to be reached before carrying
out the next maintenance operation
and then displays the engine oil level
in the engine sump for a limited time.
Fig. 81shows the correct oil level
condition. Flashing of the wording
“OIL”, together with the sound of the
buzzer and the dedicated message in-
dicate low engine oil level. Flashing of
wording “OIL –“ indicates an engine
oil level sensor failure.
fig. 80
F0B0244b
fig. 81
F0B0415b
fig. 82
F0B0246b
Scheduled maintenance
indicator fig. 82
The maintenance indicator uses
warning lamp Aand kilometre
counter Bto indicate when oil and oil
filter are to be replaced in accordance
with the service schedule. To keep the
warranty valid, go to a Fiat Dealer-
ship(see also the “Car maintenance”
chapter).
Page 56 of 254
GETTING TO KNOW YOUR CAR
55
IMPORTANTAny anomalies
should be reported to your Fiat
Dealershipimmediately without
waiting for the next servicing coupon
to be carried out.
A- Maintenance warning lamp.
B- Kilometre counter.
C- Configuration and reset button.
O
PERATION
When the key is turned to M, warn-
ing lamp Awill light up for some sec-
onds and the kilometre counter Bwill
display the number of kilometres
(rounded down) still to be travelled
before the next servicing is due. Af-
ter this period the engine oil level
(where fitted) will be automatically dis-
played and then the total kilometres
travelled will be displayed as well;
– maintenance due after 2000
km until the maintenance dead-
line: when the key is turned to M,
warning lamp Awill light up and the
kilometre counter Bwill display the
number of kilometres (rounded
down) still to be travelled before the
next servicing is due. After some sec-
onds the warning lamp will remain litand the total travelled kilometres will
be displayed;
– maintenance overdue: when
the key is turned to M, warning lamp
Awill flash for some seconds and the
number of kilometres over the main-
tenance limit will be displayed; after
this period the warning lamp will re-
main lit and the total travelled kilo-
metres will be displayed.
IMPORTANTIf, after about
12 months, the kilometres indicated in
the Service Schedule have not been
reached yet, when the key is turned to
M, warning lamp Awill light up and
the kilometre counter will show 0 km.
In this case contact a Fiat Dealer-
ship.
C
ONFIGURATION PROCEDURE
If the vehicle is used in particularly
difficult conditions, you are recom-
mended to reset the system and re-
duce the maintenance frequency from
30,000 to 20,000 km.
To alter the maintenance frequency:
– turn the key to M;
– press button Cand keep it
pressed, so the number of kilometresstill remaining or already passed since
the scheduled servicing will flash;
– release the button immediately to
display the preset maintenance fre-
quency;
– a repeated press on button C will
change the maintenance frequency to
the one required:
30,000 km(recommended in nor-
mal use conditions);
20,000 km(recommended in se-
vere use conditions);
– when the selected maintenance fre-
quency is displayed, press button Cfor
10 seconds (the maintenance fre-
quency selected will flash for 10 sec-
onds);
– release the button to confirm as
soon as the display stops flashing.
Page 237 of 254
RIGHT-HAND DRIVE VERSIONS
236
INSTRUMENTS

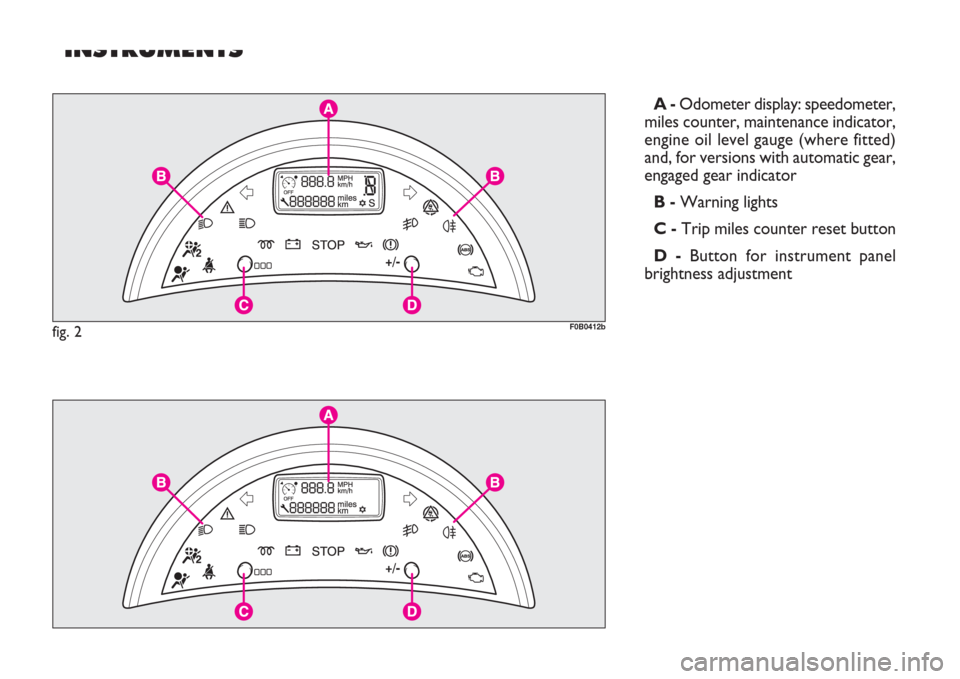

A -Odometer display: speedometer,
