TECHNICAL SPECIFICATIONS
214
VEHICLE
IDENTIFICATION
DATA

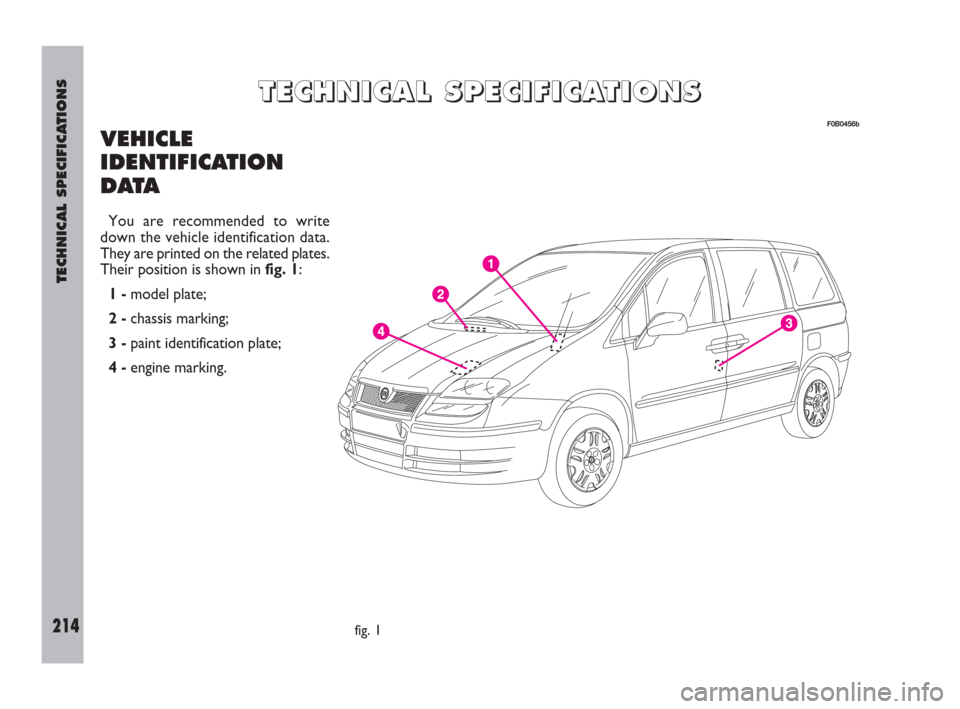

You are recommended to write
down the vehicle identification data.
They are printed on the related plates.
Their position is shown in fig. 1:
1 -model plate;
2 - chassis marking;
3 -paint identification plate;
4 -engine marking.
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
fig. 1
F0B0456b
214-233 ULYSSE ING:214-233 ULYSSE ING 13-11-2009 10:21 Pagina 214

TECHNICAL SPECIFICATIONS
215fig. 2
F0B0183b

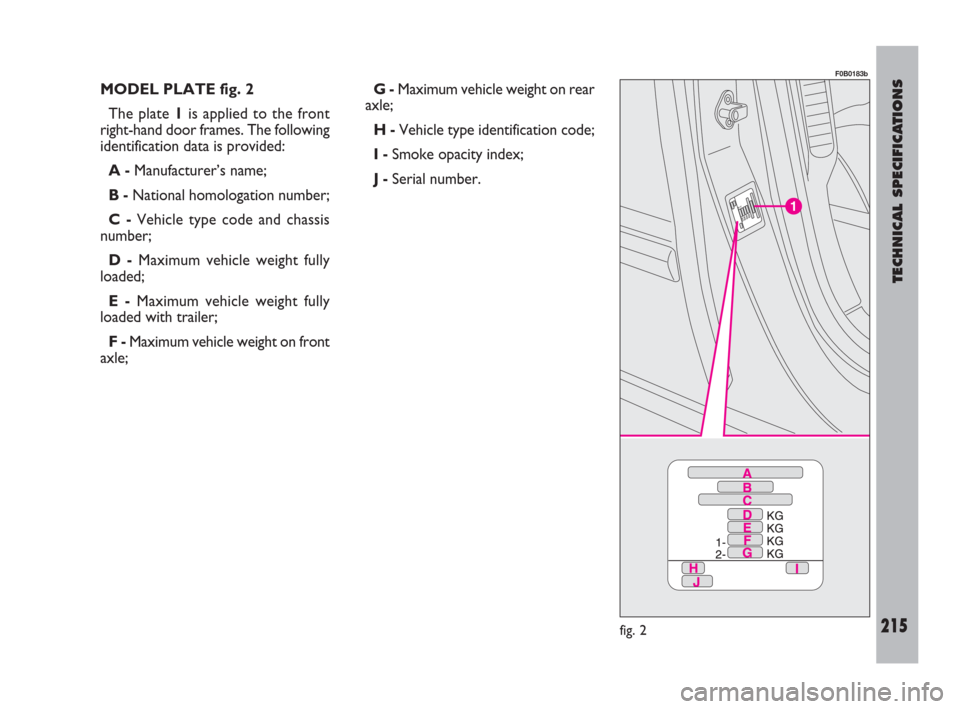

MODEL PLATE fig. 2
The plate 1is applied to the front
right-hand door frames. The following
identification data is provided:
A -Manufacturer’s name;
B -National homologation number;
C -Vehicle type code and chassis
number;
D -Maximum vehicle weight fully
loaded;
E -Maximum vehicle weight fully
loaded with trailer;
F -Maximum vehicle weight on front
axle;G - Maximum vehicle weight on rear
axle;
H -Vehicle type identification code;
I -Smoke opacity index;
J -Serial number.
214-233 ULYSSE ING:214-233 ULYSSE ING 13-11-2009 10:21 Pagina 215

TECHNICAL SPECIFICATIONS
225

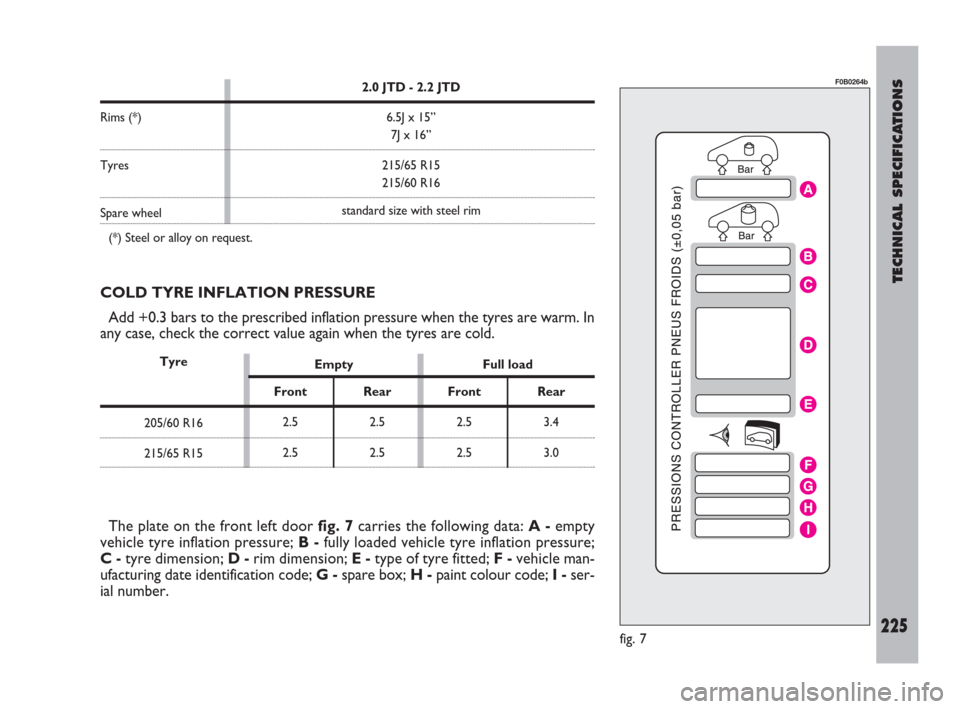

The plate on the front left door fig. 7carries the following data: A -empty
vehicle tyre inflation pressure; B -fully loaded vehicle tyre inflation pressure;
C-tyre dimension; D -rim dimension; E -type of tyre fitted; F -vehicle man-
ufacturing date identification code; G -spare box; H -paint colour code; I-ser-
ial number.
fig. 7
F0B0264b
Rims (*)
Tyres
Spare wheel
(*) Steel or alloy on request.
Rear
3.4
3.0 Front
2.5
2.5 Rear
2.5
2.5 Front
2.5
2.5Empty Full load Tyre
205/60 R16
215/65 R15standard size with steel rim2.0 JTD - 2.2 JTD
6.5J x 15”
7J x 16”
215/65 R15
215/60 R16
COLD TYRE INFLATION PRESSURE
Add +0.3 bars to the prescribed inflation pressure when the tyres are warm. In
any case, check the correct value again when the tyres are cold.
