If your engine cranks but does not start after a
collision or substantial jolt:
*
[ST08275(ALL)04/95]
1. Turn the ignition key to the OFF position.
*
[ST08300(ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST08325(ALL)03/95]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
*
[ST08350(ALL)03/95]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ST08375(ALL)03/95]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ST08400(ALL)03/95]
6. Check all vehicle warning lights before
driving the vehicle.
*
[ST08425(ALL)03/95]
quarter page art:0020107-A
Reset button for fuel pump shut-off switch
File:04cpsta.ex
Update:Tue Aug 29 17:35:31 1995
Page 72 of 353
71
*
[ST09200(ALL)07/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
%*
[ST09300(ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST09400(ALL)02/95]
Carbon monoxide, although colorless and
odorless, is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
*
[ST09600(ALL)05/95]
RWARNING
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.
*
[ST09700(ALL)03/95]
If your vehicle has rear windows and doors that
were installed as part of a van conversion, close
them while it is running. This prevents exhaust
fumes from being drawn into the passenger
compartment.
File:04cpsta.ex
Update:Tue Aug 29 17:35:31 1995
Page 73 of 353
72
*
[ST09900(ALL)01/95]
Have the exhaust and body ventilation systems
checked whenever:
*
[ST10000(ALL)02/95]
q
your vehicle is raised for service
*
[ST10100(ALL)02/95]
q
the sound of the exhaust system changes
*
[ST10200(ALL)01/95]
q
your vehicle has been damaged in a collision
*
[ST10300(ALL)01/95]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
*
[ST10400(ALL)08/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, adjust
the heating or air conditioning system to bring
in outside air.
*
[ST10600(ALL)03/91]
q
HEATING Ð Set fan speed at MEDIUM or
HIGH, the function selector knob on VENT,
FLOOR, MIX, or the DEFROST symbol and
the temperature control knob on any desired
position.
[ST10800(ALL)07/95]
q
AIR CONDITIONING Ð Set the fan speed
knob at MEDIUM or HIGH, the function
selector knob on NORM A/C or MAX A/C
and the temperature control knob on any
desired position.
File:04cpsta.ex
Update:Tue Aug 29 17:35:31 1995
Page 74 of 353
73
Warning Lights and
Gauges
%*
[LG00400(ALL)01/95]
The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
*
[LG00525(ALL)12/91]
In your vehicle, the warning lights and gauges
are grouped together on the instrument panel.
We call this grouping a cluster. Your vehicle has
a mechanical cluster.
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995
Page 75 of 353
74 [LG01800(ALL)07/95]

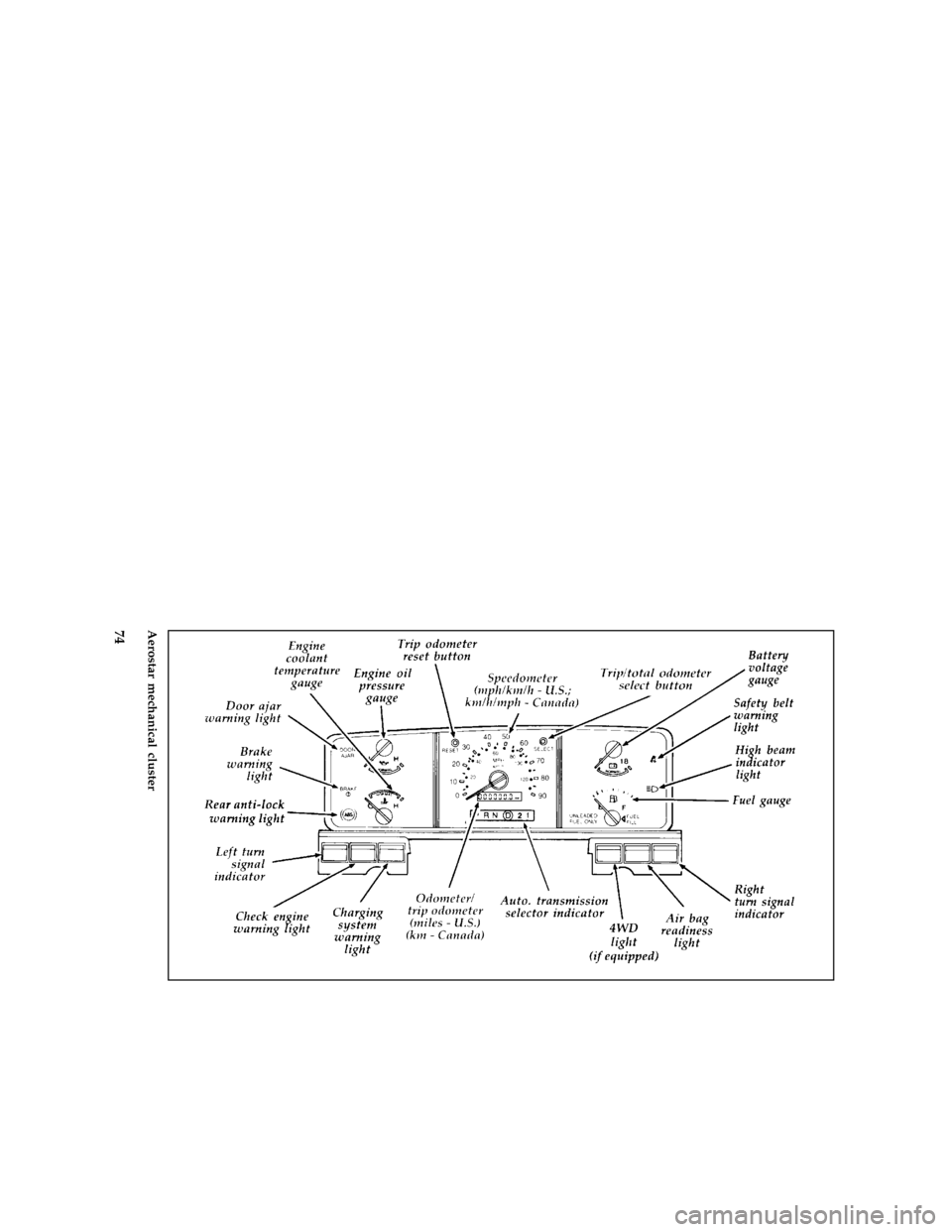

full page art:0095026-BAerostar mechanical cluster
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995
Page 76 of 353
75
%*
[LG03000(ALL)06/94]
The Mechanical Cluster
*
[LG03100(ALL)06/93]
The following warning lights and gauges are on
the mechanical cluster. All of the warning lights
and gauges alert you to possible problems with
your vehicle. Some of the lights listed are
optional. The following sections detail what each
of these indicators means.
%*
[LG03200(ALL)06/95]
Brake System Warning Light
*
[LG03300(ALL)03/95]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by
your dealer or a qualified service technician.
*
[LG03400(ALL)05/94]
This light comes on when you turn the ignition
key to START to verify that the indicator bulb is
working. If the light stays on or comes on after
you have released the parking brake fully, have
the hydraulic brake system serviced.
*
[LG03500(ALL)05/95]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
[LG03600(ALL)07/95]
one inch art:0095034-A
Brake warning light symbol
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995
Page 77 of 353
76 [LG03700(ALL)07/95]Rear Anti-Lock (ABS) Brake Warning Light
[LG03900(ALL)05/95]
To check the rear ABS brake warning light turn
the ignition key to the ON position. The rear
ABS brake warning light should glow
momentarily.
*
[LG03950(ALL)06/94]
NOTE: If it does not glow momentarily, have
your vehicle's electrical system checked
immediately.
[LG03975(ALL)07/95]
NOTE: If the rear ABS brake warning light
begins to flash in a repeating flash
sequence, check the rear anti-lock
brake system continuous power fuse
and brake lights for proper operation.
[LG04000(ALL)05/95]
one inch art:0095035-A
Rear anti-lock warning light symbol
*
[LG04100(ALL)05/95]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[LG04110(ALL)07/95]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995
Page 78 of 353
77 %
*
[LG04150(ALL)07/95]
Safety Belt Warning Light and Chime
[LG04301(ALL)03/95]
This warning light and chime remind you to
fasten your safety belt. One of the following will
take place:
*
[LG04325(ALL)03/95]
q
If the safety belt is not buckled when the key
is turned to the ON position, the light comes
on for 1 to 2 minutes and the chime sounds
for 4 to 8 seconds.
*
[LG04351(ALL)02/95]
q
If the safety belt is buckled while the light is
on and the chime is sounding, both the light
and chime turn off.
*
[LG04365(ALL)05/95]
q
If the safety belt is buckled before the
ignition is turned to the ON position, neither
the light nor the chime will come on.
*
[LG04400(ALL)10/92]
one inch art:0020046-B
Safety belt warning light symbol
%*
[LG04425(ALL)03/95]
Door Ajar Light and Chime
[LG04450(ALL)03/95]
This light turns on along with an audible chime
if one of the doors is not completely shut when
you turn the ignition to the ON position.
[LG04475(ALL)05/95]
one inch art:0020787-A
Door ajar light
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995
Page 79 of 353
78 %
*
[LG04500(ALL)03/95]
Check Engine Warning Light
*
[LG04550(ALL)05/95]
The Powertrain On-Board Diagnostic II (OBD II)
system consists of the hardware and software
necessary to monitor the operation of the
powertrain. The OBD II system is designed to
check the function of the vehicle's powertrain
control system during normal operation. If an
emission problem is detected, the Check Engine
Warning Light (in the cluster) is turned on.
*
[LG04575(ALL)05/95]
Modification or additions to the vehicle may
cause incorrect operation of the OBD II system.
Additions such as burglar alarms, cellular
phones, and CB radios must be carefully
installed. Do not install these devices by tapping
into or running wires close to powertrain control
system wires or components.
[LG04600(ALL)07/95]
The light comes on briefly when you turn the
ignition key to the ON position, but it should
turn off when the engine starts. If the light does
not come on when you turn the ignition to ON
or if it comes on and stays on when you are
driving, have your vehicle serviced as soon as
possible. This indicates a possible problem with
one of the vehicle's emission control systems.
You do not need to have your vehicle towed in.
[LG04650(ALL)08/95]
If the light turns on and off at one (1) second
intervals while you are driving the vehicle, it
means that the engine is misfiring. If this
condition persists, damage could occur to the
engine or catalytic convertor. Have your vehicle
serviced at the first opportunity. You do not
need to have your vehicle towed in.
[LG04700(ALL)08/95]
If the light turns on and off on rare occasions
while you are driving, it means that a
malfunction occurred and the condition corrected
itself.
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995
Page 80 of 353
79 [LG04750(ALL)08/95]
An example of a condition which corrects itself
occurs when an engine running out of fuel
begins to misfire. In this case, the Check Engine
Warning Light may turn on and will then set a
Diagnostic Trouble Code indicating that the
engine was misfiring while the last of the fuel
was being consumed. After refueling, the Check
Engine Warning Light will turn off after the
vehicle has completed three consecutive warm
up cycles without a mifire condition occurring.
A warm up cycle consists of engine start from a
cold condition (engine at ambient temperature)
and running until the engine reaches normal
operating temperature.
[LG04825(ALL)07/95]
On the fourth engine start up, the Check Engine
Warning Light will turn off as soon as the
engine begins to crank. It is not necessary to
have the engine serviced.
[LG04875(ALL)07/95]
Under certain conditions, the Check Engine
Warning Light may come on if the fuel cap is
not properly installed. If the Check Engine
Warning Light comes on and you suspect the
fuel cap is not properly installed, pull off the
road as soon as it is safely possible and turn off
the engine. Remove and replace the fuel cap,
making sure it is properly seated.
[LG04900(ALL)07/95]
After completing three consecutive warm-up
cycles and on the fourth engine start-up, the
Check Engine Warning Light should turn off. If
the light does not go off after the fourth engine
restart, have your vehicle serviced by your
dealer or a qualified technician.
File:05cplga.ex
