226 [SV41200(ALL)07/93]7. Carefully remove the bulb assembly from its
socket by gently pulling the assembly
rearward without turning.
[SV41300(ALL)07/95]

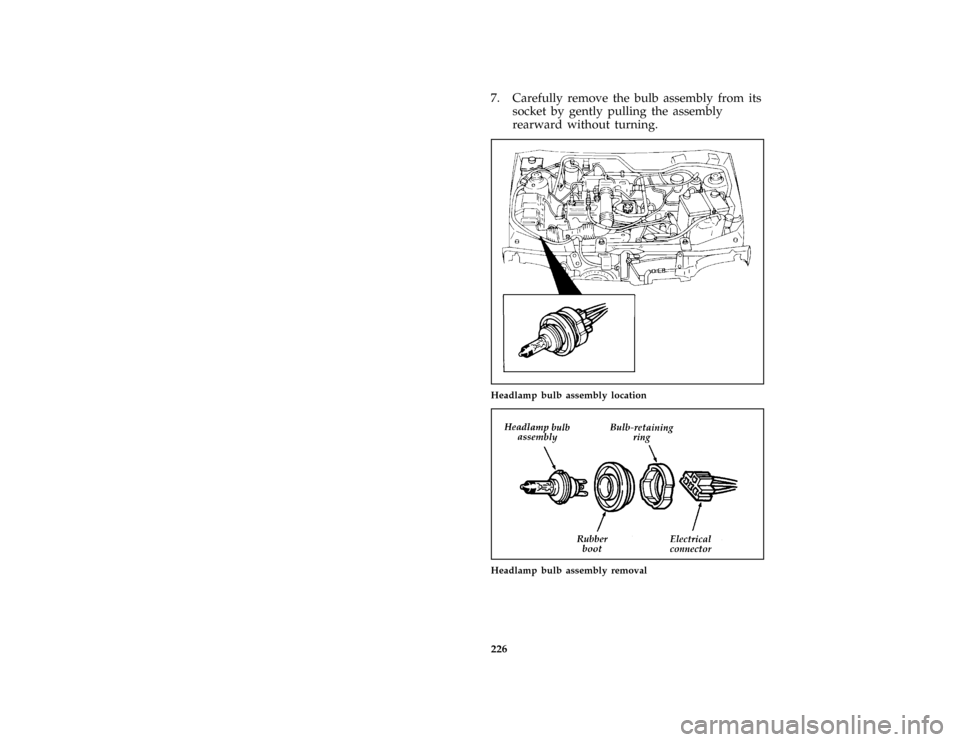

half page art:0032238-B
Headlamp bulb assembly location
[SV41400(ALL)05/93]
one third page art:0032239-A
Headlamp bulb assembly removal
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996
Page 226 of 268
227
*
[SV41500(ALL)03/95]
Installing the headlamp bulb
[SV41600(ALL)07/93]
1. Insert the glass end of the bulb assembly
into the socket.
[SV41650(ALL)05/93]
2. Secure the bulb assembly in place with the
metal retaining clip.
[SV41675(ALL)05/93]
3. Attach the rubber boot over the bulb
assembly.
[SV41700(ALL)05/93]
4. Slip the bulb retaining ring over the boot
and bulb assembly. Lock the ring into the
socket by rotating it clockwise until you feel
a ªstopº.
[SV41800(ALL)05/93]
5. Push the electrical connector into the rear of
the bulb assembly until it locks into position.
[SV41900(ALL)02/95]
6. Turn the headlamps on and make sure they
work properly. If the headlamp was
correctly aligned before you changed the
bulb, you should not need to align it again.
*
[SV42000(ALL)02/95]
High-Mount Brakelamp Bulbs
[SV42100(ALL)02/95]
To replace the high-mount brakelamp bulb, refer
to the instructions below or take your vehicle to
your Ford dealer or a qualified technician.
[SV42200(ALL)05/94]
To remove the high-mount brakelamp:
[SV42300(ALL)05/93]
1. Disconnect the negative battery cable.
[SV42400(ALL)05/94]
2. Raise the hatchback.
[SV42450(ALL)05/94]
3. Use a Phillips screwdriver to remove three
attaching screws from the rear wiper motor
cover (if equipped). Lay the cover aside.
[SV42600(ALL)05/94]
4. Gently pull the hatchback trim panel away
from the hatchback.
[SV42700(ALL)05/94]
5. Disconnect the luggage compartment lamp
electrical connector (if equipped) and lay the
trim panel aside.
