Downloaded from www.Manualslib.com manuals search engine ABOUT THIS MANUAL
Thank you for choosing Ford. Werecommend that you take some time toget to know your vehicle by reading thismanual. The more that you know about it,the greater the safety and pleasure youwill get from driving it.
WARNING
Always drive with due care andattention when using and operatingthe controls and features on yourvehicle.
Note:This manual describes productfeatures and options available throughoutthe range, sometimes even before they aregenerally available. It may describe optionsnot fitted to your vehicle.
Note:Some of the illustrations in thismanual may be used for different models,so may appear different to your vehicle.However, the essential information in theillustrations is always correct.
Note:Always use and operate your vehiclein line with all applicable laws andregulations.
Note:Pass on this manual when sellingyour vehicle. It is an integral part of thevehicle.
Protecting the Environment
You must play your part in protecting theenvironment. Correct vehicle usage andthe authorised disposal of waste, cleaningand lubrication materials are significantsteps toward this aim.
SYMBOLS GLOSSARY
These are some of the symbols you maysee on your vehicle.
Safety alert
See Owner's Manual
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Brake fluid - non petroleumbased
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
5Introduction

Downloaded from www.Manualslib.com manuals search engine Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seat belt
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windscreen
Interior luggage compartmentrelease
Jack
Lighting control
Low tyre pressure warning
Maintain correct fluid level
Panic alarm
Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag
Stability control
Windscreen wash and wipe
6Introduction

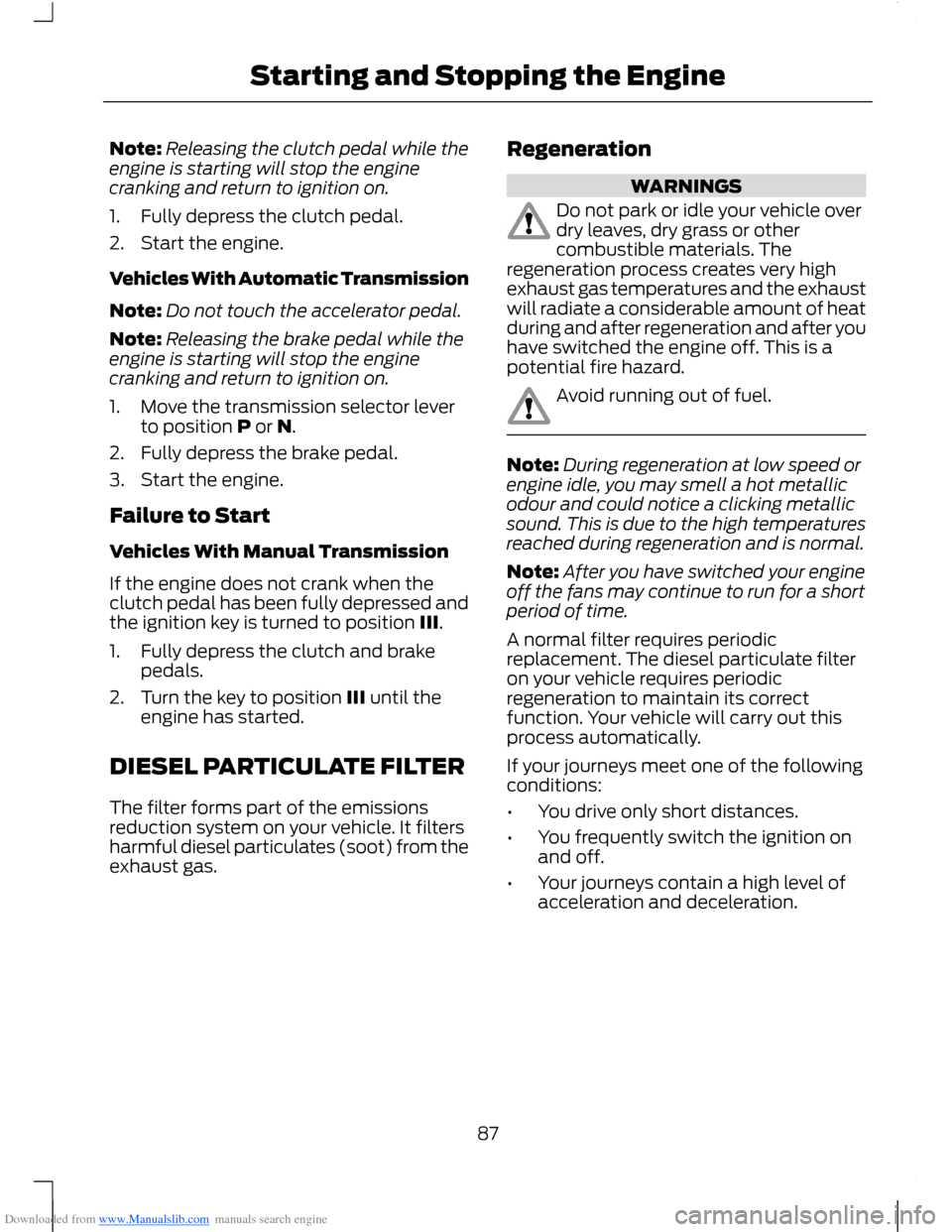

Downloaded from www.Manualslib.com manuals search engine Note:Releasing the clutch pedal while theengine is starting will stop the enginecranking and return to ignition on.
1.Fully depress the clutch pedal.
2.Start the engine.
Vehicles With Automatic Transmission
Note:Do not touch the accelerator pedal.
Note:Releasing the brake pedal while theengine is starting will stop the enginecranking and return to ignition on.
1.Move the transmission selector leverto position P or N.
2.Fully depress the brake pedal.
3.Start the engine.
Failure to Start
Vehicles With Manual Transmission
If the engine does not crank when theclutch pedal has been fully depressed andthe ignition key is turned to position III.
1.Fully depress the clutch and brakepedals.
2.Turn the key to position III until theengine has started.
DIESEL PARTICULATE FILTER
The filter forms part of the emissionsreduction system on your vehicle. It filtersharmful diesel particulates (soot) from theexhaust gas.
Regeneration
WARNINGS
Do not park or idle your vehicle overdry leaves, dry grass or othercombustible materials. Theregeneration process creates very highexhaust gas temperatures and the exhaustwill radiate a considerable amount of heatduring and after regeneration and after youhave switched the engine off. This is apotential fire hazard.
Avoid running out of fuel.
Note:During regeneration at low speed orengine idle, you may smell a hot metallicodour and could notice a clicking metallicsound. This is due to the high temperaturesreached during regeneration and is normal.
Note:After you have switched your engineoff the fans may continue to run for a shortperiod of time.
A normal filter requires periodicreplacement. The diesel particulate filteron your vehicle requires periodicregeneration to maintain its correctfunction. Your vehicle will carry out thisprocess automatically.
If your journeys meet one of the followingconditions:
•You drive only short distances.
•You frequently switch the ignition onand off.
•Your journeys contain a high level ofacceleration and deceleration.
87Starting and Stopping the Engine

Downloaded from www.Manualslib.com manuals search engine Capacity in gallons(litres)ItemVariant
0.6 (2.5)Windscreen andrear window washersystem
All
approximately 1.4(6.3)Engine coolingsystem1.0L EcoBoost
approximately 1.2(5.5)Engine coolingsystemVehicles with a petrol engine except 1.0LEcoBoost
approximately 1.3 (6)Engine coolingsystemVehicles with a diesel engine
10.6 (48)Fuel tankVehicles with a petrol engine
10.3 (47)Fuel tankVehicles with a diesel engine
0.9 (4.1)Engine lubricationsystem - includingthe oil filter
1.0L EcoBoost
0.9 (4.0)Engine lubricationsystem - excludingthe oil filter
1.0L EcoBoost
0.9 (4.1)Engine lubricationsystem - includingthe oil filter
1.4L Duratec-16V
0.8 (3.8)Engine lubricationsystem - excludingthe oil filter
1.4L Duratec-16V
0.9 (4.1)Engine lubricationsystem - includingthe oil filter
1.6L Duratec-16V Ti-VCT
0.8 (3.8)Engine lubricationsystem - excludingthe oil filter
1.6L Duratec-16V Ti-VCT
151Maintenance
