technical specifications FORD B MAX 2012 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Warning Lamps and Indicators.................53
Audible Warnings and Indicators.............56
Information Displays
General Information.....................................58
Clock....................................................................61
Trip Computer..................................................61
Personalised Settings..................................62
Information Messages..................................62
Climate Control
Principle of Operation..................................68
Air Vents............................................................68
Manual Climate Control..............................69
Automatic Climate Control........................70
Hints on Controlling the InteriorClimate...........................................................72
Heated Windows and Mirrors....................75
Seats
Sitting in the Correct Position....................76
Head Restraints..............................................76
Manual Seats...................................................78
Rear Seats.........................................................79
Heated Seats...................................................80
Front Seat Armrest.......................................80
Auxiliary Power Points
Auxiliary Power Points..................................81
Cigar Lighter......................................................81
Storage Compartments
Cup Holders......................................................82
Glasses Holder................................................82
Starting and Stopping theEngine
General Information......................................83
Ignition Switch................................................83
Keyless Starting..............................................83
Steering Wheel Lock.....................................85
Starting a Petrol Engine..............................85
Starting a Diesel Engine..............................86
Diesel Particulate Filter................................87
Switching Off the Engine............................88
Unique Driving Character-istics
Start-Stop........................................................89
Fuel and Refuelling
Safety Precautions.........................................91
Fuel Quality - Petrol......................................92
Fuel Quality - Diesel......................................92
Running Out of Fuel......................................92
Catalytic Converter........................................93
Refuelling..........................................................93
Fuel Consumption.........................................95
Technical Specifications.............................96
Transmission
Manual Transmission....................................97
Automatic Transmission.............................97
Hill Start Assist...............................................99
Brakes
General Information.....................................101
Hints on Driving With Anti-LockBrakes............................................................101
Parking Brake..................................................101
Stability Control
Principle of Operation.................................103
Using Stability Control...............................103
Parking Aids
Principle of Operation................................104
Parking Aid......................................................104
Rear View Camera.......................................106
2Table of Contents

Downloaded from www.Manualslib.com manuals search engine Cruise Control
Principle of Operation................................109
Using Cruise Control...................................109
Driving Aids
Active City Stop...............................................111
Load Carrying
General Information.....................................113
Luggage Anchor Points...............................113
Rear Under Floor Storage...........................113
Cargo Nets........................................................114
Luggage Covers..............................................114
Dog Guard........................................................114
Towing
Towing a Trailer..............................................116
Tow Ball............................................................116
Towing Points.................................................119
Towing the Vehicle on Four Wheels.......119
Driving Hints
Running-In........................................................121
Cold Weather Precautions.........................121
Driving Through Water.................................121
Floor Mats.........................................................121
Roadside Emergencies
Hazard Warning Flashers...........................122
First Aid Kit......................................................122
Warning Triangle...........................................122
Jump-Starting the Vehicle.........................122
Fuses
Fuse Box Locations......................................124
Fuse Specification Chart............................125
Changing a Fuse............................................133
Maintenance
General Information....................................134
Opening and Closing the Bonnet...........134
Under Bonnet Overview - 1.0L EcoBoost(74kW/100PS)/1.0L EcoBoost(90kW/120PS).........................................136
Under Bonnet Overview - 1.4LDuratec-16V (66kW/90PS)/1.6LDuratec-16V Ti-VCT (77kW/105PS) -Sigma............................................................137
Under Bonnet Overview - 1.5LDuratorq-TDCi (55kW/75PS)/1.6LDuratorq-TDCi (70kW/95PS)(T3)...............................................................138
Engine Oil Dipstick - 1.0L EcoBoost(74kW/100PS)/1.0L EcoBoost(90kW/120PS).........................................139
Engine Oil Dipstick - 1.4L Duratec-16V(66kW/90PS)/1.6L Duratec-16VTi-VCT (77kW/105PS) - Sigma..........139
Engine Oil Dipstick - 1.5L Duratorq-TDCi(55kW/75PS)/1.6L Duratorq-TDCi(70kW/95PS) (T3).................................139
Engine Oil Check...........................................139

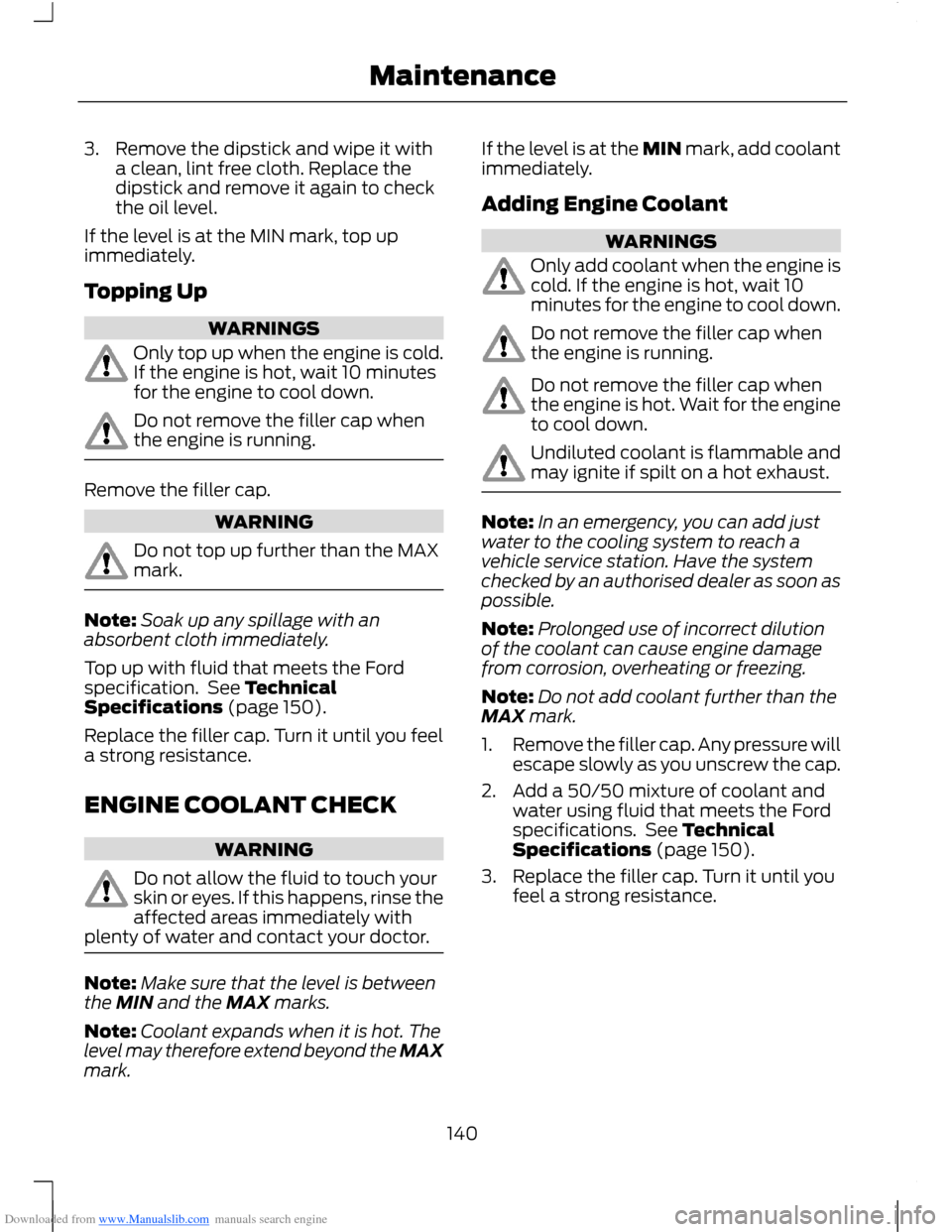

Engine Coolant Check................................140

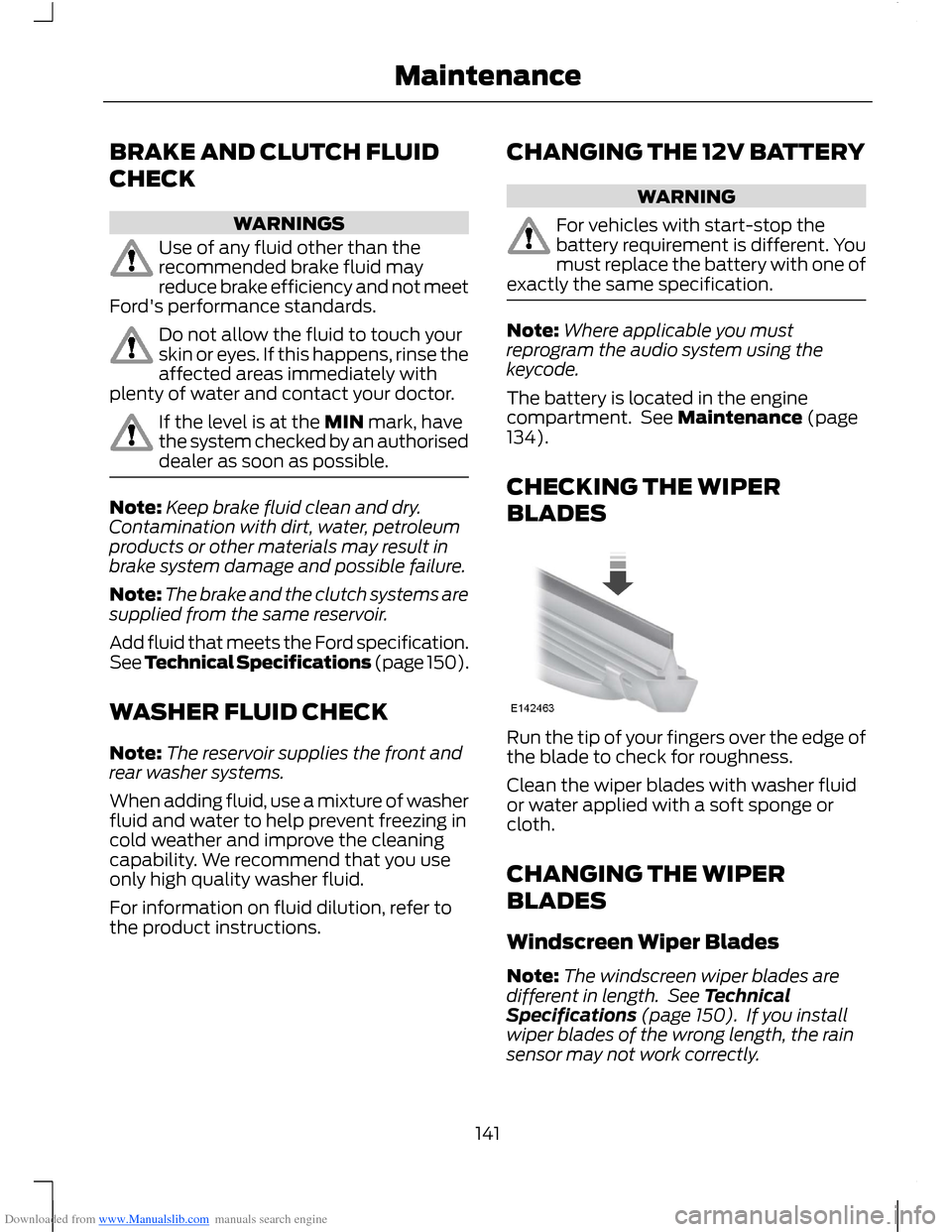

Brake and Clutch Fluid Check...................141
Washer Fluid Check......................................141
Changing the 12V Battery...........................141
Checking the Wiper Blades.......................141
Changing the Wiper Blades.......................141
Removing a Headlamp...............................142
Changing a Bulb............................................143
Bulb Specification Chart...........................149
Technical Specifications...........................150
Vehicle Care
Cleaning the Exterior...................................153
Cleaning the Interior....................................153
Repairing Minor Paint Damage...............154
Cleaning the Alloy Wheels........................154
Wheels and Tyres
General Information....................................155
3Table of Contents

Downloaded from www.Manualslib.com manuals search engine Temporary Mobility Kit...............................155
Tyre Care..........................................................158
Using Winter Tyres.......................................159
Using Snow Chains......................................159
Tyre Pressure Monitoring System..........159
Changing a Road Wheel............................160
Technical Specifications...........................164
Capacities and Specific-ations
Vehicle Identification Plate.......................167
Vehicle Identification Number................168
Technical Specifications...........................168
Audio System
General Information......................................171
Audio unit - Vehicles With:AM/FM/CD..................................................172
Audio unit - Vehicles With:AM/FM/CD/Bluetooth............................177
Audio unit - Vehicles With: SonyAM/FM/CD..................................................182
Audio System Security...............................187
Compact Disc Player - Vehicles With:AM/FM/CD..................................................187
Compact Disc Player - Vehicles With:AM/FM/CD/Bluetooth/SonyAM/FM/CD.................................................190
Auxiliary Input Socket.................................194
Audio Troubleshooting...............................195
SYNC
General Information....................................196
Using Voice Recognition............................198
Using SYNC® With Your Phone............200
SYNC® Applications and Services..........211
Using SYNC® With Your MediaPlayer.............................................................213
SYNC® Troubleshooting...........................218
Appendices
Electromagnetic compatibility...............225
End User Licence Agreement..................226
4Table of Contents

Downloaded from www.Manualslib.com manuals search engine Front Exterior Overview
See Locking and Unlocking (page 29). See Keyless Entry (page 32).A
See Active City Stop (page 111).B
See Changing the Wiper Blades (page 141).C
See Maintenance (page 134).D
See Towing Points (page 119).E
See Changing a Bulb (page 143).F
Tyre pressures. See Technical Specifications (page 164).G
See Changing a Road Wheel (page 160).H
8At a Glance

Downloaded from www.Manualslib.com manuals search engine Rear Exterior Overview
See Changing a Bulb (page 143).A
See Changing the Wiper Blades (page 141).B
See Changing a Bulb (page 143).C
See First Aid Kit (page 122). See Warning Triangle (page 122). See TemporaryMobility Kit (page 155). Spare wheel, jack, and wheel brace. See Changing aRoad Wheel (page 160). Towing eye. See Towing Points (page 119).
D
See Towing Points (page 119).E
Tyre pressures. See Technical Specifications (page 164).F
See Changing a Road Wheel (page 160).G
See Refuelling (page 93).H
13At a Glance

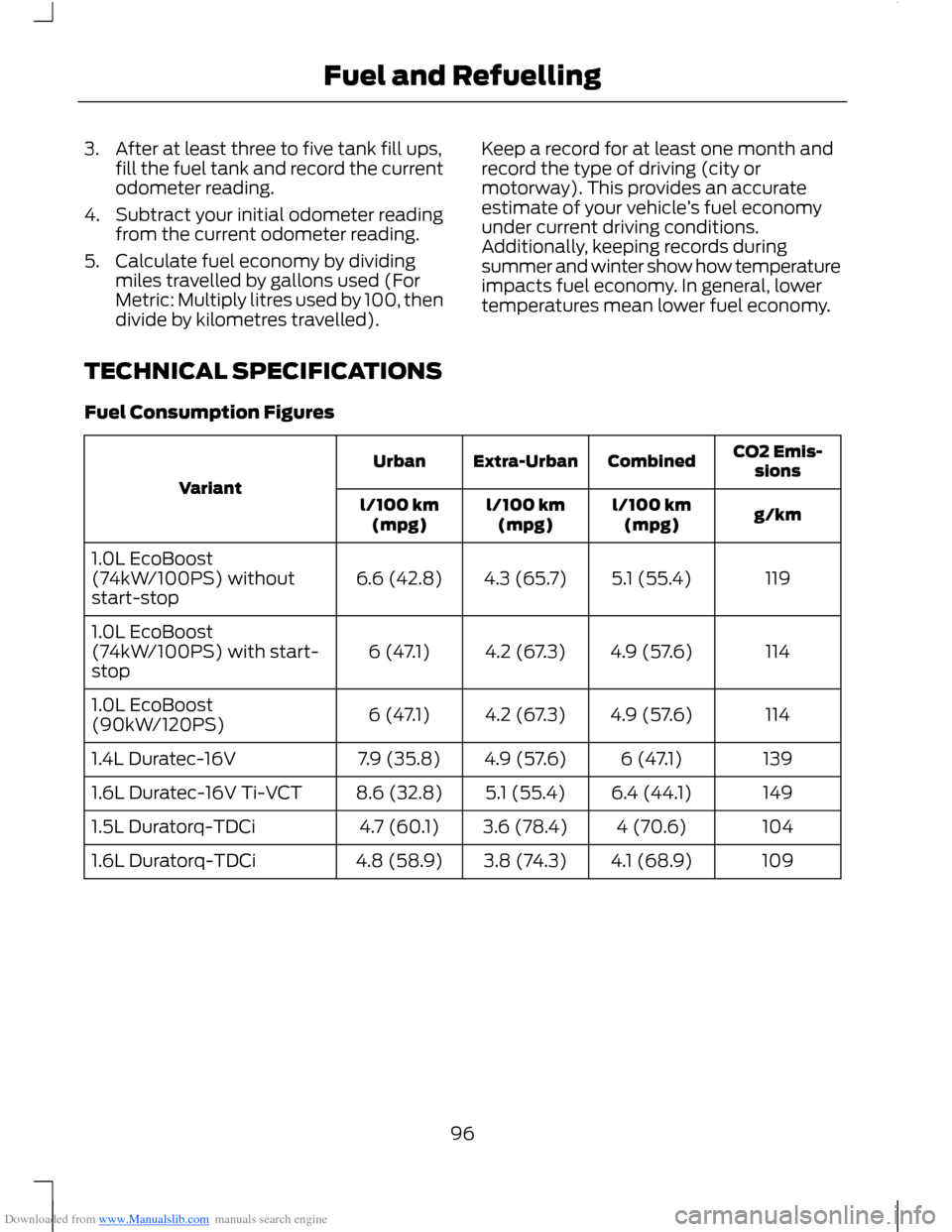

Downloaded from www.Manualslib.com manuals search engine 3.After at least three to five tank fill ups,fill the fuel tank and record the currentodometer reading.
4.Subtract your initial odometer readingfrom the current odometer reading.
5.Calculate fuel economy by dividingmiles travelled by gallons used (ForMetric: Multiply litres used by 100, thendivide by kilometres travelled).
Keep a record for at least one month andrecord the type of driving (city ormotorway). This provides an accurateestimate of your vehicle’s fuel economyunder current driving conditions.Additionally, keeping records duringsummer and winter show how temperatureimpacts fuel economy. In general, lowertemperatures mean lower fuel economy.
TECHNICAL SPECIFICATIONS
Fuel Consumption Figures
CO2 Emis-sionsCombinedExtra-UrbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1195.1 (55.4)4.3 (65.7)6.6 (42.8)1.0L EcoBoost(74kW/100PS) withoutstart-stop
1144.9 (57.6)4.2 (67.3)6 (47.1)1.0L EcoBoost(74kW/100PS) with start-stop
1144.9 (57.6)4.2 (67.3)6 (47.1)1.0L EcoBoost(90kW/120PS)
1396 (47.1)4.9 (57.6)7.9 (35.8)1.4L Duratec-16V
1496.4 (44.1)5.1 (55.4)8.6 (32.8)1.6L Duratec-16V Ti-VCT
1044 (70.6)3.6 (78.4)4.7 (60.1)1.5L Duratorq-TDCi
1094.1 (68.9)3.8 (74.3)4.8 (58.9)1.6L Duratorq-TDCi
96Fuel and Refuelling

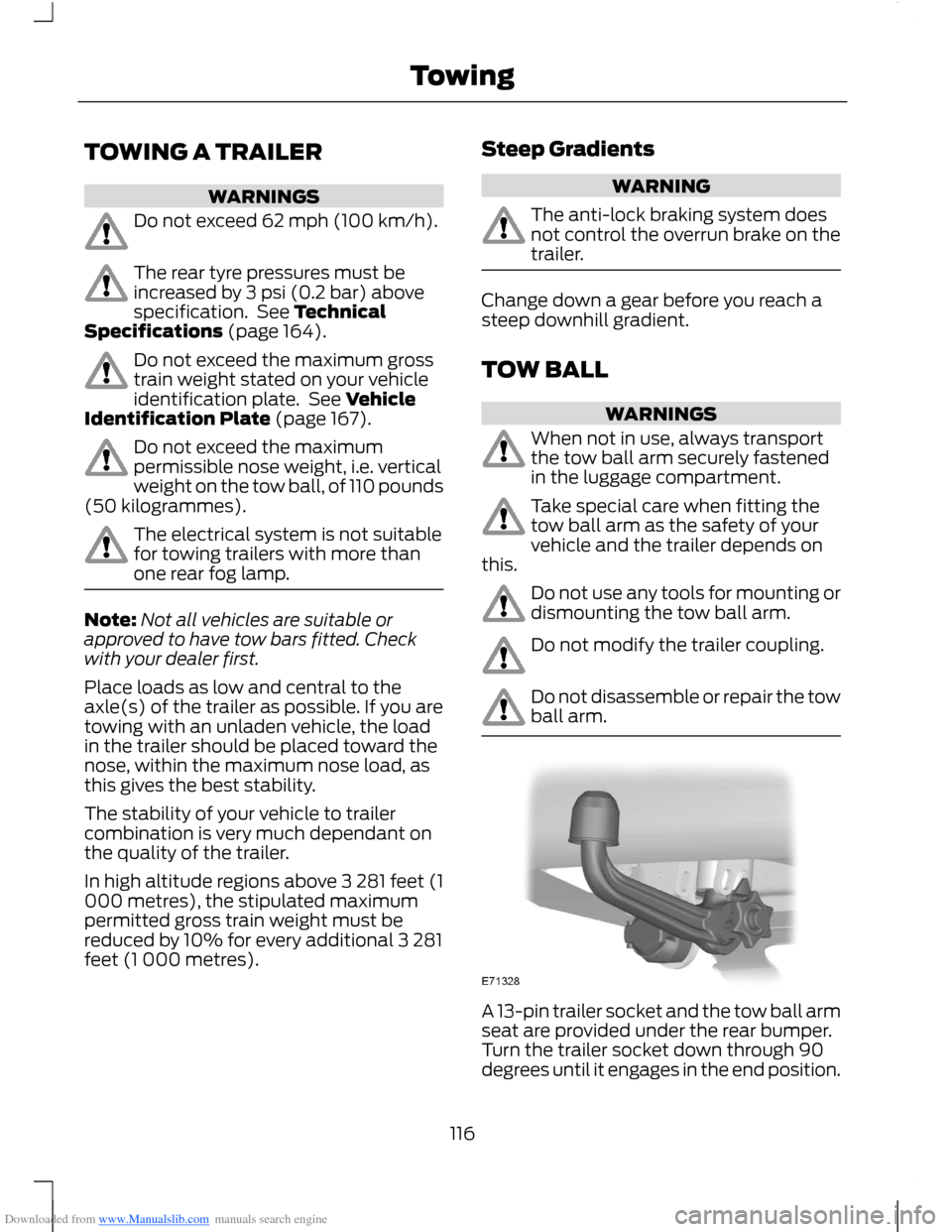

Downloaded from www.Manualslib.com manuals search engine TOWING A TRAILER
WARNINGS
Do not exceed 62 mph (100 km/h).
The rear tyre pressures must beincreased by 3 psi (0.2 bar) abovespecification. See TechnicalSpecifications (page 164).
Do not exceed the maximum grosstrain weight stated on your vehicleidentification plate. See VehicleIdentification Plate (page 167).
Do not exceed the maximumpermissible nose weight, i.e. verticalweight on the tow ball, of 110 pounds(50 kilogrammes).
The electrical system is not suitablefor towing trailers with more thanone rear fog lamp.
Note:Not all vehicles are suitable orapproved to have tow bars fitted. Checkwith your dealer first.
Place loads as low and central to theaxle(s) of the trailer as possible. If you aretowing with an unladen vehicle, the loadin the trailer should be placed toward thenose, within the maximum nose load, asthis gives the best stability.
The stability of your vehicle to trailercombination is very much dependant onthe quality of the trailer.
In high altitude regions above 3 281 feet (1000 metres), the stipulated maximumpermitted gross train weight must bereduced by 10% for every additional 3 281feet (1 000 metres).
Steep Gradients
WARNING
The anti-lock braking system doesnot control the overrun brake on thetrailer.
Change down a gear before you reach asteep downhill gradient.
TOW BALL
WARNINGS
When not in use, always transportthe tow ball arm securely fastenedin the luggage compartment.
Take special care when fitting thetow ball arm as the safety of yourvehicle and the trailer depends onthis.
Do not use any tools for mounting ordismounting the tow ball arm.
Do not modify the trailer coupling.
Do not disassemble or repair the towball arm.
A 13-pin trailer socket and the tow ball armseat are provided under the rear bumper.Turn the trailer socket down through 90degrees until it engages in the end position.
116Towing

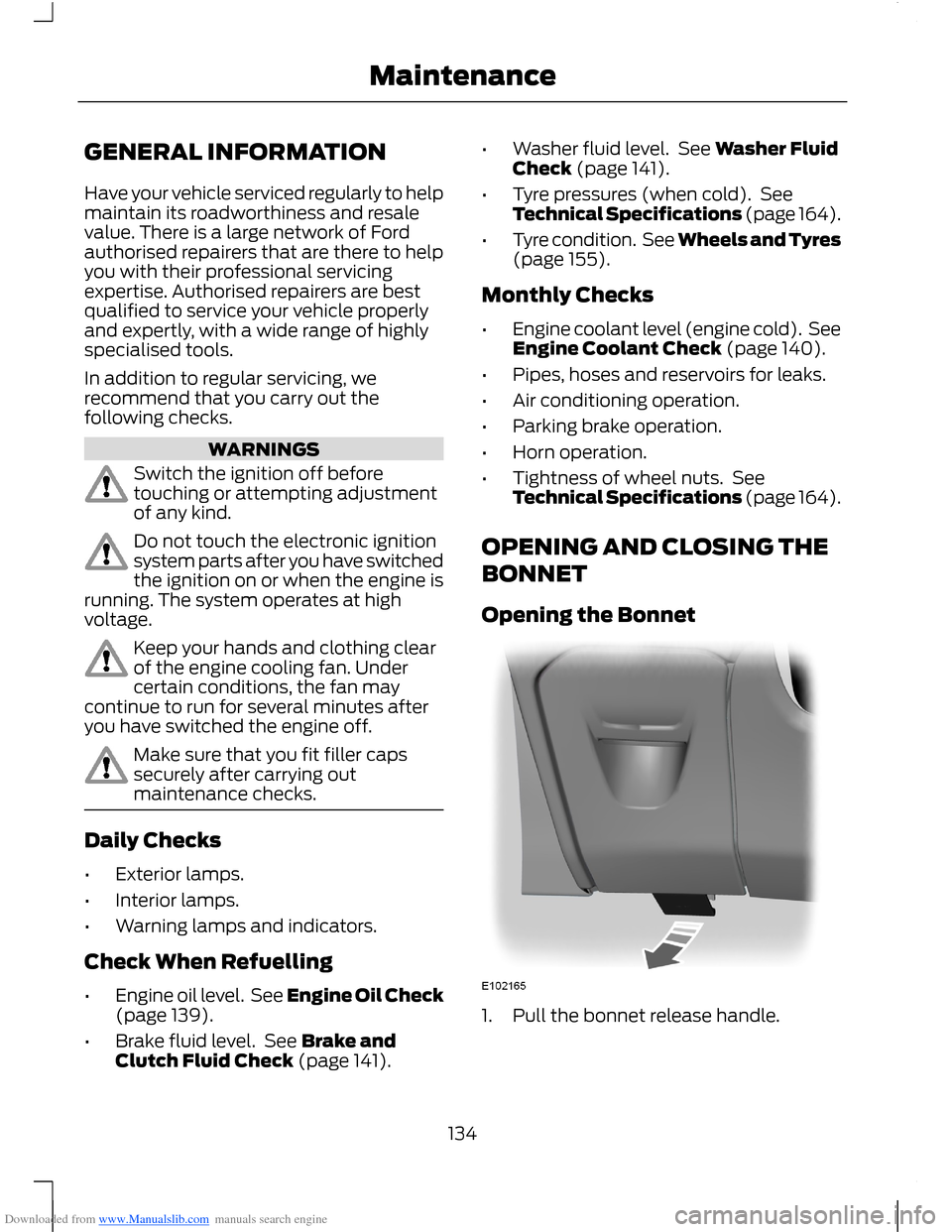

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network of Fordauthorised repairers that are there to helpyou with their professional servicingexpertise. Authorised repairers are bestqualified to service your vehicle properlyand expertly, with a wide range of highlyspecialised tools.
In addition to regular servicing, werecommend that you carry out thefollowing checks.
WARNINGS
Switch the ignition off beforetouching or attempting adjustmentof any kind.
Do not touch the electronic ignitionsystem parts after you have switchedthe ignition on or when the engine isrunning. The system operates at highvoltage.
Keep your hands and clothing clearof the engine cooling fan. Undercertain conditions, the fan maycontinue to run for several minutes afteryou have switched the engine off.
Make sure that you fit filler capssecurely after carrying outmaintenance checks.
Daily Checks
•Exterior lamps.
•Interior lamps.
•Warning lamps and indicators.
Check When Refuelling
•Engine oil level. See Engine Oil Check(page 139).
•Brake fluid level. See Brake andClutch Fluid Check (page 141).
•Washer fluid level. See Washer FluidCheck (page 141).
•Tyre pressures (when cold). SeeTechnical Specifications (page 164).
•Tyre condition. See Wheels and Tyres(page 155).
Monthly Checks
•Engine coolant level (engine cold). SeeEngine Coolant Check (page 140).
•Pipes, hoses and reservoirs for leaks.
•Air conditioning operation.
•Parking brake operation.
•Horn operation.
•Tightness of wheel nuts. SeeTechnical Specifications (page 164).
OPENING AND CLOSING THE
BONNET
Opening the Bonnet
1.Pull the bonnet release handle.
134Maintenance

Downloaded from www.Manualslib.com manuals search engine 3.Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the level is at the MIN mark, top upimmediately.
Topping Up
WARNINGS
Only top up when the engine is cold.If the engine is hot, wait 10 minutesfor the engine to cool down.
Do not remove the filler cap whenthe engine is running.
Remove the filler cap.
WARNING
Do not top up further than the MAXmark.
Note:Soak up any spillage with anabsorbent cloth immediately.
Top up with fluid that meets the Fordspecification. See TechnicalSpecifications (page 150).
Replace the filler cap. Turn it until you feela strong resistance.
ENGINE COOLANT CHECK
WARNING
Do not allow the fluid to touch yourskin or eyes. If this happens, rinse theaffected areas immediately withplenty of water and contact your doctor.
Note:Make sure that the level is betweenthe MIN and the MAX marks.
Note:Coolant expands when it is hot. Thelevel may therefore extend beyond the MAXmark.
If the level is at the MIN mark, add coolantimmediately.
Adding Engine Coolant
WARNINGS
Only add coolant when the engine iscold. If the engine is hot, wait 10minutes for the engine to cool down.
Do not remove the filler cap whenthe engine is running.
Do not remove the filler cap whenthe engine is hot. Wait for the engineto cool down.
Undiluted coolant is flammable andmay ignite if spilt on a hot exhaust.
Note:In an emergency, you can add justwater to the cooling system to reach avehicle service station. Have the systemchecked by an authorised dealer as soon aspossible.
Note:Prolonged use of incorrect dilutionof the coolant can cause engine damagefrom corrosion, overheating or freezing.
Note:Do not add coolant further than theMAX mark.
1.Remove the filler cap. Any pressure willescape slowly as you unscrew the cap.
2.Add a 50/50 mixture of coolant andwater using fluid that meets the Fordspecifications. See TechnicalSpecifications (page 150).
3.Replace the filler cap. Turn it until youfeel a strong resistance.
140Maintenance

Downloaded from www.Manualslib.com manuals search engine BRAKE AND CLUTCH FLUID
CHECK
WARNINGS
Use of any fluid other than therecommended brake fluid mayreduce brake efficiency and not meetFord's performance standards.
Do not allow the fluid to touch yourskin or eyes. If this happens, rinse theaffected areas immediately withplenty of water and contact your doctor.
If the level is at the MIN mark, havethe system checked by an authoriseddealer as soon as possible.
Note:Keep brake fluid clean and dry.Contamination with dirt, water, petroleumproducts or other materials may result inbrake system damage and possible failure.
Note:The brake and the clutch systems aresupplied from the same reservoir.
Add fluid that meets the Ford specification.See Technical Specifications (page 150).
WASHER FLUID CHECK
Note:The reservoir supplies the front andrear washer systems.
When adding fluid, use a mixture of washerfluid and water to help prevent freezing incold weather and improve the cleaningcapability. We recommend that you useonly high quality washer fluid.
For information on fluid dilution, refer tothe product instructions.
CHANGING THE 12V BATTERY
WARNING
For vehicles with start-stop thebattery requirement is different. Youmust replace the battery with one ofexactly the same specification.
Note:Where applicable you mustreprogram the audio system using thekeycode.
The battery is located in the enginecompartment. See Maintenance (page134).
CHECKING THE WIPER
BLADES
Run the tip of your fingers over the edge ofthe blade to check for roughness.
Clean the wiper blades with washer fluidor water applied with a soft sponge orcloth.
CHANGING THE WIPER
BLADES
Windscreen Wiper Blades
Note:The windscreen wiper blades aredifferent in length. See TechnicalSpecifications (page 150). If you installwiper blades of the wrong length, the rainsensor may not work correctly.
141Maintenance
