Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Navigation
Instrument cluster7.5 A22
Multi functional display
7.5 A23ClockInternal scannerHeating ventsAir conditioning panel
SYNC module10 A24
Not used-25
Front wiper left-hand side30 A26
Front wiper right-hand side30 A27
Voltage quality module30 A28
Rear power point20 A29
Cigar lighter20 A30Auxiliary power point
Not used-31
Not used-32
Not used-33
Keyless entry20 A34
Keyless entry20 A35
Not used-36
Ignition switch15 A37
Not used-38
Not used-39
Not used-40
Not used-41
Rear view camera7.5 A42
Active city stop module10 A43
149B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Fuses
Page 152 of 298

Downloaded from www.Manualslib.com manuals search engine Circuits protectedFuse ratingFuse
Passenger airbag deactiva-tion indicator7.5 A44
Not used-45
Not used-46
Not used-47
Not used-48
Not used-49
Circuits switchedRelay
IgnitionR1
Cigar lighterR2
Not usedR3
Active city stop relayR4
Not usedR5
Keyless entry (accessory)R6
Keyless entry (ignition)R7
Battery saver relayR8
Heated windshield left-hand sideR9
Heated windshield right-hand sideR10
Not usedR11
Not usedR12
CHANGING A FUSE
WARNINGS
Do not modify the electrical systemof your vehicle in any way. Haverepairs to the electrical system andthe replacement of relays and high currentfuses carried out by an authorized dealer.
WARNINGS
Switch the ignition and all electricalequipment off before attempting tochange a fuse.
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperagerating can cause severe wire damage andcould start a fire.
150B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Fuses
Page 153 of 298

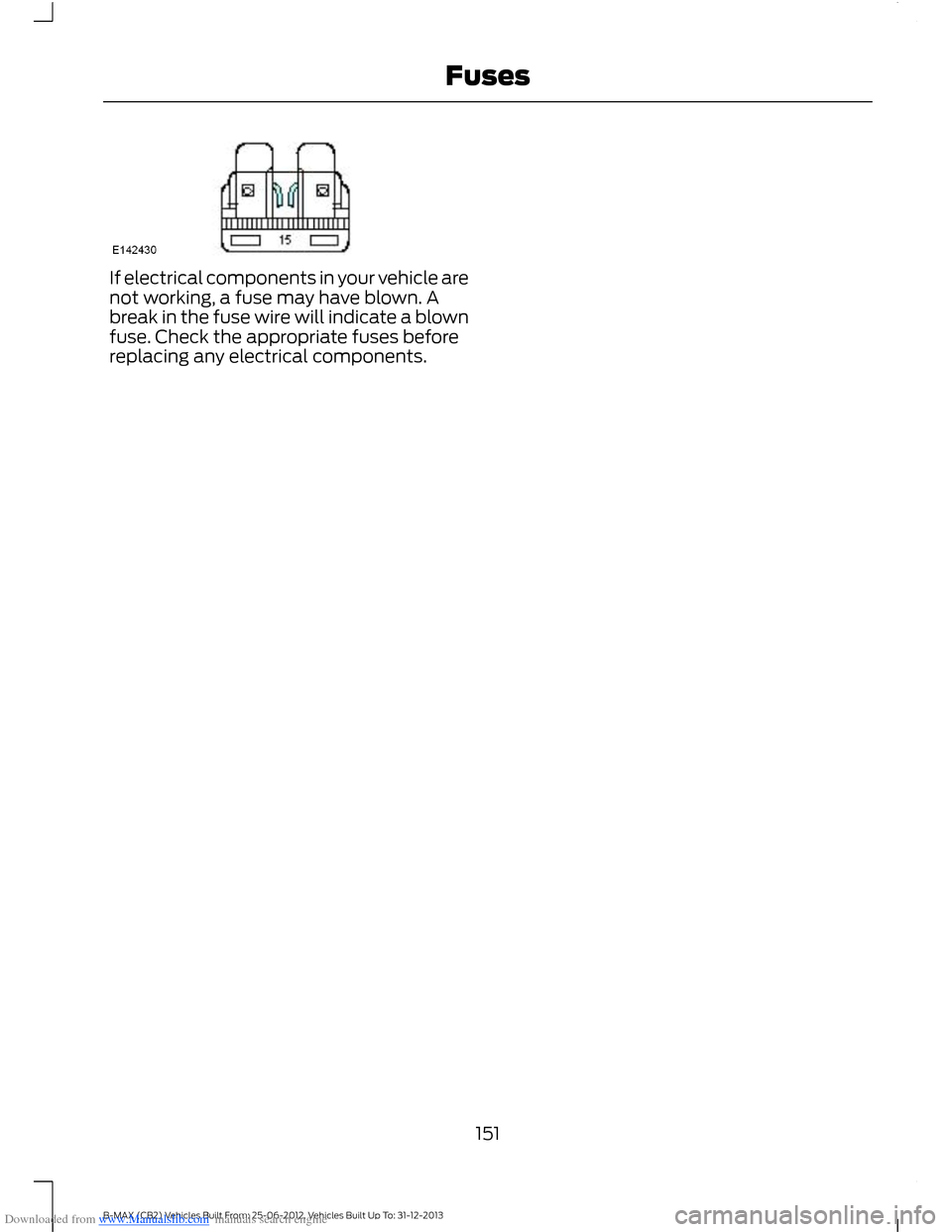

Downloaded from www.Manualslib.com manuals search engine If electrical components in your vehicle arenot working, a fuse may have blown. Abreak in the fuse wire will indicate a blownfuse. Check the appropriate fuses beforereplacing any electrical components.
151B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Fuses
Page 154 of 298

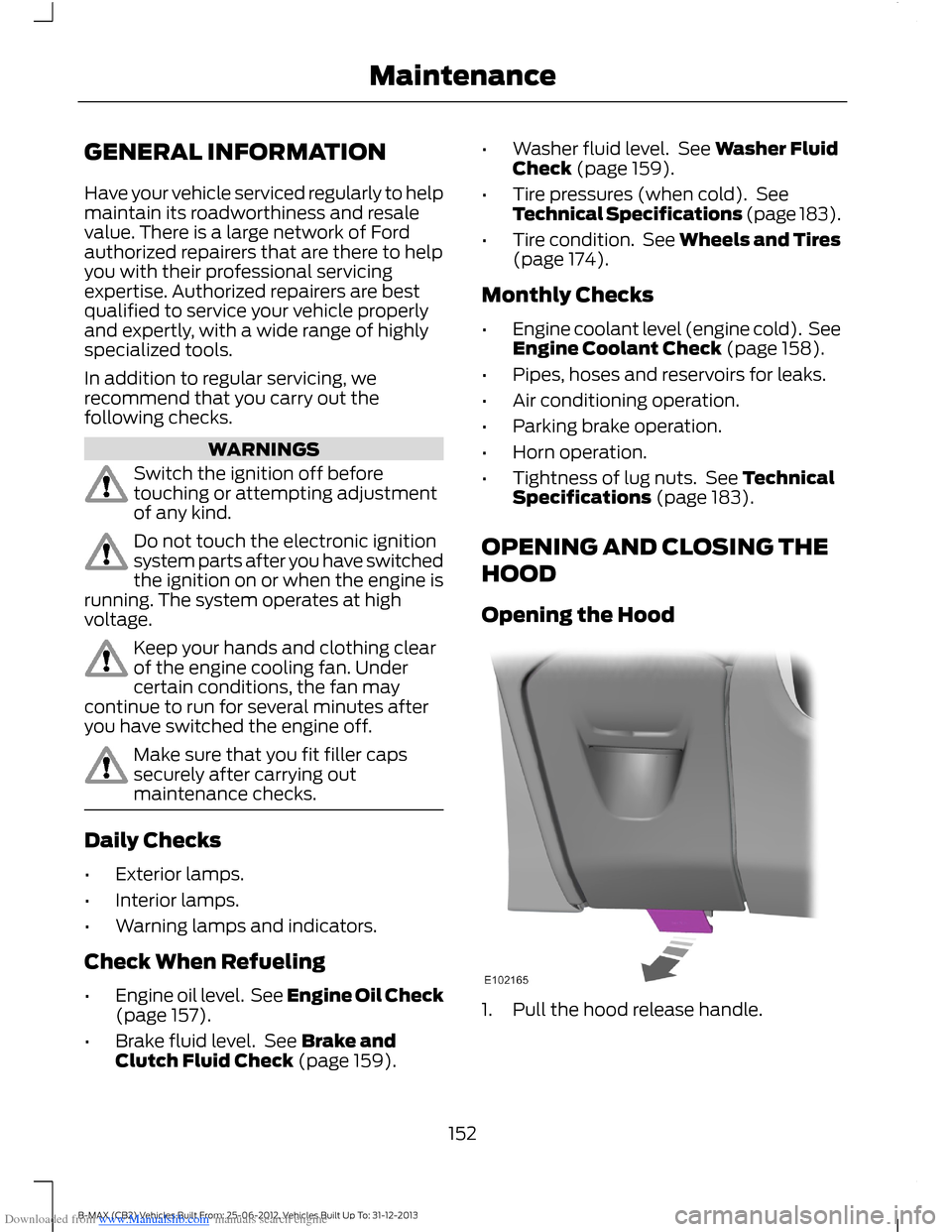

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network of Fordauthorized repairers that are there to helpyou with their professional servicingexpertise. Authorized repairers are bestqualified to service your vehicle properlyand expertly, with a wide range of highlyspecialized tools.
In addition to regular servicing, werecommend that you carry out thefollowing checks.
WARNINGS
Switch the ignition off beforetouching or attempting adjustmentof any kind.
Do not touch the electronic ignitionsystem parts after you have switchedthe ignition on or when the engine isrunning. The system operates at highvoltage.
Keep your hands and clothing clearof the engine cooling fan. Undercertain conditions, the fan maycontinue to run for several minutes afteryou have switched the engine off.
Make sure that you fit filler capssecurely after carrying outmaintenance checks.
Daily Checks
•Exterior lamps.
•Interior lamps.
•Warning lamps and indicators.
Check When Refueling
•Engine oil level. See Engine Oil Check(page 157).
•Brake fluid level. See Brake andClutch Fluid Check (page 159).
•Washer fluid level. See Washer FluidCheck (page 159).
•Tire pressures (when cold). SeeTechnical Specifications (page 183).
•Tire condition. See Wheels and Tires(page 174).
Monthly Checks
•Engine coolant level (engine cold). SeeEngine Coolant Check (page 158).
•Pipes, hoses and reservoirs for leaks.
•Air conditioning operation.
•Parking brake operation.
•Horn operation.
•Tightness of lug nuts. See TechnicalSpecifications (page 183).
OPENING AND CLOSING THE
HOOD
Opening the Hood
1.Pull the hood release handle.
152B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
Page 155 of 298

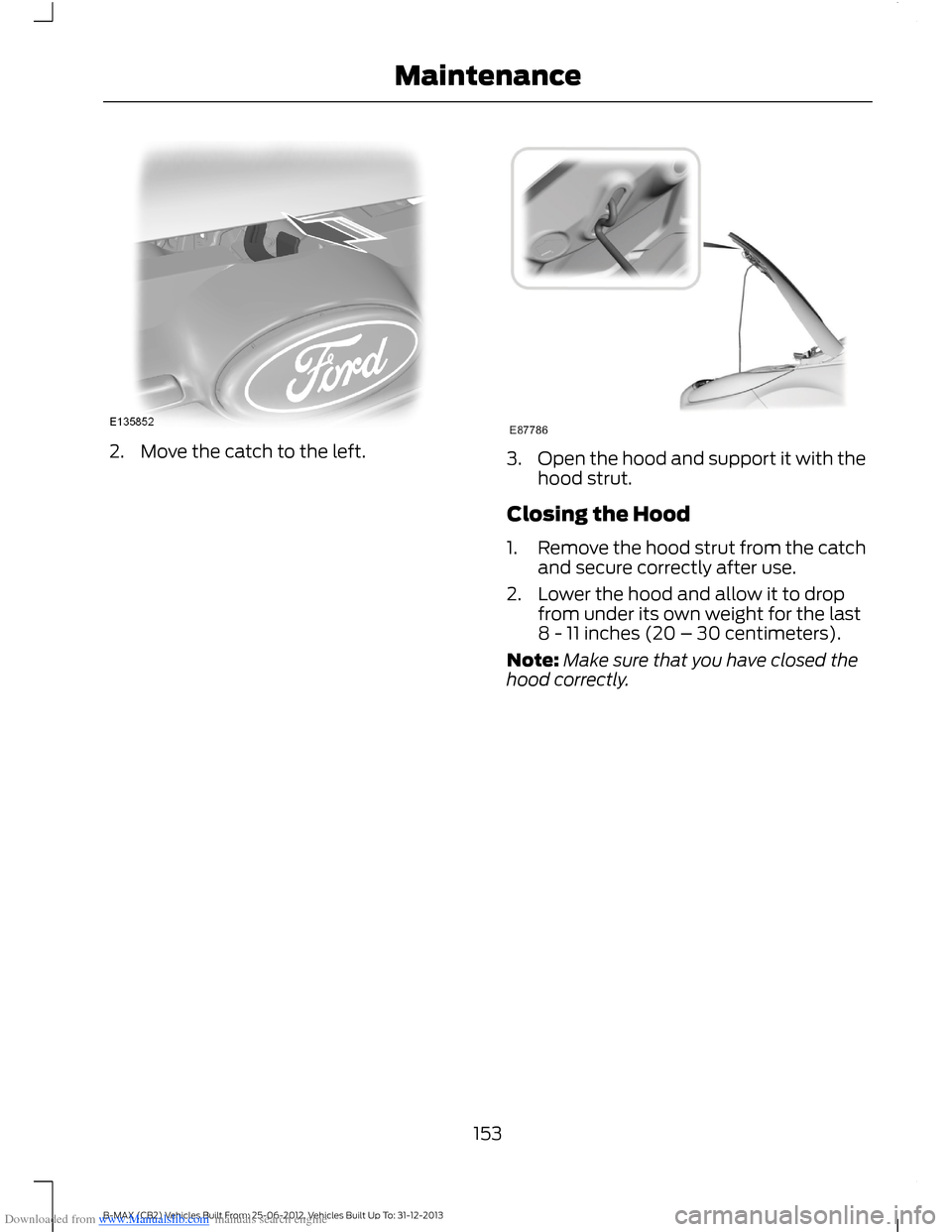

Downloaded from www.Manualslib.com manuals search engine 2.Move the catch to the left.3.Open the hood and support it with thehood strut.
Closing the Hood
1.Remove the hood strut from the catchand secure correctly after use.
2.Lower the hood and allow it to dropfrom under its own weight for the last8 - 11 inches (20 – 30 centimeters).
Note:Make sure that you have closed thehood correctly.
153B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
Page 156 of 298

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
Engine coolant reservoir*: See Engine Coolant Check (page 158).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 159).B
Engine oil filler cap*: See Engine Oil Check (page 157).C
Battery: See Changing the 12V Battery (page 159).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 159).E
Engine compartment fuse box. See Fuses (page 134).F
Windshield and rear window washer fluid reservoir: See Washer Fluid Check(page 159).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 157).I
* The filler caps and the engine oil dipstick are colored for easy identification.
154B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
Page 157 of 298

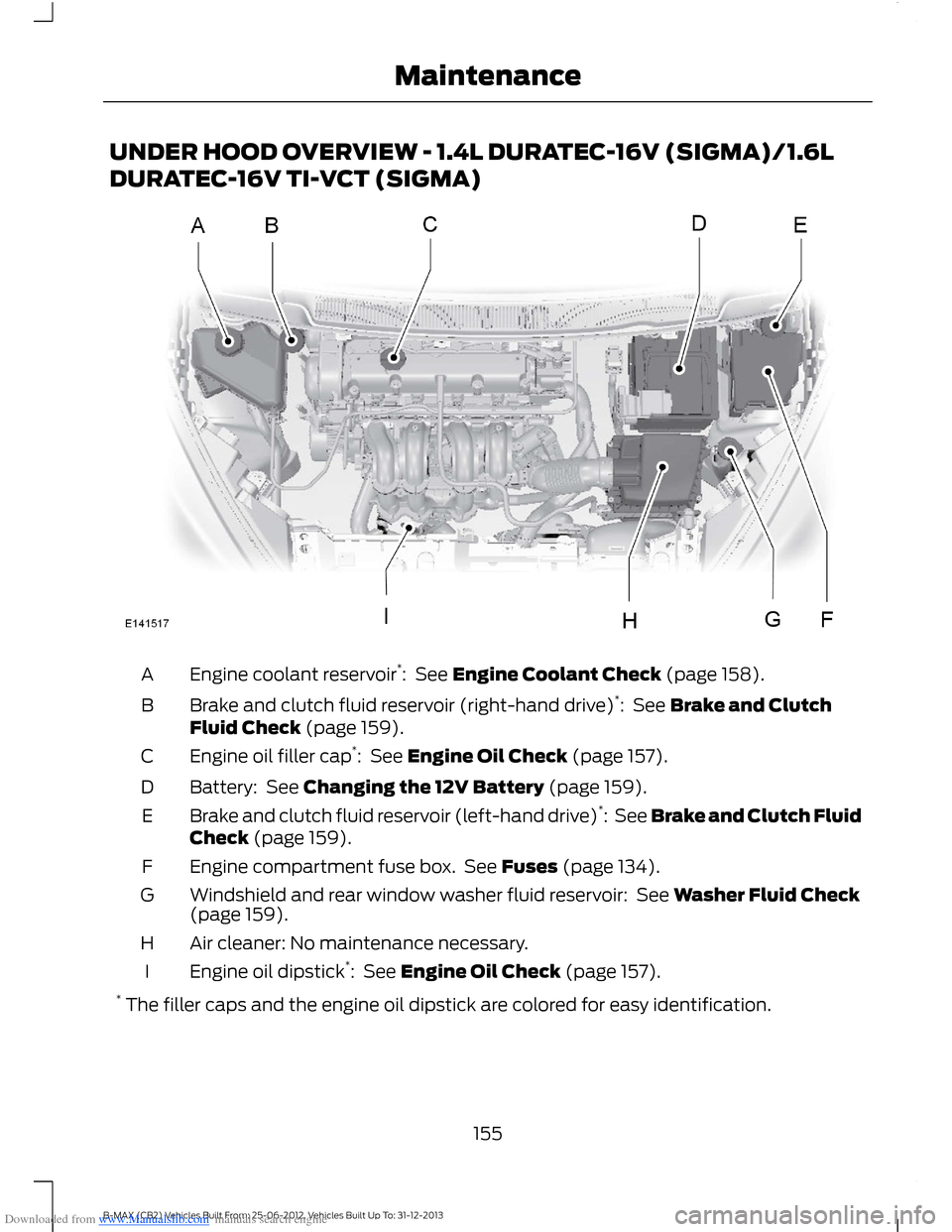

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.4L DURATEC-16V (SIGMA)/1.6L
DURATEC-16V TI-VCT (SIGMA)
Engine coolant reservoir*: See Engine Coolant Check (page 158).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 159).B
Engine oil filler cap*: See Engine Oil Check (page 157).C
Battery: See Changing the 12V Battery (page 159).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 159).E
Engine compartment fuse box. See Fuses (page 134).F
Windshield and rear window washer fluid reservoir: See Washer Fluid Check(page 159).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 157).I
* The filler caps and the engine oil dipstick are colored for easy identification.
155B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
Page 158 of 298

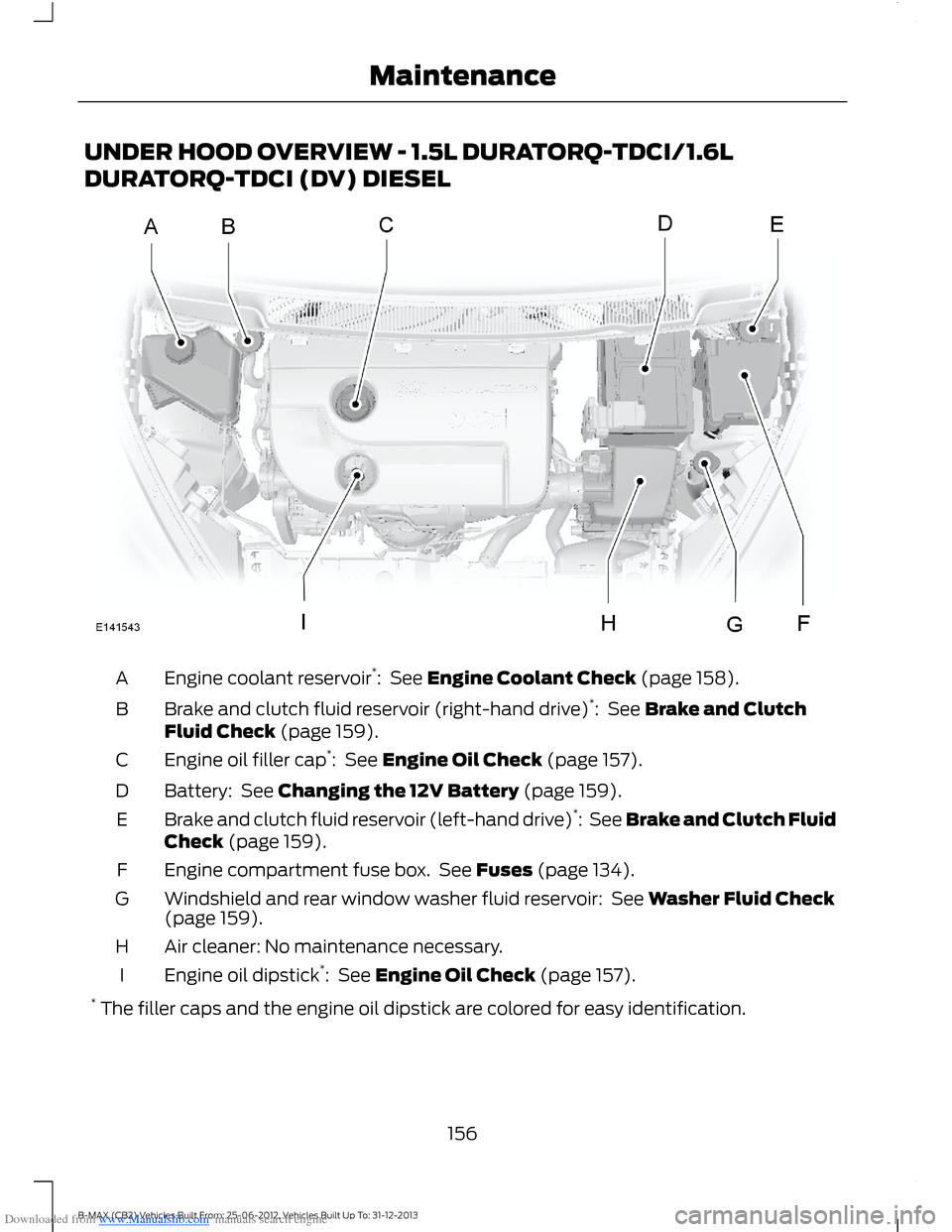

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.5L DURATORQ-TDCI/1.6L
DURATORQ-TDCI (DV) DIESEL
Engine coolant reservoir*: See Engine Coolant Check (page 158).A
Brake and clutch fluid reservoir (right-hand drive)*: See Brake and ClutchFluid Check (page 159).B
Engine oil filler cap*: See Engine Oil Check (page 157).C
Battery: See Changing the 12V Battery (page 159).D
Brake and clutch fluid reservoir (left-hand drive)*: See Brake and Clutch FluidCheck (page 159).E
Engine compartment fuse box. See Fuses (page 134).F
Windshield and rear window washer fluid reservoir: See Washer Fluid Check(page 159).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine Oil Check (page 157).I
* The filler caps and the engine oil dipstick are colored for easy identification.
156B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
Page 159 of 298

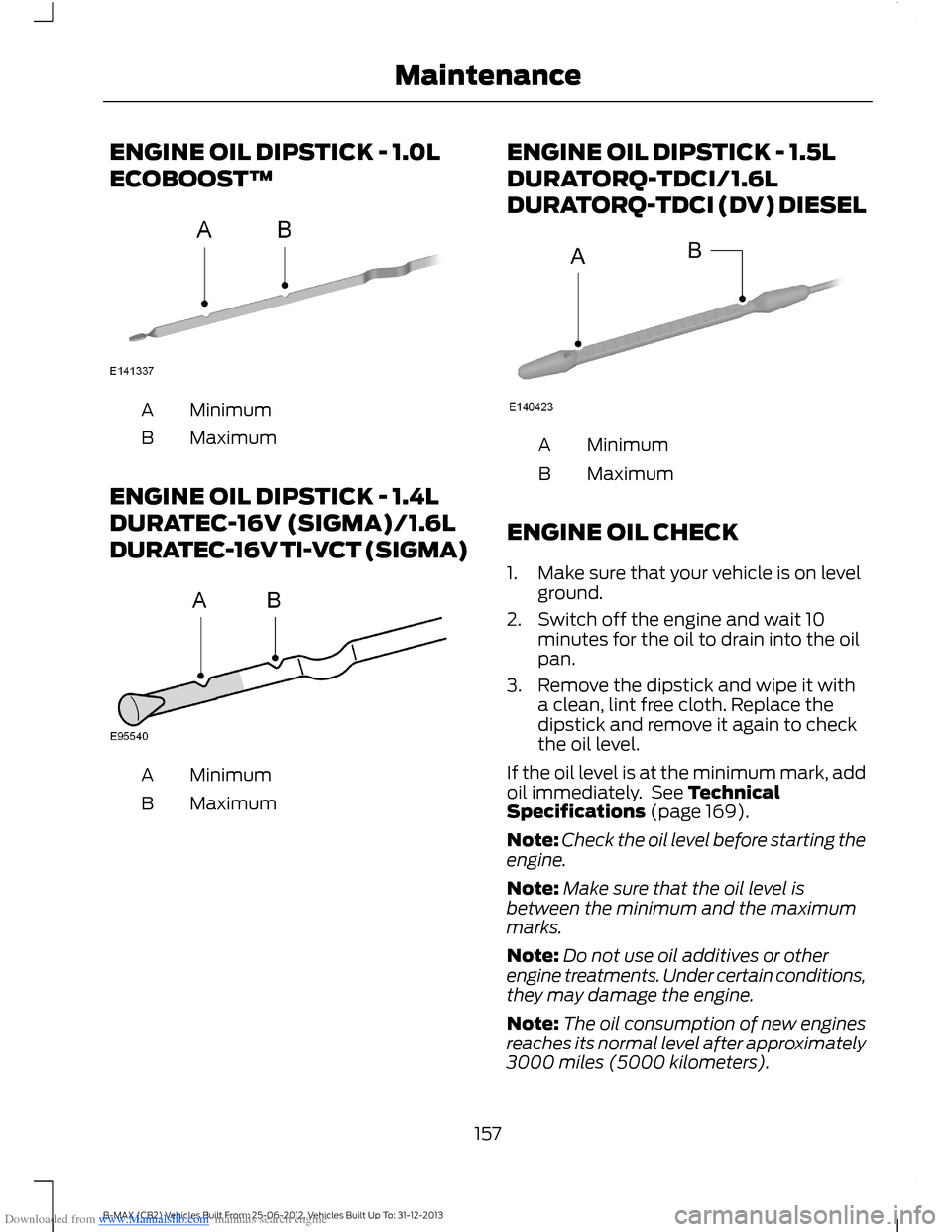

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.0L
ECOBOOST™
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.4L
DURATEC-16V (SIGMA)/1.6L
DURATEC-16V TI-VCT (SIGMA)
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.5L
DURATORQ-TDCI/1.6L
DURATORQ-TDCI (DV) DIESEL
MinimumA
MaximumB
ENGINE OIL CHECK
1.Make sure that your vehicle is on levelground.
2.Switch off the engine and wait 10minutes for the oil to drain into the oilpan.
3.Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the oil level is at the minimum mark, addoil immediately. See TechnicalSpecifications (page 169).
Note:Check the oil level before starting theengine.
Note:Make sure that the oil level isbetween the minimum and the maximummarks.
Note:Do not use oil additives or otherengine treatments. Under certain conditions,they may damage the engine.
Note:The oil consumption of new enginesreaches its normal level after approximately3000 miles (5000 kilometers).
157B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
Page 160 of 298

Downloaded from www.Manualslib.com manuals search engine Adding Oil
WARNINGS
Only add oil when the engine is cold.If the engine is hot, wait 10 minutesfor the engine to cool down. Failureto take care may result in personal injury.
Do not remove the filler cap whenthe engine is running. Failure to takecare may result in personal injury.
1.Remove the filler cap.
2.Add oil that meets Ford specifications.See Technical Specifications (page169).
3.Replace the filler cap. Turn it until youfeel a strong resistance.
Note:Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Soak up any spillage with anabsorbent cloth immediately.
ENGINE COOLANT CHECK
WARNING
Do not allow the fluid to touch yourskin or eyes. If this happens, rinse theaffected areas immediately withplenty of water and contact your physician.
Note:Make sure that the level is betweenthe MIN and the MAX marks.
Note:Coolant expands when it is hot. Thelevel may therefore extend beyond the MAXmark.
If the level is at the MIN mark, add coolantimmediately.
Adding Engine Coolant
WARNINGS
Only add coolant when the engine iscold. If the engine is hot, wait 10minutes for the engine to cool down.
Do not remove the filler cap whenthe engine is running.
Do not remove the filler cap whenthe engine is hot. Wait for the engineto cool down.
Undiluted coolant is flammable andmay ignite if spilt on a hot exhaust.
Note:In an emergency, you can add justwater to the cooling system to reach avehicle service station. Have the systemchecked by an authorized dealer as soon aspossible.
Note:Prolonged use of incorrect dilutionof the coolant can cause engine damagefrom corrosion, overheating or freezing.
Note:Do not add coolant further than theMAX mark.
1.Remove the filler cap. Any pressure willescape slowly as you unscrew the cap.
2.Add a 50/50 mixture of coolant andwater using fluid that meets the Fordspecifications. See TechnicalSpecifications (page 169).
3.Replace the filler cap. Turn it until youfeel a strong resistance.
158B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
