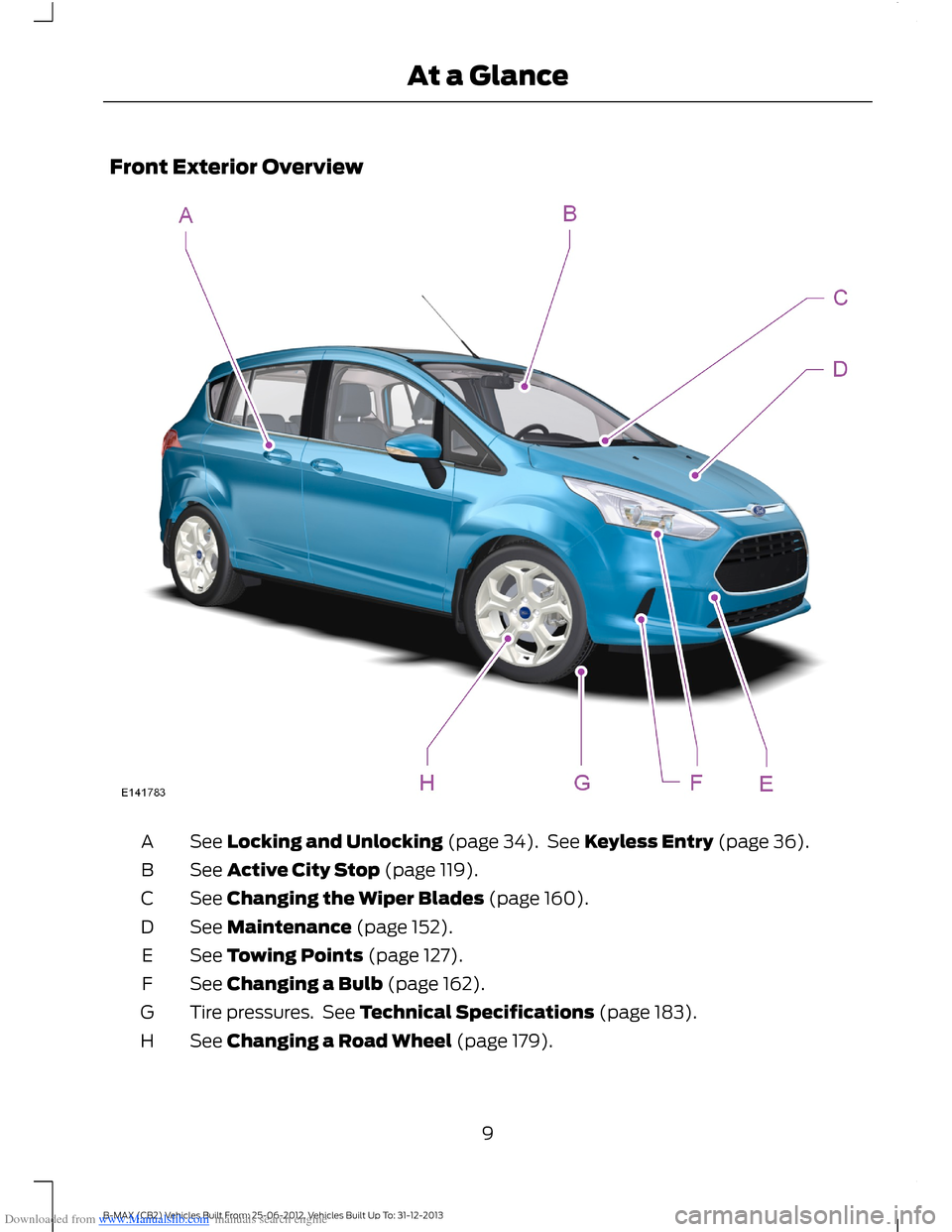

Downloaded from www.Manualslib.com manuals search engine Front Exterior Overview
See Locking and Unlocking (page 34). See Keyless Entry (page 36).A
See Active City Stop (page 119).B
See Changing the Wiper Blades (page 160).C
See Maintenance (page 152).D
See Towing Points (page 127).E
See Changing a Bulb (page 162).F
Tire pressures. See Technical Specifications (page 183).G
See Changing a Road Wheel (page 179).H
9B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

Downloaded from www.Manualslib.com manuals search engine Vehicle Interior Overview

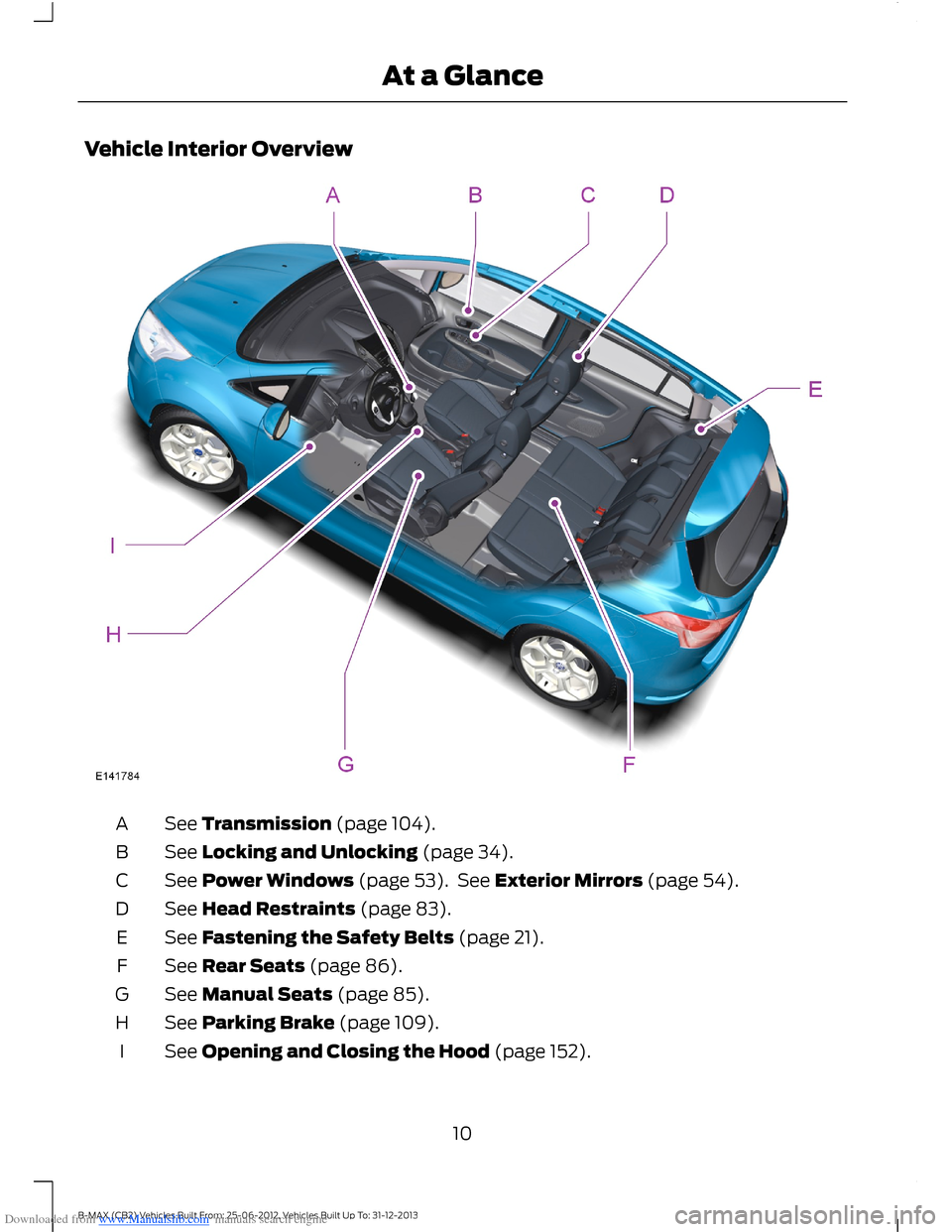

See Transmission (page 104).A
See Locking and Unlocking (page 34).B
See Power Windows (page 53). See Exterior Mirrors (page 54).C
See Head Restraints (page 83).D
See Fastening the Safety Belts (page 21).E
See Rear Seats (page 86).F
See Manual Seats (page 85).G
See Parking Brake (page 109).H
See Opening and Closing the Hood (page 152).I
10B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

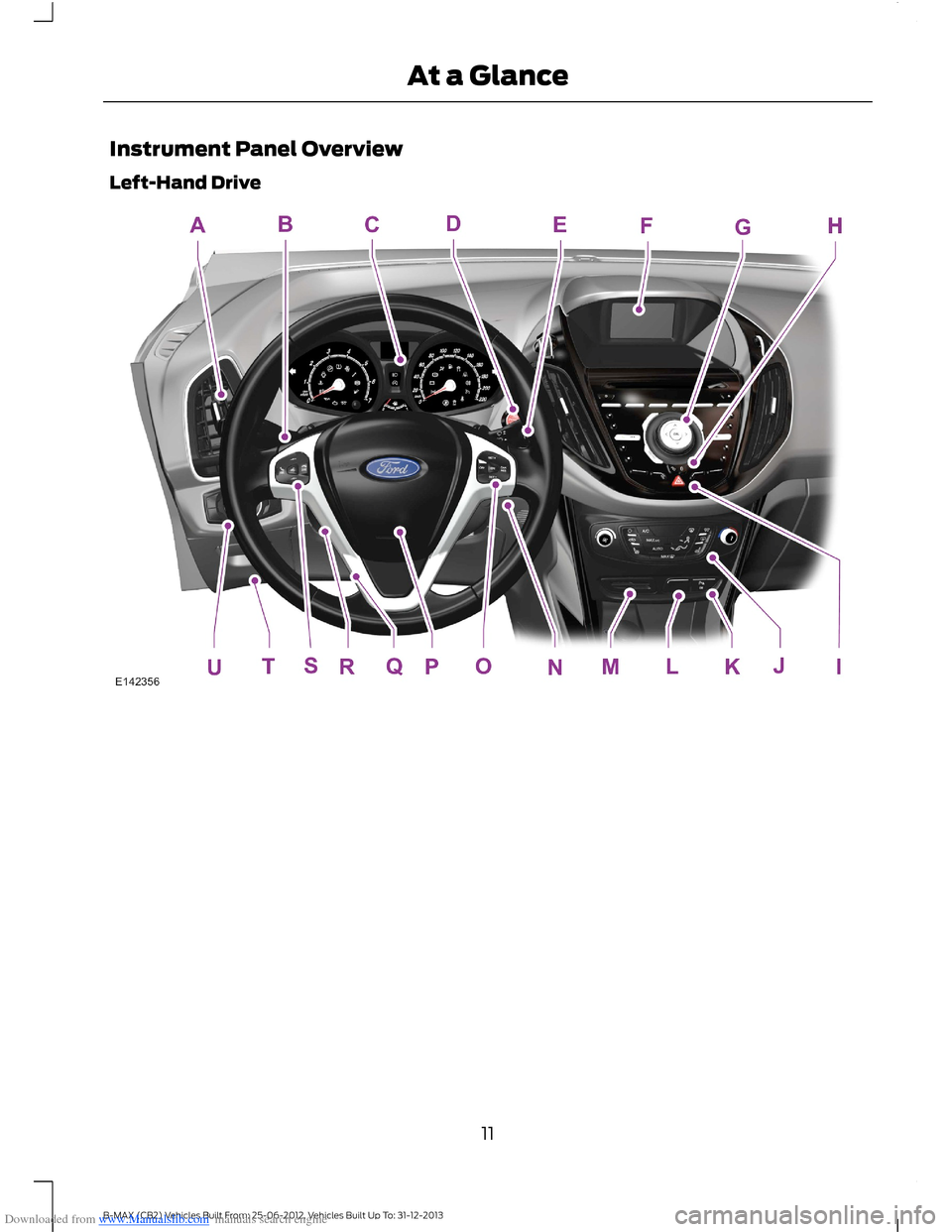

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Overview
Left-Hand Drive
11B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

Downloaded from www.Manualslib.com manuals search engine Right-Hand Drive

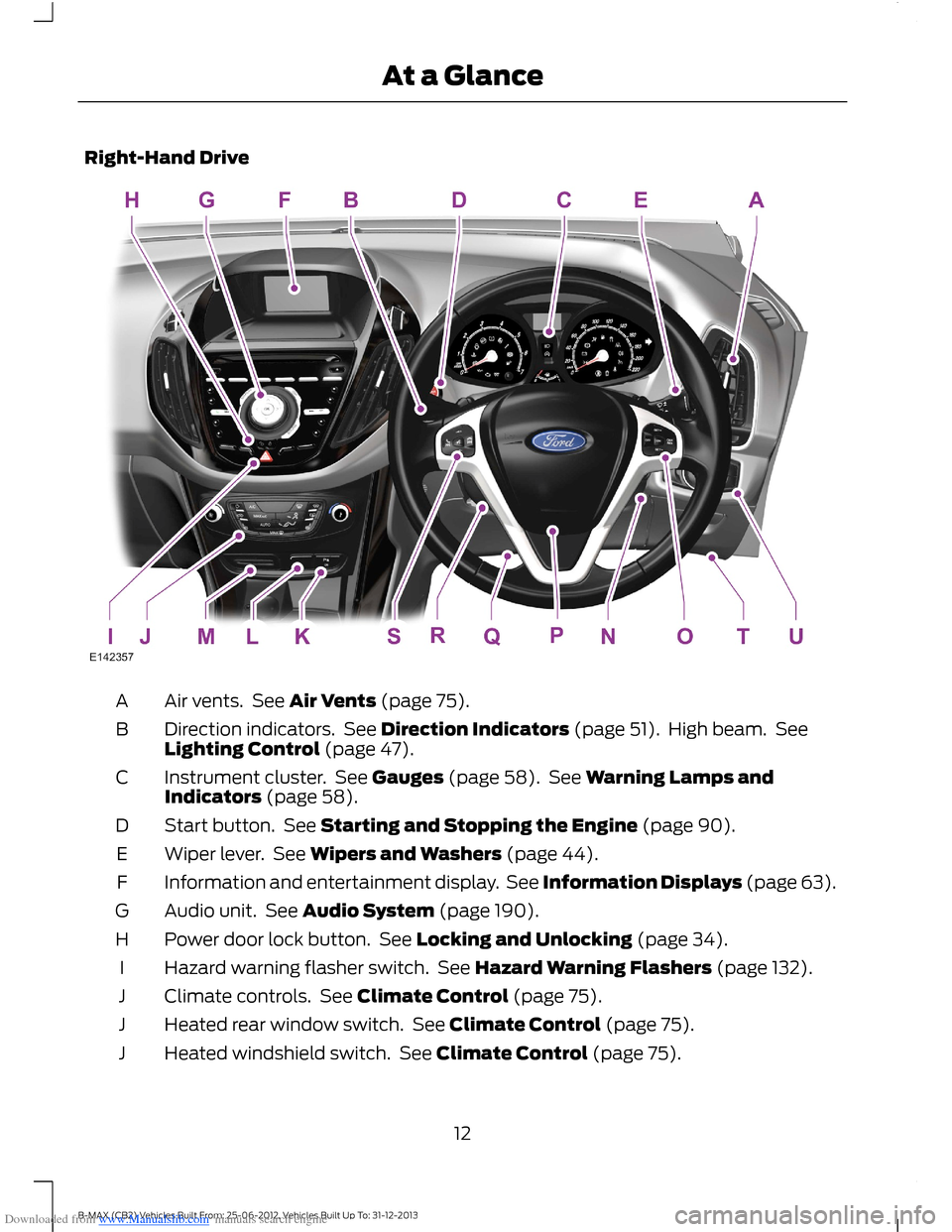

Air vents. See Air Vents (page 75).A
Direction indicators. See Direction Indicators (page 51). High beam. SeeLighting Control (page 47).B
Instrument cluster. See Gauges (page 58). See Warning Lamps andIndicators (page 58).C
Start button. See Starting and Stopping the Engine (page 90).D
Wiper lever. See Wipers and Washers (page 44).E
Information and entertainment display. See Information Displays (page 63).F
Audio unit. See Audio System (page 190).G
Power door lock button. See Locking and Unlocking (page 34).H
Hazard warning flasher switch. See Hazard Warning Flashers (page 132).I
Climate controls. See Climate Control (page 75).J
Heated rear window switch. See Climate Control (page 75).J
Heated windshield switch. See Climate Control (page 75).J
12B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

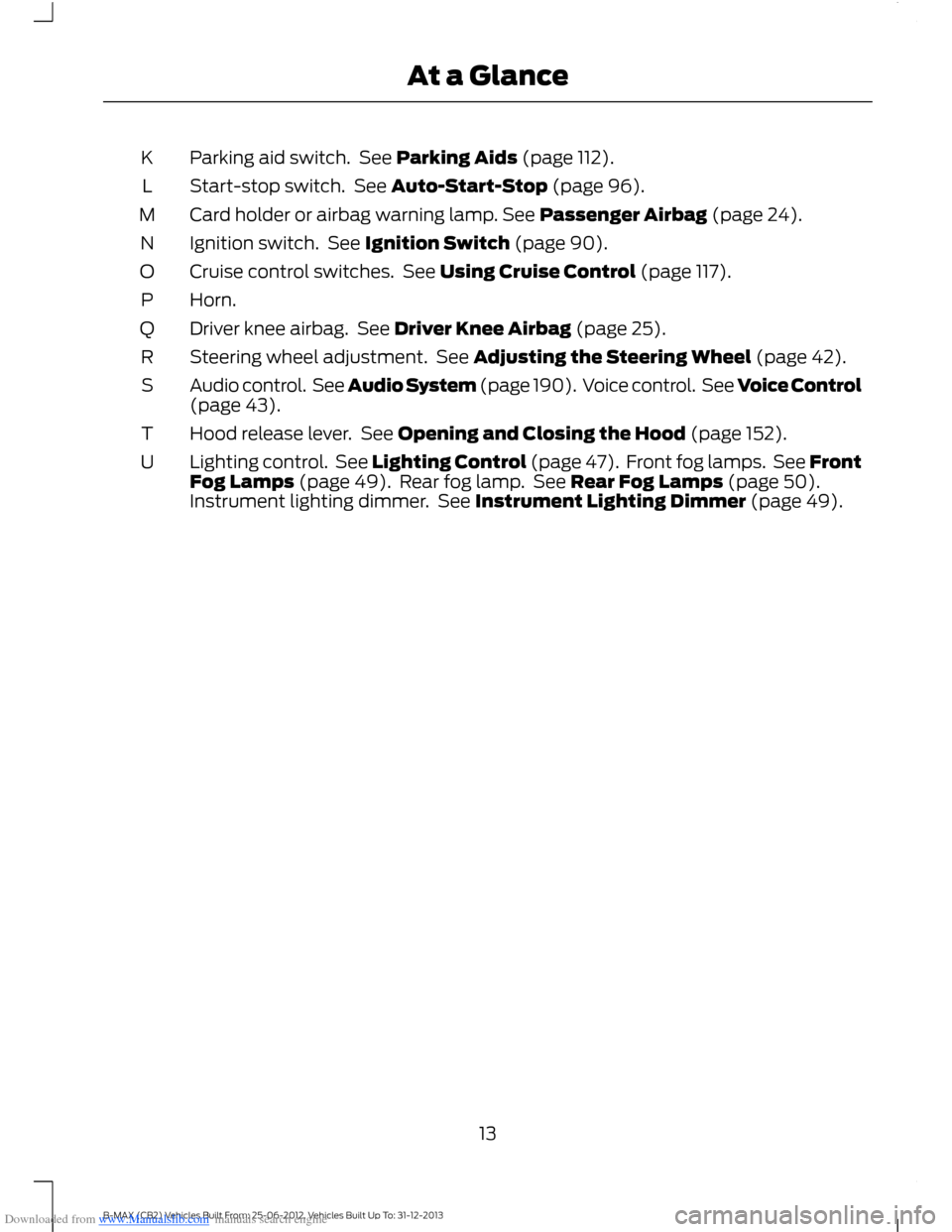

Downloaded from www.Manualslib.com manuals search engine Parking aid switch. See Parking Aids (page 112).K
Start-stop switch. See Auto-Start-Stop (page 96).L
Card holder or airbag warning lamp. See Passenger Airbag (page 24).M
Ignition switch. See Ignition Switch (page 90).N
Cruise control switches. See Using Cruise Control (page 117).O
Horn.P
Driver knee airbag. See Driver Knee Airbag (page 25).Q
Steering wheel adjustment. See Adjusting the Steering Wheel (page 42).R
Audio control. See Audio System (page 190). Voice control. See Voice Control(page 43).S
Hood release lever. See Opening and Closing the Hood (page 152).T
Lighting control. See Lighting Control (page 47). Front fog lamps. See FrontFog Lamps (page 49). Rear fog lamp. See Rear Fog Lamps (page 50).Instrument lighting dimmer. See Instrument Lighting Dimmer (page 49).
U
13B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

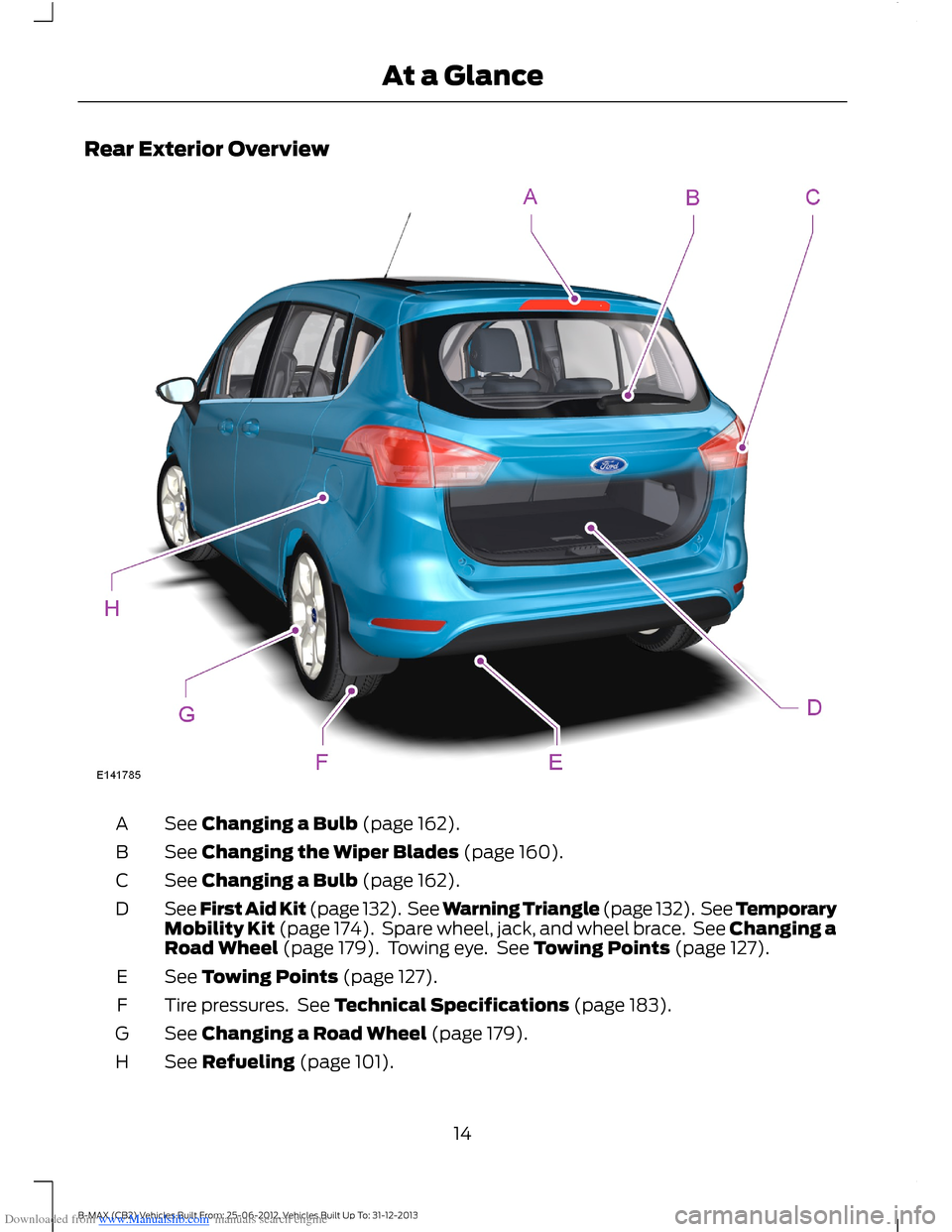

Downloaded from www.Manualslib.com manuals search engine Rear Exterior Overview
See Changing a Bulb (page 162).A
See Changing the Wiper Blades (page 160).B
See Changing a Bulb (page 162).C
See First Aid Kit (page 132). See Warning Triangle (page 132). See TemporaryMobility Kit (page 174). Spare wheel, jack, and wheel brace. See Changing aRoad Wheel (page 179). Towing eye. See Towing Points (page 127).
D
See Towing Points (page 127).E
Tire pressures. See Technical Specifications (page 183).F
See Changing a Road Wheel (page 179).G
See Refueling (page 101).H
14B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

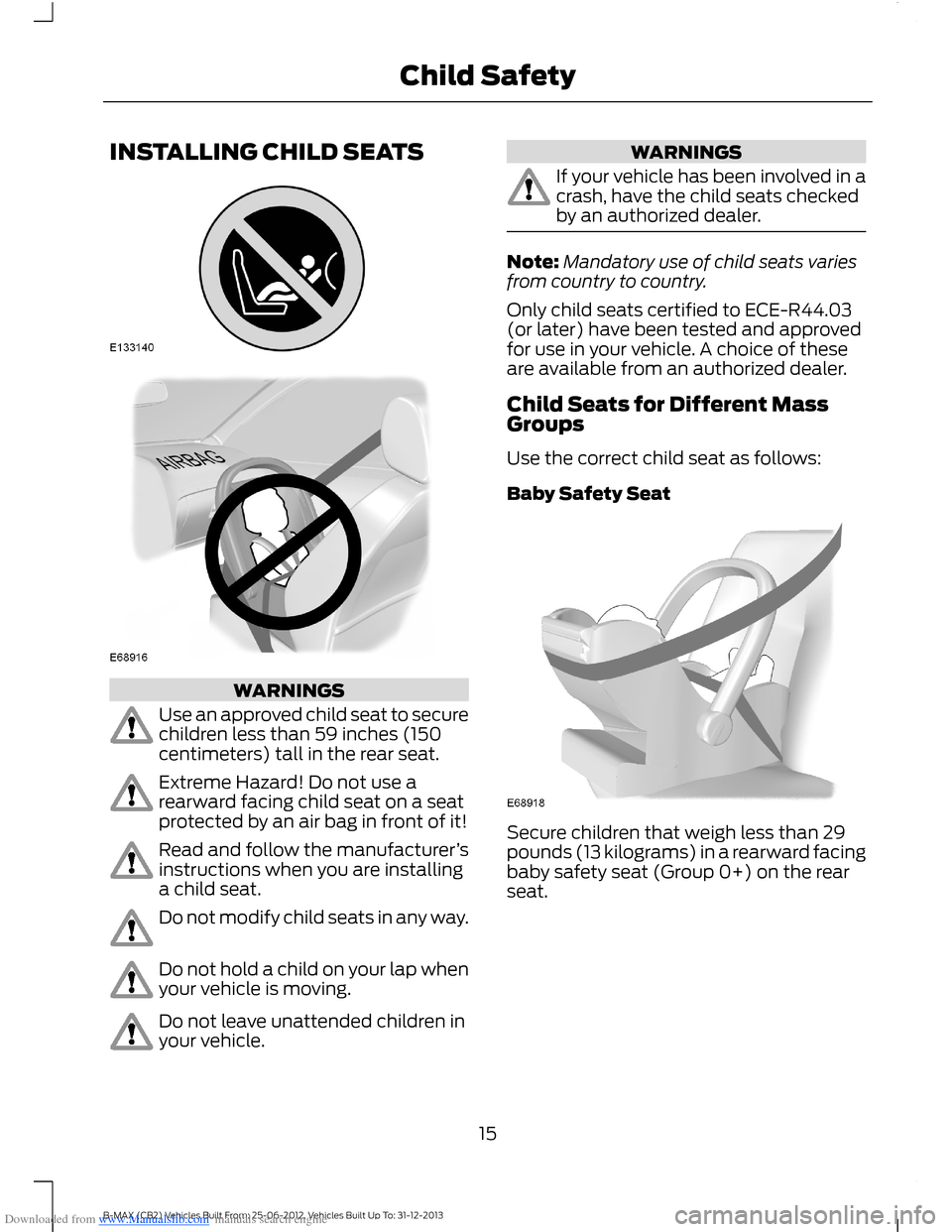

Downloaded from www.Manualslib.com manuals search engine INSTALLING CHILD SEATS
WARNINGS
Use an approved child seat to securechildren less than 59 inches (150centimeters) tall in the rear seat.
Extreme Hazard! Do not use arearward facing child seat on a seatprotected by an air bag in front of it!
Read and follow the manufacturer’sinstructions when you are installinga child seat.
Do not modify child seats in any way.
Do not hold a child on your lap whenyour vehicle is moving.
Do not leave unattended children inyour vehicle.
WARNINGS
If your vehicle has been involved in acrash, have the child seats checkedby an authorized dealer.
Note:Mandatory use of child seats variesfrom country to country.
Only child seats certified to ECE-R44.03(or later) have been tested and approvedfor use in your vehicle. A choice of theseare available from an authorized dealer.
Child Seats for Different MassGroups
Use the correct child seat as follows:
Baby Safety Seat
Secure children that weigh less than 29pounds (13 kilograms) in a rearward facingbaby safety seat (Group 0+) on the rearseat.
15B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Child Safety

Downloaded from www.Manualslib.com manuals search engine Child Safety Seat

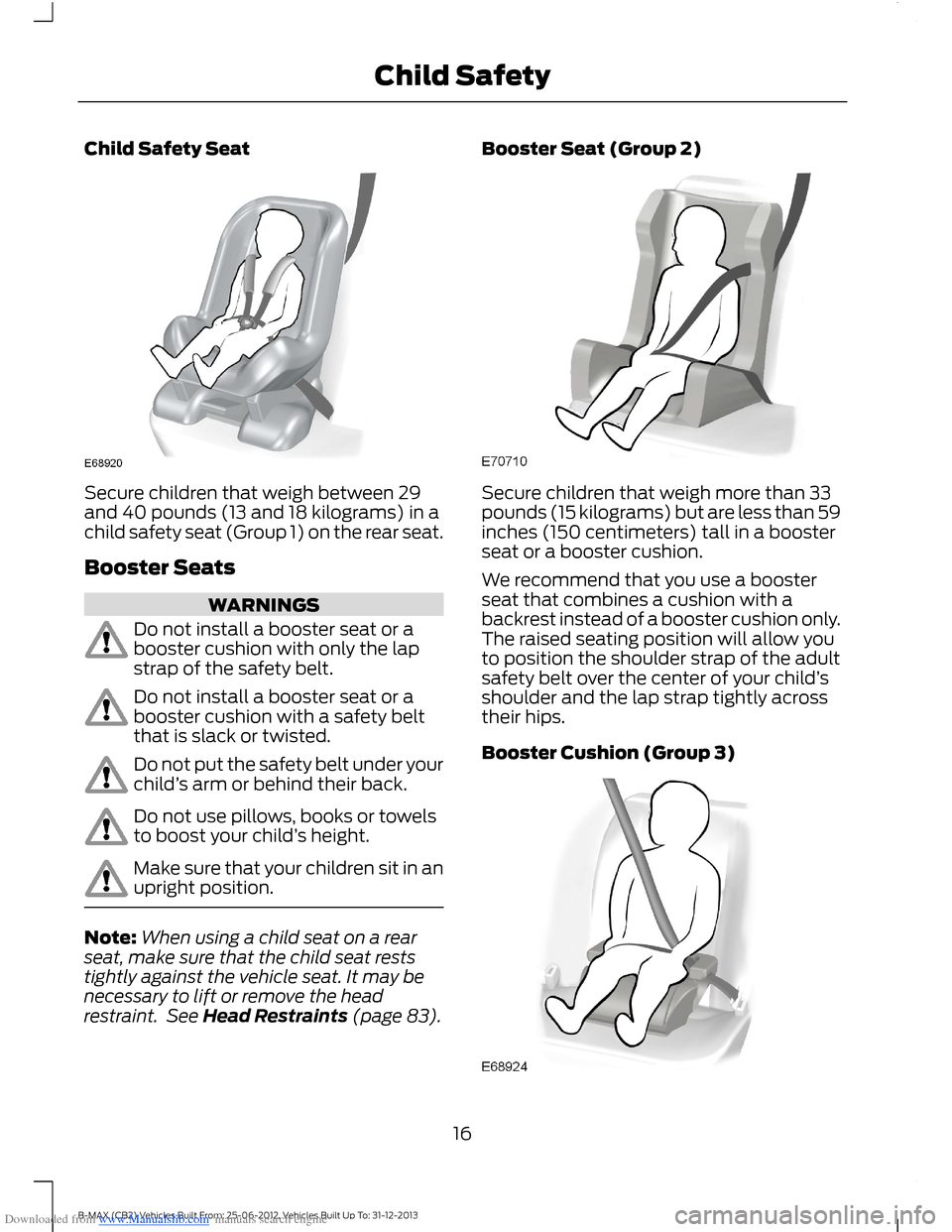

Secure children that weigh between 29and 40 pounds (13 and 18 kilograms) in achild safety seat (Group 1) on the rear seat.
Booster Seats
WARNINGS
Do not install a booster seat or abooster cushion with only the lapstrap of the safety belt.
Do not install a booster seat or abooster cushion with a safety beltthat is slack or twisted.
Do not put the safety belt under yourchild’s arm or behind their back.
Do not use pillows, books or towelsto boost your child’s height.
Make sure that your children sit in anupright position.
Note:When using a child seat on a rearseat, make sure that the child seat reststightly against the vehicle seat. It may benecessary to lift or remove the headrestraint. See Head Restraints (page 83).
Booster Seat (Group 2)
Secure children that weigh more than 33pounds (15 kilograms) but are less than 59inches (150 centimeters) tall in a boosterseat or a booster cushion.
We recommend that you use a boosterseat that combines a cushion with abackrest instead of a booster cushion only.The raised seating position will allow youto position the shoulder strap of the adultsafety belt over the center of your child’sshoulder and the lap strap tightly acrosstheir hips.
Booster Cushion (Group 3)
16B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Child Safety

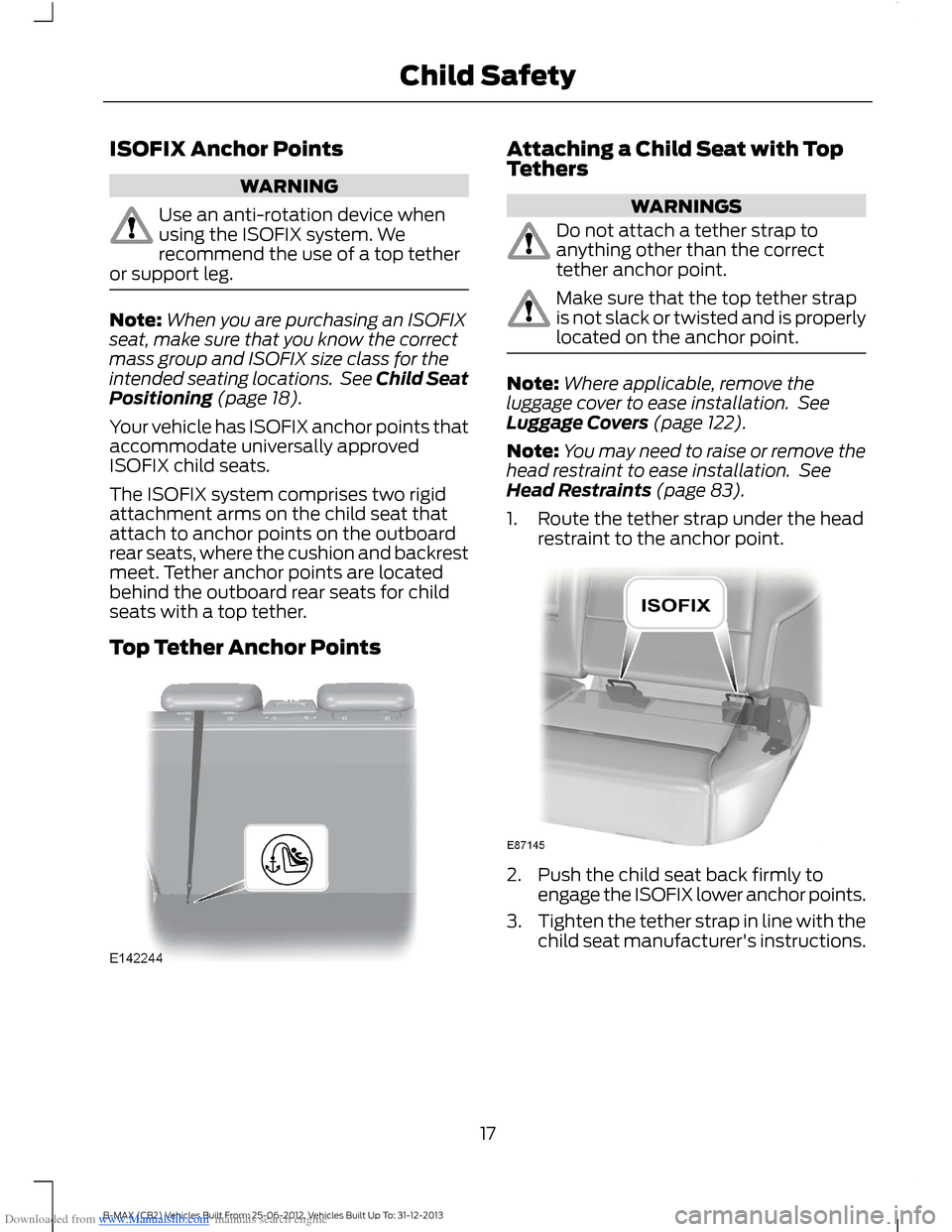

Downloaded from www.Manualslib.com manuals search engine ISOFIX Anchor Points
WARNING
Use an anti-rotation device whenusing the ISOFIX system. Werecommend the use of a top tetheror support leg.
Note:When you are purchasing an ISOFIXseat, make sure that you know the correctmass group and ISOFIX size class for theintended seating locations. See Child SeatPositioning (page 18).
Your vehicle has ISOFIX anchor points thataccommodate universally approvedISOFIX child seats.
The ISOFIX system comprises two rigidattachment arms on the child seat thatattach to anchor points on the outboardrear seats, where the cushion and backrestmeet. Tether anchor points are locatedbehind the outboard rear seats for childseats with a top tether.
Top Tether Anchor Points
Attaching a Child Seat with TopTethers
WARNINGS
Do not attach a tether strap toanything other than the correcttether anchor point.
Make sure that the top tether strapis not slack or twisted and is properlylocated on the anchor point.
Note:Where applicable, remove theluggage cover to ease installation. SeeLuggage Covers (page 122).
Note:You may need to raise or remove thehead restraint to ease installation. SeeHead Restraints (page 83).
1.Route the tether strap under the headrestraint to the anchor point.
2.Push the child seat back firmly toengage the ISOFIX lower anchor points.
3.Tighten the tether strap in line with thechild seat manufacturer's instructions.
17B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Child Safety

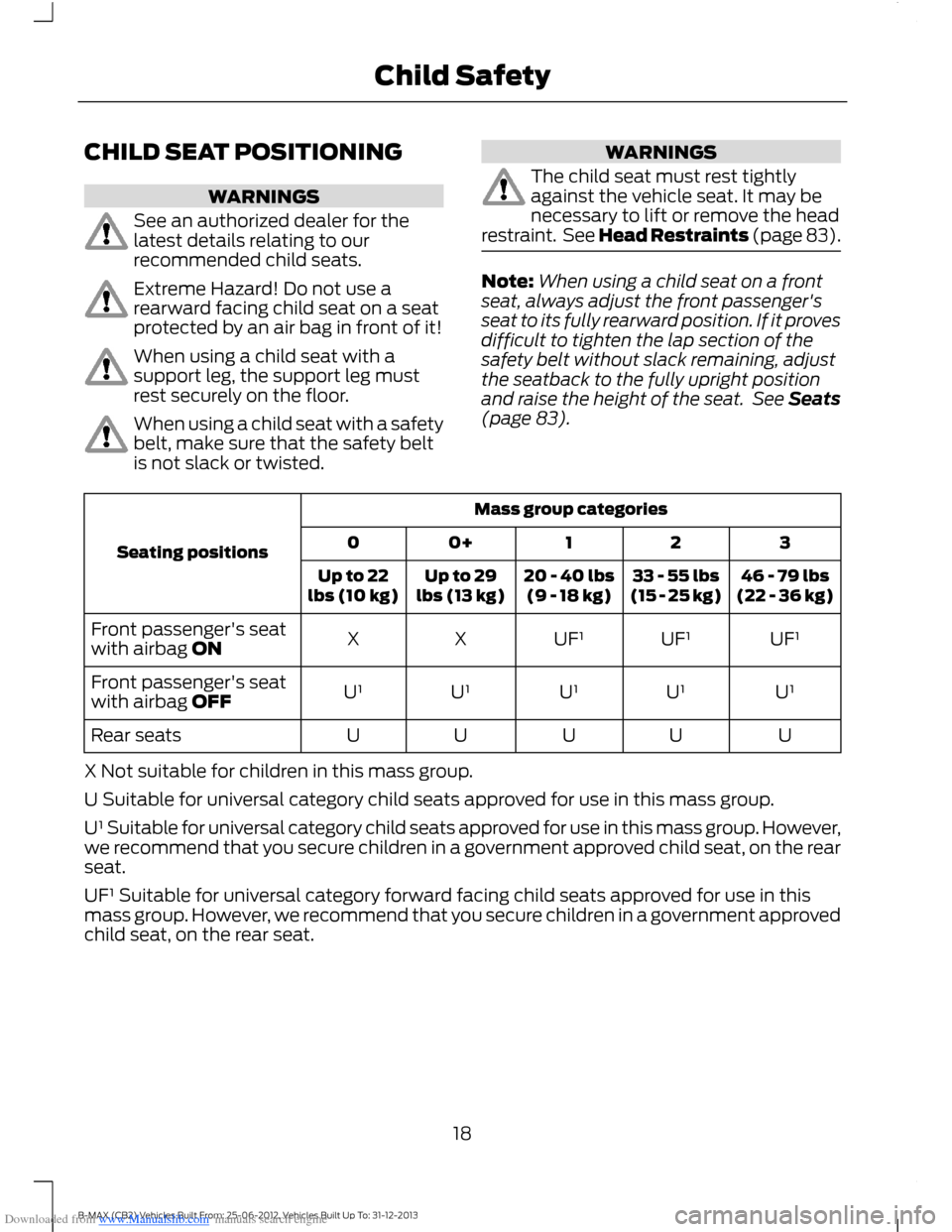

Downloaded from www.Manualslib.com manuals search engine CHILD SEAT POSITIONING
WARNINGS
See an authorized dealer for thelatest details relating to ourrecommended child seats.
Extreme Hazard! Do not use arearward facing child seat on a seatprotected by an air bag in front of it!
When using a child seat with asupport leg, the support leg mustrest securely on the floor.
When using a child seat with a safetybelt, make sure that the safety beltis not slack or twisted.
WARNINGS
The child seat must rest tightlyagainst the vehicle seat. It may benecessary to lift or remove the headrestraint. See Head Restraints (page 83).
Note:When using a child seat on a frontseat, always adjust the front passenger'sseat to its fully rearward position. If it provesdifficult to tighten the lap section of thesafety belt without slack remaining, adjustthe seatback to the fully upright positionand raise the height of the seat. See Seats(page 83).
Mass group categories
Seating positions3210+0
46 - 79 lbs(22 - 36 kg)33 - 55 lbs(15 - 25 kg)20 - 40 lbs(9 - 18 kg)Up to 29lbs (13 kg)Up to 22lbs (10 kg)
UF¹UF¹UF¹XXFront passenger's seatwith airbag ON
U¹U¹U¹U¹U¹Front passenger's seatwith airbag OFF
UUUUURear seats
X Not suitable for children in this mass group.
U Suitable for universal category child seats approved for use in this mass group.
U¹ Suitable for universal category child seats approved for use in this mass group. However,we recommend that you secure children in a government approved child seat, on the rearseat.
UF¹ Suitable for universal category forward facing child seats approved for use in thismass group. However, we recommend that you secure children in a government approvedchild seat, on the rear seat.
18B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Child Safety
