headlamp FORD B MAX 2013 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Introduction
About This Manual...........................................5
Symbols Glossary.............................................5
Replacement PartsRecommendation.........................................7
Mobile CommunicationsEquipment......................................................8
At a Glance
At a Glance..........................................................9
Child Safety
Installing Child Seats.....................................15
Child Seat Positioning...................................18
Child Safety Locks.........................................20
Safety Belts
Fastening the Safety Belts...........................21
Safety Belt Minder..........................................22
Supplementary RestraintsSystem
Principle of Operation...................................23
Driver Airbag.....................................................23
Passenger Airbag...........................................24
Side Airbags.....................................................24
Driver Knee Airbag.........................................25
Side Curtain Airbags......................................25
Keys and Remote Controls
General Information on RadioFrequencies..................................................26
Remote Control..............................................26
Replacing a Lost Key or RemoteControl...........................................................29
MyKey™
Principle of Operation..................................30
Creating a MyKey...........................................30
Programming a MyKey..................................31
Clearing All MyKeys........................................31
Checking MyKey System Status................31
Using MyKey With Remote StartSystems.........................................................32
MyKey Troubleshooting...............................32
Locks
Locking and Unlocking.................................34
Sliding Door......................................................35
Manual Liftgate...............................................36
Keyless Entry....................................................36
Security
Passive Anti-Theft System.........................39
Anti-Theft Alarm............................................39
Steering Wheel
Adjusting the Steering Wheel....................42
Audio Control...................................................42
Voice Control...................................................43
Cruise Control..................................................43
Wipers and Washers
Windshield Wipers........................................44
Autowipers.......................................................44
Windshield Washers.....................................45
Rear Window Wiper and Washers...........45
Lighting
General Information......................................47
Lighting Control...............................................47
Autolamps........................................................48
Instrument Lighting Dimmer.....................49
Headlamp Exit Delay....................................49
Daytime Running Lamps............................49
Front Fog Lamps............................................49
Rear Fog Lamps.............................................50
Headlamp Leveling.......................................50
Direction Indicators........................................51
1B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Table of Contents

Downloaded from www.Manualslib.com manuals search engine Engine Oil Check...........................................157
Engine Coolant Check................................158
Brake and Clutch Fluid Check..................159
Washer Fluid Check.....................................159
Changing the 12V Battery..........................159
Checking the Wiper Blades......................160
Changing the Wiper Blades.....................160
Adjusting the Headlamps..........................161
Removing a Headlamp................................161
Changing a Bulb............................................162
Bulb Specification Chart...........................168
Technical Specifications...........................169
Vehicle Care
Cleaning the Exterior....................................172
Cleaning the Interior.....................................172
Repairing Minor Paint Damage................173
Cleaning the Alloy Wheels.........................173
Wheels and Tires
General Information....................................174
Temporary Mobility Kit................................174
Tire Care............................................................177
Using Winter Tires.........................................177
Using Snow Chains......................................178
Tire Pressure Monitoring System............178
Changing a Road Wheel............................179
Technical Specifications............................183
Capacities and Specific-ations
Vehicle Identification Plate......................186
Vehicle Identification Number.................187
Technical Specifications............................187
Audio System
General Information....................................190
Audio unit - Vehicles With:AM/FM/CD..................................................191
Audio unit - Vehicles With:AM/FM/CD/Bluetooth...........................196
Audio unit - Vehicles With:AM/FM/CD/Navigation System........202
Audio unit - Vehicles With: SonyAM/FM/CD................................................208
Audio unit - Vehicles With: NavigationSystem/Sony AM/FM/CD.....................214
Audio System Security...............................219
Digital Audio...................................................219
Compact Disc Player - Vehicles With:AM/FM/CD..................................................221
Compact Disc Player - Vehicles With:AM/FM/CD/Bluetooth/SonyAM/FM/CD.................................................224
Auxiliary Input Jack.....................................228
Audio Troubleshooting..............................229
Navigation
Navigation......................................................230
SYNC™
General Information...................................239
Using Voice Recognition...........................240
Using SYNC™ With Your Phone............243
SYNC™ Applications and Services......253
Using SYNC™ With Your MediaPlayer...........................................................256
SYNC™ Troubleshooting.........................260
Appendices
Electromagnetic compatibility..............268
End User License Agreement.................269
4B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Table of Contents

Downloaded from www.Manualslib.com manuals search engine WINDSHIELD WIPERS
Note:Fully defrost the windshield beforeswitching on the windshield wipers.
Note:Make sure the windshield wipers areswitched off before entering a car wash.
Note:Install new wiper blades as soon asthey begin to leave bands of water andsmears on the windshield.
Note:Do not operate the wipers on a drywindshield. This may scratch the glass,damage the wiper blades or cause the wipermotor to burn out. Always use thewindshield washers before wiping a drywindshield.
Single wipeA
Intermittent wipeB
Normal wipeC
High speed wipeD
Note:If you press and hold the wiper leverin position A, the wipers will continue towipe until you release the wiper lever.
Intermittent Wipe
Short wipe intervalA
Intermittent wipeB
Long wipe intervalC
Use the rotary control to adjust theintermittent wipe interval.
Speed Dependent Wipers
When your vehicle speed increases, theinterval between wipes will decrease.
AUTOWIPERS
Note:Fully defrost the windshield beforeswitching on the windshield wipers.
Note:Make sure the windshield wipers areswitched off before entering a car wash.
Note:Clean the windshield and wiperblades if they begin to leave streaks orsmears. If that does not resolve the issue,install new wiper blades.
Note:If you switch autolamps on inconjunction with autowipers, low beamheadlamps will illuminate automaticallywhen the rain sensor activates thewindshield wipers continuously.
Wet or winter driving conditions with ice,snow or salty road mist can causeinconsistent and unexpected wiping orsmearing.
44B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Wipers and Washers

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Condensation in Lamp Assemblies
Exterior lamps have vents toaccommodate normal changes in airpressure.
Condensation can be a natural by-productof this design. When moist air enters thelamp assembly through the vents, there isa possibility that condensation can occurwhen the temperature is cold. Whennormal condensation occurs, a fine mistcan form on the interior of the lens. Thefine mist eventually clears and exitsthrough the vents during normal operation.
Clearing time may take as long as 48 hoursunder dry weather conditions.
Examples of acceptable condensation are:
•The presence of a fine mist (no streaks,drip marks or large droplets).
•A fine mist covers less than 50% of thelens.
Examples of unacceptable condensationare:
•A water puddle inside the lamp.
•Streaks, drip marks or large dropletspresent on the interior of the lens.
If you see any unacceptable condensation,have your vehicle checked by an authorizeddealer.
LIGHTING CONTROL
Lighting Control Positions
OffA
Parking lamps, instrument panellamps, license plate lamps andtail lamps
B
HeadlampsC
Parking Lamps
Note:Prolonged use of the parking lampswill cause the battery to run out of charge.
Switch the ignition off.
Turn the lighting control to position B.
47B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Lighting

Downloaded from www.Manualslib.com manuals search engine High Beams
Pull the lever fully toward you to switchthe high beams on.
Push the lever forward to switch the highbeams off.
Headlamp Flasher
Pull the lever toward you slightly andrelease it to flash the headlamps.
AUTOLAMPS
Note:It may be necessary to switch yourheadlamps on manually in severe weatherconditions.
Note:If you have autolamps on, you canonly switch the high beam on onceautolamps has switched the headlamps on.
Note:If you have autolamps on, you canonly switch the front fog lamps on onceautolamps has switched the headlamps on.
The headlamps will switch on and offautomatically in low light situations orduring inclement weather.
The headlamps will remain on for a periodof time after you switch the ignition off.You can adjust the time delay using theinformation display controls. SeeInformation Displays (page 63).
Note:If you switch autolamps on inconjunction with autowipers, low beamheadlamps will illuminate automaticallywhen the rain sensor turns on the windshieldwipers continuously.
48B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Lighting

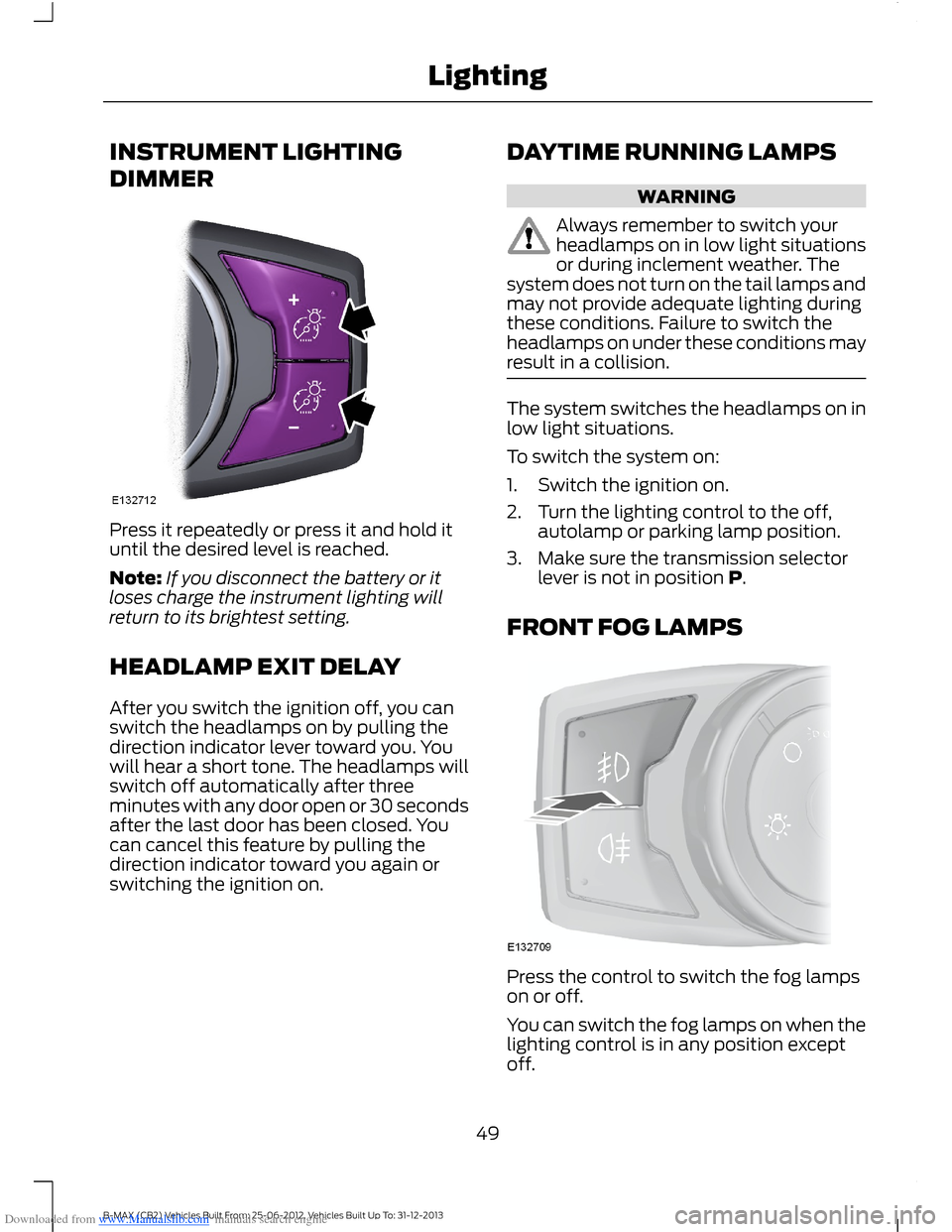

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT LIGHTING
DIMMER
Press it repeatedly or press it and hold ituntil the desired level is reached.
Note:If you disconnect the battery or itloses charge the instrument lighting willreturn to its brightest setting.
HEADLAMP EXIT DELAY
After you switch the ignition off, you canswitch the headlamps on by pulling thedirection indicator lever toward you. Youwill hear a short tone. The headlamps willswitch off automatically after threeminutes with any door open or 30 secondsafter the last door has been closed. Youcan cancel this feature by pulling thedirection indicator toward you again orswitching the ignition on.
DAYTIME RUNNING LAMPS
WARNING
Always remember to switch yourheadlamps on in low light situationsor during inclement weather. Thesystem does not turn on the tail lamps andmay not provide adequate lighting duringthese conditions. Failure to switch theheadlamps on under these conditions mayresult in a collision.
The system switches the headlamps on inlow light situations.
To switch the system on:
1.Switch the ignition on.
2.Turn the lighting control to the off,autolamp or parking lamp position.
3.Make sure the transmission selectorlever is not in position P.
FRONT FOG LAMPS
Press the control to switch the fog lampson or off.
You can switch the fog lamps on when thelighting control is in any position exceptoff.
49B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Lighting

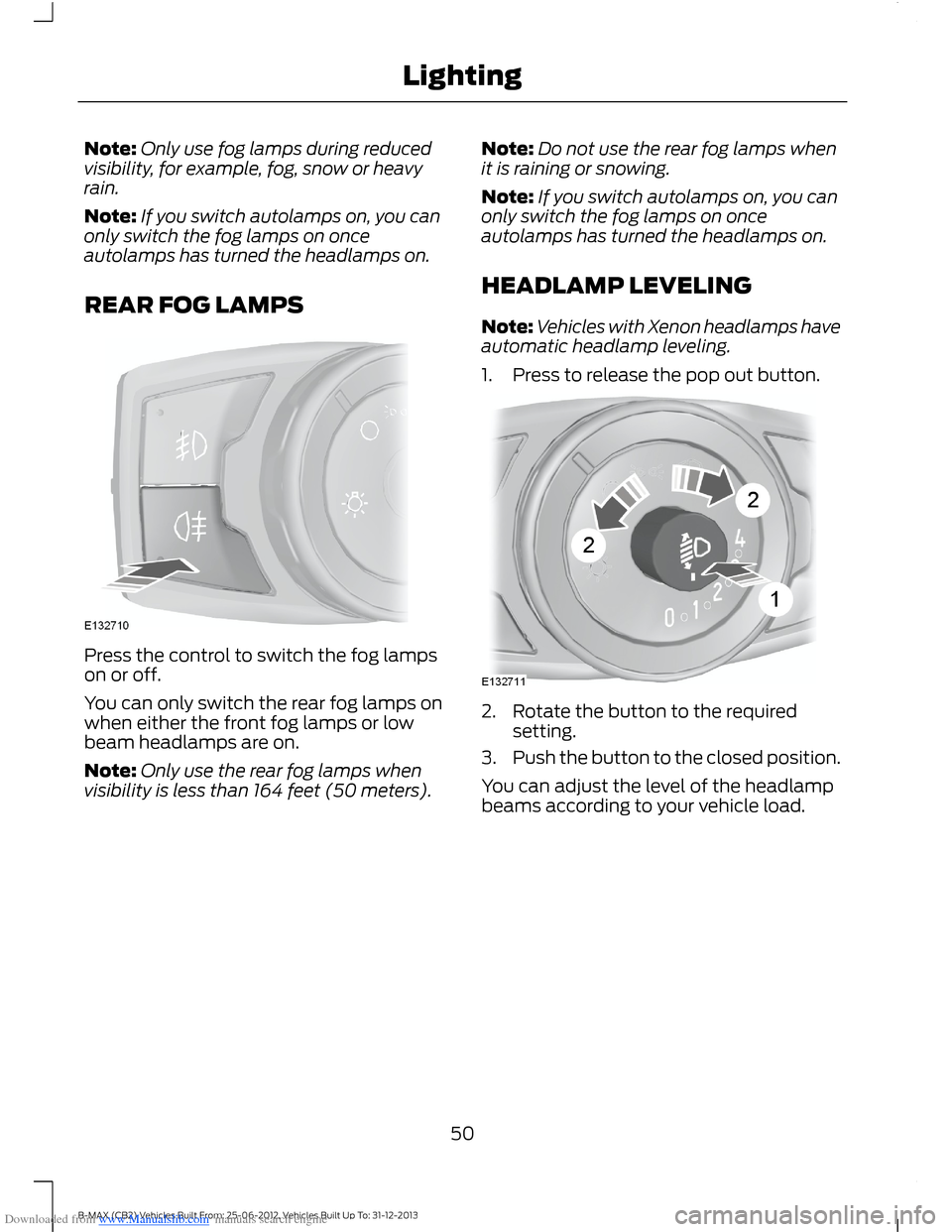

Downloaded from www.Manualslib.com manuals search engine Note:Only use fog lamps during reducedvisibility, for example, fog, snow or heavyrain.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
REAR FOG LAMPS
Press the control to switch the fog lampson or off.
You can only switch the rear fog lamps onwhen either the front fog lamps or lowbeam headlamps are on.
Note:Only use the rear fog lamps whenvisibility is less than 164 feet (50 meters).
Note:Do not use the rear fog lamps whenit is raining or snowing.
Note:If you switch autolamps on, you canonly switch the fog lamps on onceautolamps has turned the headlamps on.
HEADLAMP LEVELING
Note:Vehicles with Xenon headlamps haveautomatic headlamp leveling.
1.Press to release the pop out button.
2.Rotate the button to the requiredsetting.
3.Push the button to the closed position.
You can adjust the level of the headlampbeams according to your vehicle load.
50B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Lighting

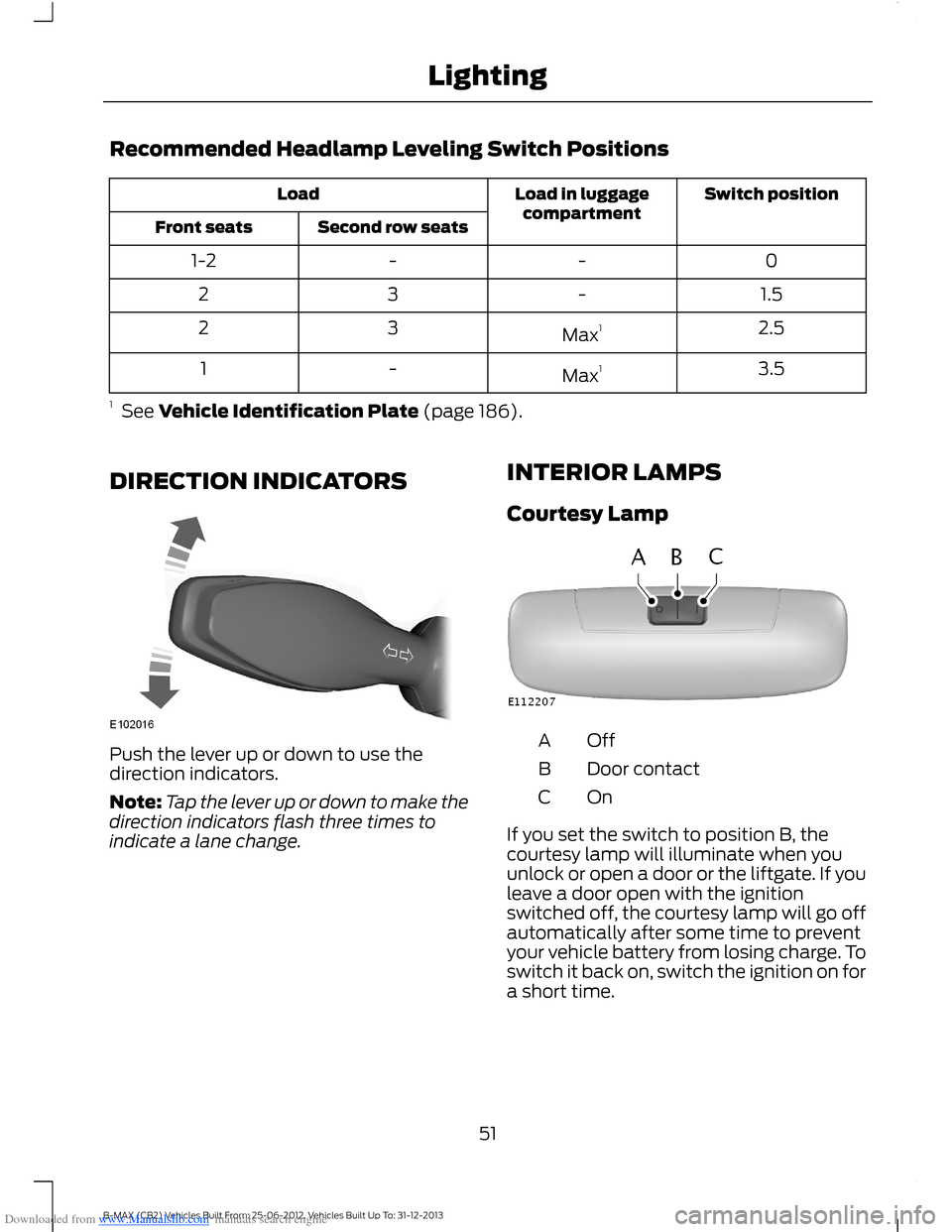

Downloaded from www.Manualslib.com manuals search engine Recommended Headlamp Leveling Switch Positions
Switch positionLoad in luggagecompartmentLoad
Second row seatsFront seats
0--1-2
1.5-32
2.5Max132
3.5Max1-1
1 See Vehicle Identification Plate (page 186).
DIRECTION INDICATORS
Push the lever up or down to use thedirection indicators.
Note:Tap the lever up or down to make thedirection indicators flash three times toindicate a lane change.
INTERIOR LAMPS
Courtesy Lamp
OffA
Door contactB
OnC
If you set the switch to position B, thecourtesy lamp will illuminate when youunlock or open a door or the liftgate. If youleave a door open with the ignitionswitched off, the courtesy lamp will go offautomatically after some time to preventyour vehicle battery from losing charge. Toswitch it back on, switch the ignition on fora short time.
51B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Lighting

Downloaded from www.Manualslib.com manuals search engine WARNING
Have this checked immediately.
If both lamps illuminate together, stop yourvehicle as soon as it is safe to do so(continued use may cause reduced powerand cause the engine to stop). Switch theignition off and attempt to restart theengine. If the engine restarts have thesystem checked by an authorized dealerimmediately.
Front Airbag Warning Lamp
If it illuminates when you aredriving, this indicates amalfunction. Have the systemchecked by an authorized dealer.
Front Fog Lamp Indicator
It will illuminate when you switchthe front fog lamps on.
Frost Warning Lamp
WARNING
Even if the temperature rises toabove 39ºF (4ºC) there is noguarantee that the road is free ofhazards caused by inclement weather.
It will illuminate when theoutside air temperature is 39ºF(4ºC) or below.
Glow Plug Indicator
If it illuminates, wait until itextinguishes before starting.
Exterior Lamps On Indicator
It will illuminate when you switchthe headlamp low beam or theside and tail lamps on.
High Beam Indicator
It will illuminate when you switchthe headlamp high beam on. Itwill flash when you use theheadlamp flasher.
Ignition Warning Lamp
If it illuminates when you aredriving, this indicates amalfunction. Switch off allunnecessary electrical equipment andhave your vehicle checked by an authorizeddealer immediately.
Low Fuel Level Warning Lamp
If it illuminates, refuel as soon aspossible.
Low Tire Pressure Warning Lamp
It will illuminate when the tirepressure is low. See TirePressure Monitoring System(page 178).
Message Center Indicator
It will illuminate when a newmessage is stored in theinformation display. SeeInformation Messages (page 67).
60B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Instrument Cluster

Downloaded from www.Manualslib.com manuals search engine Oil Pressure Warning Lamp
WARNING
Do not resume your journey if itilluminates despite the level beingcorrect. Have the system checked byan authorized dealer immediately.
If it illuminates when you aredriving, this indicates amalfunction. Stop your vehicleas soon as it is safe to do so and switch theengine off. Check the engine oil level. SeeEngine Oil Check (page 157).
Power Steering Warning Lamp
If it illuminates when you aredriving, this indicates amalfunction. You will continueto have full steering but will need to exertgreater force on the steering wheel. Havethe system checked by an authorizeddealer as soon as possible.
Rear Fog Lamp Indicator
It will illuminate when you switchthe rear fog lamps on.
Safety Belt Minder Warning Lamp
It will illuminate when a safetybelt is not fastened. See SafetyBelt Minder (page 22).
Shift Indicator
It will illuminate to inform youthat shifting to a higher gear maygive better fuel economy andlower CO2 emissions. It will notilluminate during periods of highacceleration, when you brake orpress the clutch pedal.
Stability Control Indicator
While driving, it flashes when thesystem is operating. After youswitch the ignition on, if it doesnot illuminate or illuminates continuouslywhile driving, this indicates a malfunction.During a malfunction, the system switchesoff. Have the system checked by anauthorized dealer as soon as possible.
If you switch the electronic stabilityprogram off, the warning lamp willilluminate. The lamp will go out when youswitch the system back on or when youswitch the ignition off.
AUDIBLE WARNINGS AND
INDICATORS
Automatic Transmission
Sounds when you open the driver's doorand do not move the transmission selectorlever to position P.
Key Outside Car
Vehicles With Keyless System
Sounds when you close the door, theengine is running and the system does notdetect a passive key inside your vehicle.
Headlamps On
Sounds when you remove the key from theignition and open the driver's door and youhave left the headlamps or parking lampson.
Low Fuel
A warning chime will sound when theremaining fuel is less than approximately1.3 gallons (6 liters). The distance to emptydisplayed may vary depending on drivingstyle and road conditions.
61B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Instrument Cluster
