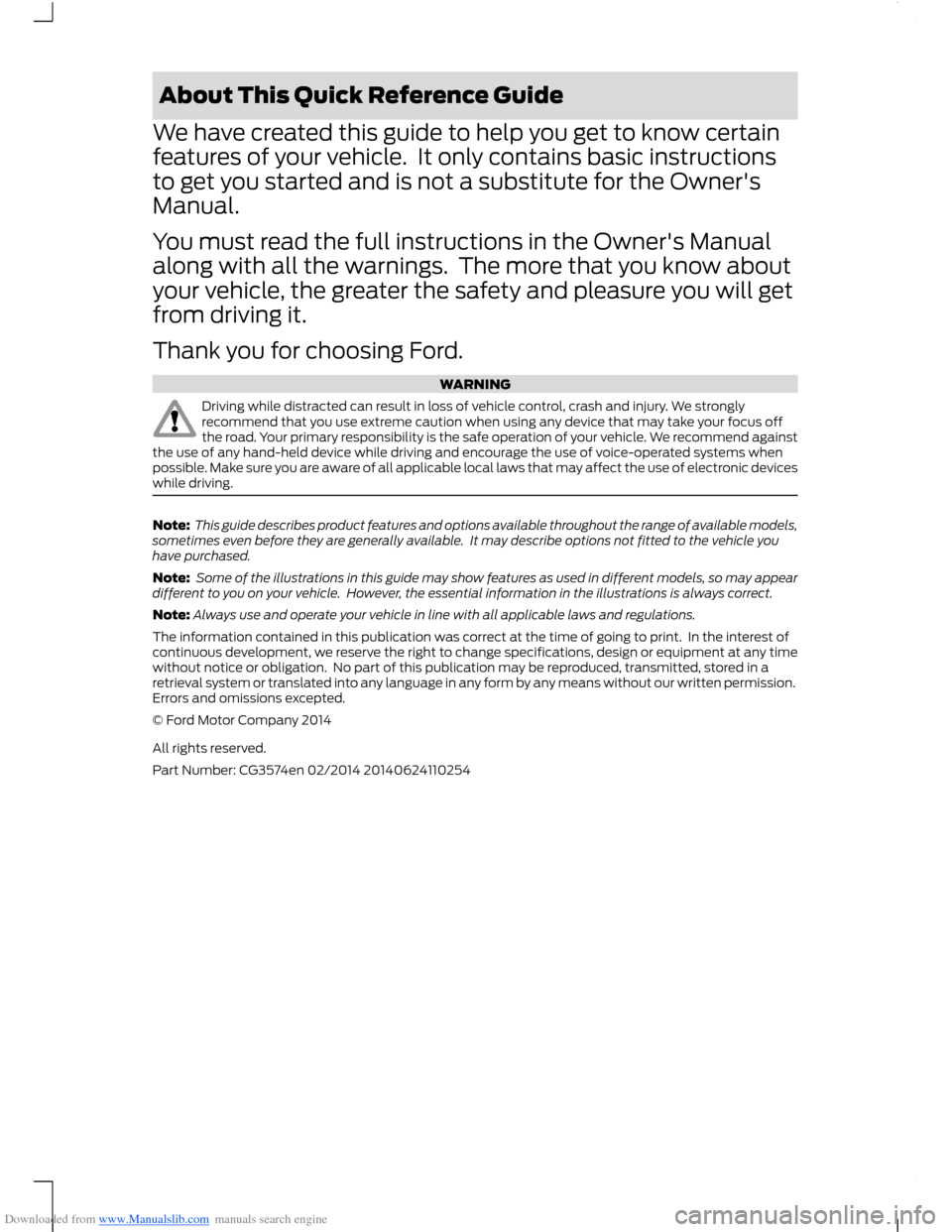

Downloaded from www.Manualslib.com manuals search engine About This Quick Reference Guide
We have created this guide to help you get to know certain
features of your vehicle. It only contains basic instructions
to get you started and is not a substitute for the Owner's
Manual.
You must read the full instructions in the Owner's Manual
along with all the warnings. The more that you know about
your vehicle, the greater the safety and pleasure you will get
from driving it.
Thank you for choosing Ford.
WARNINGDriving while distracted can result in loss of vehicle control, crash and injury. We stronglyrecommend that you use extreme caution when using any device that may take your focus offthe road. Your primary responsibility is the safe operation of your vehicle. We recommend againstthe use of any hand-held device while driving and encourage the use of voice-operated systems whenpossible. Make sure you are aware of all applicable local laws that may affect the use of electronic deviceswhile driving.
Note: This guide describes product features and options available throughout the range of available models,sometimes even before they are generally available. It may describe options not fitted to the vehicle youhave purchased.Note: Some of the illustrations in this guide may show features as used in different models, so may appeardifferent to you on your vehicle. However, the essential information in the illustrations is always correct.Note:Always use and operate your vehicle in line with all applicable laws and regulations.The information contained in this publication was correct at the time of going to print. In the interest ofcontinuous development, we reserve the right to change specifications, design or equipment at any timewithout notice or obligation. No part of this publication may be reproduced, transmitted, stored in aretrieval system or translated into any language in any form by any means without our written permission.Errors and omissions excepted.© Ford Motor Company 2014
All rights reserved.Part Number: CG3574en 02/2014 20140624110254
Page 3 of 17
Downloaded from www.Manualslib.com manuals search engine AT A GLANCE
1B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 4 of 17

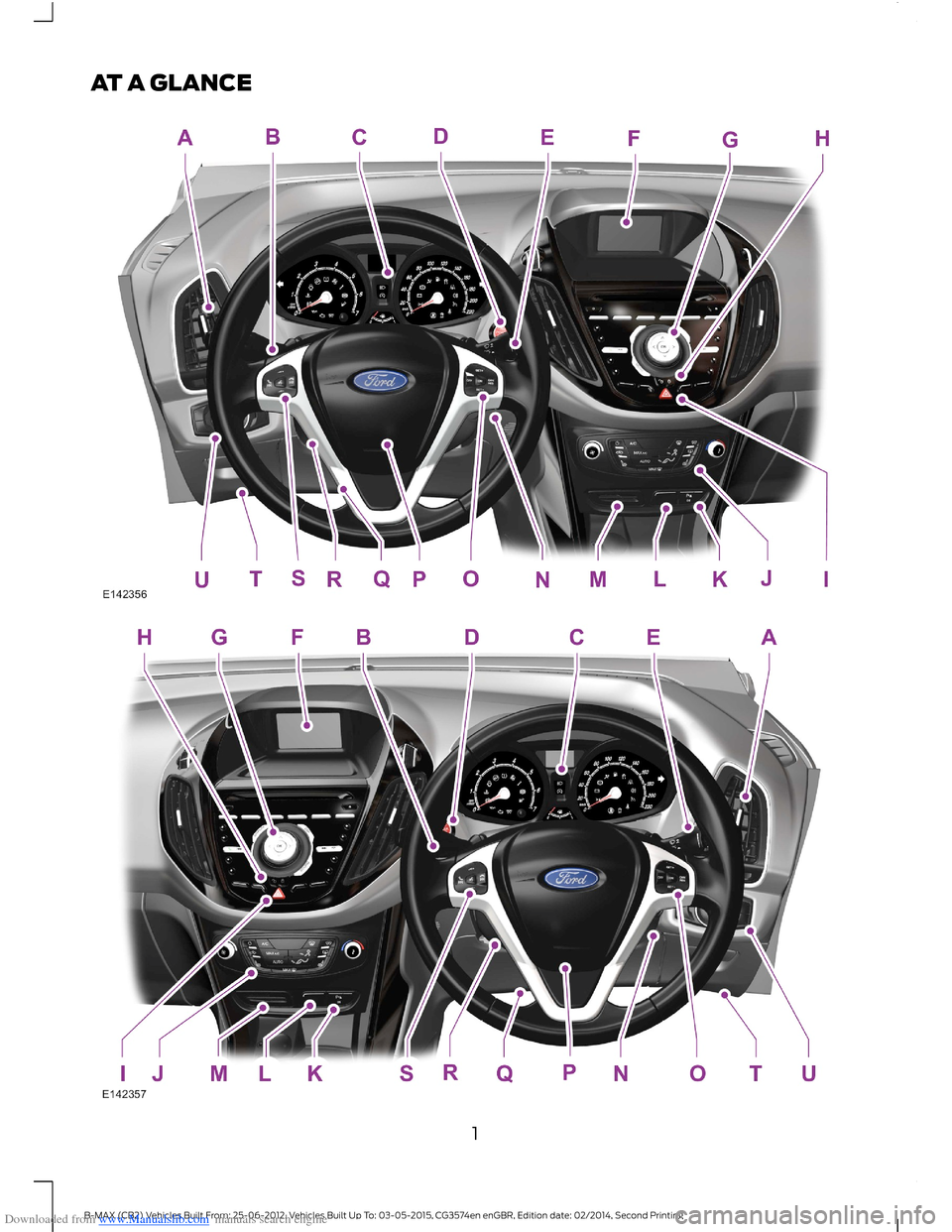

Downloaded from www.Manualslib.com manuals search engine Air vents.A
Direction indicators. High beam.B
Instrument cluster.C
Start button.D
Wiper lever.E
Information and entertainmentdisplay.F
Audio unit.G
Power door lock button.H
Hazard warning flasher switch.I
Climate controls. Heated rearwindow switch. Heatedwindshield switch.
J
Parking aid switch.K
Start-stop switch.L
Card holder or airbag warninglamp.M
Ignition switch.N
Cruise control switches.O
Horn.P
Driver knee airbag.Q
Steering wheel adjustment.R
Audio control. Voice control.S
Hood release lever.T
Lighting control. Front fog lamps.Rear fog lamp. Instrumentlighting dimmer.
U

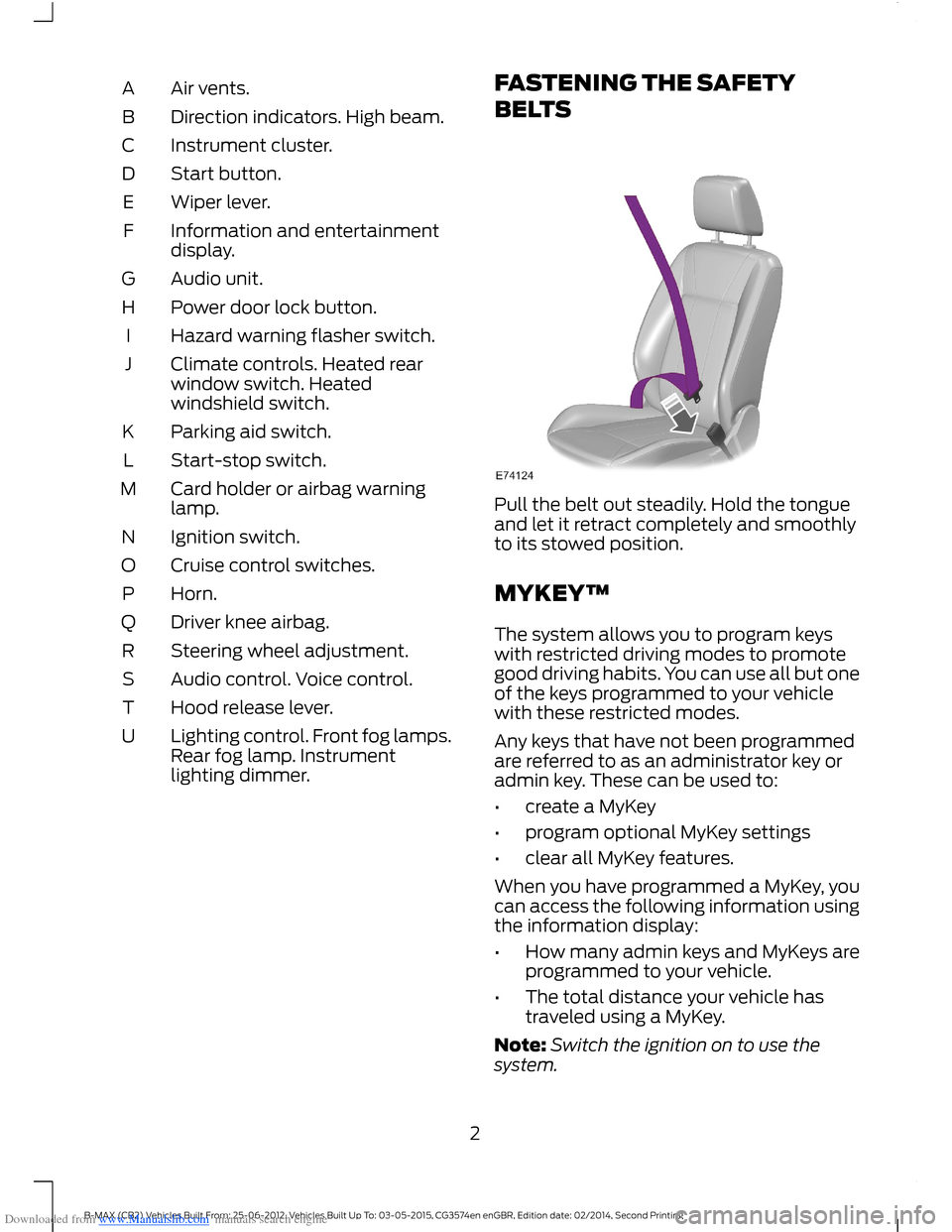

FASTENING THE SAFETY
BELTS
Pull the belt out steadily. Hold the tongueand let it retract completely and smoothlyto its stowed position.
MYKEY™
The system allows you to program keyswith restricted driving modes to promotegood driving habits. You can use all but oneof the keys programmed to your vehiclewith these restricted modes.
Any keys that have not been programmedare referred to as an administrator key oradmin key. These can be used to:
•create a MyKey
•program optional MyKey settings
•clear all MyKey features.
When you have programmed a MyKey, youcan access the following information usingthe information display:
•How many admin keys and MyKeys areprogrammed to your vehicle.
•The total distance your vehicle hastraveled using a MyKey.
Note:Switch the ignition on to use thesystem.
2B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 5 of 17
Downloaded from www.Manualslib.com manuals search engine Note:All MyKeys are programmed to thesame settings. You cannot program themindividually.
Standard Settings
The following settings cannot be changed:
•Safety belt minder. You cannot disablethis feature. The audio system will mutewhen this feature is activated.
•Low fuel level warning. When the fuellevel is low, warnings will be shown inthe display followed by an audible tone.
•Driver assist features, for examplenavigation and parking aids. Thesesystems turn on automaticallywhenever you switch the ignition on.
Optional Settings
You can configure MyKey settings when youfirst create a MyKey. You can also changethe settings afterward with an admin key.
The following settings can be configuredusing an admin key:
•Various vehicle speed limits can be set.Warnings will be shown in the displayfollowed by an audible tone when yourvehicle reaches the set speed. Youcannot override the set speed by fullydepressing the accelerator pedal.
•Various vehicle speed reminders can beset. Warnings will be shown in thedisplay followed by an audible tonewhen the set vehicle speed is exceeded.
•Audio system maximum volume of45%. A message will be shown in thedisplay when you attempt to exceedthe limited volume. Automatic volumecontrol will be disabled.
•Always on setting. When this is selectedyou will not be able to disableemergency assistance or the do notdisturb feature.
Vehicles with Keyless Entry
If a MyKey and an admin key are present,your vehicle will recognize the admin keyonly.

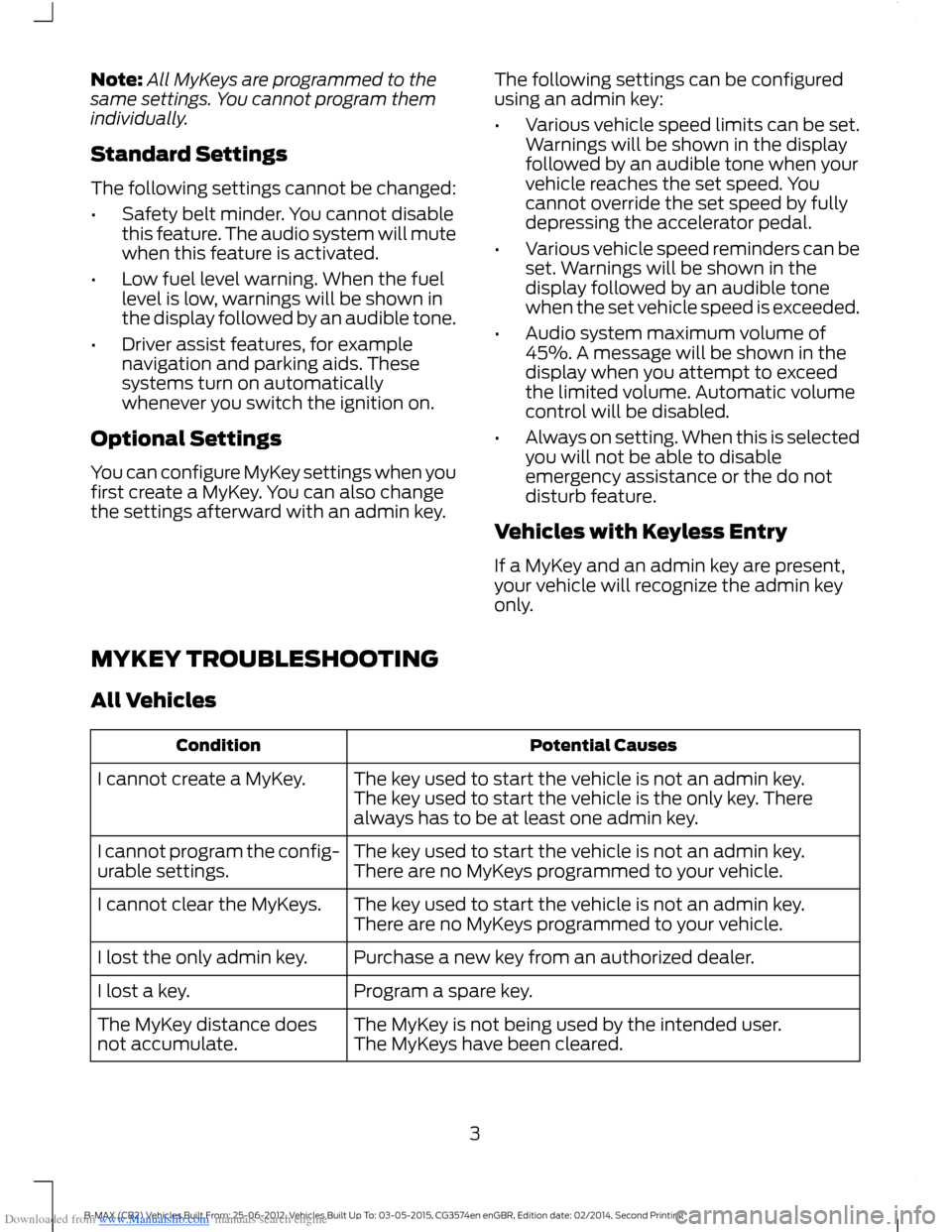

MYKEY TROUBLESHOOTING
All Vehicles
Potential CausesCondition
The key used to start the vehicle is not an admin key.The key used to start the vehicle is the only key. Therealways has to be at least one admin key.
I cannot create a MyKey.
The key used to start the vehicle is not an admin key.There are no MyKeys programmed to your vehicle.I cannot program the config-urable settings.
The key used to start the vehicle is not an admin key.There are no MyKeys programmed to your vehicle.I cannot clear the MyKeys.
Purchase a new key from an authorized dealer.I lost the only admin key.
Program a spare key.I lost a key.
The MyKey is not being used by the intended user.The MyKeys have been cleared.The MyKey distance doesnot accumulate.
3B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 6 of 17
Downloaded from www.Manualslib.com manuals search engine Vehicles With Push Button Start
Potential CausesCondition
The key is not in the backup position.I cannot create a MyKey.
An admin key is present when you switch the ignition on.There are no MyKeys programmed to your vehicle.There are no MyKey drivingmodes.
LOCKING AND UNLOCKING

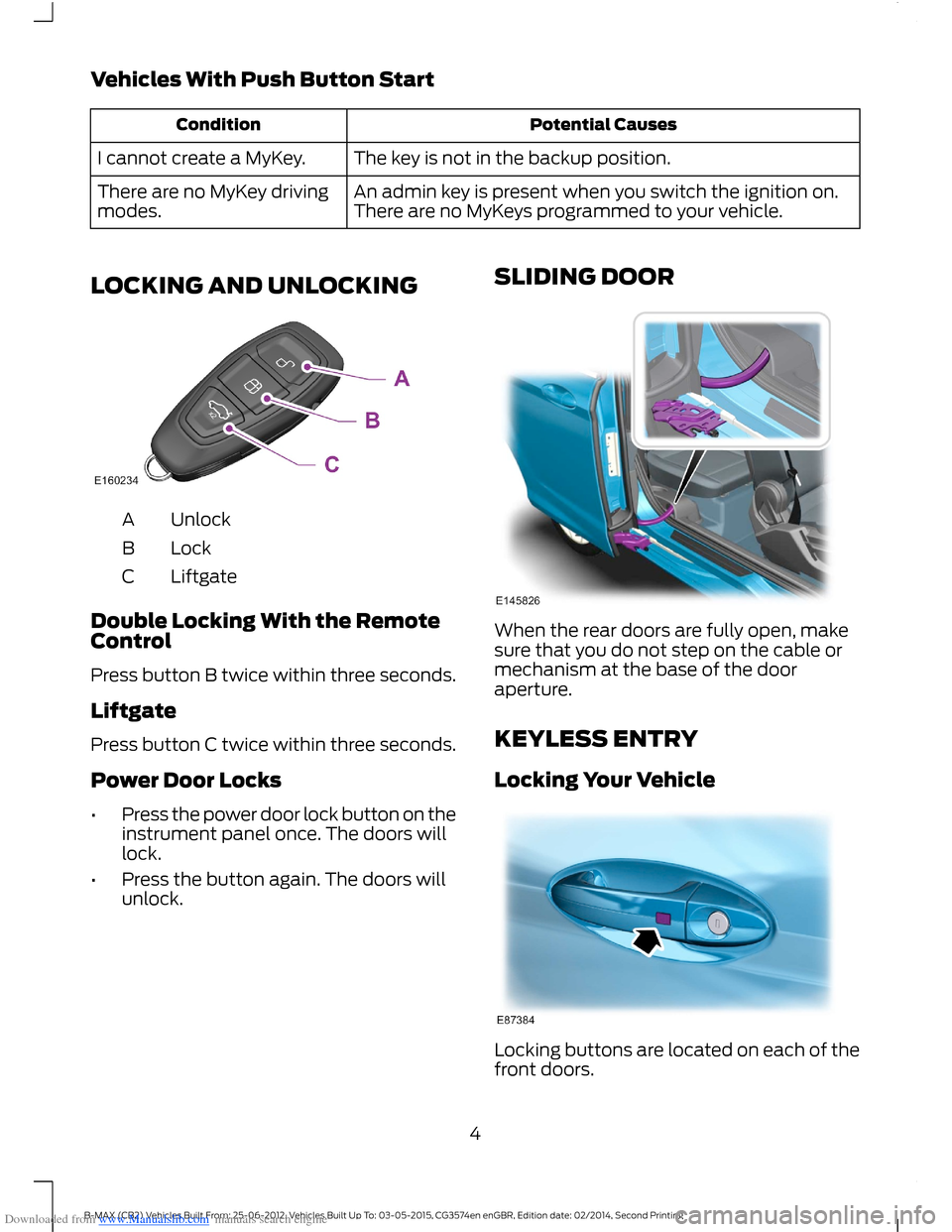

UnlockA
LockB
LiftgateC
Double Locking With the RemoteControl
Press button B twice within three seconds.
Liftgate
Press button C twice within three seconds.
Power Door Locks
•Press the power door lock button on theinstrument panel once. The doors willlock.
•Press the button again. The doors willunlock.
SLIDING DOOR
When the rear doors are fully open, makesure that you do not step on the cable ormechanism at the base of the dooraperture.
KEYLESS ENTRY
Locking Your Vehicle
Locking buttons are located on each of thefront doors.
4B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 7 of 17
Downloaded from www.Manualslib.com manuals search engine For central locking and to arm the alarm,press a locking button once.
For double locking and to arm the alarm,press a locking button twice within threeseconds.
Unlocking Your Vehicle
Press a locking button once.

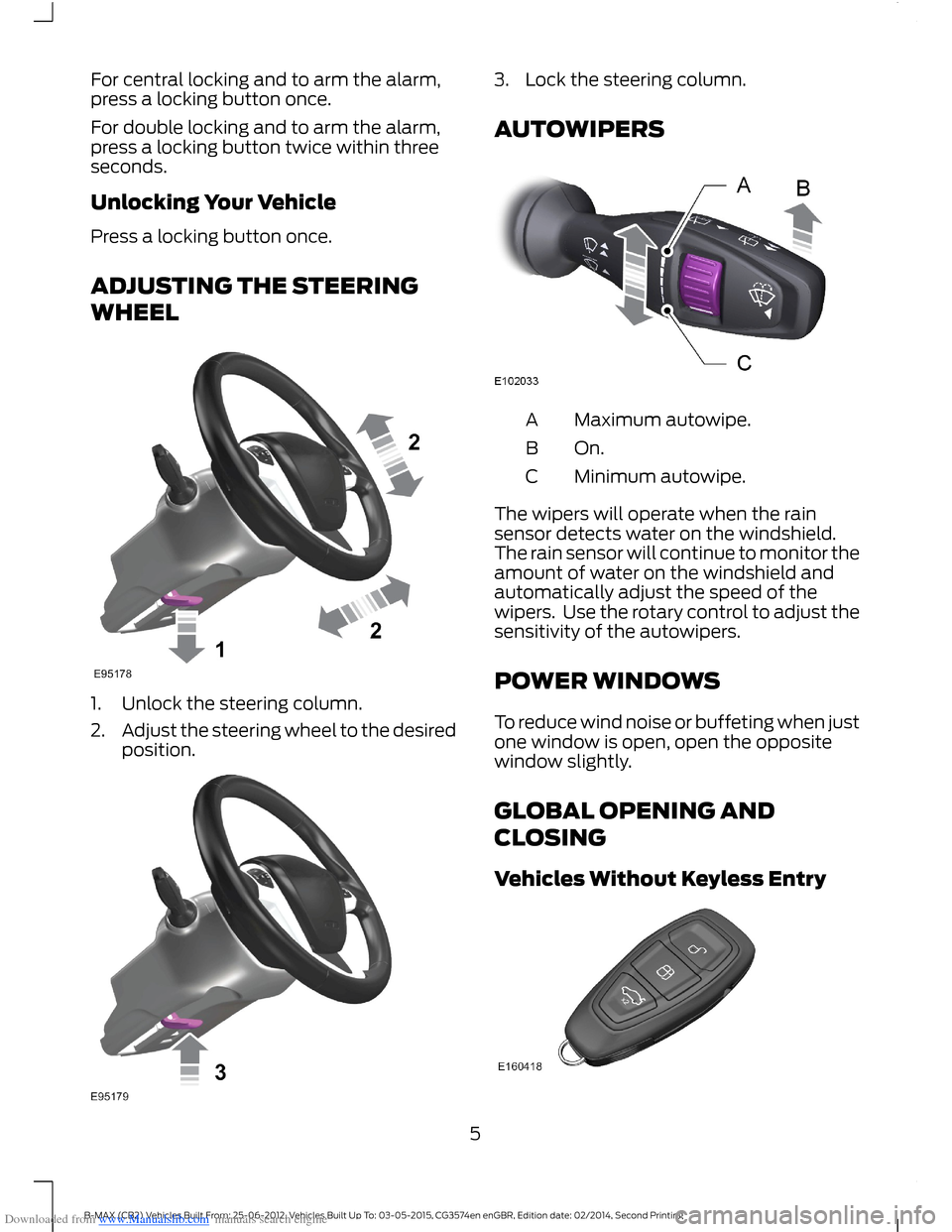

ADJUSTING THE STEERING
WHEEL
1.Unlock the steering column.
2.Adjust the steering wheel to the desiredposition.
3.Lock the steering column.
AUTOWIPERS
Maximum autowipe.A
On.B
Minimum autowipe.C
The wipers will operate when the rainsensor detects water on the windshield.The rain sensor will continue to monitor theamount of water on the windshield andautomatically adjust the speed of thewipers. Use the rotary control to adjust thesensitivity of the autowipers.
POWER WINDOWS
To reduce wind noise or buffeting when justone window is open, open the oppositewindow slightly.
GLOBAL OPENING AND
CLOSING
Vehicles Without Keyless Entry
5B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 8 of 17

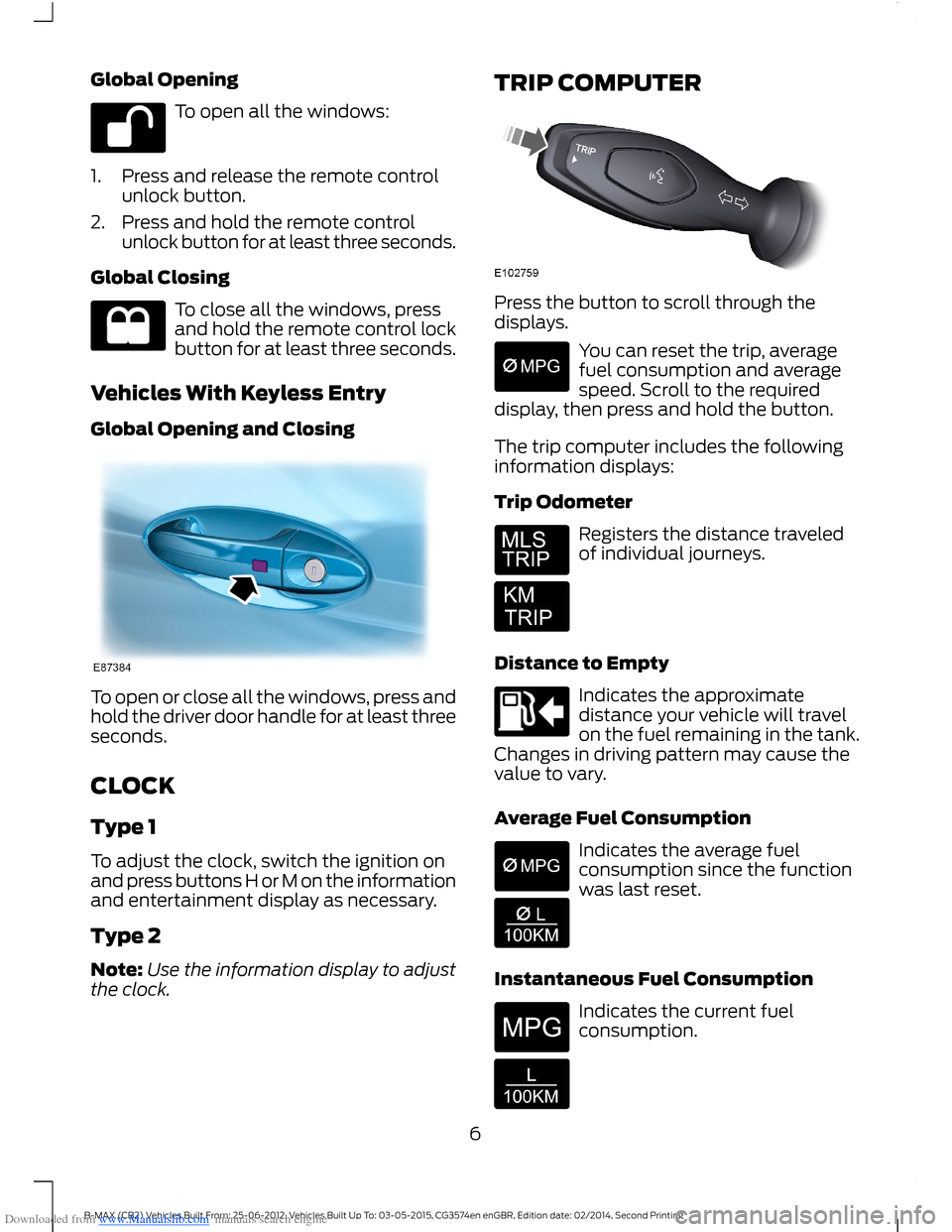

Downloaded from www.Manualslib.com manuals search engine Global Opening
To open all the windows:
1.Press and release the remote controlunlock button.
2.Press and hold the remote controlunlock button for at least three seconds.
Global Closing
To close all the windows, pressand hold the remote control lockbutton for at least three seconds.
Vehicles With Keyless Entry
Global Opening and Closing
To open or close all the windows, press andhold the driver door handle for at least threeseconds.
CLOCK
Type 1
To adjust the clock, switch the ignition onand press buttons H or M on the informationand entertainment display as necessary.
Type 2
Note:Use the information display to adjustthe clock.
TRIP COMPUTER
Press the button to scroll through thedisplays.
You can reset the trip, averagefuel consumption and averagespeed. Scroll to the requireddisplay, then press and hold the button.
The trip computer includes the followinginformation displays:
Trip Odometer
Registers the distance traveledof individual journeys.
Distance to Empty
Indicates the approximatedistance your vehicle will travelon the fuel remaining in the tank.Changes in driving pattern may cause thevalue to vary.
Average Fuel Consumption
Indicates the average fuelconsumption since the functionwas last reset.
Instantaneous Fuel Consumption
Indicates the current fuelconsumption.
6B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 9 of 17
Downloaded from www.Manualslib.com manuals search engine Stationary Fuel Consumption
Indicates the current fuelconsumption while stationary.
Average Speed
Indicates the average speedcalculated since the function waslast reset.
Distance Odometer
Registers the total distance yourvehicle has traveled.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
Manual Climate Control

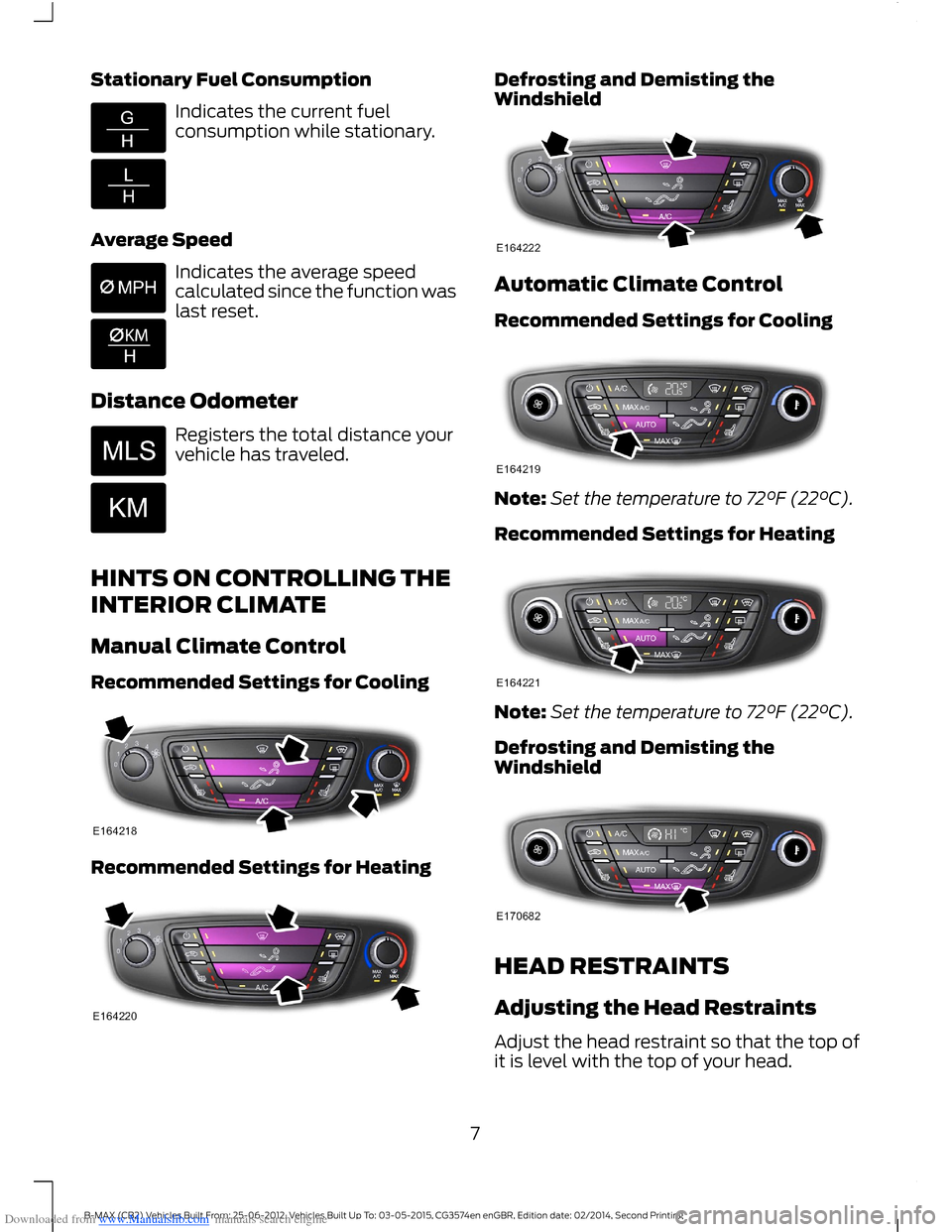

Recommended Settings for Cooling
Recommended Settings for Heating
Defrosting and Demisting theWindshield
Automatic Climate Control
Recommended Settings for Cooling
Note:Set the temperature to 72°F (22°C).
Recommended Settings for Heating
Note:Set the temperature to 72°F (22°C).
Defrosting and Demisting theWindshield
HEAD RESTRAINTS
Adjusting the Head Restraints
Adjust the head restraint so that the top ofit is level with the top of your head.
7B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
Page 10 of 17

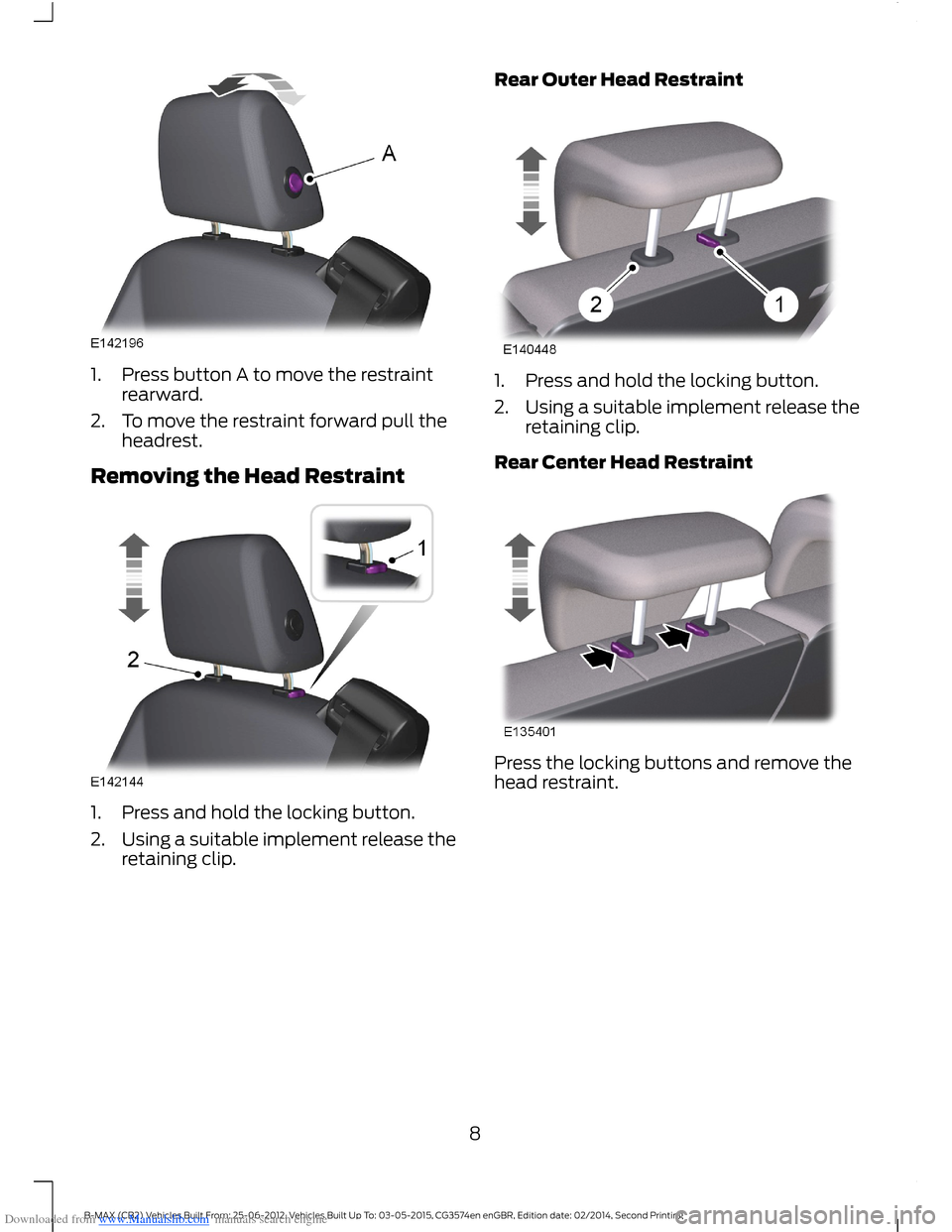

Downloaded from www.Manualslib.com manuals search engine 1.Press button A to move the restraintrearward.
2.To move the restraint forward pull theheadrest.
Removing the Head Restraint
1.Press and hold the locking button.
2.Using a suitable implement release theretaining clip.
Rear Outer Head Restraint
1.Press and hold the locking button.
2.Using a suitable implement release theretaining clip.
Rear Center Head Restraint
Press the locking buttons and remove thehead restraint.
