window FORD B MAX 2014 1.G Quick Reference Guide

Downloaded from www.Manualslib.com manuals search engine Air vents.A
Direction indicators. High beam.B
Instrument cluster.C
Start button.D
Wiper lever.E
Information and entertainmentdisplay.F
Audio unit.G
Power door lock button.H
Hazard warning flasher switch.I
Climate controls. Heated rearwindow switch. Heatedwindshield switch.
J
Parking aid switch.K
Start-stop switch.L
Card holder or airbag warninglamp.M
Ignition switch.N
Cruise control switches.O
Horn.P
Driver knee airbag.Q
Steering wheel adjustment.R
Audio control. Voice control.S
Hood release lever.T
Lighting control. Front fog lamps.Rear fog lamp. Instrumentlighting dimmer.
U
FASTENING THE SAFETY
BELTS
Pull the belt out steadily. Hold the tongueand let it retract completely and smoothlyto its stowed position.
MYKEY™
The system allows you to program keyswith restricted driving modes to promotegood driving habits. You can use all but oneof the keys programmed to your vehiclewith these restricted modes.
Any keys that have not been programmedare referred to as an administrator key oradmin key. These can be used to:
•create a MyKey
•program optional MyKey settings
•clear all MyKey features.
When you have programmed a MyKey, youcan access the following information usingthe information display:
•How many admin keys and MyKeys areprogrammed to your vehicle.
•The total distance your vehicle hastraveled using a MyKey.
Note:Switch the ignition on to use thesystem.
2B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine For central locking and to arm the alarm,press a locking button once.
For double locking and to arm the alarm,press a locking button twice within threeseconds.
Unlocking Your Vehicle
Press a locking button once.
ADJUSTING THE STEERING
WHEEL
1.Unlock the steering column.
2.Adjust the steering wheel to the desiredposition.
3.Lock the steering column.
AUTOWIPERS
Maximum autowipe.A
On.B
Minimum autowipe.C
The wipers will operate when the rainsensor detects water on the windshield.The rain sensor will continue to monitor theamount of water on the windshield andautomatically adjust the speed of thewipers. Use the rotary control to adjust thesensitivity of the autowipers.
POWER WINDOWS
To reduce wind noise or buffeting when justone window is open, open the oppositewindow slightly.
GLOBAL OPENING AND
CLOSING
Vehicles Without Keyless Entry
5B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing

Downloaded from www.Manualslib.com manuals search engine Global Opening
To open all the windows:
1.Press and release the remote controlunlock button.
2.Press and hold the remote controlunlock button for at least three seconds.
Global Closing
To close all the windows, pressand hold the remote control lockbutton for at least three seconds.
Vehicles With Keyless Entry
Global Opening and Closing
To open or close all the windows, press andhold the driver door handle for at least threeseconds.
CLOCK
Type 1
To adjust the clock, switch the ignition onand press buttons H or M on the informationand entertainment display as necessary.
Type 2
Note:Use the information display to adjustthe clock.
TRIP COMPUTER
Press the button to scroll through thedisplays.
You can reset the trip, averagefuel consumption and averagespeed. Scroll to the requireddisplay, then press and hold the button.
The trip computer includes the followinginformation displays:
Trip Odometer
Registers the distance traveledof individual journeys.
Distance to Empty
Indicates the approximatedistance your vehicle will travelon the fuel remaining in the tank.Changes in driving pattern may cause thevalue to vary.
Average Fuel Consumption
Indicates the average fuelconsumption since the functionwas last reset.
Instantaneous Fuel Consumption
Indicates the current fuelconsumption.
6B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing

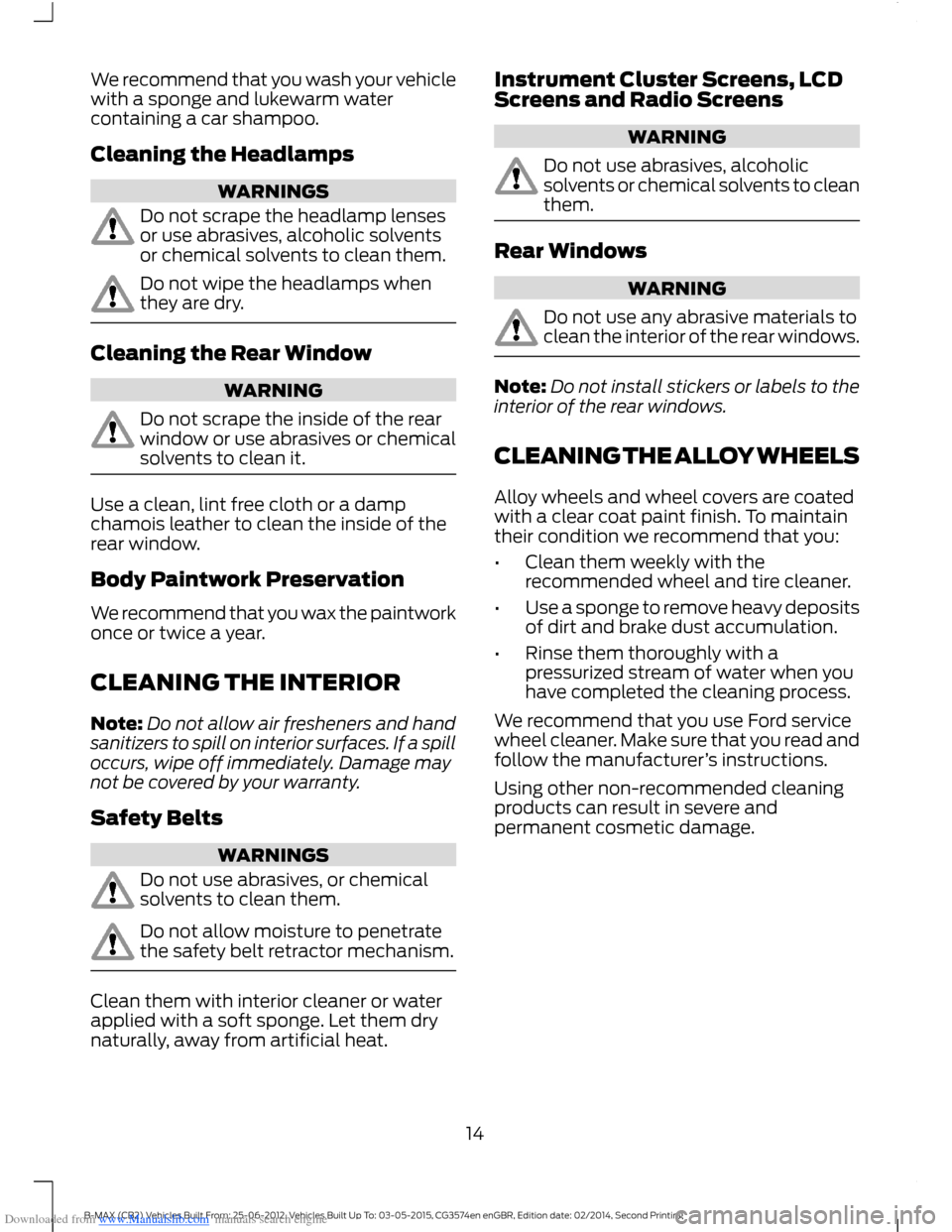

Downloaded from www.Manualslib.com manuals search engine We recommend that you wash your vehiclewith a sponge and lukewarm watercontaining a car shampoo.
Cleaning the Headlamps
WARNINGS
Do not scrape the headlamp lensesor use abrasives, alcoholic solventsor chemical solvents to clean them.
Do not wipe the headlamps whenthey are dry.
Cleaning the Rear Window
WARNING
Do not scrape the inside of the rearwindow or use abrasives or chemicalsolvents to clean it.
Use a clean, lint free cloth or a dampchamois leather to clean the inside of therear window.
Body Paintwork Preservation
We recommend that you wax the paintworkonce or twice a year.
CLEANING THE INTERIOR
Note:Do not allow air fresheners and handsanitizers to spill on interior surfaces. If a spilloccurs, wipe off immediately. Damage maynot be covered by your warranty.
Safety Belts
WARNINGS
Do not use abrasives, or chemicalsolvents to clean them.
Do not allow moisture to penetratethe safety belt retractor mechanism.
Clean them with interior cleaner or waterapplied with a soft sponge. Let them drynaturally, away from artificial heat.
Instrument Cluster Screens, LCDScreens and Radio Screens
WARNING
Do not use abrasives, alcoholicsolvents or chemical solvents to cleanthem.
Rear Windows
WARNING
Do not use any abrasive materials toclean the interior of the rear windows.
Note:Do not install stickers or labels to theinterior of the rear windows.
CLEANING THE ALLOY WHEELS
Alloy wheels and wheel covers are coatedwith a clear coat paint finish. To maintaintheir condition we recommend that you:
•Clean them weekly with therecommended wheel and tire cleaner.
•Use a sponge to remove heavy depositsof dirt and brake dust accumulation.
•Rinse them thoroughly with apressurized stream of water when youhave completed the cleaning process.
We recommend that you use Ford servicewheel cleaner. Make sure that you read andfollow the manufacturer’s instructions.
Using other non-recommended cleaningproducts can result in severe andpermanent cosmetic damage.
14B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 03-05-2015, CG3574en enGBR, Edition date: 02/2014, Second Printing
