wiper fluid FORD BRONCO 1988 Owners Manual

108
*
[SC04950( ALL)10/92]

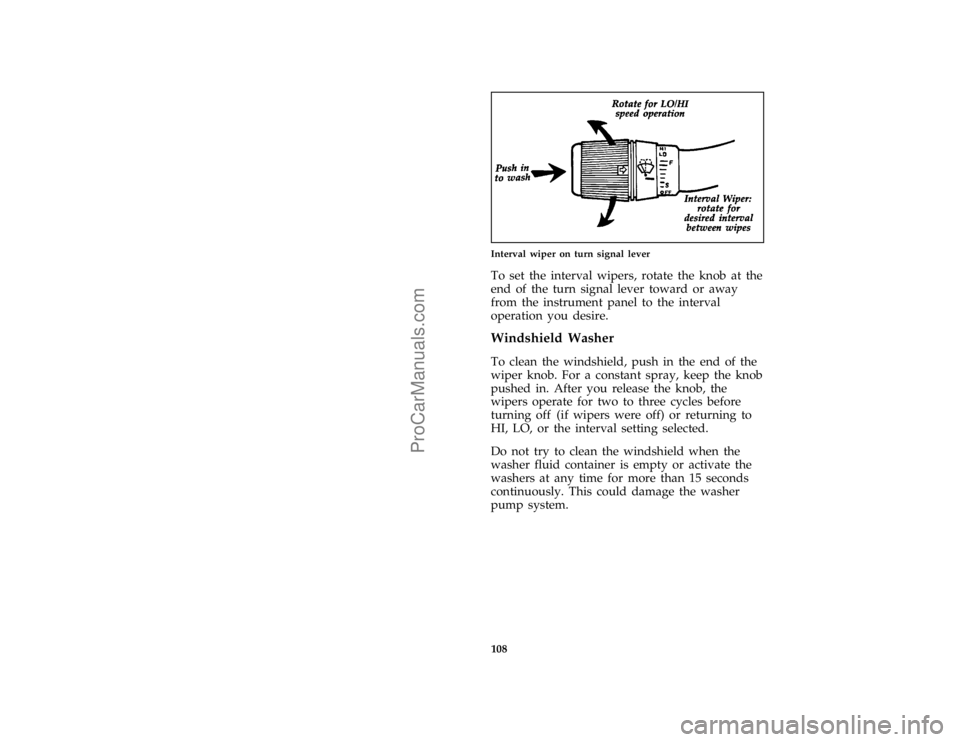

one third page art:0020831-A
Interval wiper on turn signal lever
*
[SC05000( ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05100( ALL)04/95]
Windshield Washer
*
[SC05200( ALL)03/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
HI, LO, or the interval setting selected.
*
[SC05300( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
File:ltscb.ex
Update:Fri Jun 9 15:29:08 1995
ProCarManuals.com

109
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(BEF )04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05527(BE )10/94]
The flashers will flash and the high-mount
brakelamp will stay on steadily (not flash) with
the brake pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
File:ltscb.ex
Update:Fri Jun 9 15:29:08 1995
ProCarManuals.com

301
*
[SV22700(BEF )03/95]
Windshield Washer Fluid and
Wipers
*
[SV22800(BEF )03/95]
Washer Fluid
*
[SV22900(BEF )01/95]
Check the level of the windshield washer fluid
every time you stop for fuel. The reservoir for
the windshield washer fluid is located in the
engine compartment.
*
[SV23200(BEF )03/95]
Adding washer fluid
*
[SV23300(BEF )05/95]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
*
[SV23600(B F )02/92]

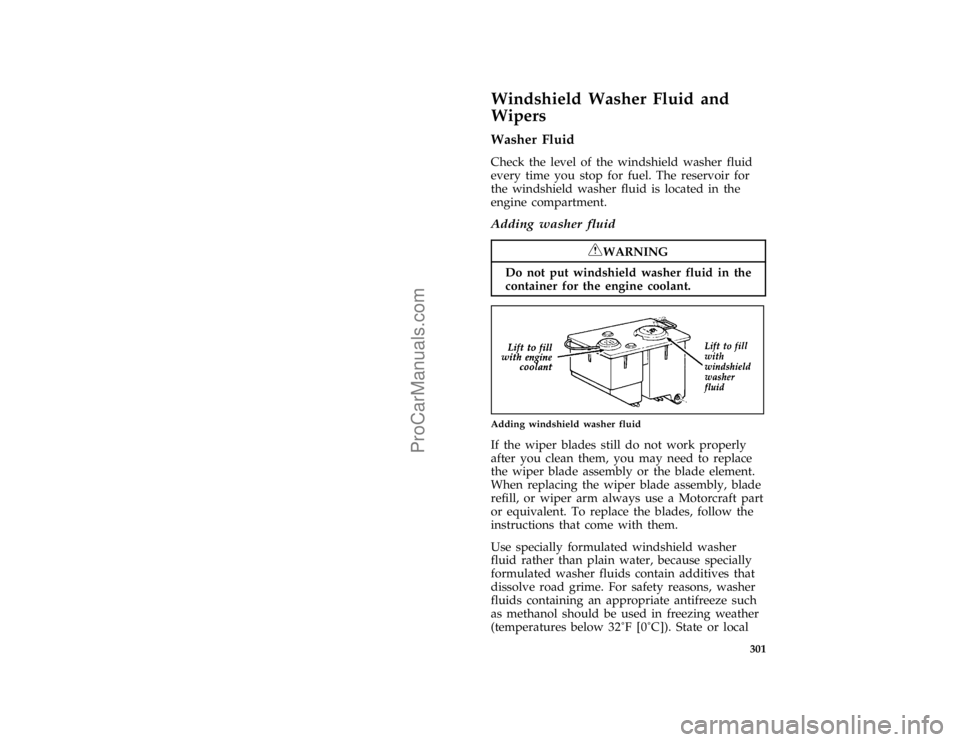

quarter page art:0020360-C
Adding windshield washer fluid
*
[SV23700(B )03/95]
If the wiper blades still do not work properly
after you clean them, you may need to replace
the wiper blade assembly or the blade element.
When replacing the wiper blade assembly, blade
refill, or wiper arm always use a Motorcraft part
or equivalent. To replace the blades, follow the
instructions that come with them.
%*
[SV23850(BEF )01/95]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

302regulations on Volatile Organic Compounds
(VOC's) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
*
[SV23900(BEF )10/89]
If you choose to use a windshield washing
solution that must be mixed, follow the
manufacturer's mixing instructions. Improperly
mixed solutions may freeze unexpectedly.
[SV24000(BEF )04/95]
NOTE: The addition of shields to the front of
the vehicle, as used to deflect bugs,
may also adversely affect the washer
system from delivering fluid to the
windshield. Devices such as bug
shields are not recommended to be
added to your new Ford product.
%*
[SV24500(BEF )03/95]
Wiper Blades
*
[SV24600(BEF )03/95]
Check the windshield wiper blades at least twice
a year. Also check them whenever they seem
less effective than usual. Such substances as tree
sap and some hot wax treatments used by
commercial car washes reduce the effectiveness
of wiper blades.
*
[SV24700(BEF )03/95]
If the blades do not wipe properly, clean both
the windshield and the wiper blades. Use
undiluted windshield washer solution or a mild
detergent. Rinse thoroughly with clear water. Do
not use fuel, kerosene, paint thinner, or other
solvents to clean your wiper blades. These will
damage your blades.
*
[SV24800(BEF )02/95]
To make reaching the wiper blades easy, simply
turn the ignition switch to ACC and turn your
wipers on. Wait for them to reach a vertical
position and turn the ignition to OFF. Do not
move the wipers manually. Moving the wipers
manually may damage them.
File:ltsvb.ex
Update:Tue Jun 20 16:56:22 1995
ProCarManuals.com

Index 379
Transmission
automatic operation.......... 176
fluid, checking and adding
(automatic)............ 314
fluid, checking and adding (manual) . . 316
lubricant specifications........ 347
manual operation........... 182
Transmission control switch....... 179
Transmitter (see Remote entry)...... 121
Tune-up specifications (VECI)...... 341
Turn signal, lever............ 105
U
Used engine oil, disposal....294, 298, 315
V
Variable interval wipers......... 107
VECI (Vehicle Emission Control
Information) decal.......... 341
Vehicle Identification Number (VIN).... 5
Vehicle loading............. 216
Vehicle storage............. 351
Voltmeter (see Battery voltage gauge).... 82
W
Warm engine, starting........... 66
Warning chimes
key in ignition............. 61
safety belt............... 78
Warning lights, testing........... 64
Warning lights (see Lights)......... 73
Warranties, radio............ 174
Warranty Information Booklet....... 4
Washer fluid, reservoir......... 301
Weight limits (GAWR, GVWR)...... 214
Wheel and tire matching......... 310
Wheel bearings lubricant specifications . . 347
File:ltixb.ex
Update:Fri Jun 9 15:21:14 1995
ProCarManuals.com

380 Index
Wheels
cleaning............... 311
inspection and maintenance...... 303
Windows................ 126
power windows, operating....... 127
Windshield washer fluid and wipers
checking and adding fluid....... 301
checking and replacing wiper blades . . 302
operation............... 107
reservoir............... 301
specifications...........301, 347
